Description

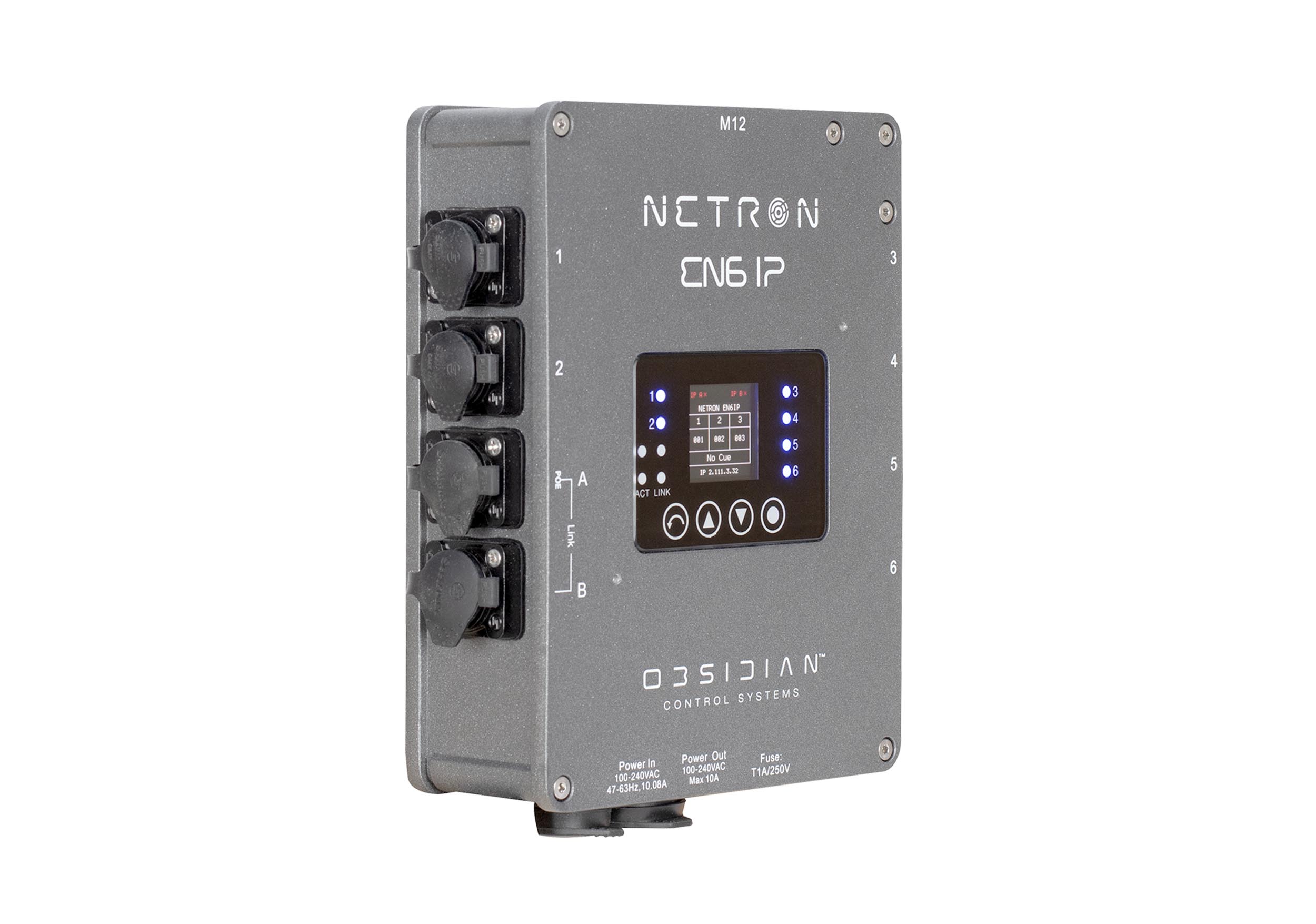

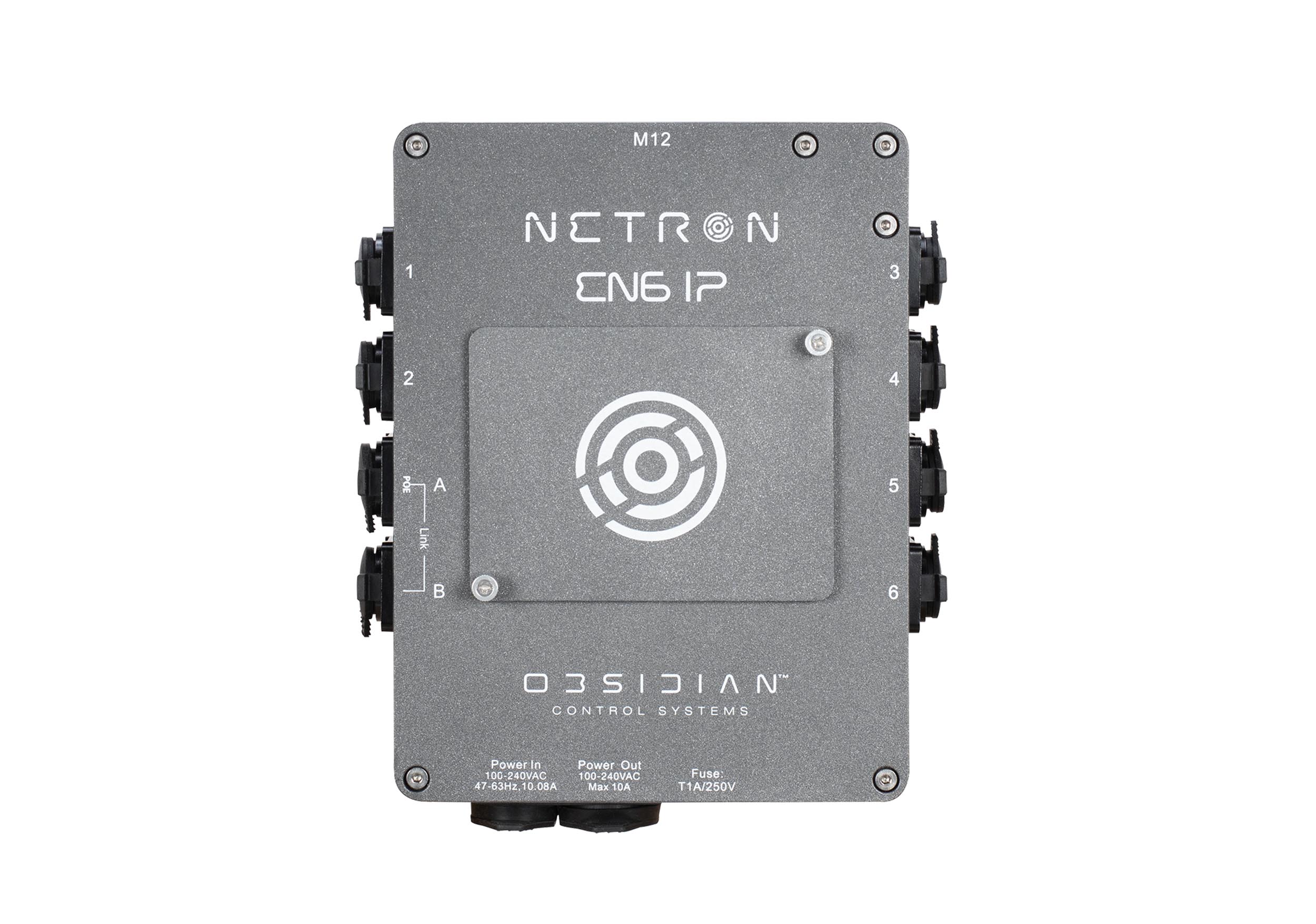

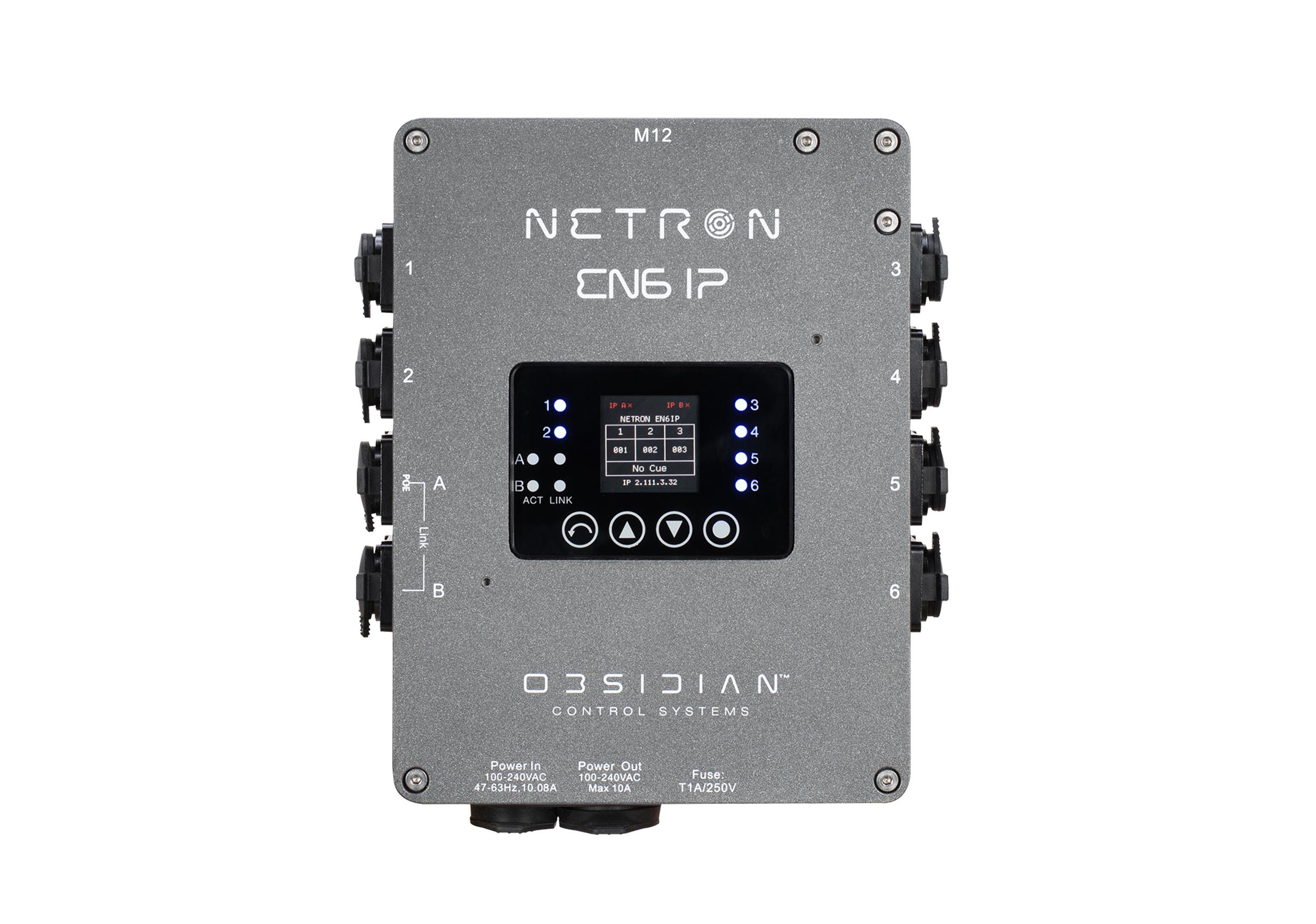

The Elation EN6 IP, 6-Port IP66 is a rugged, weatherproof Ethernet-to-DMX gateway designed for demanding live production environments, outdoor installations, and film sets. Housed in a durable IP66-rated aluminum chassis, the EN6 IP offers six optically isolated DMX/RDM ports and supports Art-Net, sACN, and RDM protocols.
This gateway is remotely configurable, includes user and factory presets, and features a 1.8” OLED display with waterproof touch controls. Power options include line voltage (100–240V AC) or PoE (802.3af). With 99 internal cues, fade/delay settings, and bidirectional DMX support, it offers reliable and advanced functionality in any weather.
As a bonus, the EN6 IP unlocks the 4-universe ONYX NOVA lighting control license, making it an all-in-one solution for intelligent lighting networks.
Product Specifications:
Mounting Options:
Standalone
Truss-mount (M10 or M12)

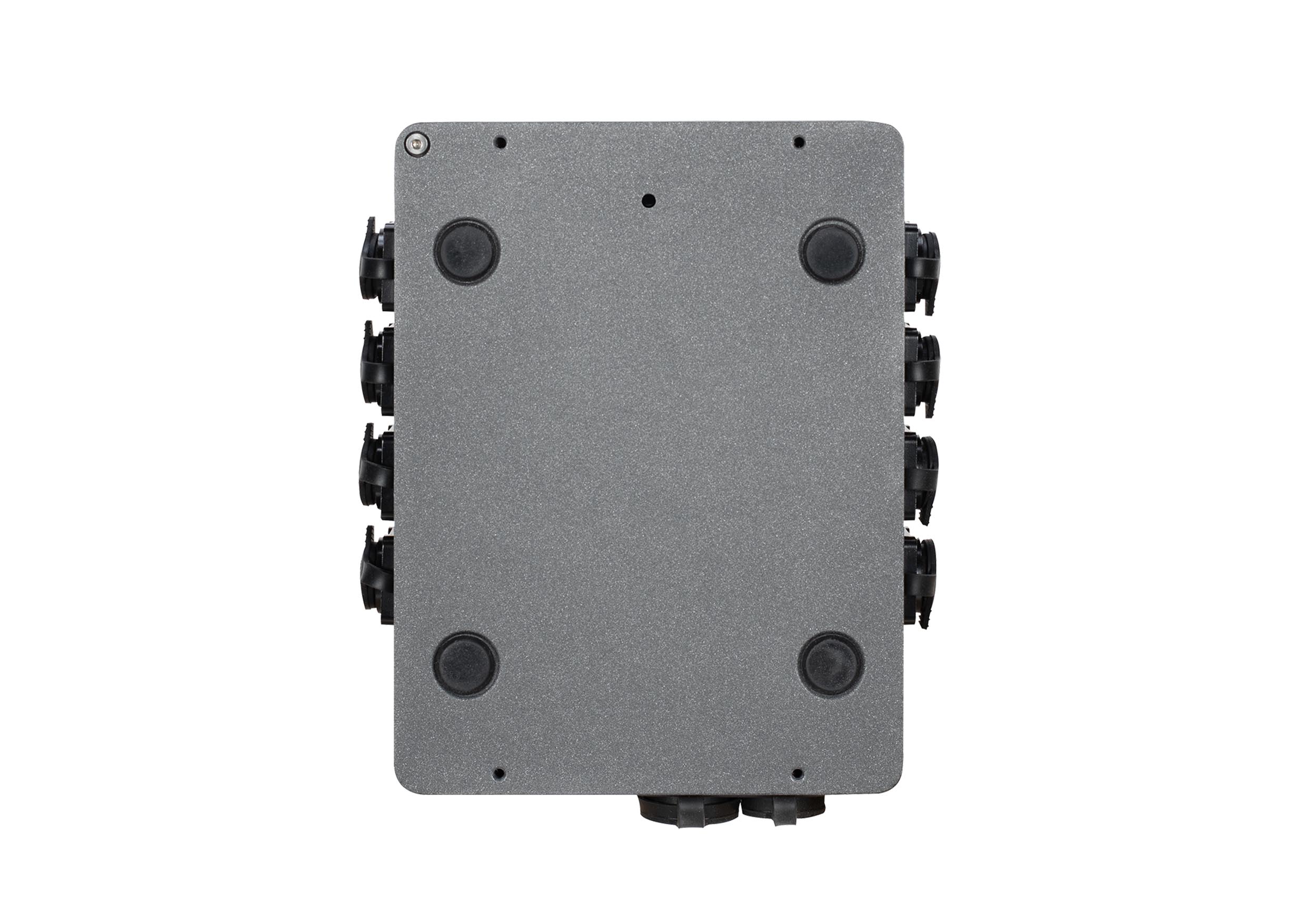

Wall-mount (brackets included)
Connectivity:

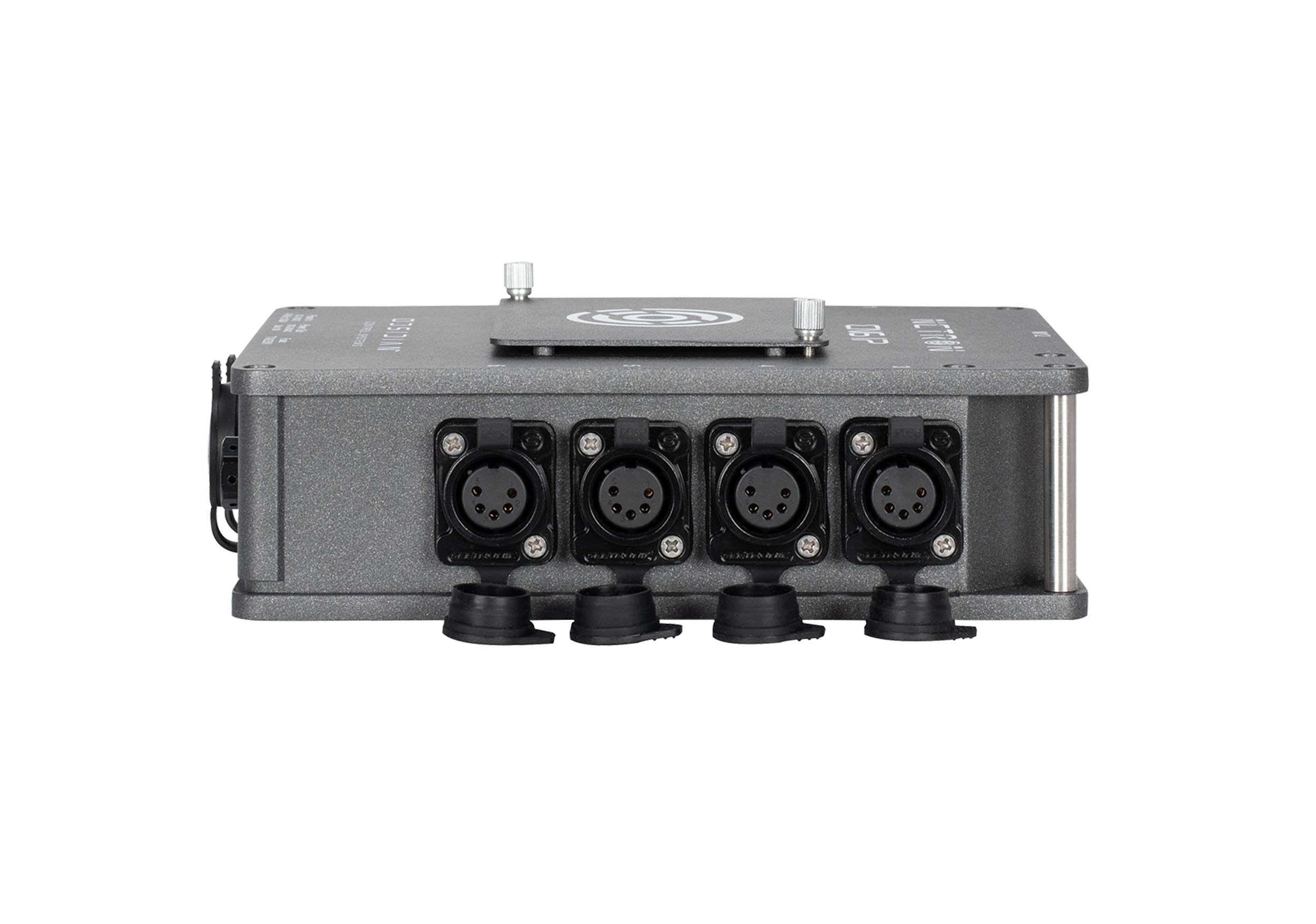

(6) IP66 5-pin DMX/RDM ports, bidirectional (DMX In/Out)

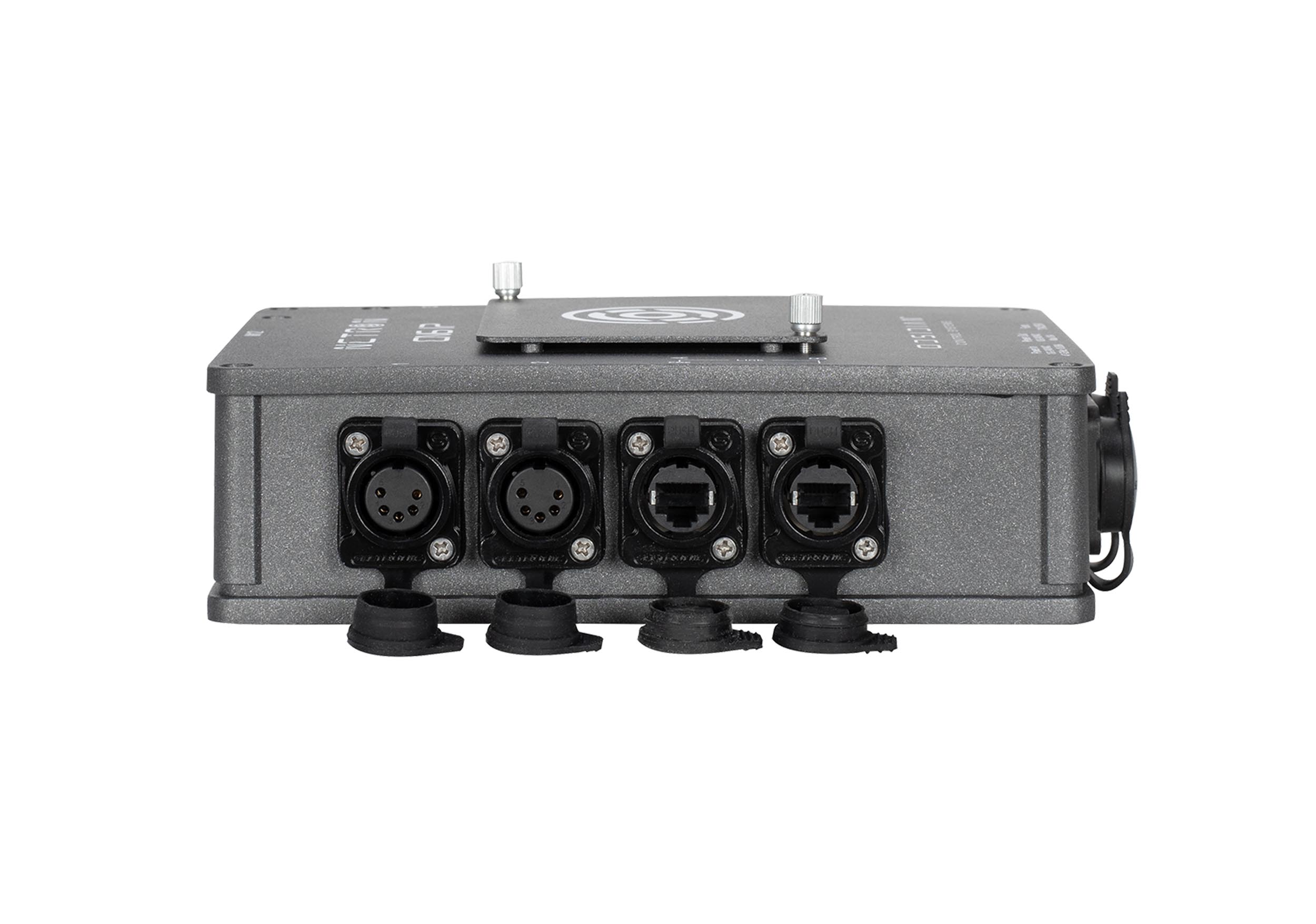

(2) IP66 locking RJ45 Ethernet ports (1x PoE capable)

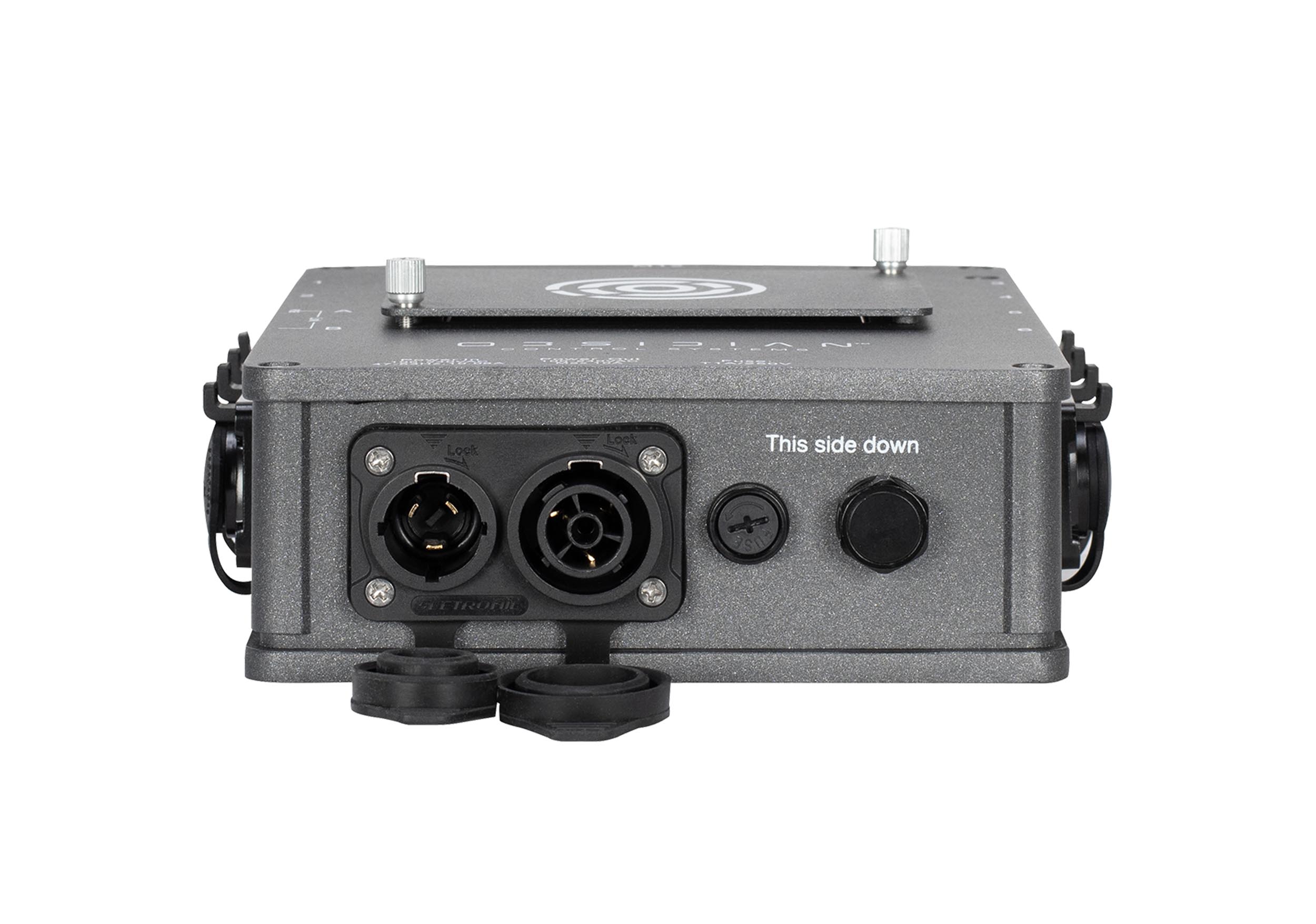

IP66 Power In/Thru on bottom side
Display & Control:
1.8” OLED Display
Waterproof capacitive touch buttons
Electrical:
Input Voltage: 100–240V AC, 50/60Hz
Power over Ethernet (PoE 802.3af)
Power Consumption: 6W
Physical:
Length: 204 mm (8 in.)
Width: 179 mm (7.1 in.)
Height: 61 mm (2.4 in.)
Weight: 2 kg (4.41 lbs)
Certifications & Environmental Ratings:cETLus, CE, UKCA, IP66
Shipping Weight: 7 lbs.
Shipping Dimensions (LxWxH): 13 x 10 x 4.5 inches
