Description

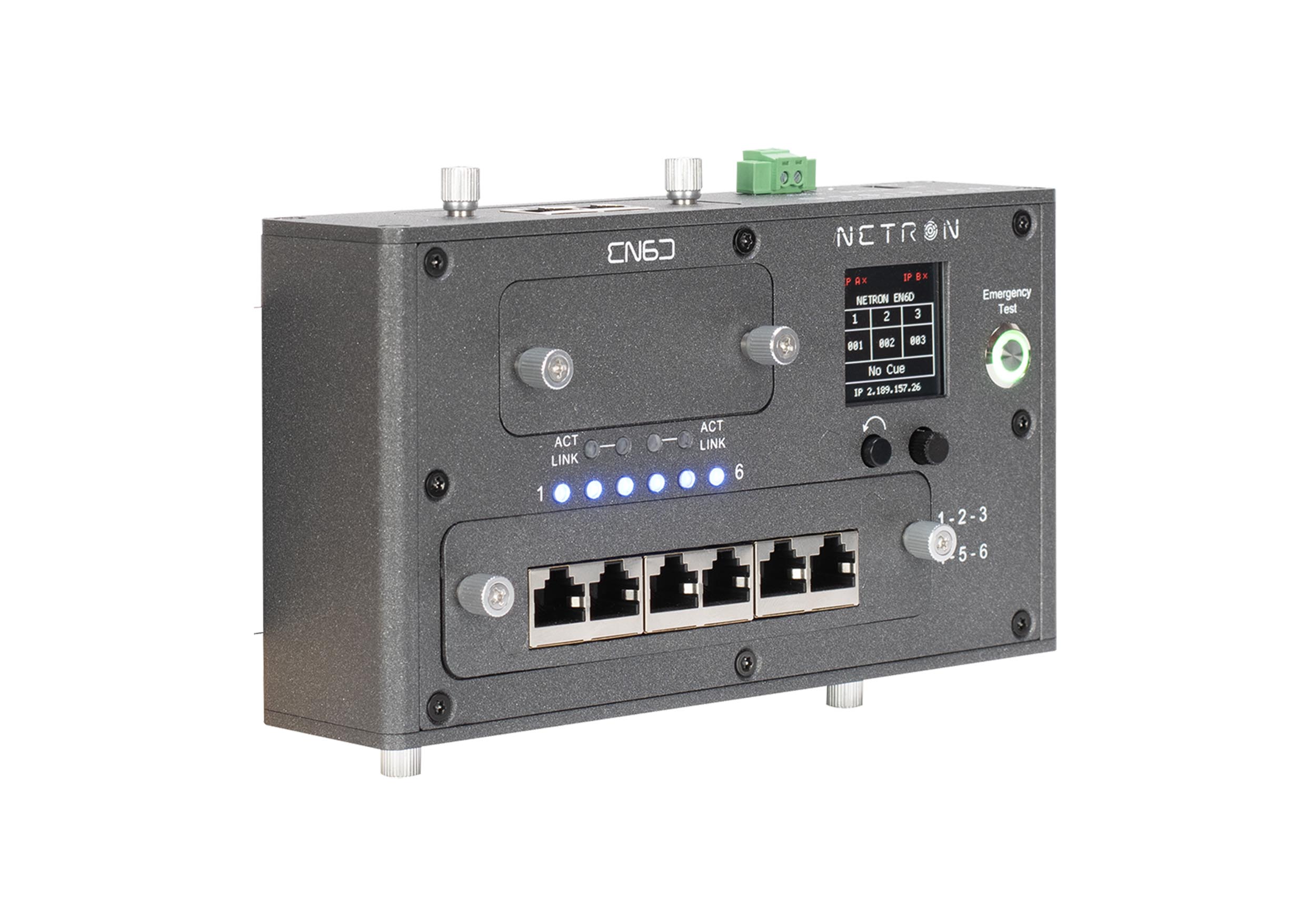

The Elation EN6D is a compact, professional-grade Ethernet to DMX gateway featuring six opto-isolated outputs with full RDM support. Designed for DIN rail or wall-mount installations, this gateway offers flexible connectivity via RJ45, screw terminals, or IDC connectors, all of which are included with interchangeable plates. The EN6D supports Art-Net, sACN, and features PoE or DC 9–48V power options. With a 1.3” OLED display, robust routing and merging capabilities, and 99 internal cues, it is ideal for demanding installations. The EN6D is UL924 compliant with a dedicated emergency cue system and provides an ONYX NOVA 4-universe license unlock, making it perfect for mission-critical lighting networks.
Product Specifications:

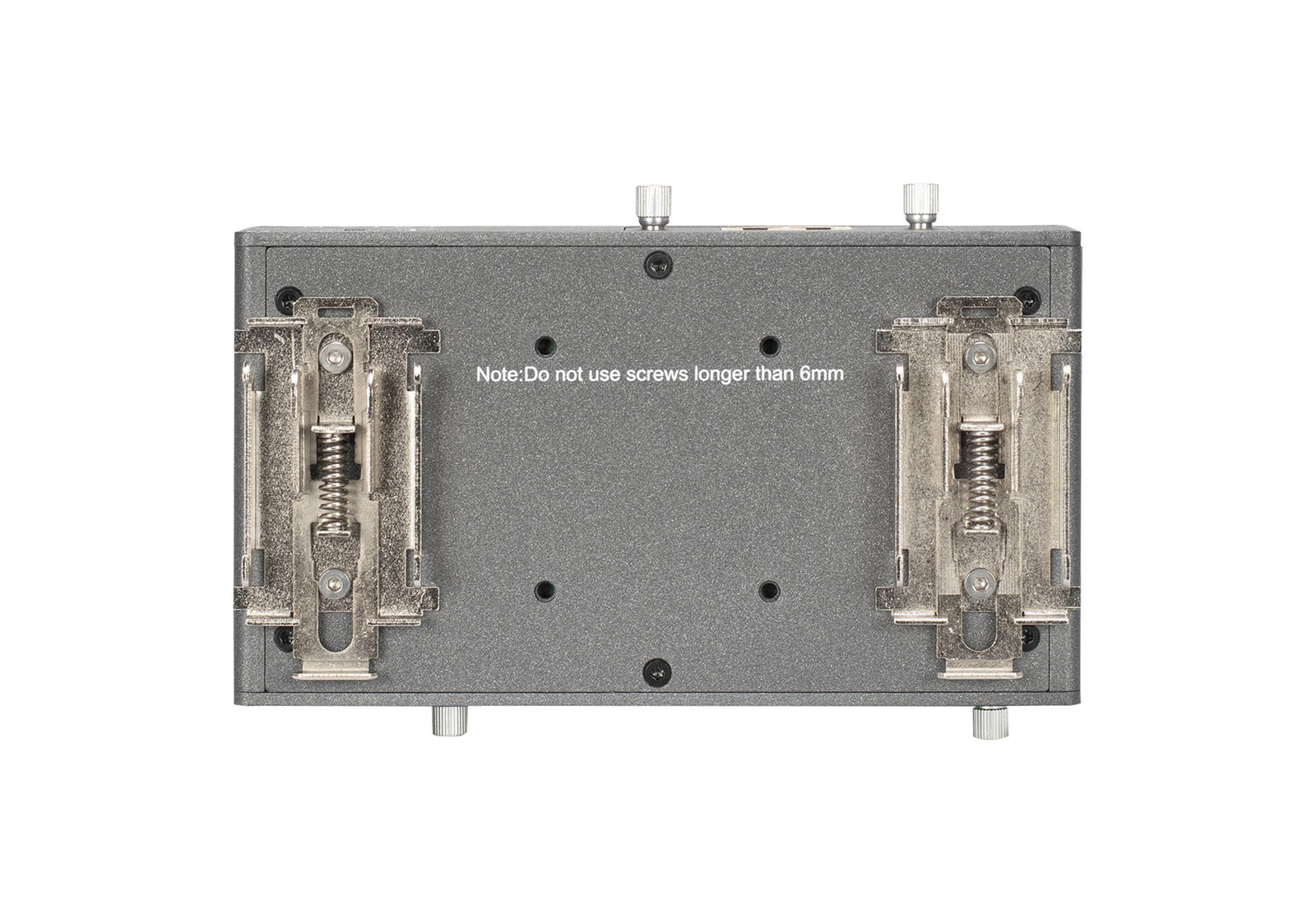

Mounting:

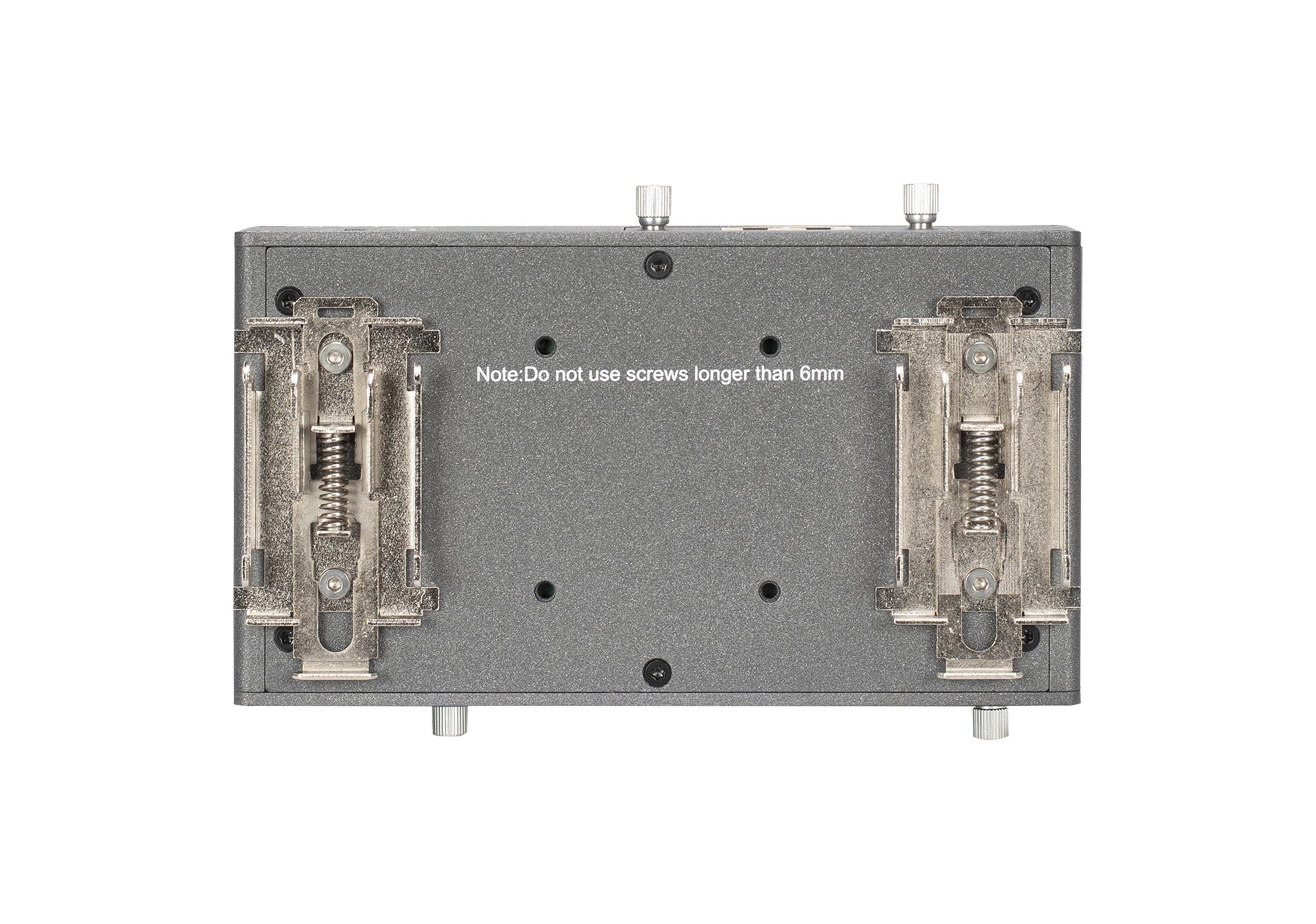

DIN Rail

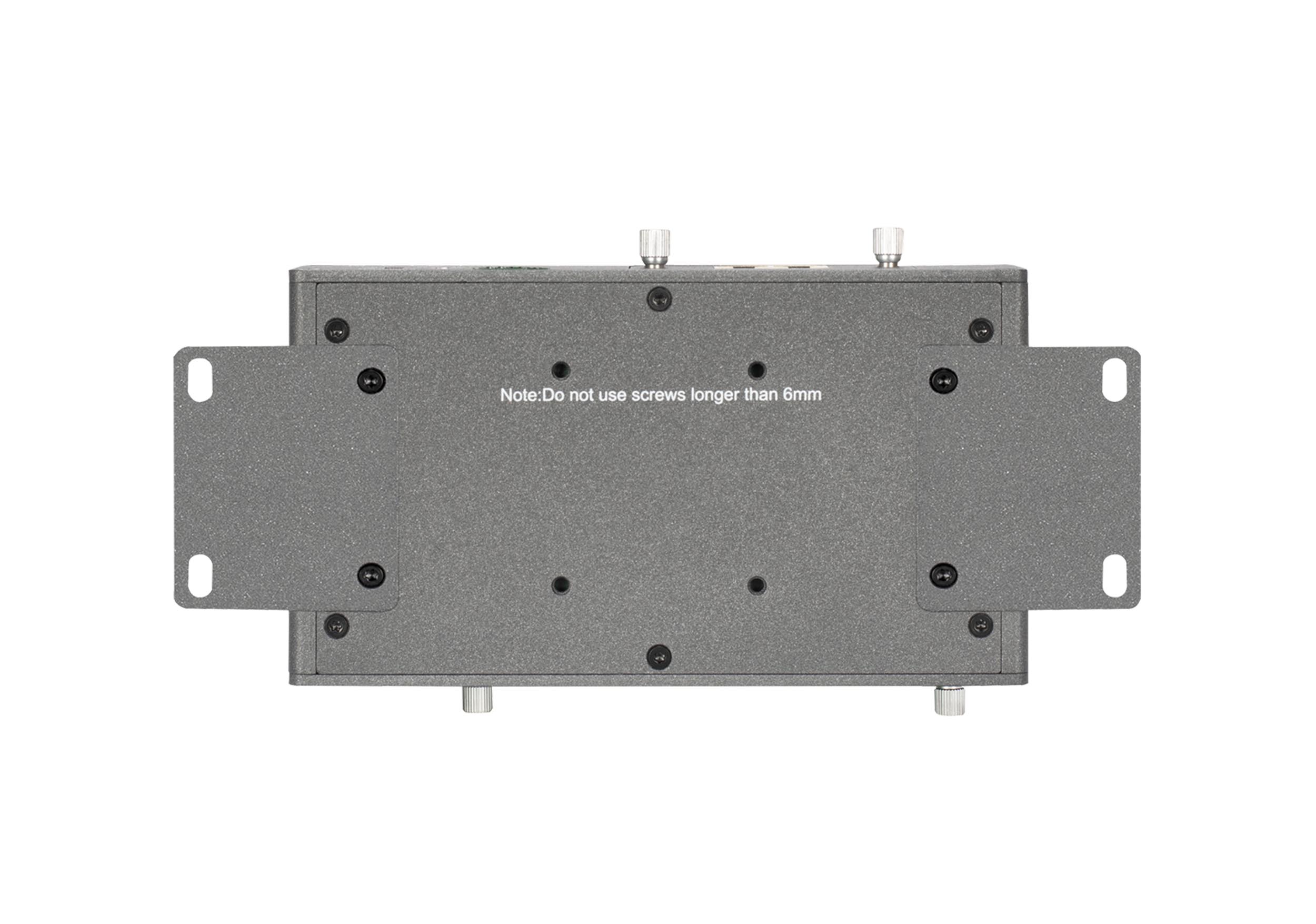

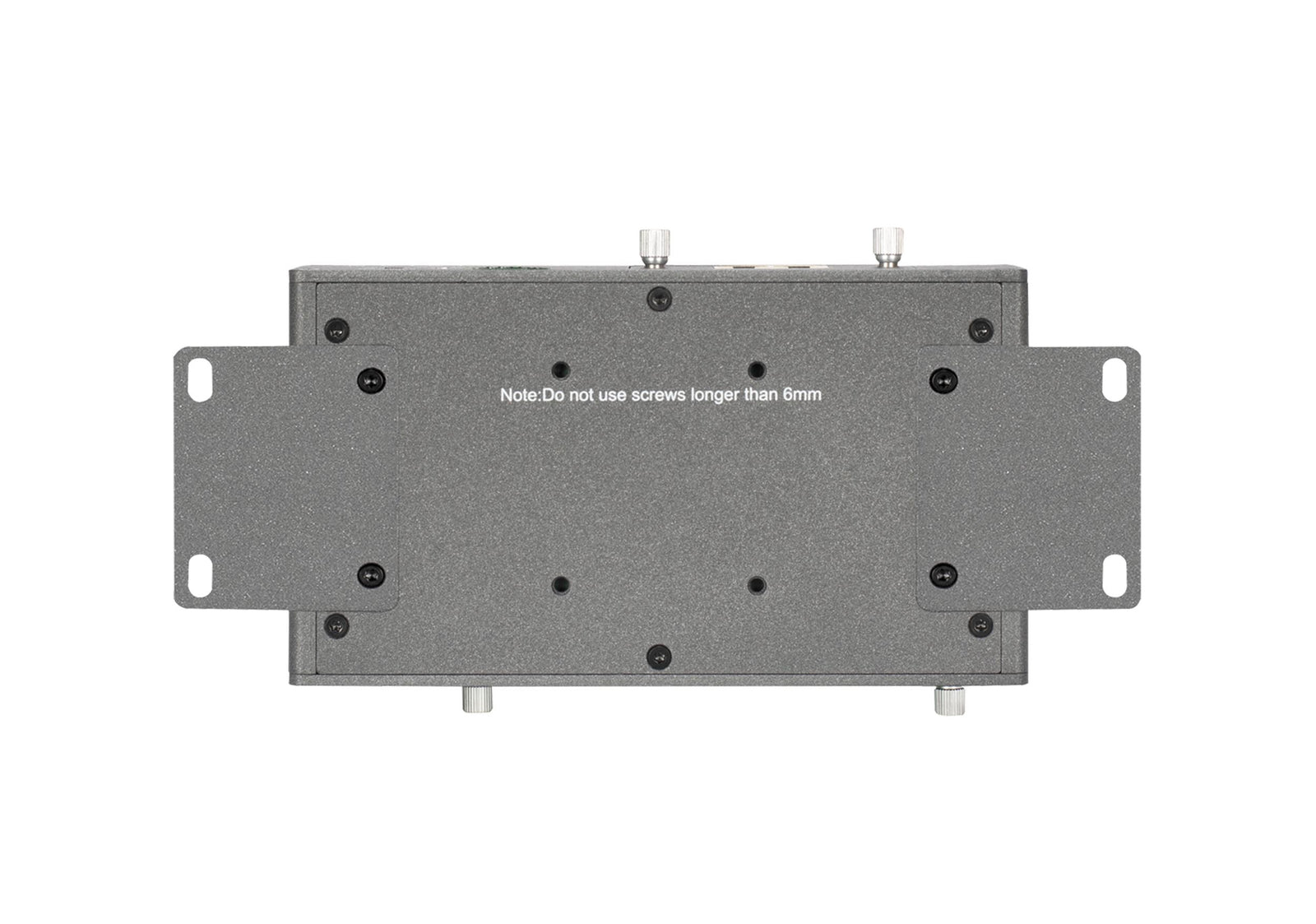

Wall-mount (brackets included)
Connections:

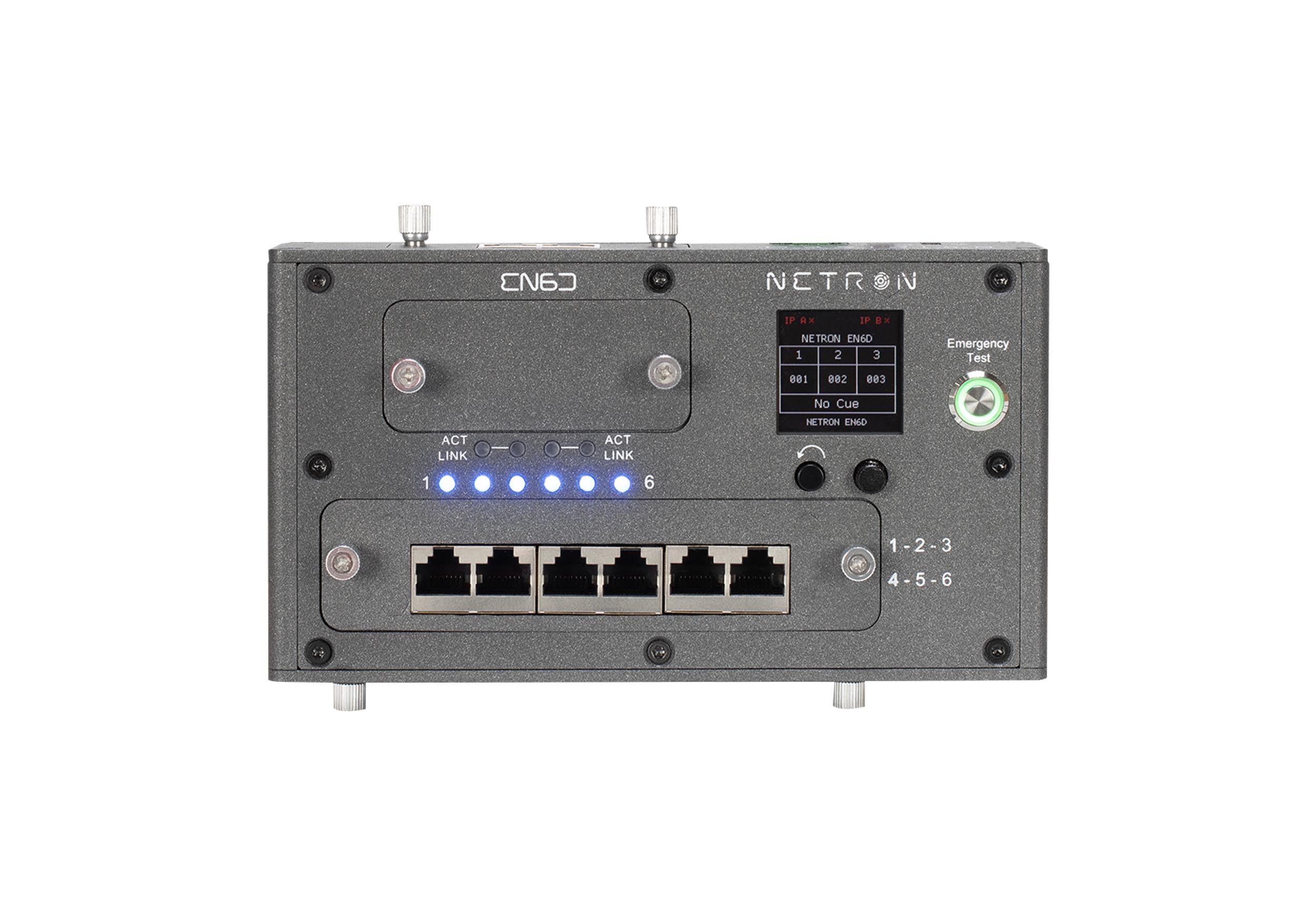

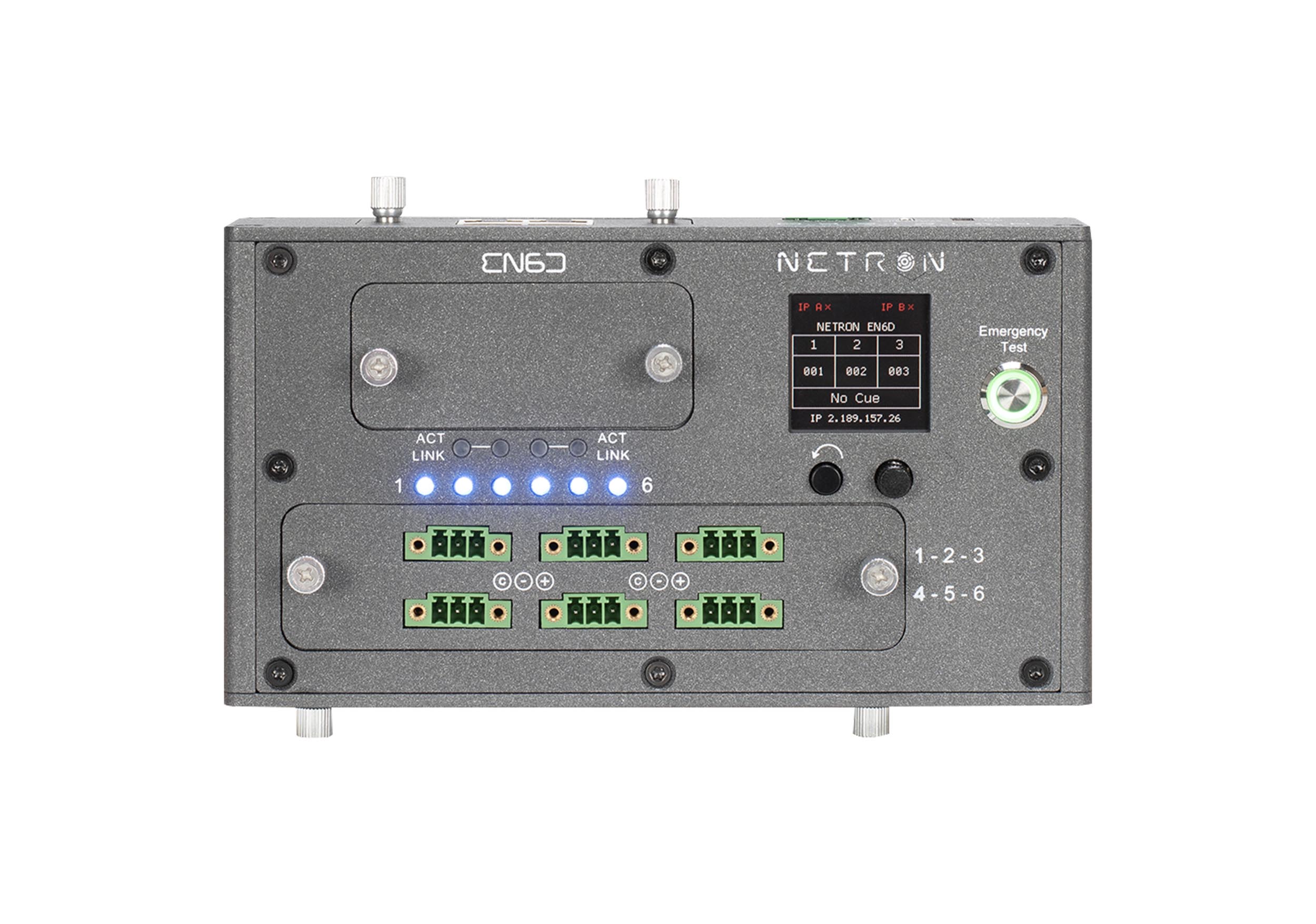

Front:
1.3" OLED Display
Encoder with push-to-select/exit
6-port DMX plate (RJ45 or terminal block)
(2) RJ45 Gigabit Ethernet (1x PoE) or cover plate
Top:
(2) RJ45 Gigabit Ethernet (1x PoE) or cover plate
DC In (2-pin terminal block)
USB-C (5V/2A)

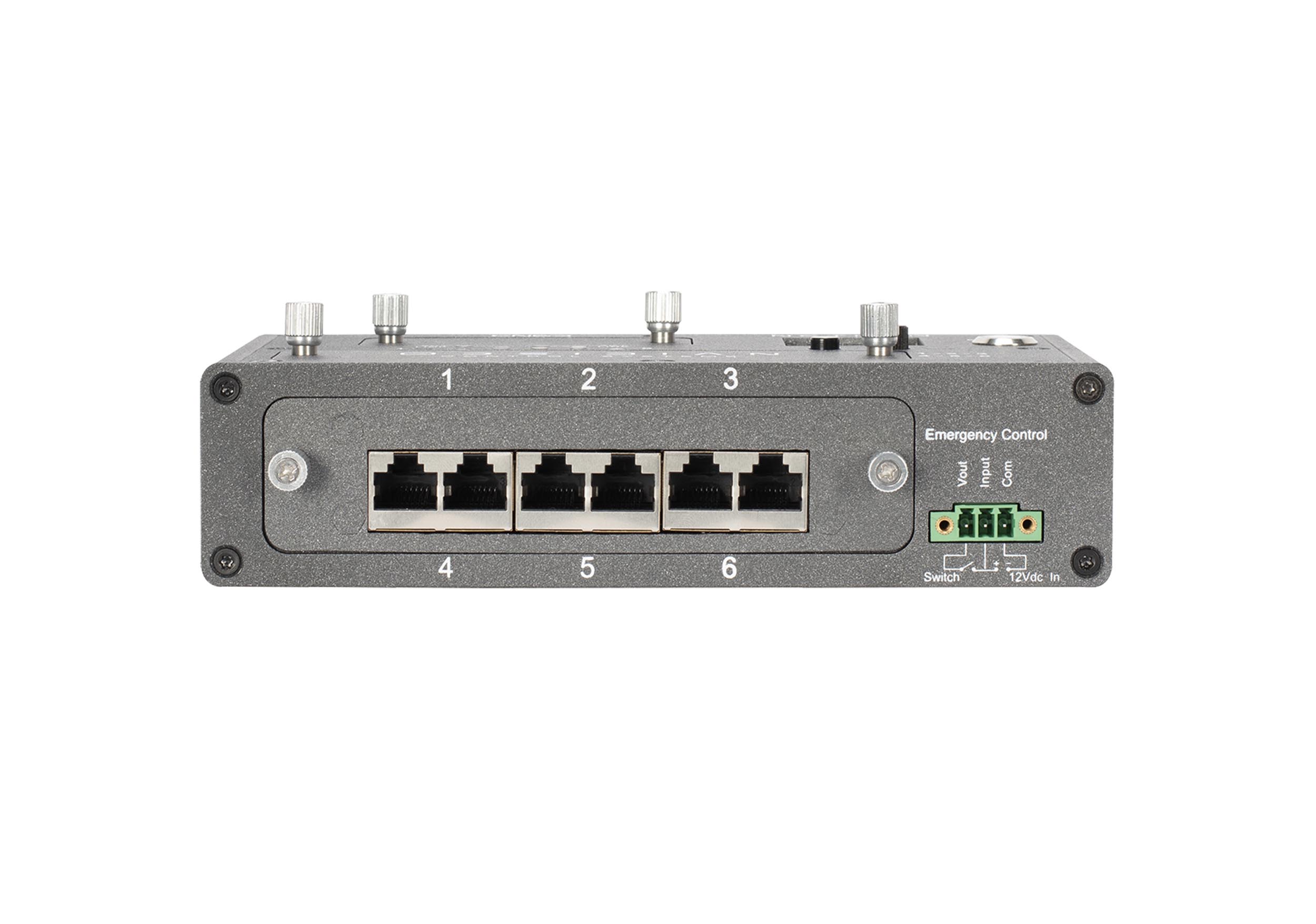

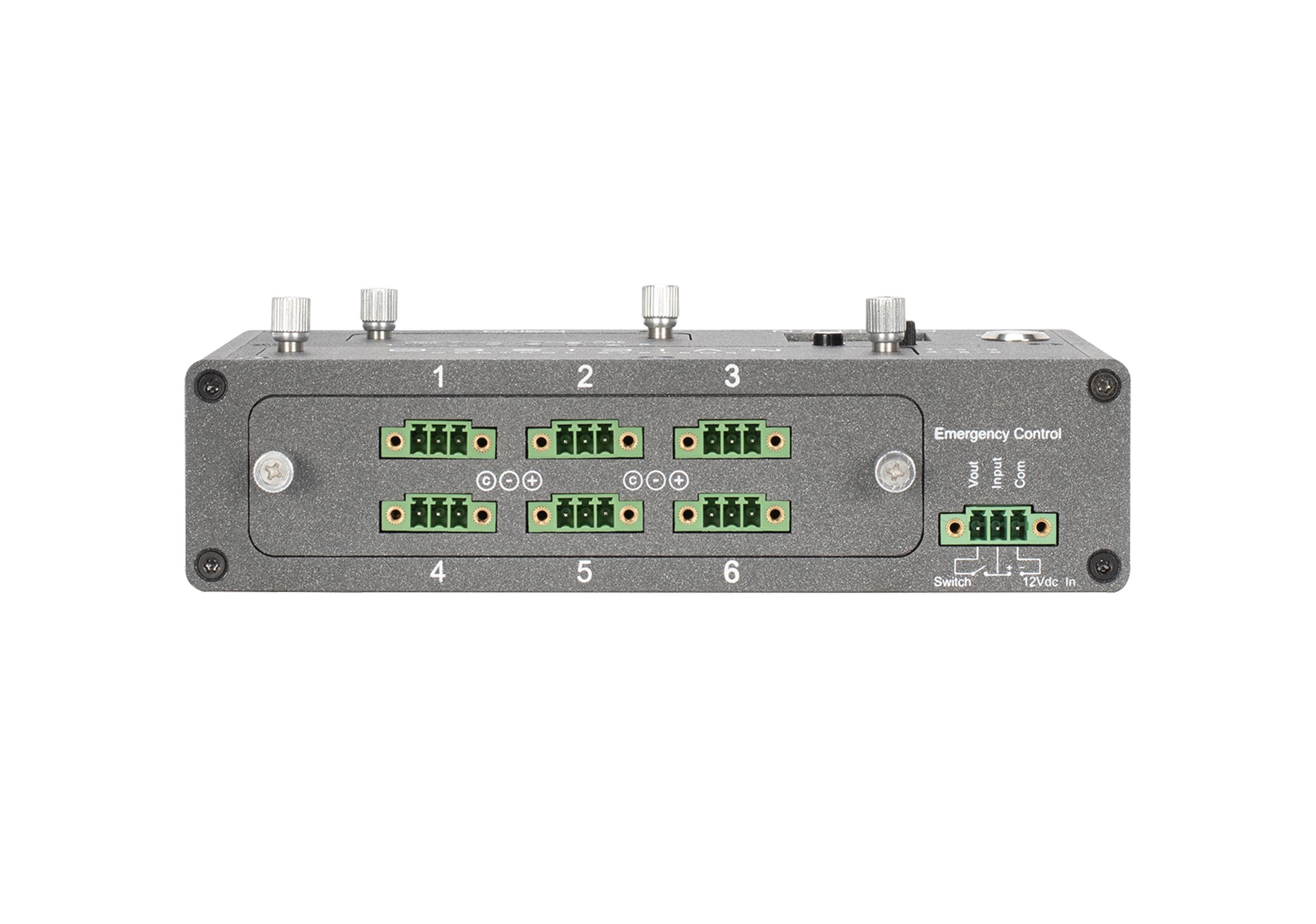

Bottom:
6-port DMX plate (RJ45 or terminal block)
Emergency Contact (3-pin terminal block, dry contact or 12V)
Electrical:
PoE 802.3af compliant
DC Input: 9–48V
USB-C (5V/2A)
Physical Dimensions:
Length: 4.7 in. (116 mm)
Width: 5.6 in. (143 mm)
Height: 2.1 in. (52 mm)
Weight: 2 lbs (0.73 kg)
Certifications & Ratings:
cETLus
CE
IP20
UL924
Shipping Weight: 4 lbs.
Shipping Dimensions (LxWxH): 12 x 12 x 4 inches
