Description

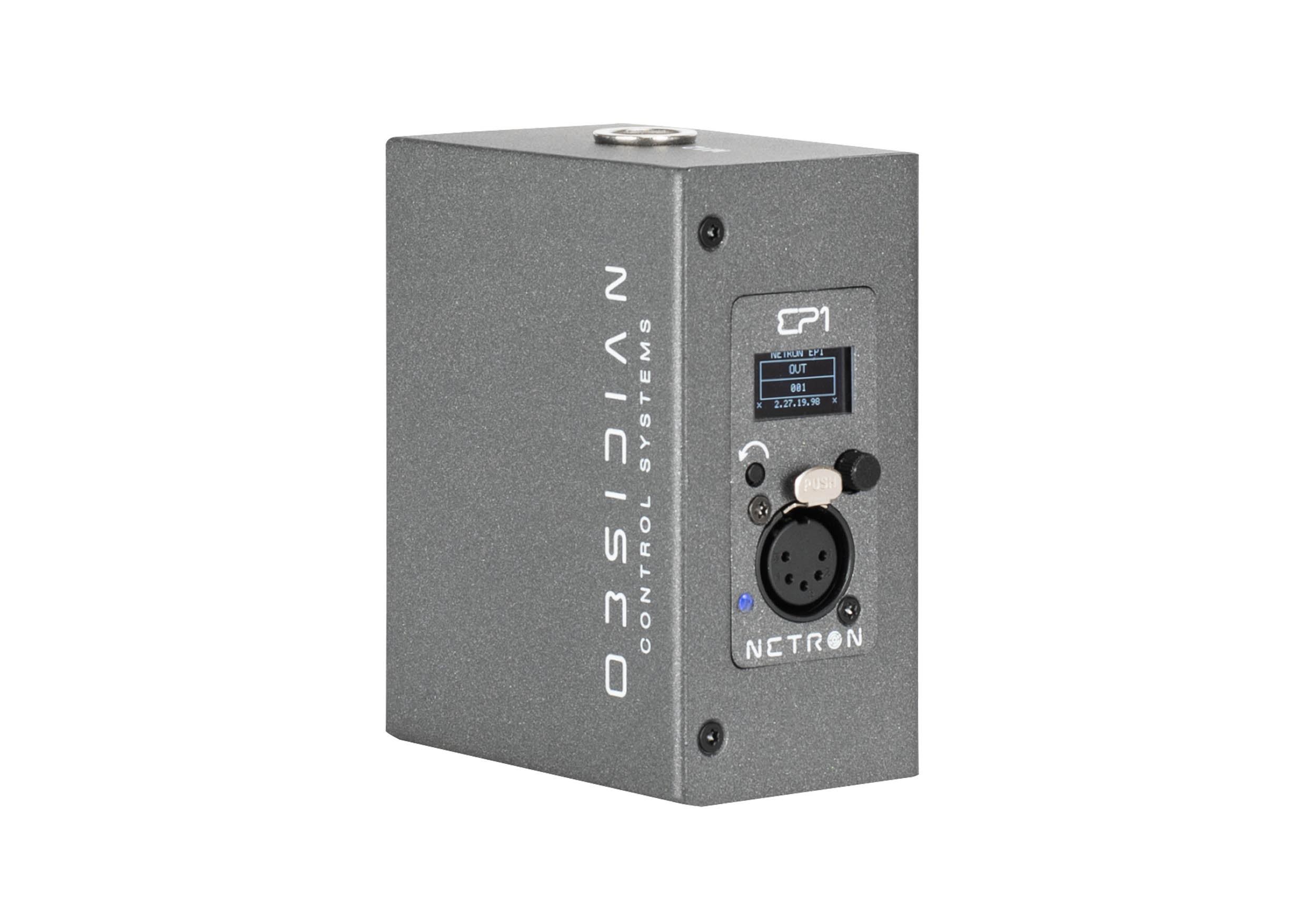

The Elation NETRON EP1 is a compact, single-port Ethernet to DMX gateway designed for flexible deployment in professional lighting networks. Featuring RDM compatibility, the EP1 supports sACN and Art-Net protocols for seamless data distribution across stages, venues, and installations. It is engineered for single-gang wall mount, truss mount, or standalone use, and offers both Power-over-Ethernet (PoE) and USB-C power options. With an integrated OLED display and remote web interface, configuration is quick and user-friendly. A built-in network switch allows network traffic pass-through, making EP1 a powerful node solution for any lighting control system.
Product Specifications:
Mounting Options:
Standalone (backbox included)

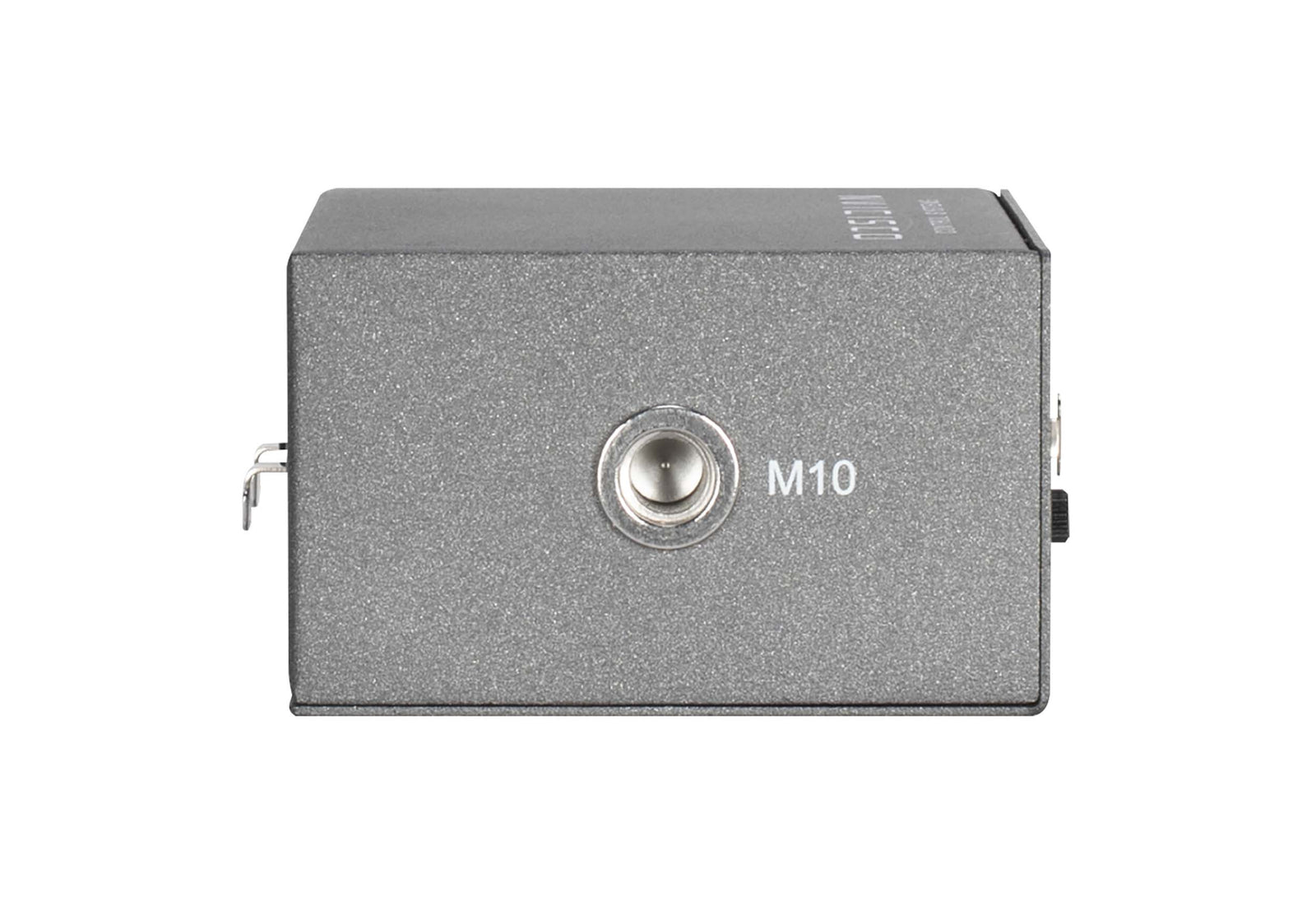

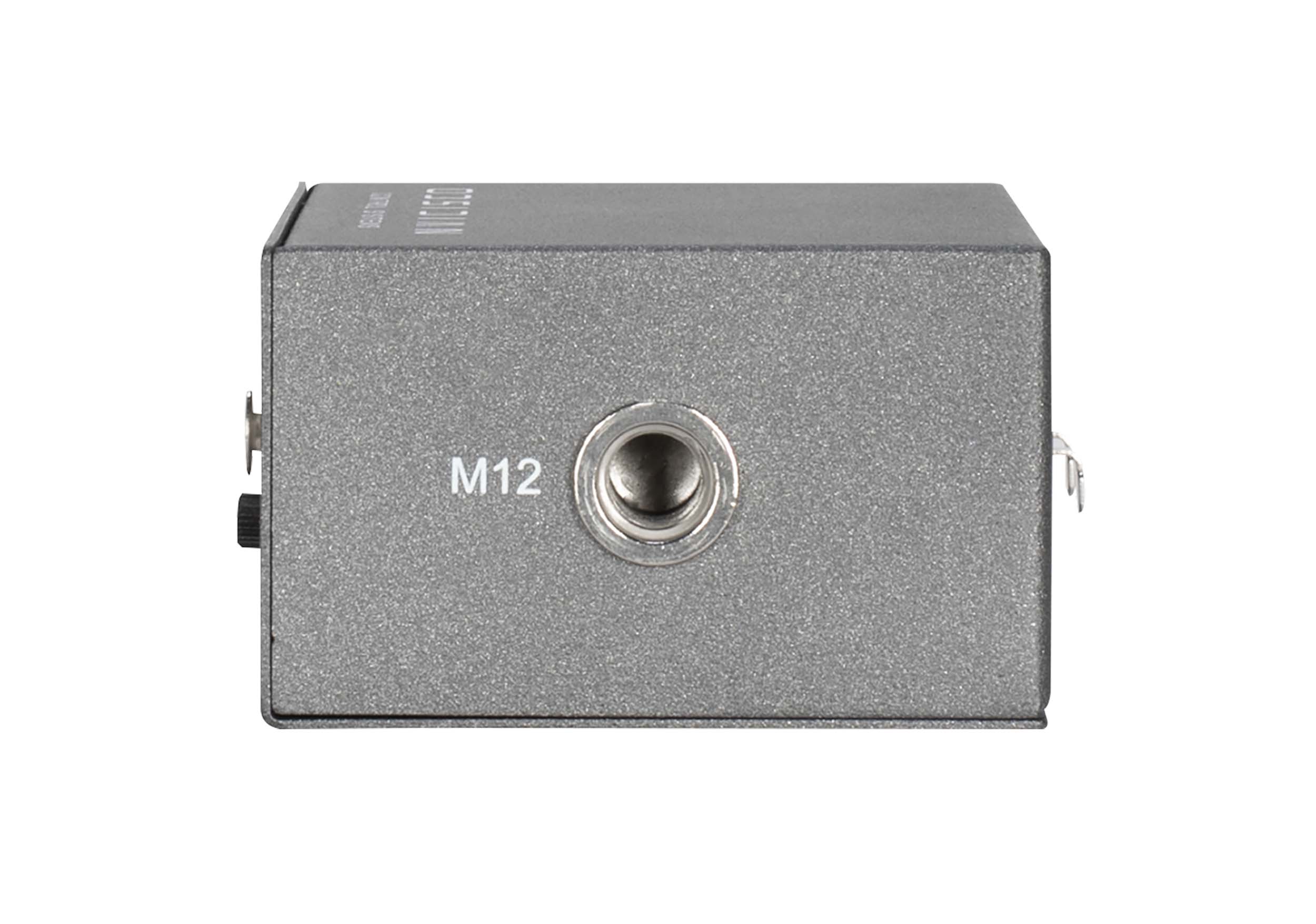

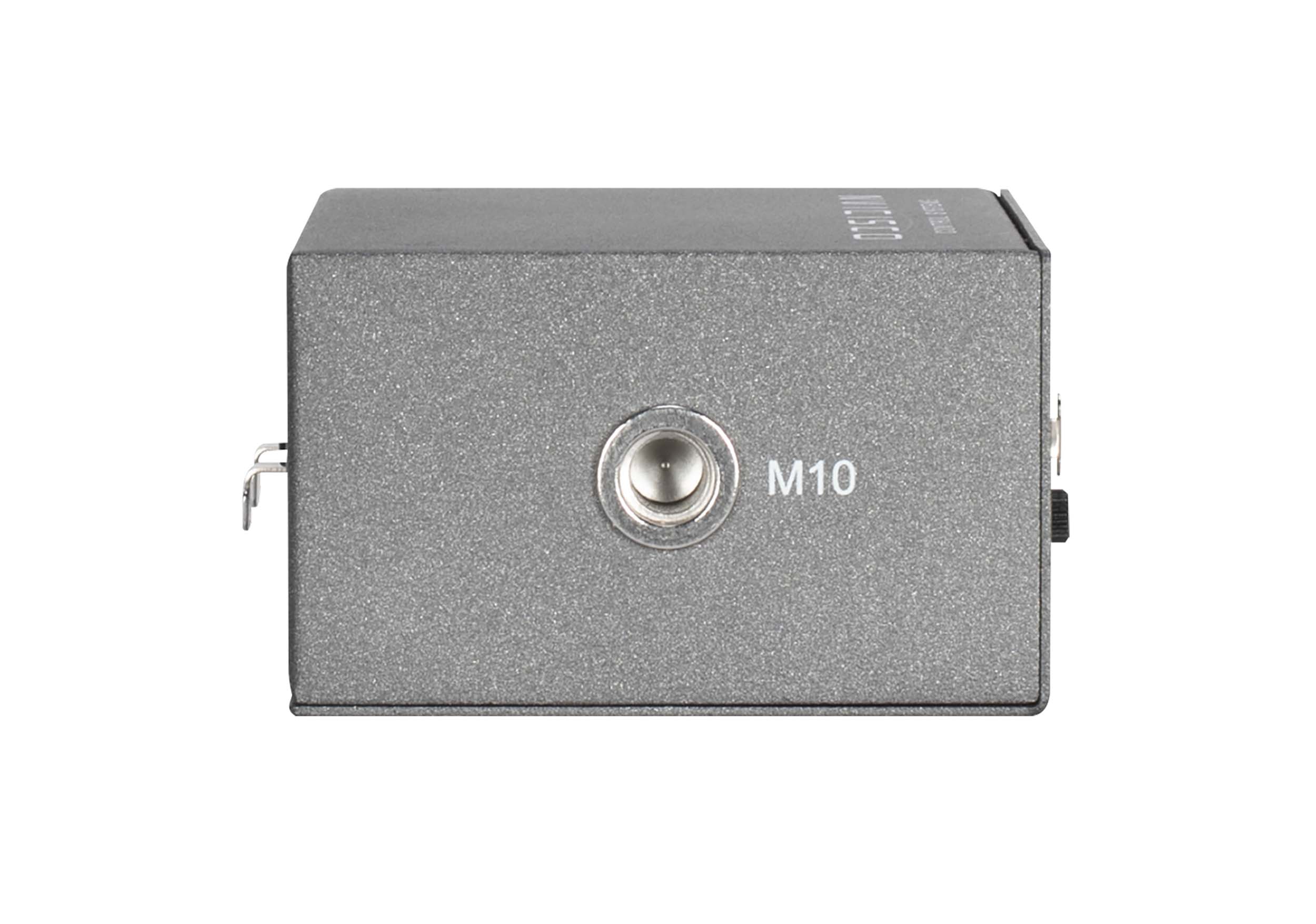

Truss-mount (M10 & M12 mounting holes)
In-wall (1-Gang US standard)
Connections:

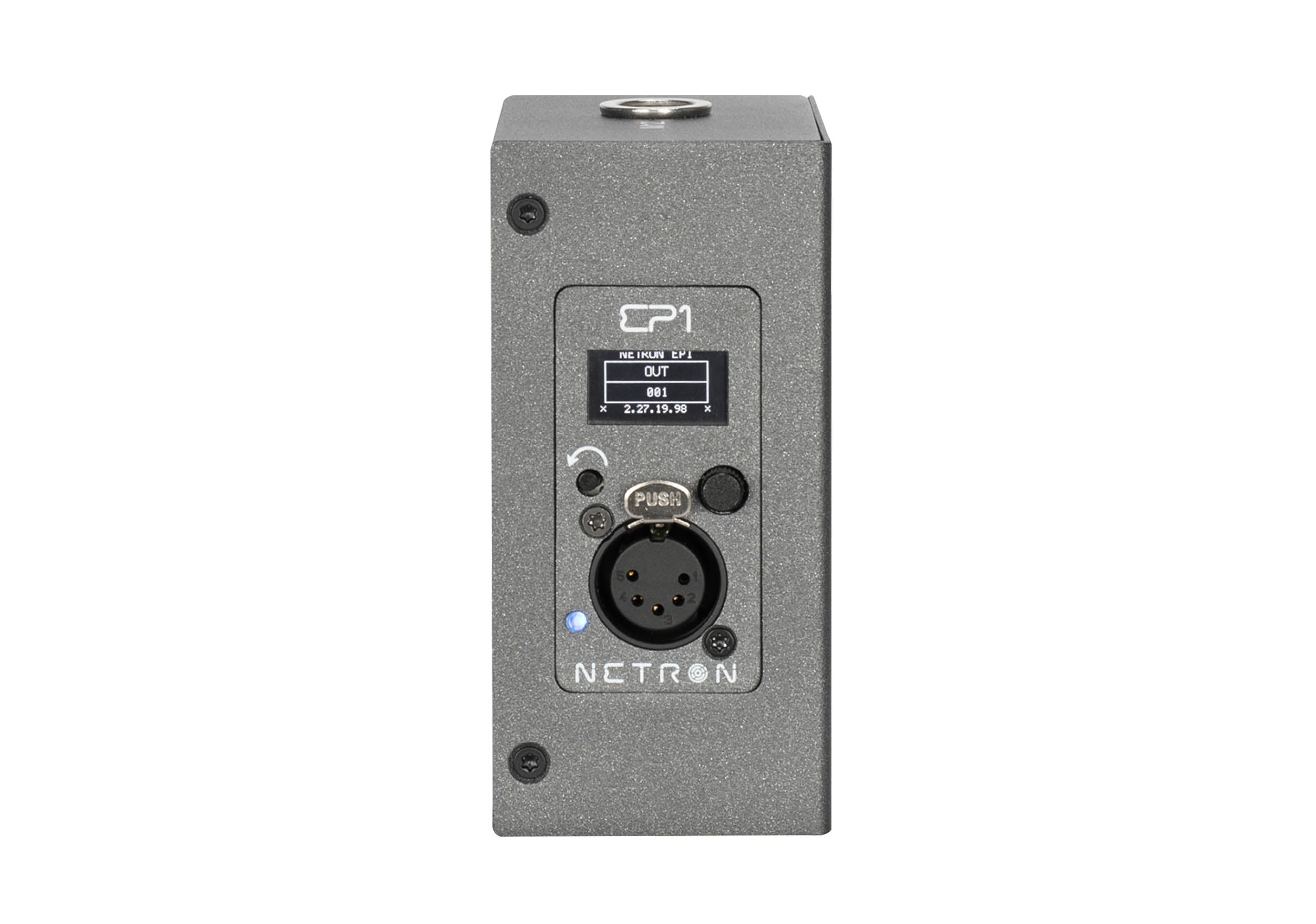

Front: (1) 5-pin DMX/RDM port (optically isolated, bidirectional)

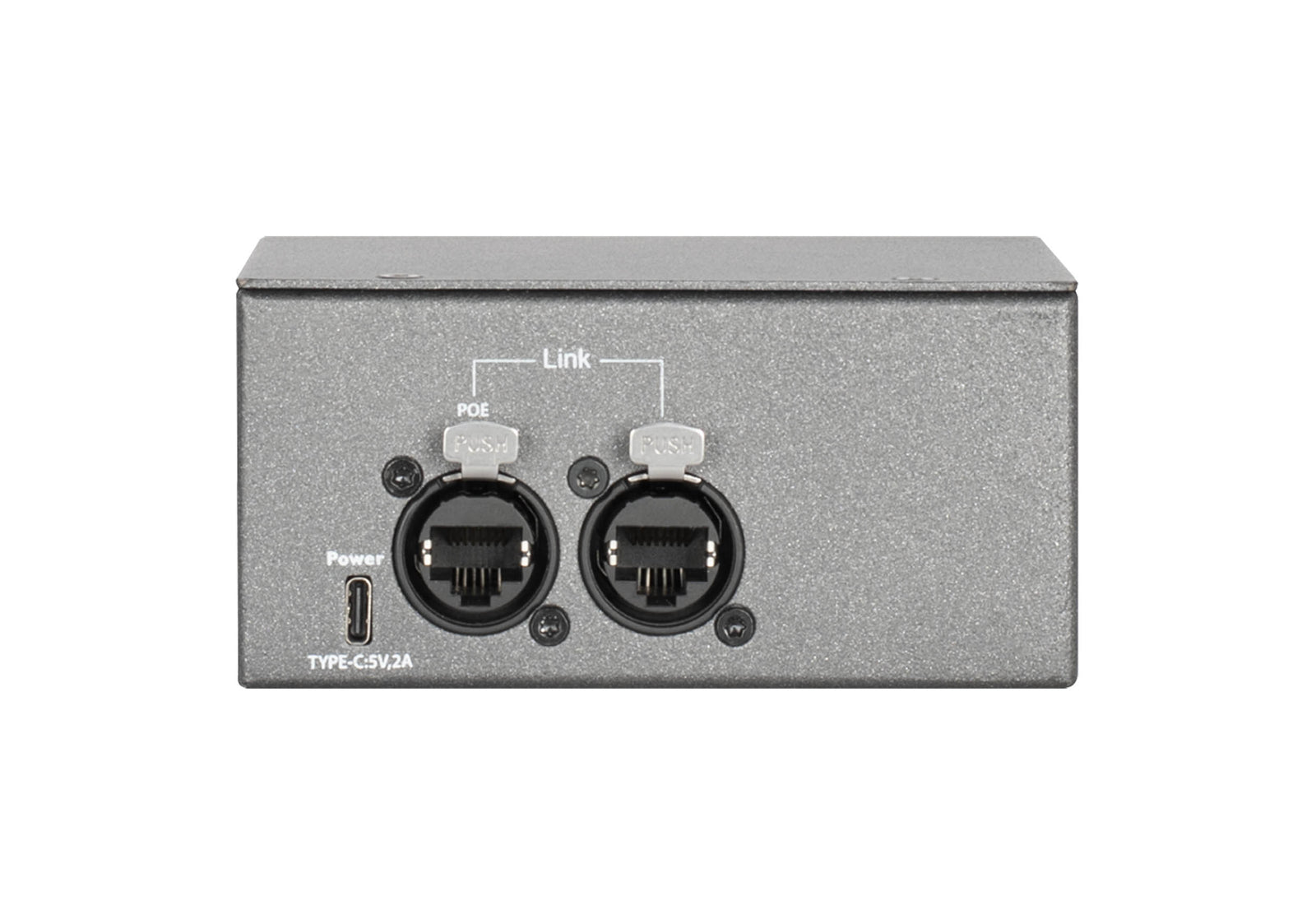

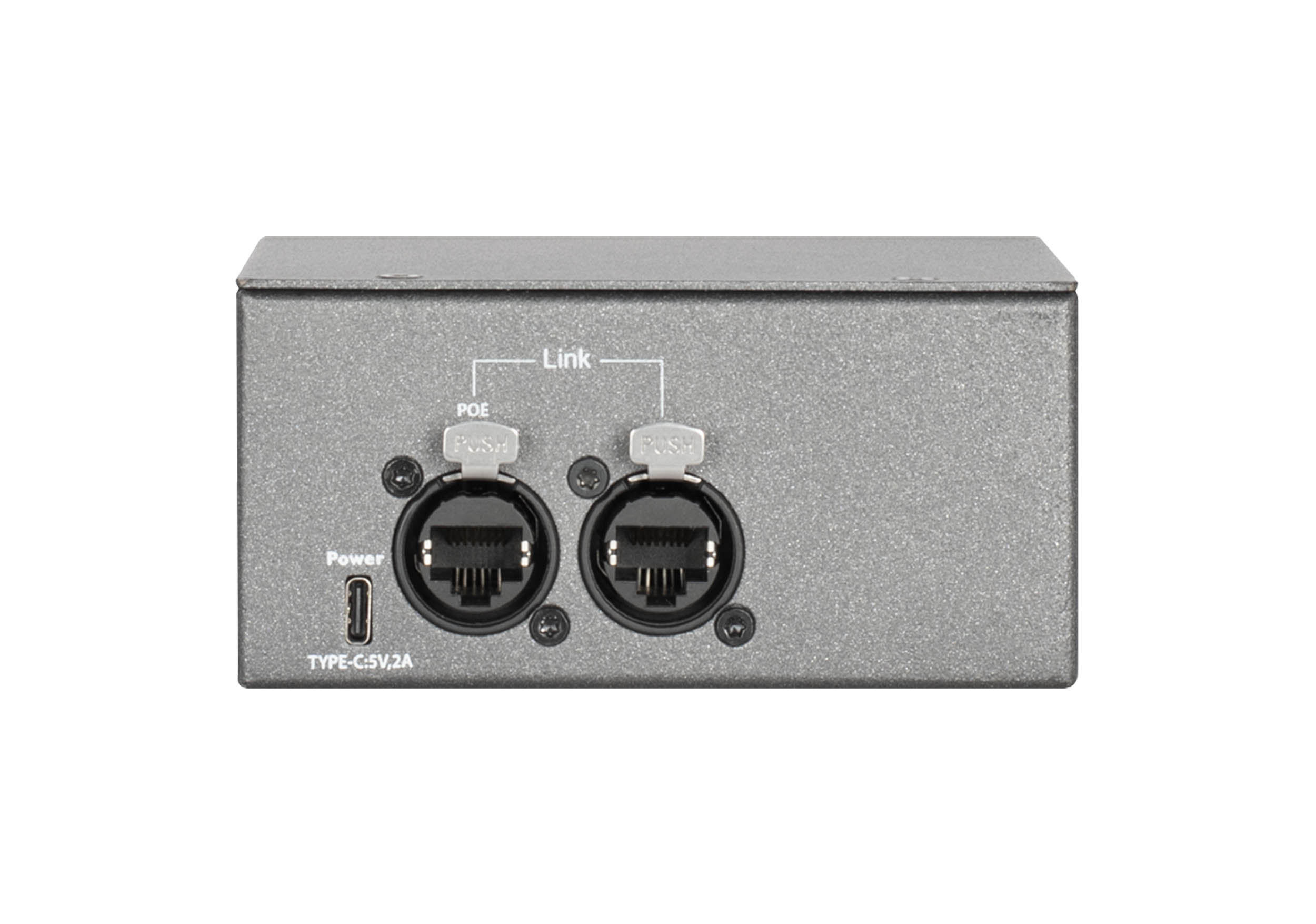

Side: (2) Locking RJ45 Gigabit Ethernet ports (1 PoE capable)
Power: USB-C port (5V, 2A)
Electrical:
Power Input: USB-C or PoE (802.3af)
Power Consumption: 2.8W
Approvals / Ratings:
CE, CETLUS, UKCA
IP20 Rated
Included Accessories:
1.5m USB-C Cable (Obsidian)
Standalone enclosure with truss-mount options (M10/M12)
Netron Decora 1-Gang Wall Plate
Shipping Weight: 1.54 lbs.
Shipping Dimensions (in inches):
Length: 3.5 in
Width: 2.2 in
Height: 4.5 in
