Description

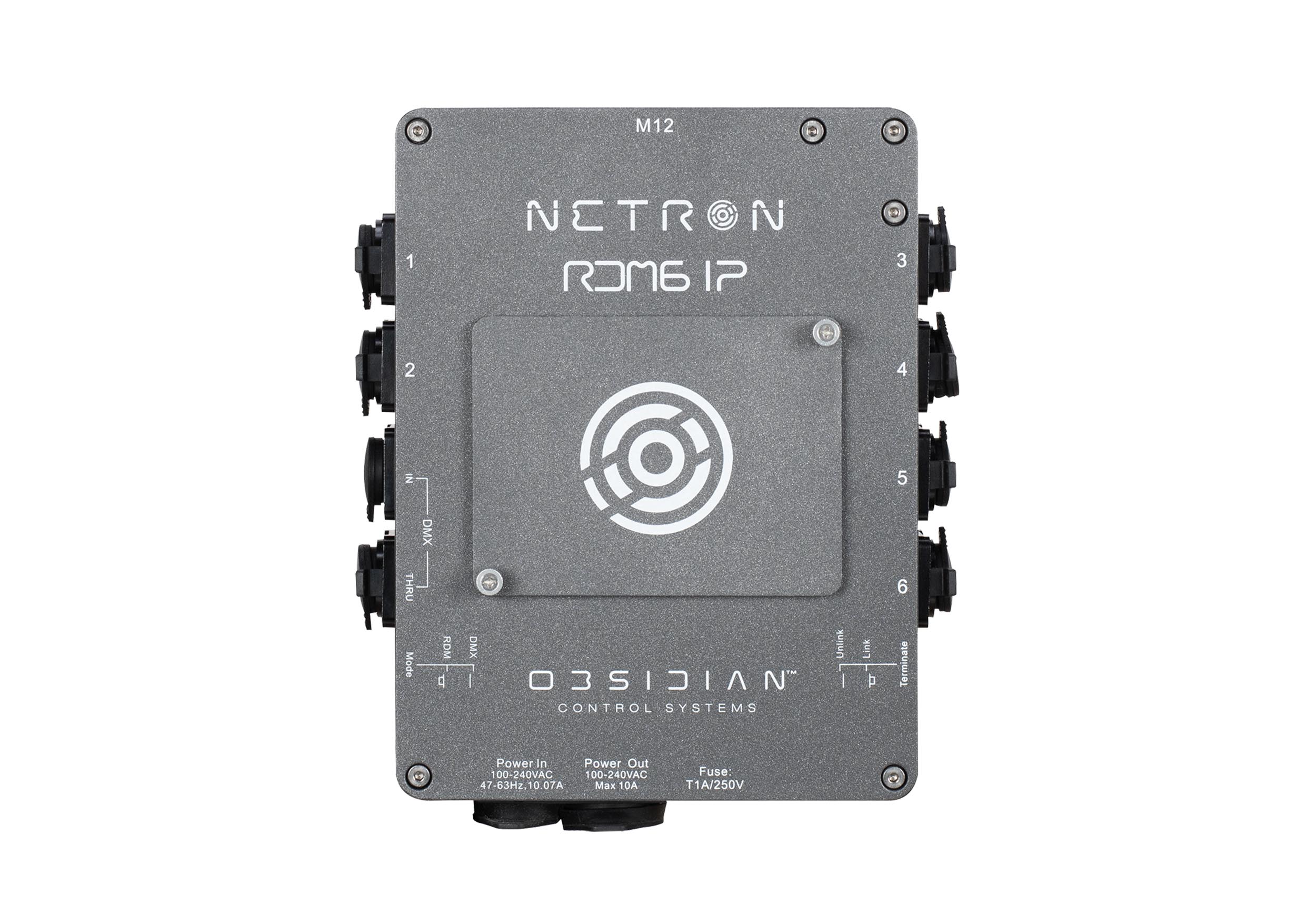

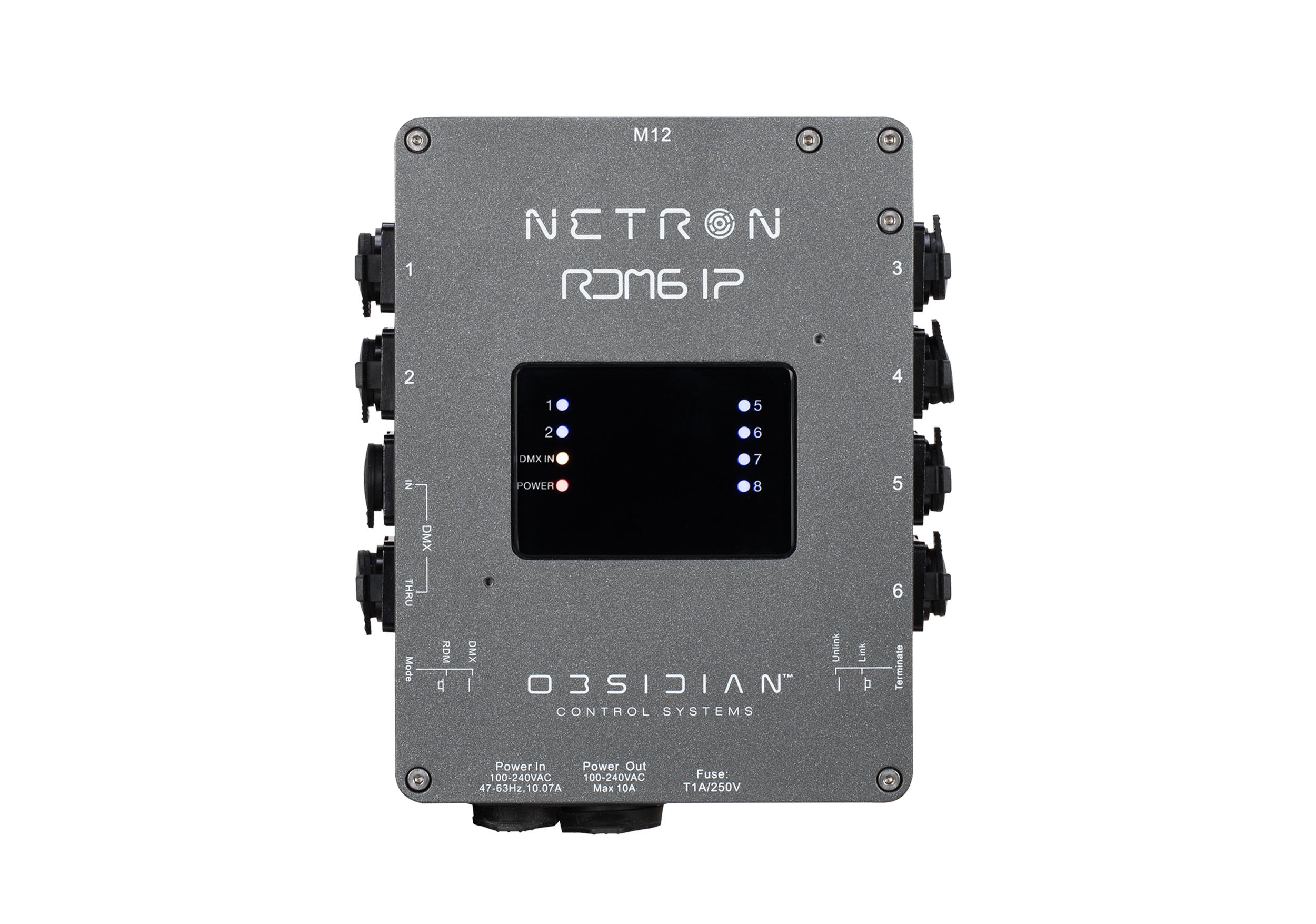

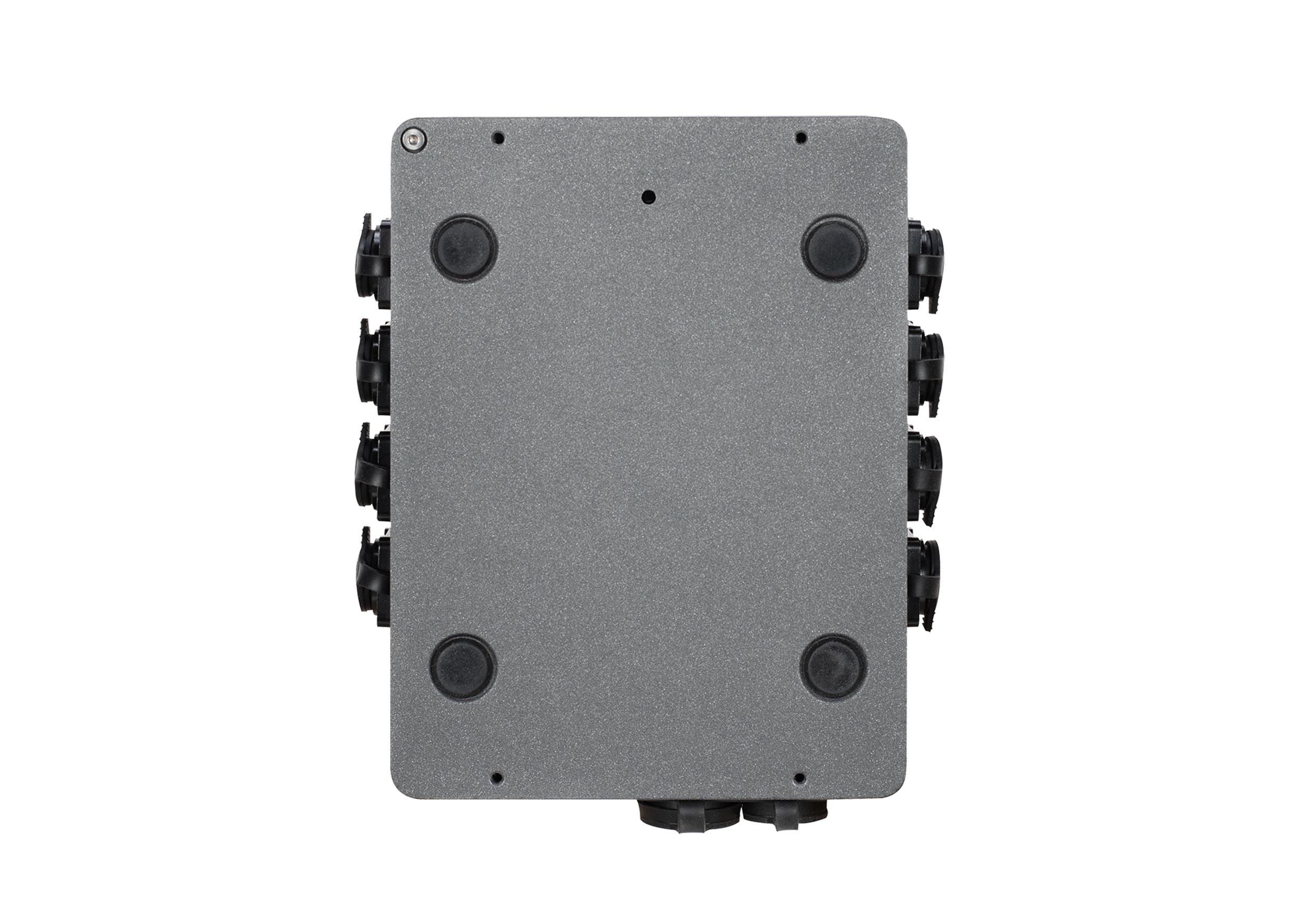

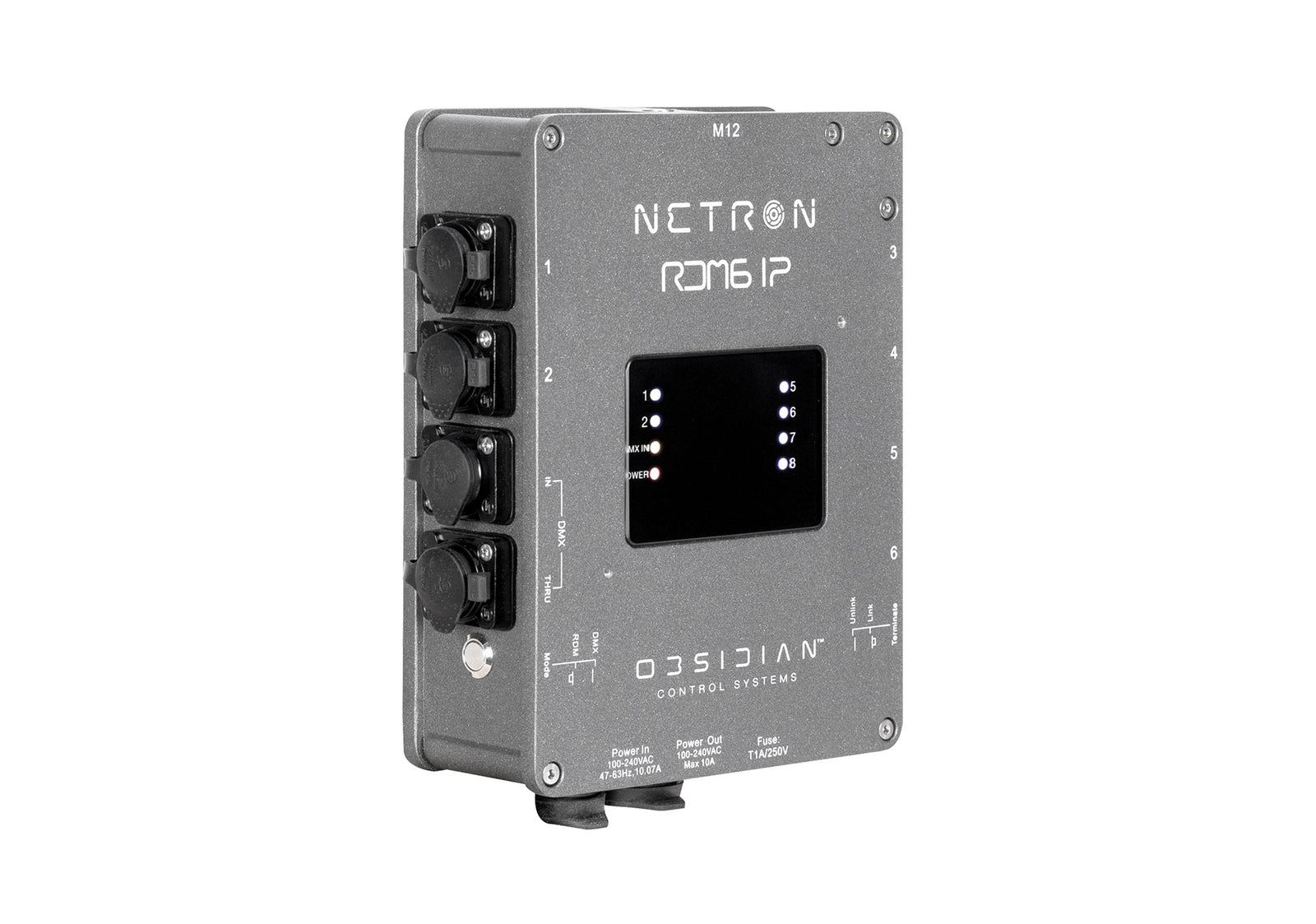

The Elation RDM6 IP, 6-Port IP66 is a rugged, weatherproof DMX/RDM splitter engineered for reliability in live productions, film sets, and outdoor installations. Housed in a durable IP66-rated aluminum chassis, it offers six optically isolated DMX/RDM outputs, providing robust signal distribution in environments where dust, moisture, and debris are present.
This splitter ensures full DMX and RDM compliance and is ideal for installations demanding long-term durability and safety in harsh conditions. Equipped with Power and DMX Thru, termination, and RDM control, the RDM6 IP is a versatile solution for complex data routing needs.
Product Specifications:
Mounting Options:
Standalone

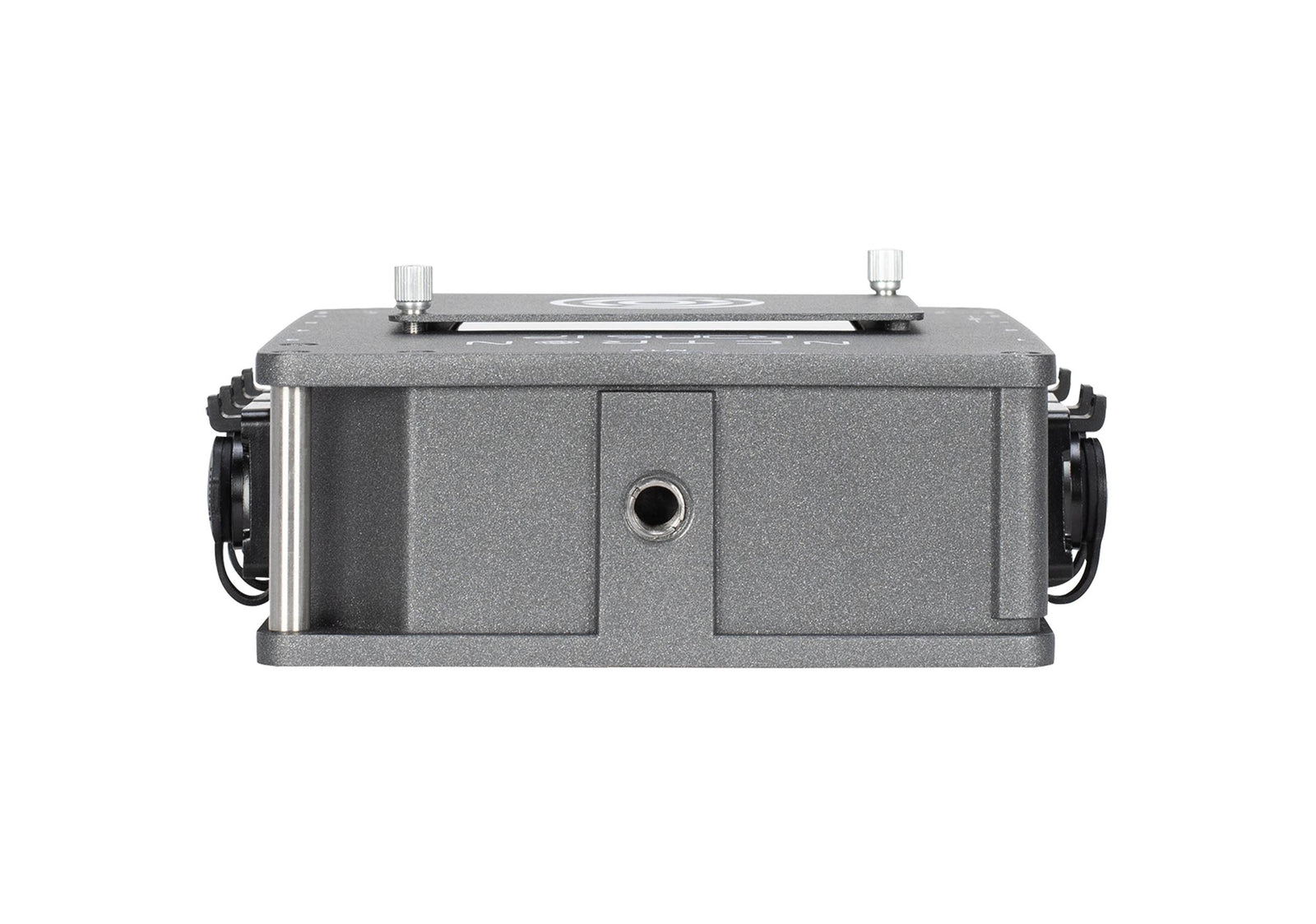

Truss-mount (M10 or M12)
Wall-mount (brackets included)
Connectivity:

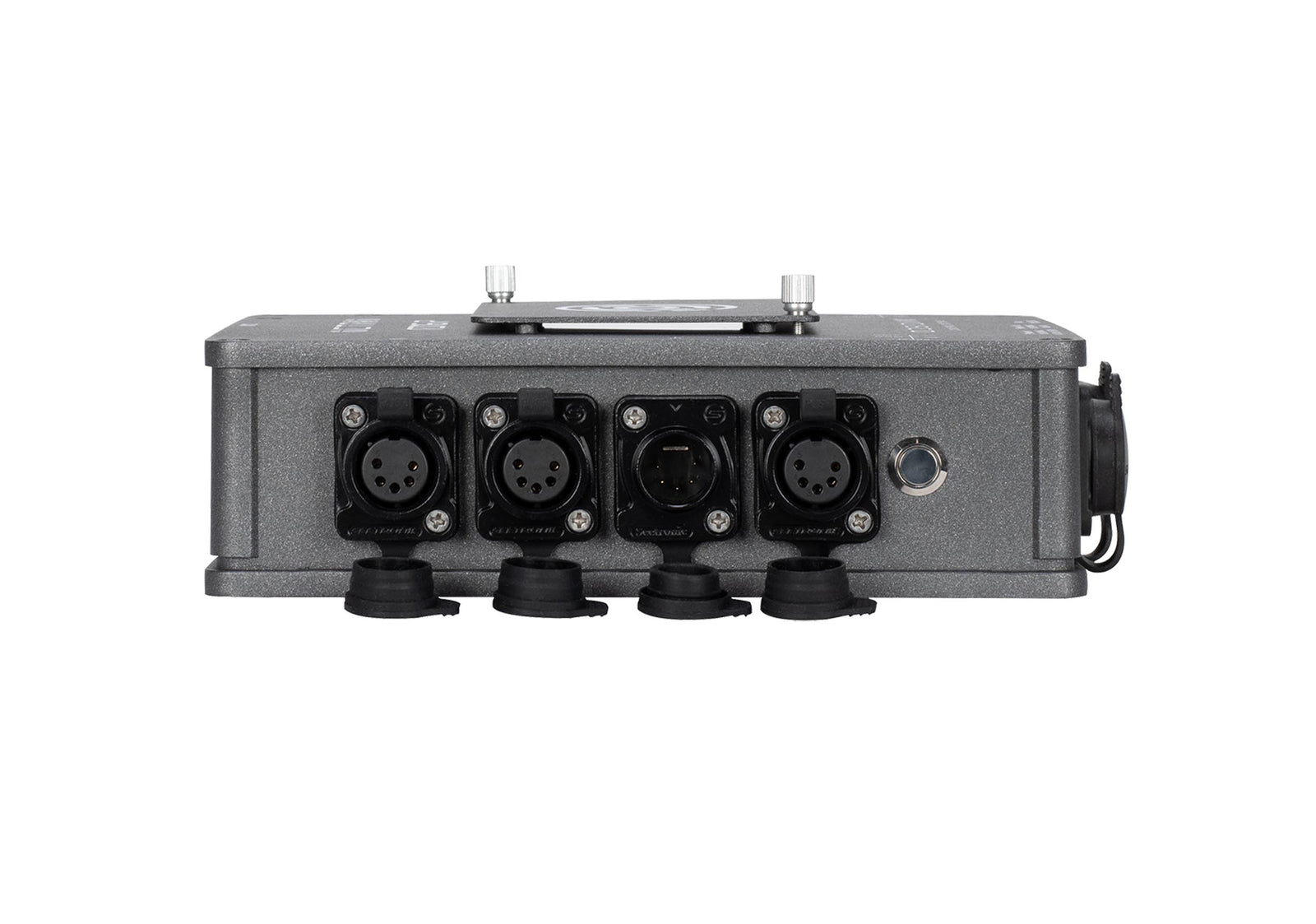

(1) 5-pin XLR IP66 DMX In
(1) 5-pin XLR IP66 DMX Thru

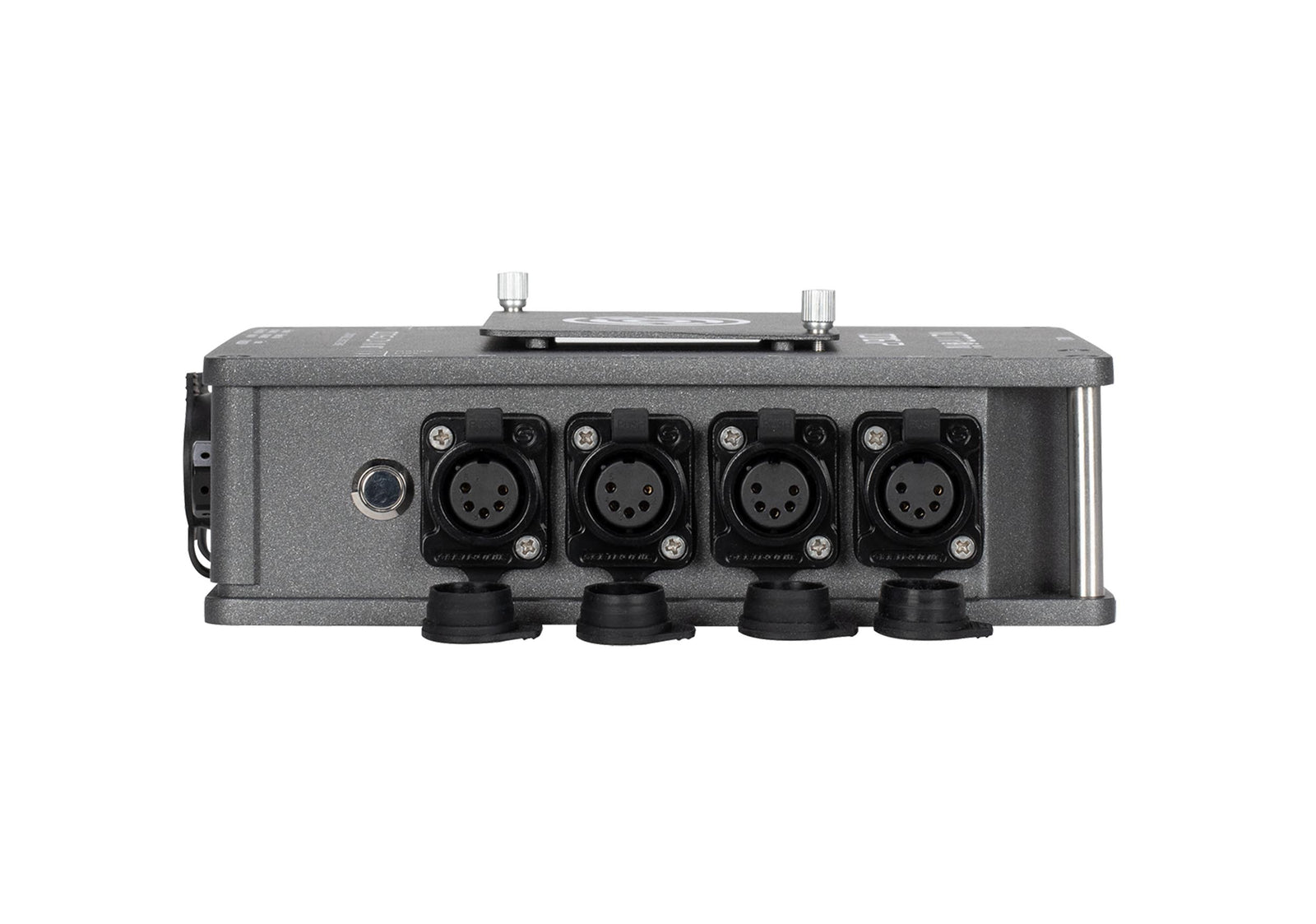

(6) 5-pin XLR IP66 DMX/RDM Outputs, optically isolated

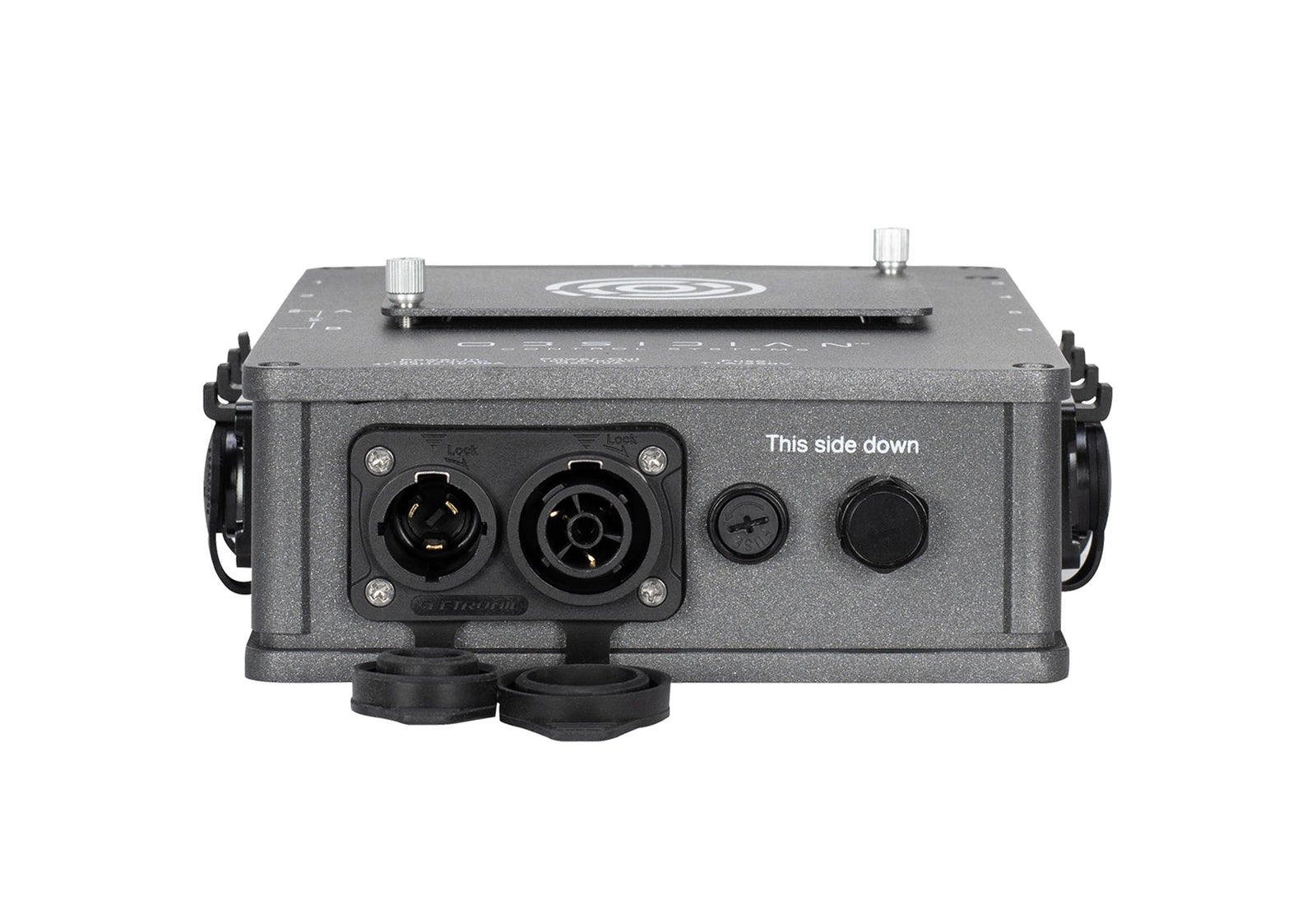

Locking IP66 Power In/Thru (Bottom side)
LED port feedback indicators (Front)
DMX Termination and RDM Enable/Disable buttons
Physical:
Length: 242 mm (9.5 in.)
Width: 183 mm (7.2 in.)
Height: 82 mm (3.2 in.)
Weight: 2 kg (4.41 lbs)
Electrical:
Input Voltage: 100–240V AC, 50/60 Hz
Power Consumption: 5W
Certifications & Environmental Ratings: cETLus, CE, UKCA, IP66
Included Items:
1.5m IP65 locking power cable (EU or US version)
(2) Wall-mount brackets
M10 to M12 adapter
Metal display protection cover
Shipping Weight: 6 lbs.
Shipping Dimensions (LxWxH): 14 x 11 x 5 inches
