Description
The Elation RDM6D, 6-Port DIN-Rail DMX/RDM Splitter is designed for DIN rail or wall-mount installations. Engineered for professional and permanent setups, it provides six opto-isolated outputs with flexible RJ45, screw-terminal, or IDC connections, all included and user-configurable. Supporting DMX and RDM, the RDM6D offers advanced control capabilities and power input options including PoE or DC 9–48V. Its UL924 emergency cue system, test button, and configurable cue fallback behavior make it ideal for mission-critical environments. Built with a powder-coated aluminum housing, it balances durability and performance in a compact form.
Product Specifications:
Mounting Options:

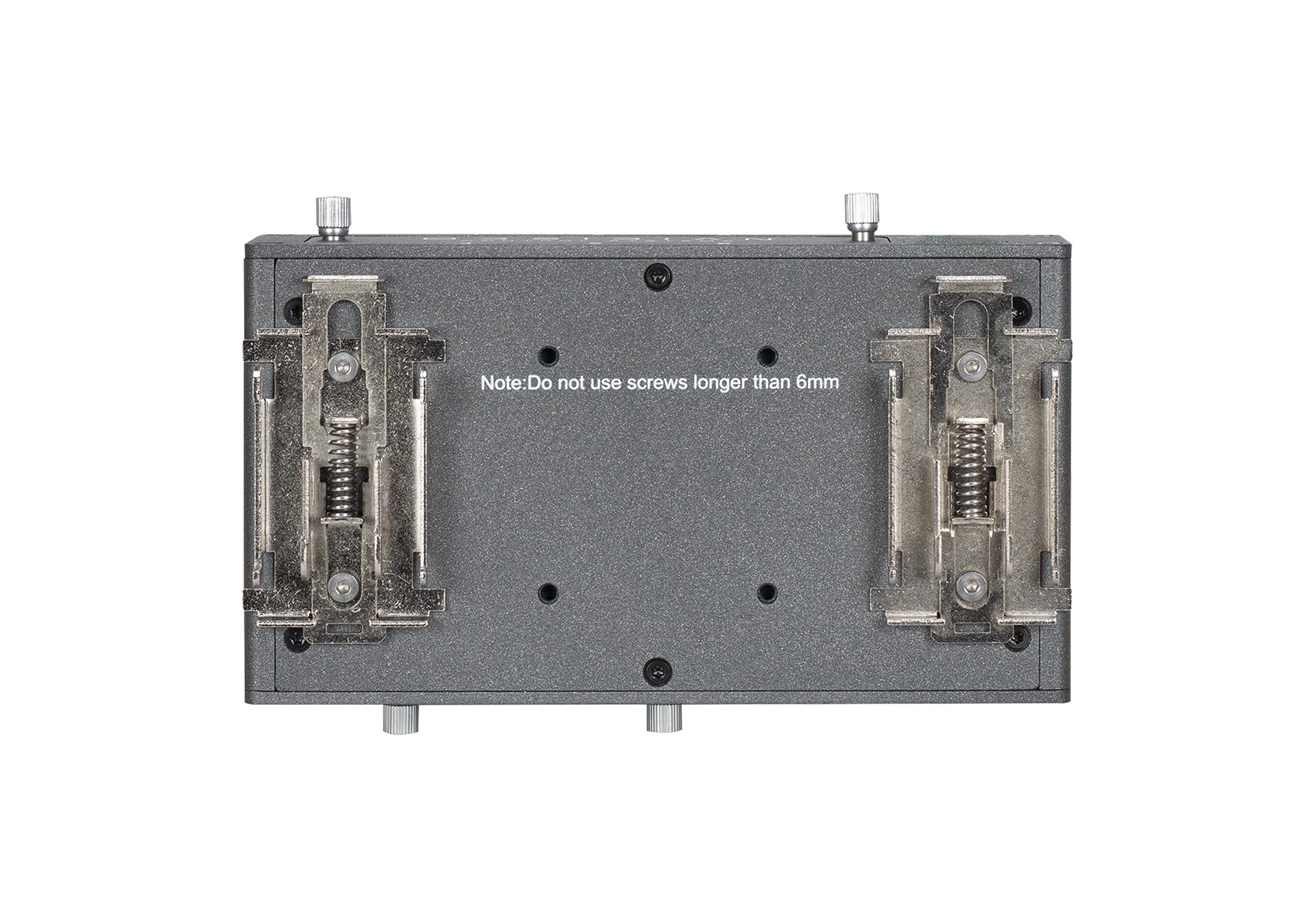

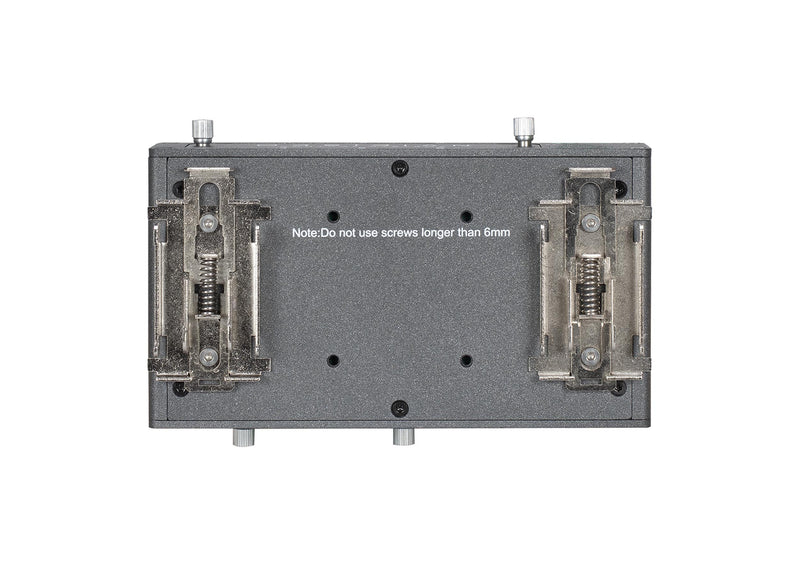

DIN Rail

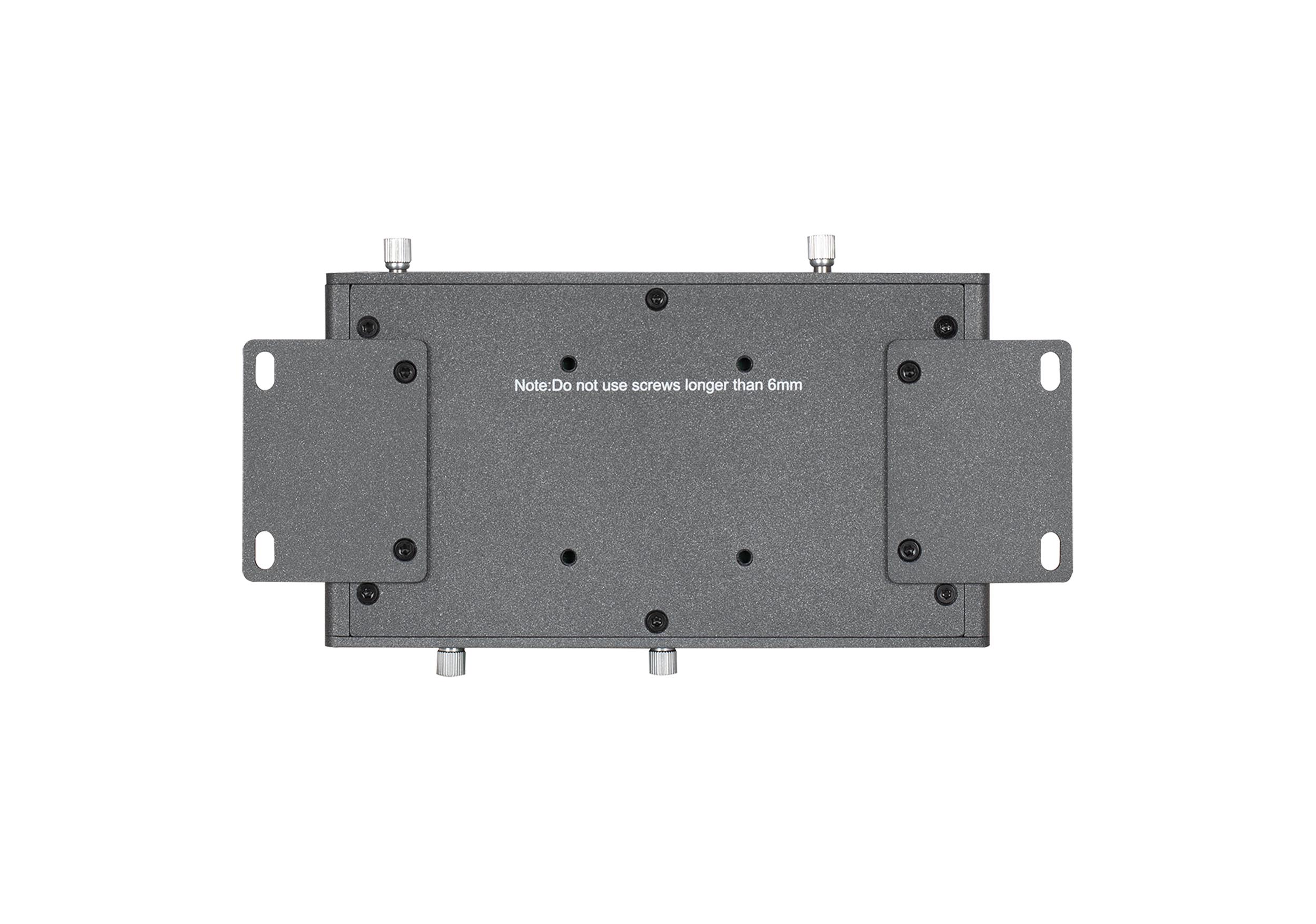

Wall-mount (brackets included)
Connections:

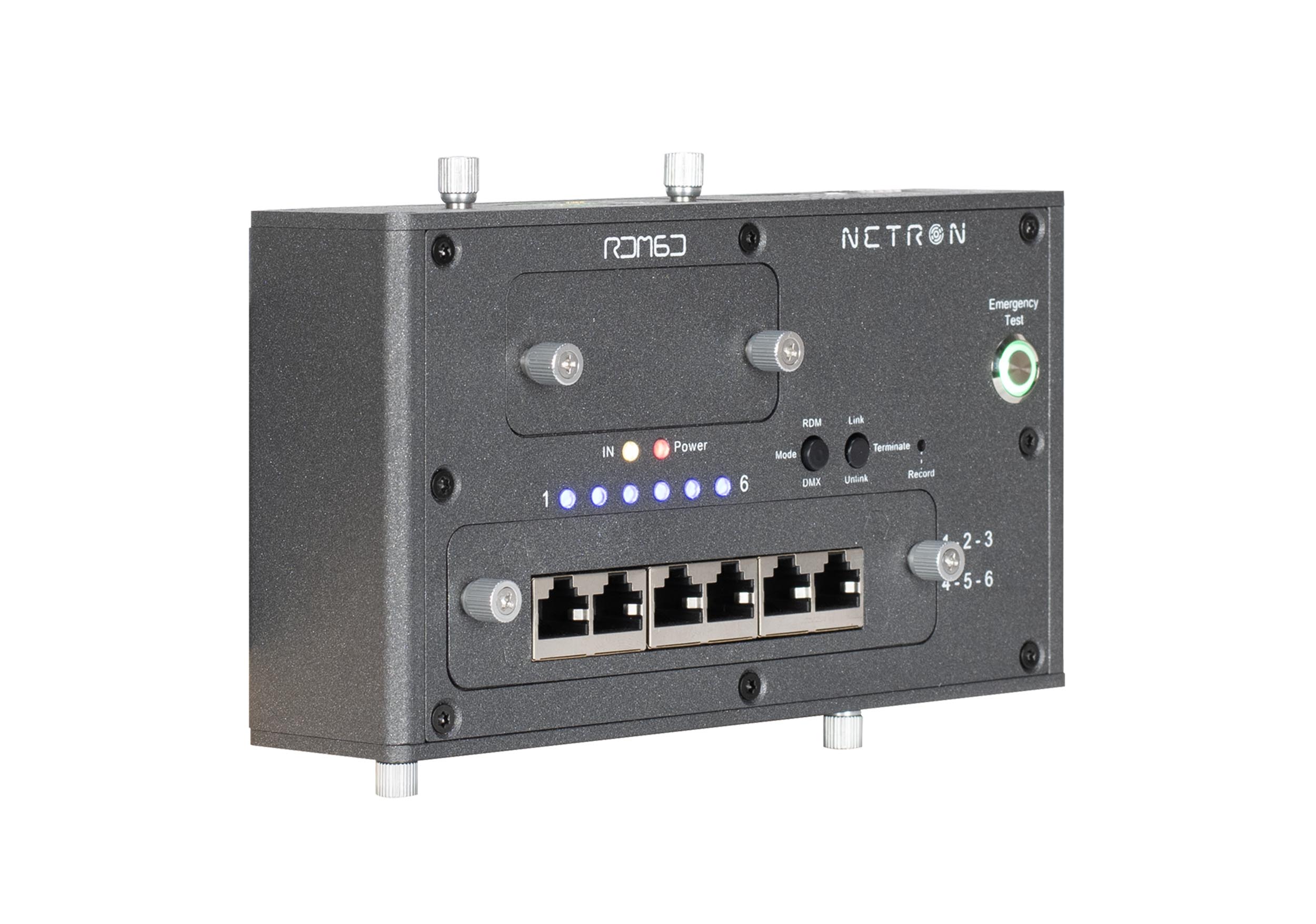

Front:

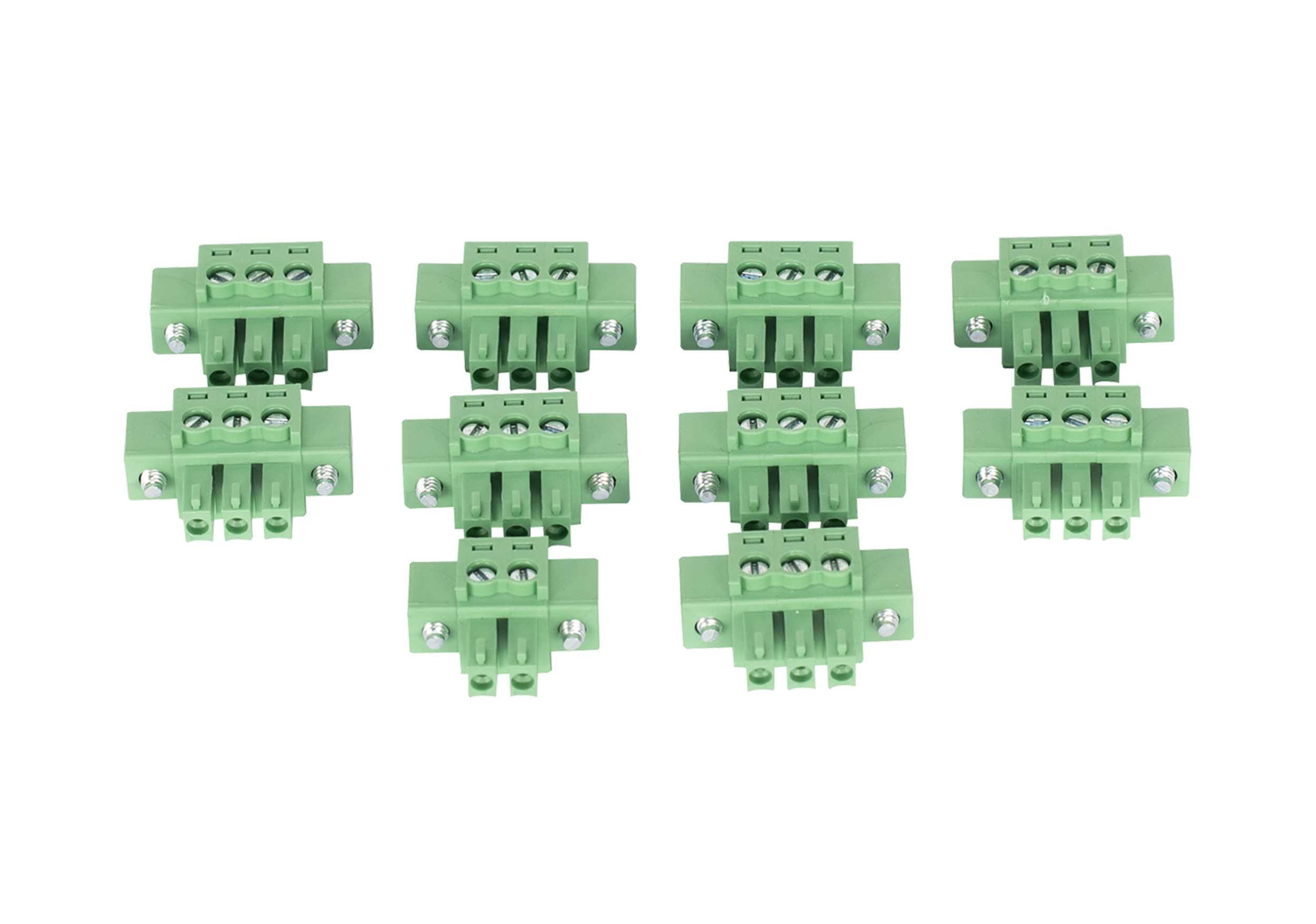

6-port DMX output plate (RJ45 or terminal block)
2-port DMX In/Thru plate (RJ45 or terminal block)

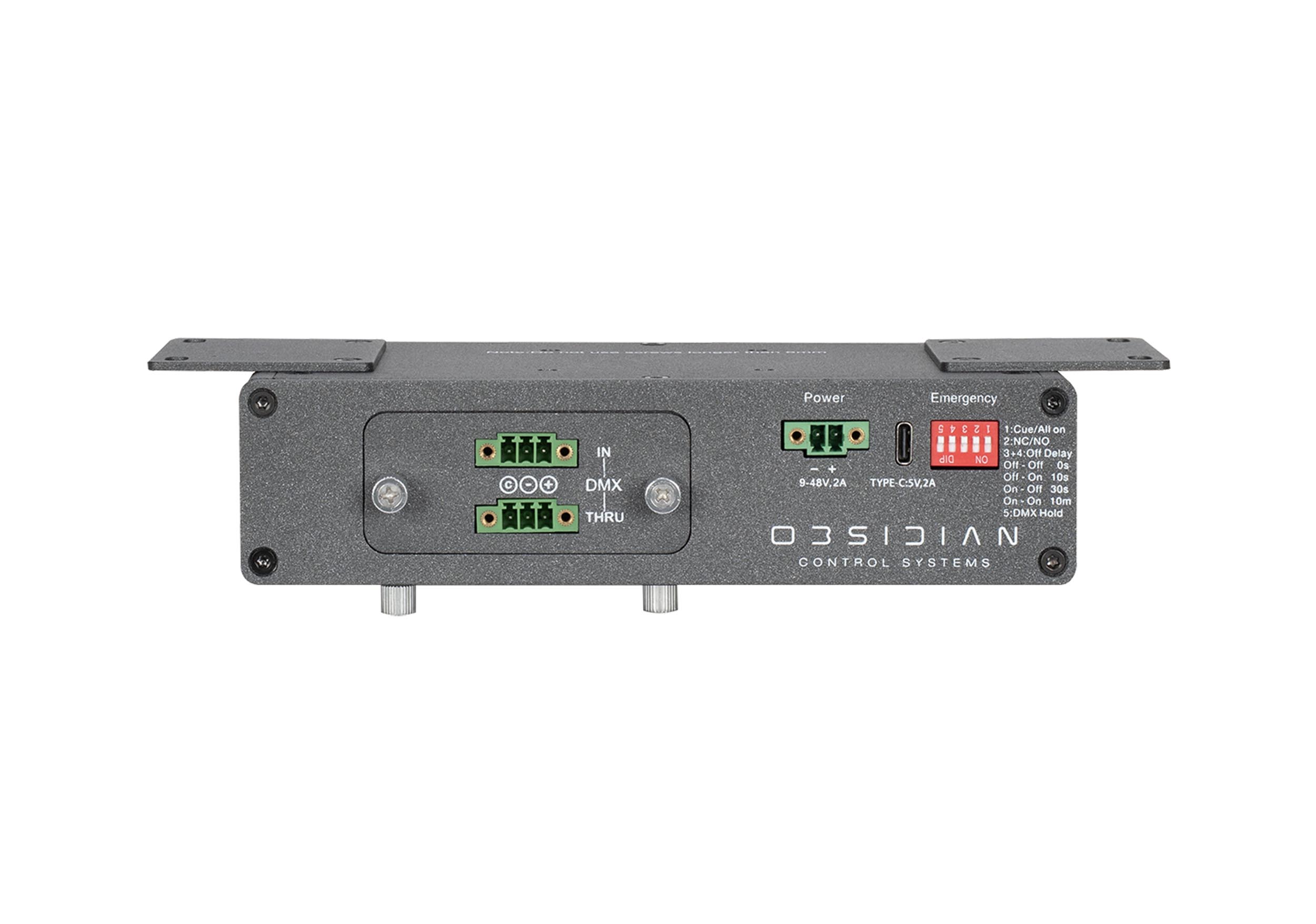

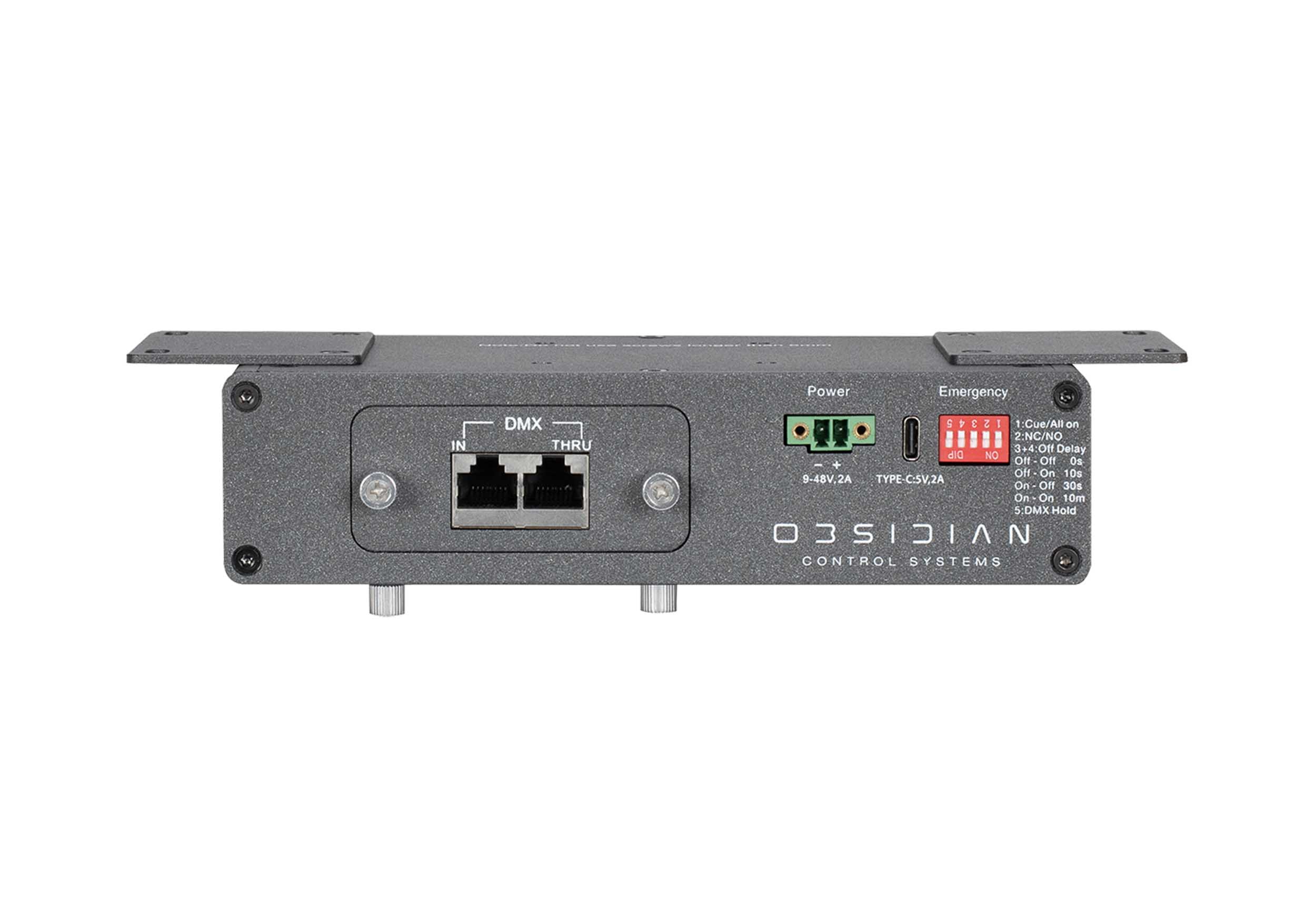

Top:
2-port DMX In/Thru plate (RJ45 or terminal block)
DC In (2-pin terminal block)
USB-C (5V/2A)

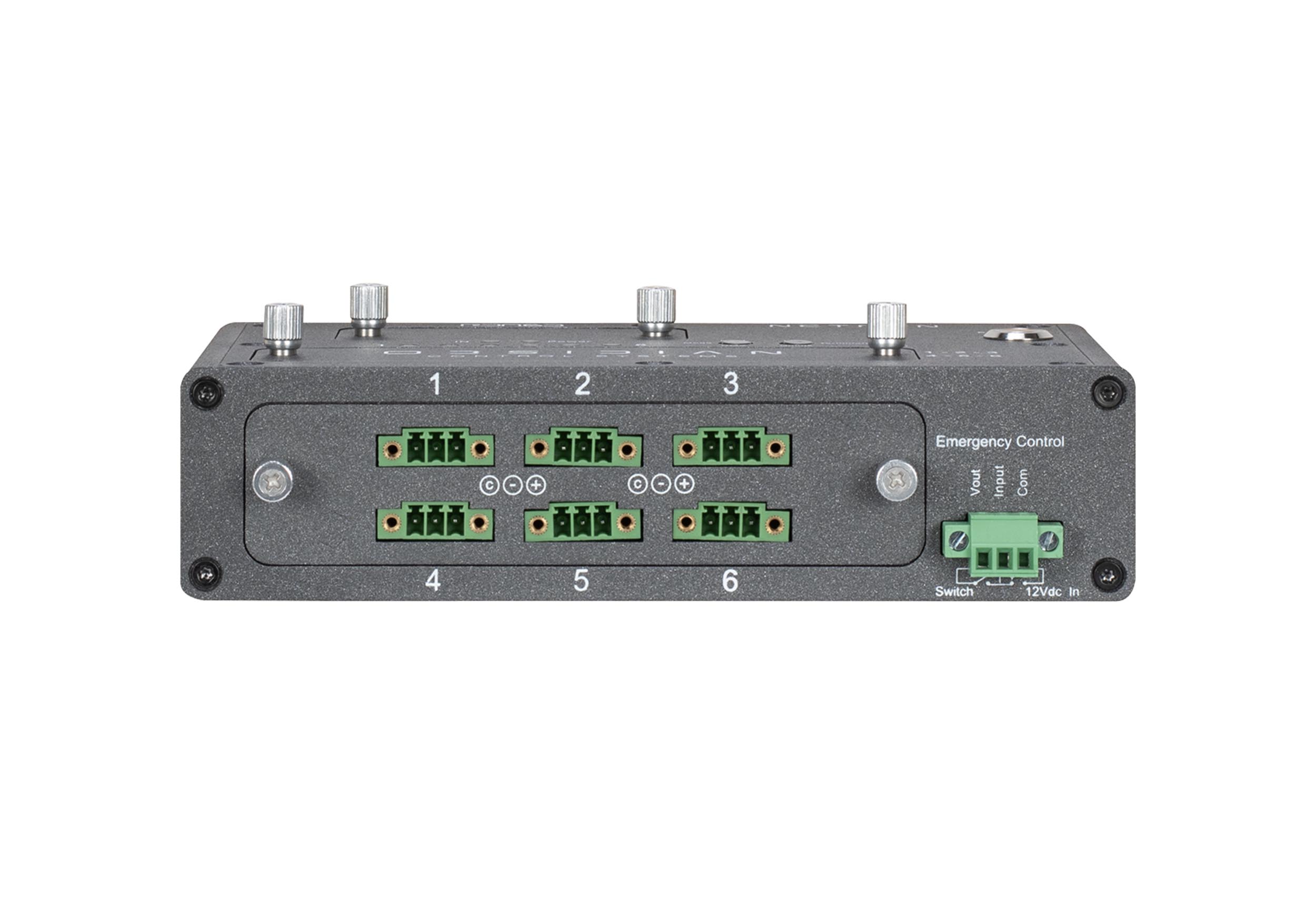

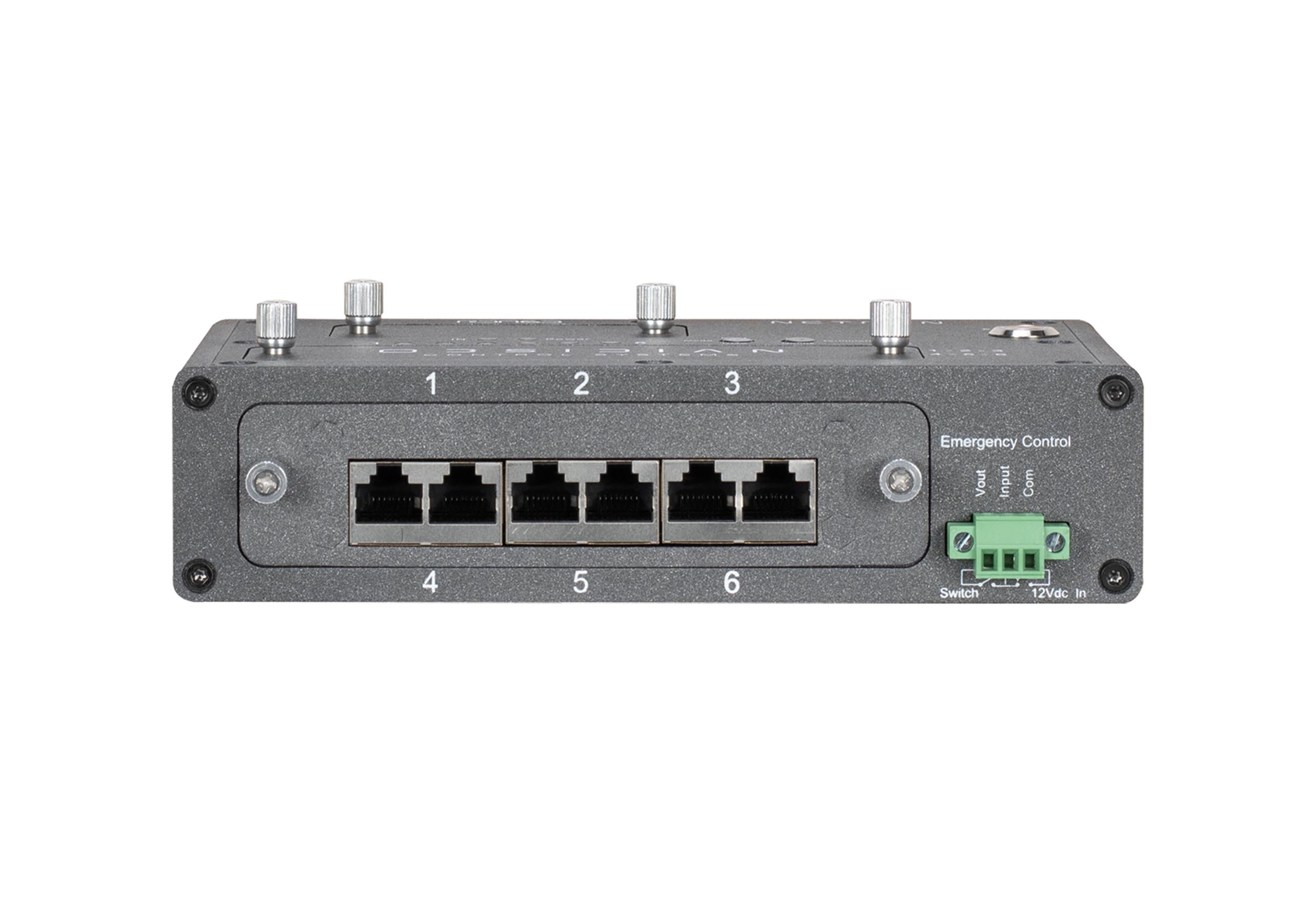

Bottom:
6-port DMX output plate (RJ45 or terminal block)
Emergency contact (3-pin terminal block, dry or 12V contact)
Electrical:
DC Input: 9–48V
USB-C Input: 5V / 2A
PoE compatible
Physical Dimensions:
Length: 4.7 in. (116 mm)
Width: 5.6 in. (143 mm)
Height: 2.1 in. (52 mm)
Weight: 1.6 lbs (0.73 kg)
Certifications & Ratings:
cETLus
CE
UL924
IP20
Shipping Weight: 1.9 lbs.
Shipping Dimensions (LxWxH): 9 x 7 x 3 inches
