Description

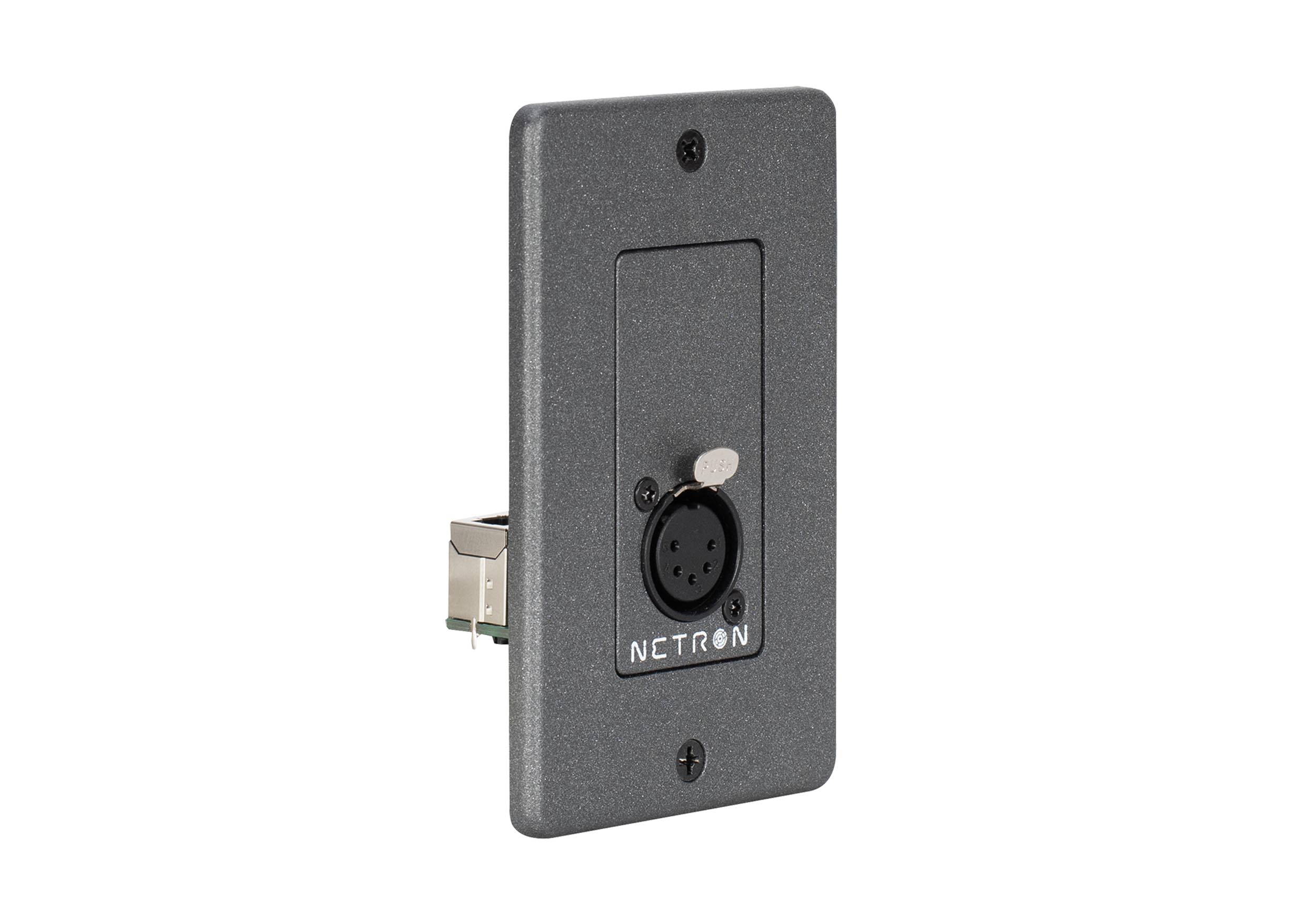

The Elation Obsidian NETRON WP1DO, Decora Wall Plate DMX Output 5pin XLR is designed for clean and flexible integration into any DMX infrastructure. Featuring a 5-pin XLR output on the front and multiple input connector options on the back (3-pin Phoenix, 3-pin IDC, and RJ45 – all ESTA-compliant), the WP1DO is ideal for permanent DMX passthrough points in venues, theaters, or AV installations. It comes complete with a matching Decora wall plate for a seamless appearance and easy installation in a standard US 1-gang electrical box.
Product Specifications:
Mounting: In-Wall (1-Gang US standard)
Connections:

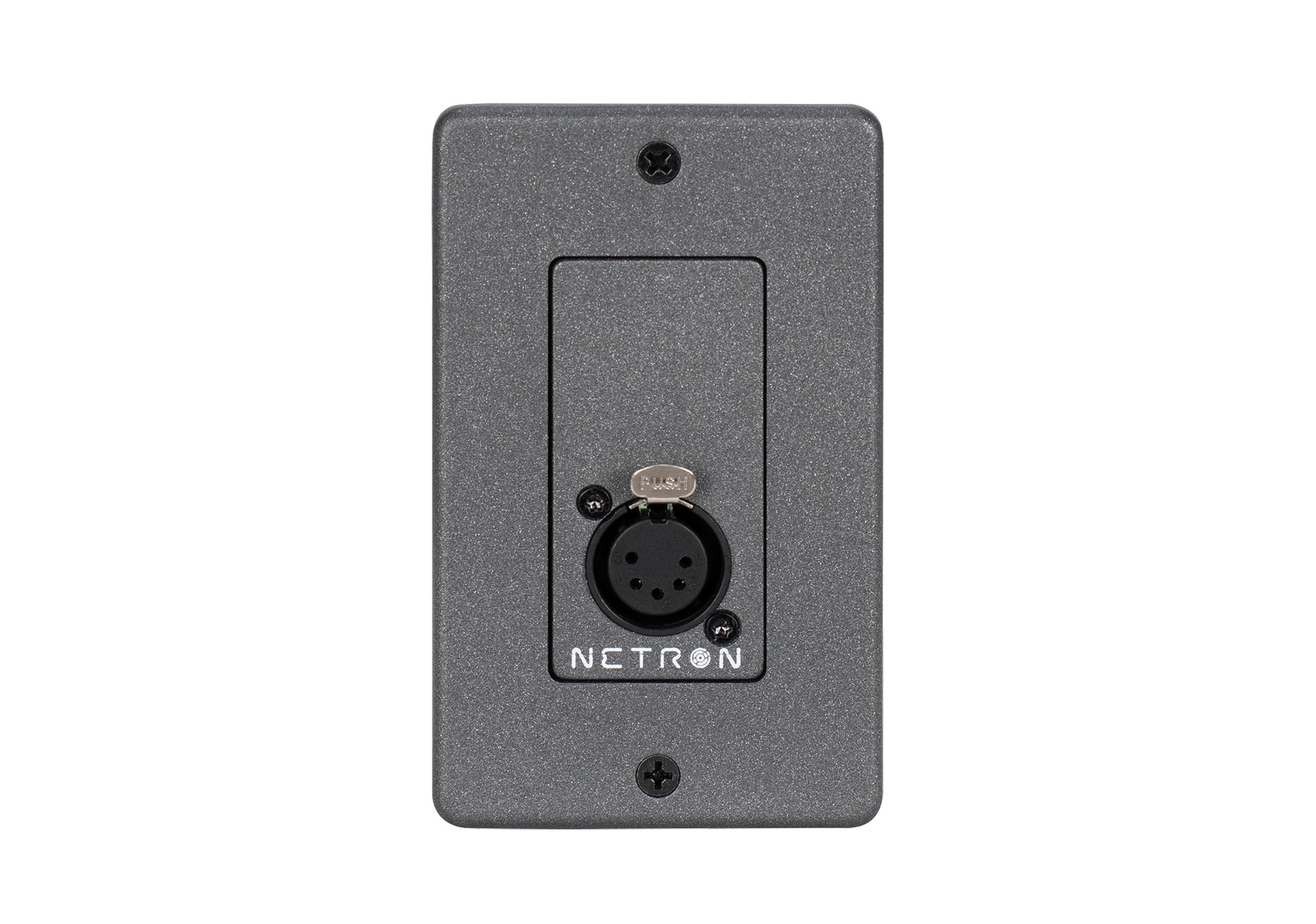

Front: (1) 5-pin DMX Output

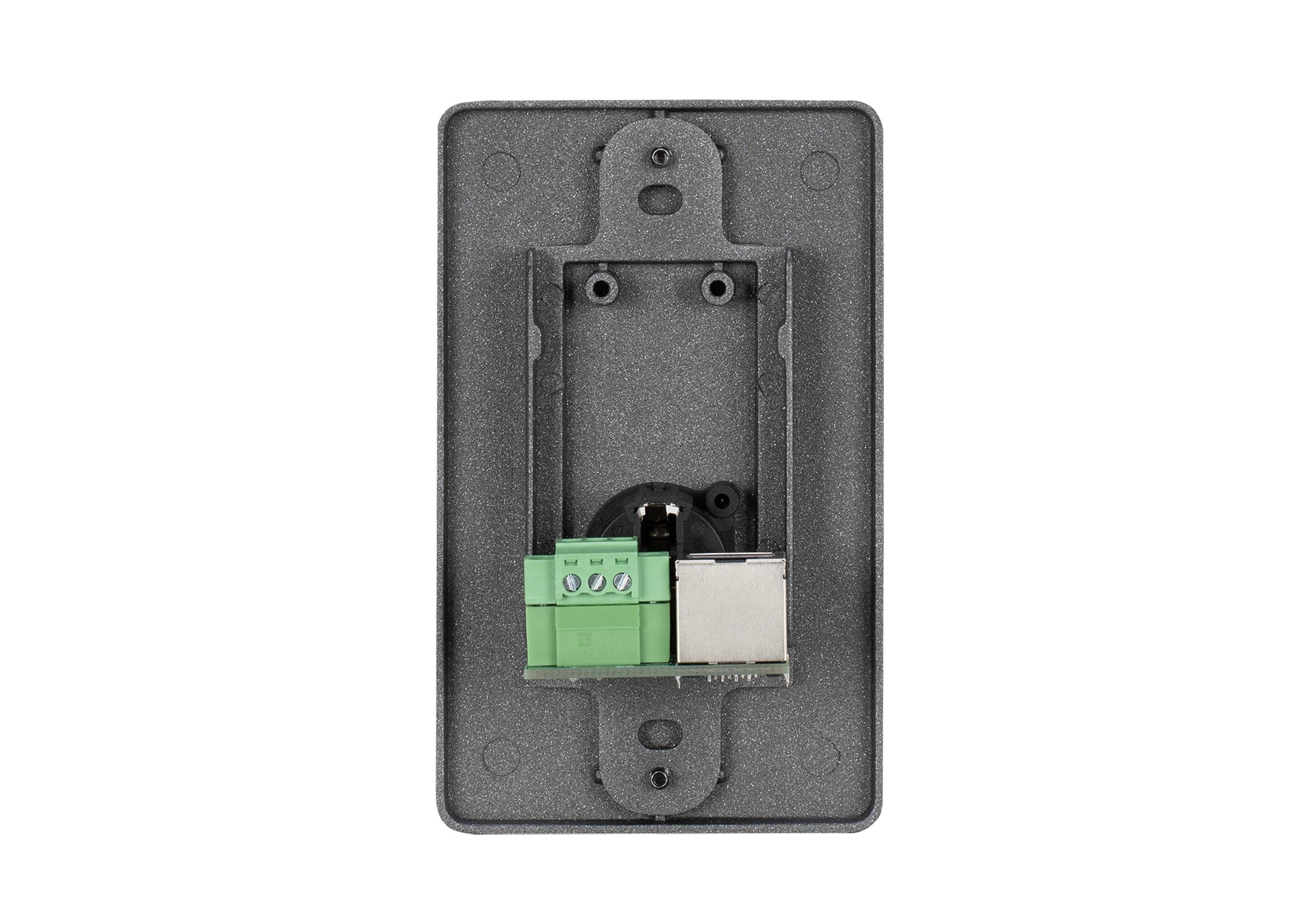

Back:
(1) 3-pin Terminal Block (Phoenix)
(1) RJ45 DMX Input
(1) 3-pin IDC Connector
Physical:
Length: 2.3 in (60 mm)
Width: 1.64 in (34.8 mm)
Height: 4.3 in (108.5 mm)
Weight: 0.22 lbs (0.1 kg)
Approvals / Ratings:
CE / CETLUS / UKCA, IP20 Rated
Included Accessories:

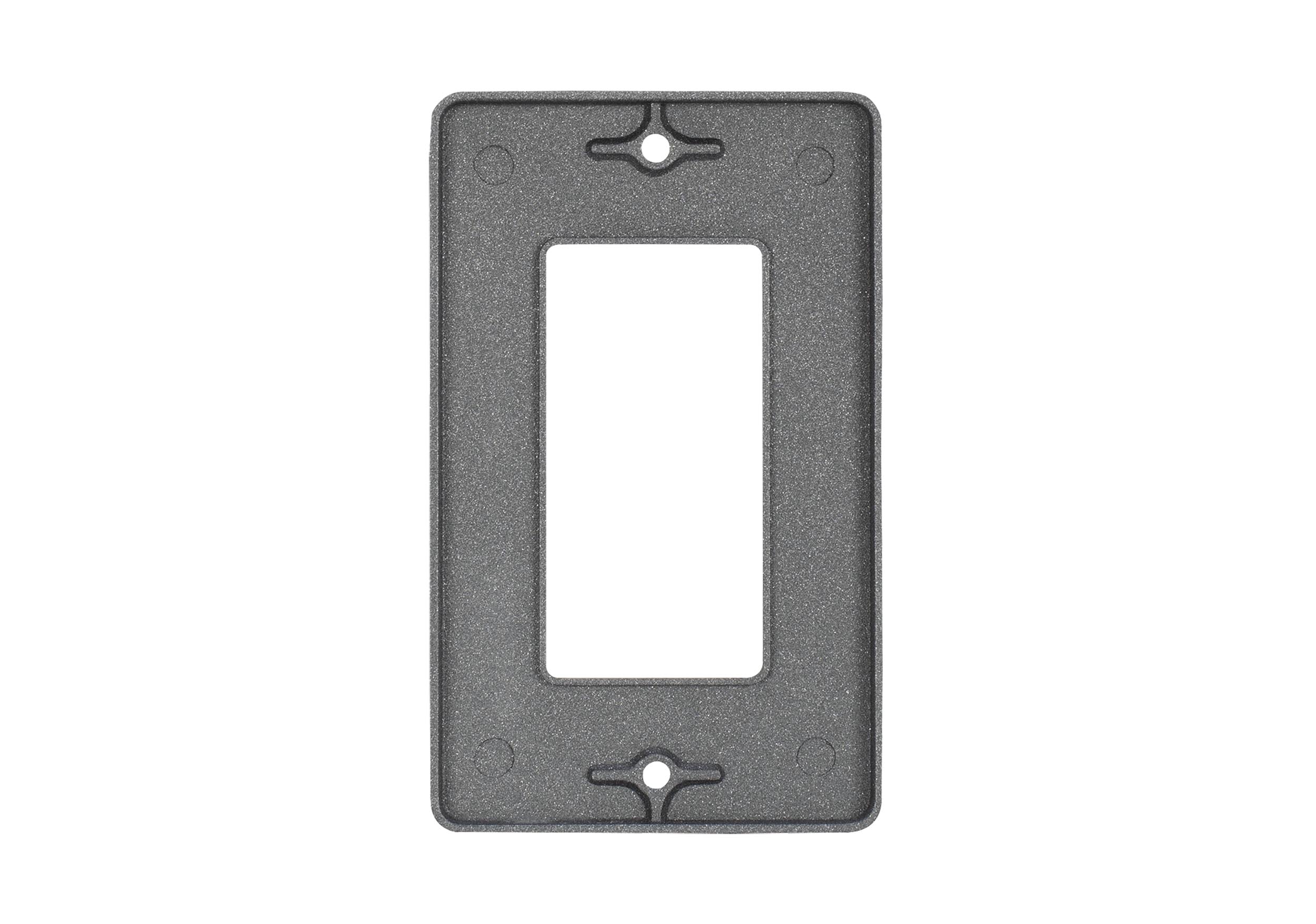

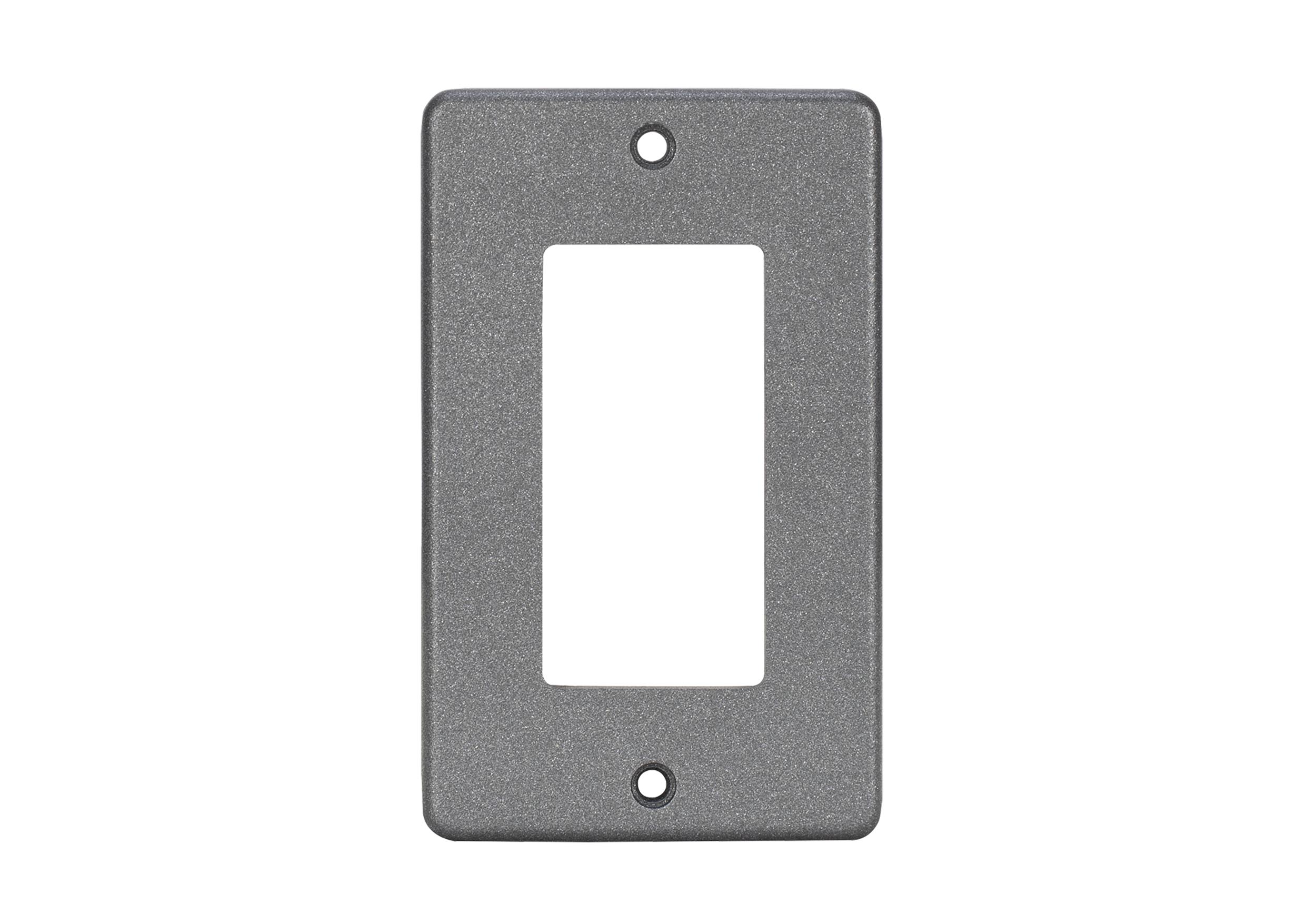

NETRON Decora 1-Gang Wall Plate
(1) Screw Terminal with Security Screws
(1) IDC Connector with Security Screws
Shipping Weight: 1 lbs
Shipping Dimensions (inches):
Length: 2.3 in
Width: 1.64 in
Height: 4.3 in
