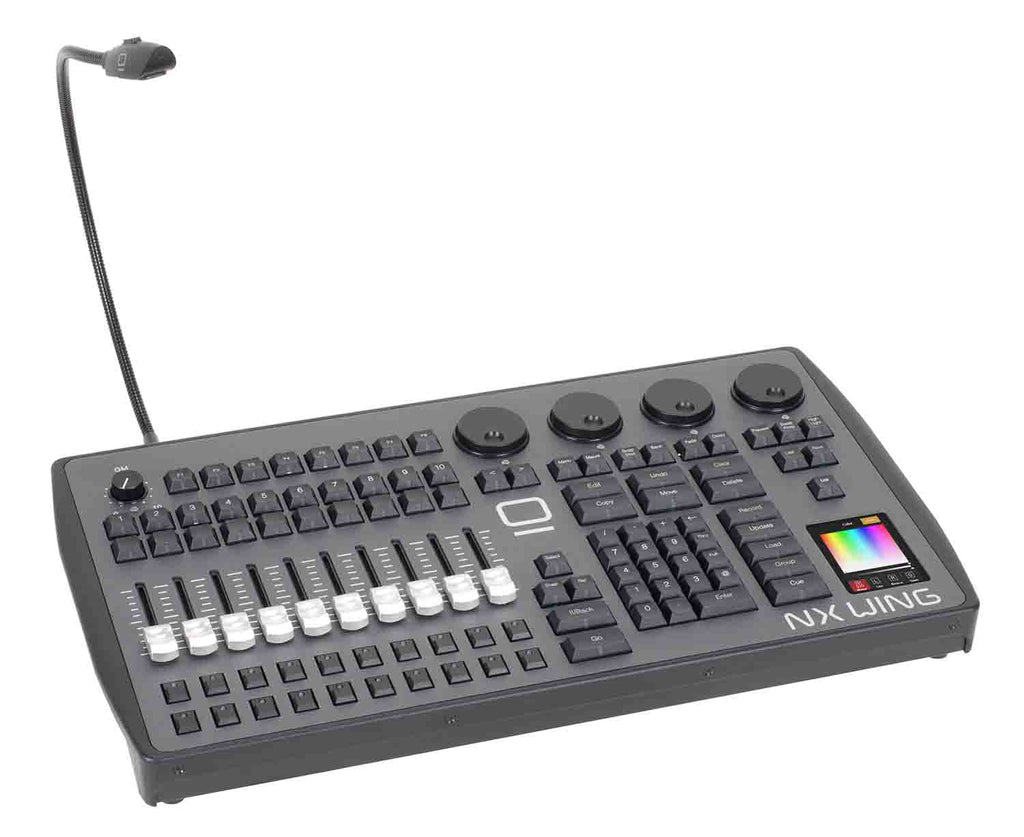

Elation NXW884 NX Wing USB Control Surface to Obsidian Control Systems ONYX Platform

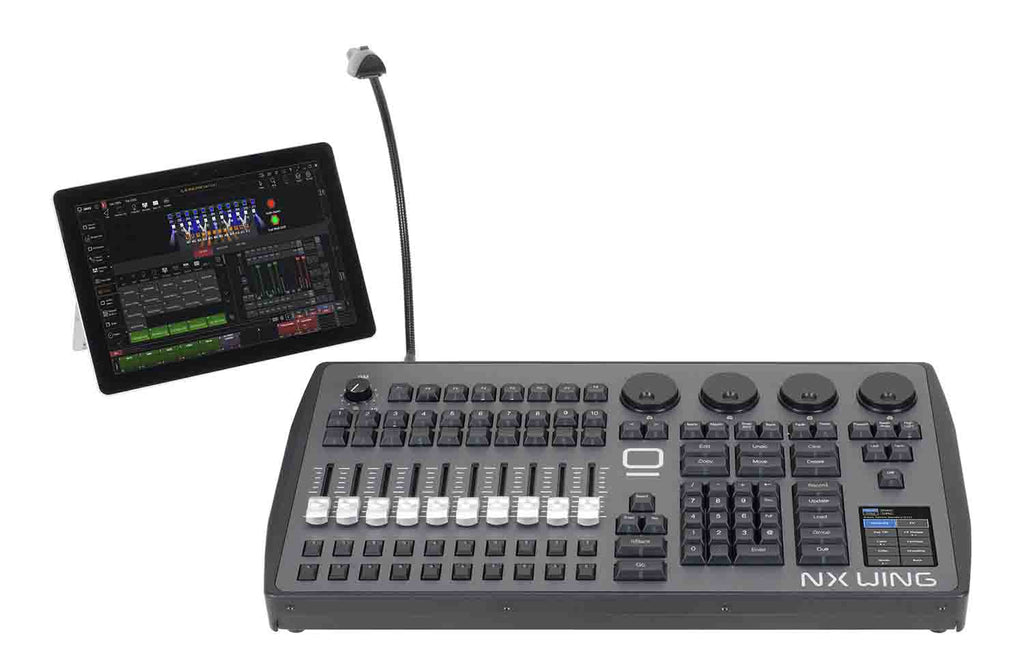

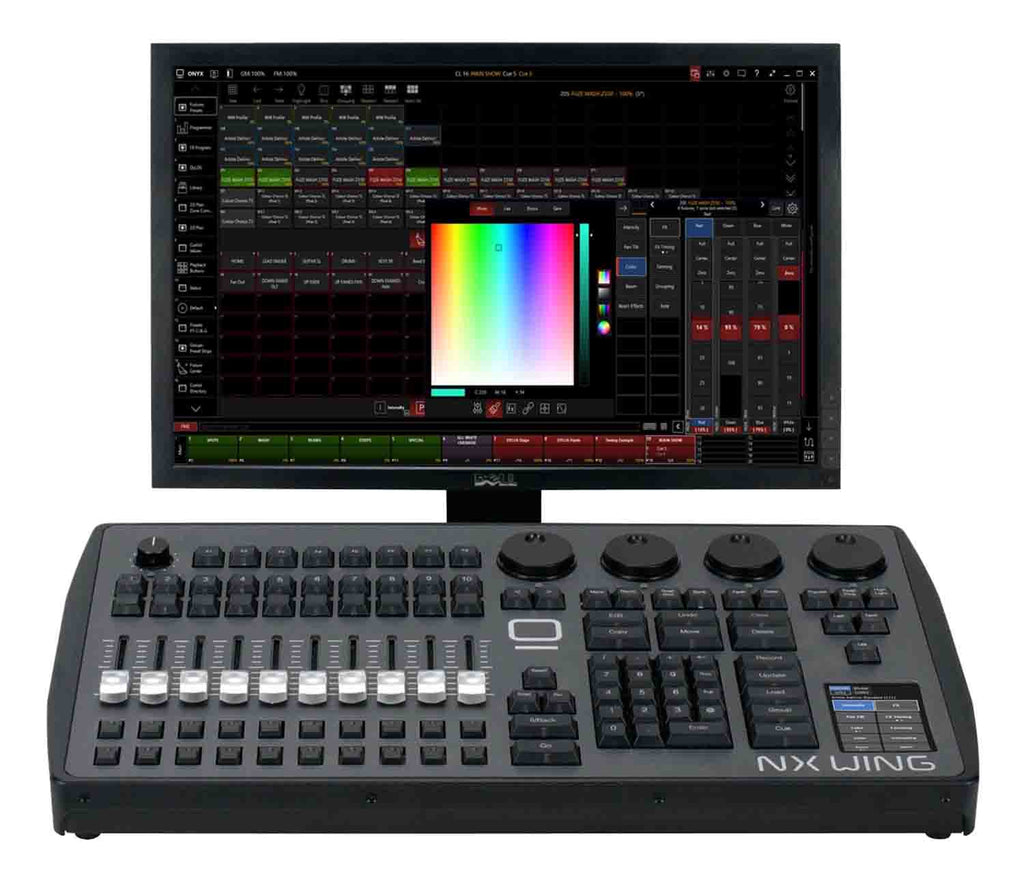

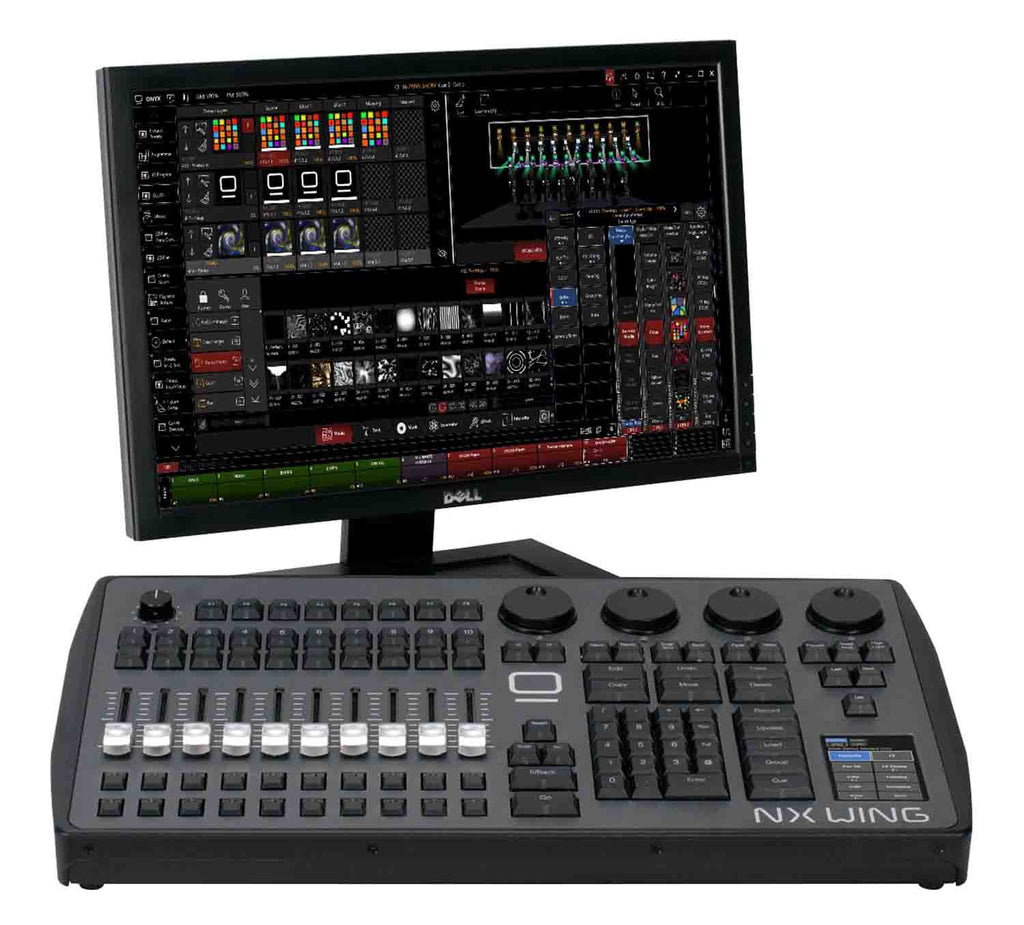

The Elation NXW884 NX Wing USB Control Surface to Obsidian Control Systems ONYX Platform is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX Wing provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly. NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 64 Universes of control when connected to ONYX on a PC.

Product Specifications:

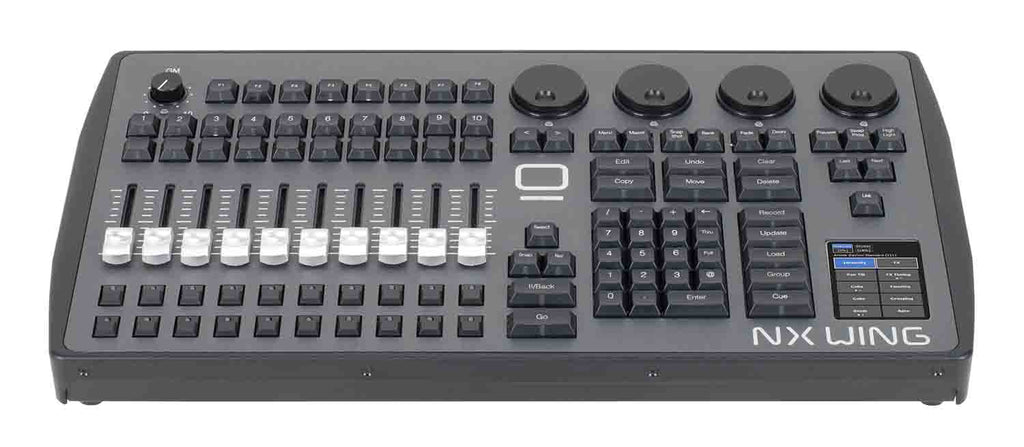

Surface

10x 60 mm playback faders, each with 4x function-assignable buttons
8x customizable multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release
4x digital rotary encoders with push function and status LED for fixture parameter control
3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
Grand master rotary fader and button
Blind/Highlight/Last/Next buttons
Full numerical keypad and command keys

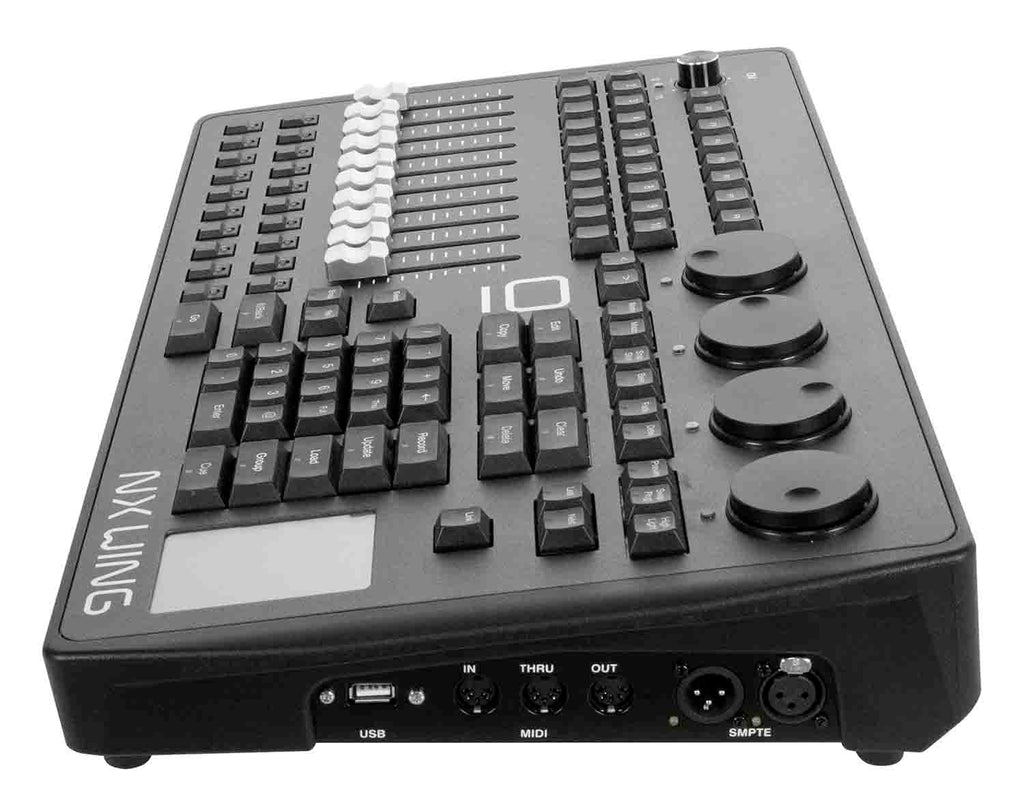

Connections

4x DMX / RDM Universe In/Out: 5pin locking XLR
MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN
SMPTE Timecode In/Out: 3pin XLR
12 VDC power supply input: 4pin XLR
Desk lamp: XLR 12V
USB in: USB 2.0 B

Requirements

Windows 10
Intel Core i3 processor 6th Generation+
8 GB RAM
SSD Drive
40 GB available disk space
Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
USB 2.0 port
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for X-Net, Remote operation and sACN

Package Dimensions:

Length: 12 in

Width: 22 in

Height: 4.01 in

Weight: 11.12 lbs
