Description

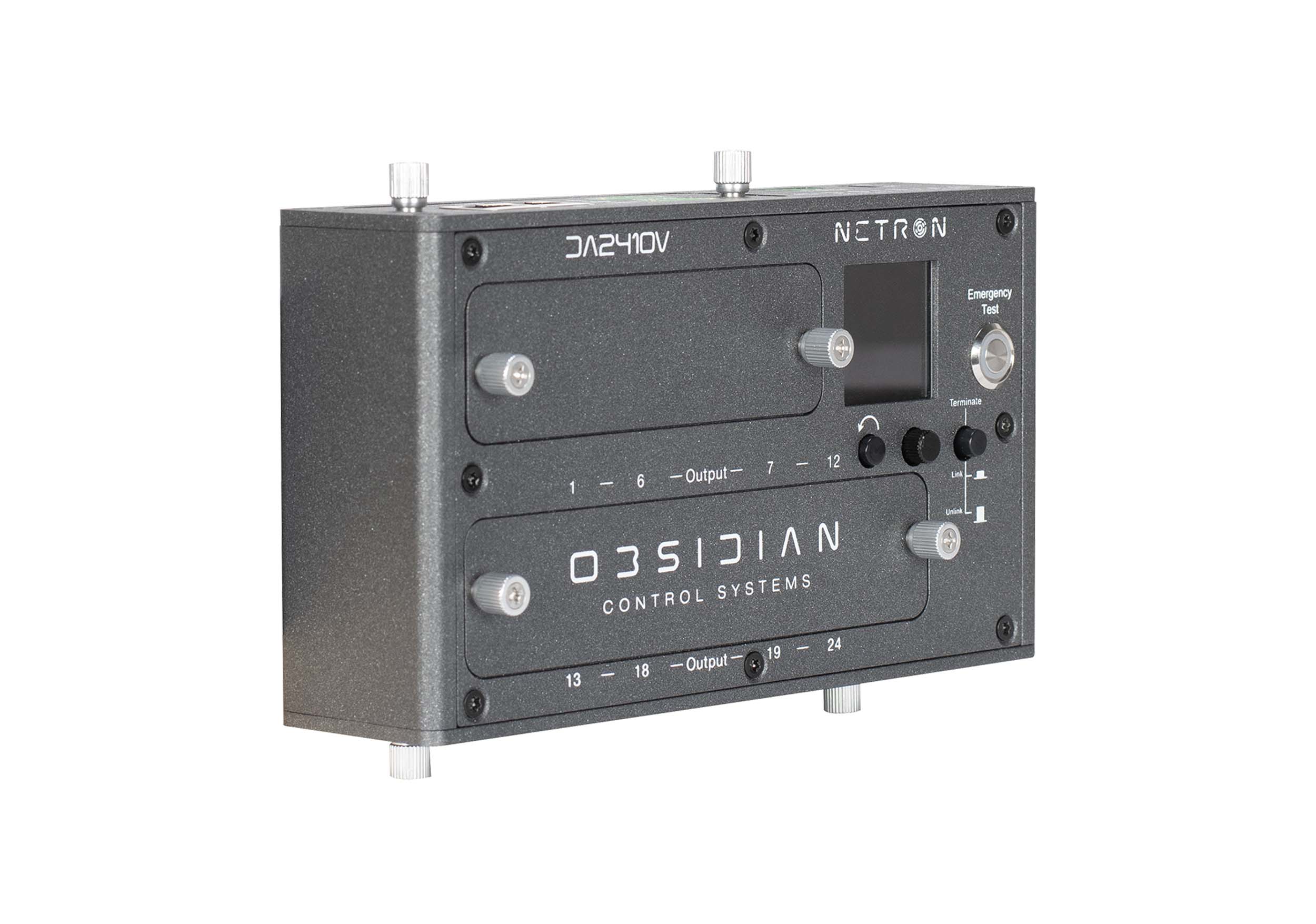

The Elation DA2410V 24-Port DIN-Rail 0-10V Ethernet DMX Gateway is a powerful and flexible 24-port 0-10V analog output gateway, perfect for architectural and entertainment lighting control systems. Designed for DIN rail or wall mount installation, it accepts DMX, Art-Net, or sACN as input sources and offers versatile connectivity via screw terminals or IDC connectors. Its compact form factor, OLED display, and rotary control make configuration intuitive, while its UL924 compliance ensures it can be used in emergency lighting applications with features like an emergency cue system, test button, and customizable fallback behavior. The DA2410V is built with a rugged powder-coated aluminum housing and supports 12-48V DC power input, making it ideal for a variety of professional installations.
Product Specifications:
Mounting Options:

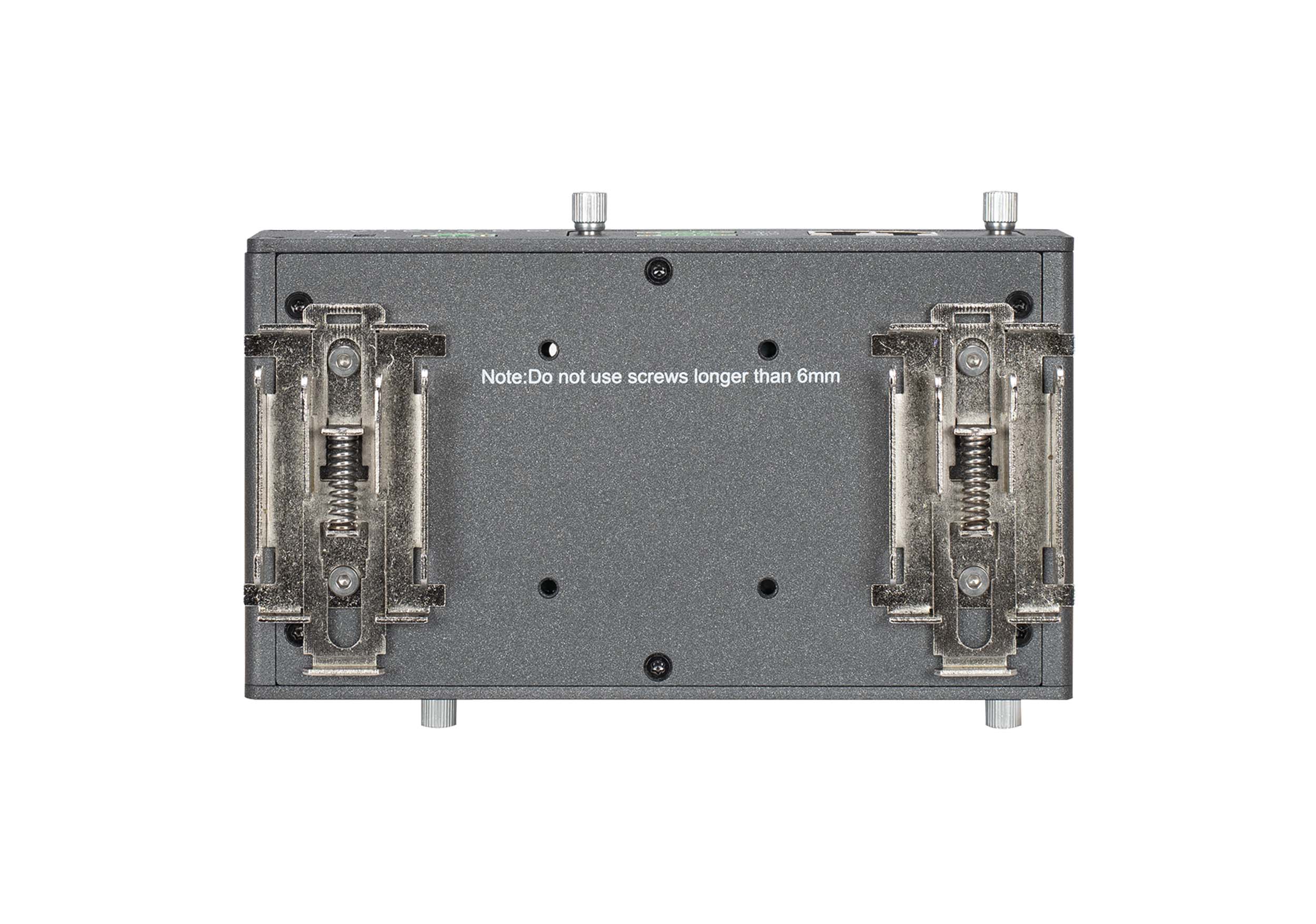

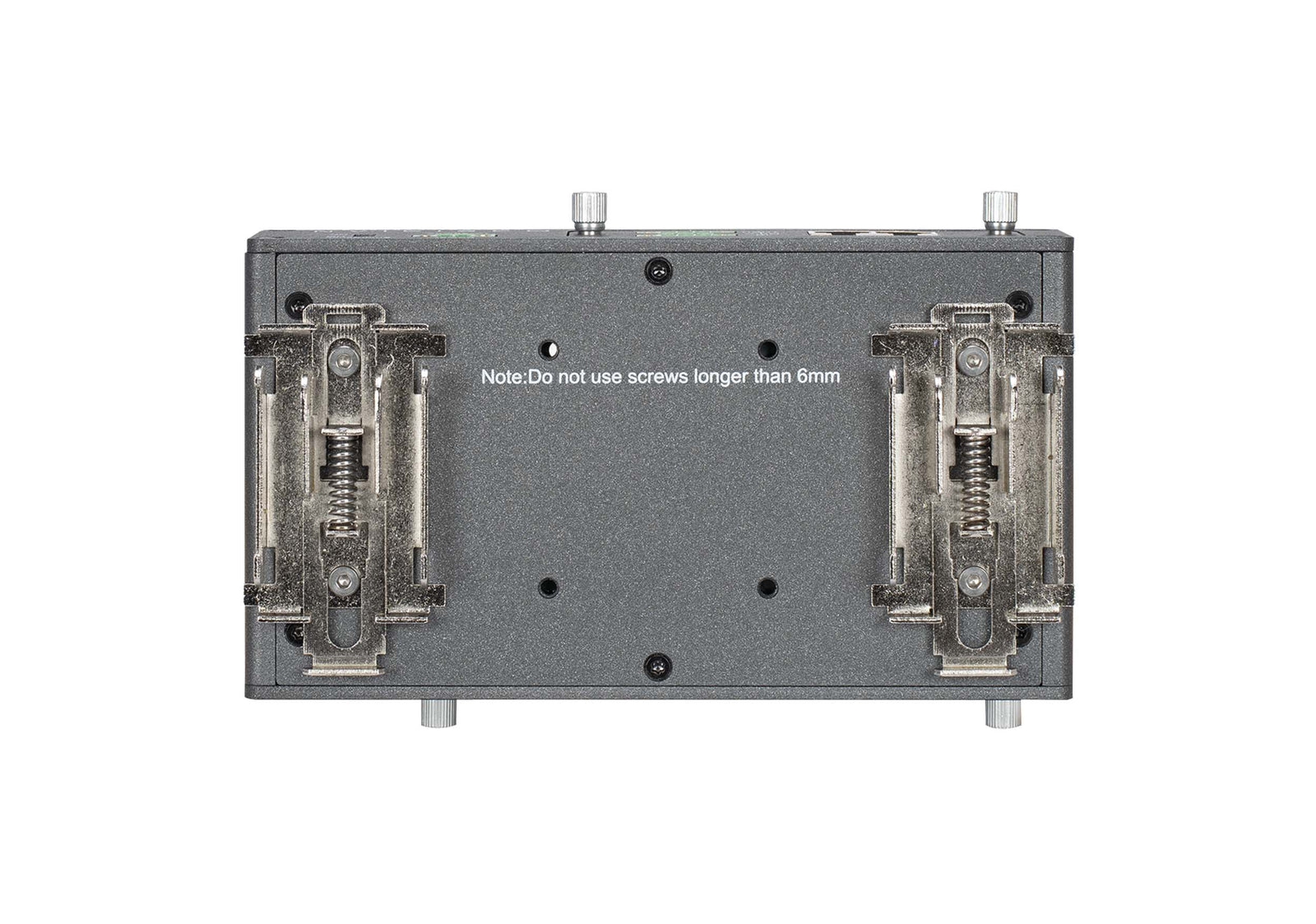

DIN Rail

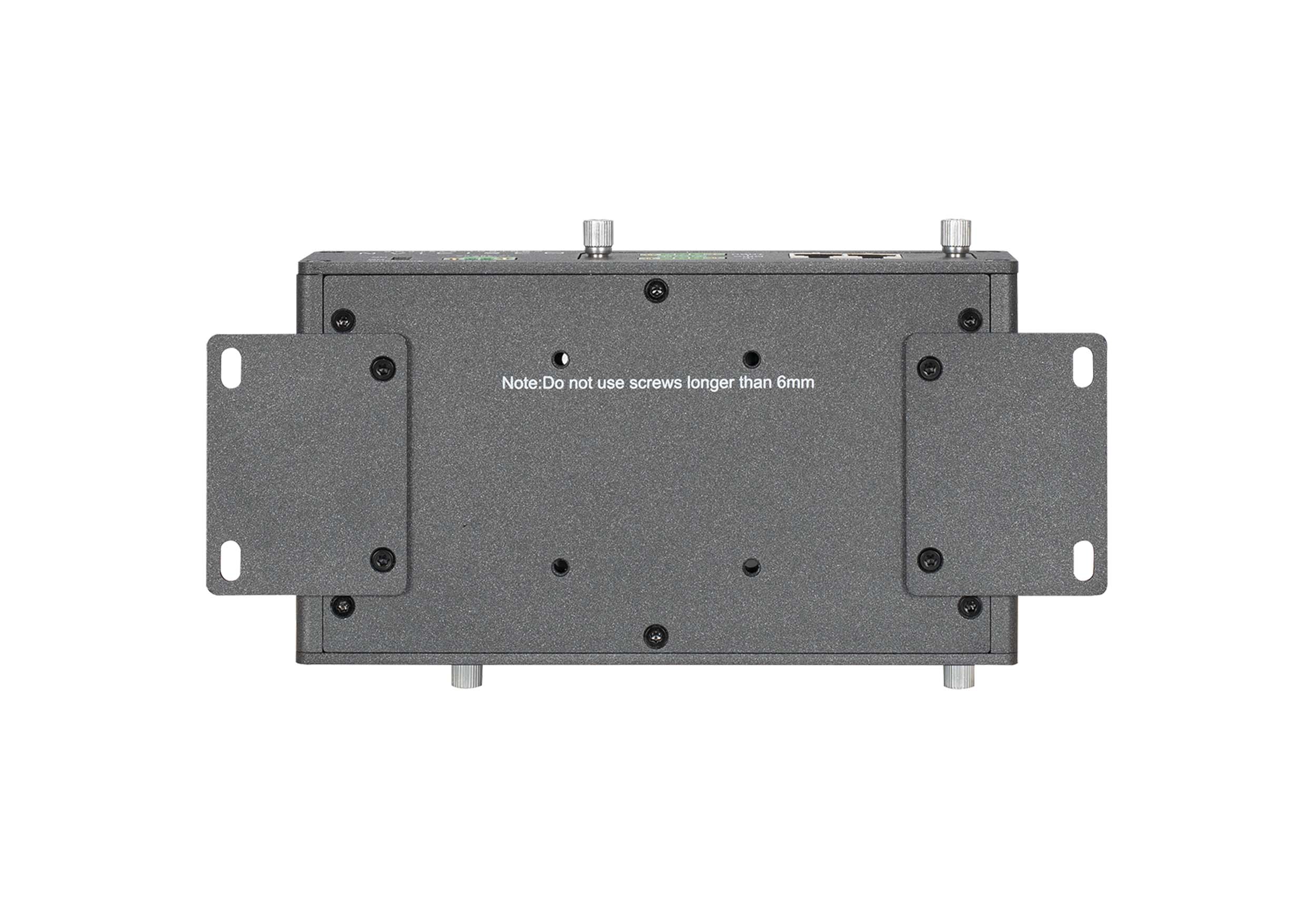

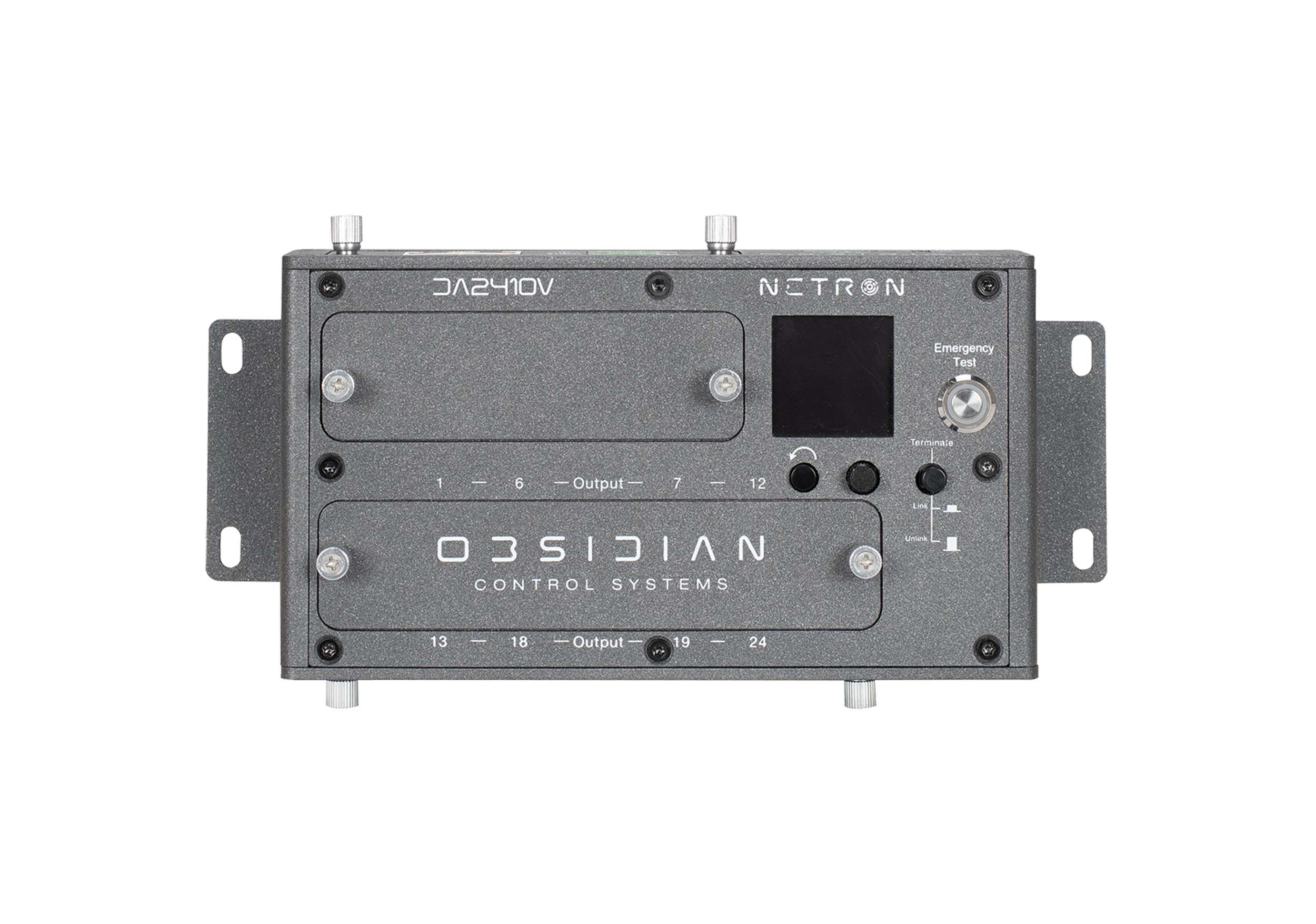

Wall-mount (brackets included)
Connections:

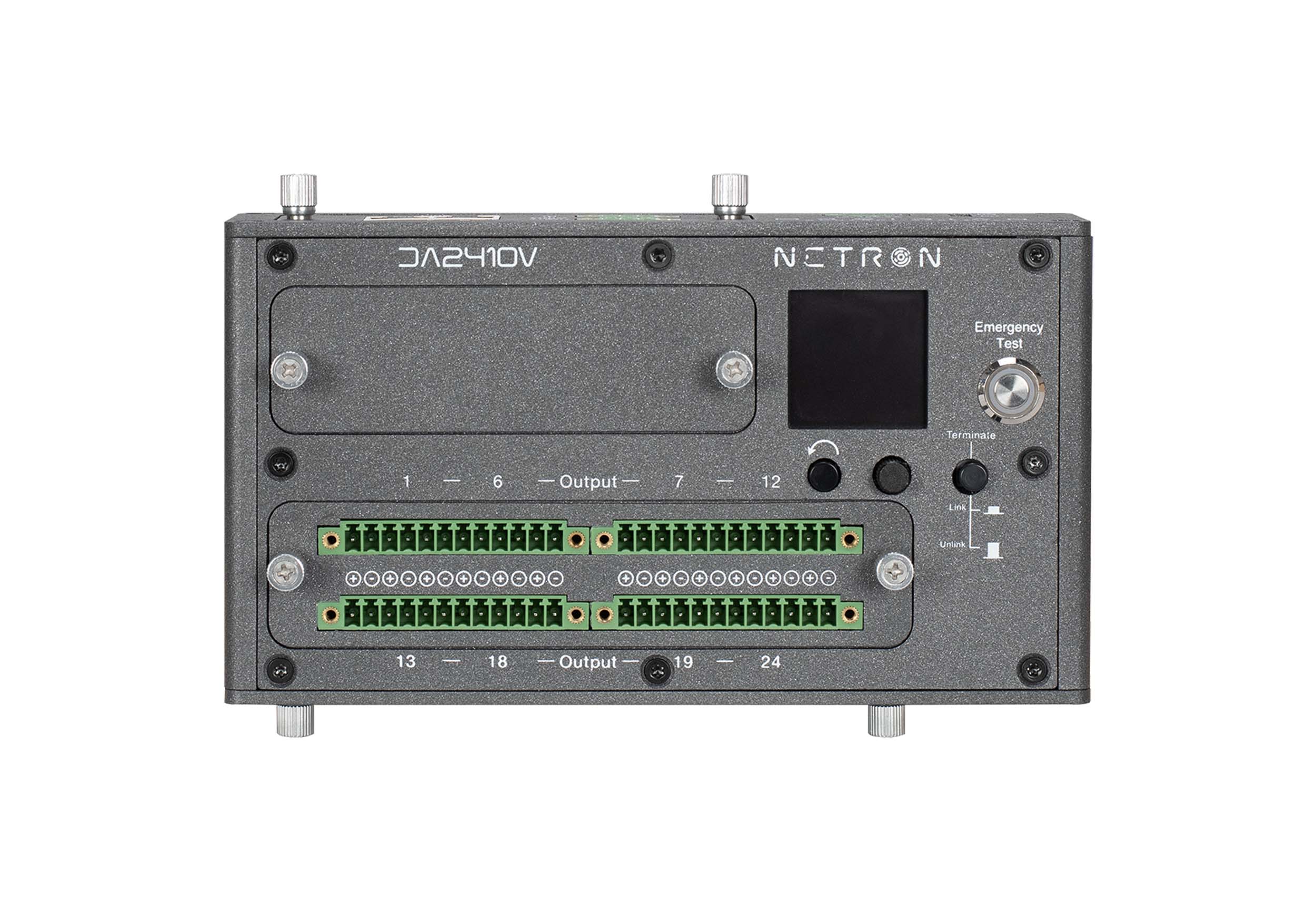

Front:
1.3" OLED Display with rotary knob

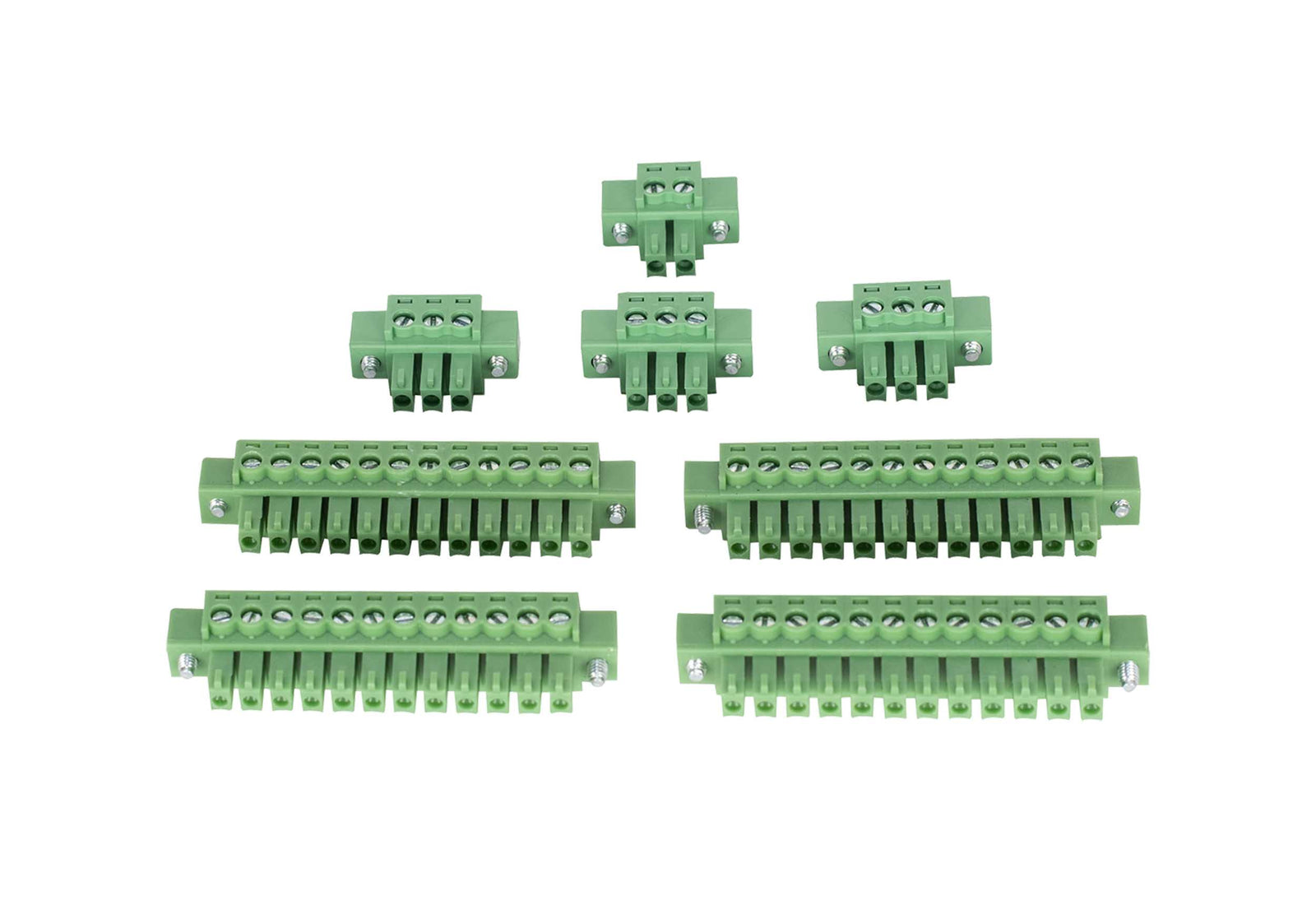

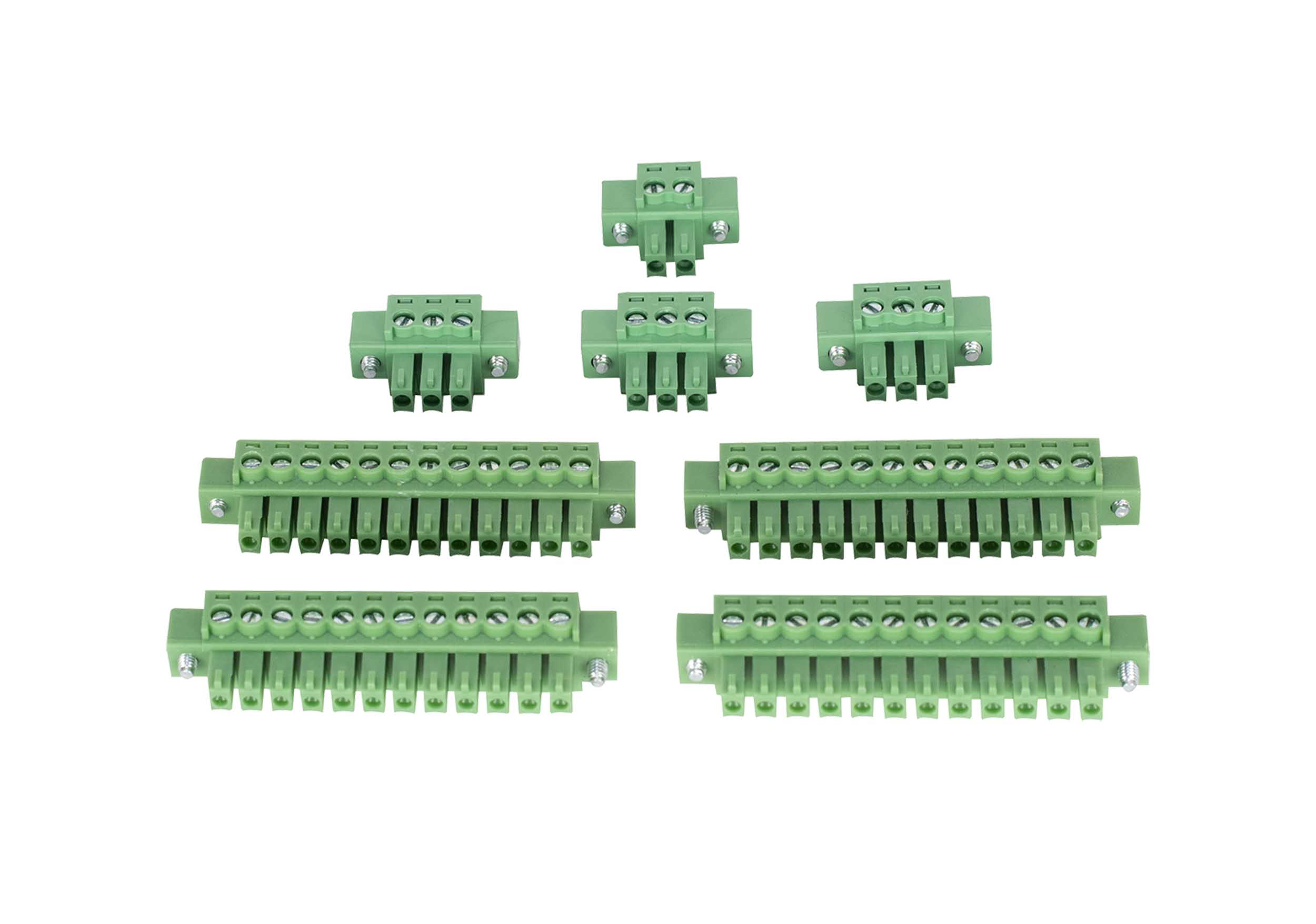

24-port analog terminal block or cover plate
(2) RJ45 Gigabit Ethernet (1x PoE), DMX In/Out or cover plate

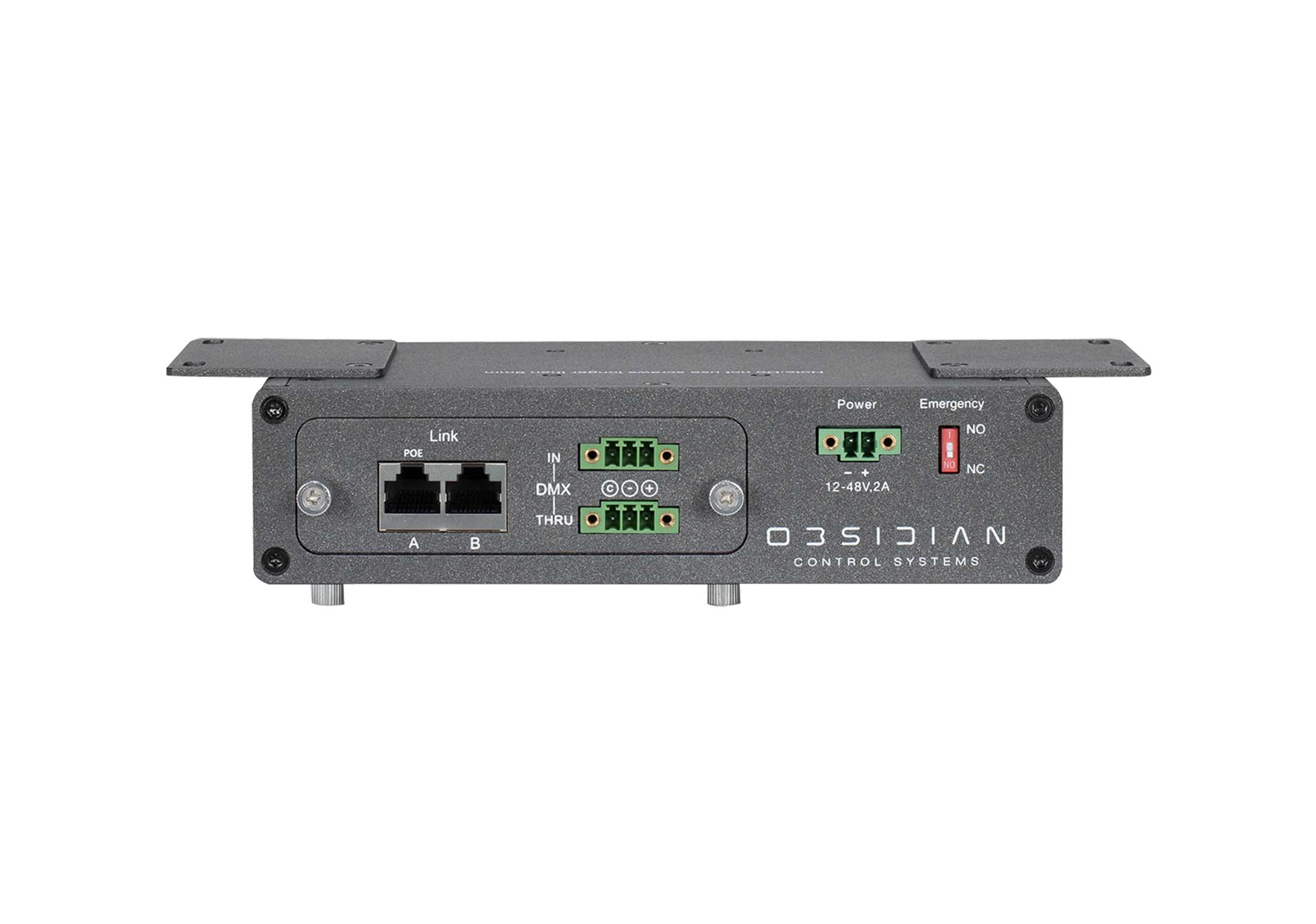

Top:
(2) RJ45 Gigabit Ethernet (1x PoE), DMX In/Out or cover plate
DC In (2-pin terminal block)

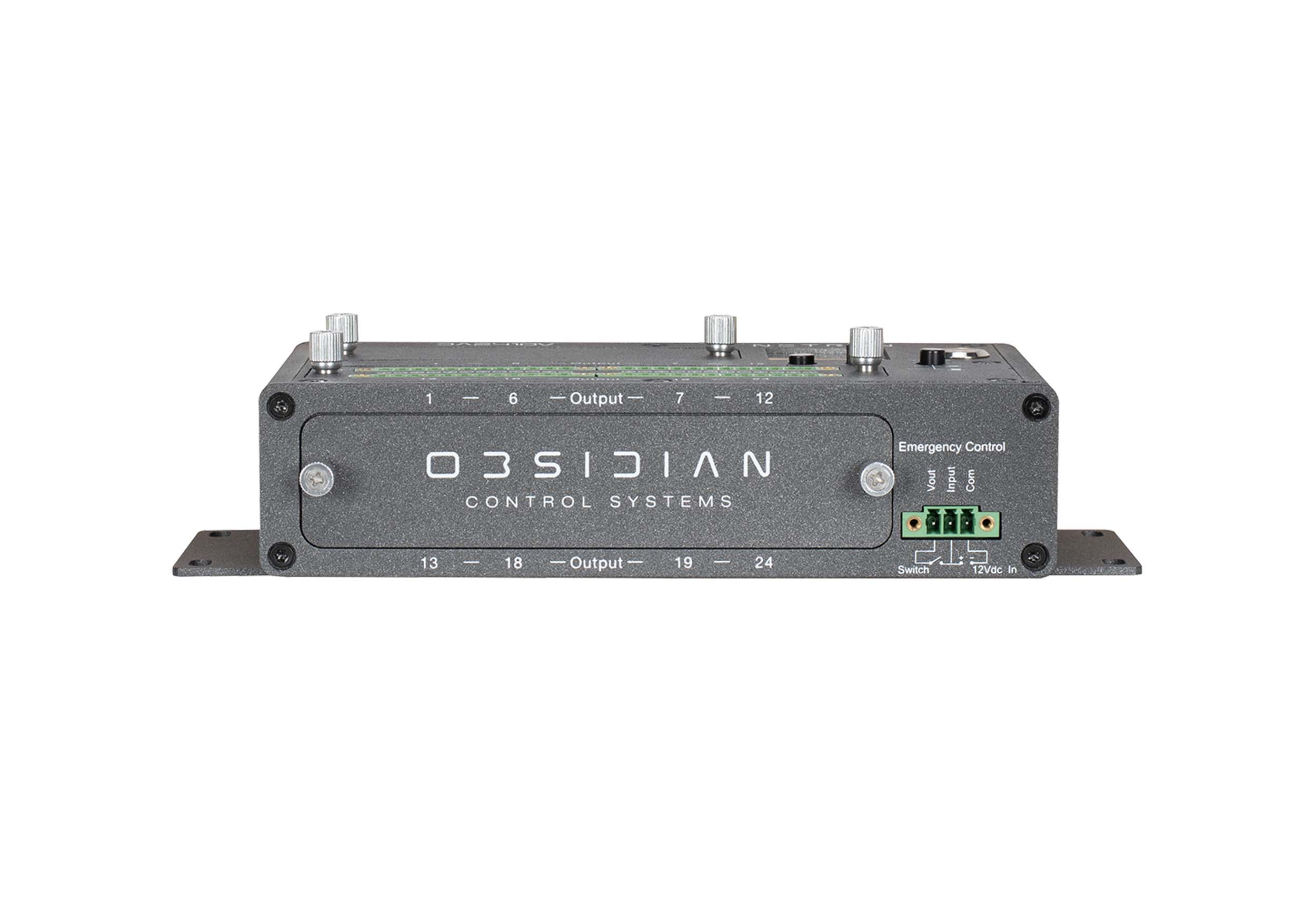

Bottom:

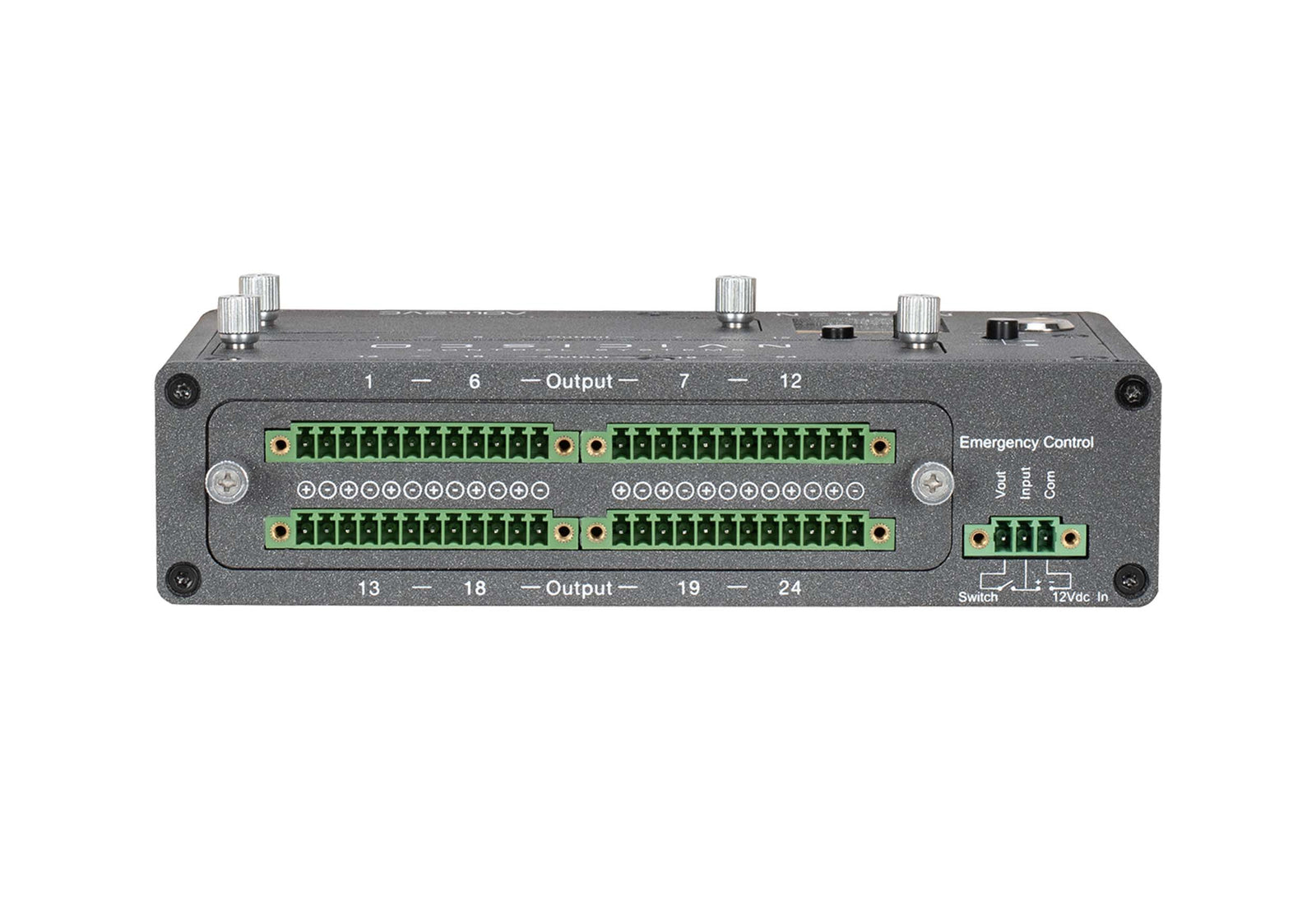

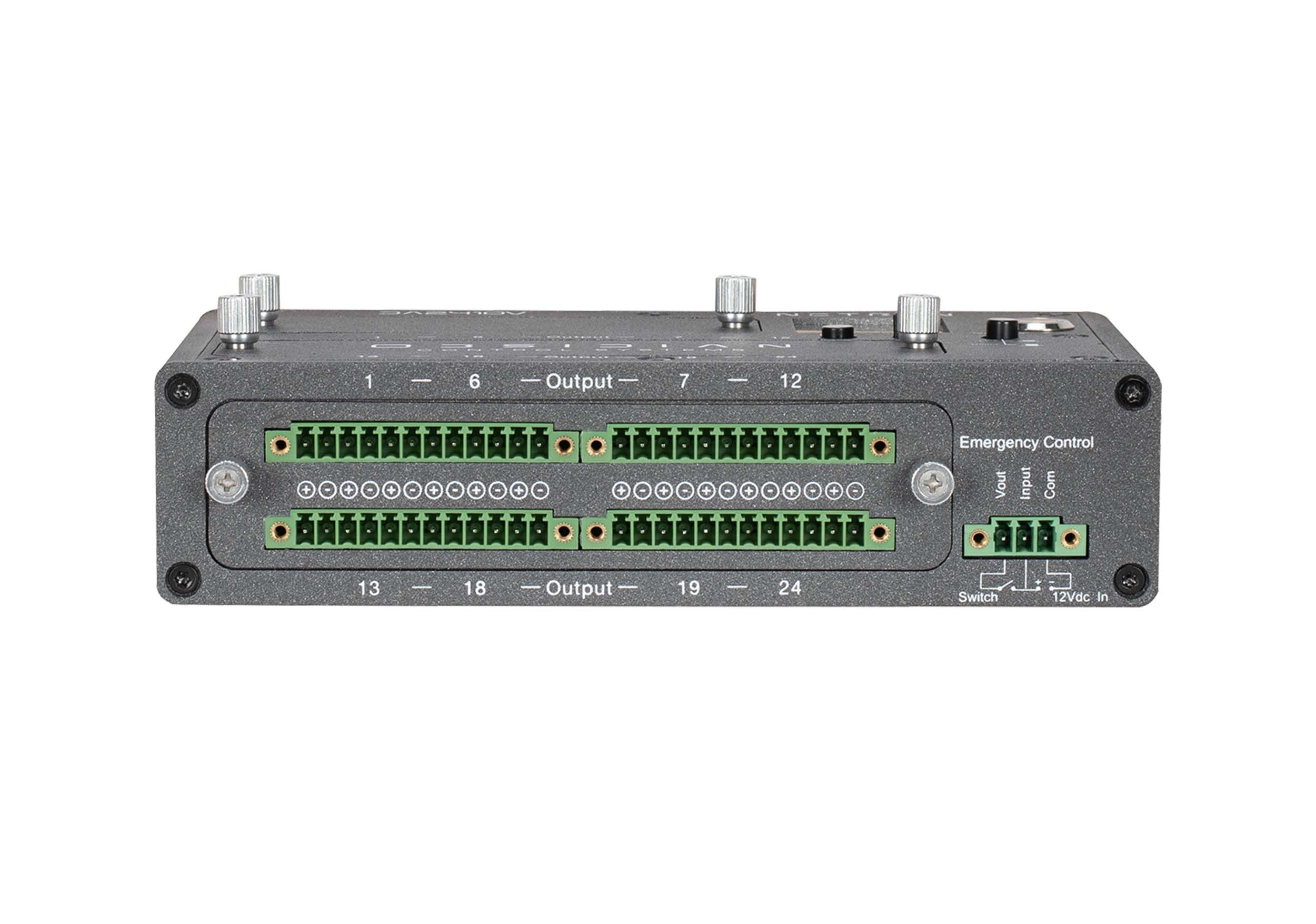

24-port analog terminal block or cover plate
Emergency contact (3-pin, dry or 12V contact)
Electrical:
DC Input: 12–48V
Physical Dimensions:
Length: 4.7 in. (116 mm)
Width: 5.6 in. (143 mm)
Height: 2.1 in. (52 mm)
Certifications & Ratings:
cETLus, CE, UL924
IP20
Shipping Weight: 1.8 lbs.
Shipping Dimensions (LxWxH): 9 x 7 x 3 inches
