Elation PIX672, 40-Wat RGBW IP65 Wash and Pixel Effect Fixture

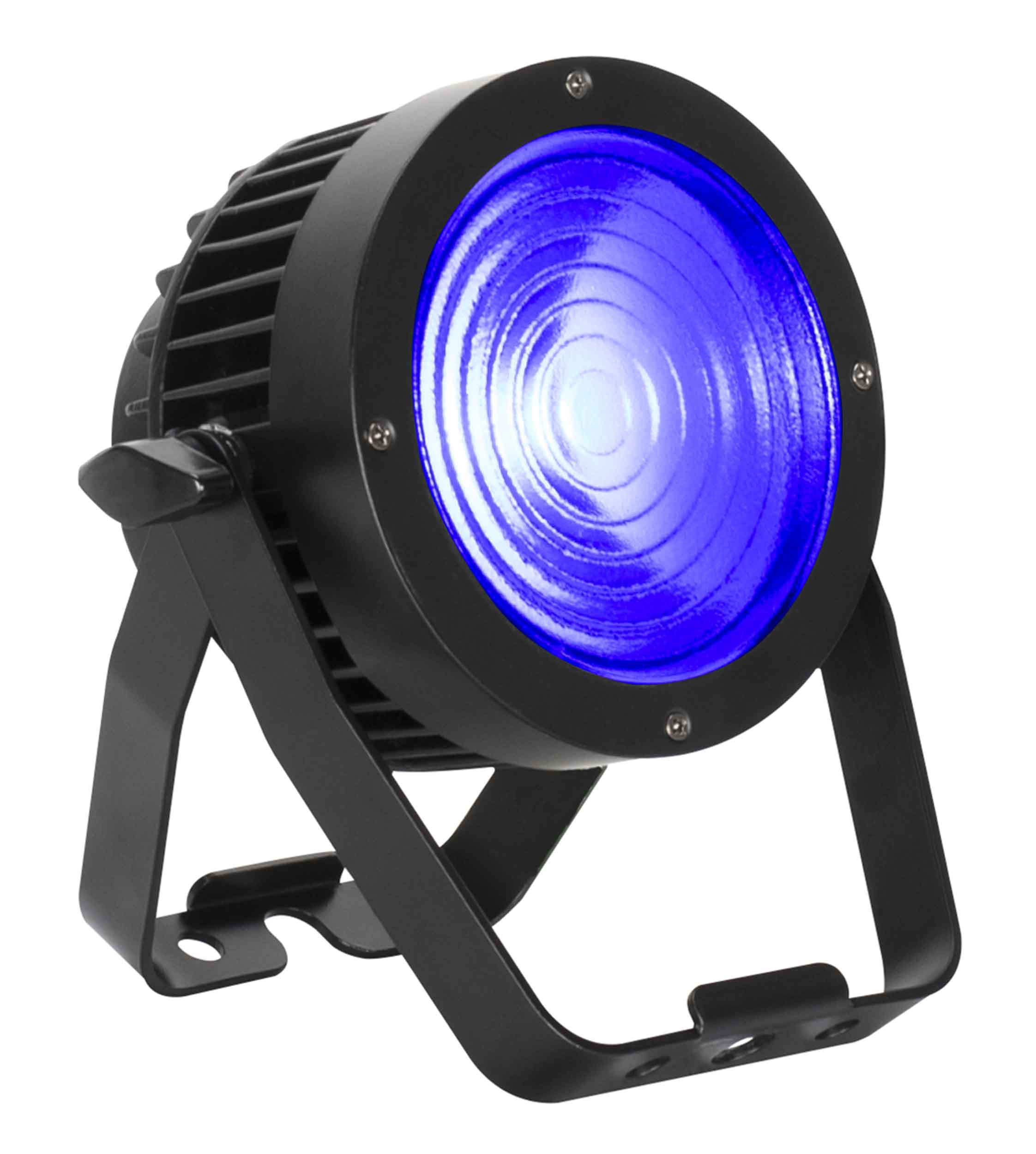

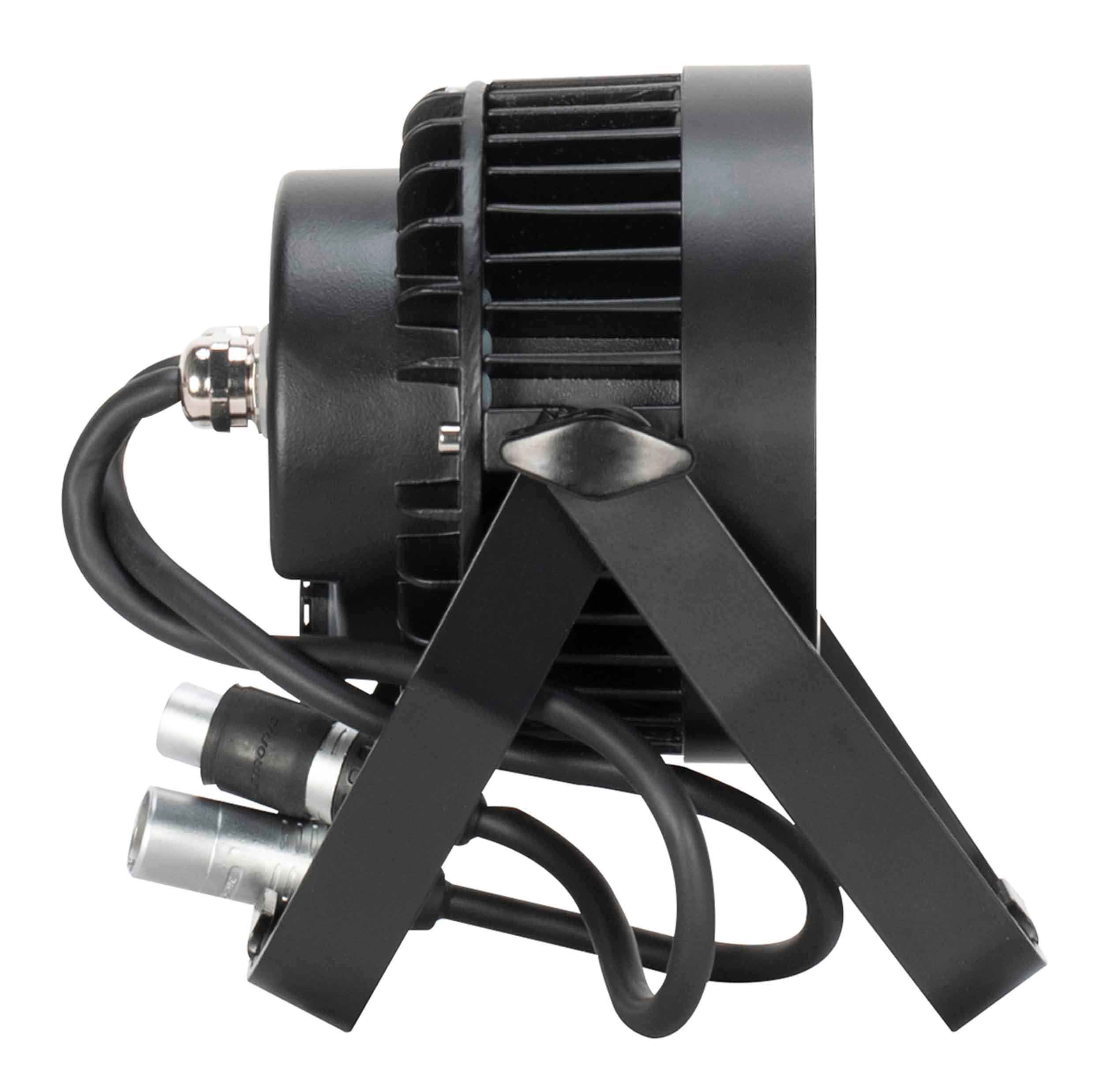

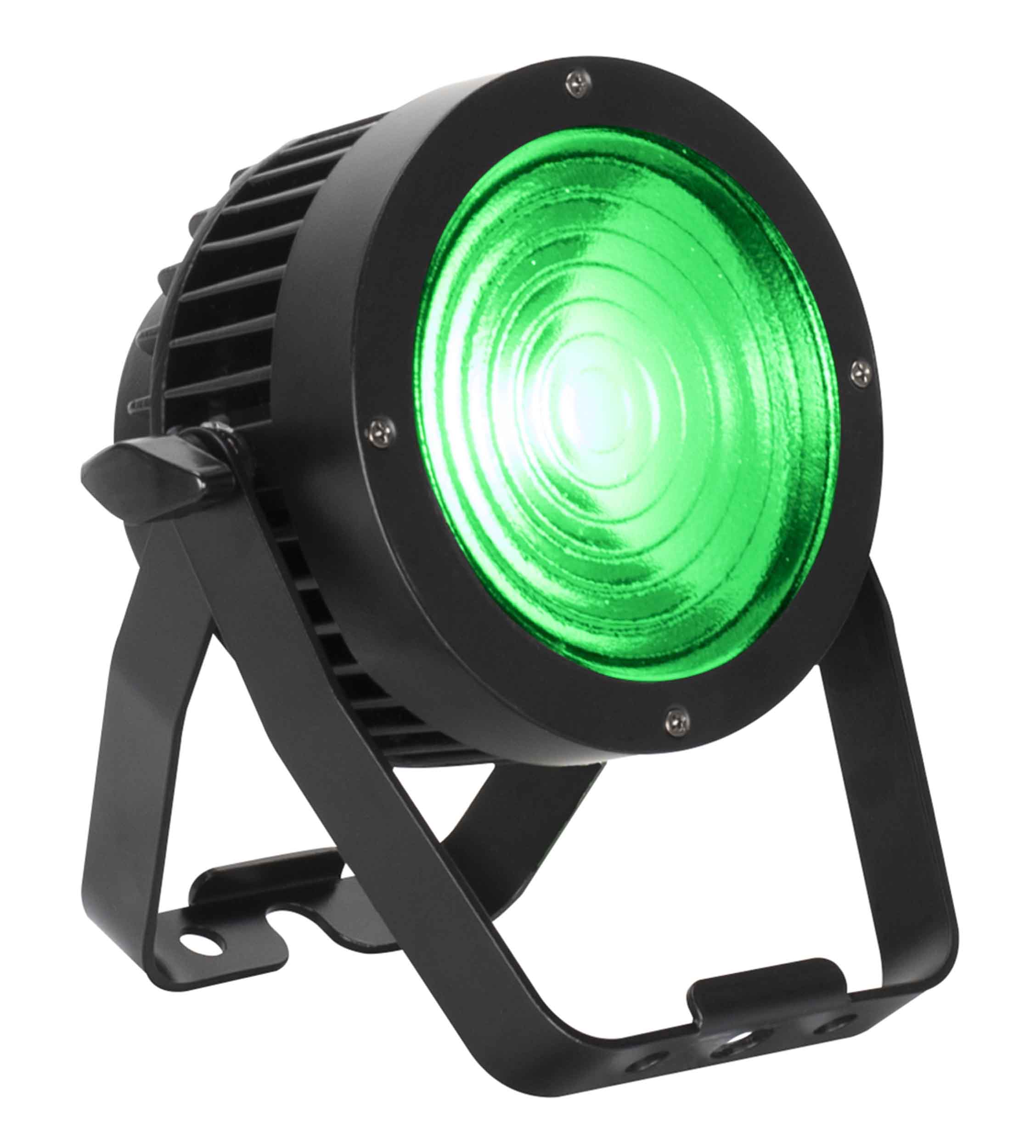

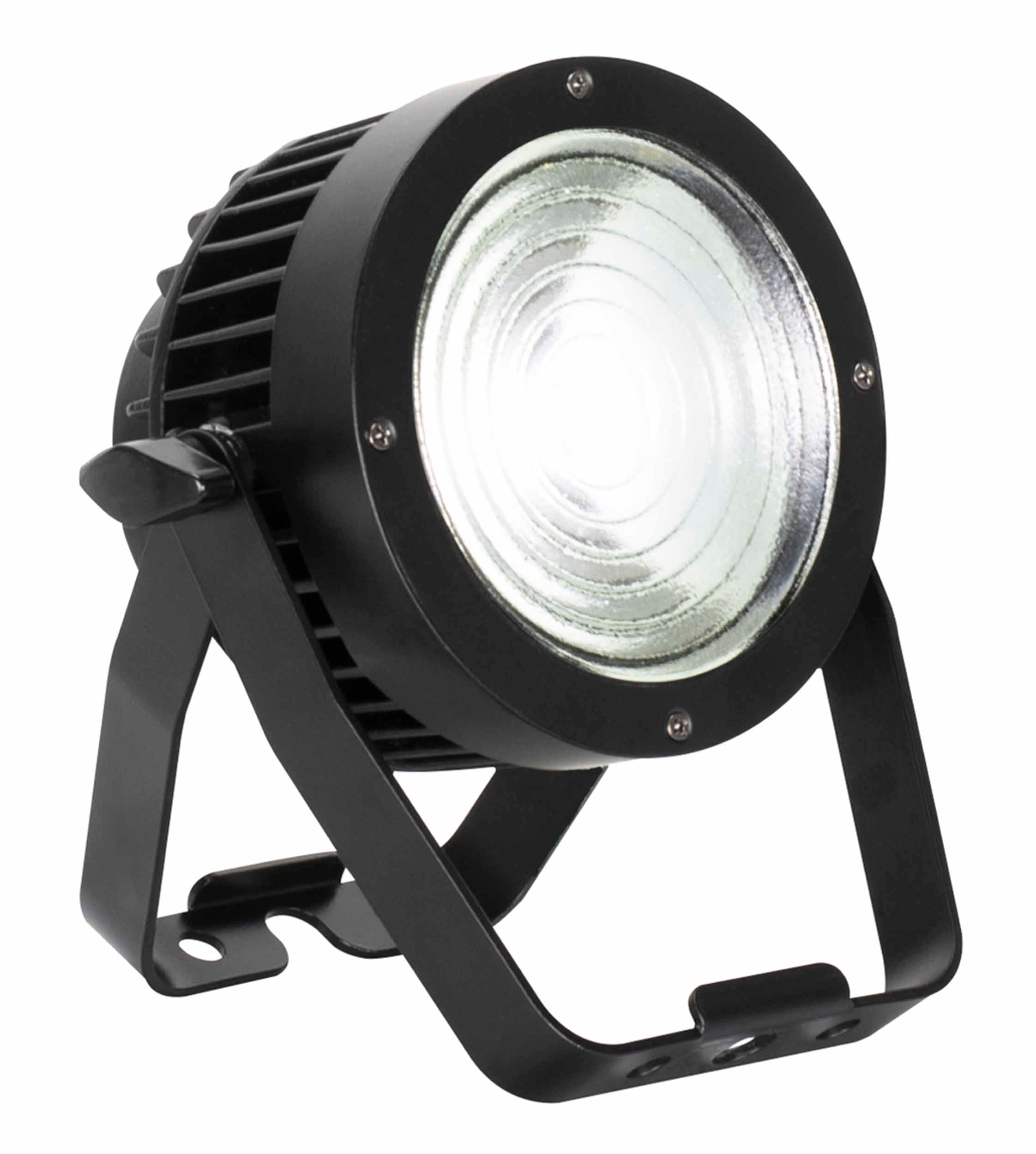

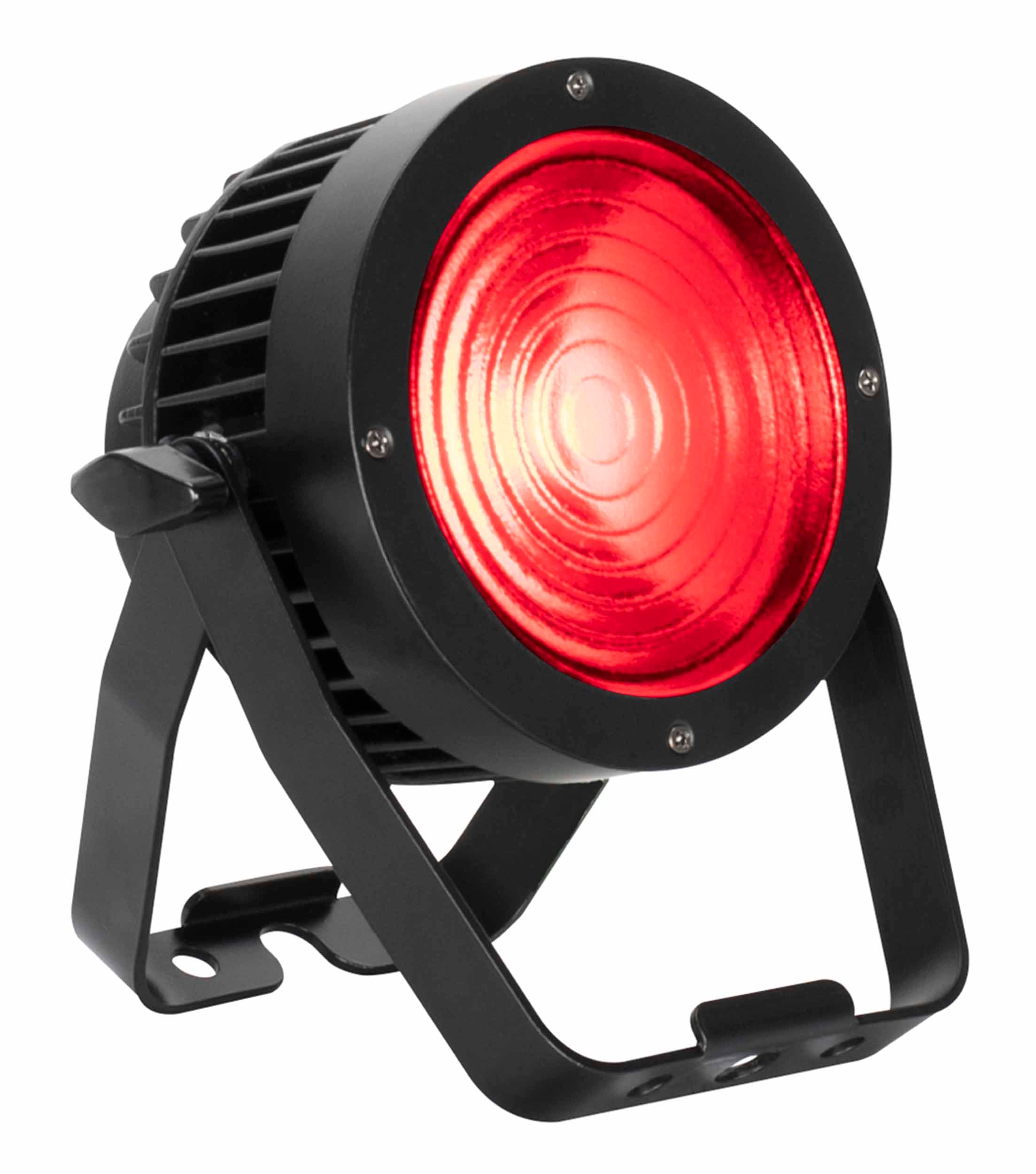

The Elation Pixel Wash 40IP (PIX672) 40-Wat RGBW IP65 Wash and Pixel Effect Fixture is a lightweight, outdoor IP65 rated LED wash / effect par fixture featuring 4 in 1, 10-watt RGBW LED’s, a PWM (pulse width modulation) of 44,000Hz for flicker free operation for broadcast, TV, and film applications, a beam angle of 32° and a field angle of 60°. This unit features two integrated 4pin power/data in and out whips with locking connectors.

The PIXEL WASH 40IP can be combined together with PIXEL BAR 30IP, PIXEL BAR 60IP, PIXEL BAR 120IP, PIXEL TAPE 16IP and PIXEL TAPE 40IP, in any combination, to create a versatile pixel-mapped display. Optional power/data cables extensions are available in various lengths ranging from 2 to 50 feet (sold separately). Easy and versatile control options are handled by the PIXEL DRIVER 170IP (sold separately), which provides simple RGBW DMX512 control, and PIXEL DRIVER 1000IP (sold separately), which provide simple on-board manual LED color / intensity control, and full pixel mapping control via Kling-Net, Art-Net and sACN protocols.

Product Specifications:

Source:

4 in 1, 10W RGBW LEDs

Beam Angle: 32°

Field Angle: 60°

PWM (Pulse Width Modulation): 44,000Hz

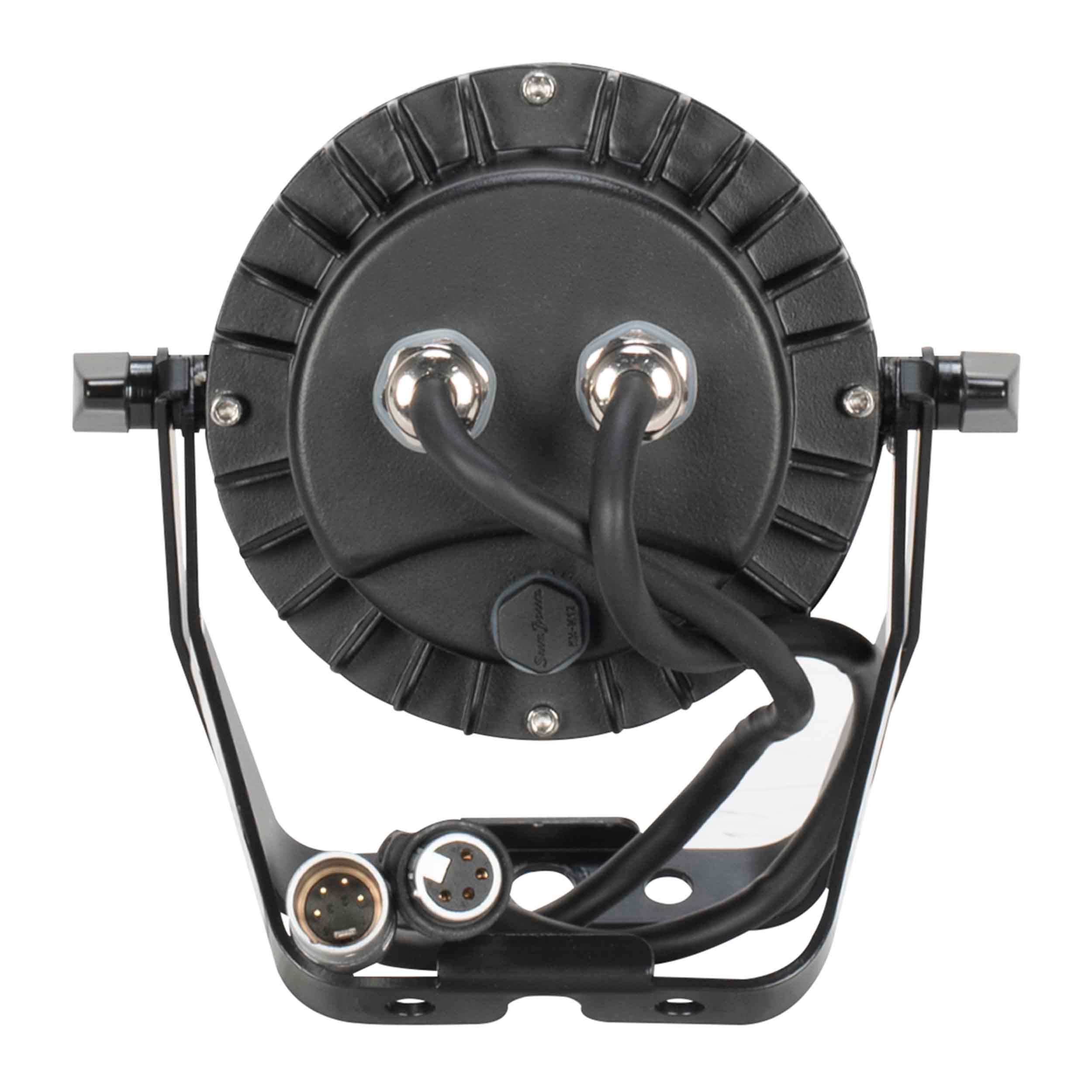

Connections: Seetronic 4pin Power/Data In/Out

Control: For use with PIXEL DRIVER 170IP and PIXEL DRIVER 1000IP

Size / Weight:

Length: 5.2” (133mm)

Width: 7.0” (177mm)

Height: 6.6” (167mm)

Weight: 3.5 lbs. (1.56kg)

Electrical:

Input: DC24V

Max Power Consumption: 40W

Temperature:

Max Ambient Temperature: 113°F (45°C)

Min Ambient Temperature: -4°F (-20°C)

Cooling: Convection Cooled

Approvals: CE | IP65

Included Items:

120° Frost Lens and Magnet attachment assembly

Safety Cable for magnet attachment assembly
