Elation PIXEL DRIVER 4000 V3 Driver for Pixel Bar 30IP/60IP/120IP

The Elation PIXEL DRIVER 4000 V3 is a versatile driver for Pixel Bar 30IP/60IP/120IP, Pixel Tape 16IP/40IP, and Pixel Wash 40IP. It offers easy control options including onboard manual dimming and strobe, along with full pixel mapping for up to 4,080 pixels (1,020 per port) via Kling-Net, Art-Net, and sACN protocols.

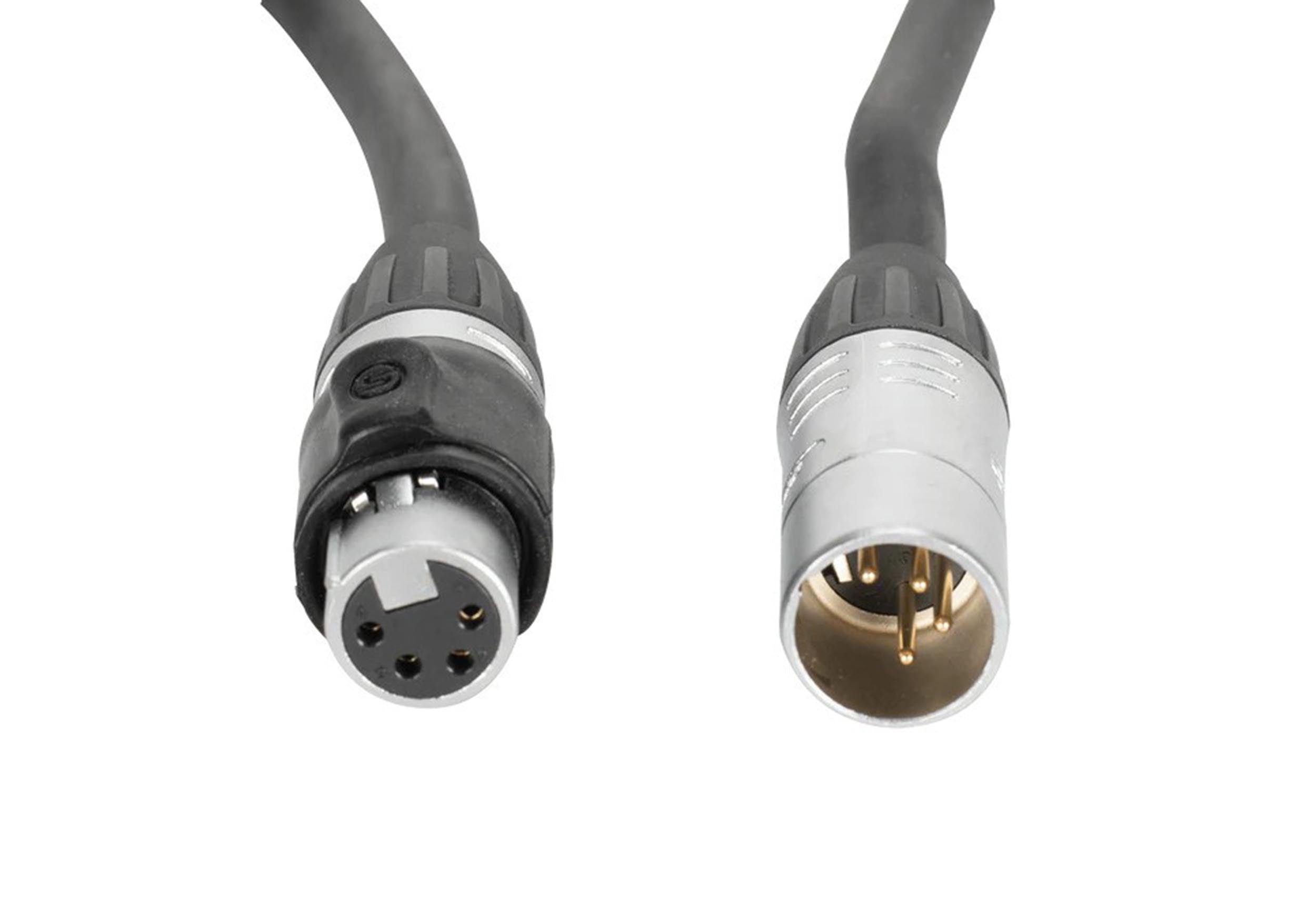

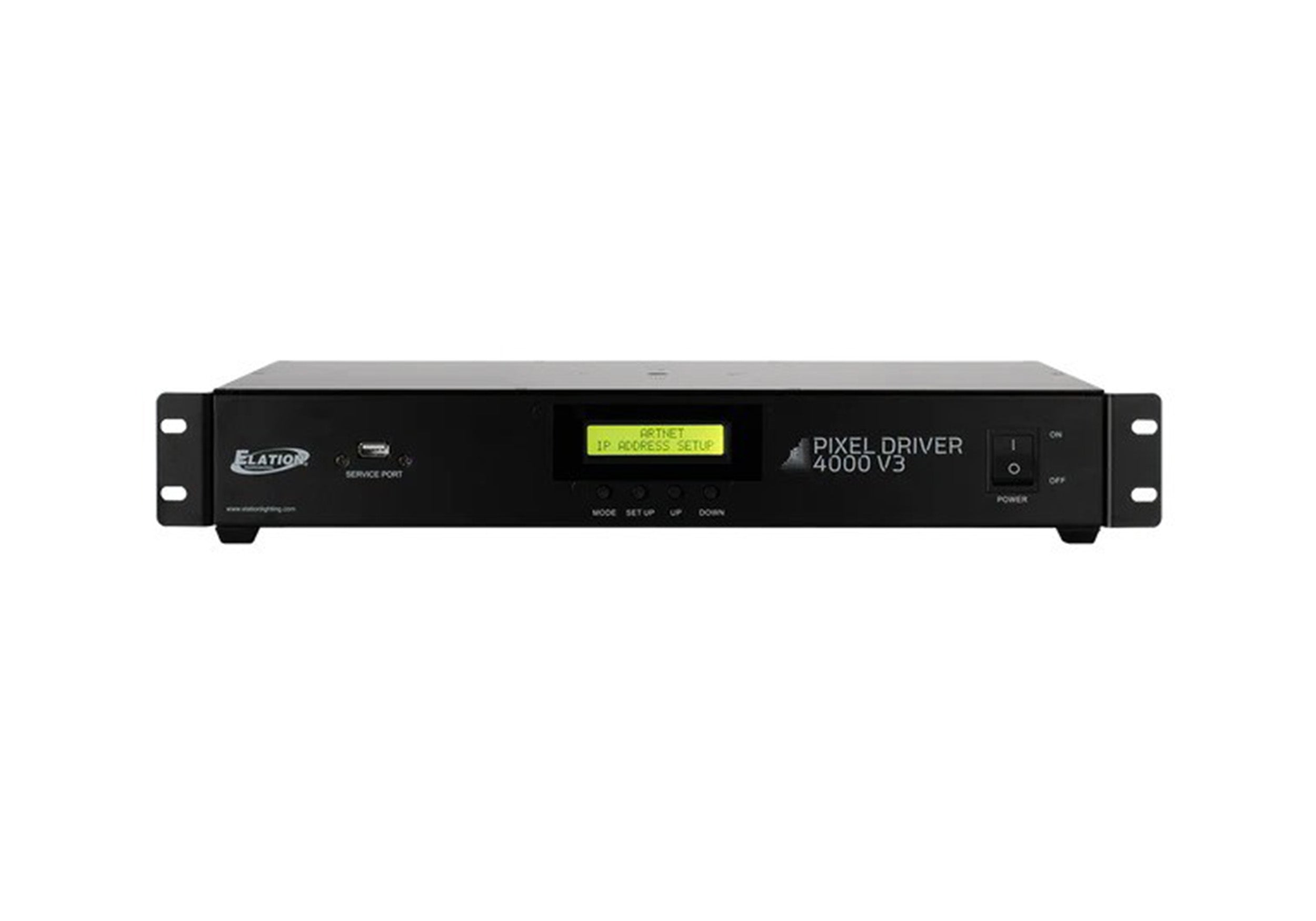

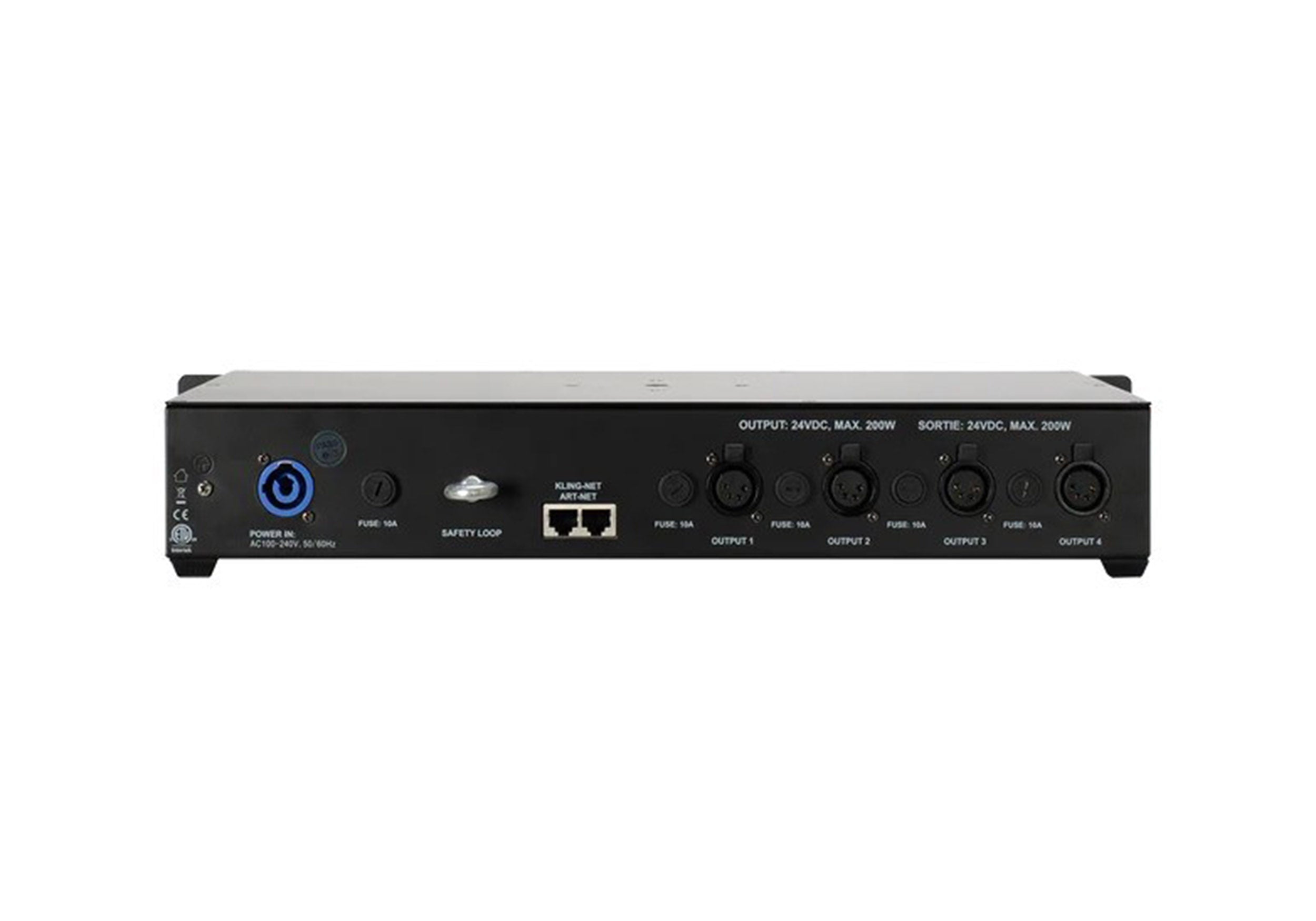

The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Product Specifications:

Control / Connections:

Manual RGB Mode

Internal Programs

Art-NET | sACN | Kling-NET

2 RJ45 Ethernet Ports

4 4pin Power/Data Outputs

USB Port for Firmware Updates

Size / Weight:

Length: 11.8” (301mm)

Width: 18.9” (480mm)

Height: 2.9” (74mm)

Weight: 10.8 lbs. (4.9kg)

Electrical:

AC 100-240V - 50/60HZ

800W Max Power Consumption

-4°F to 113°F (-20°C to 45°C)

Approval: CE | cETLus (Pending)
