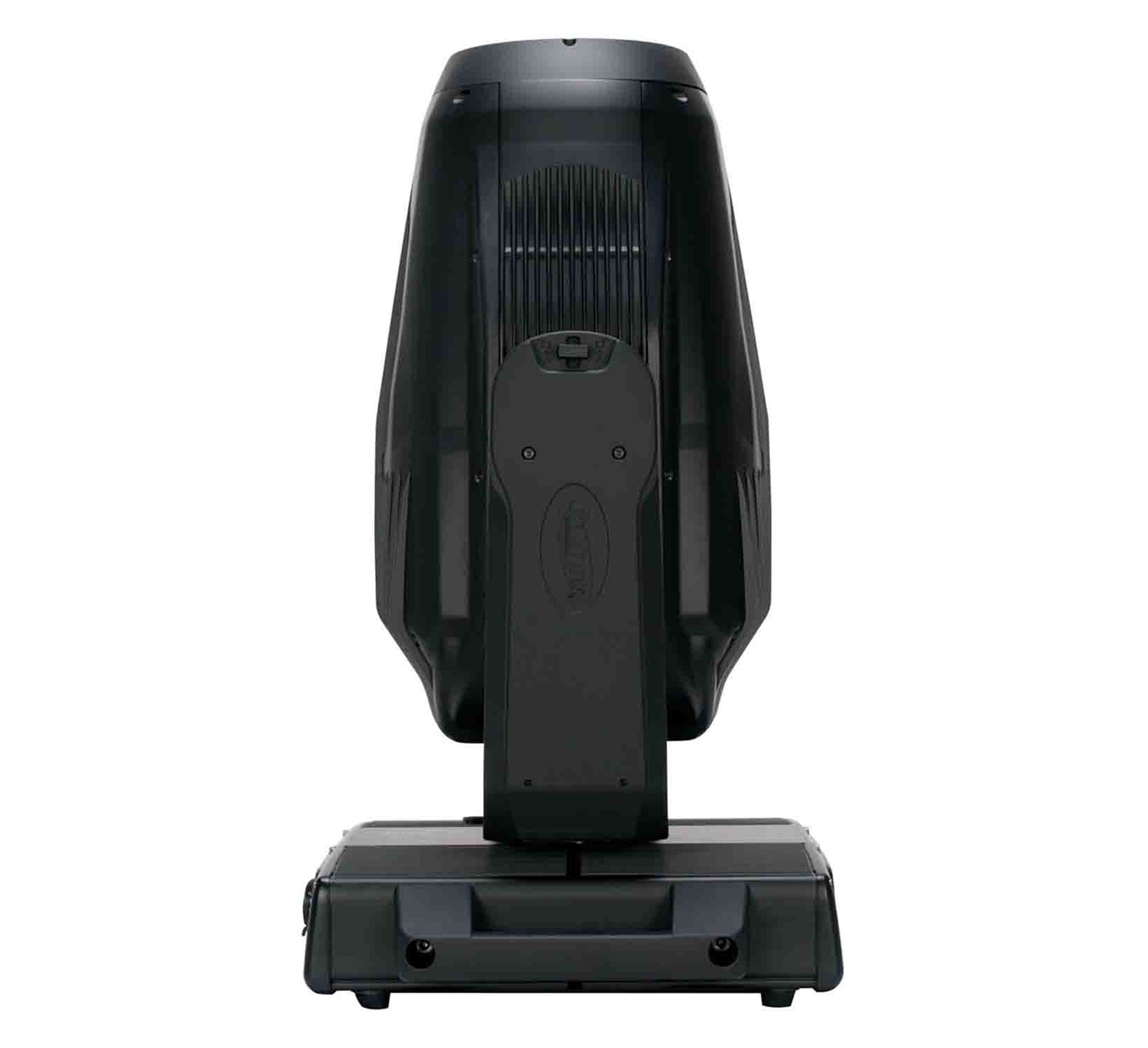

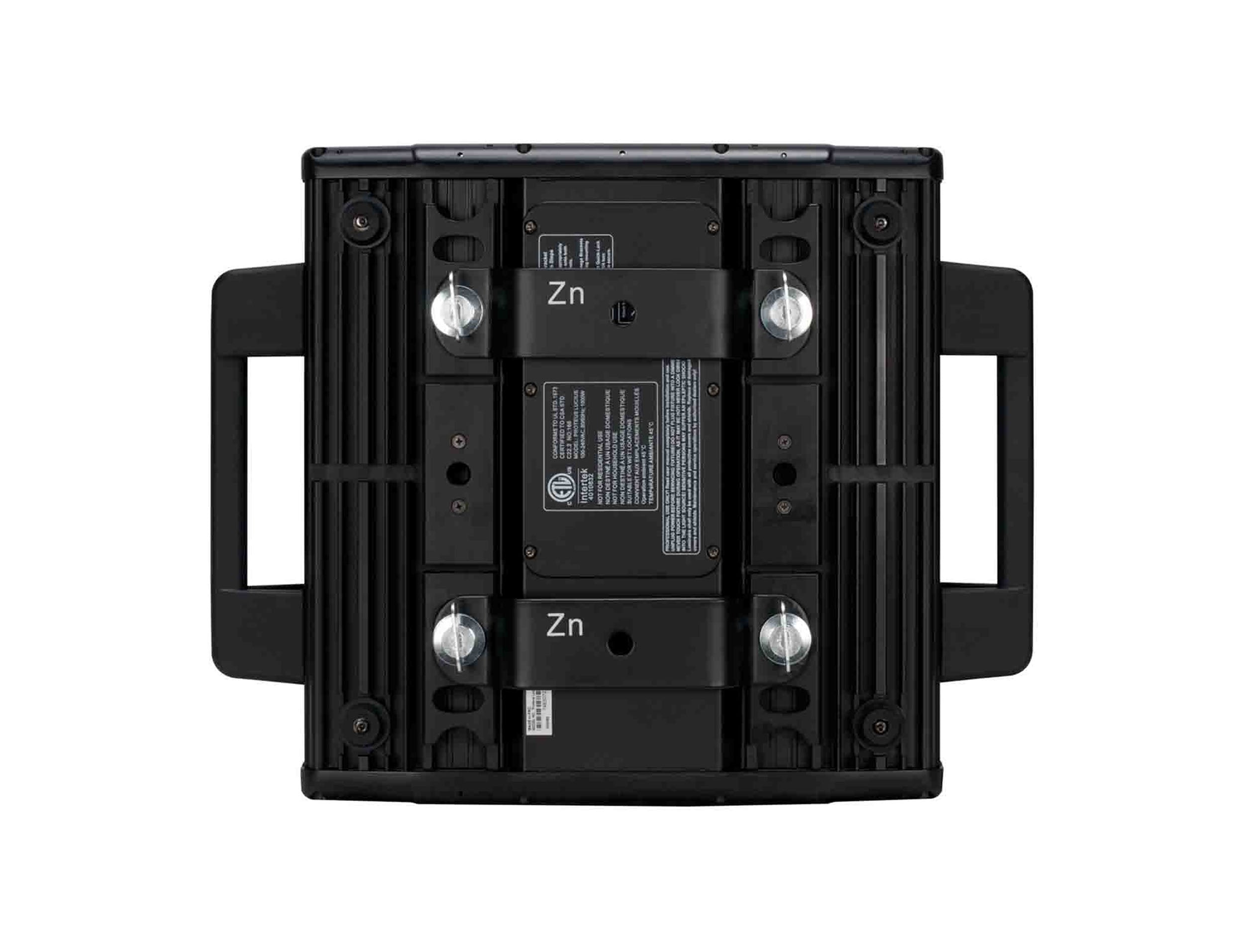

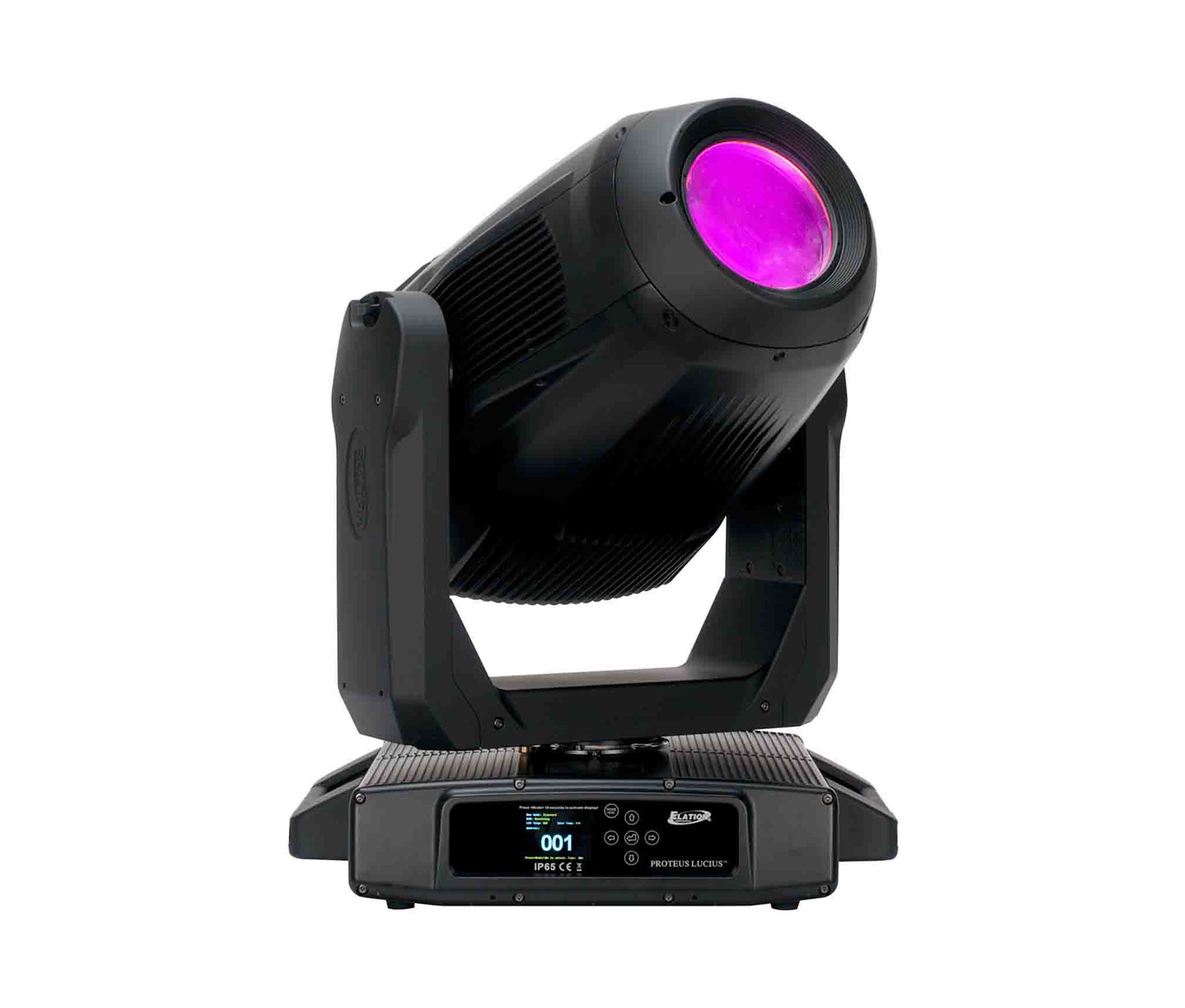

Elation PRL546, Professional PROTEUS LUCIUS 6500K LED Fixture - 580-Watt

Save 10%
ElationSKU: H-ELAT-PRL546
UPC: 810008261378
Sale price$10,800.00 Regular price$12,000.00
Sold out

Notify me when available

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.

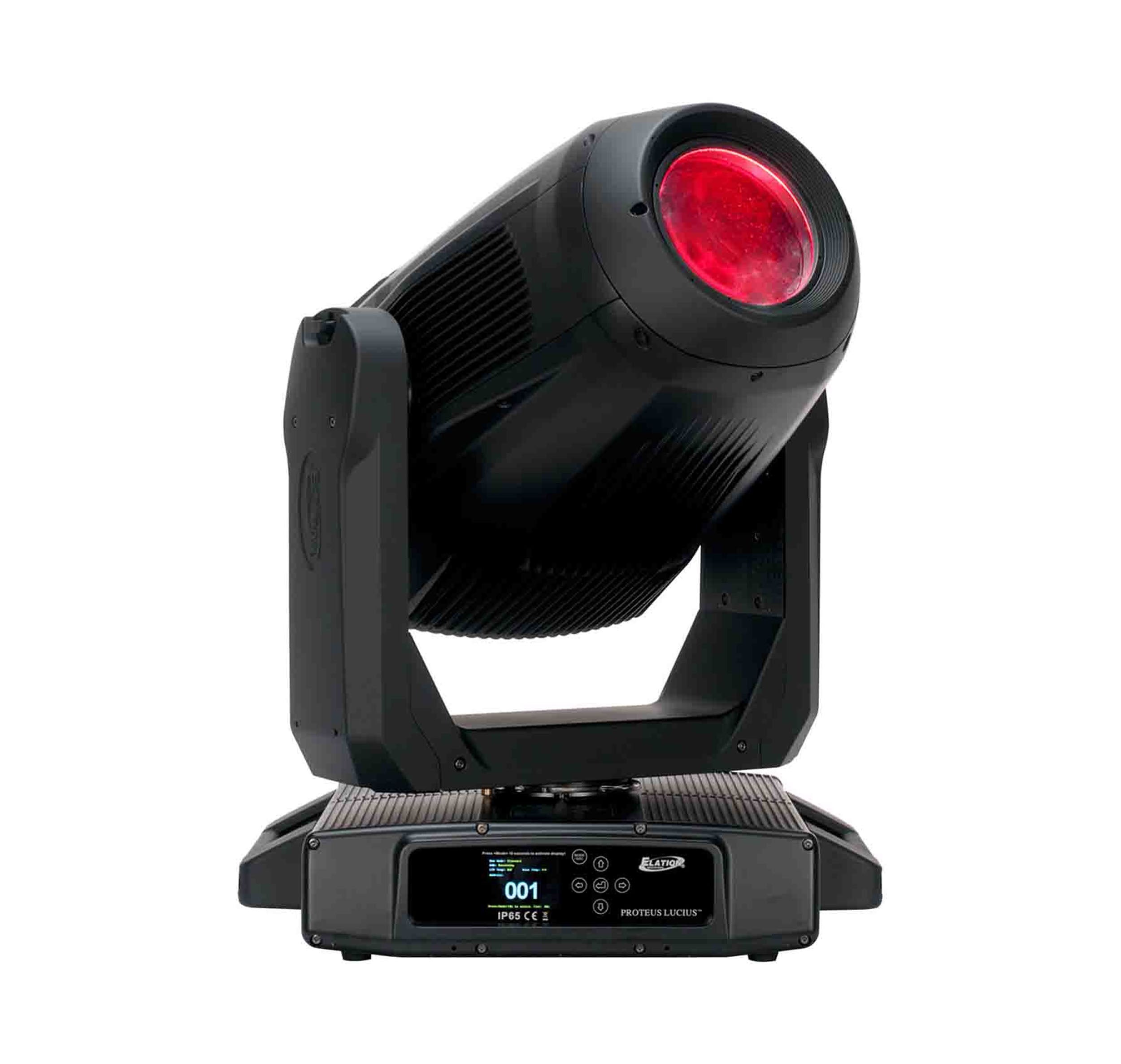

The Elation PRL546 Professional PROTEUS LUCIUS 6500K LED Fixture - 580-Watt is a powerful yet compact IP65-rated LED profile fixture offering outstanding projection and beam qualities in any environment. Providing up to 33,500 lumens output from its custom-designed Peak Field 580W 6,500K LED engine, the PROTEUS LUCIUS is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. PROTEUS LUCIUS provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS LUCIUS has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications.

The PROTEUS LUCIUS ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

Product Specifications:


580W 6,500K Bright White Peak Field LED Engine

30,000 Hour Average LED Life

Photometric Data:

33,500 Total Lumen Fixture Output

CRI 71+ (85+ with HCRI Filter)

2.5:1 Hotspot Ratio

Zoom Range: 5.5° - 50°

Beam Angle: 6° - 36.7°

Field Angle: 7.6° - 51.3°


Motorized Zoom

4 Rotating Full Blackout Framing Blades

+/-45° Framing Indexing

Full 360° Bi-Directional Animation Wheel

4-Facet and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Internal Color, Framing, Prism, and Frost Macros

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°/630°

Tilt Angle: 250°


CMY Color Mixing

Linear CTO Color Correction

5 Dichroic Colors including High CRI Filter


3 Gobo Wheels

6 Rotating Gobo (Wheel #1)

7 Rotating Gobos (Wheel #2)

7 Static Gobos (Wheel #3)

Control / Connections:

2 DMX Channel Modes (43/68 Ch.)

16-bit Pan, Tilt and Dimming Control

Motorized Focus and Auto-Focus Presets

DMX, RDM, Art-NET, sACN Protocol Support

(6) Button Touch Control Panel

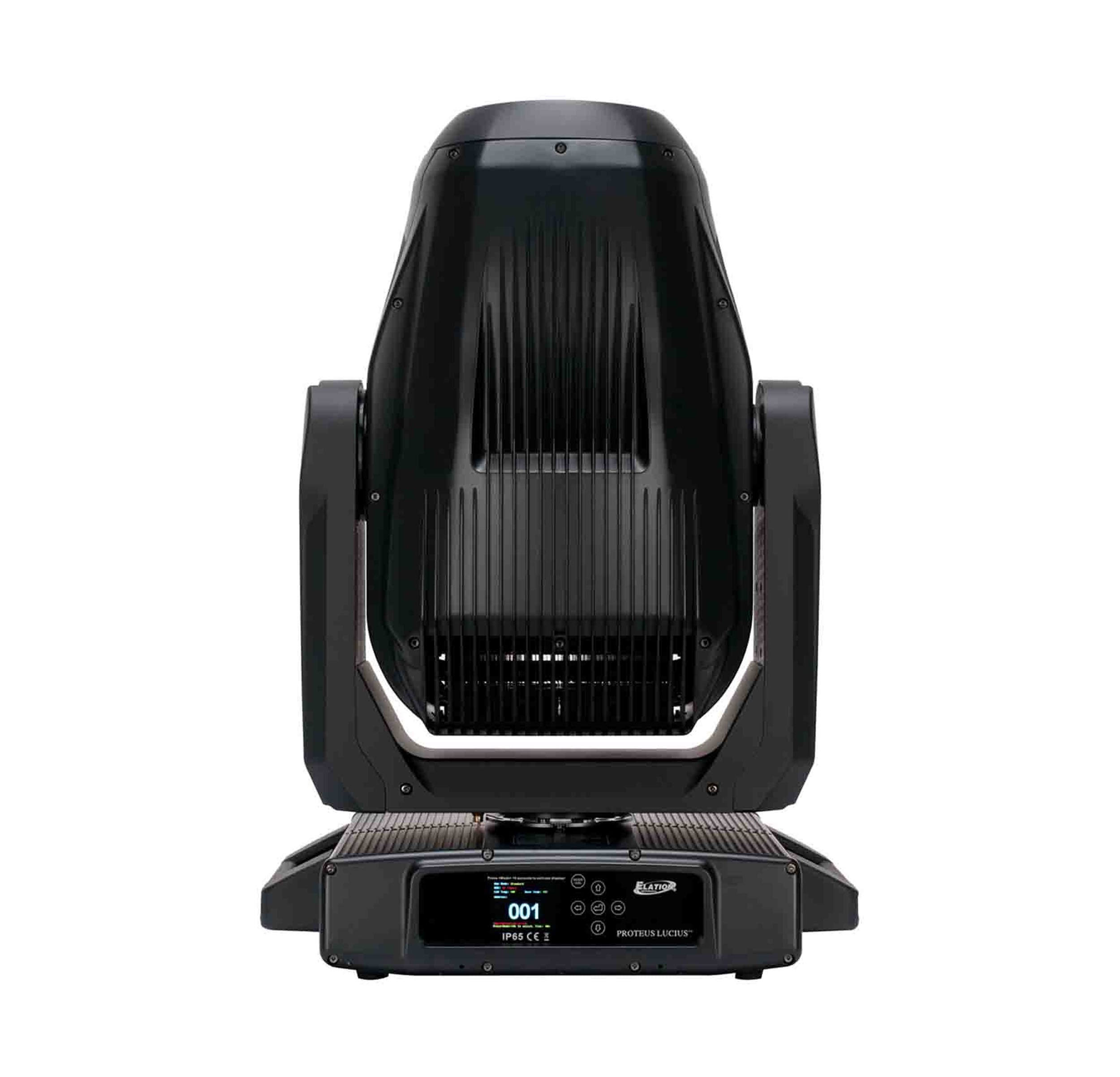

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

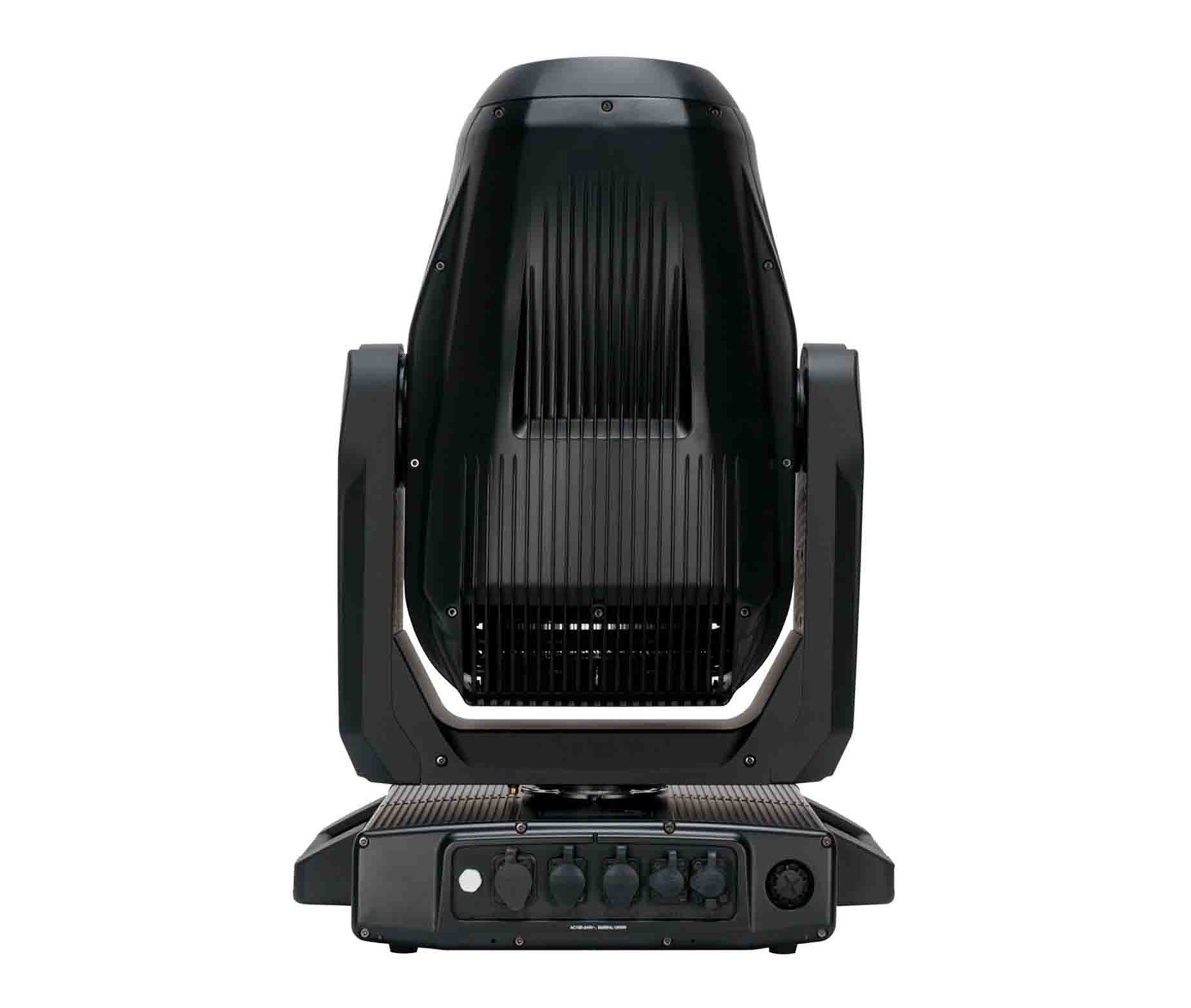

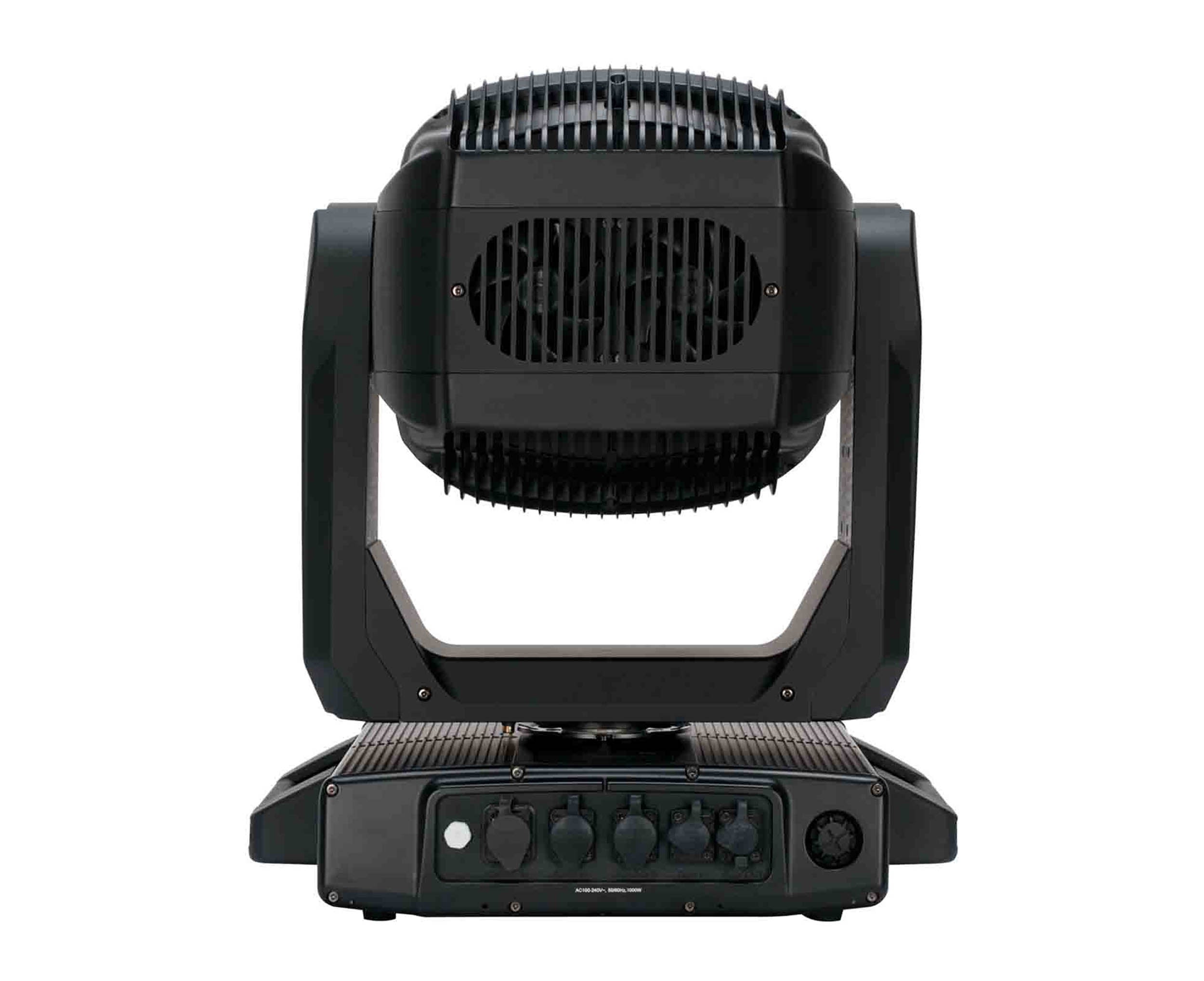

IP65 Locking 5pin XLR Connector In/Out

IP65 Locking RJ45 Ethernet Connector In/Out

IP65 Locking Power Connector In

With Wired Digital Communication Network

Product Dimension:

Length: 20.40 in

Width: 16.20 in

Height: 28.18 in

Product Weight: 92.70 lbs.
