Description

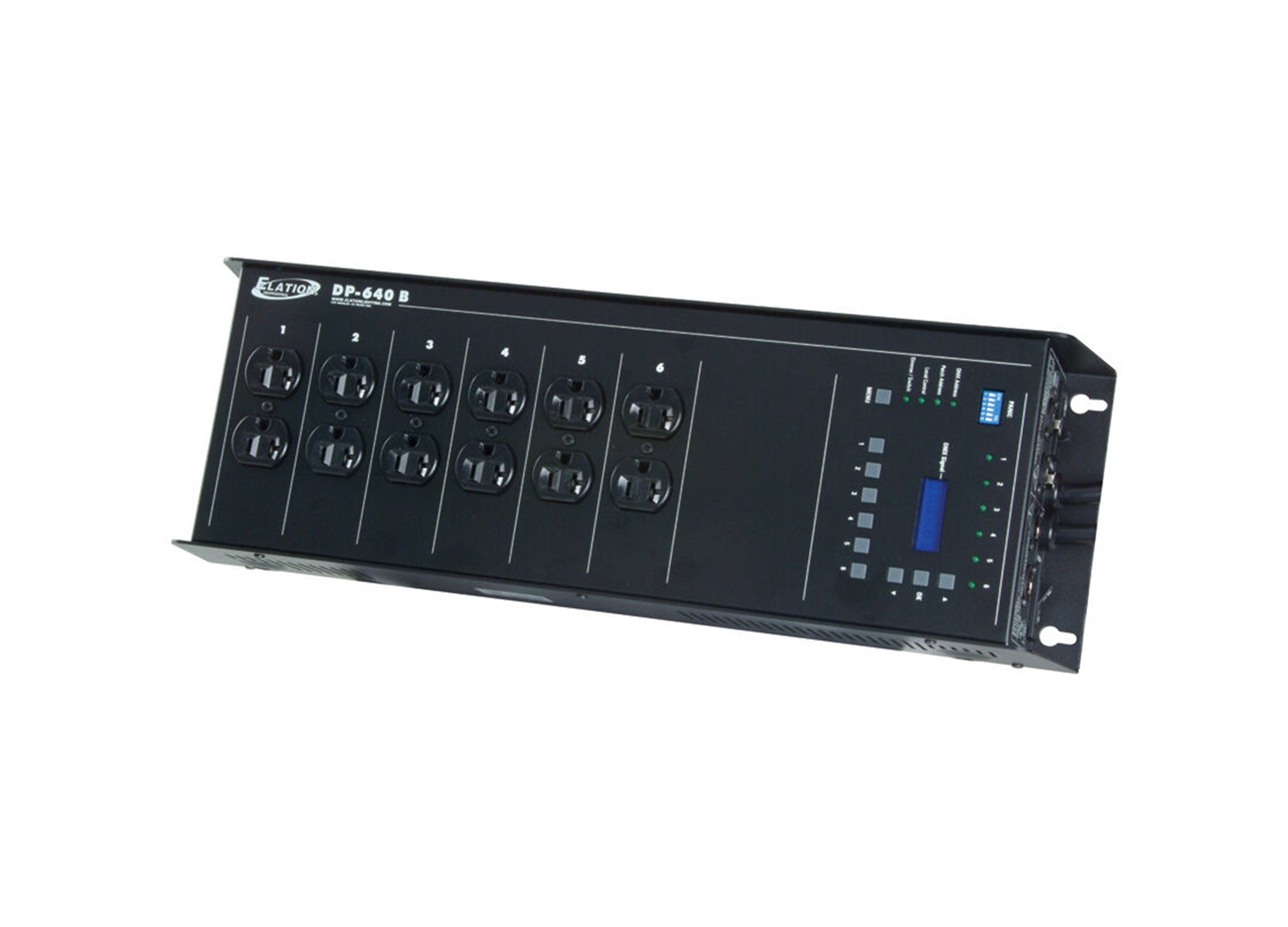

The Elation DP-640B DMX Pack is a hybrid 6-channel portable dimmer/switch pack that supports up to 2,400W per channel and 4,800W maximum total output. Each channel can individually be set to dim or switch and be controlled via a unique DMX address. Each channel can be conveniently manually controlled via an easy-to-use digital display and function buttons. The Panic function allows you to select desired channels to switch on constantly via the six dip switch settings. Features includes a digital control display, LED indicators for each channel, 3/5pin XLR DMX input and output, a die-cast aluminum chassis, and a hanging bracket is included for truss/clamp installations.
Product Specifications:
Control Display: Digital LED control menu
Dimming Adjustment: On-board local control; 0–100% dimming intensity
Panic Function: ON/OFF via DIP switches
Power Connections:
(2) NEMA 5-20P power line cords
120V rated, 20 AMP each
Output Sockets: (2) 3-prong Edison sockets per channel (12 total)

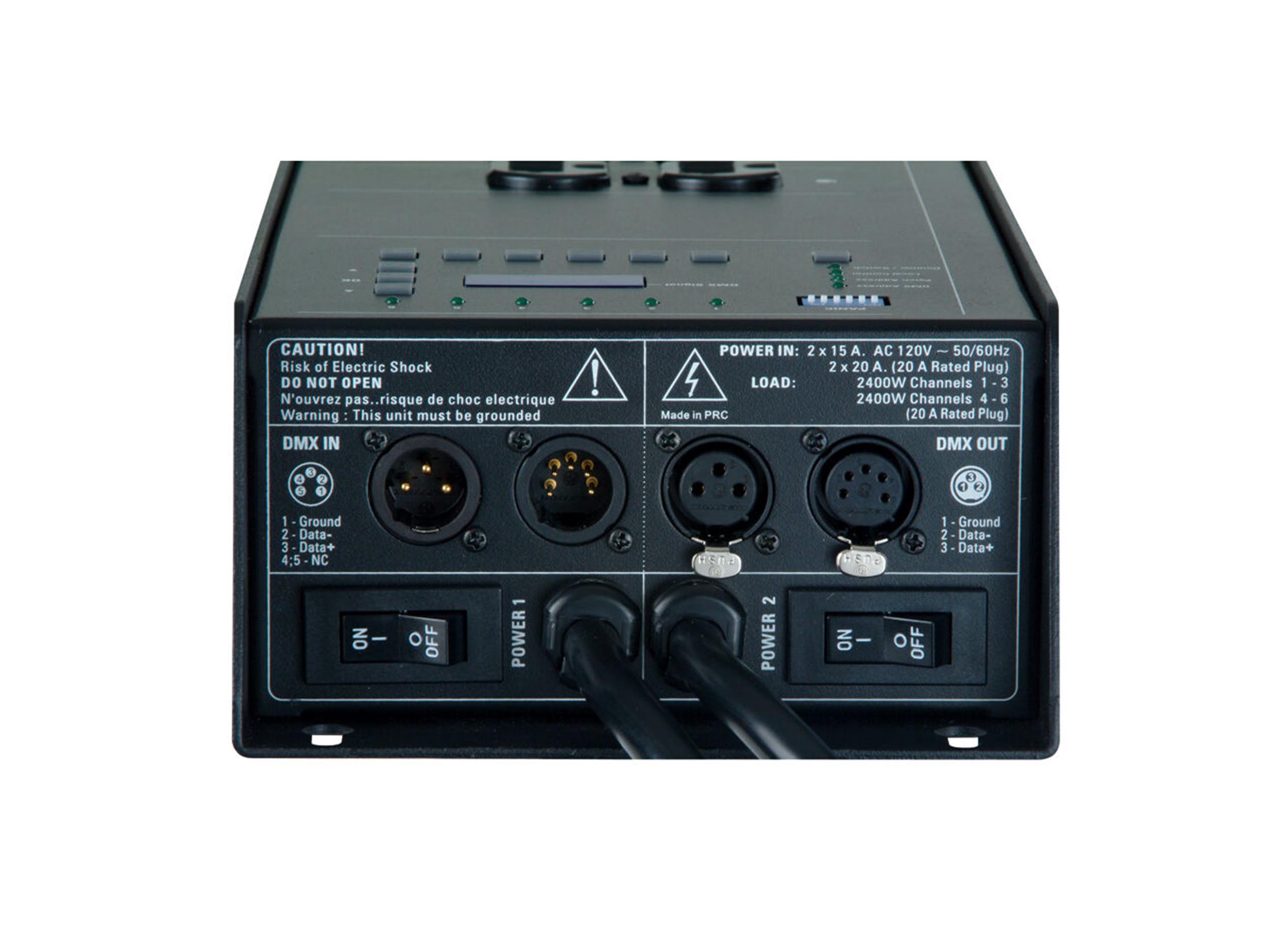

DMX Connections: 3-pin and 5-pin XLR DMX input and output
Electrical / Thermal:
Power Input: 2 x 20 AMP AC 120V 50/60Hz
Line Cord: 2 x 12AWG x 3C
Load: 2,400W Max Power Consumption Per Circuit
(2,400W Channels 1-3 and 2,400W Channels 4-6)
Size / Weight:
Length: 19.7” (500mm)
Width: 6.6” (167mm)
Vertical Height: 3.7” (93mm)
Weight: 7.5 lbs. (3.4kg)
