Description

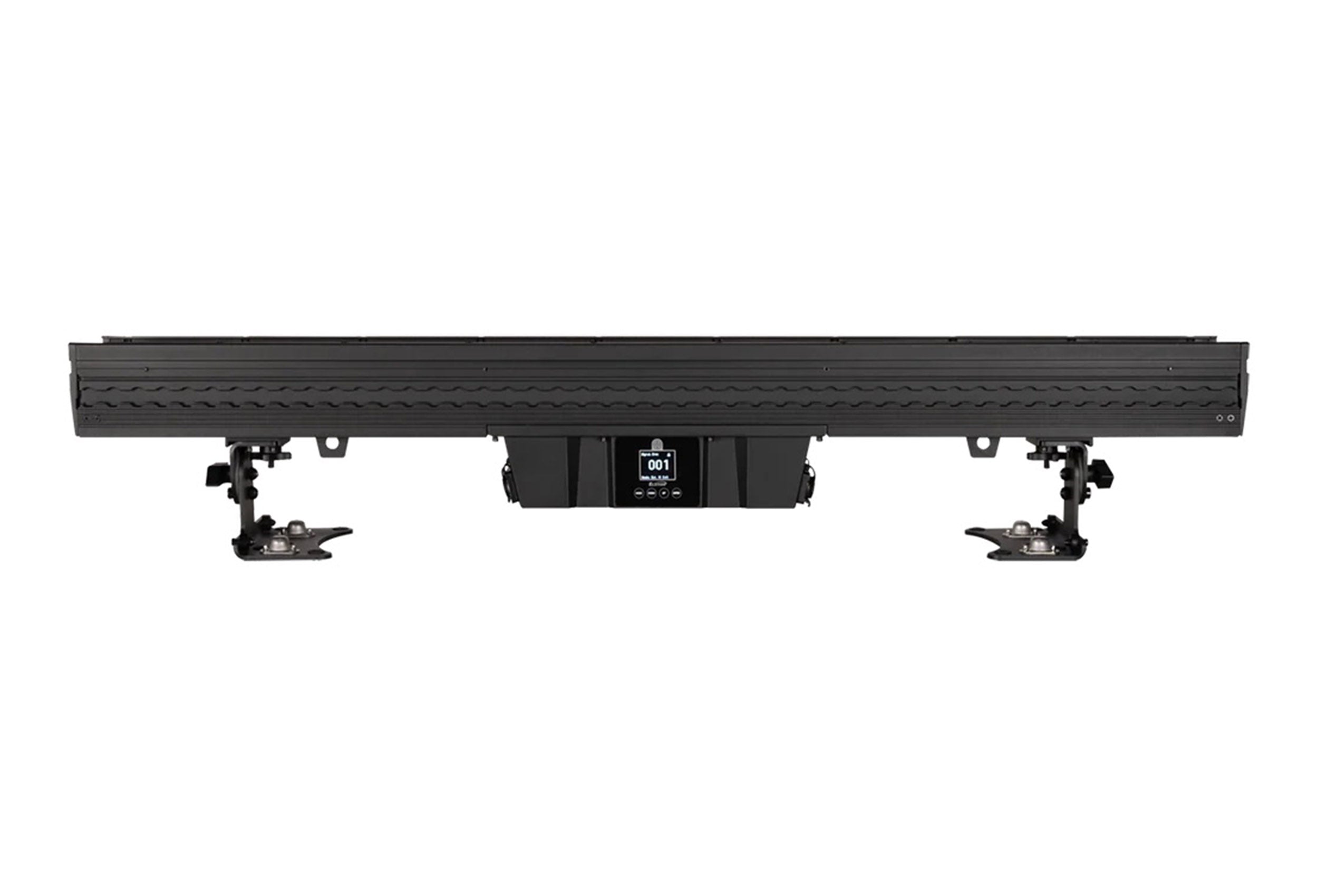

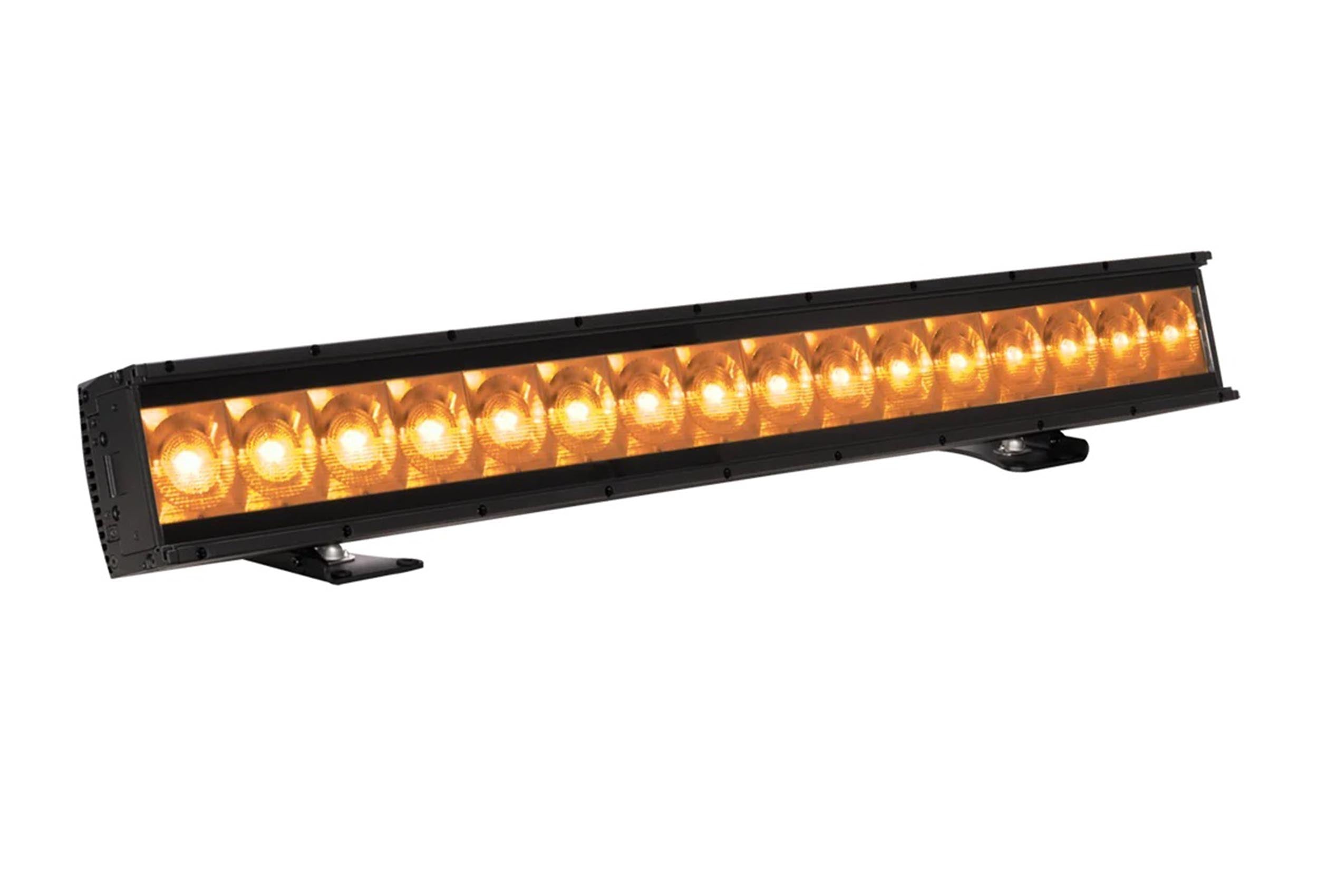

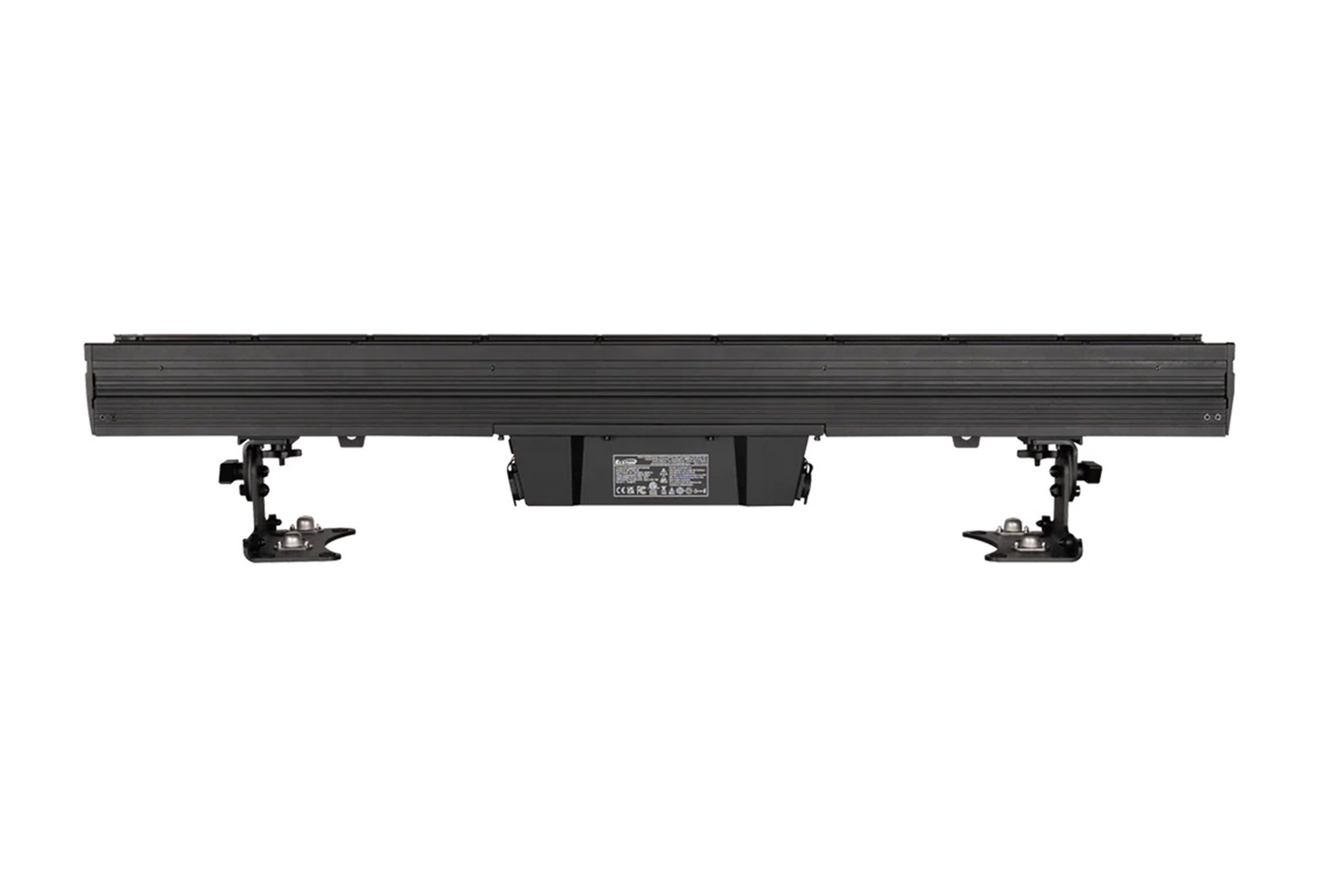

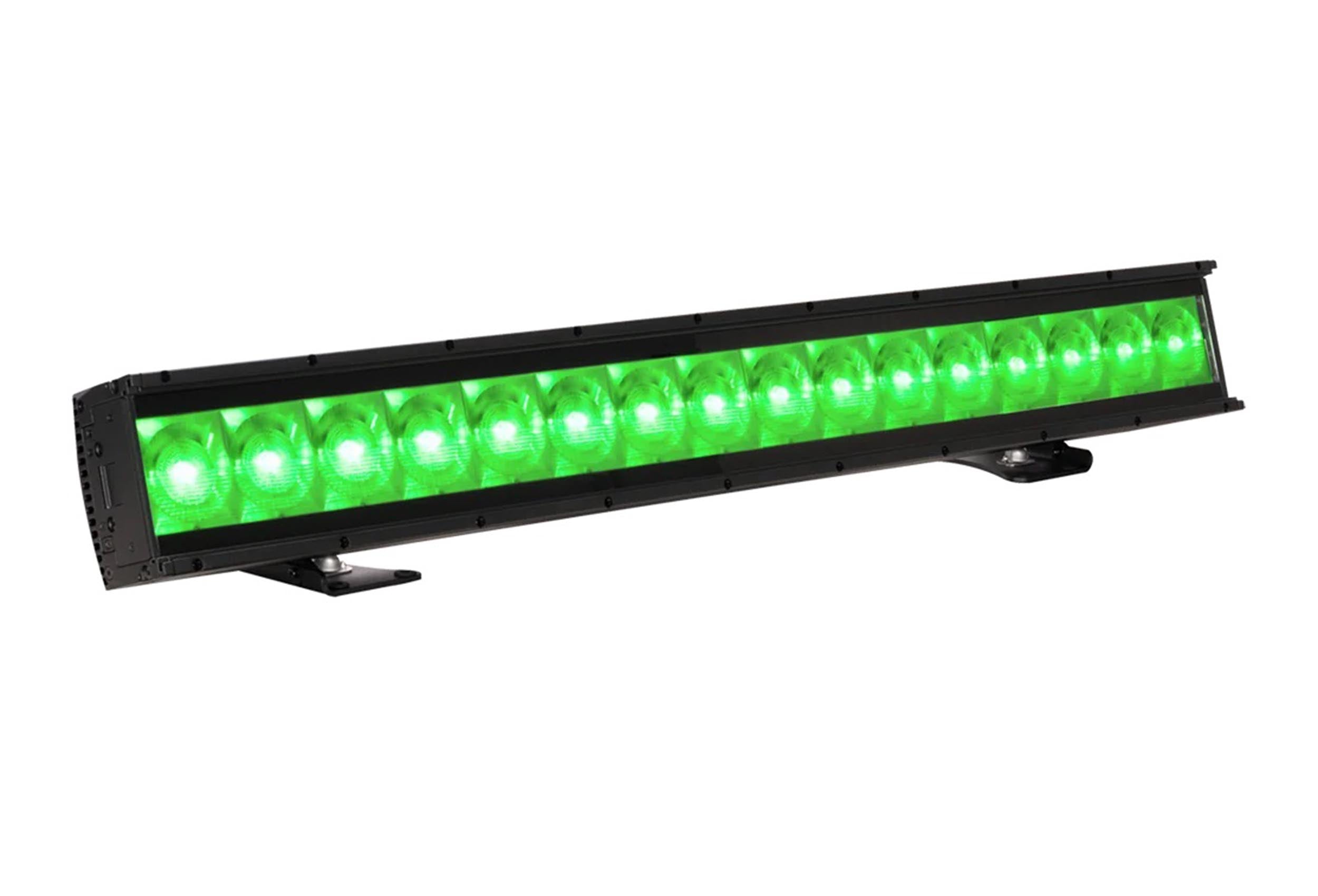

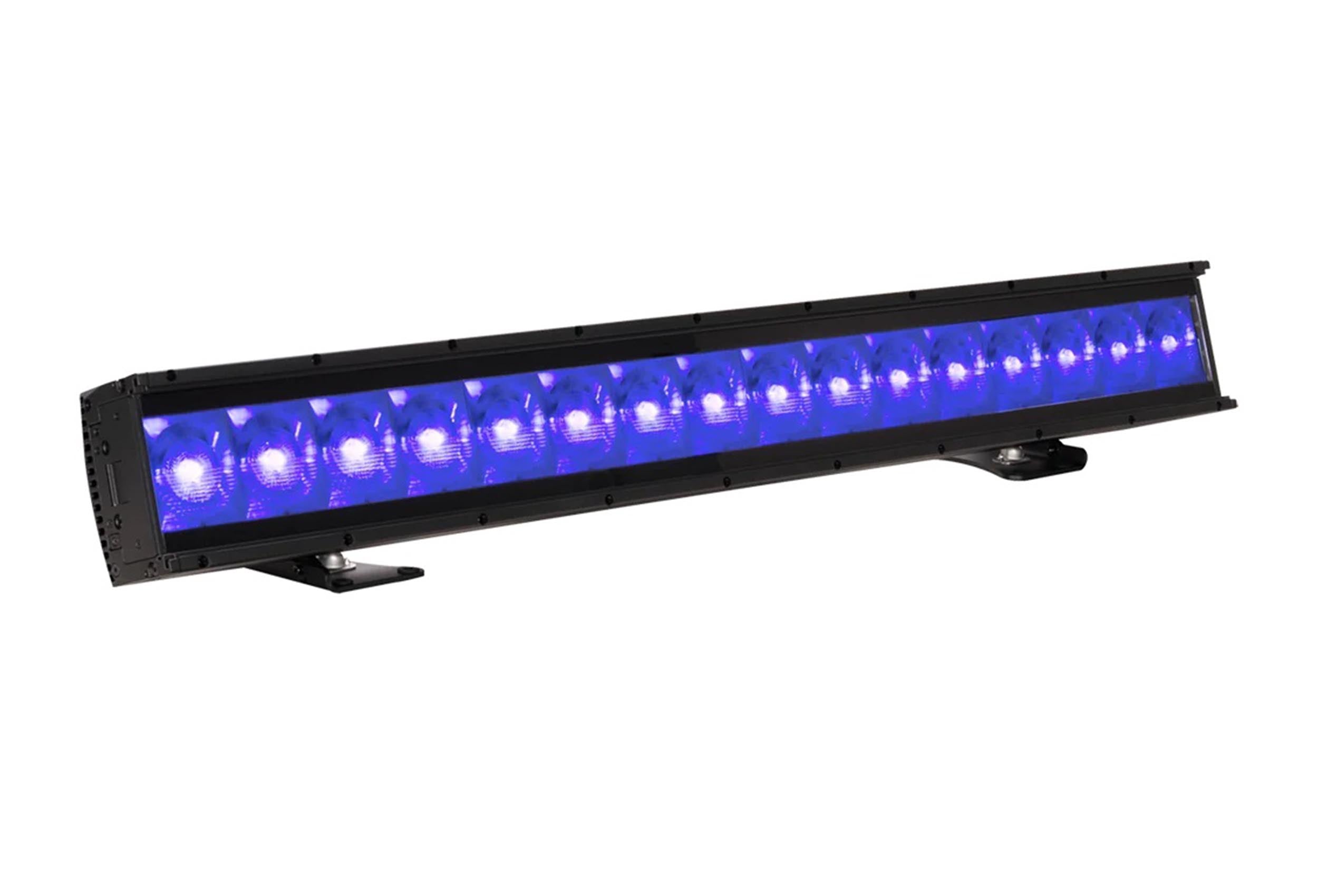

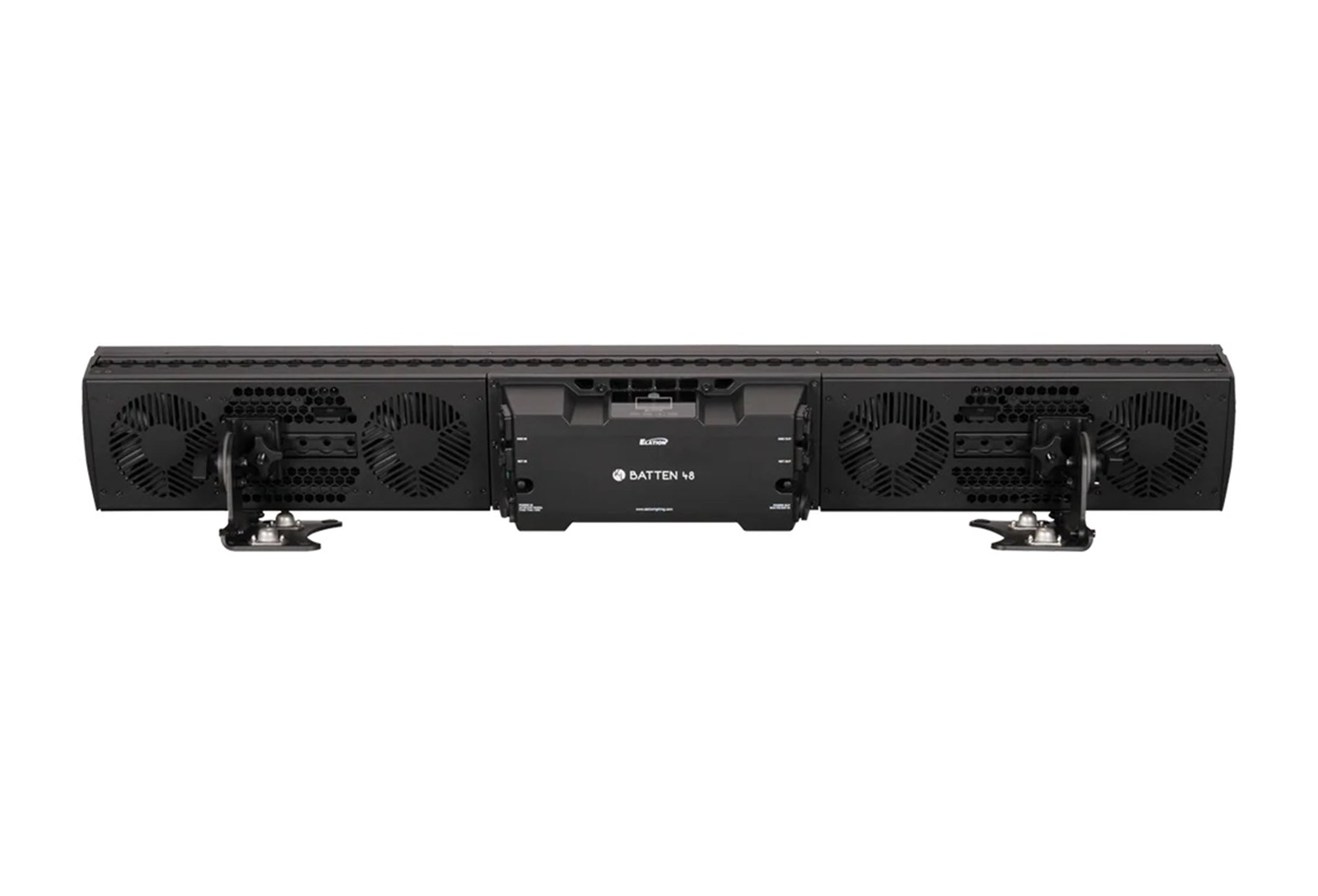

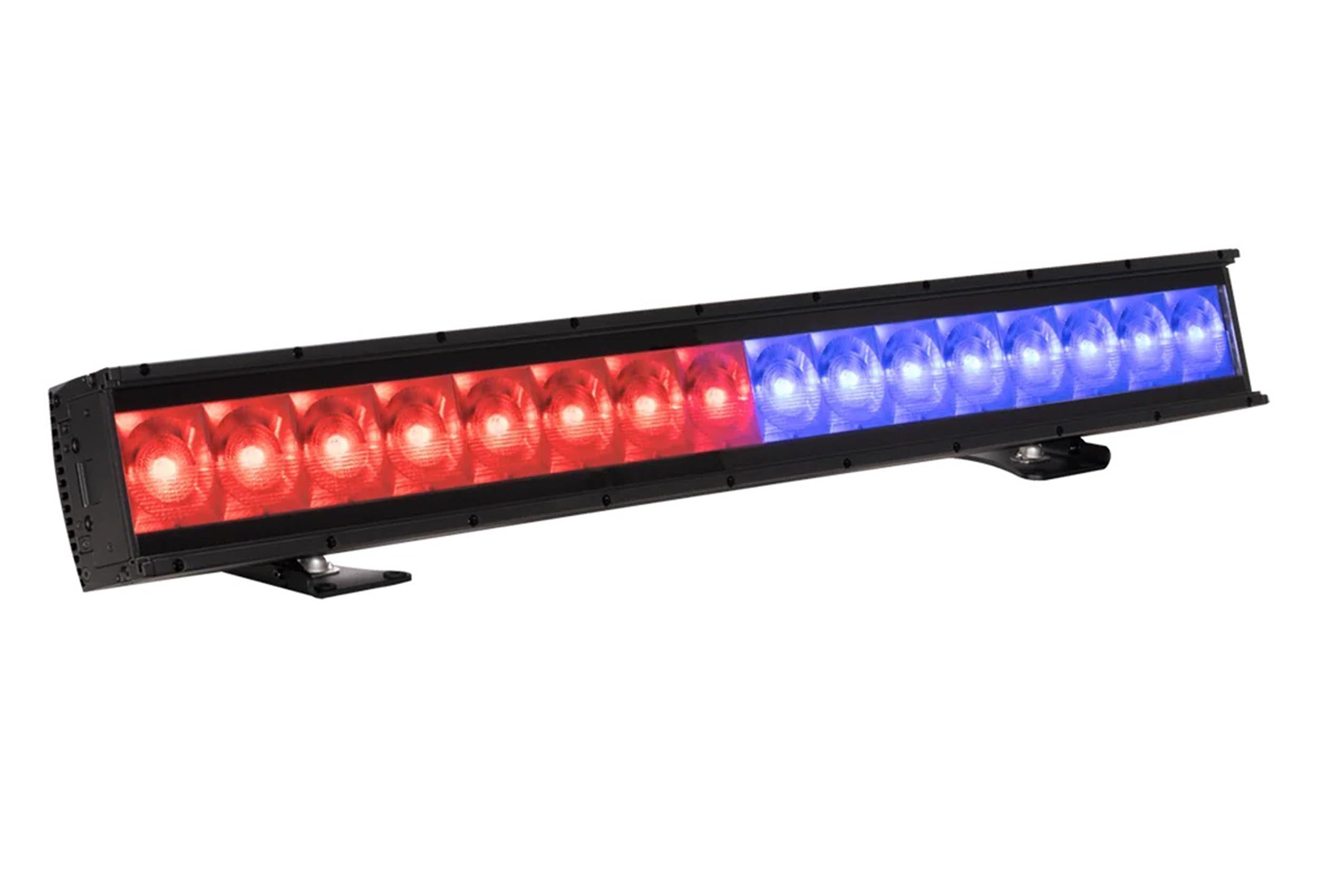

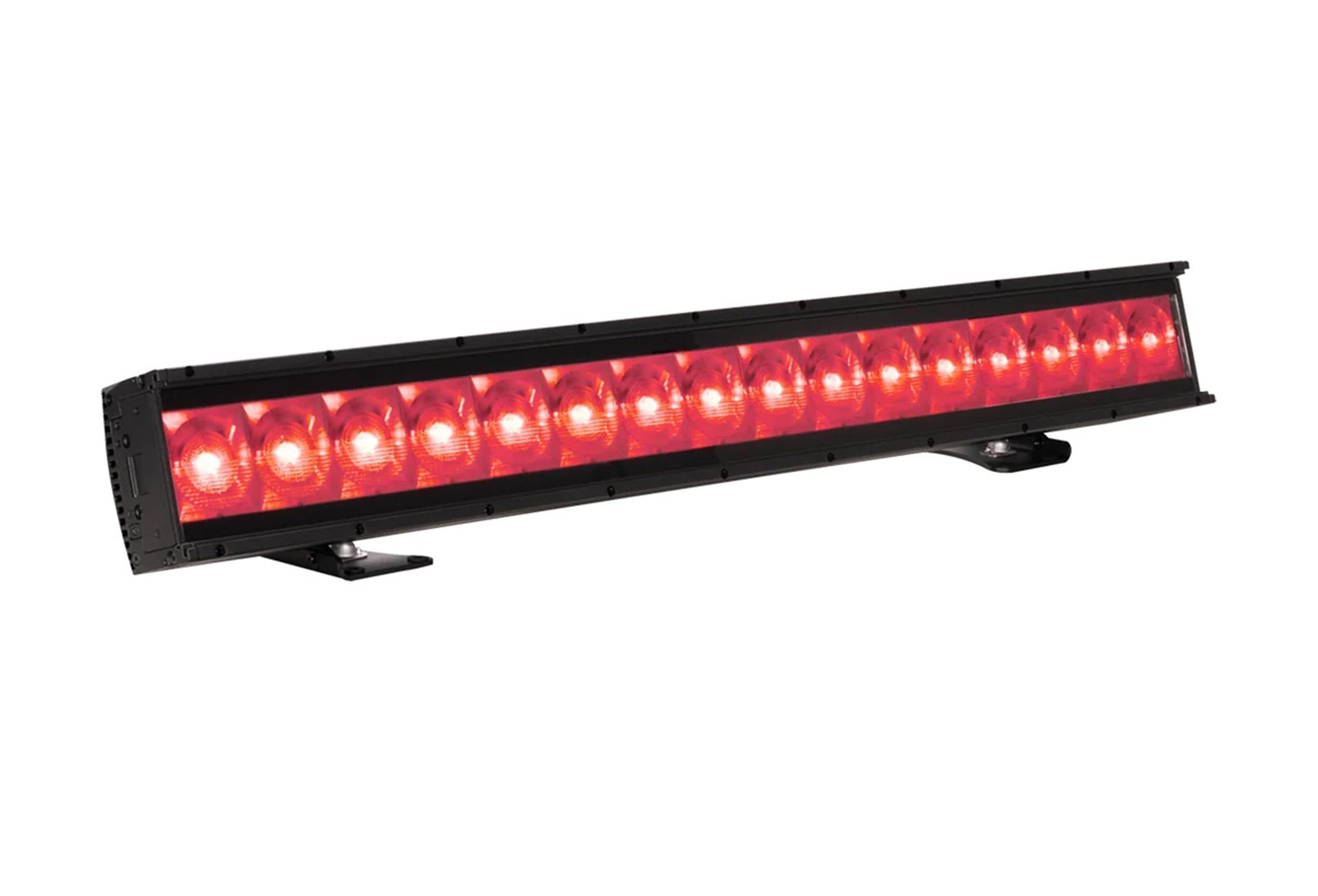

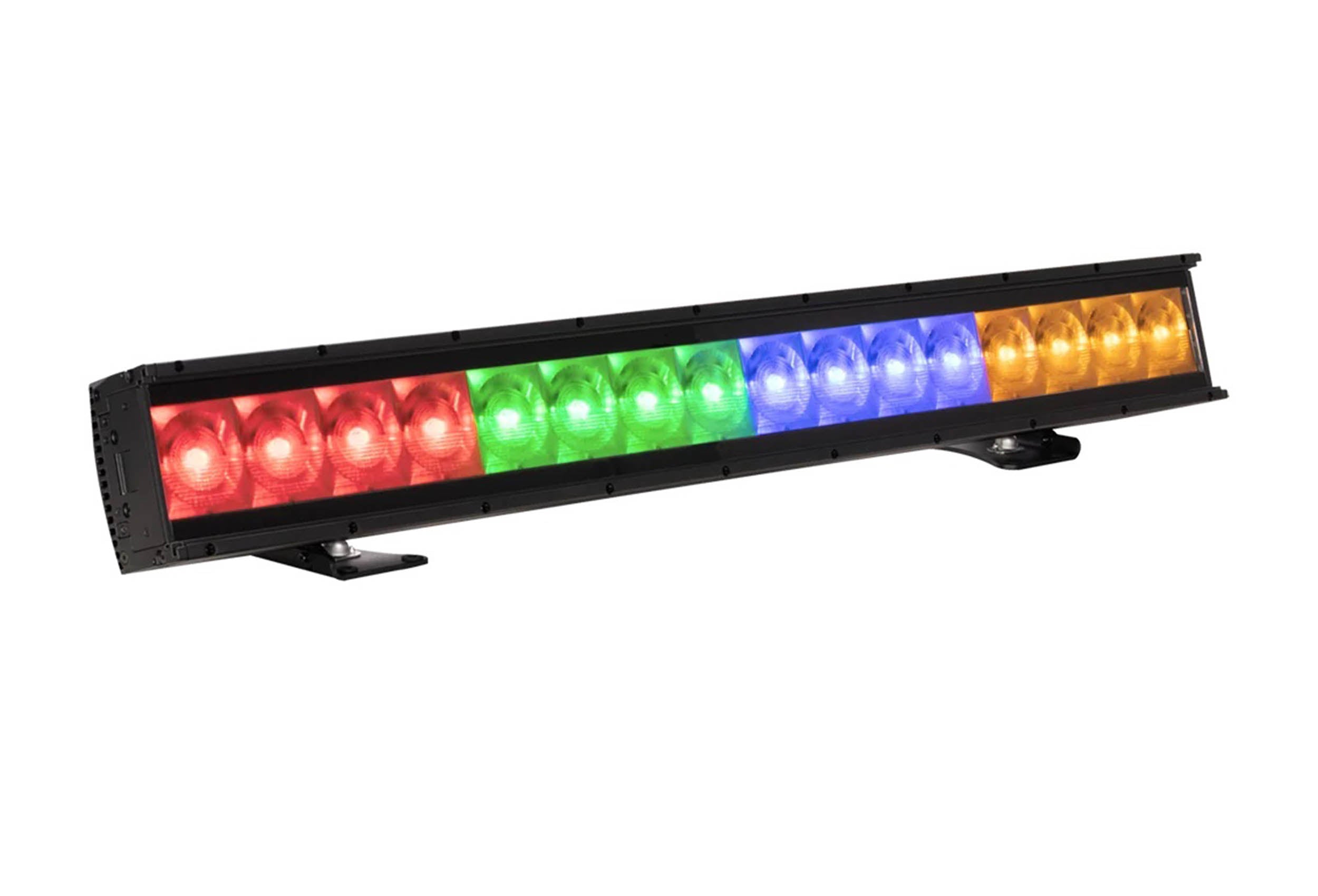

The Elation Professional KL BATTEN 48 is a high-output LED batten designed for large stages, touring productions, studios, and outdoor applications. Its 16 × 100W RGBMA LED array produces an impressive 39,475 lumens of smooth, even light with a homogeneous beam for natural, full-spectrum illumination. With a CRI of 94.9 and TLCI of 95, it provides excellent color quality for both live performance and camera applications.

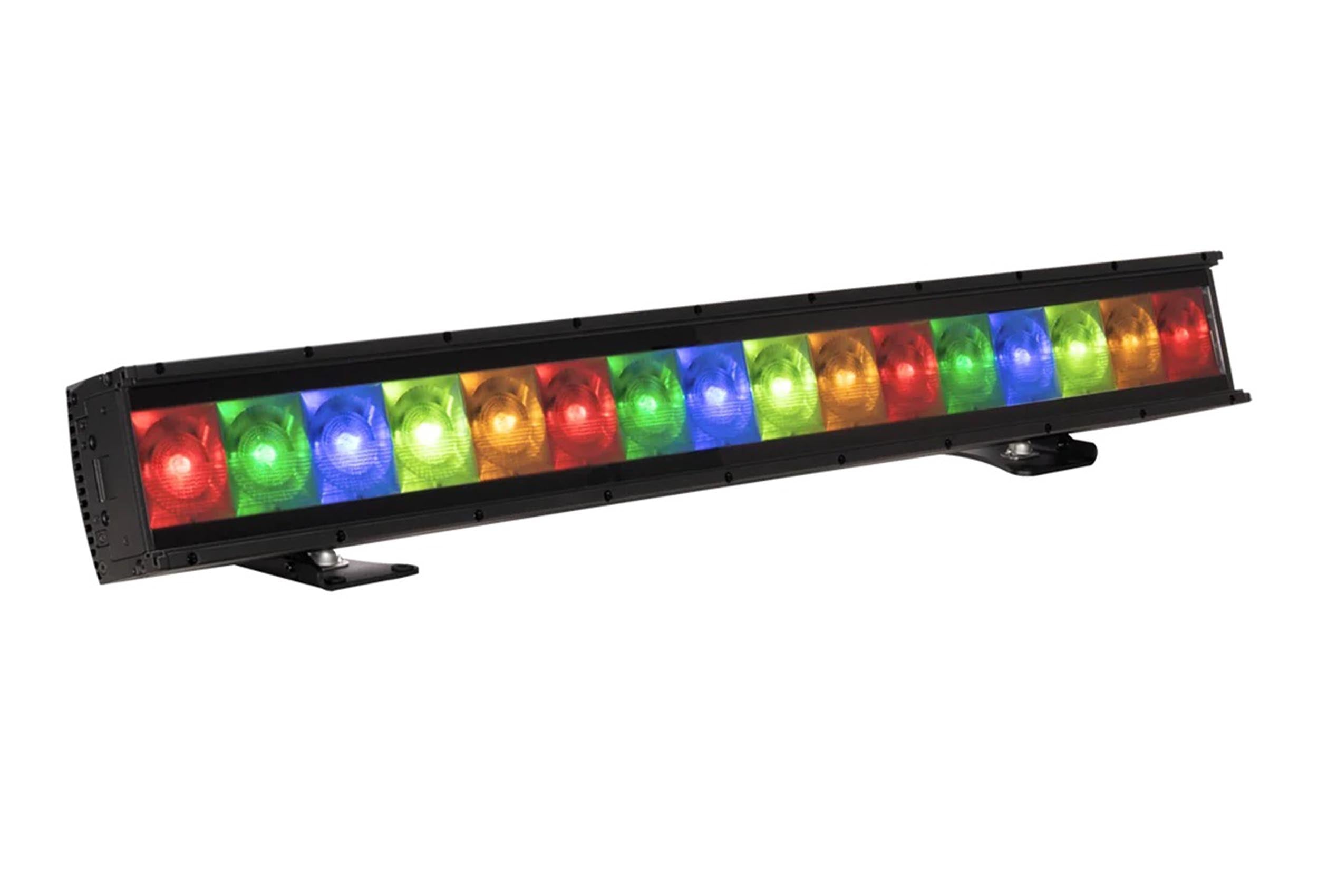

The RGBMA color engine offers a fully variable 16-bit CCT range from 2400K to 8500K, along with green/magenta shift, dim-to-warm fading, and a virtual gel swatch book. Full pixel control allows individual LED sections to be controlled for advanced effects, pixel mapping, and creative color chases. Electronic dimming, strobe functions, and variable 16-bit dimming modes provide precise control across a wide range of professional lighting applications.
Built for demanding environments, the KL BATTEN 48 features an IP65 rating and IP65-rated DMX, Ethernet, and power connections for reliable indoor and outdoor operation. Art-Net and sACN networking provide flexible integration with modern lighting control systems, while 34 DMX channel modes offer control options from simple 1-channel operation up to advanced 217-channel pixel control. The integrated L-Track mounting system and end-to-end magnetic alignment make the fixture highly adaptable for touring rigs, permanent installations, and large-scale lighting arrays.
This is just the lighting fixture. Gear and accessories in product images not included.
Product Specifications:
Product Type: LED Batten Fixture
LED Source: (16) × 100W RGBMA LEDs
LED Engine: RGBMA
Total Fixture Output: 39,475 lumens
CRI: 94.9
TLCI: 95
LED Life: 30,000 hours average
Beam Angle: 62° × 21°
Field Angle: 79° × 51°
Pixel Control: Full Pixel Control
Dimmer: Electronic
Dimming Resolution: 16-bit
Dimming Modes: Variable 16-bit Modes and Curves
Strobe: Electronic Strobe
CCT Range: 2400K–8500K
Color Adjustment: Green/Magenta Shift
Dim-to-Warm: Supported
Virtual Gel: Swatch Book Included
DMX Channel Modes: 34
DMX Channel Range: 1 to 217 Channels
Control Panel: 4-Button
Display: Color LED Display
RDM: Supported
Wireless Management: Aria x2
NFC Configuration: Supported
Networking: Art-Net & sACN
DMX Connection: IP65 5-pin XLR In/Out
Ethernet Connection: IP65 RJ45 In/Out
Power Connection: IP65 Locking Power Cable In/Out

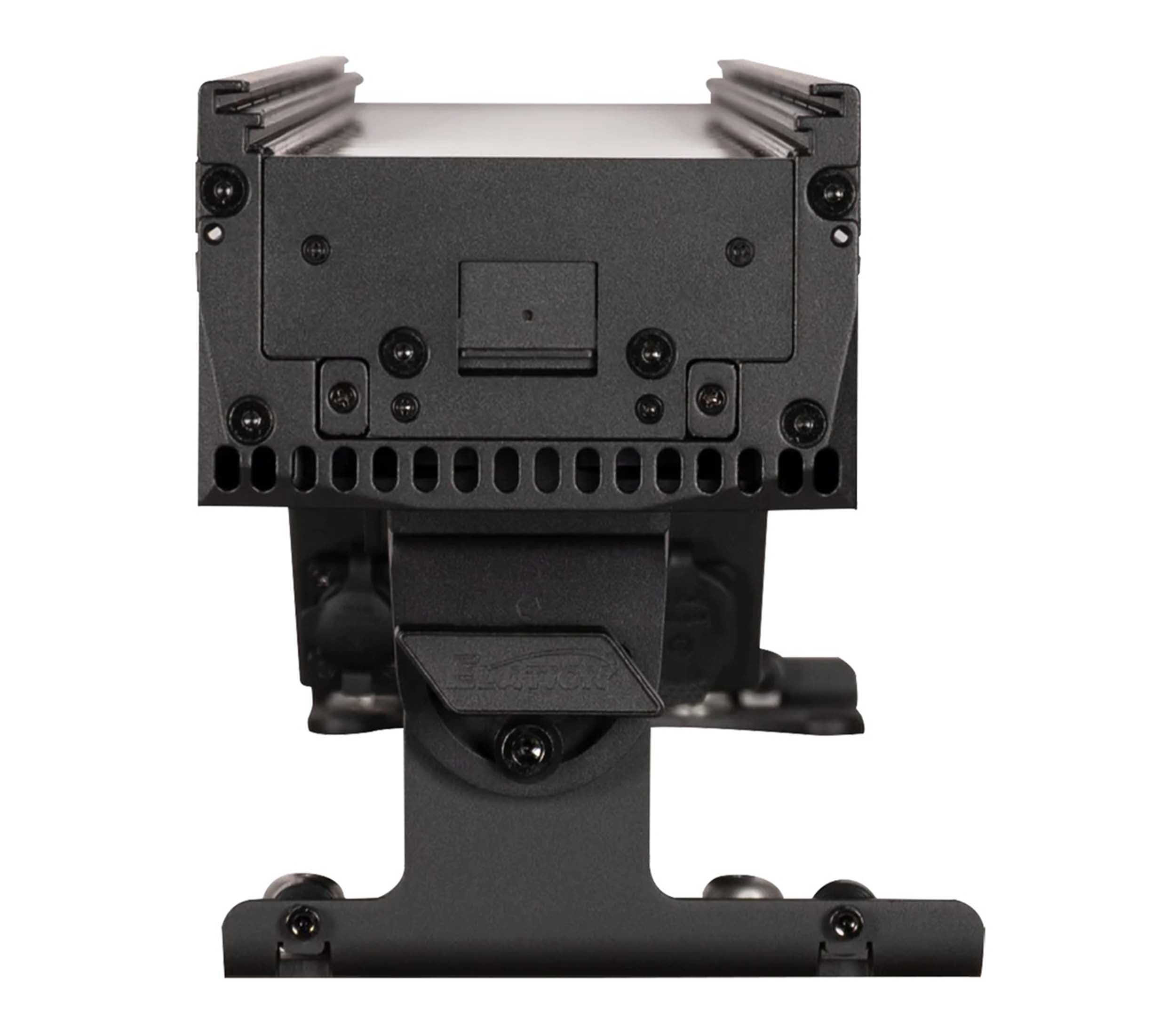

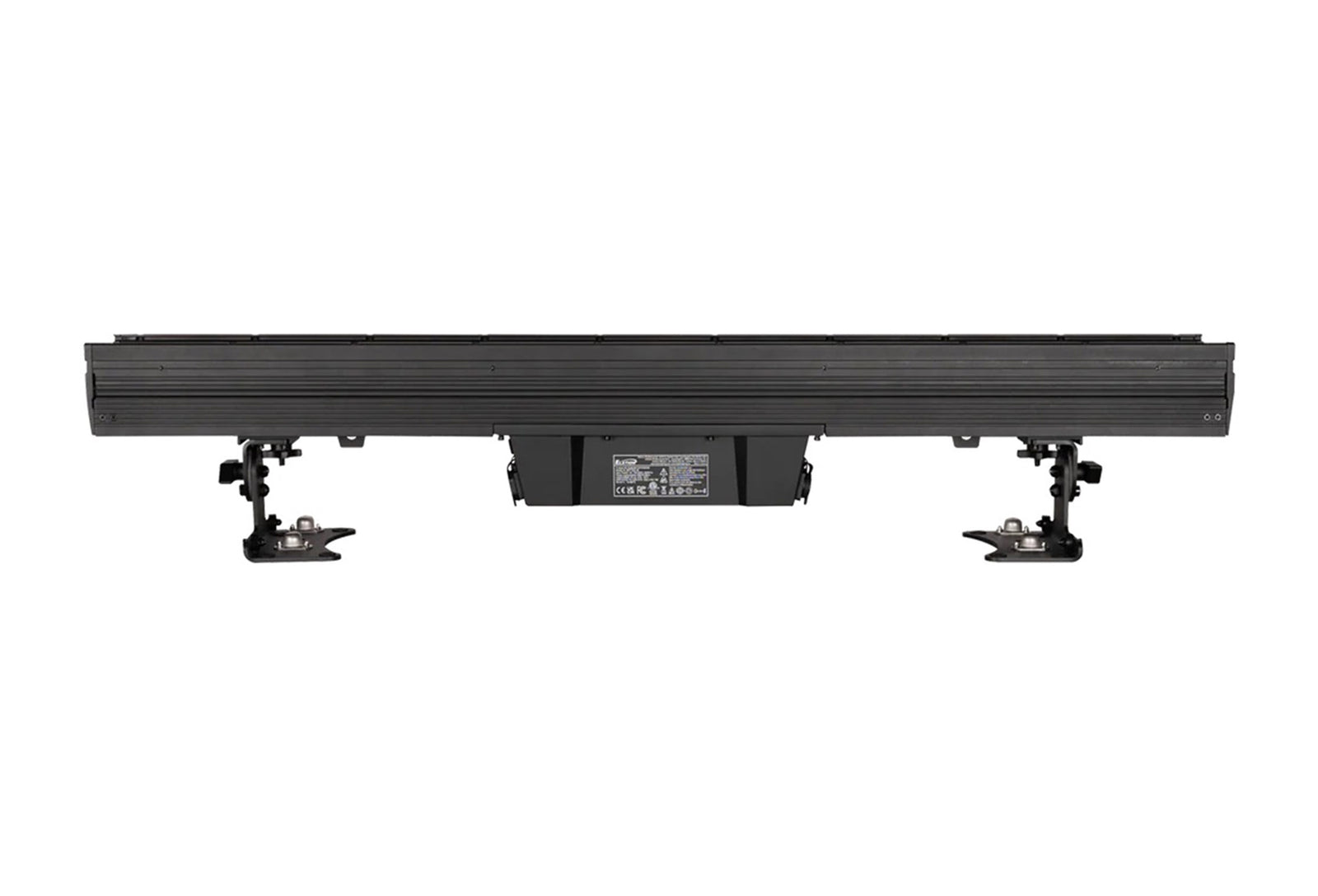

Mounting System: Integrated L-Track
Alignment System: End-to-End Magnetic Alignment
IP Rating: IP65
Input Voltage: AC 100–240V
Frequency: 50/60Hz
Maximum Power Consumption: 800W
Operating Temperature: -40°F to 131°F
Thermal Output: 2,728 BTU/hr ±10%
Vertical Height: 9.4"
Approvals: CE, cETLus, FCC, UKCA
Low-Clearance Height: 8.6"

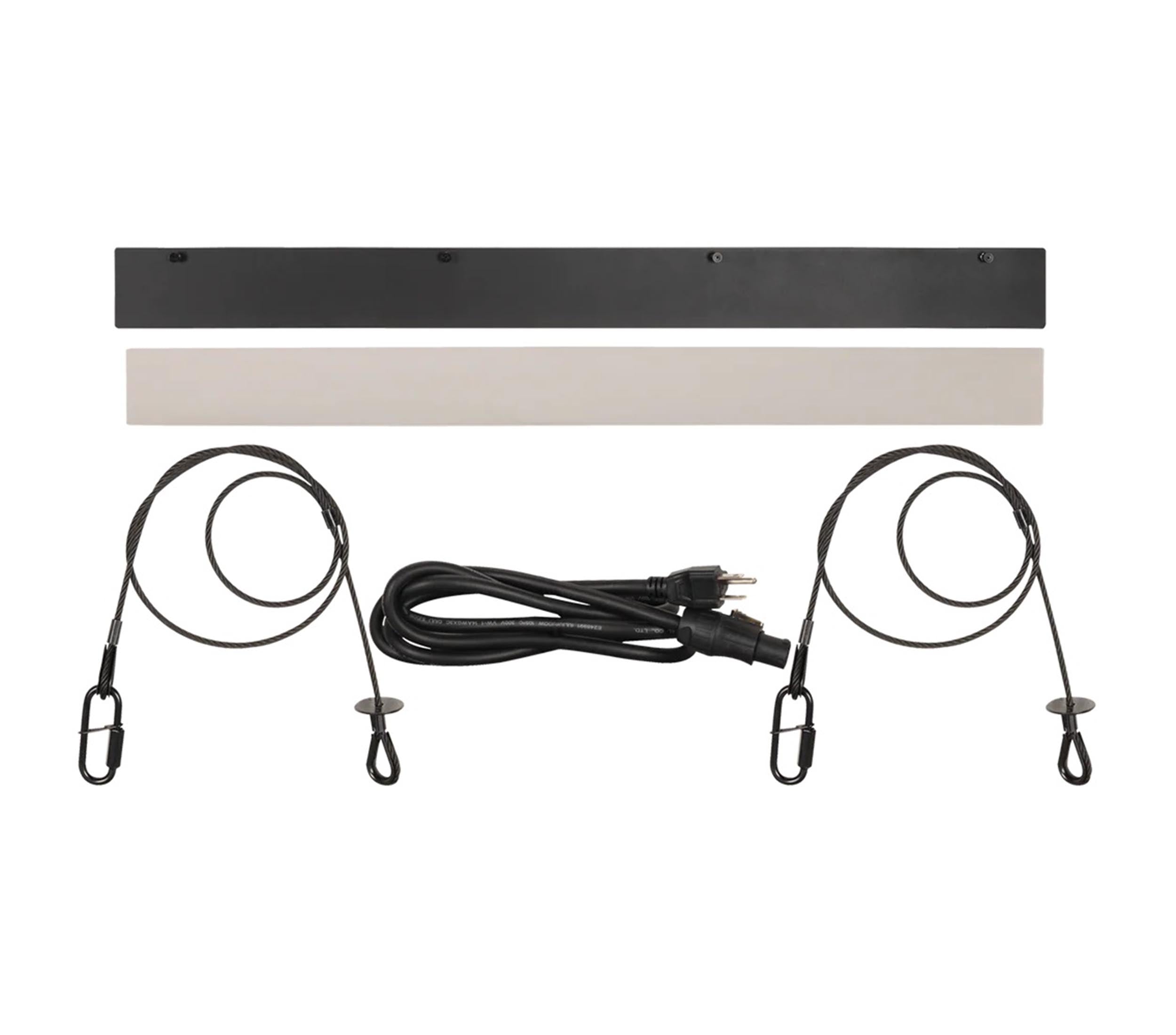

Included Accessory: Glare Shield
Included Accessory: Border Light Filter
Included Accessory: 2 × Safety Cables
Included Accessory: IP65 Locking Power Cable
Optional Accessory: Omega Bracket OB-107-90B
Optional Accessory: L-Track to M10 Adapter 70mm LTR001
Optional Accessory: L-Track to M10 Adapter 44.5mm LTR008
Optional Accessory: L-Track C-Clamp Adapter Assembly 70mm LTR100
Optional Accessory: L-Track C-Clamp Adapter Assembly 44.5mm LTR112
Product Weight: 43.2 lbs
Product Dimensions: 47.7" L × 7.2" W × 9.4" H
Shipping Weight: 45.2 lbs
Shipping Dimensions: 49.7" L × 9.2" W × 11.4" H
