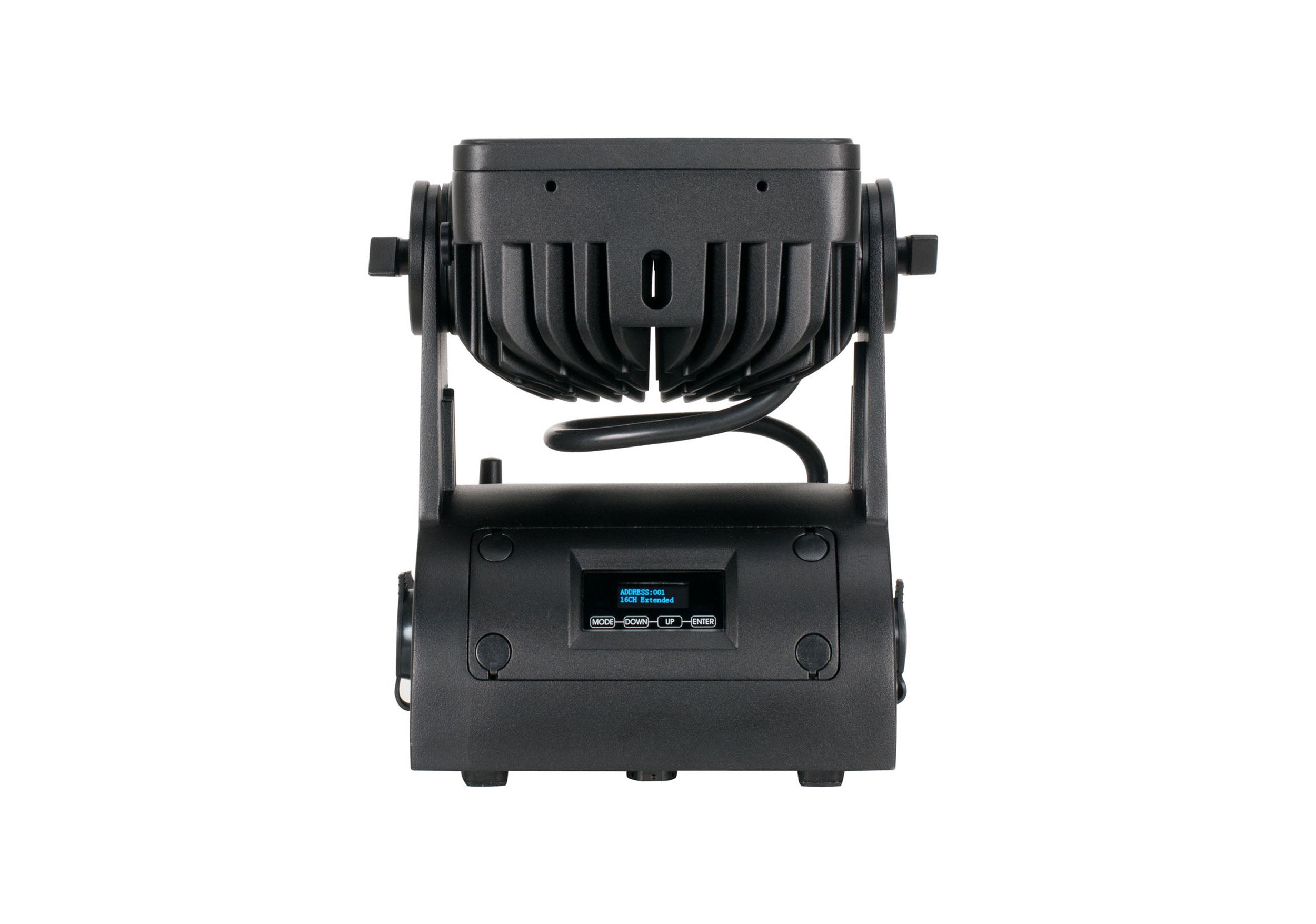

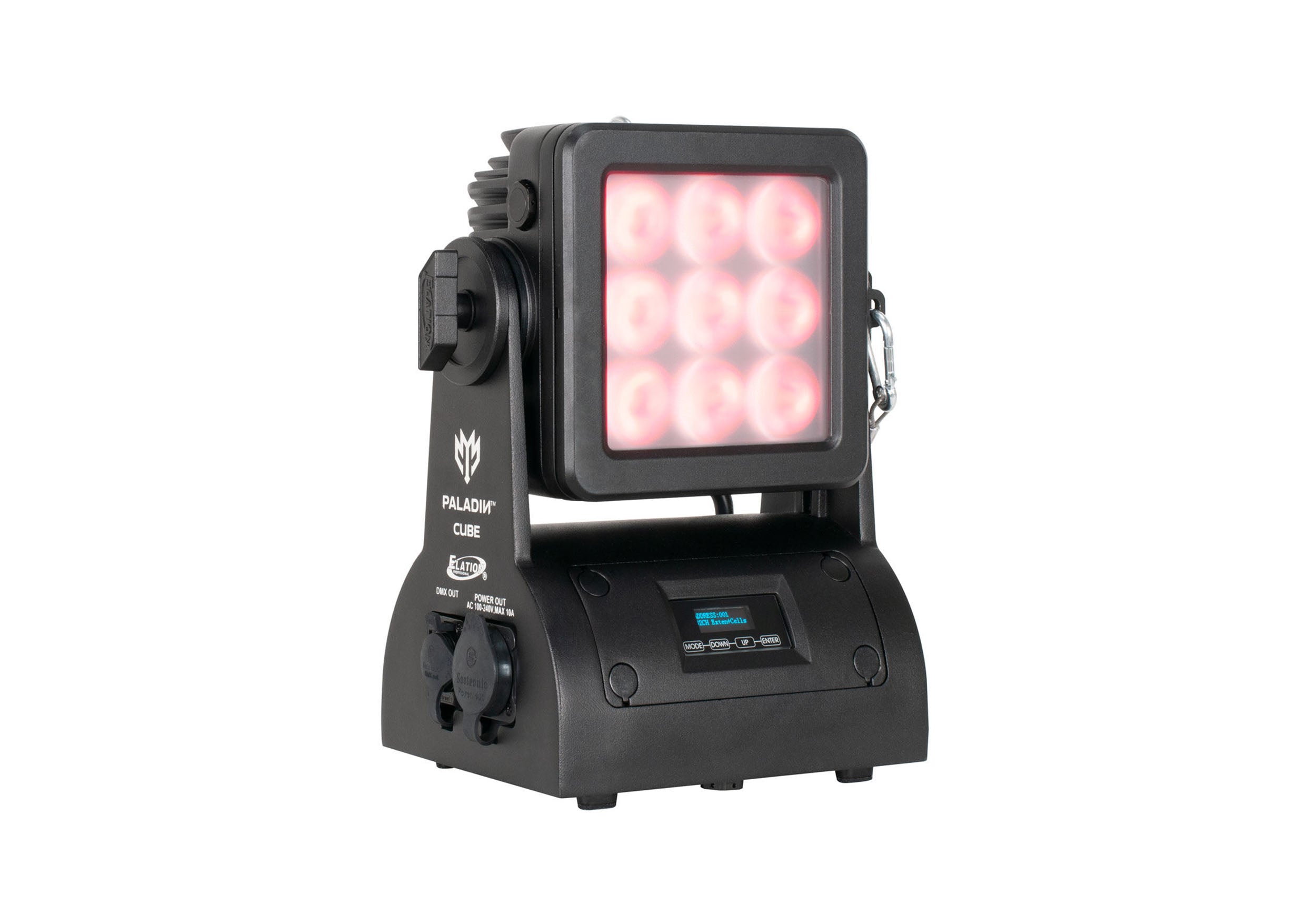

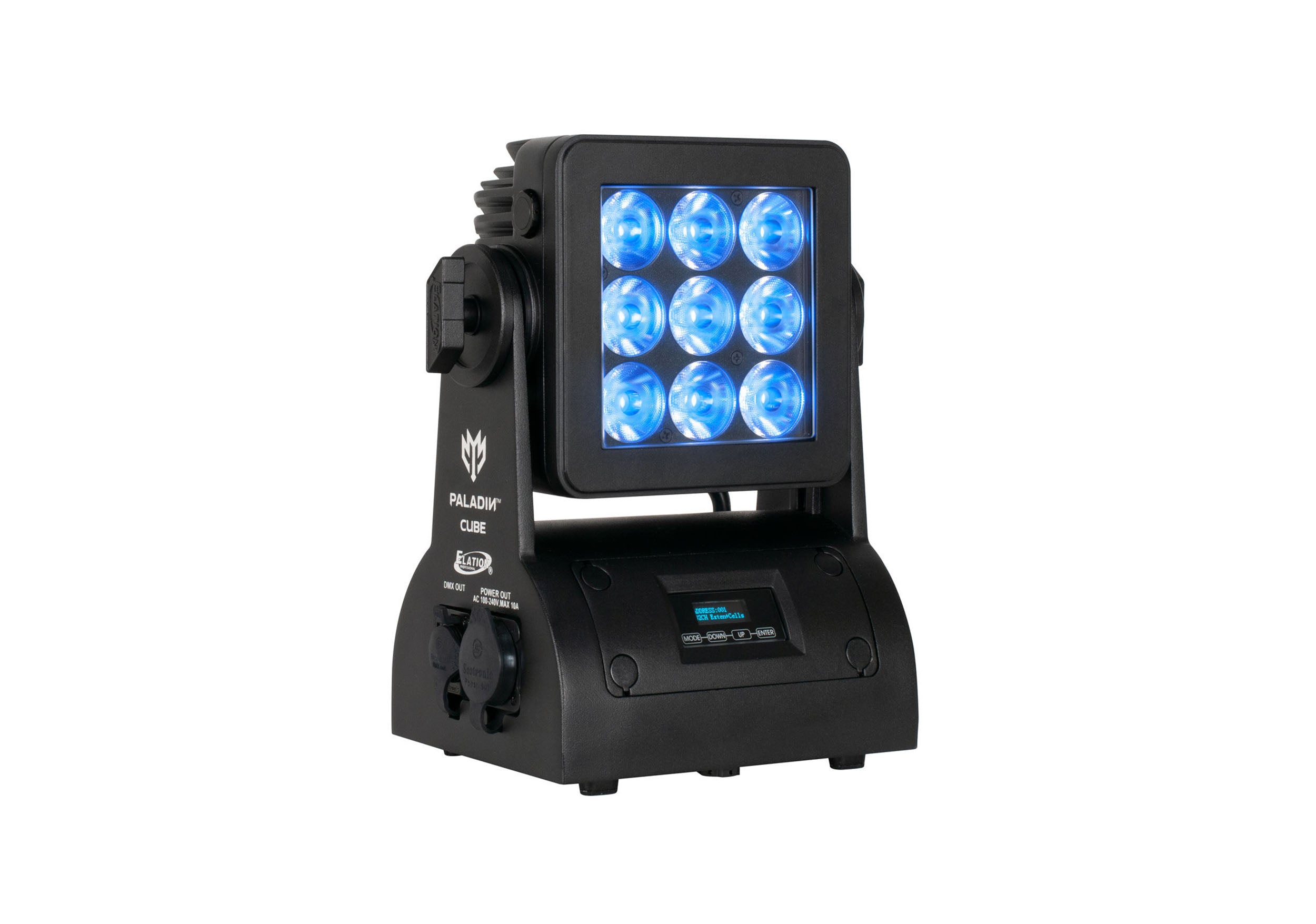

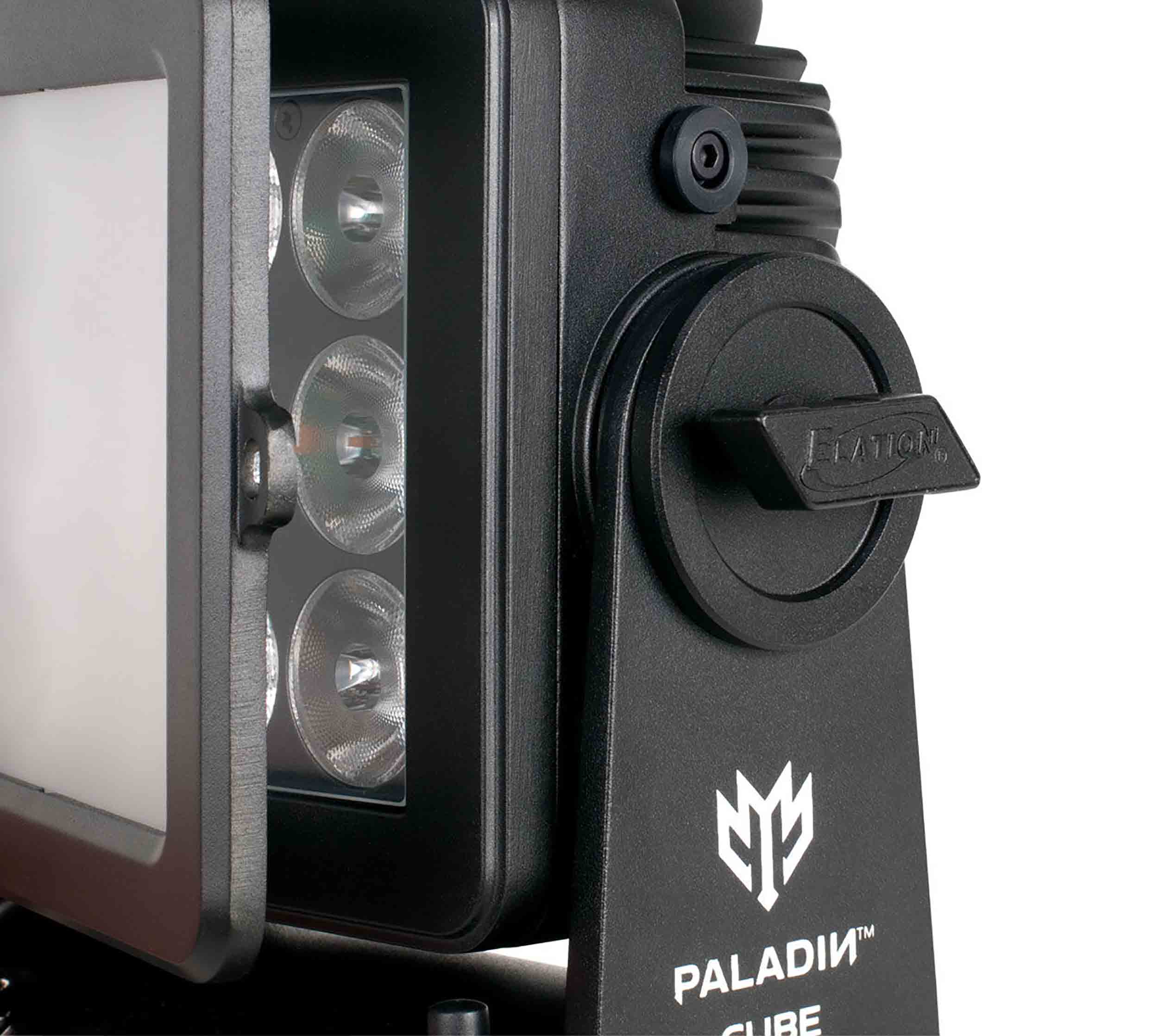

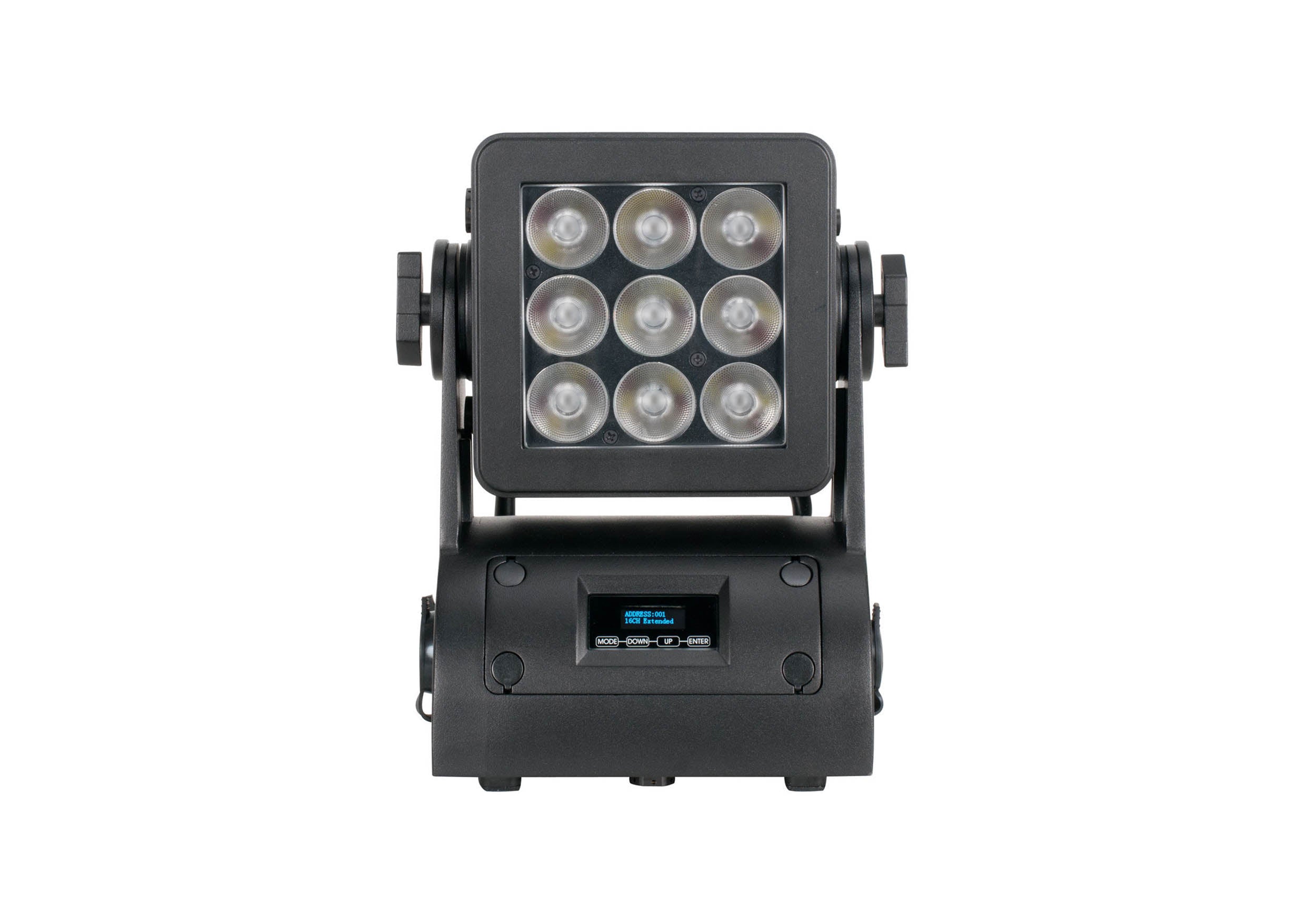

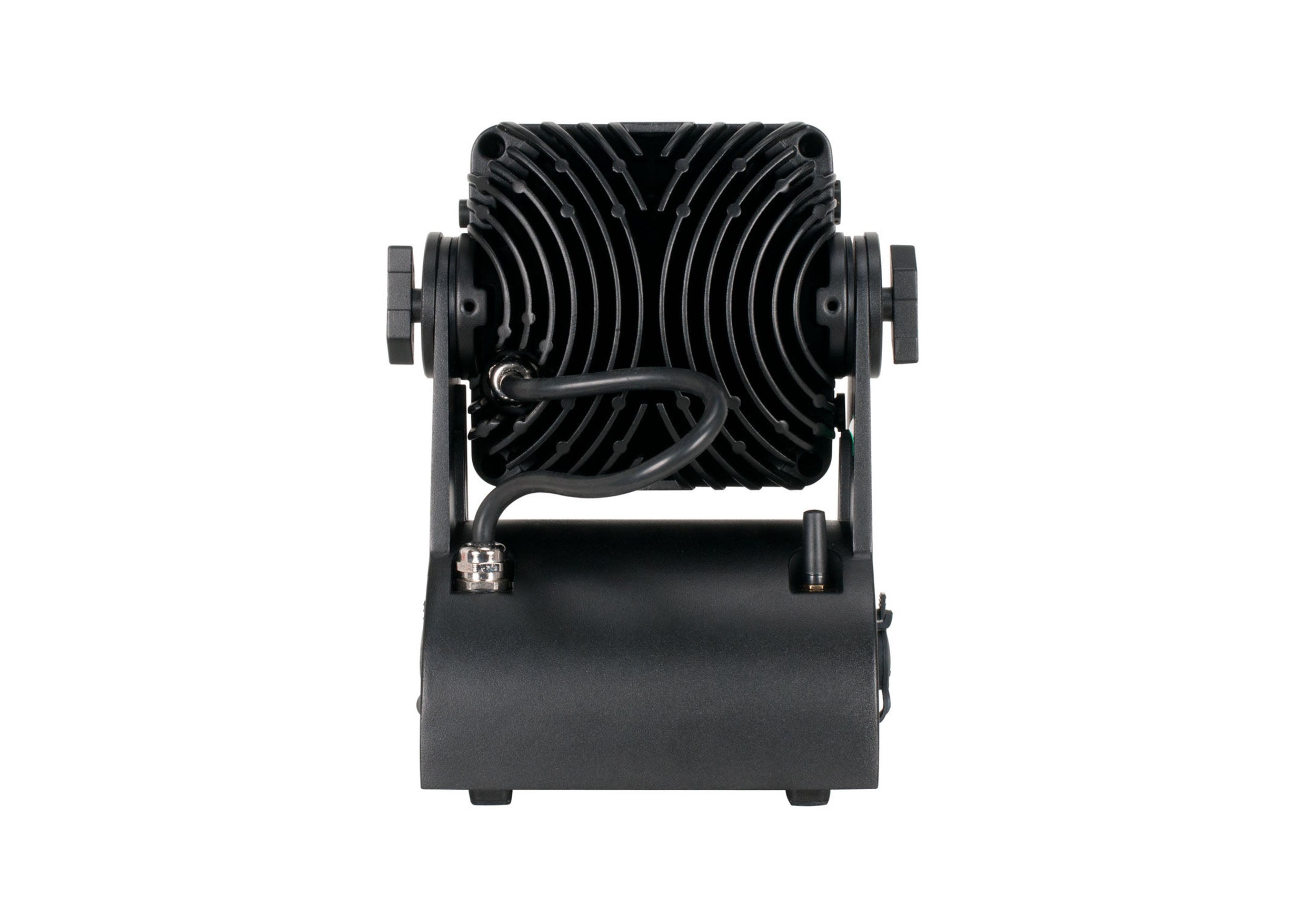

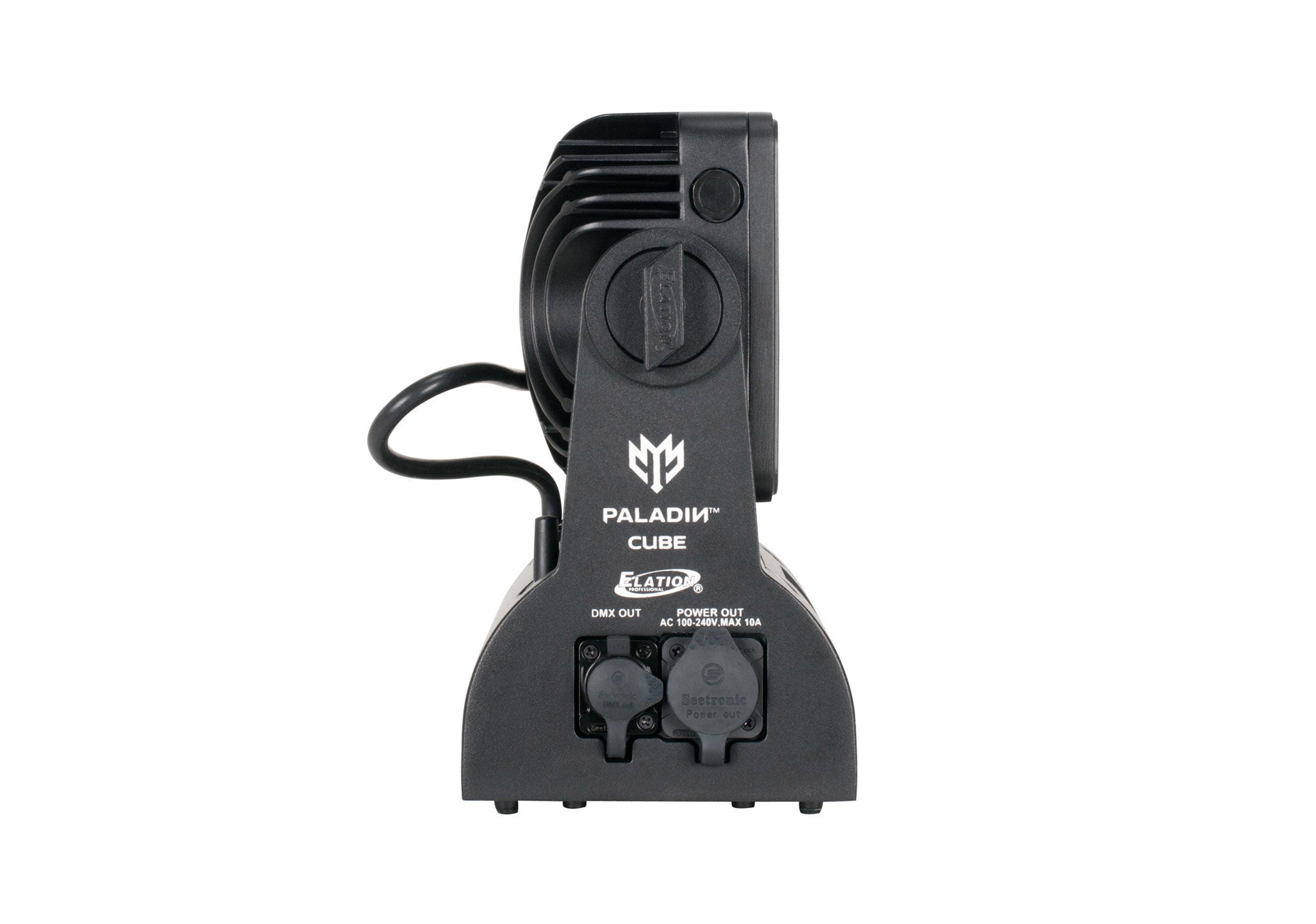

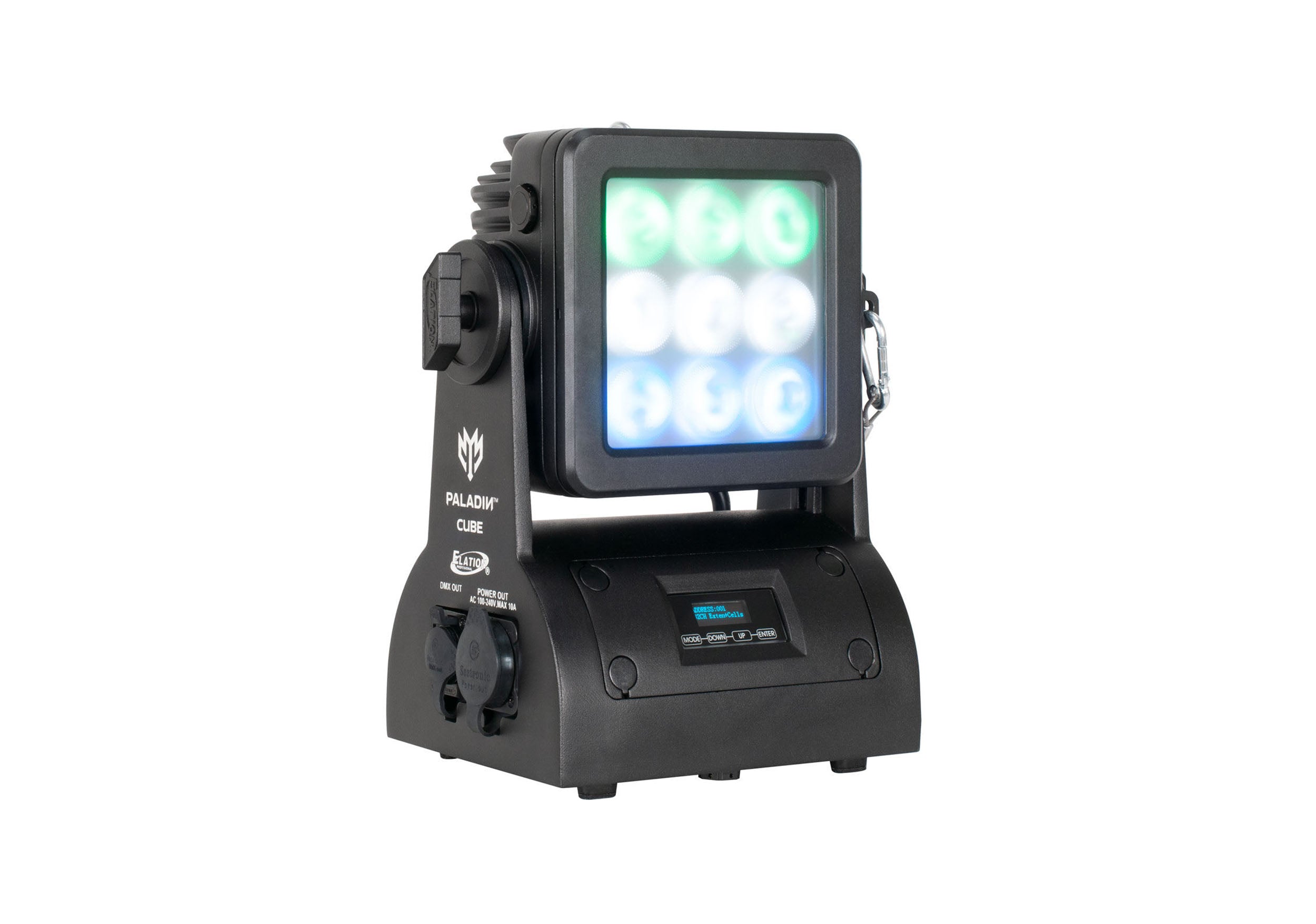

Elation Professional Paladin Cube RGBW Floodlight - 135W

The Elation Professional Paladin Cube RGBW Floodlight - 135W is a compact and powerful outdoor floodlight for a wide variety of applications. Using nine 15W RGBW cells, it provides a total output of up to 3,200 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP-rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN Cube also a versatile effects fixture or audience blinder.



Product Specifications:

Fixture Type: LED Panel

Light Source: 9x Color LED - 15 W

Expected Lamp Life: 50,000 Hours

Colors: Red, Green, Blue, White

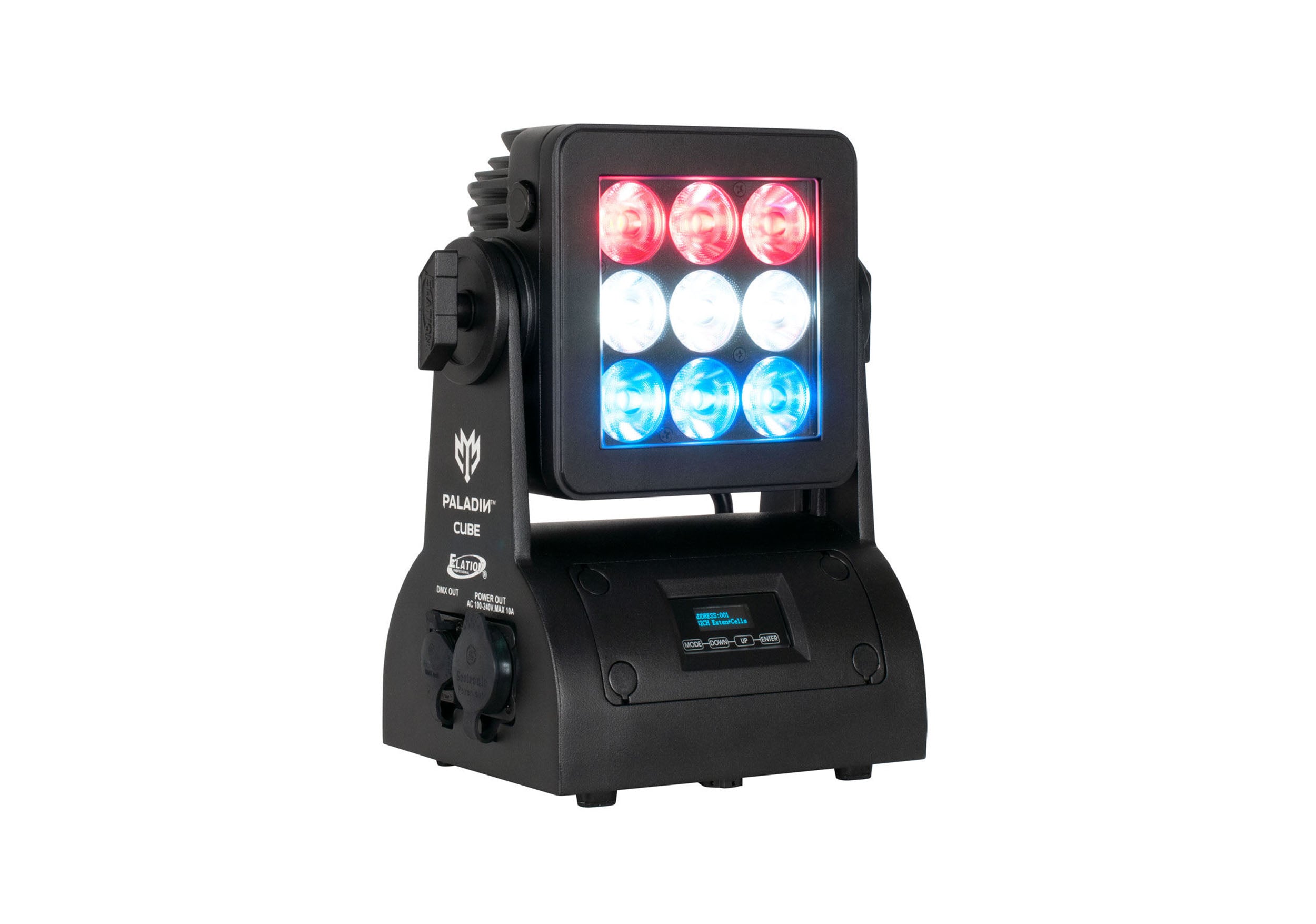

Pixel Configuration: 3x Zone

Photometrics:

14°:

3458 fc / 37,221 Lux at 3.3' / 1 m (Full On)

864 fc / 9305 Lux at 6.6' / 2 m (Full On)

384 fc / 4136 Lux at 9.8' / 3 m (Full On)

Color Temperature: 6000K

Lumen Output: 3200 Lumens

Beam Angle:

14° (without Filter)

25° (with Filter)

Field Angle: 25° (without Filter)

59° (with Filter)

Iris: No

Zoom Adjustment: No

Performance:

Operating Modes: DMX, Primary/Secondary, Standalone

Macros / Programs: 12x Internal Program

Effects: Strobe

Gobos: No

Refresh Rate: 900 Hz to 25,000 Hz

Control:

Control Protocols: DMX512, W-DMX, RDM

DMX Channel Modes: 11 Mode(s): 32-Channel

Display / Controls: OLED / 4-Button

Remote Control: No

Mobile App Compatible: No

Connectivity:

Inputs/Outputs:

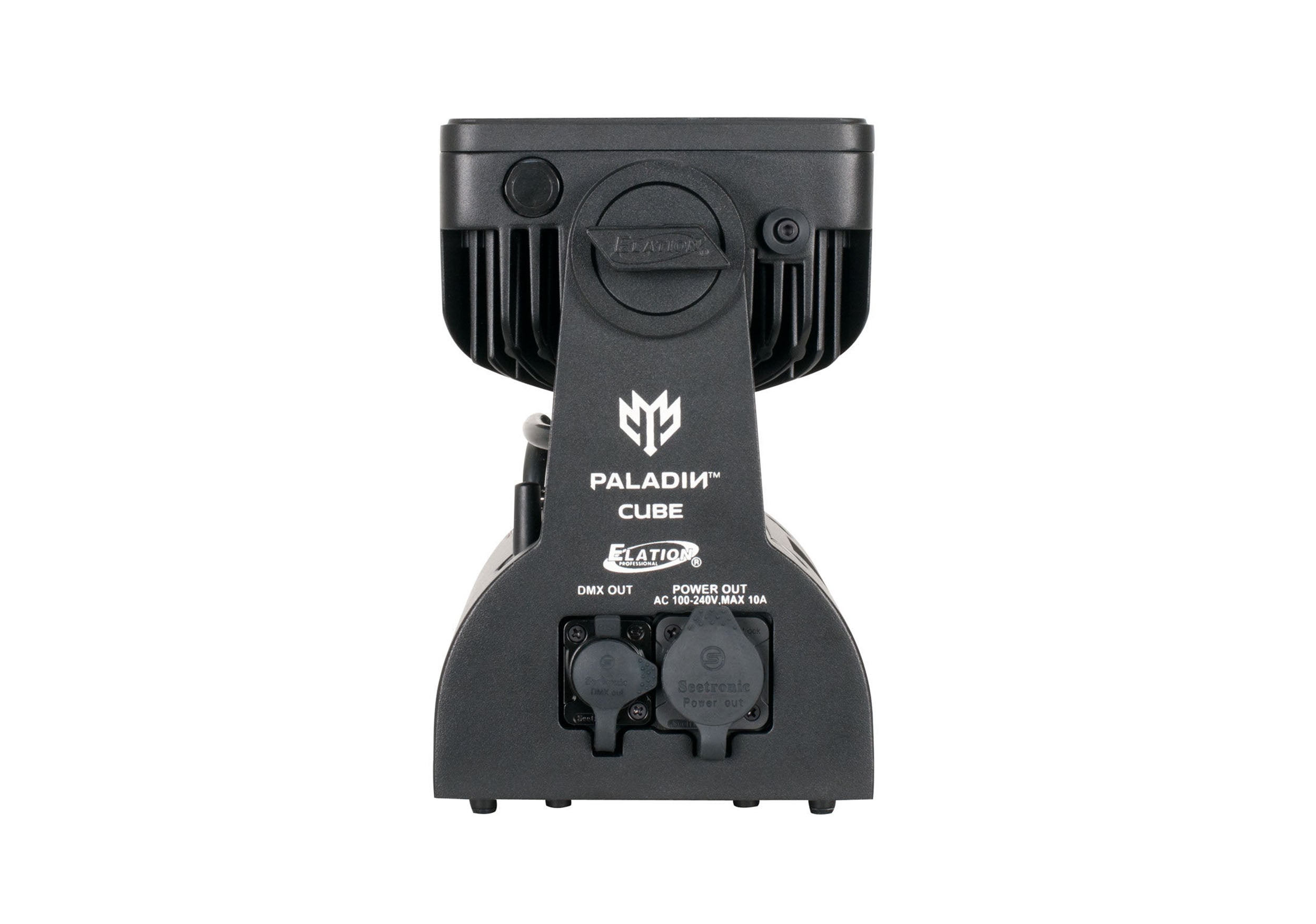

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Power:

AC Input Power: 100 to 240 VAC, 50/60 Hz

AC Power Connector:

Input: 1x powerCON TRUE1

Output: 1x powerCON TRUE1

Fuse: No

Power / Current Consumption: 120 W

Physical:

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: 5 to 113°F / -15 to 45°C

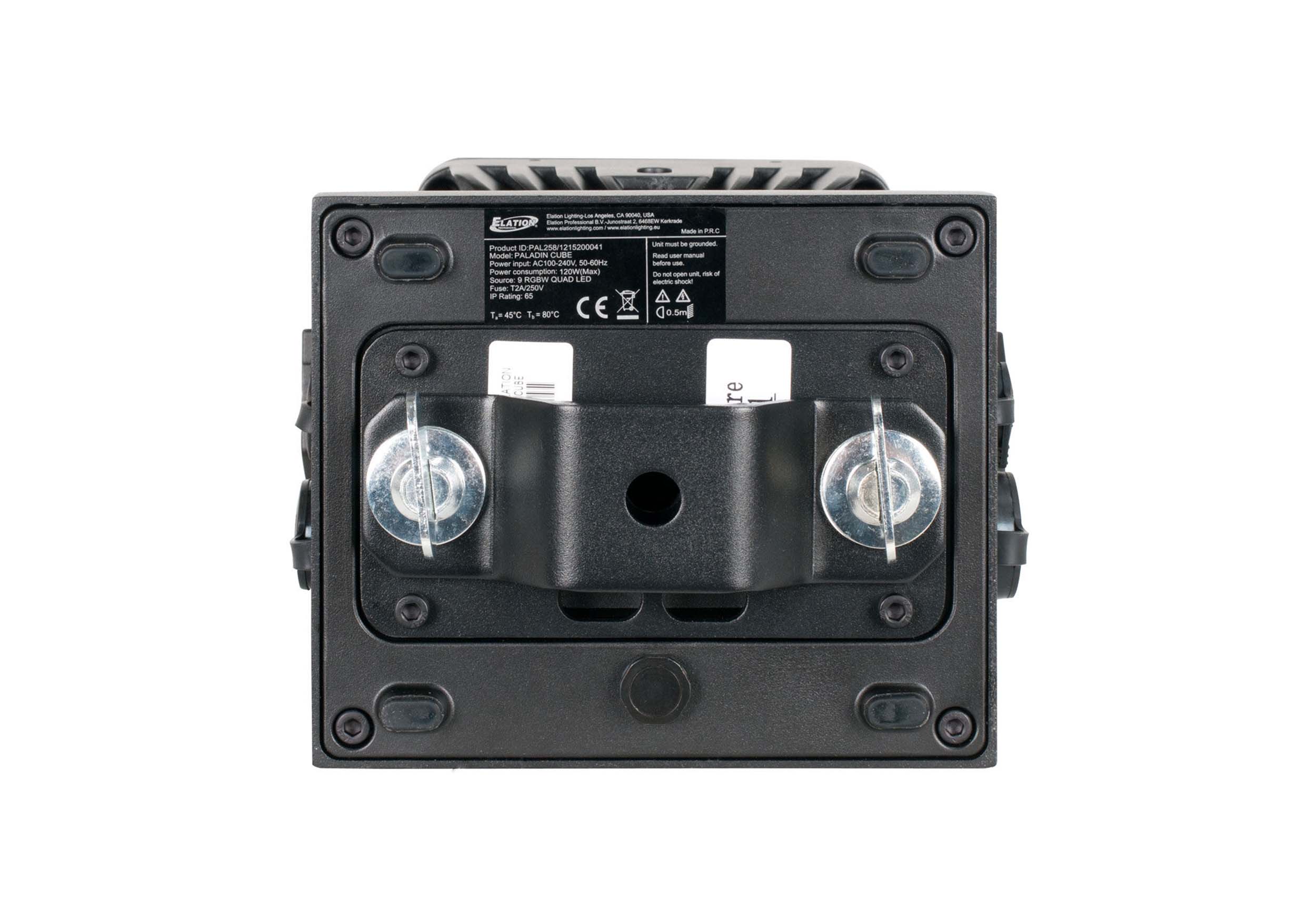

Mounting: Floor Base, Omega Bracket

Included Accessories:

1x Power Cable

1x Filter

1x Safety Cable

Duty Cycle: No

Exterior Color: Black

Cooling: Fan (Variable Speed)

Certifications: CE, cETLus

Dimensions: 7.8 x 7.8 x 5.4" / 19.8 x 19.8 x 13.7 cm

Weight: 10.5 lbs. / 4.8 kg
