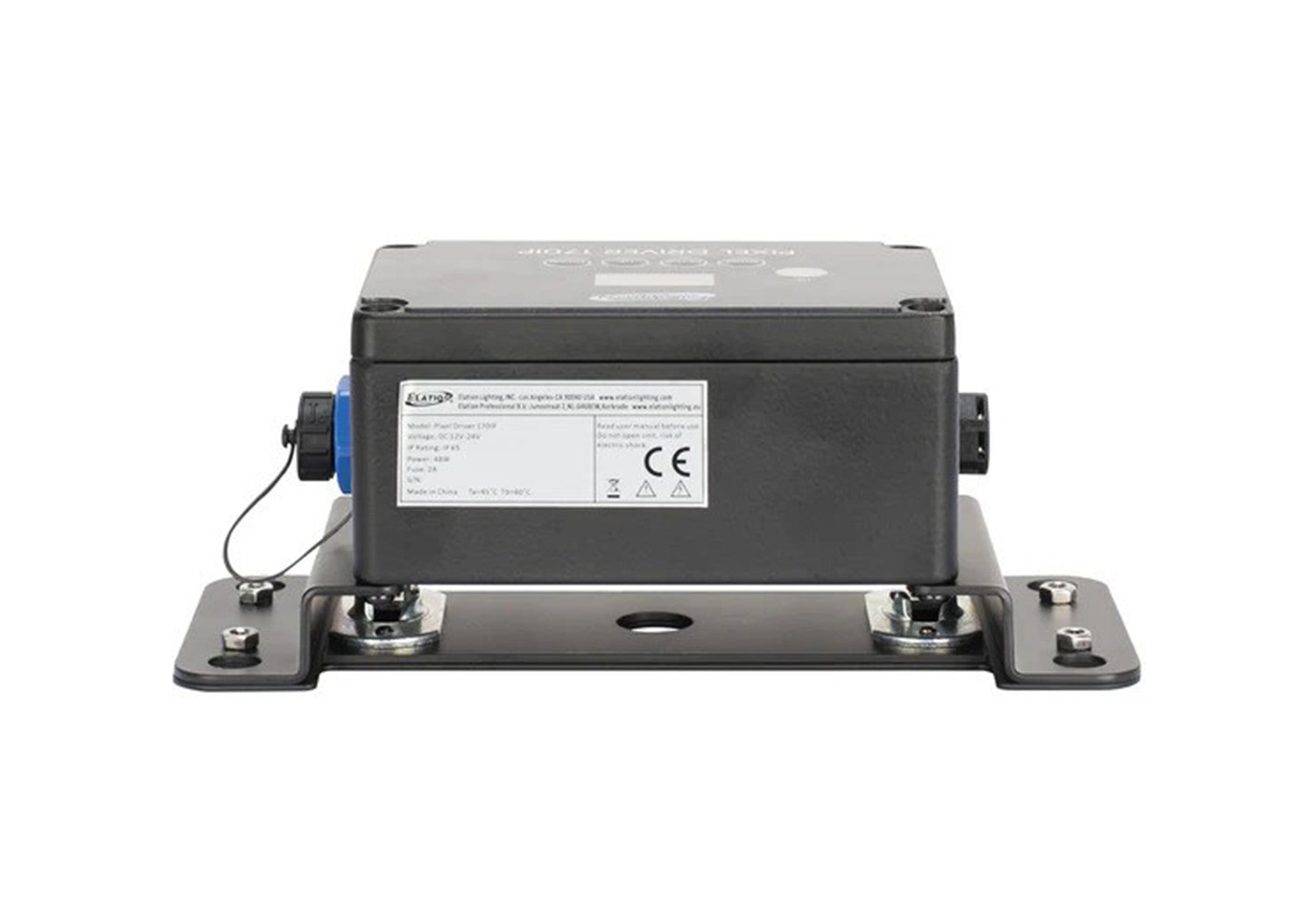

Elation Professional Pixel Driver 170IP, IP65 DMX512 LED Driver

The Elation Professional Pixel Driver 170IP, IP65 DMX512 LED Driver purpose-built for Elation’s PIXEL TAPE 16IP, PIXEL TAPE 40IP, and PIXEL WASH 40IP. Designed for both indoor and outdoor use, this driver supports one full DMX512 universe (up to 170 pixels) and offers intuitive control through a 4-button OLED display or the included EL IR Remote. Compact and reliable, it is ideal for installations requiring robust environmental protection and flexible pixel control.

PIXEL DRIVER 170IP is a professional, IP65, driver specifically designed for the Elation PIXEL TAPE 16IP, PIXEL TAPE 40IP and PIXEL WASH 40IP. This driver provides simple and easy control options including a 4-button OLED Display, EL IR Remote (included), and one full universe of DMX control (170 pixels). The PIXEL DRIVER 170IP features an easy-to-use OLED display, Pixel grouping, DMX IN and OUT, a 4pin XLR connector for LED output, and a 2pin connector for 12-24VDC power IN.

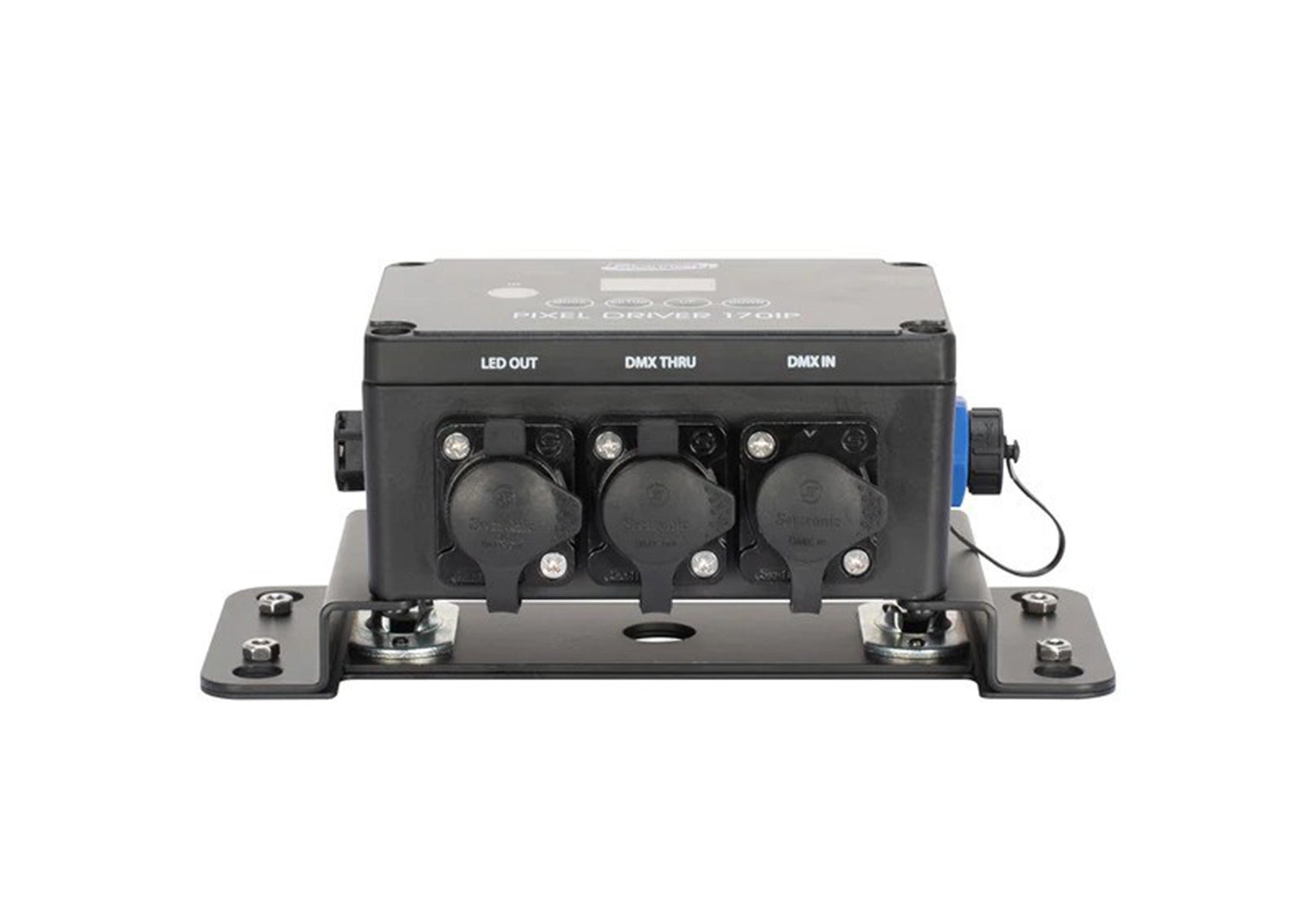

The PIXEL DRIVER 170IP is a professional DMX512, 12-24VDC LED driver that supports up to one full universe of DMX (170 pixels). Its small compact design allows for easy mounting and integration into any system. It features a 4-button LED control display, DMX IN and OUT 5-pin XLR connections, a 4pin XLR connector for LED output, and a 2pin connector for 12-24VDC power IN.

Product Specifications:

Control / Connections:

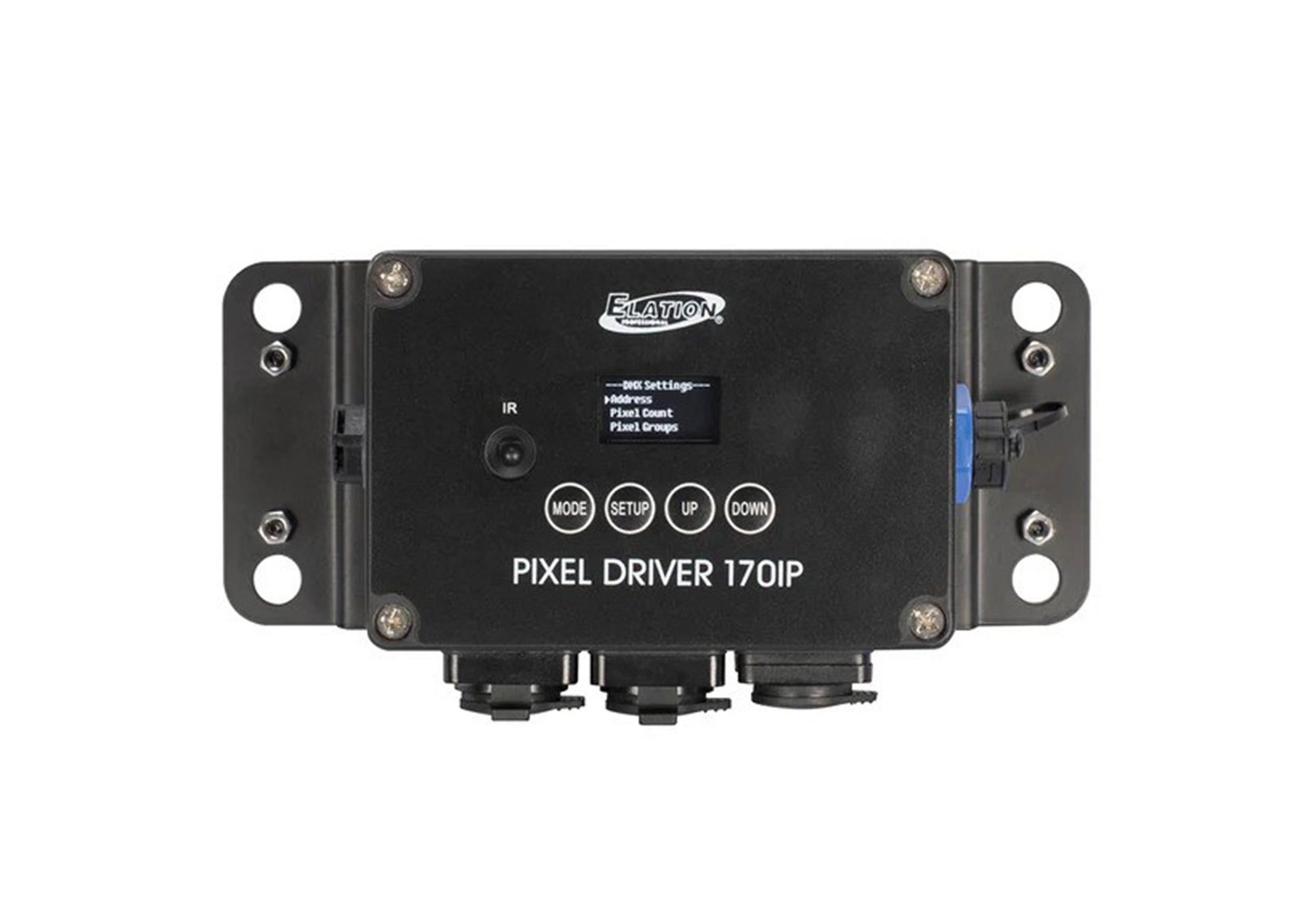

4-Button OLED Display

1 DMX Universe (170 Pixels)

LED Control: LED Tape or Pixel Wash 40IP

UC-IR24EL Remote (Included)

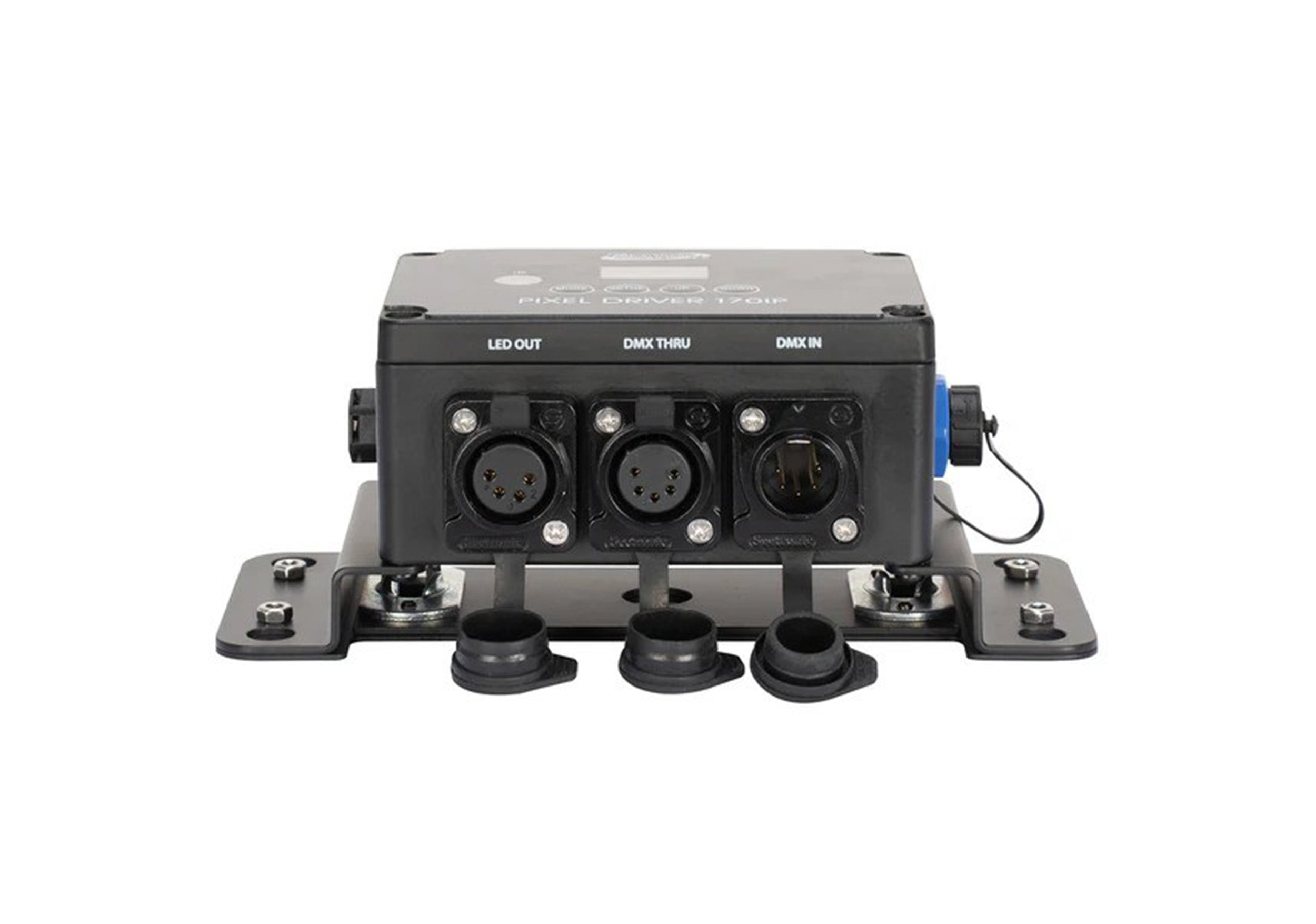

DMX Input via 5pin XLR Connector

DMX Output via 5pin XLR Connector

LED Out via 4pin XLR Connector

Hi Power Mode Off:

control up to 8pcs Pixel Wash 40IP with the driver alone

control up to 40pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200

Hi Power Mode On:

control up to 5pcs Pixel Wash 40IP with the driver alone

control up to 25pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200

Size / Weight:

Length: 3.68" (93.5mm)

Width: 7.38" (187.5mm)

Height (No Omega Bracket: 3" (75.7mm)

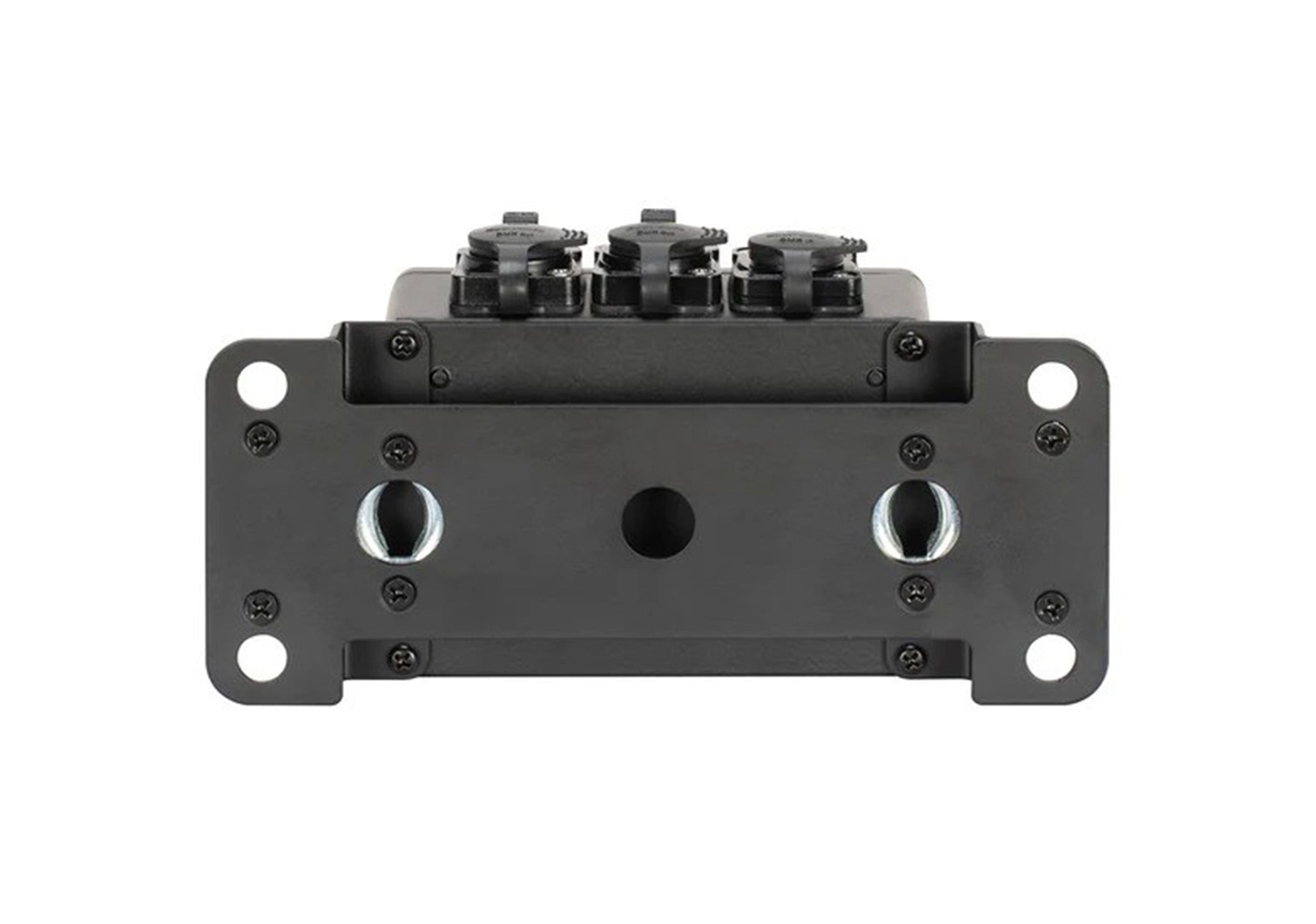

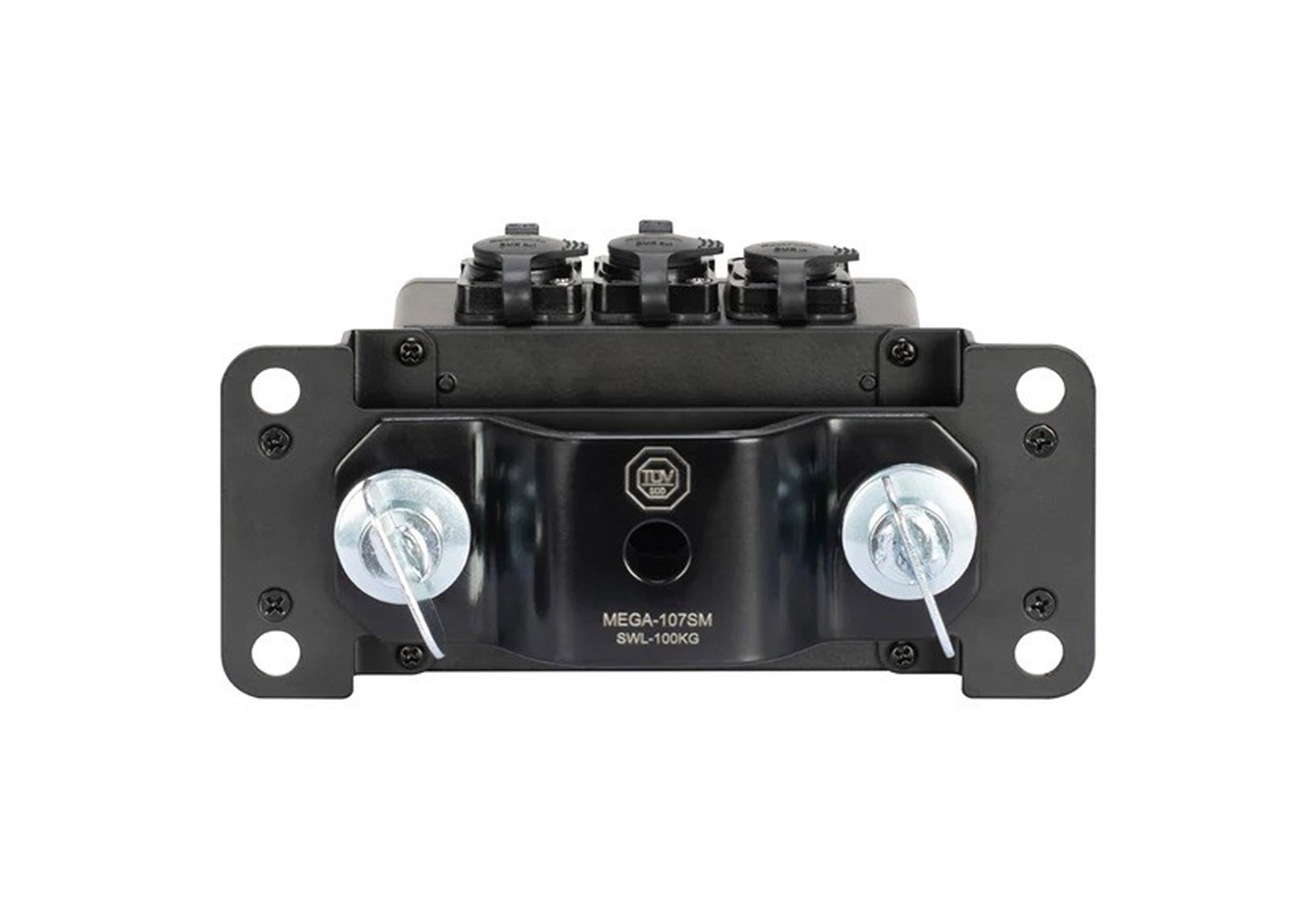

Height (With Omega Bracket: 4.4" (111.0mm)

Weight: 2.64 lbs. (1.2kgs.)

Electrical:

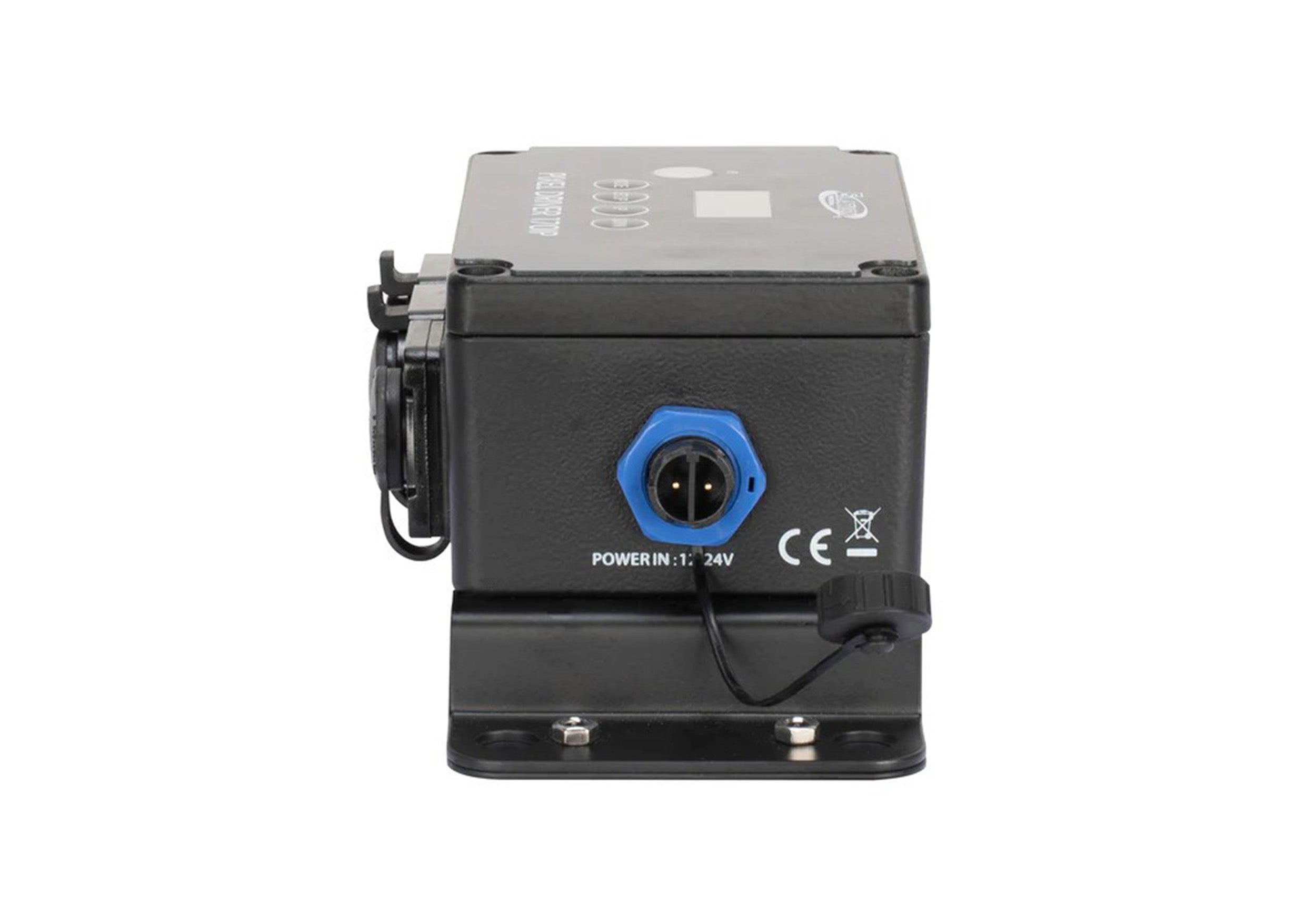

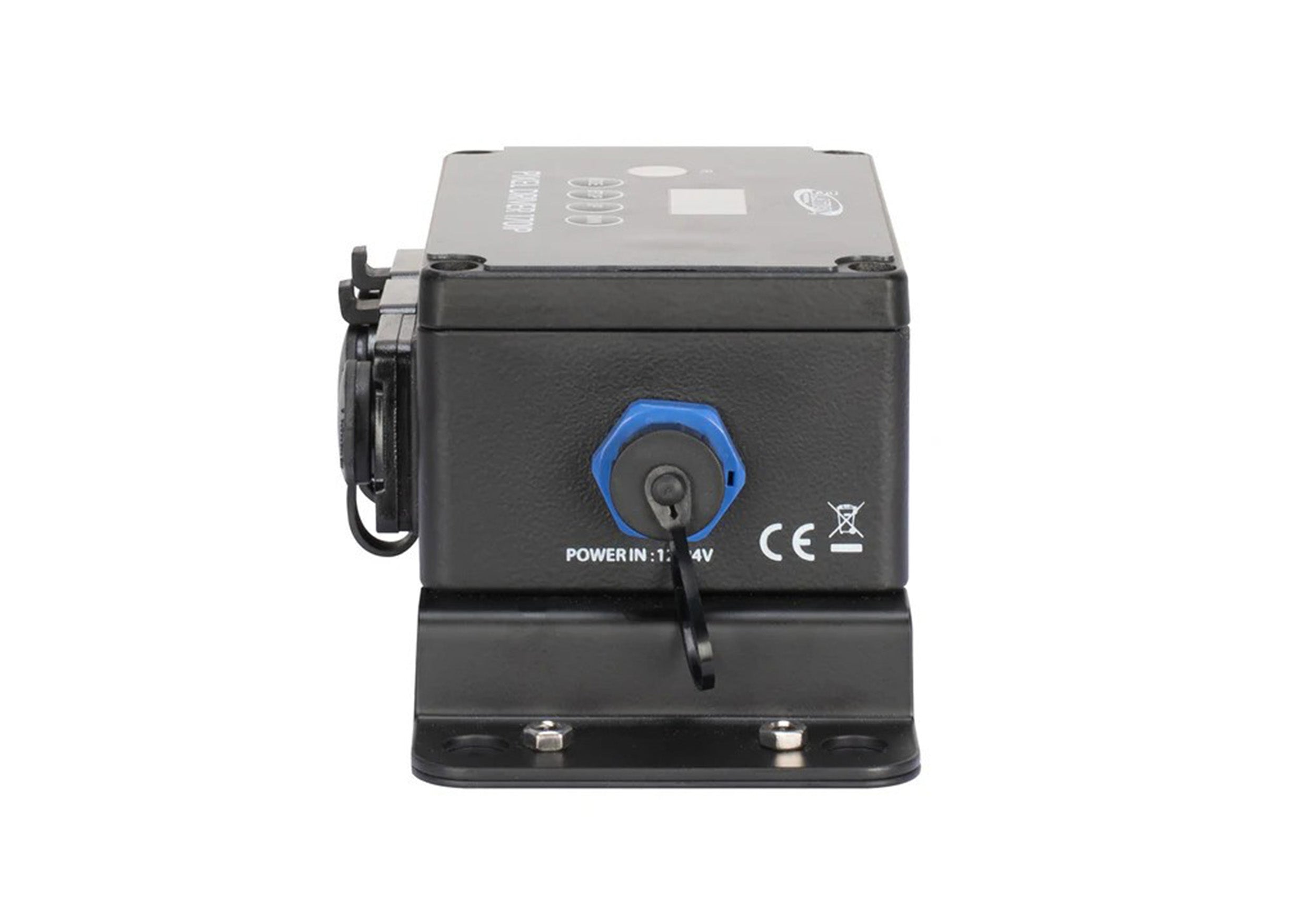

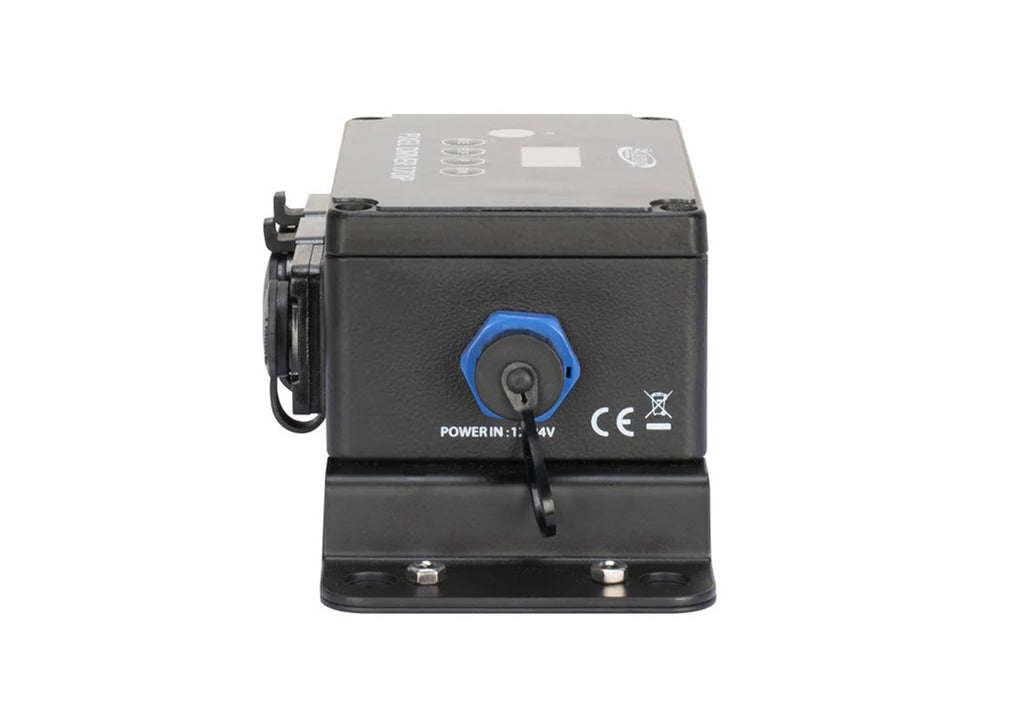

DC Input 12-24VDC, 8.4A (Requires separate power supply)

200W Max Power Consumption

INCLUDED ACCESSORIES:

EL-IR Remote

IR Receiver Cable

2-pin Power Cable to adapt to PSU

Approvals / Rating: CE | RoHs |cETL (Control # 4002034 |IP65 | FCC
