Elation Professional Prisma Par 20, 365nm LED IP65 20° Par Fixture 12 x 2W by ELATIONElation Professional Prisma Par 20, 365nm LED IP65 20° Par Fixture 12 x 2W by ELATIONElation Professional Prisma Par 20, 365nm LED IP65 20° Par Fixture 12 x 2W by ELATIONElation Professional Prisma Par 20, 365nm LED IP65 20° Par Fixture 12 x 2W by ELATIONElation Professional Prisma Par 20, 365nm LED IP65 20° Par Fixture 12 x 2W by ELATION

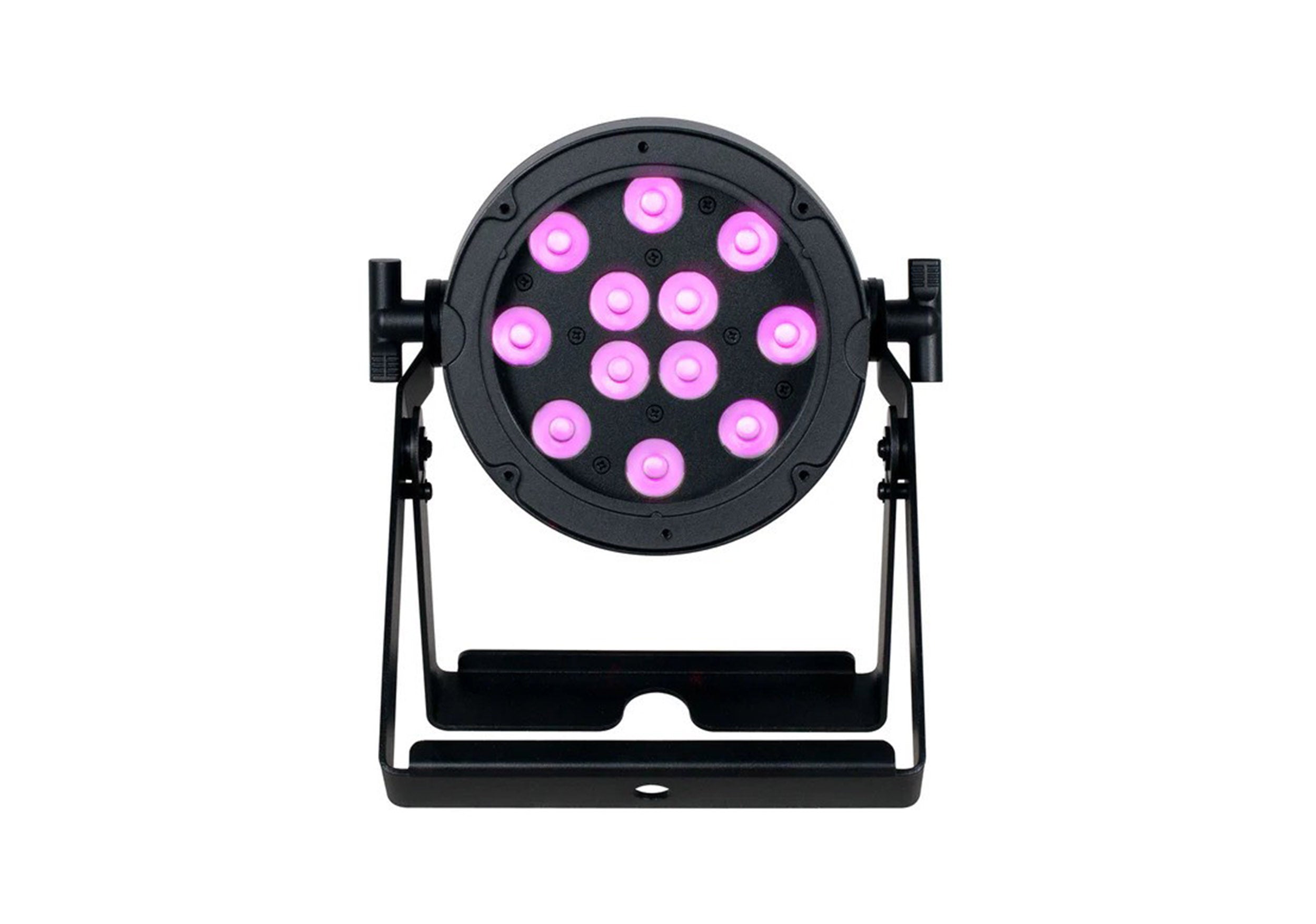

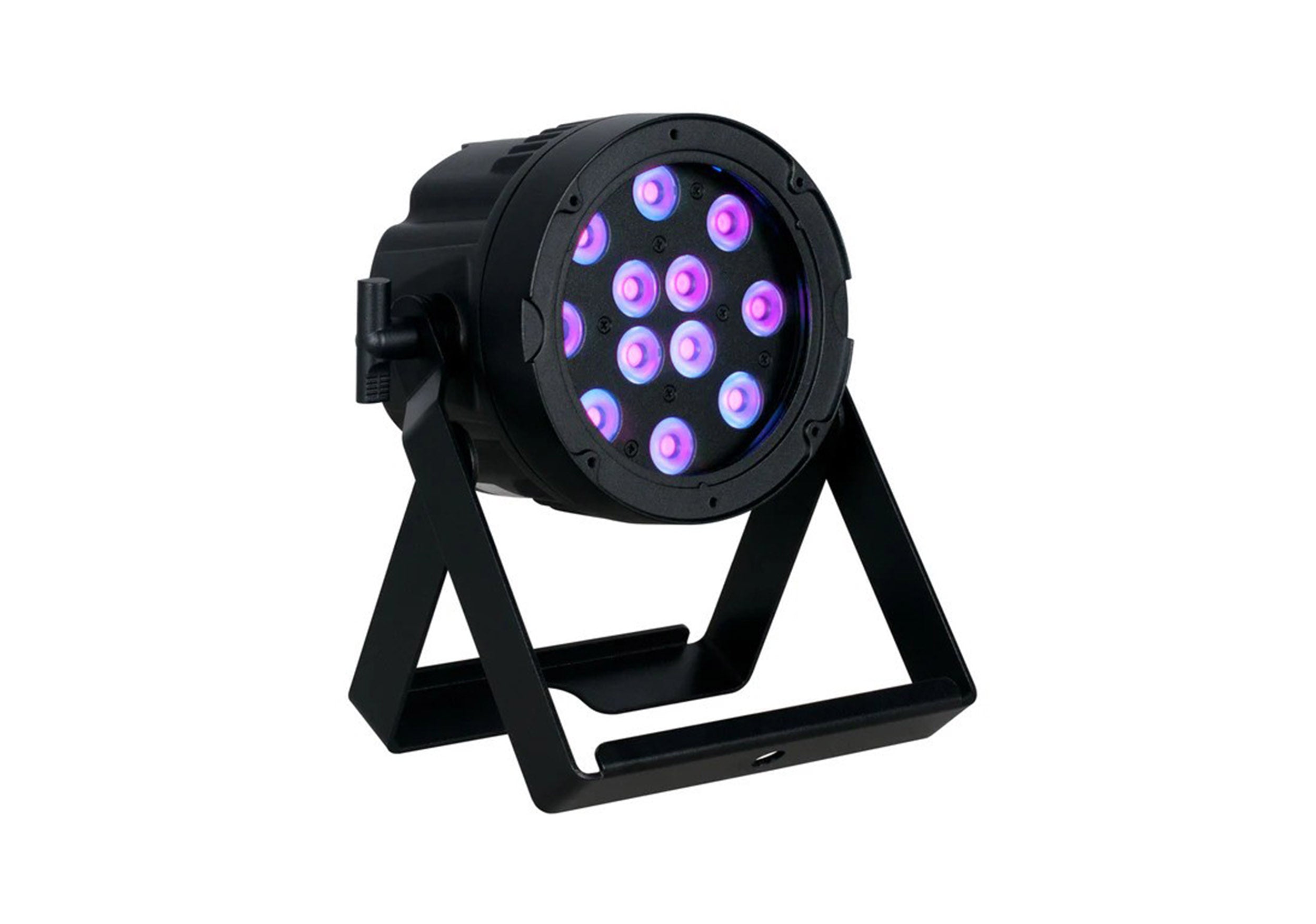

Elation Professional Prisma Par 20, 365nm LED IP65 20° Par Fixture 12 x 2W
Save $90.00
SKU: H-ELAT-PSP020   |  UPC: 810008261149
Price:
$808.00 $898.00
Stock:
In stock (25 units), ready to be shipped
Free 2 Year Warranty HDJ 2-Year Extended Warranty — covers normal use and parts (not damage or abuse). Customer ships to us, we cover return; repair or replace at our discretion. Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase — use your points toward future gear purchases with us.
Request Package Pricing

Call us for package deal pricing anytime 800-700-4542.

Description

The Elation Professional Prisma Par 20, 365nm LED IP65 20° Par Fixture 12 x 2W is a compact yet powerful exterior-rated UV wash par luminaire designed for professional applications where true UV output is required. With (12) 2W high-power LEDs delivering a peak 365nm wavelength and zero visible light, this fixture is ideal for themed entertainment, special effects, and architectural applications. It features a narrow 20° beam angle, rugged IP65-rated aluminum housing, dual adjustable yokes for versatile mounting, and user-friendly control via a 2.5-inch LCD touchscreen. Full DMX-512 and RDM support ensures seamless integration into any lighting system

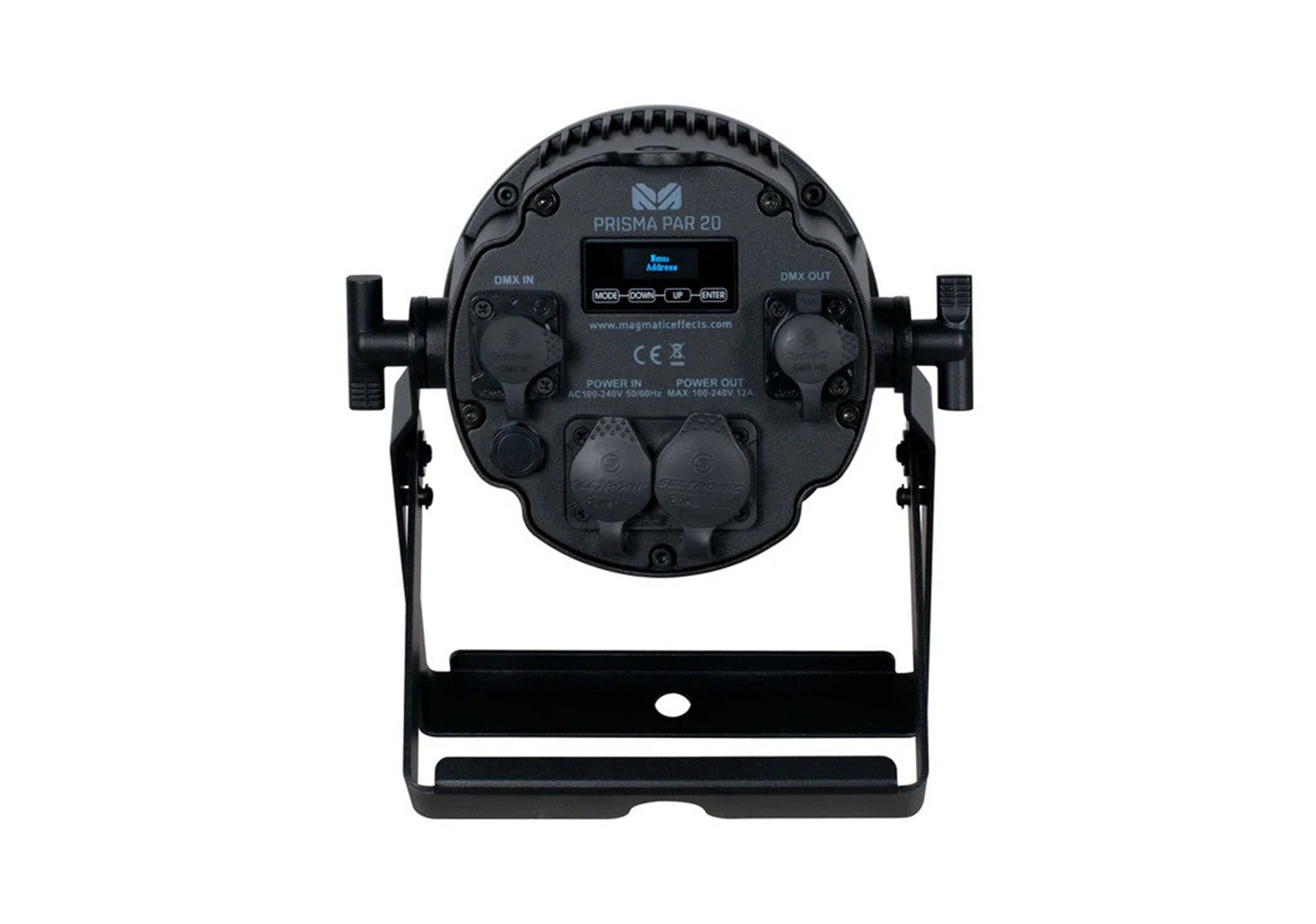

PRISMA PAR 20 is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20-degree narrow beam angle, a user friendly digital 2.5-inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5pin XLR and locking power in/out connections.

Product Specifications:

Source:

LED Type: (12) 2W high-power UV diodes

Wavelength: 365nm true UV

LED Life: 20,000 hours (average)

Photometric Data:

Beam Angle: 20° narrow beam

Peak Wavelength: 365nm

Visible Output: None (true UV only)

Effects:

High-speed electronic strobe

Variable dimming curve modes

Construction:

Housing: Rugged die-cast aluminum

Enclosure Rating: IP65 (outdoor rated)

Mounting: Dual adjustable yokes

Control / Connections:

DMX Channel Modes: Multiple

Protocols: DMX-512, RDM

Display: 2.5” LCD touchscreen, 4-button interface

Data: Locking 5-pin XLR in/out (IP65 rated)

Power: IP65 locking power in connector

Network: Wired digital communication supported

Electrical / Thermal:

Voltage: 100–240V AC, 50/60Hz

Power Consumption: 27W max

Cooling: Air-cooled

Operating Temp: 14°F to 113°F (-10°C to 45°C)

Size / Weight:

Length: 8.58 in. (218 mm)

Width: 5.90 in. (150.6 mm)

Height: 9.72 in. (246.6 mm)

Weight: 5.29 lbs. (2.40 kg)

Approvals / Ratings:

Certifications: CE, cETLus

IP Rating: IP65
