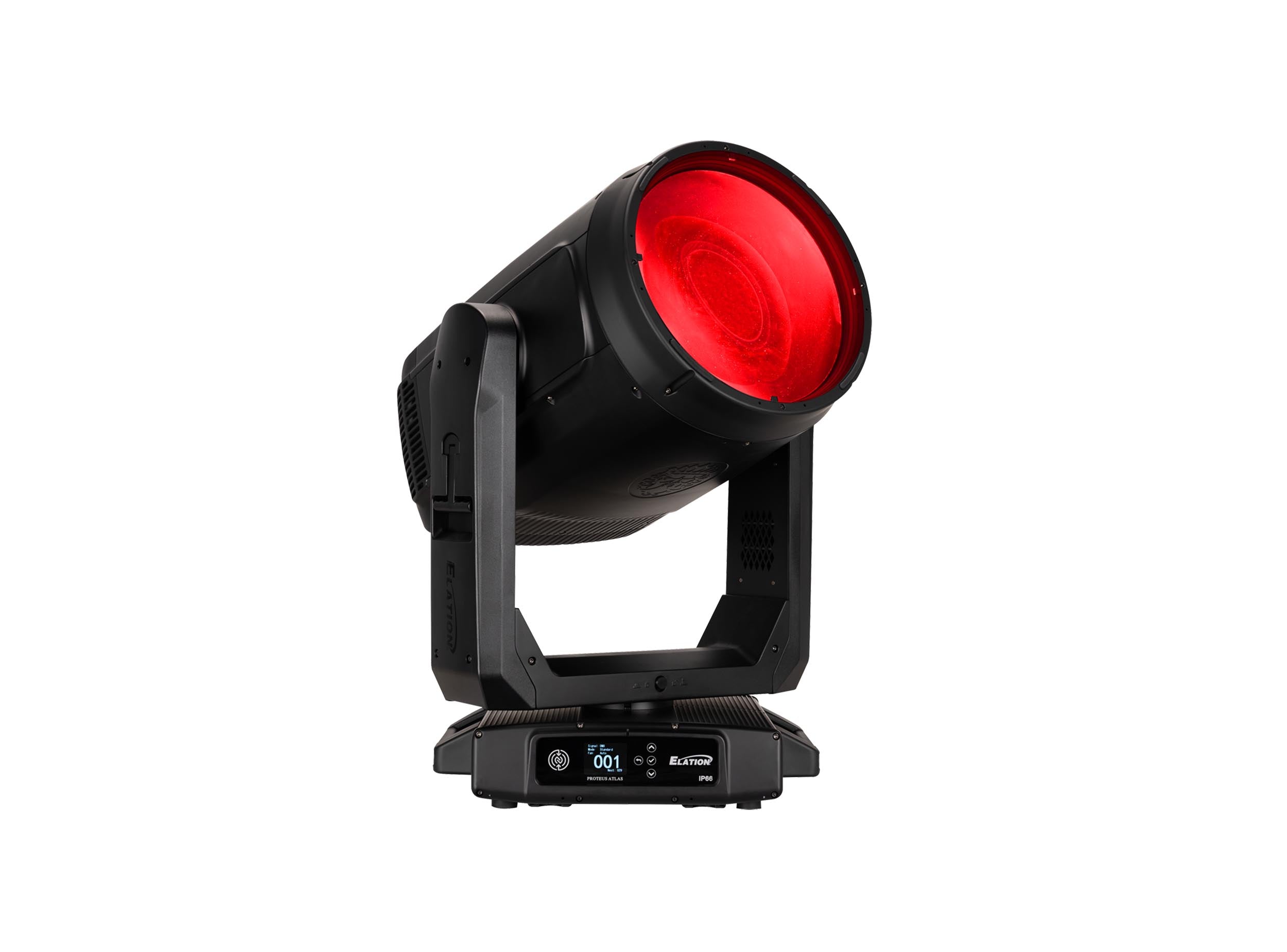

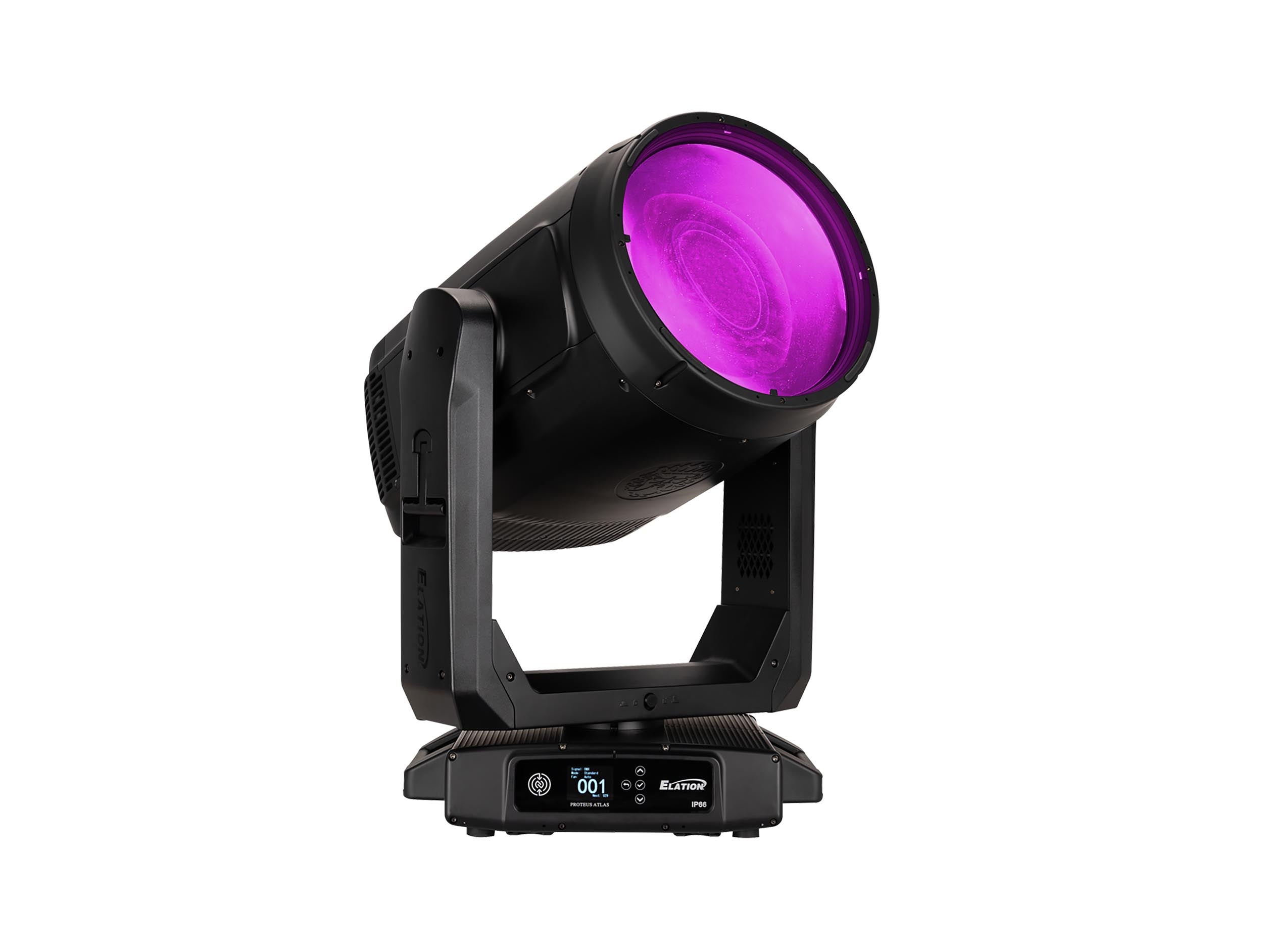

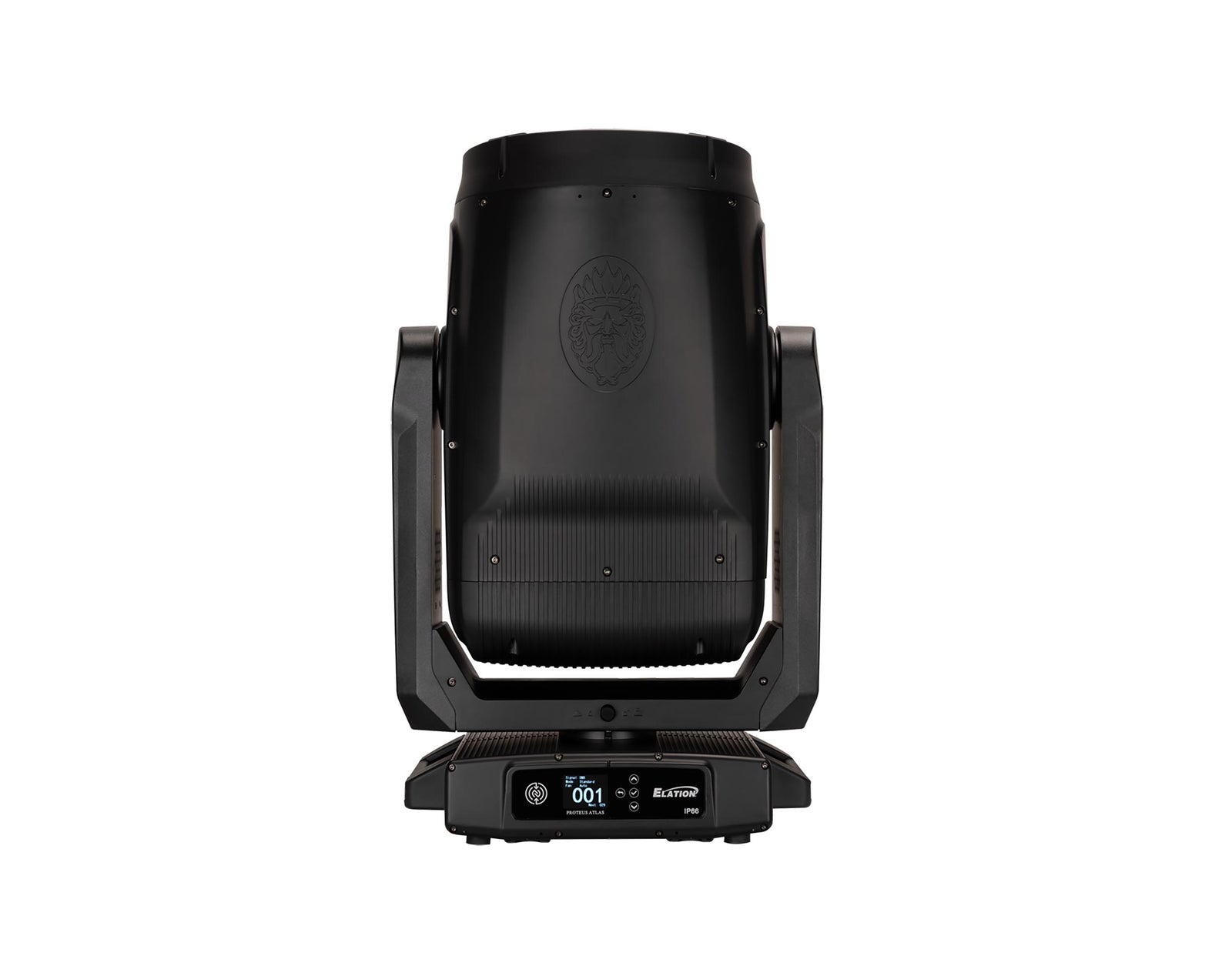

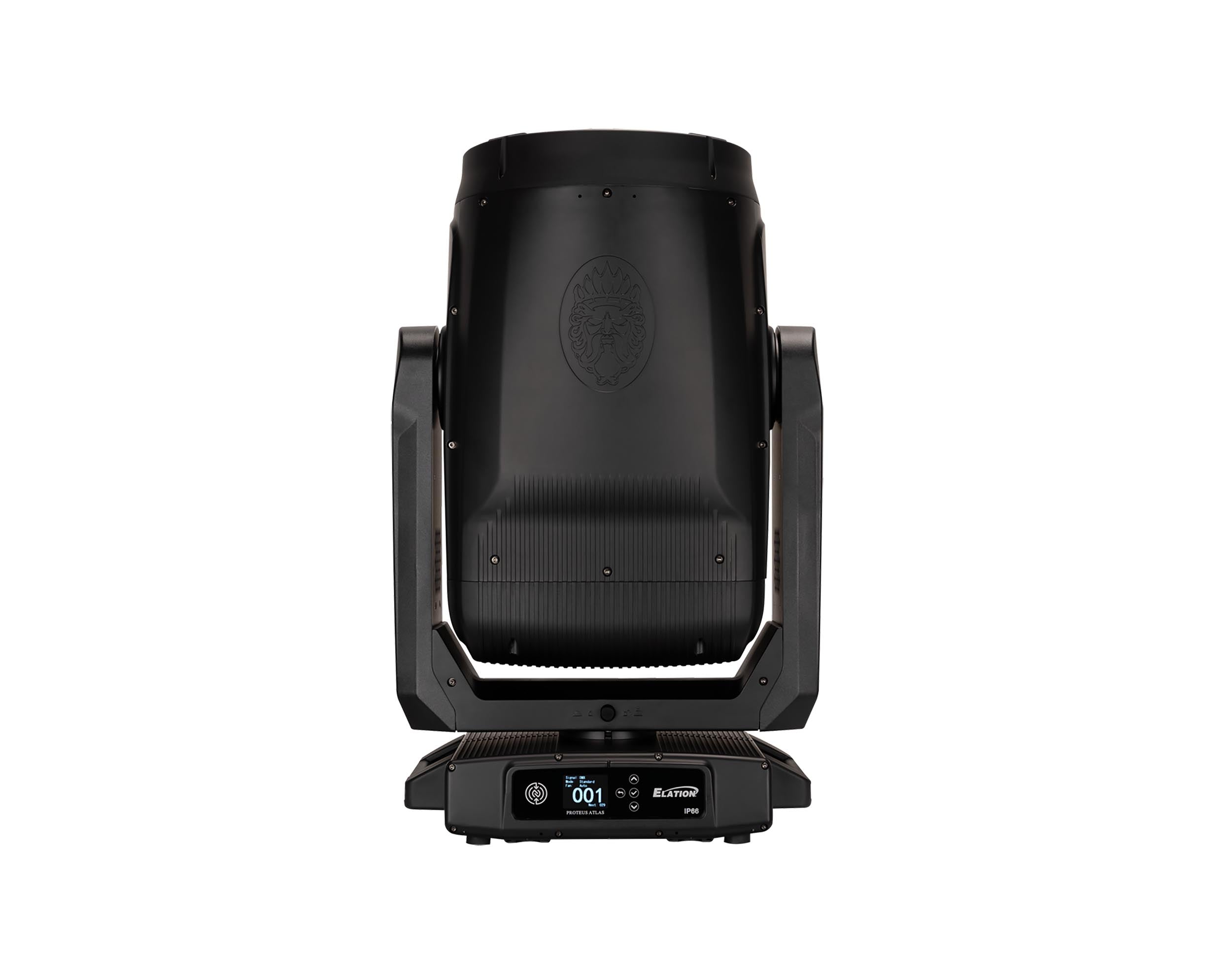

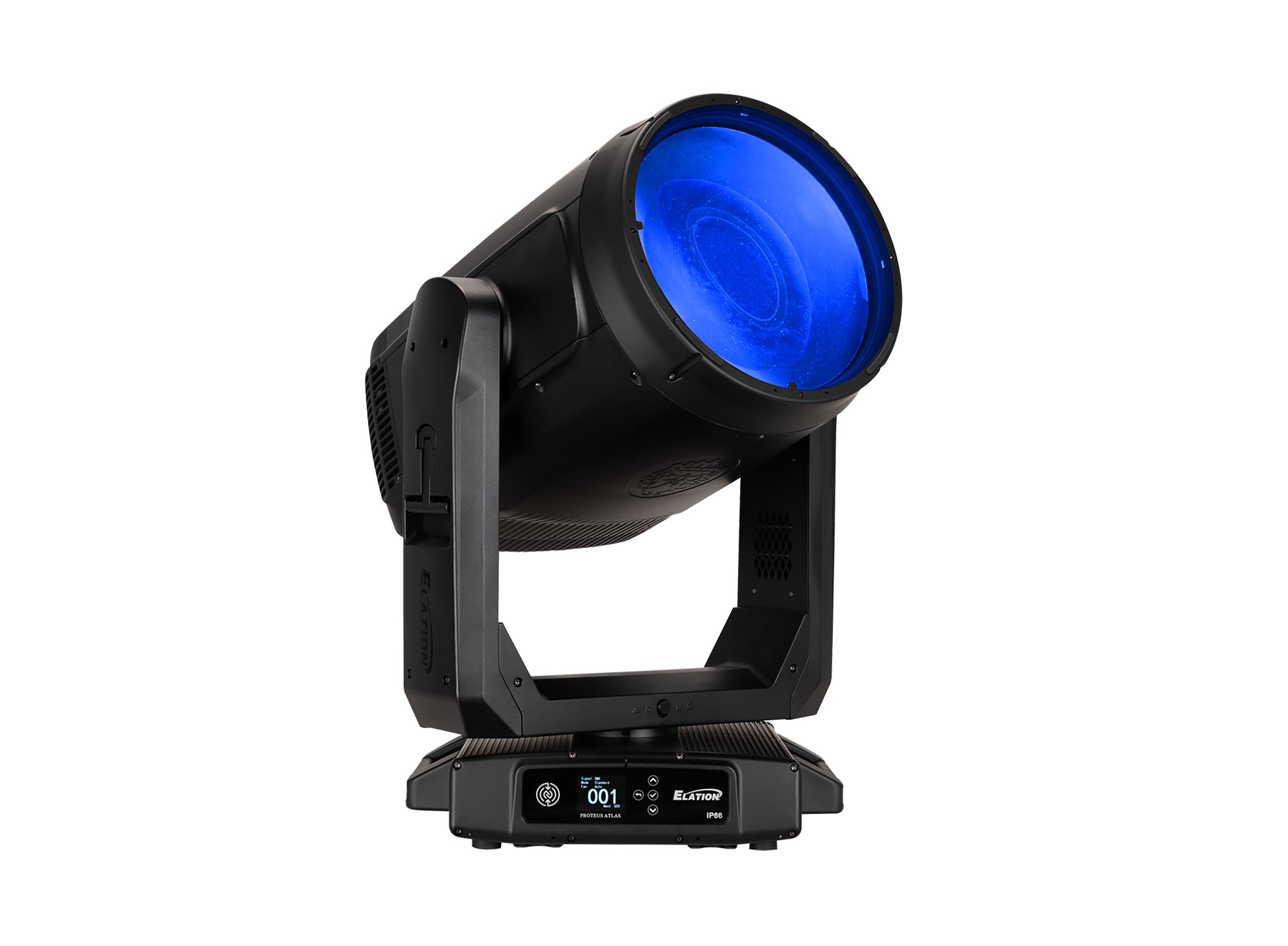

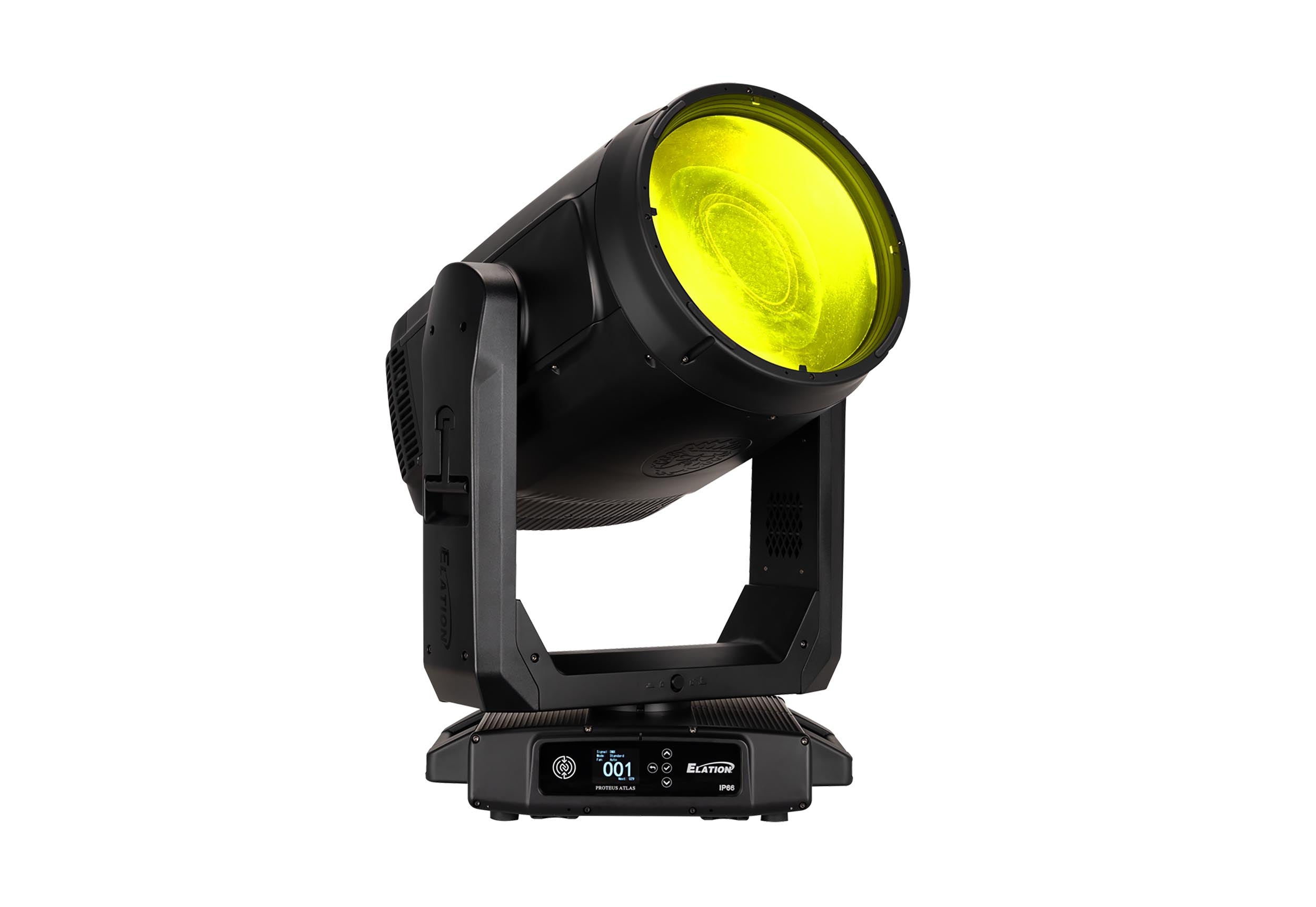

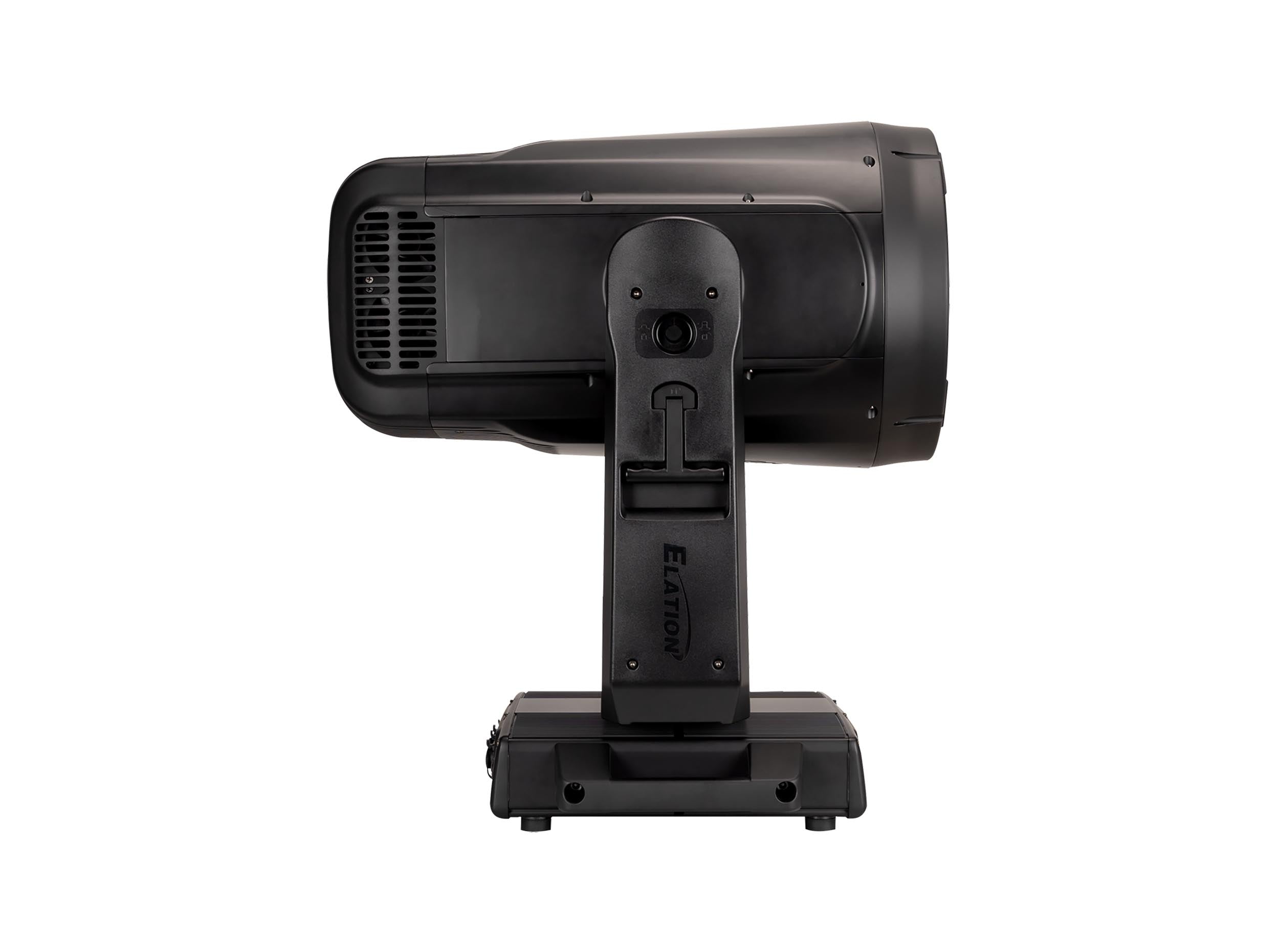

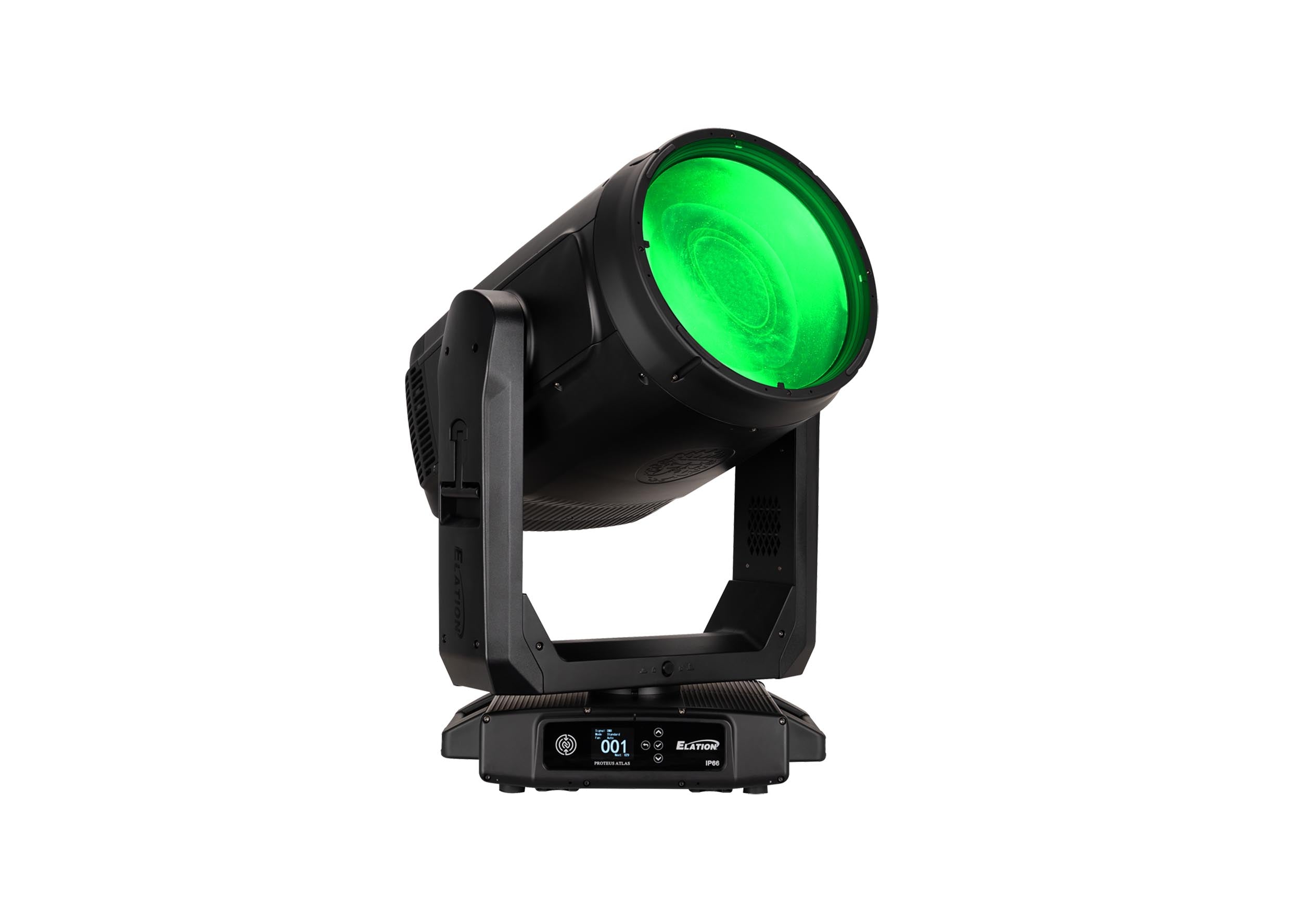

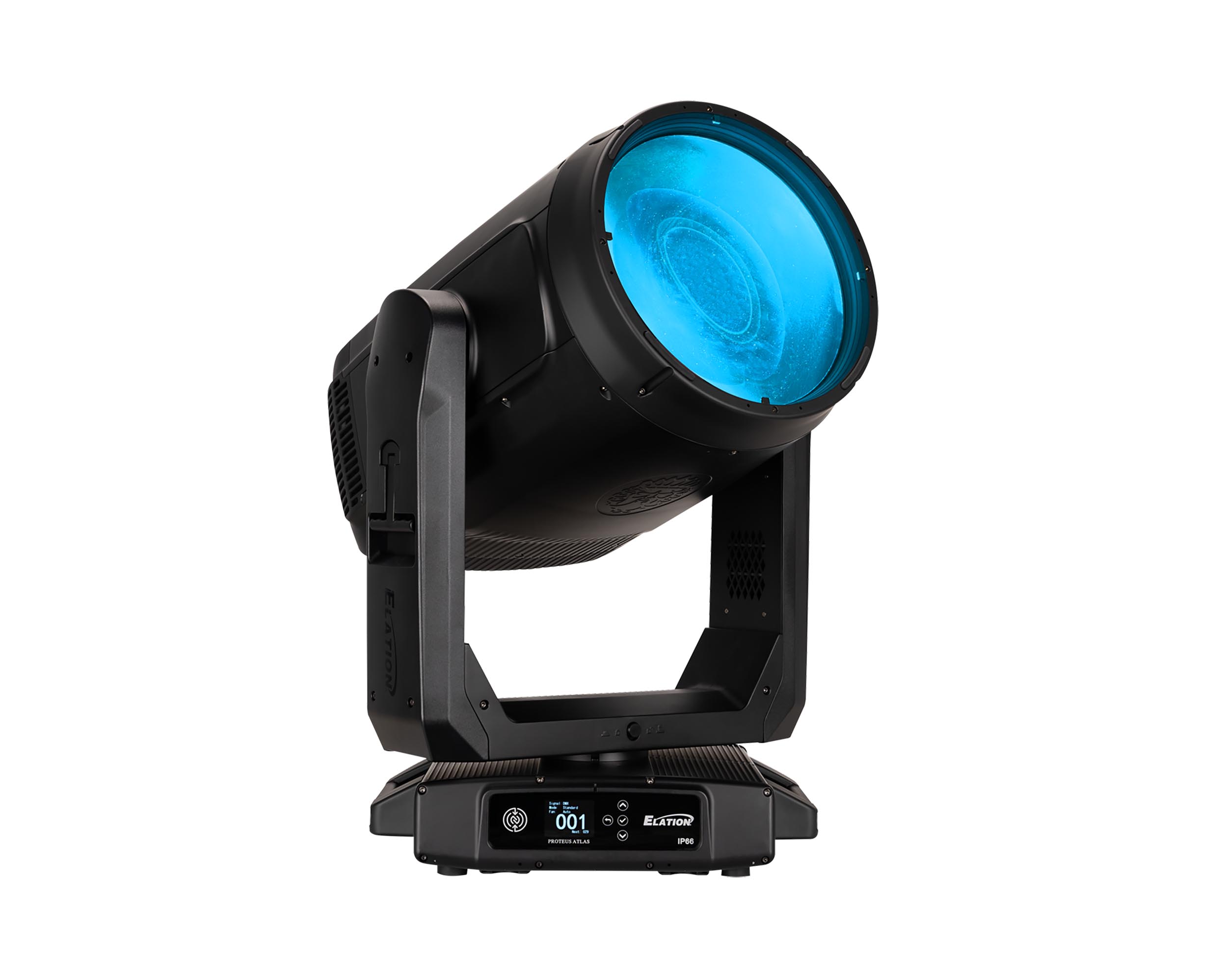

Elation Proteus Atlas, Solid State Phosphor-Converted Beam FX Fixture - 500 Watt

The Elation Proteus Atlas, Solid State Phosphor-Converted Beam FX Fixture - 500 Watt is an extremely powerful and feature-packed IP66 Beam FX fixture with razor-thin 0.6° beam (zoomable to 8.5°) that slices through the night sky in a mesmerizing display visible from vast distances.

Ideally suited for theme parks, cruise ships, outdoor events and spectaculars, and the perfect jaw-dropping effect for large scale shows and concerts, the sky becomes a visual canvas for its intense beam and powerful prism and flower effects.

Utilizing an ultra-efficient 500W Solid State Phosphor-Converted (SSPC) light engine, the PROTEUS ATLAS projects captivating beams with high energy that span very long distances. Comparable to existing 7K Xenon searchlights or sky trackers, the ultra-narrow beam projects from the mammoth 320mm (12.5") front lens as a massive column of light, adding attention-grabbing impact to any event or environment.

 An artistic selection of gobos and prism overlays allow for captivating mid-air visual effects, and with its incredible light intensity all CMY colors remain strong and vibrant even when fully saturated. Beam control is provided through an ultra-fast zoom and focus lens array while dual variable frosts allow softening of the beam edges for breathtaking wash effects that paint surfaces with vibrant hues or bathe the sky in a kaleidoscope of colors.

Despite its colossal capabilities, the PROTEUS ATLAS maintains a compact size and consumes minimal power, meaning it can be incorporated into virtually any lighting setup.

The PROTEUS ATLAS includes Elation’s innovative Sky Motion system, allowing it to operate as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be seamlessly interconnected, and with the simple assignment of IDs, the fixture provides immediate access to a variety of dazzling movement patterns that are easily adjustable in size, speed, and color directly from the display. The Sky Motion system allows for standalone operation and is easy to set up and adjust directly from the fixture display, even for "non-lighting" users, expanding the usability of the fixture beyond traditional show lighting applications.

Fully IP66 rated, the PROTEUS ATLAS stands as a testament to innovation and power, delivering extreme output comparable to large 7000W Xenon fixtures while operating at a fraction of the power for a much smaller footprint and at a weight that defies its capabilities.

Product Specifications:

Source:

500W Solid State Phosphor-Converted (SSPC) Light Engine

9000K, CRI 70

12,000 Hour Lamp Life

Photometric Data:

1.000.000 Lux @ 20m

100.000 Lux @ 100m

Beam Angle: 0.6° - 8.5°

Effects:

Dual Frost (Hot- Spot Beam, Wash FX)

Ultra- Fast Zoom

Focus

2x3 Prisms on Dual Planes

Digital Shutter and Strobe

Pan Angle: 360° / 540°

Tilt Angle: 250°

Color:

Full CMY Color Mixing System

25 Position Color Wheel

Gobos:

2 Gobo Wheels

13 Interchangeable-Rotating / Indexing Metal Gobos

26 Static-Stamped Metal Gobos

Control / Connections:

2 DMX Channel Modes (26/36 Ch)

(6) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net and sACN Protocol Support

NFC Support

Ip65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 Locking Power In

Size / Weight:

Length: 14.5” (370mm)

Width: 20” (508mm)

Height: 31.5” (800mm)

Weight: 117 lbs. (53kg)

Electrical / Thermal:

AC 100-240V 50/60Hz

670W Max Power Consumption

-4°F to 113°F (-20°C to 45°C)

Approvals / Ratings:CE | cETLus | UKCA | FCC | IP66
