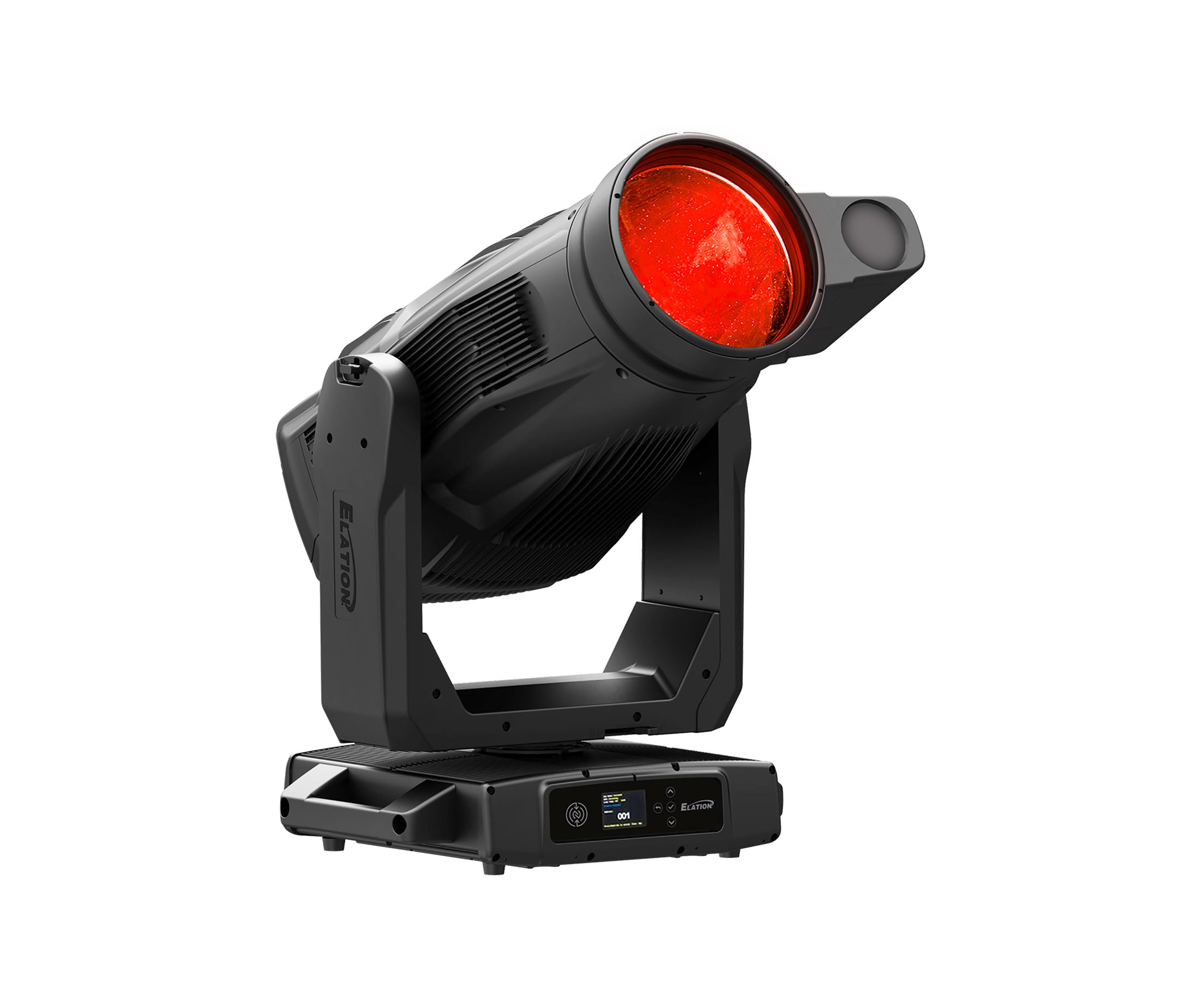

Elation Proteus Brutus FS, IP66 Rated Automated LED Follow Spot - 1200 Watt

The Elation Proteus Brutus FS, Automated LED Follow Spot - 1200 Watt is an extremely bright IP66 rated LED Follow Spot fixture offering high intensity and excellent color quality at long distances. Operated manually with removable handles or remotely through one of the many automated remote tracking systems in the market, this purpose build fixture is ideal for any indoor and outdoor application that requires precise and smooth operation, flexible color control and superior output in medium to long throw follow spot applications.

The PROTEUS BRUTUS FS provides a removable IP rated camera housing to attach all commonly used POE or SDI cameras. Cables and a variety of camera connections are all integrated into the chassis for easy customization. The fixture provides several ways of data and low voltage power connections for seamless integration. Camera choices vary for any of the different tracking systems, no camera is included with the fixture itself.

PROTEUS BRUTUS FS provides the user CMY color mixing, variable CTO and a variable CRI filter from CRI70 to CRI 90, allowing excellent color control essential for follow spot applications.

Zoom, Focus and Iris are all optimized for the unique requirements of follow spots, and a variable frost rounds out the beam control options. The fixture includes 5 indexable gobos, preloaded with a variety of beam shaping images.

With a narrow zoom range of 3° to 35° the PROTEUS BRUTUS FS has the power to cut through at great distances. The fully dust and waterproof design is well suited for a wide range of exterior or indoor applications.

The PROTEUS BRUTUS FS ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included) and provides enhanced impact protection during transport.

Product Specifications:

Source:

1200W 6,500K Bright White LED Engine

30,000 Hour Average LED Life

Photometric Data:

16000lx (1470fc) @ 20m

CRI 70+ (90 with adjustable HCRI Filter)

Zoom Range 3.5° - 35°

Beam Angle 2.9° - 35°

Field Angle 3.8° - 41°

Effects:

Motorized Zoom

Long Throw / Ultra Long Throw Beam Mode

Motorized Focus

Motorized Iris

Variable Frost Filter

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Variable Pan and Tilt Motor Acceleration Control

Pan Angle: 540°

Tilt Angle: 260°

Color:

CMY Color Mixing

Linear CTO Color Correction

Linear CRI Adjustment CRI 70 - CRI 90

Gobo / Beam Shapes

5 Rotating / Indexing Interchangeable Metal

Control / Connections:

2 DMX Channel Modes (27 / 38)

16-bit Pan, Tilt and Dimming Control

DMX, RDM, Art-NET, sACN Protocol Support

(6) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

5pin XLR DMX In/Out

IP65 RJ45 Ethernet In

IP65 Locking Power Cable In

Camera Connections:

NDI: IP65 RJ45 Ethernet Input, POE++ Camera Output

HD-SDI: IP65 BNC

AUX Control: IP65 4pin XLR

12V Camera Power

Camera Compatibility:

(Customer integration / installation required)

Marshall Electronics - CV350 / CV355 / CV5056

Aida Imaging NDI 200 / NDI3-300

Hanwha Vision SNZ6320 / SNZ6320A

Birddog PF120

Size / Weight:

(Without camera, without optional handle bars)

Length: 25.3 in (643mm)

Width: 18.4 in (468mm)

Height: 32.6 in (829mm)

Weight: 117.7 lbs. (53.4kg)

Electrical:

AC 120-240V 50/60Hz

Max Power Consumption 1,700W

-4°F to 113°F (-20°C to 45°C)

Approvals / Ratings: CE | cETLus | IP66 | UKCA |FCC
