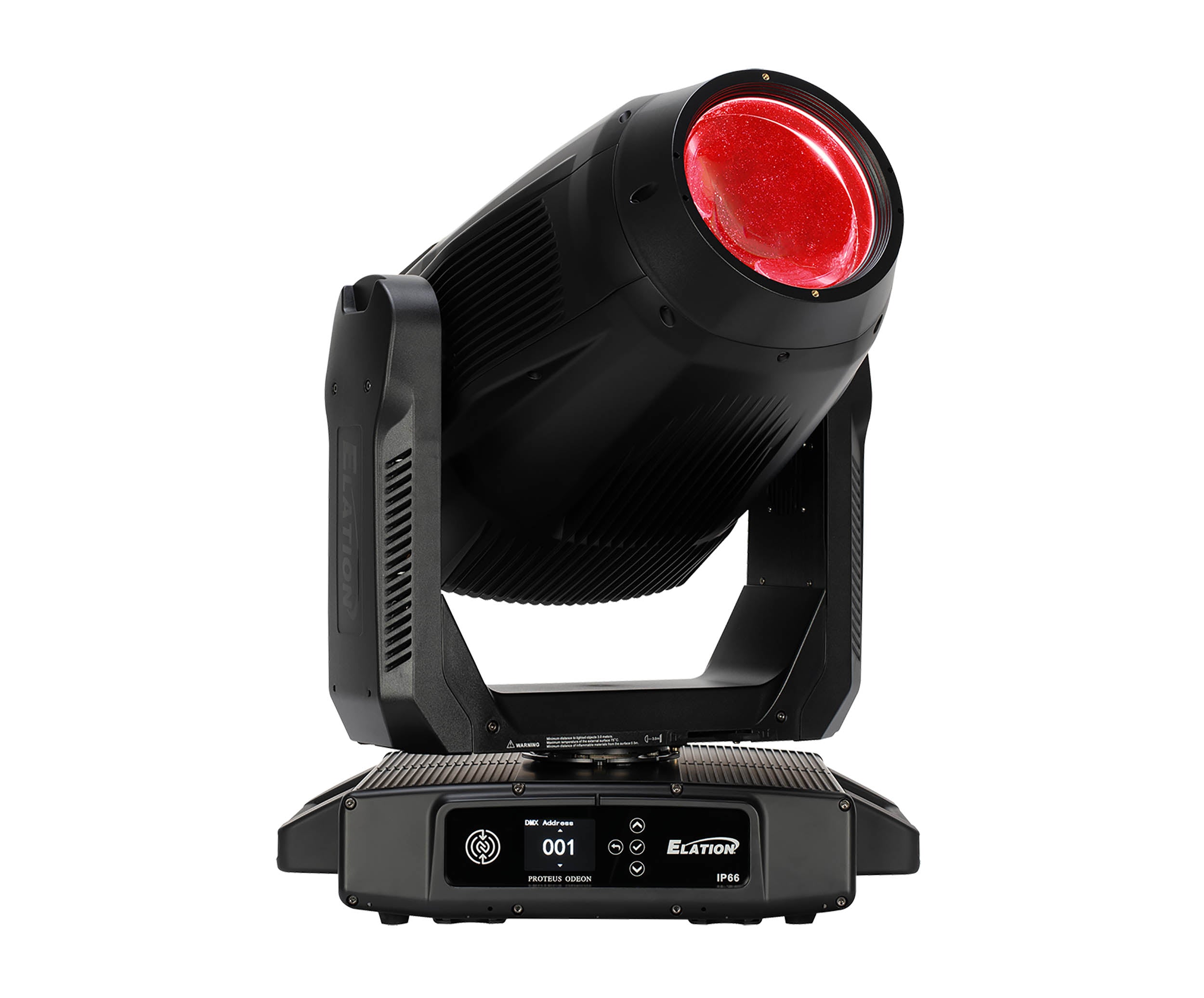

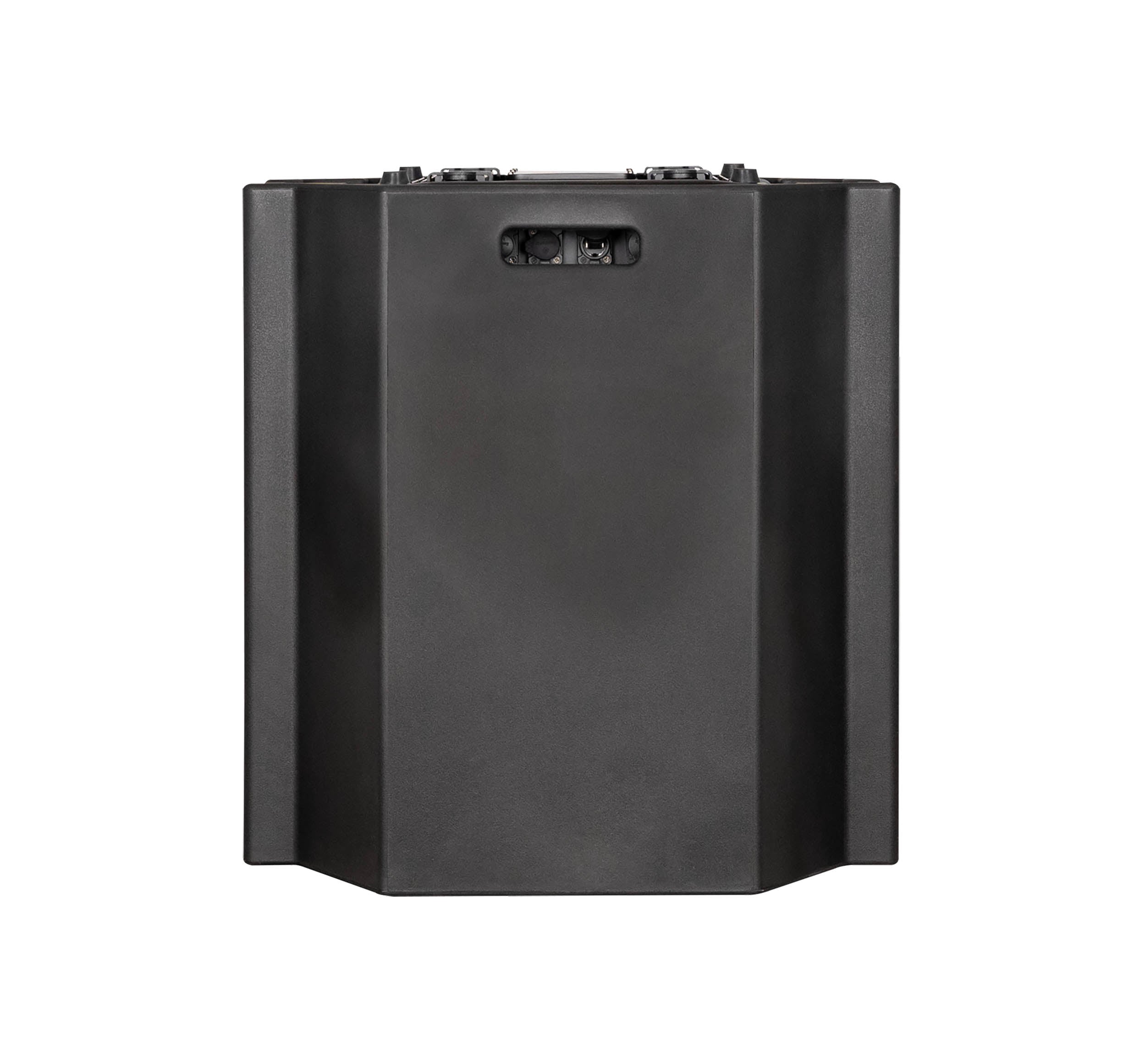

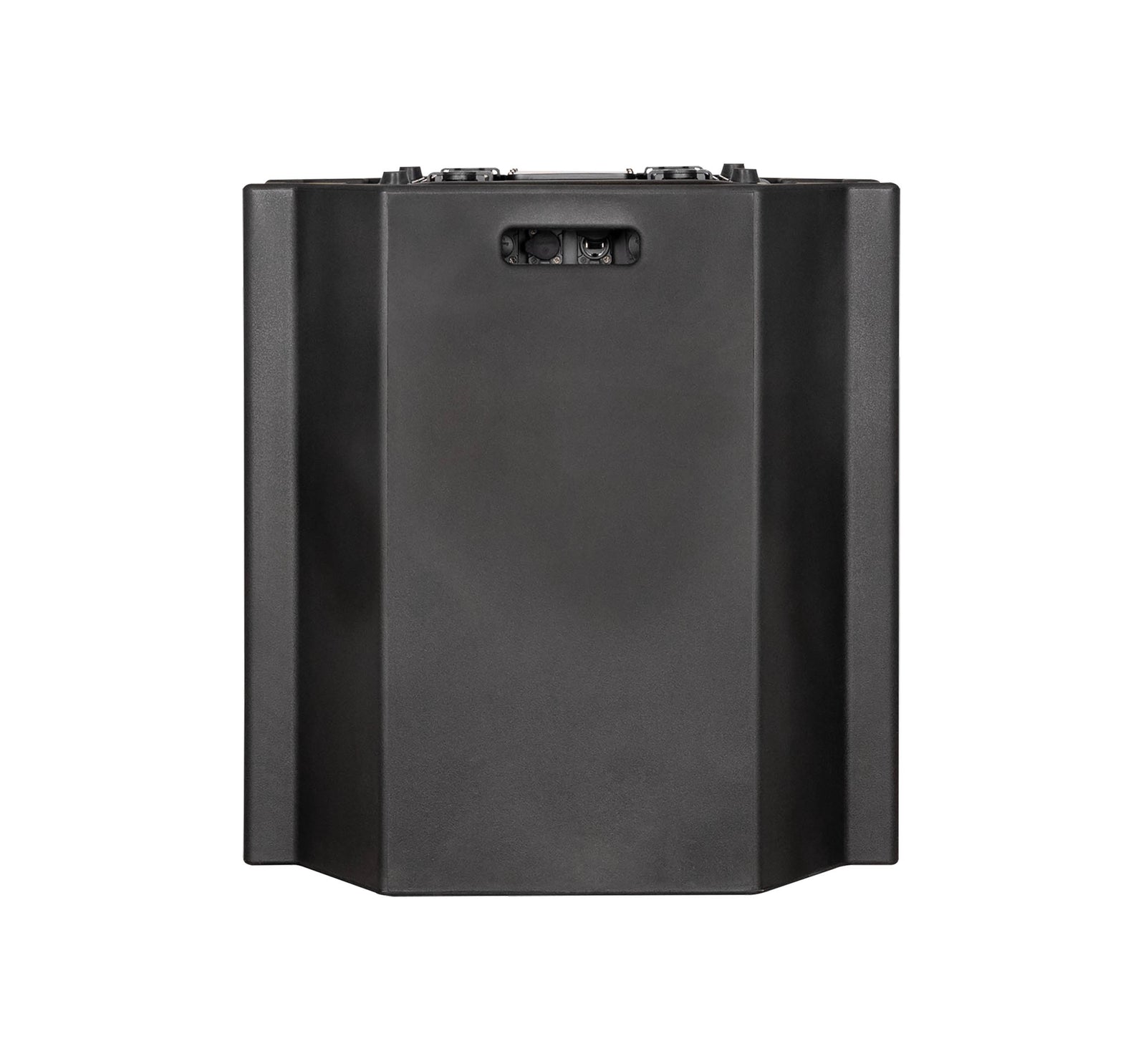

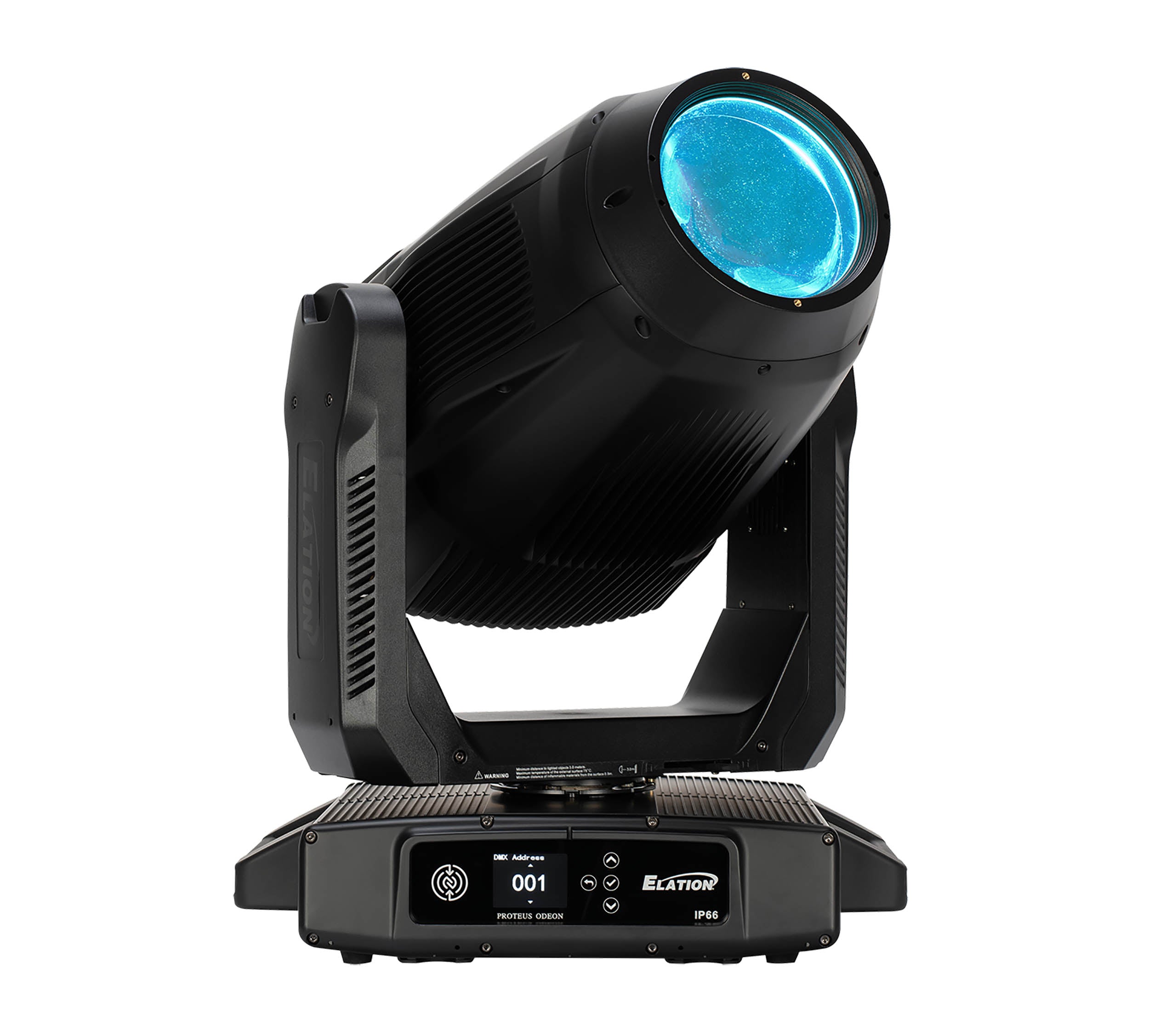

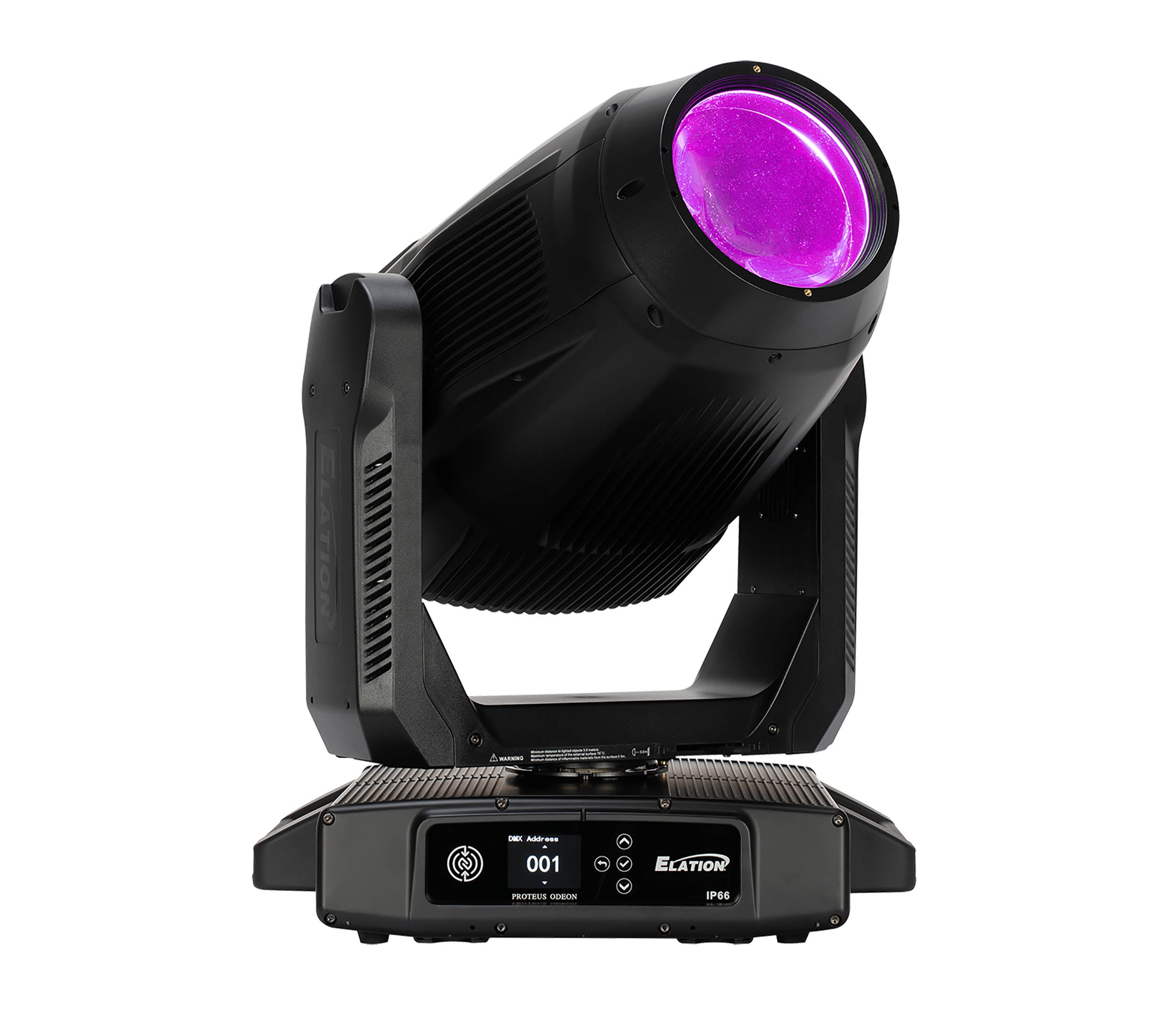

Elation Proteus Odeon, Variable CRI LED IP66 Framing Profile Fixture with CMY - 850 Watt

The Elation Proteus Odeon, Variable CRI LED IP66 Framing Profile Fixture with CMY - 850 Watt offers outstanding projection and beam qualities in any environment.

Providing up to 30800 lumens output from its custom-designed Variable CRI LED engine, the PROTEUS ODEON is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors.

The TruTone variable CRI allows selecting the best blend of light output and color accuracy, depending on the requirement of the show or scene. It is seamlessly adjustable from CRI 70 to CRI 93.

PROTEUS ODEON provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS ODEON has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications.

The PROTEUS ODEON ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

Product Specifications:

Source:

High Efficiency 850W 6,500K Variable CRI White LED Engine

30,000 Hour Average LED Life

Photometric Data:

30800 Total Lumen Fixture Output @ CRI 80

TruTone variable CRI up to CRI 93

Zoom Range: 5.5° - 50°

Effects:

Motorized Zoom

4 Rotating Full Blackout Framing Blades

+/-45° Framing Indexing

Full 360° Bi-Directional Animation Wheel

4-Facet and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Internal Color, Framing, Prism, and Frost Macros

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°/630°

Tilt Angle: 250°

Color:

CMY Color Mixing

Linear CTO Color Correction

5 Dichroic Colors including UV Filter

Gobos:

3 Gobo Wheels

6 Rotating Gobos (Wheel #1)

7 Rotating Gobos (Wheel #2)

7 Static Gobos (Wheel #3)

Control / Connections:

4 DMX Channel Modes

16-bit Pan, Tilt and Dimming Control

Motorized Focus and Auto-Focus Presets

DMX, RDM, Art-NET, sACN Protocol Support

(6) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

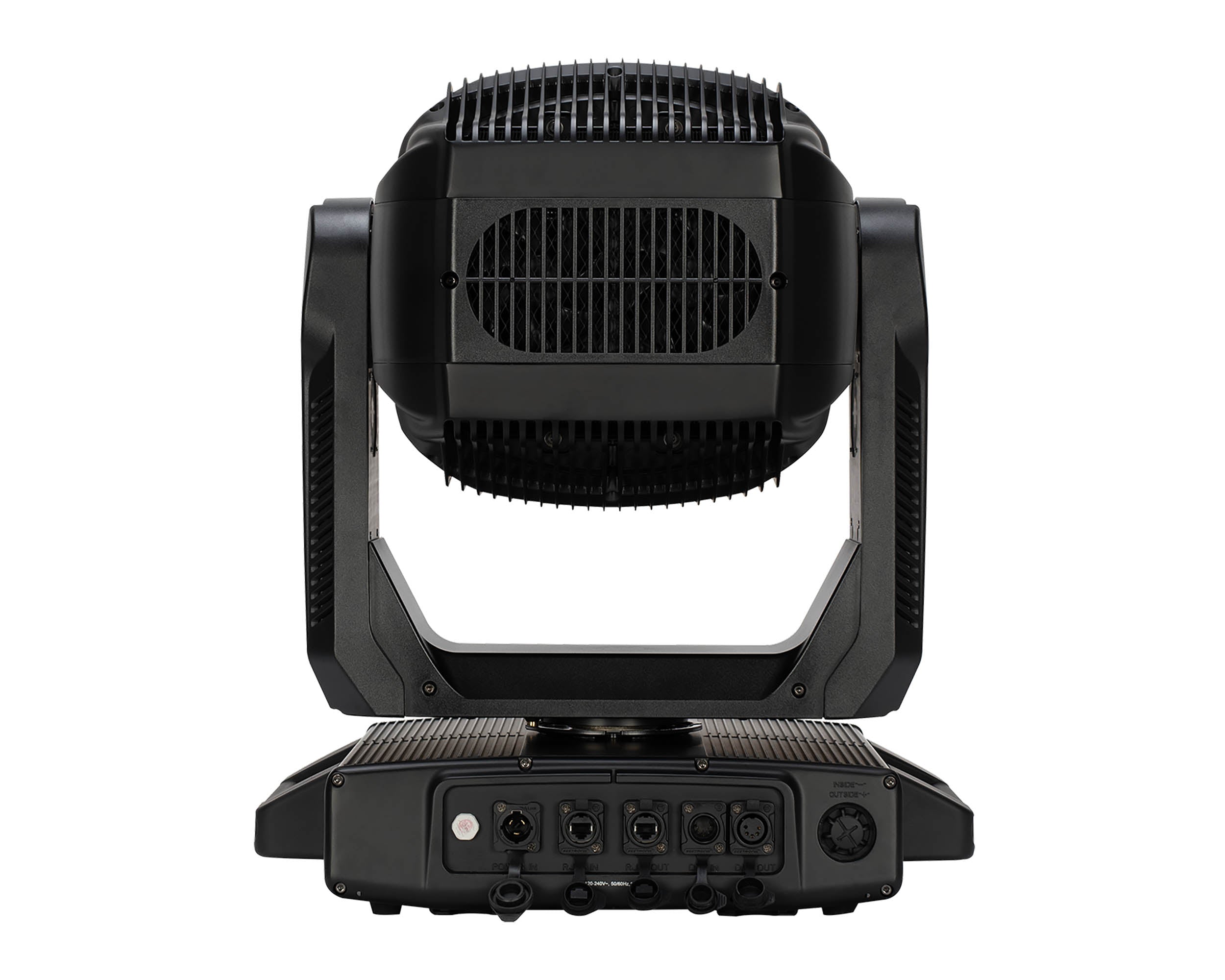

IP65 Locking 5pin XLR In/Out

IP65 Locking RJ45 Ethernet In/Out

IP65 Locking Power In

With Wired Digital Communication Network

Size / Weight:

Length: 18.41 in (467.66mm)

Width: 14.57 in (370mm)

Height: 27.2 in (692mm)

Weight: 97.7 lbs. (43.4 kg)

Electrical:

AC 120-240V 50/60Hz

Max Power Consumption: 1500W

-4°F to 113°F (-20°C to 45°C)

BTU/hr (+/- 10%) 3239.5

Included Items:

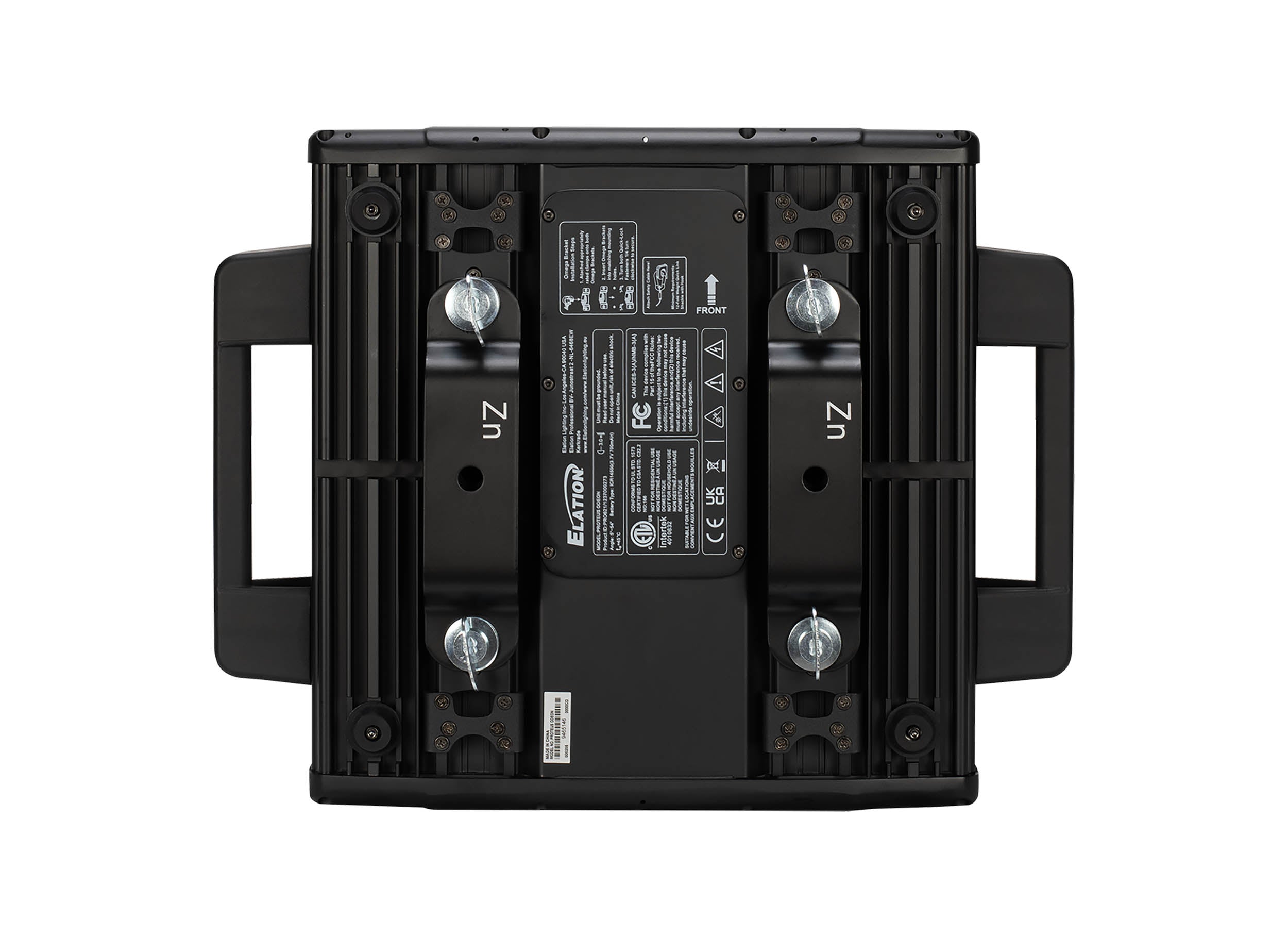

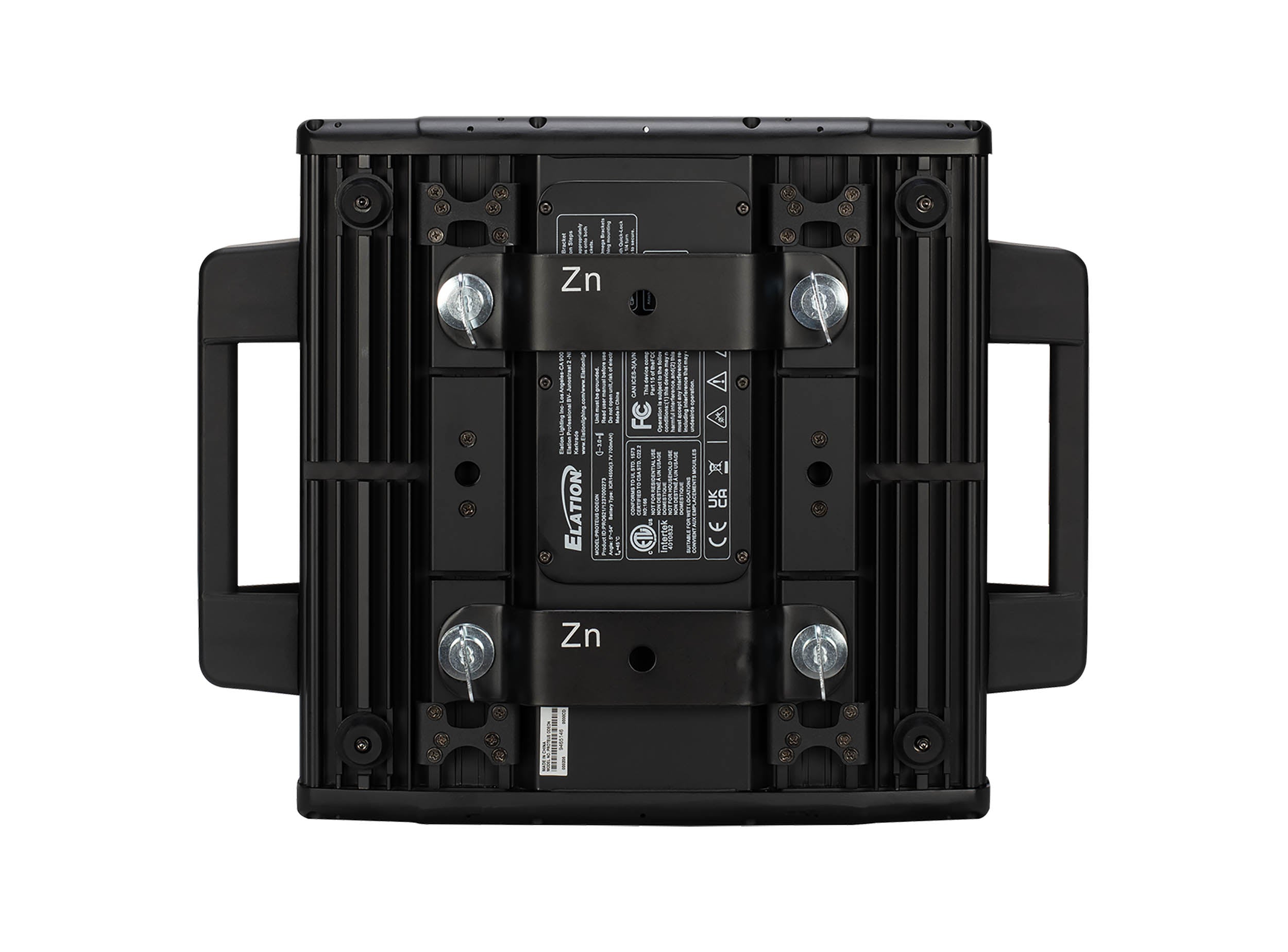

Omega Brackets (x2)

IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)

IP65 Rated Locking Power Cable

Approvals / Ratings: CE | cETLus | IP66
