Elation PRR196, Professional Proteus Rayzor 1960

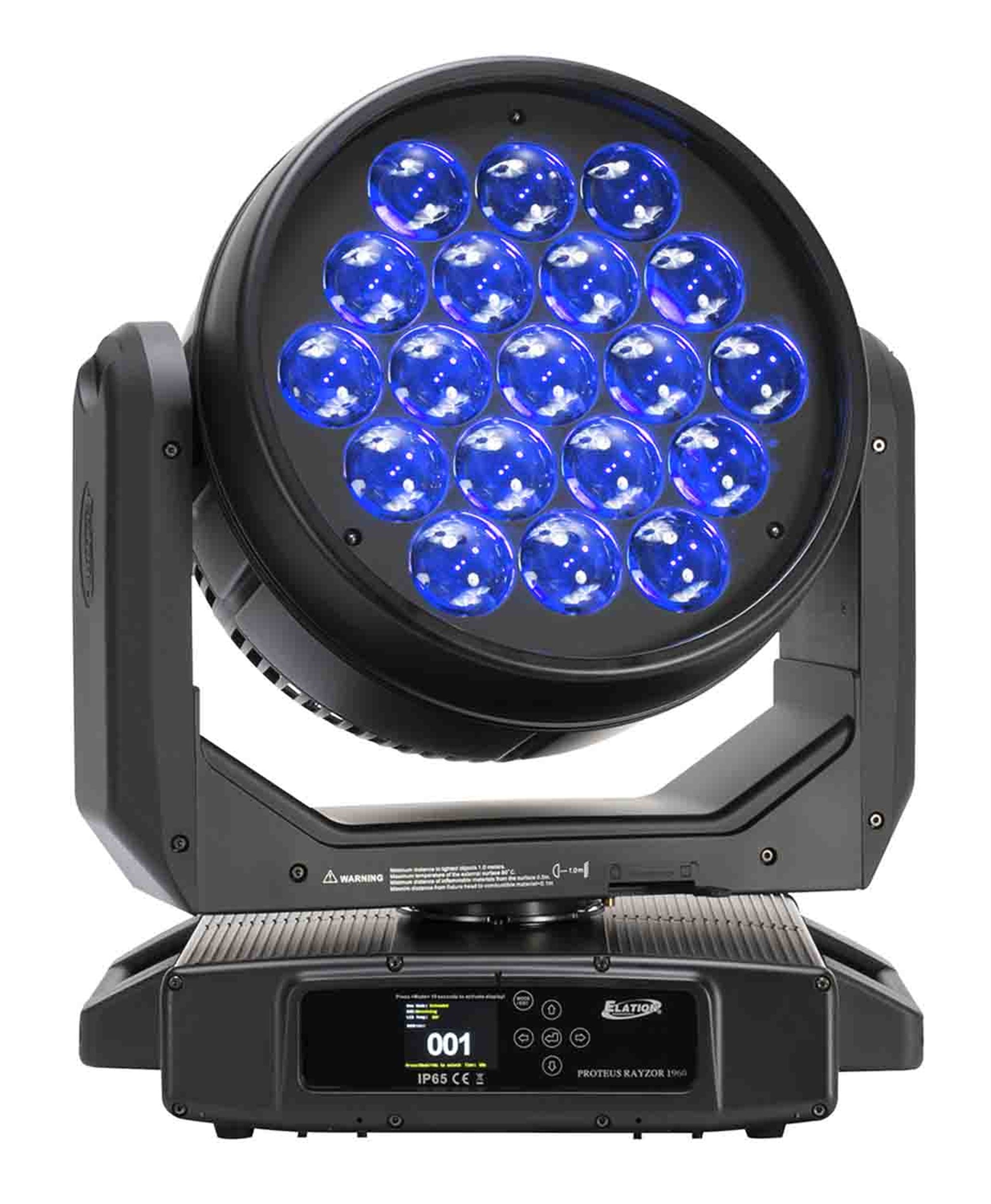

The Elation PRR196 Professional Proteus Rayzor 1960 featuring Elation’s unique Spark Led system and fast continuous Pan and Tilt motion. With its wide zoom range from 5° to 55° it provides intense and well-defined mid-air beams at over 18.000 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. Spark Leds offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

Driven by 19, independently controlled, 60W RGBW LEDs, delivering over 18.000 lumens of output with a total power of 1140W, the PROTEUS RAYZOR 1960 provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending Spark Leds technology. Spark Leds consists of 76 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor 1960 offers this never seen before style of internal lens illumination for depth and visual impact. Spark Leds are controllable by the lighting console or driven by a multitude of internal FX patterns.

In addition to its powerful wash and enhanced effects, the PROTEUS RAYZOR 1960 offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the Spark Leds while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.

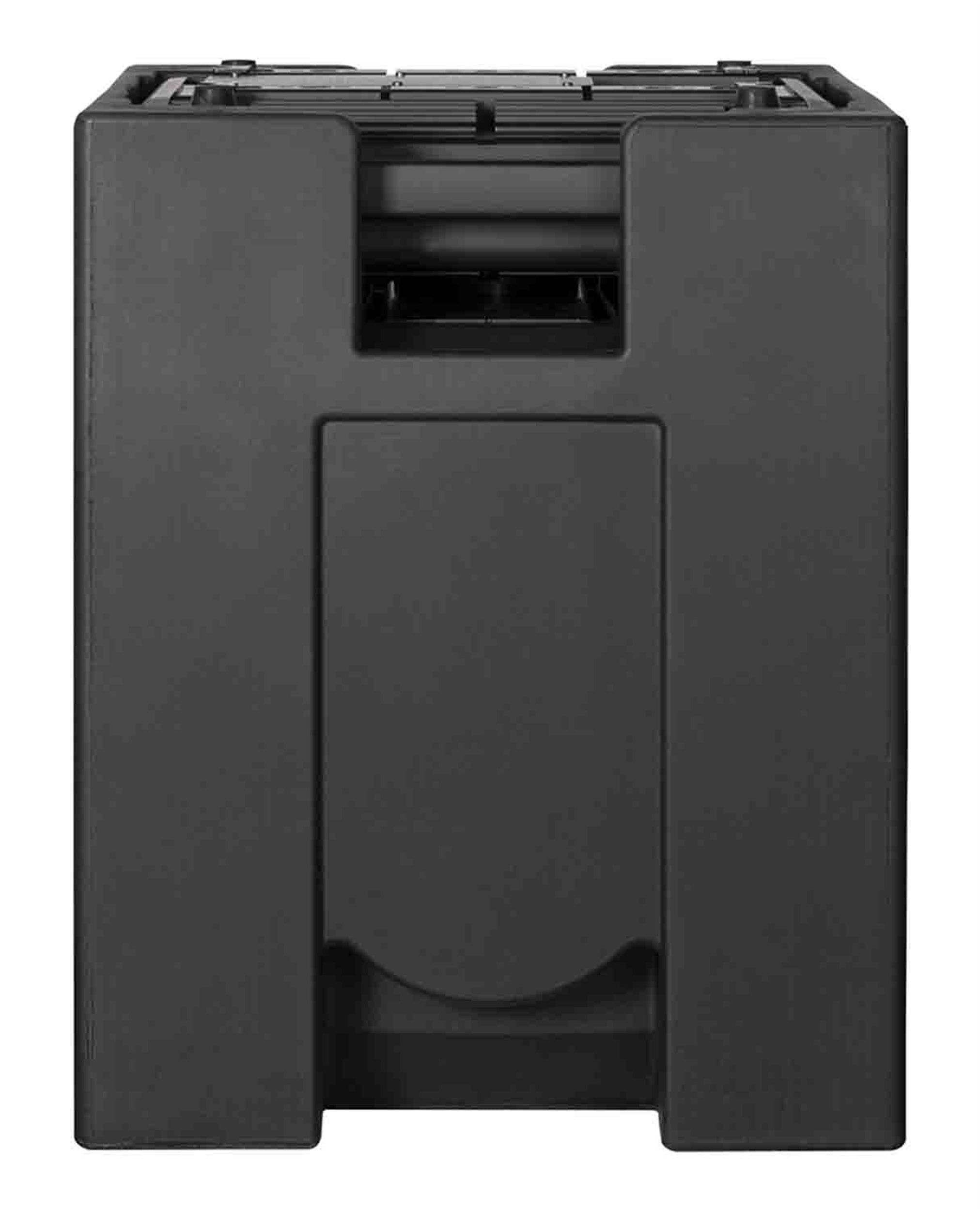

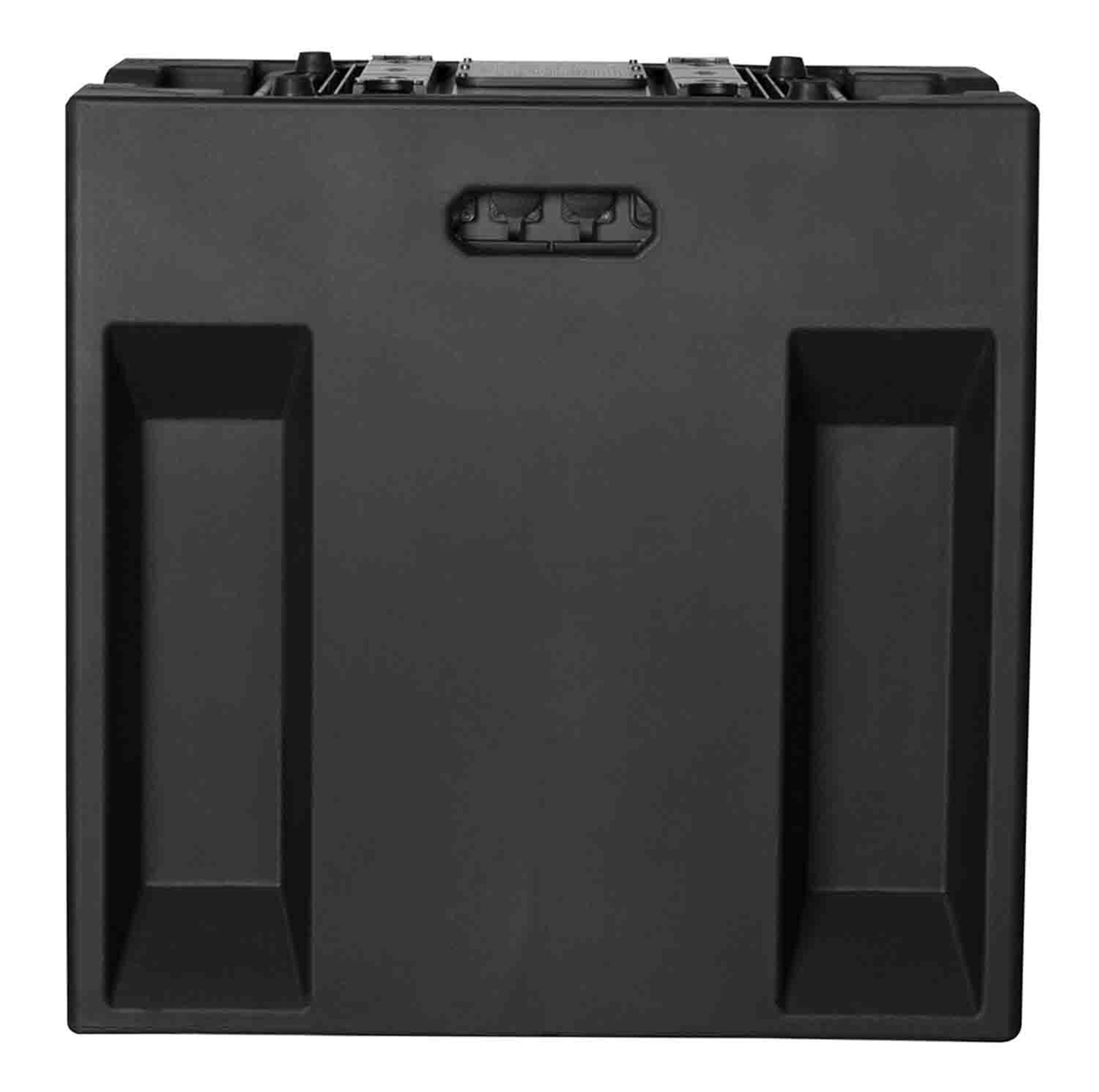

The PROTEUS RAYZOR 1960 ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam in Lay) insert. This foam insert easily fits into a custom sized flight case (not included), and provides enhanced impact protection during transport.

Product Specifications:

Source:

(19) 60W Osram RGBW LEDs

(76) 2W White Sparkled

50,000 Hour Average LED Life

Photometric Data:

18.100 Total Lumen Output

CRI 80

Zoom Range: 5° - 55°

Beam Angle: 5.6° - 53.6°

Field Angle: 7.8° - 71°

Effects:

Motorized Zoom

Linear Color Temperature Presets (2700-8000K)

RGBW Color Mixing and Pixel Control

White Sparkled Lens Effect

Color Presets and Macros

Electronic Strobe and Variable Dimming Curves

16-bit Dimming

Pan Angle: 360° (continuous rotation) / 540°

Tilt Angle: 360° (continuous rotation) / 270°

Control / Connections:

3 DMX Channel Modes (25 / 100 / 176 channels)

360° Continuous Pan and Tilt Movement

DMX Adjustable Refresh Rate (900 -25000 Hz)

(6) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

RDM Support

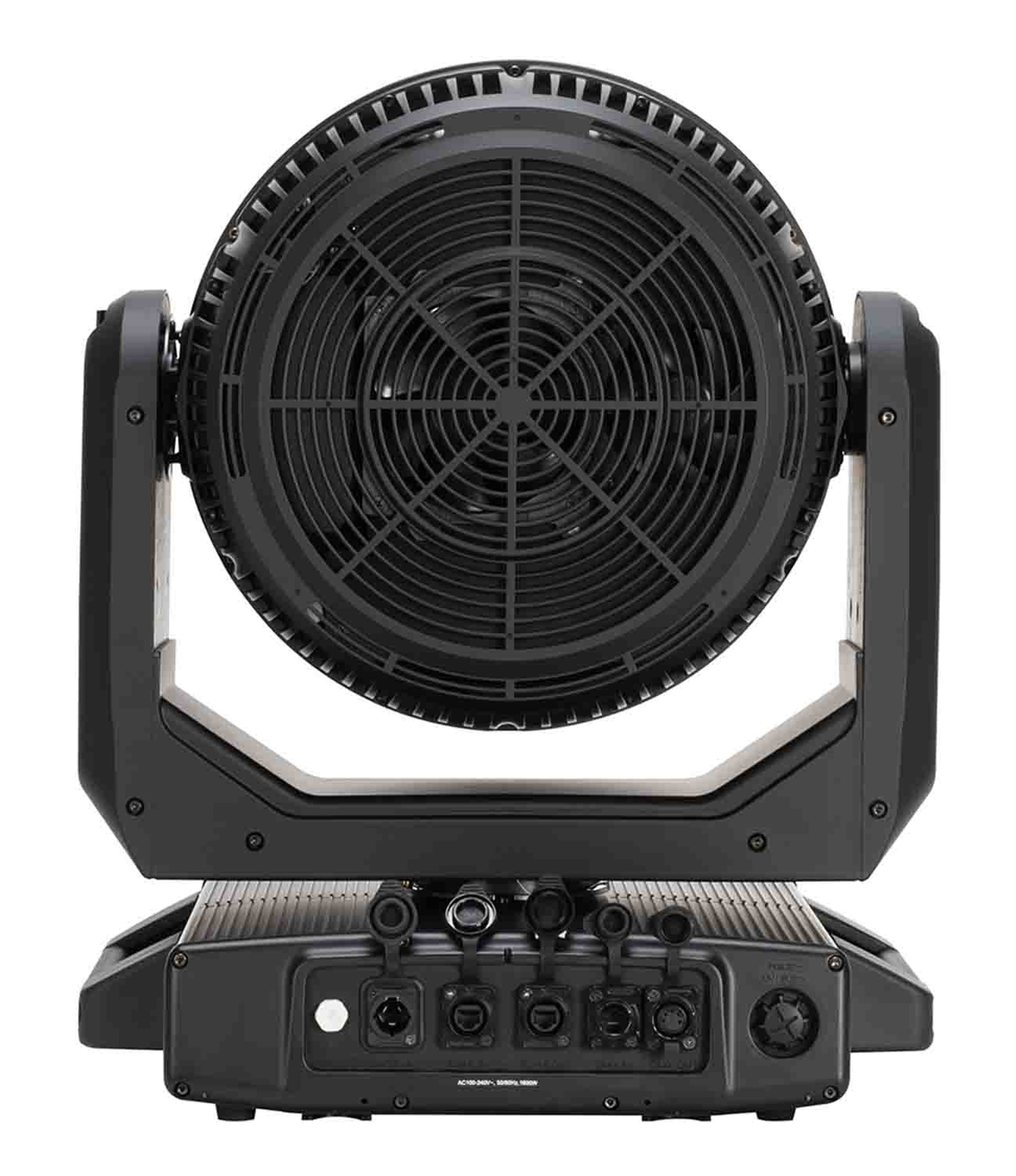

IP65 5pin XLR DMX in/Out

IP65 RJ45 Ethernet in/Out (Art-Net, sACN)

IP65 Locking Power Cable In

Dimensions: 23.35 x 19.50 x 15.20"

Weight: 97.80lb.
