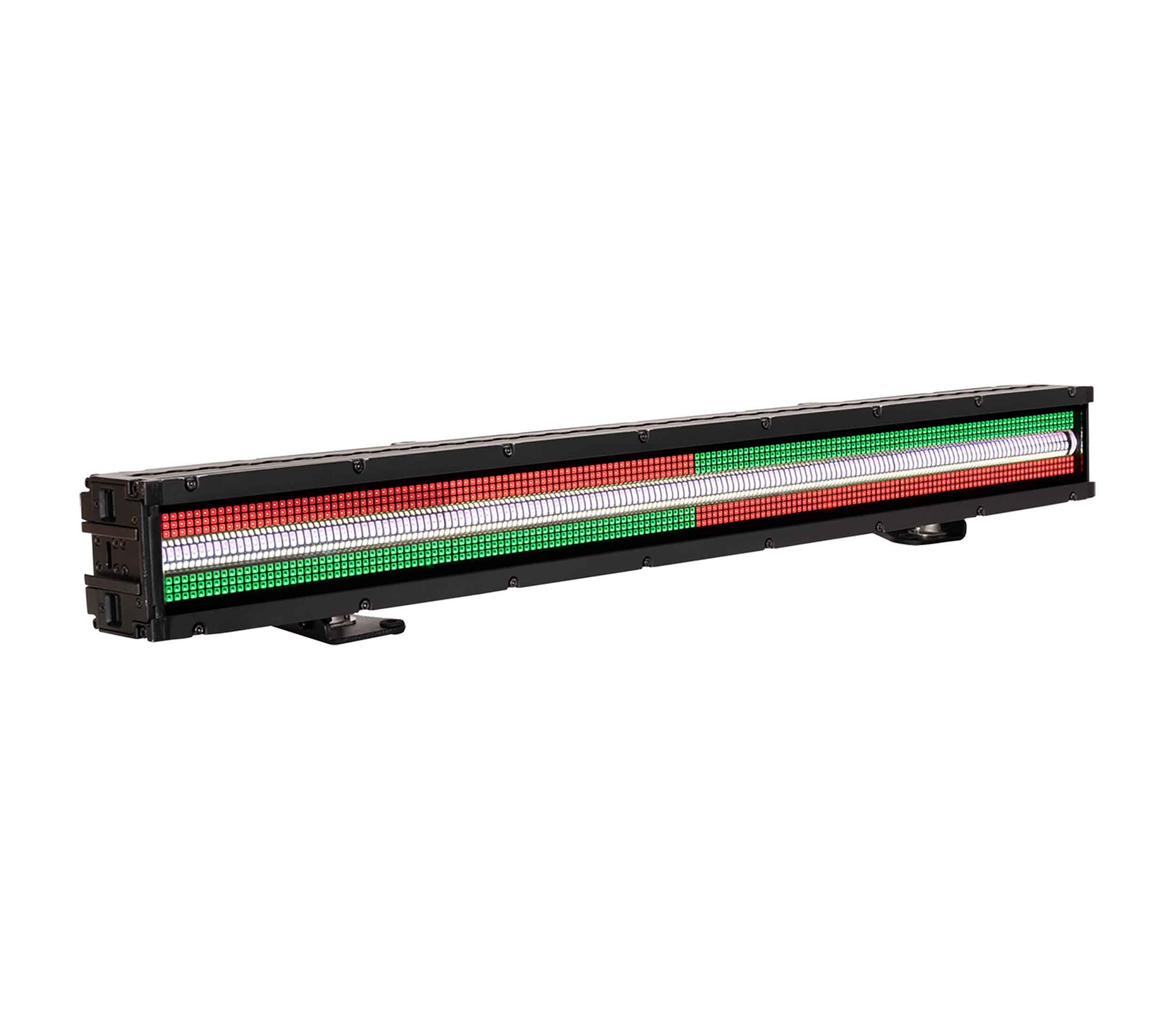

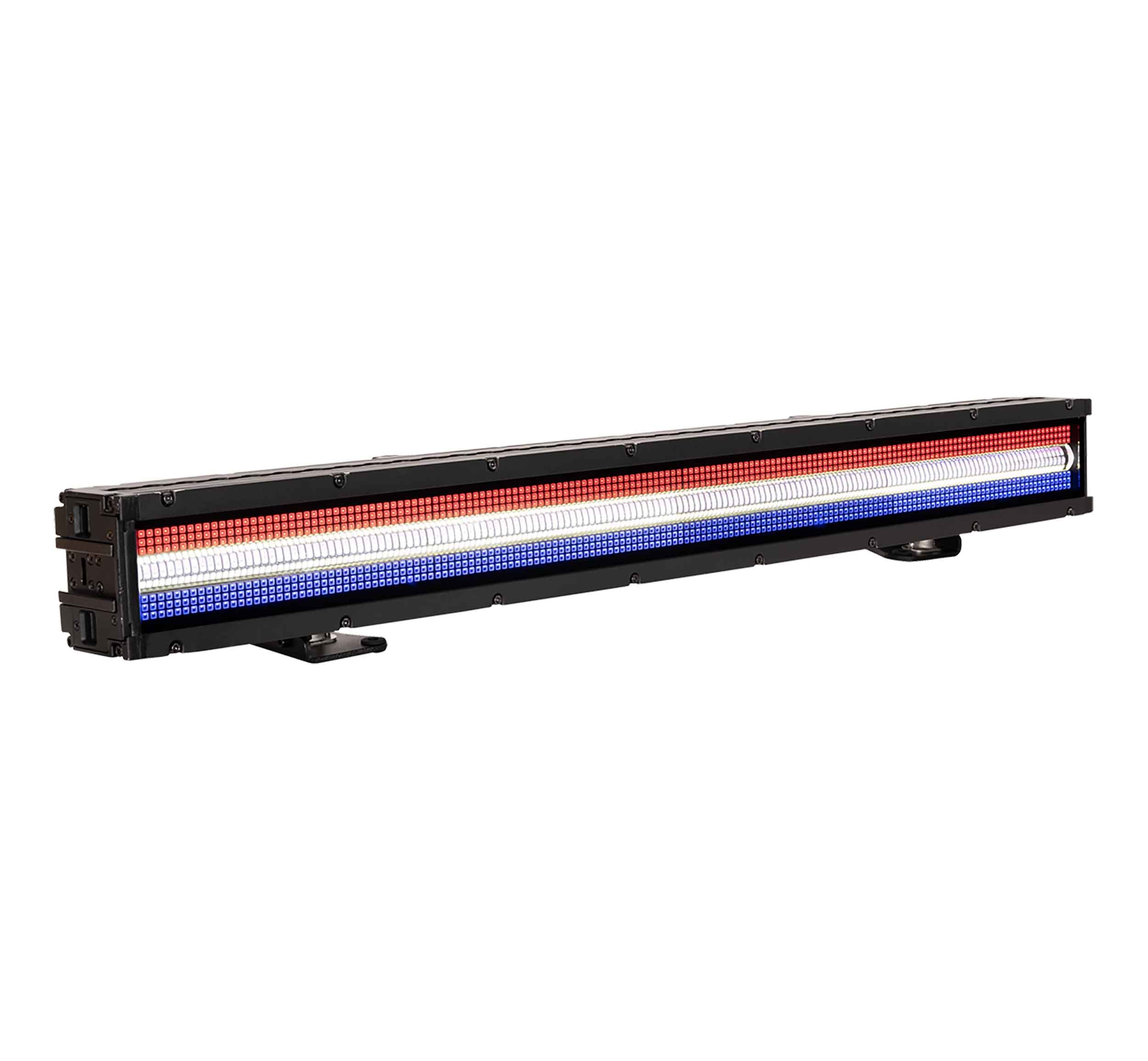

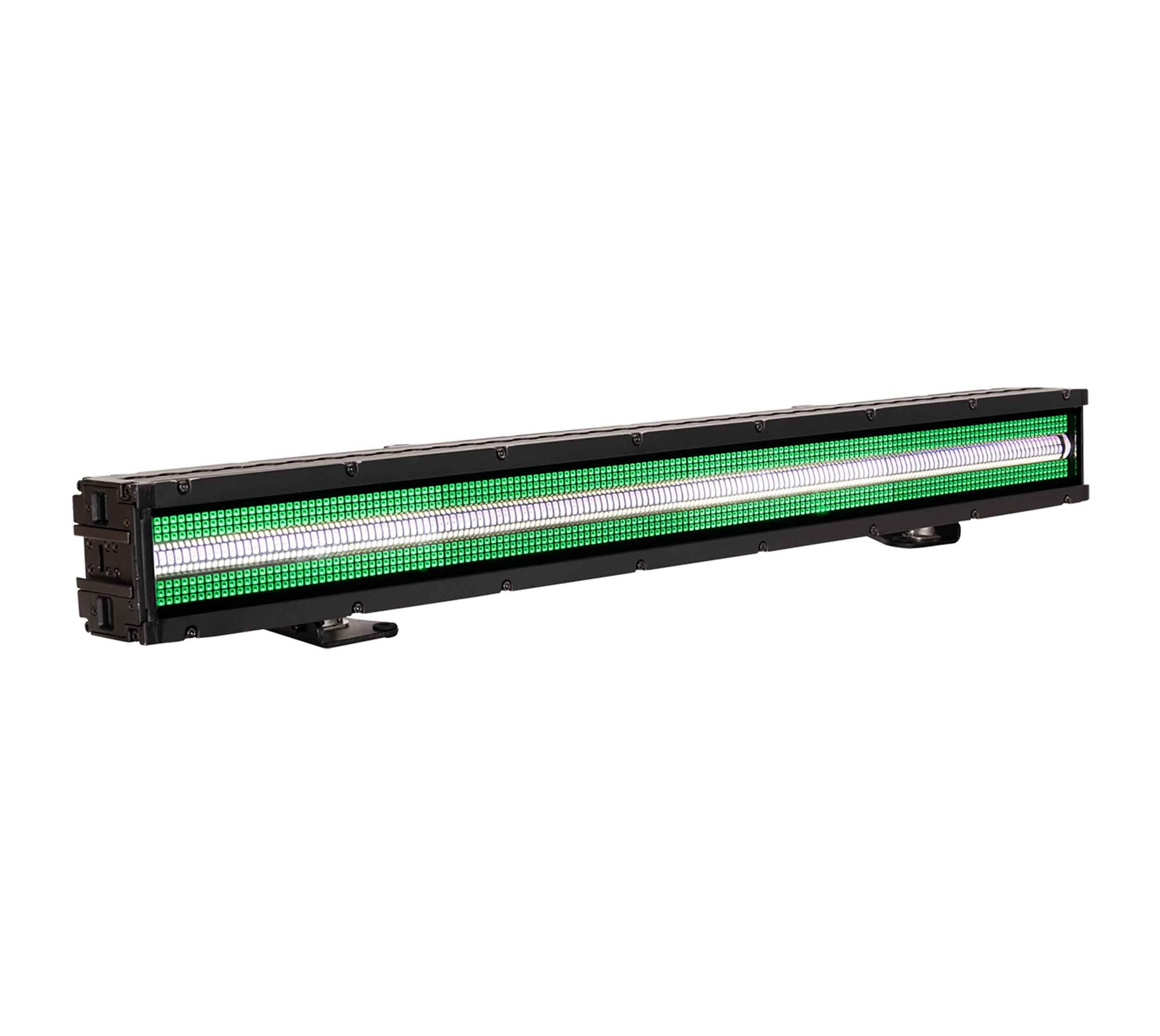

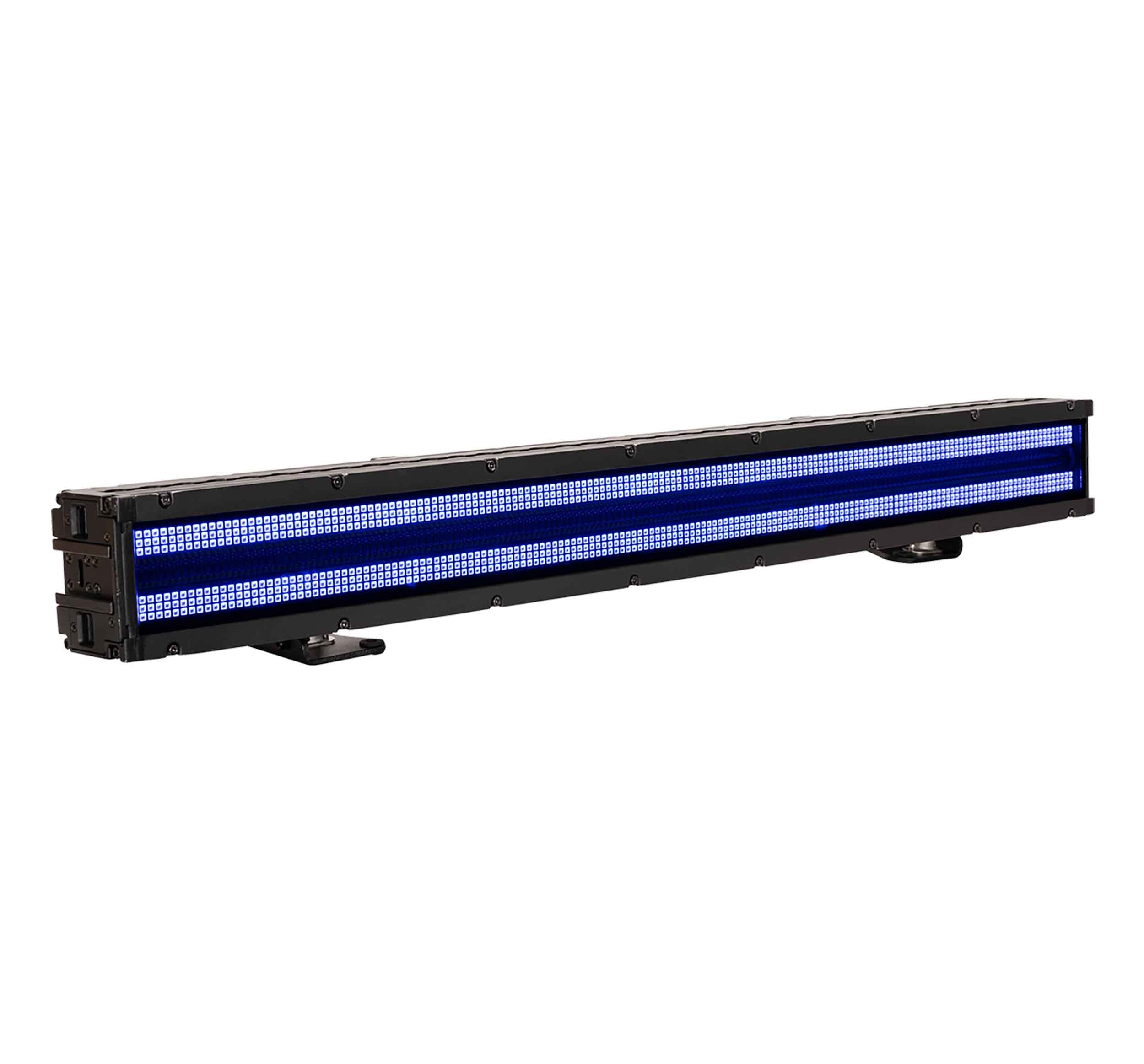

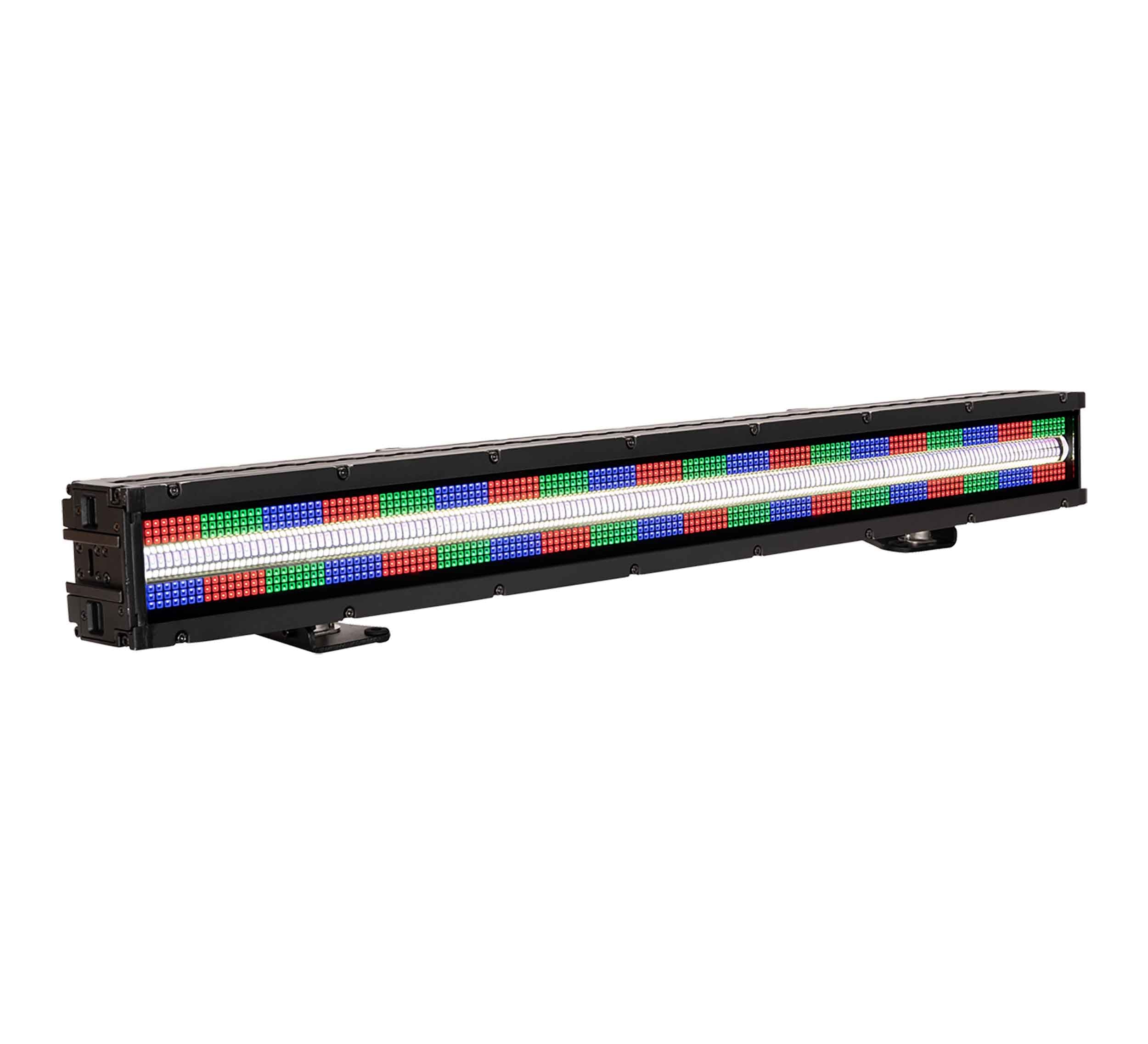

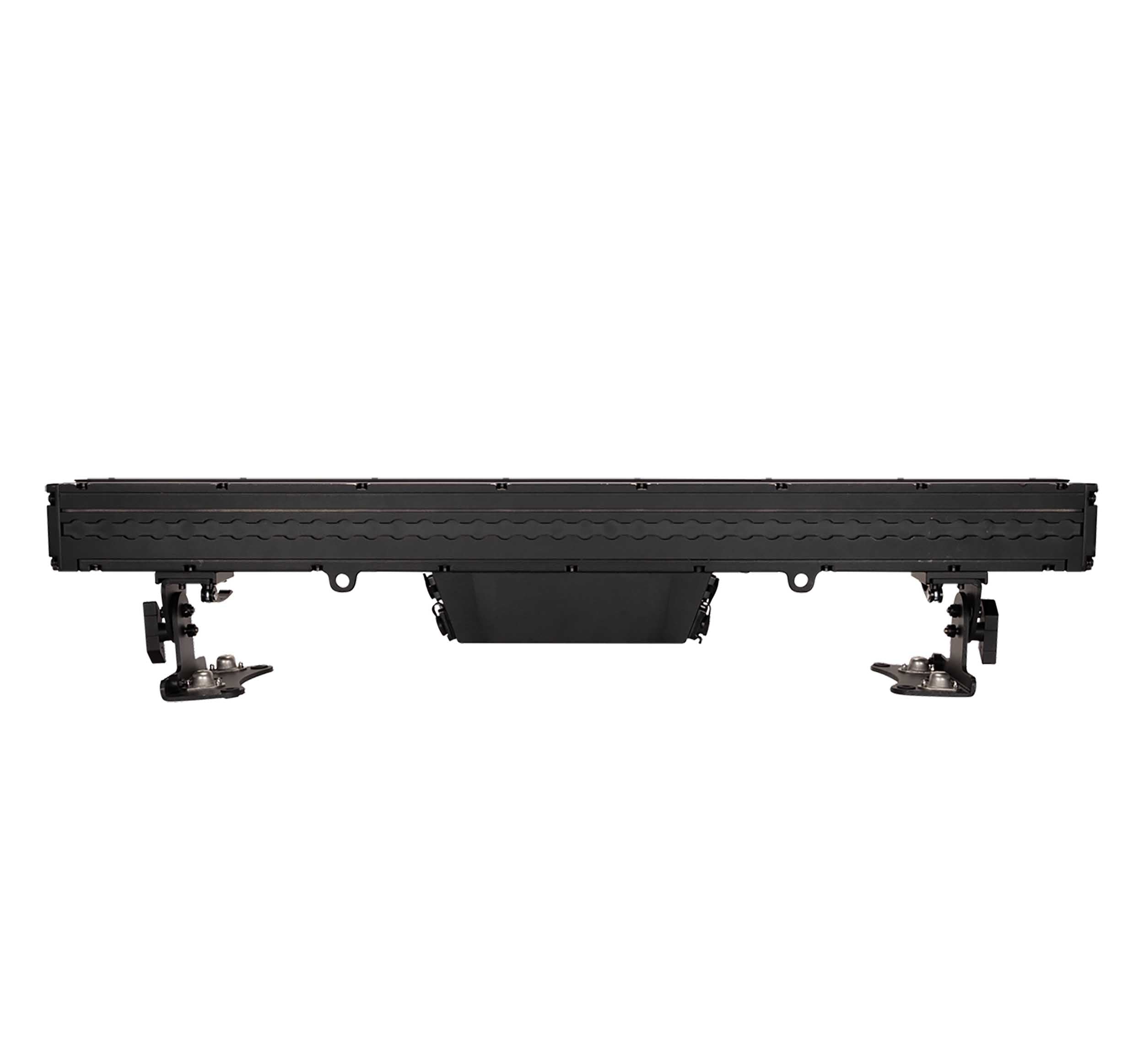

Elation Pulse Bar L, IP65 Strobe Bar - 1 Meter

The Elation Pulse Bar L, IP65 Strobe Bar - 1 Meter is an innovative Pulse line of strobe lights, the Pulse Bar is a highly impactful strobe and visual effect bar that injects dynamism and spark into any performance!

Measuring a meter in length, the PULSE BAR L incorporates 960 1.5W RGB LEDs distributed across 40 zones along its perimeter. Additionally, it features a central strobe line equipped with 400 5W cool-white LEDs across 40 zones, complemented by 160 1.5W RGB LEDs arranged in 20 zones at its core. When combined, these components deliver an output exceeding 25,191 total lumens.

Infuse your performance with intense, attention-grabbing moments of white or colored light that enhance the energy of the moment. Add impact with rhythmic flashes that synchronize with the music or craft special effects that make for a more visually stimulating experience. Ideal for direct view applications, zone control opens up for a myriad of design possibilities.

The PULSE BAR L includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming.

Wrapped in a durable, fully IP65-rated housing, the PULSE BAR L is suitable for any environment, indoors or outdoors, and its marine grade coating adds additional protection for harsher environments- even coastal locations.

The fanless convection cooling of the PULSE BAR L guarantees silent operation, making it ideal for noise-sensitive environments. Designed for ultimate flexibility, an integrated accessory slot accommodates optional diffusion filters, ND filters and other optics.

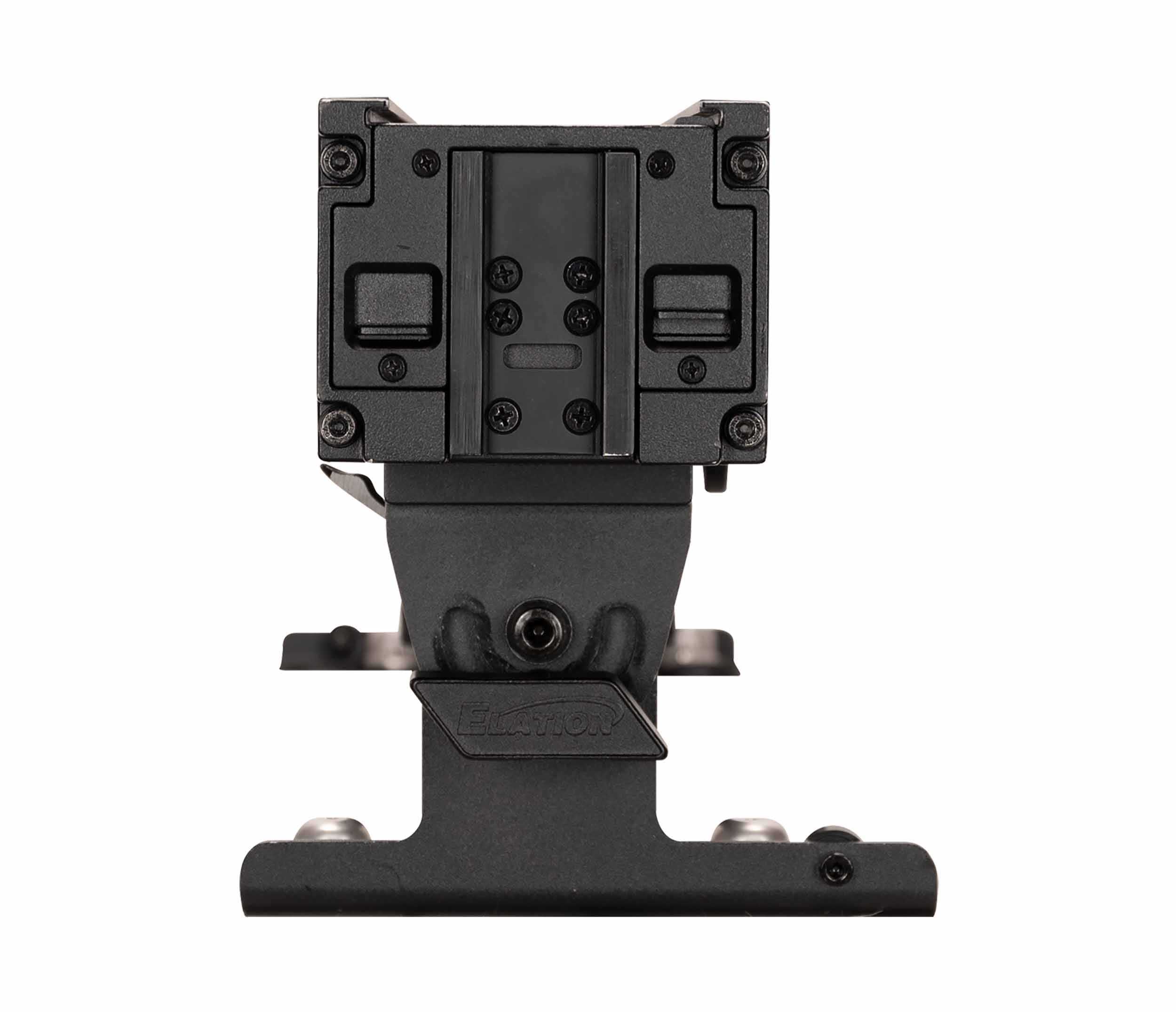

The PULSE BAR L’s innovative housing allows for end-to-end interconnection and includes integrated L track for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.

Controlled via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the PULSE BAR L also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.

When the moment calls for high-impact bursts of light and visually striking effects, look no further. The PULSE BAR L delivers!

Product Specifications:

Source:

(1120) 1.5W RGB LEDs

(400) 5W CW Strobe LEDs

50,000 Hour Average LED Life

Photometric Data:

Total Lumen Output

Integrating Sphere

All LED: 22,614 Lumens

CW LED: 25,191 Lumens

RGB LED: 8,434 Lumens

CRI: TBD

Beam Angle: TBD

Field Angle: TBD

Effects:

40 Zones of RGB Plate LEDs (20 x 2)

40 Zones of CW Strobe LEDs (20 x 2)

20 Zones of RGB Strobe Line LED's (20 x 1)

1- 20Hz Strobe Rate

Library of Customizable RGB and CW Strobe Effects

Variable Dimming Modes and Curves

Color:

RGB Color Array

Control / Connections:

9 DMX Channel Modes (3ch, 11ch, 22ch, 52ch, 92ch, 234ch, 132ch, 242ch, 220ch)

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

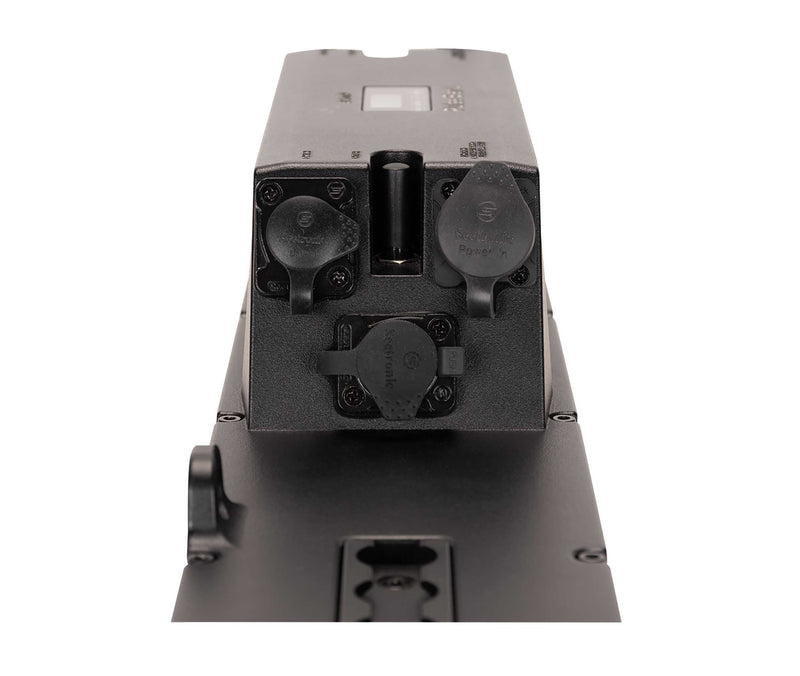

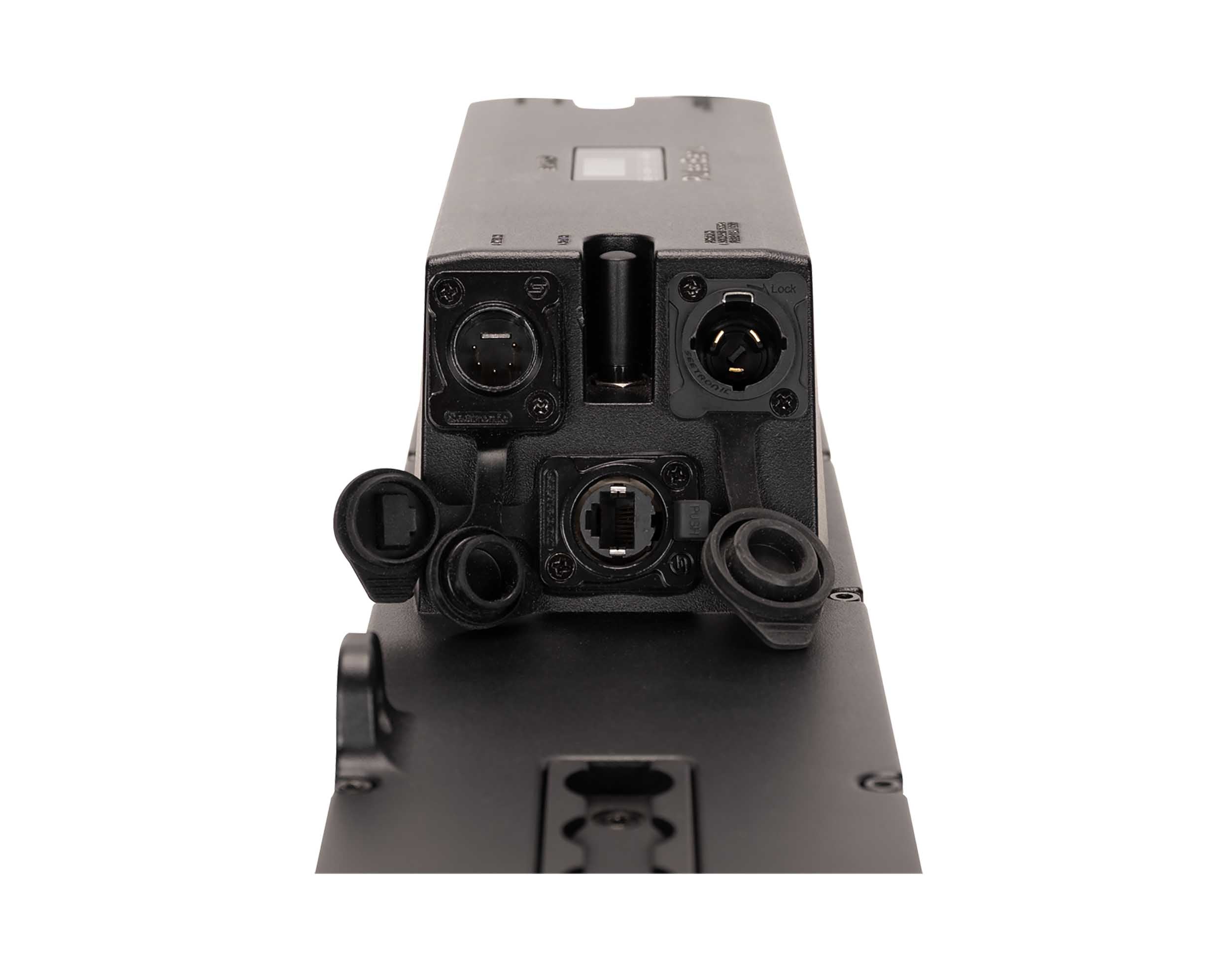

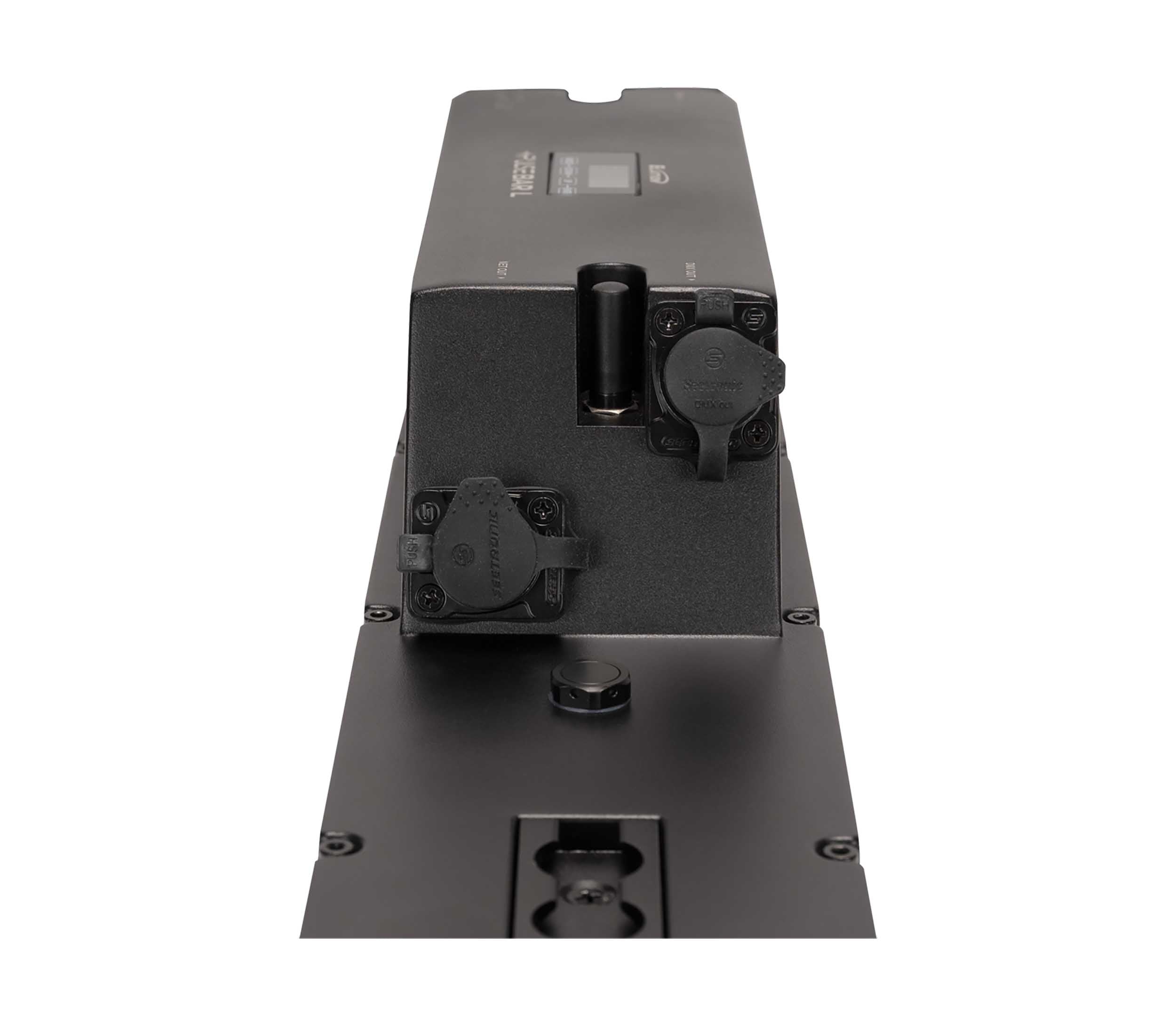

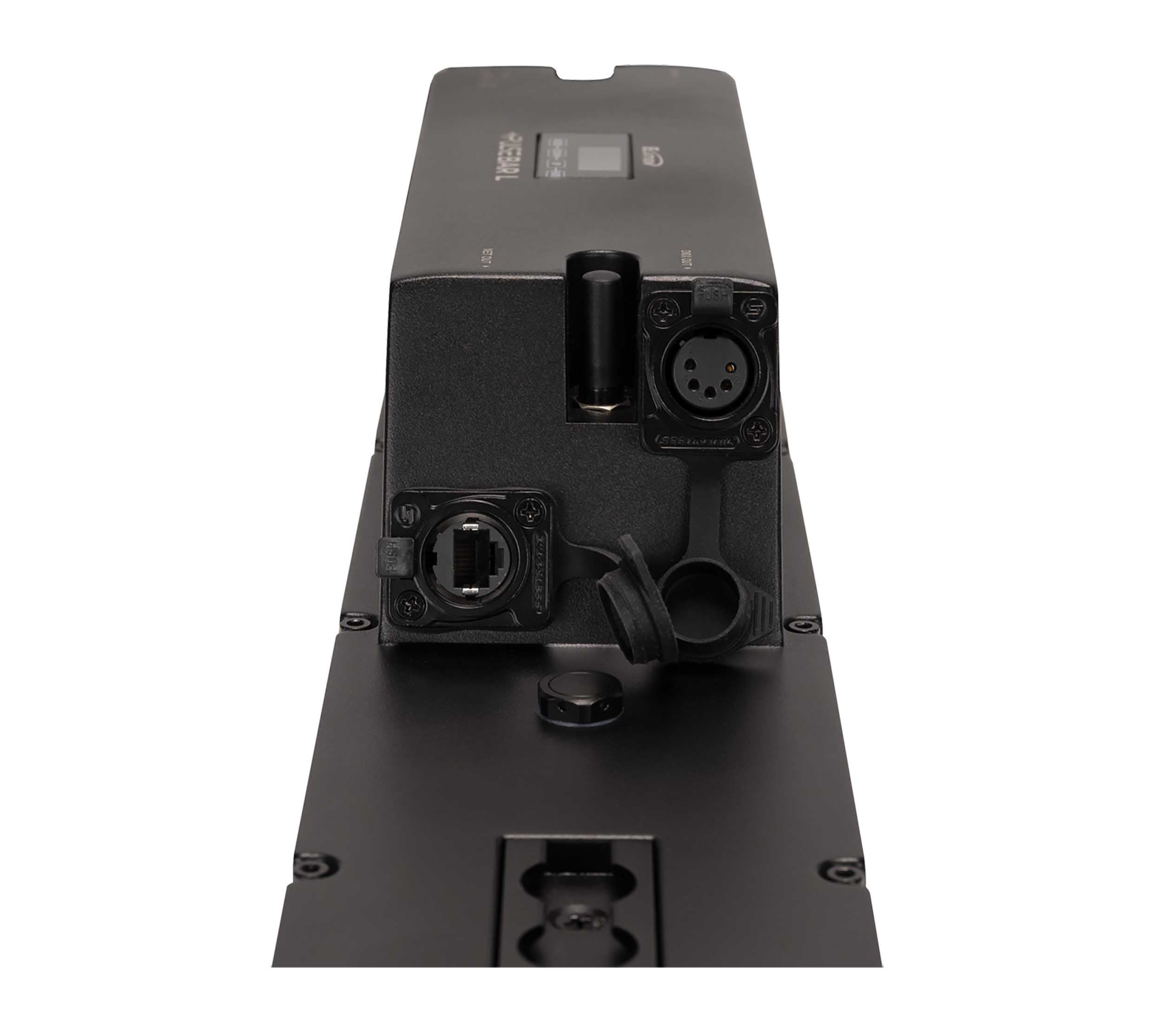

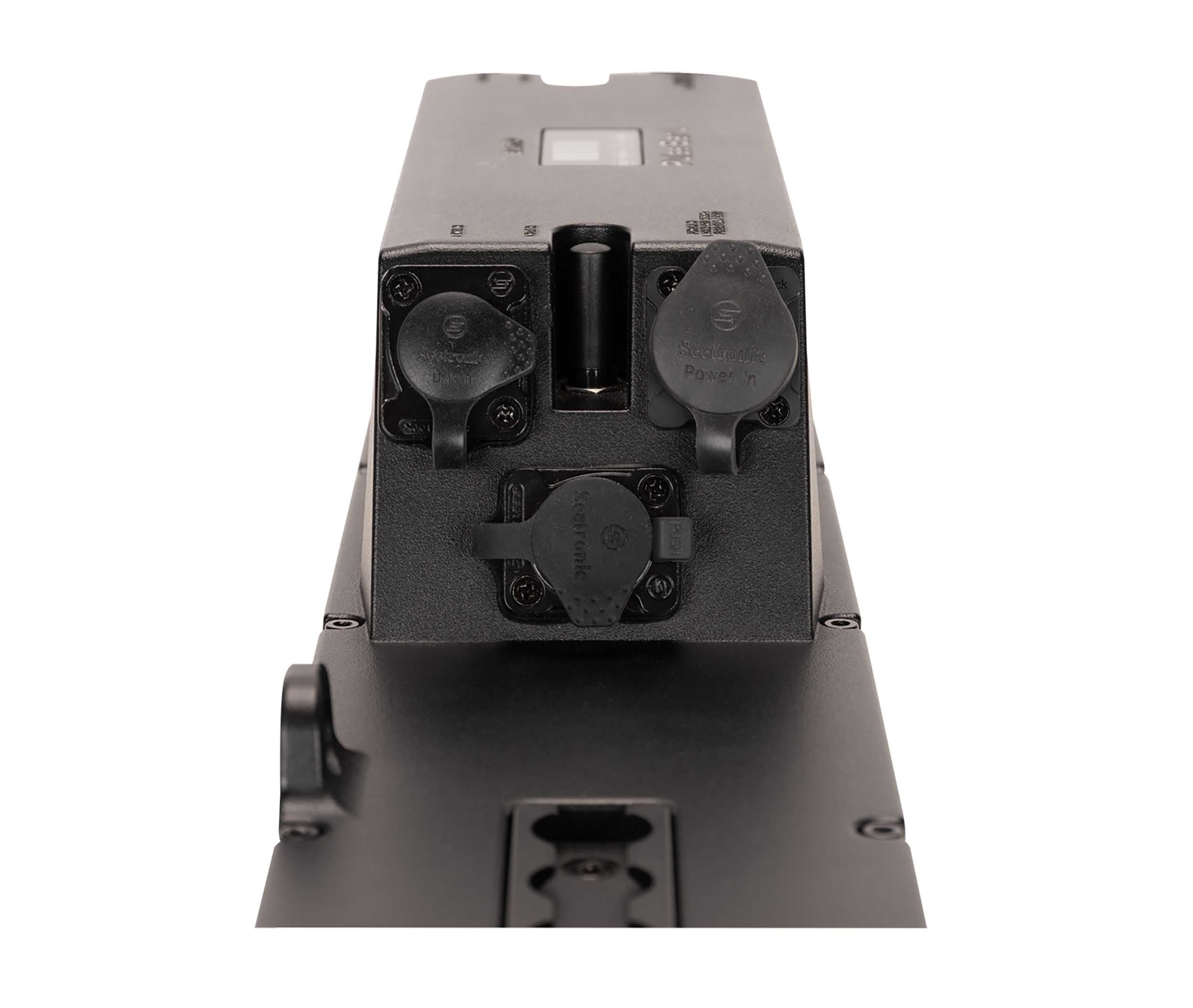

IP65 5pin XLR DMX In/Out

IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)

IP65 Locking Power Cable In

Size / Weight:

Length: 39.37" (1000mm)

Width: 4.13” (105mm)

Vertical Height: 8.11” (206mm)

Weight: 27.55 lbs (12.5kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

Max Power Consumption: 1300W

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 4433

Included Items:

Safety Cable

IP65 Locking Power Cable

Fixture Interconnect Splice

Optional Items: BAR L NSP Lens (BLL021)

BAR L WFL Lens (BLL061)

BAR L XFL Lens (BLL101)

BAR L L140 Lens (BLL141)

BAR L L1060 Lens (BLL161)

# 8050000053 - Omega Bracket (Qty.2)

Fixture Interconnect Splice Package (FISP06)

L-Track to M10 Adapter,70mm (LTR001)

L-Track to M10 Adapter, 44.5mm (LTR008)

L Track C-Clamp & Adapter Assembly, 70mm (LTR100)

L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)

Interconnect Clamp Adapter (FICA01)

Approvals / Ratings: CE | cETLus(pend) | UL | IP65c| FCC | UKCA
