Description

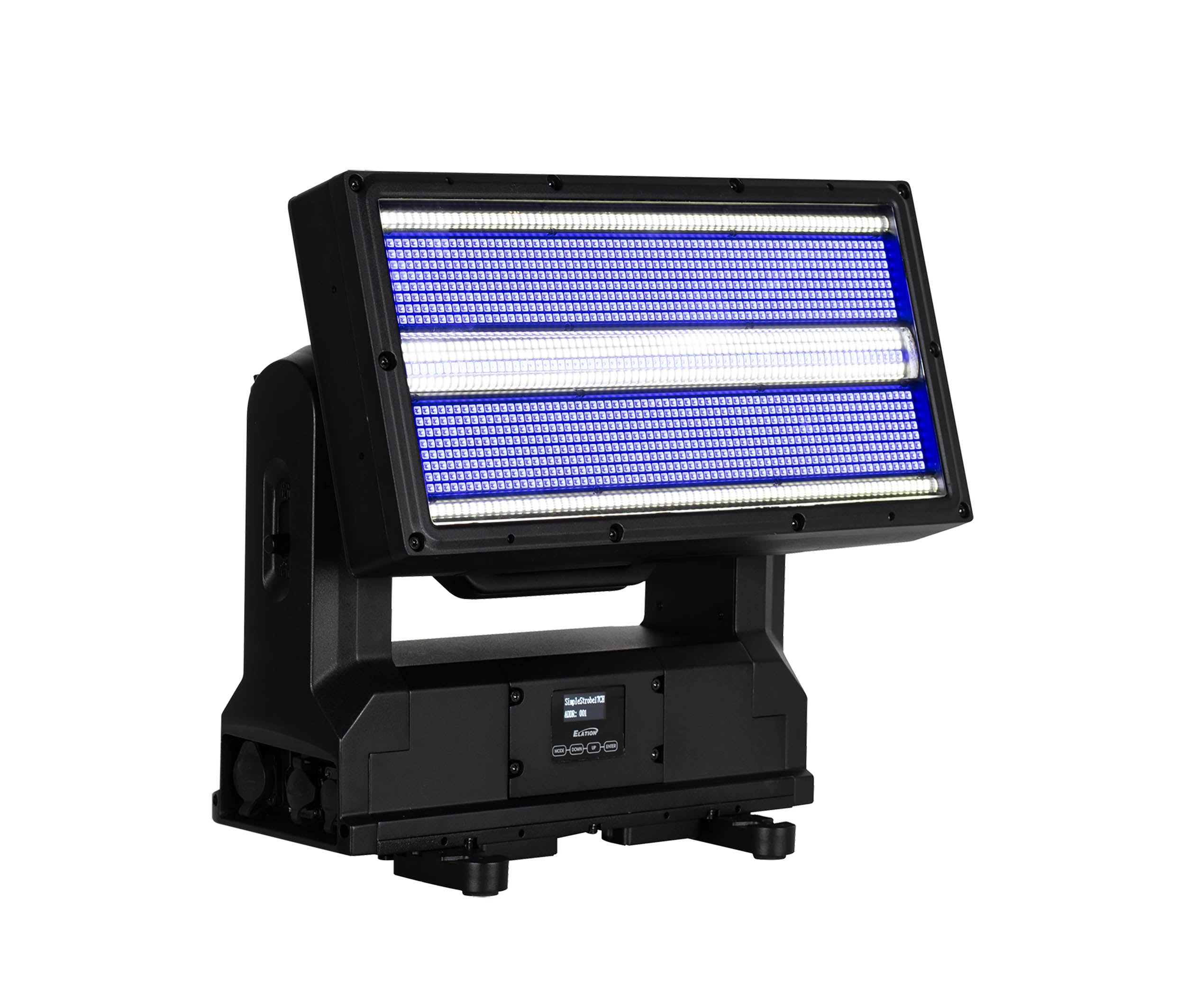

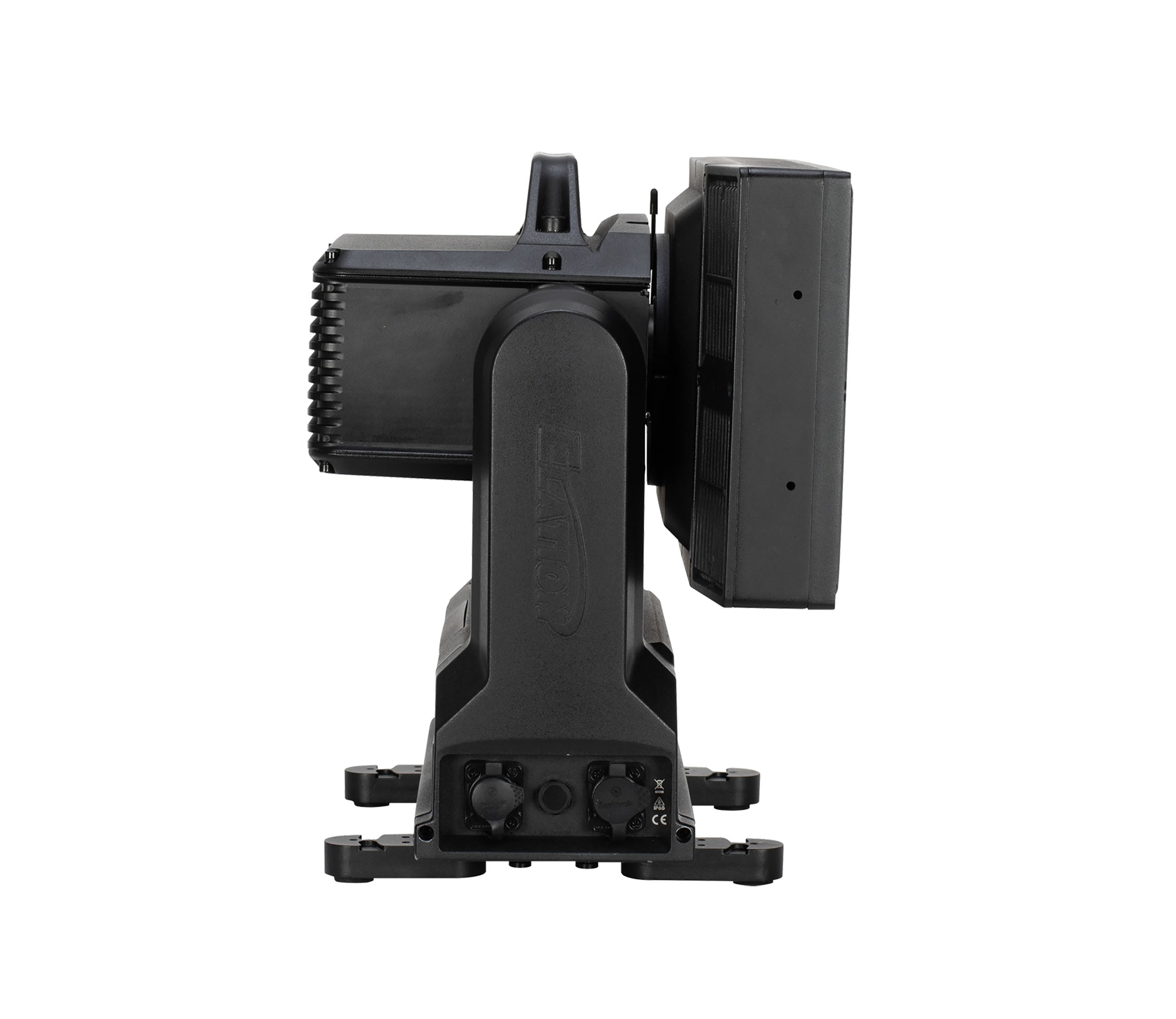

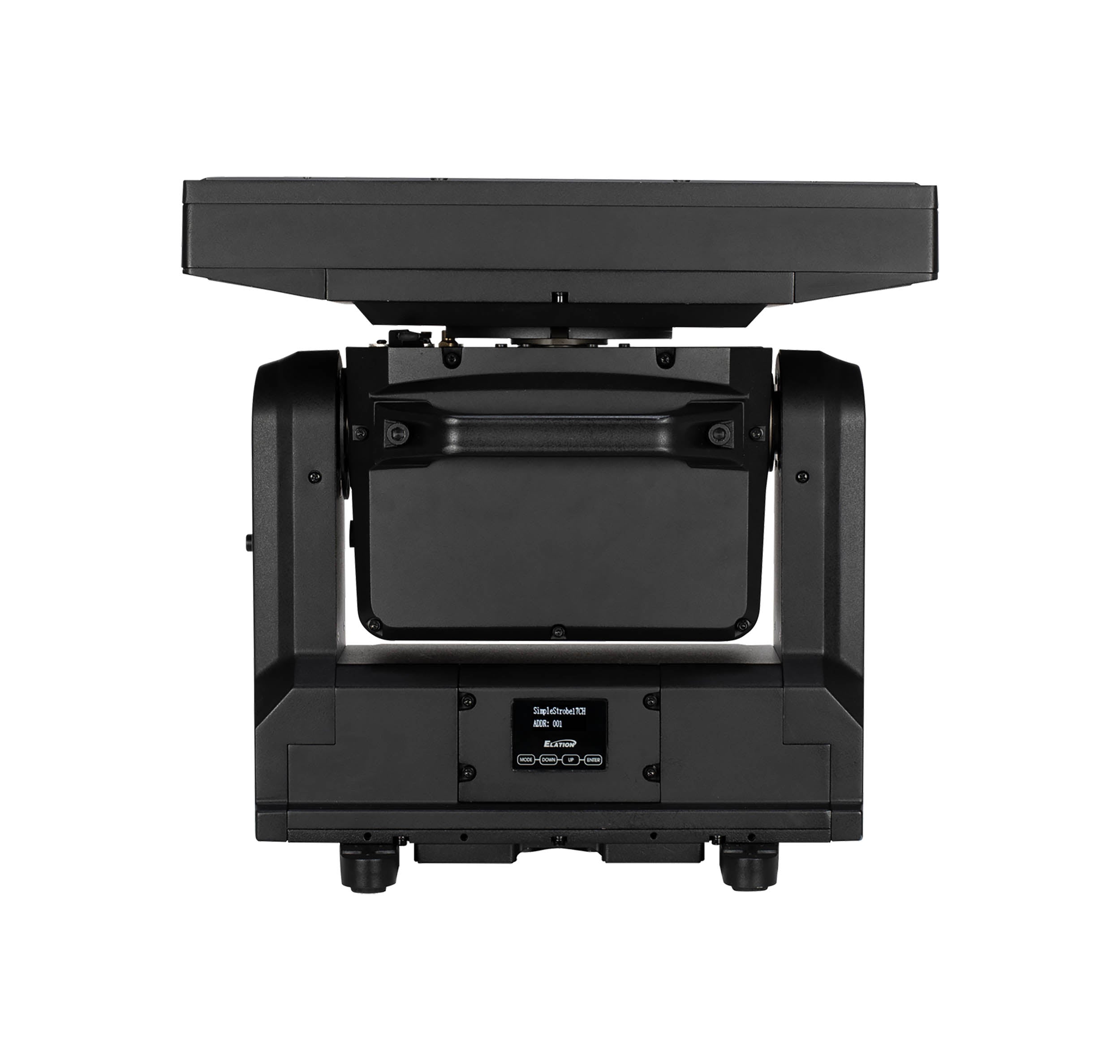

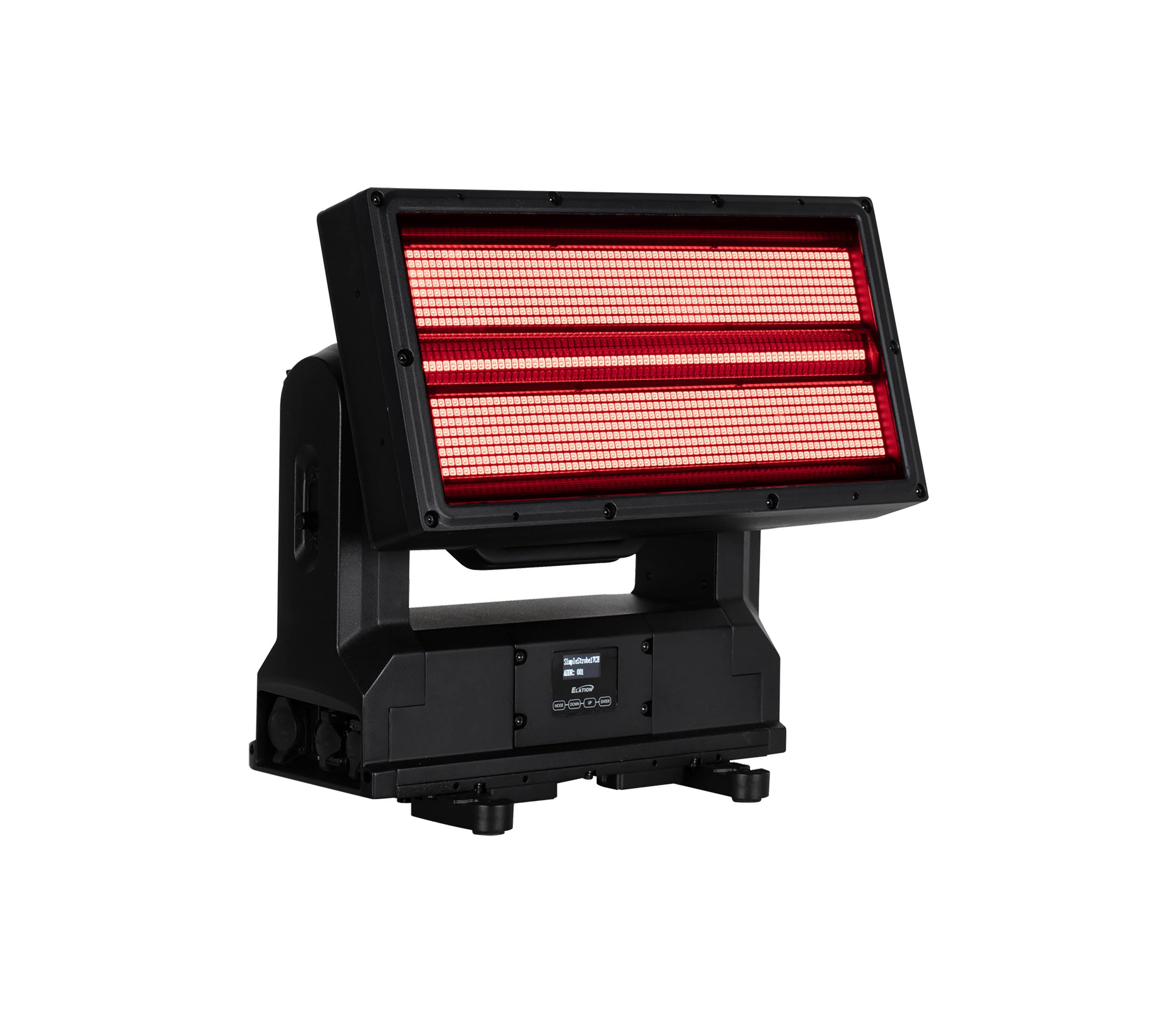

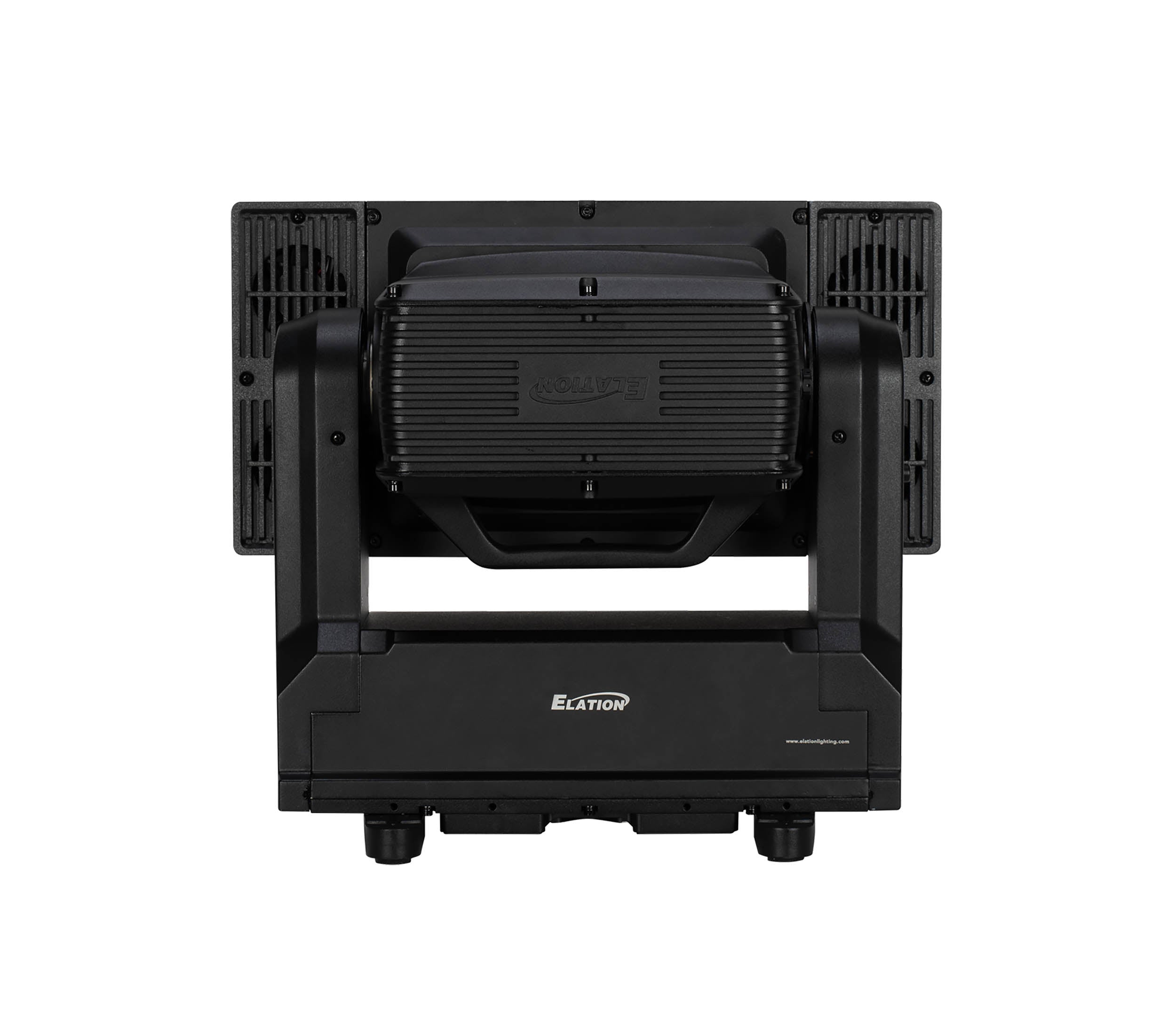

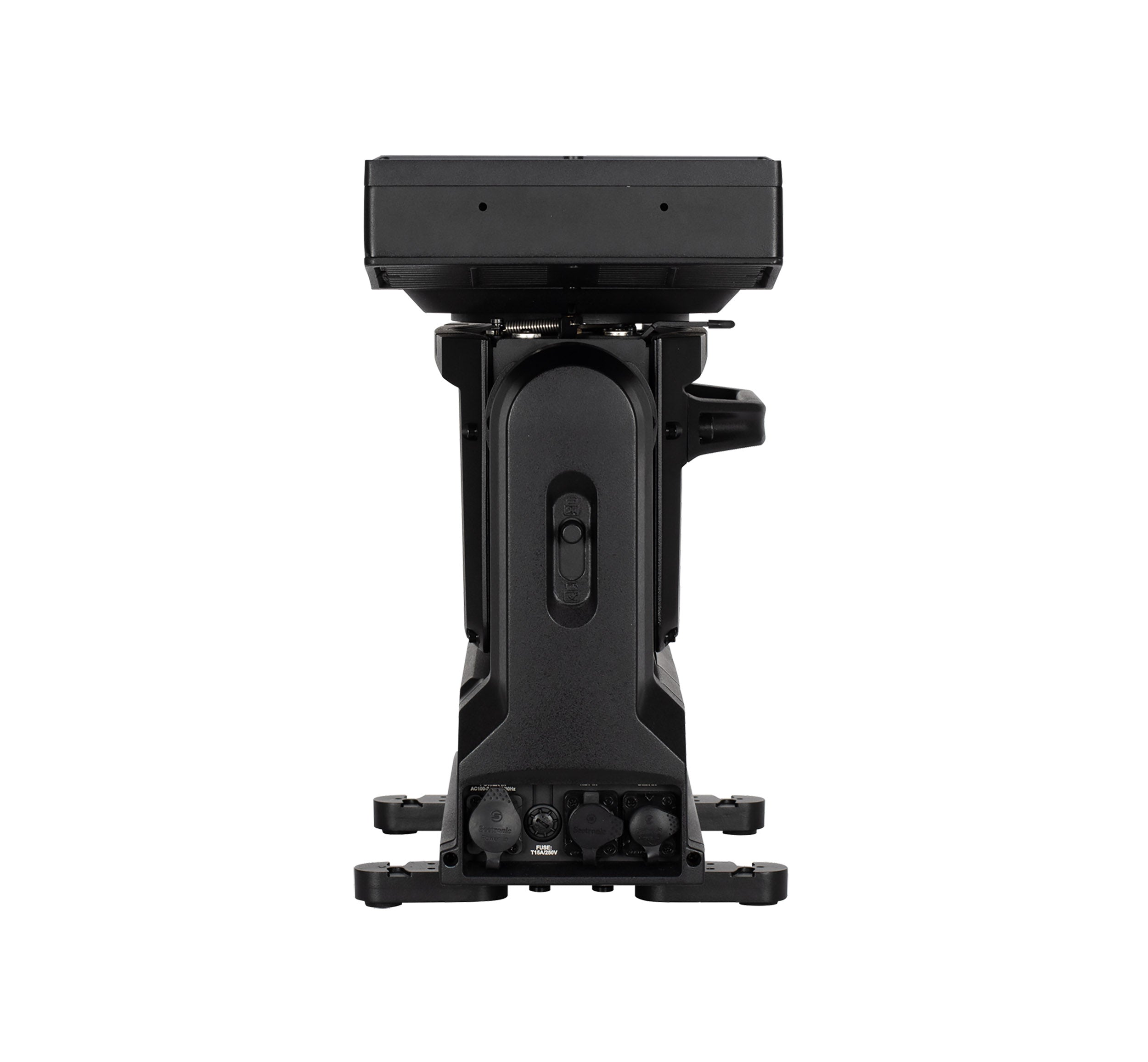

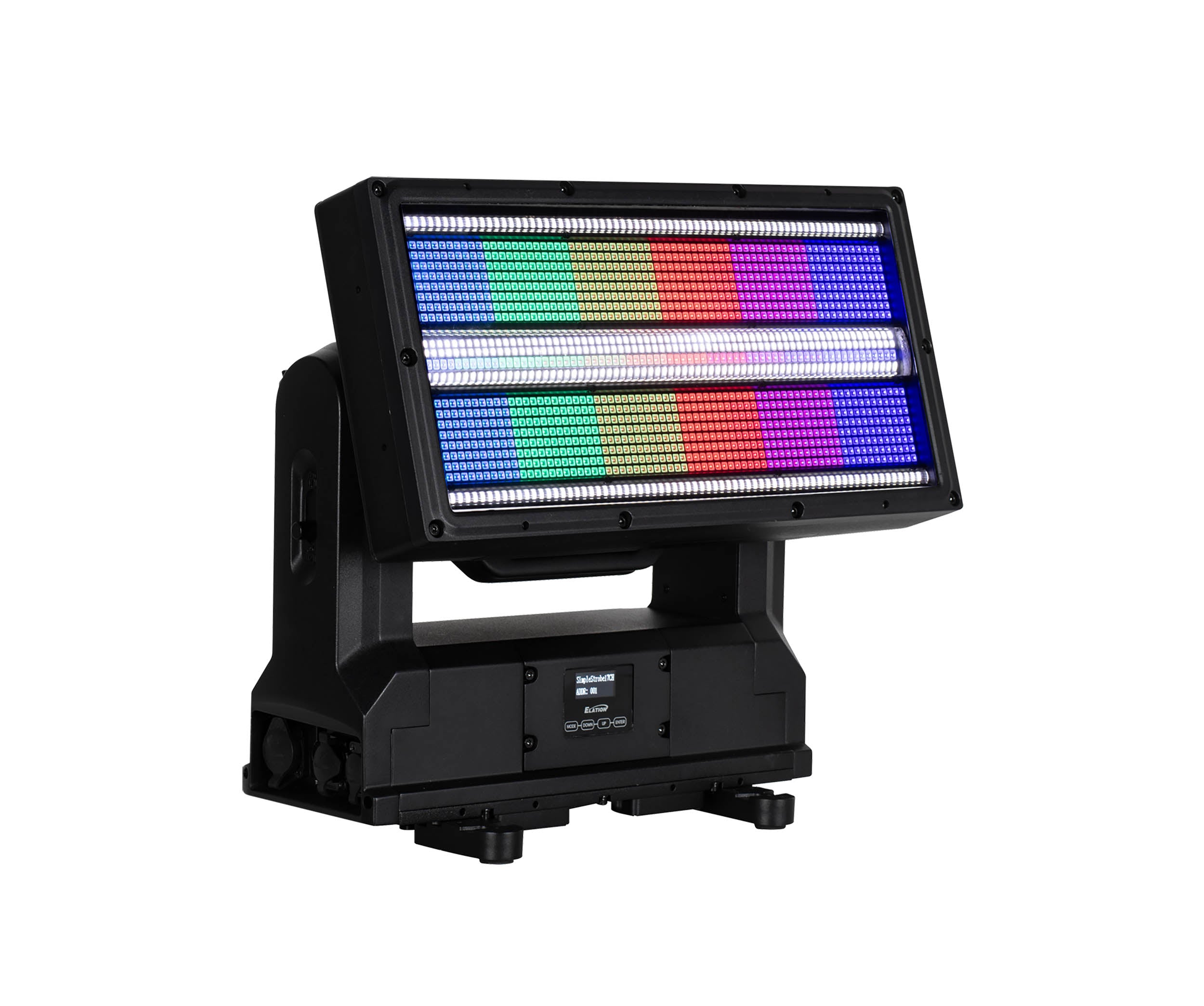

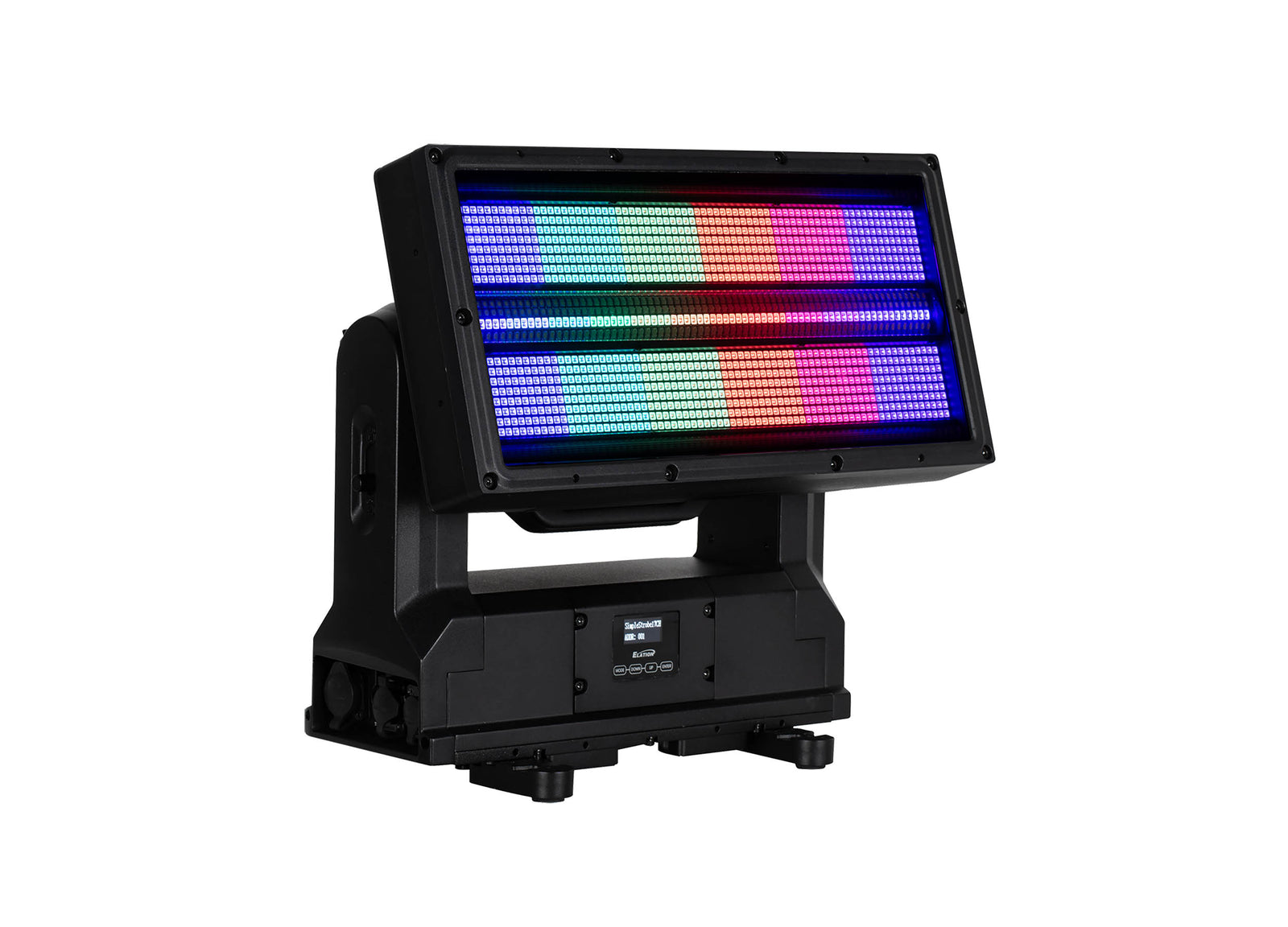

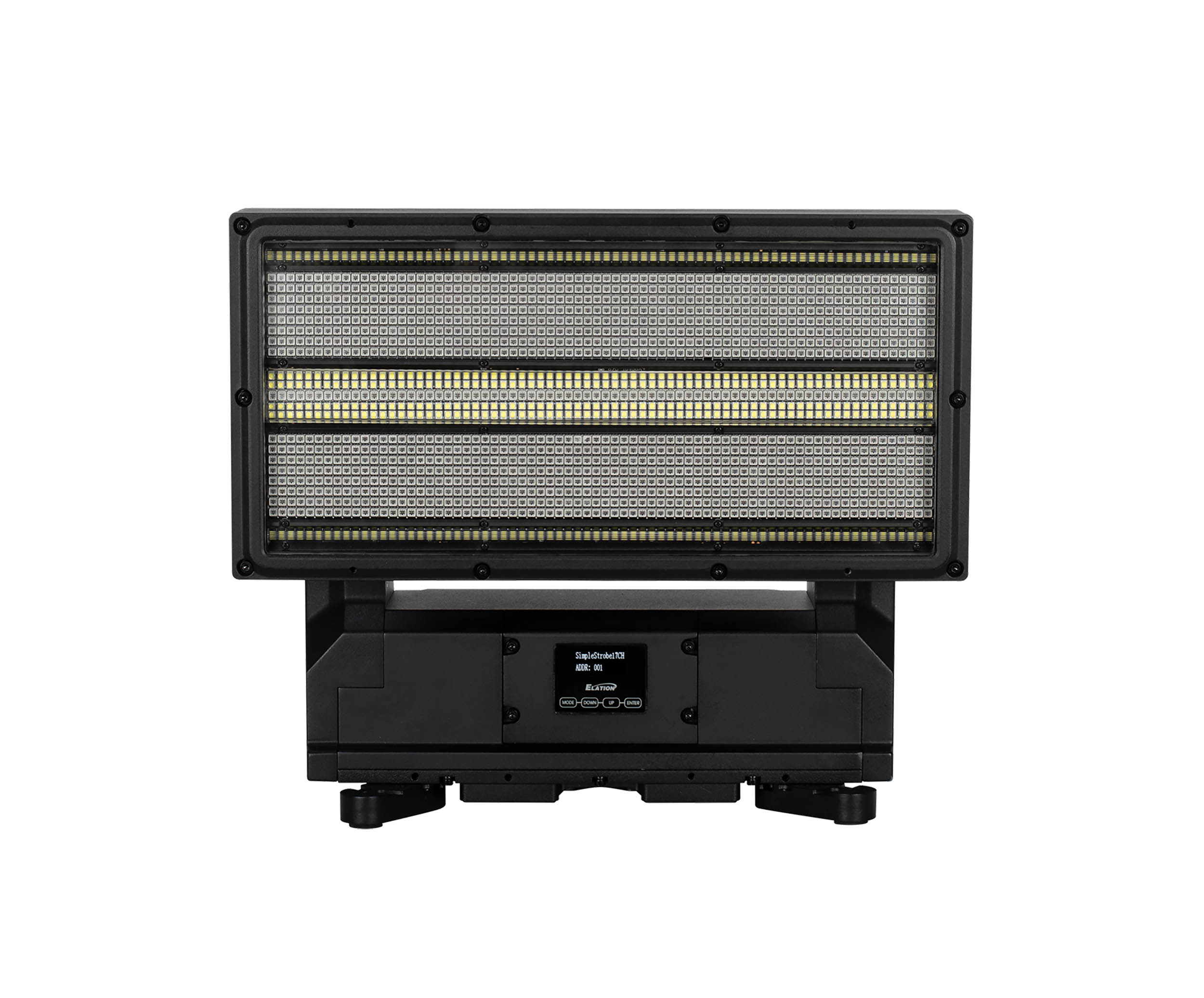

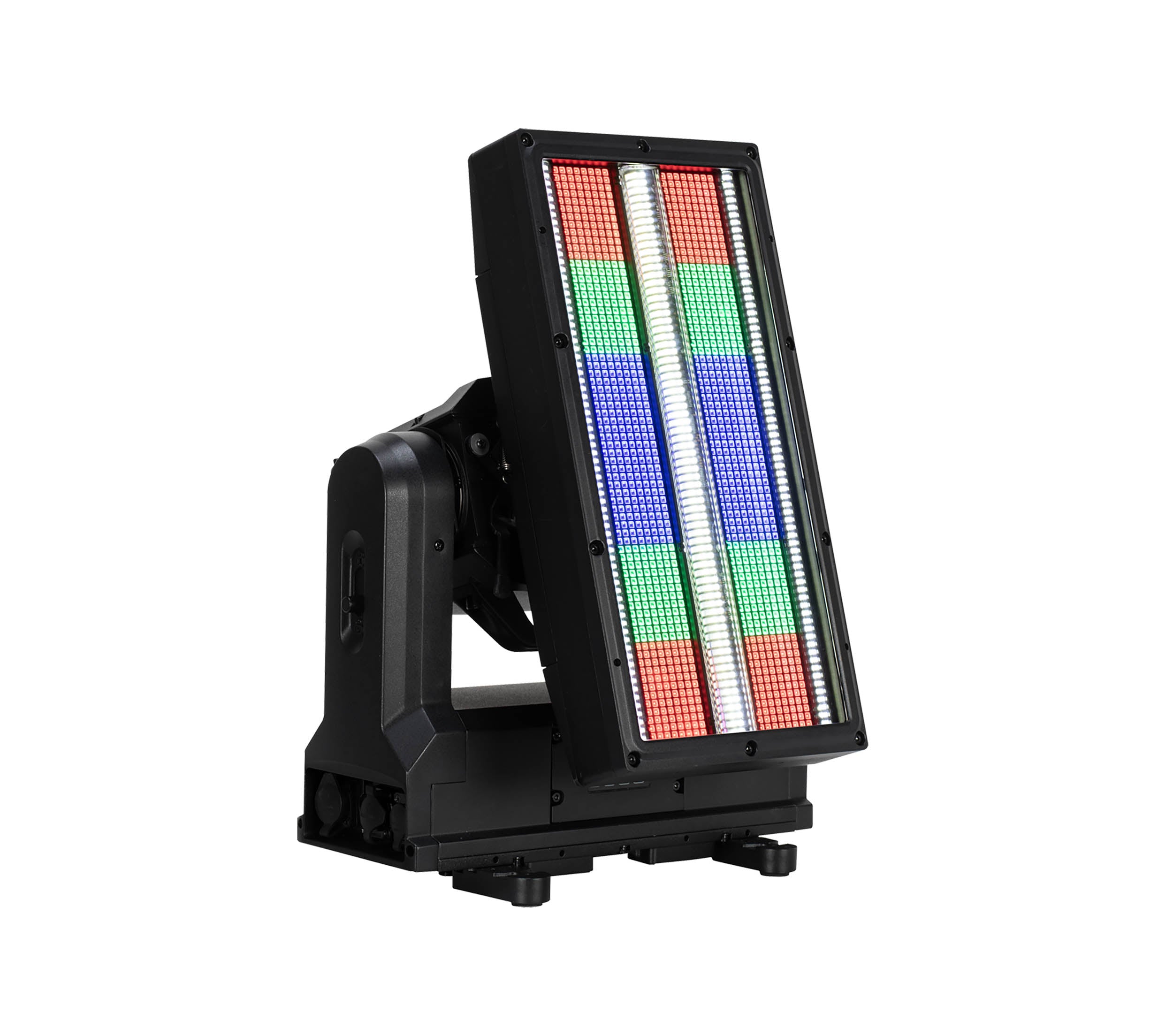

The Elation PULSE PANEL FX is a powerful, versatile strobe panel designed to elevate any show with its explosive lighting effects and dynamic movement. As part of the Pulse line, it offers the flexibility to function as a strobe, bright blinder, high-output wash light, or eye-catching visual effect. With fast 360° continuous pan/spin and 180° tilt, it adds extra layers of excitement to any production. Featuring 1,152 RGB LEDs and 432 CW strobe LEDs, this fixture delivers over 100,000 lumens of output and is fully IP65 rated for both indoor and outdoor use. It's controlled via DMX, Art-Net, sACN, KlingNet, and supports wireless device management with Aria x2, making it easy to integrate into any lighting setup.
Product Specifications:
Source: 1,152 RGB LEDs (1.5W), 432 CW strobe LEDs (5W).
Lumen Output: 108,574 lumens (CW), 44,090 lumens (RGB).
Beam Angle: 68°, Field Angle: 112°.
Pan/Spin Movement: 360° continuous, 180° tilt.
Control Modes: 12 DMX modes, supports wireless control via Aria x2.
Power Consumption: 1750W.
Color: RGB color array.

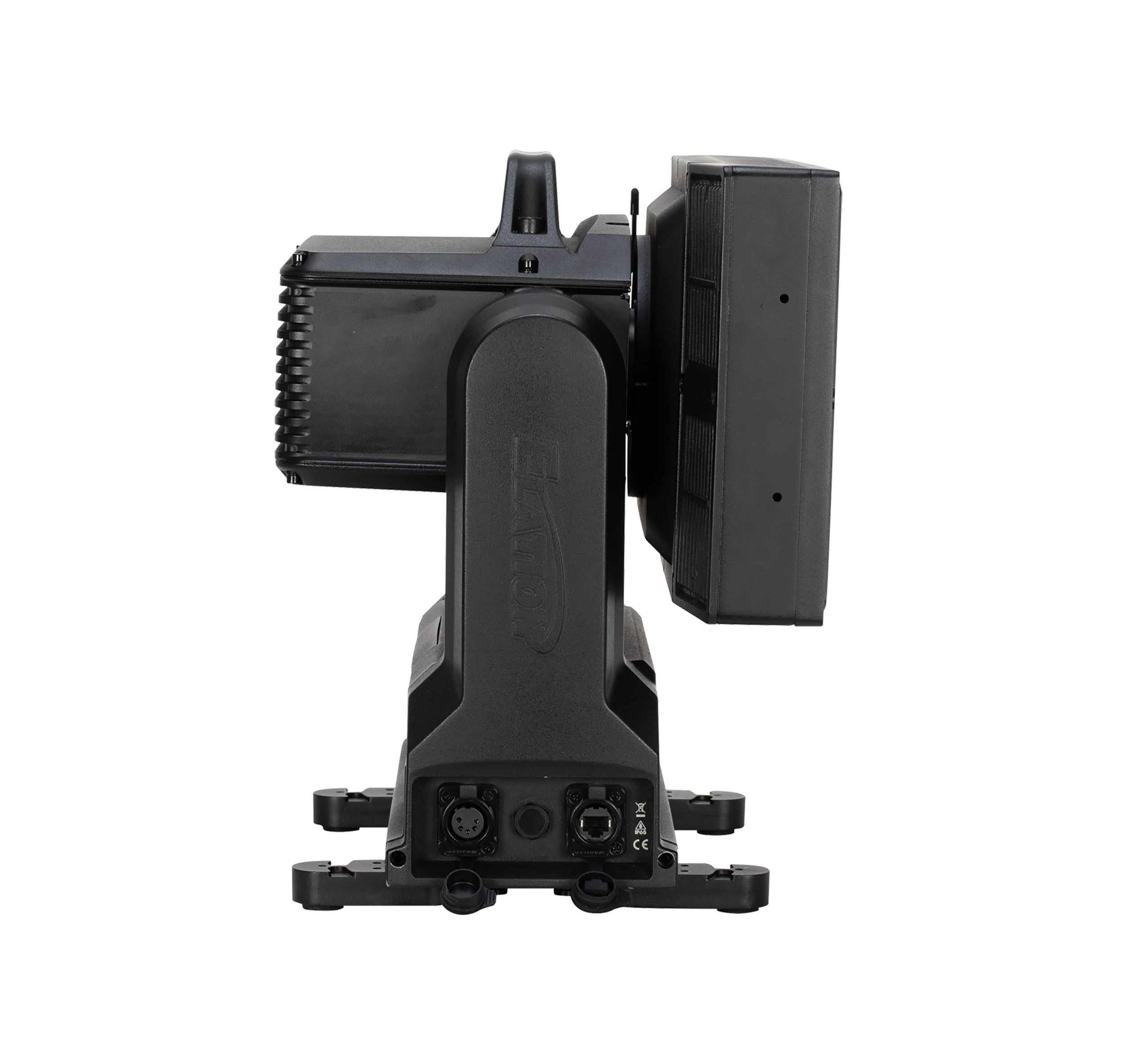

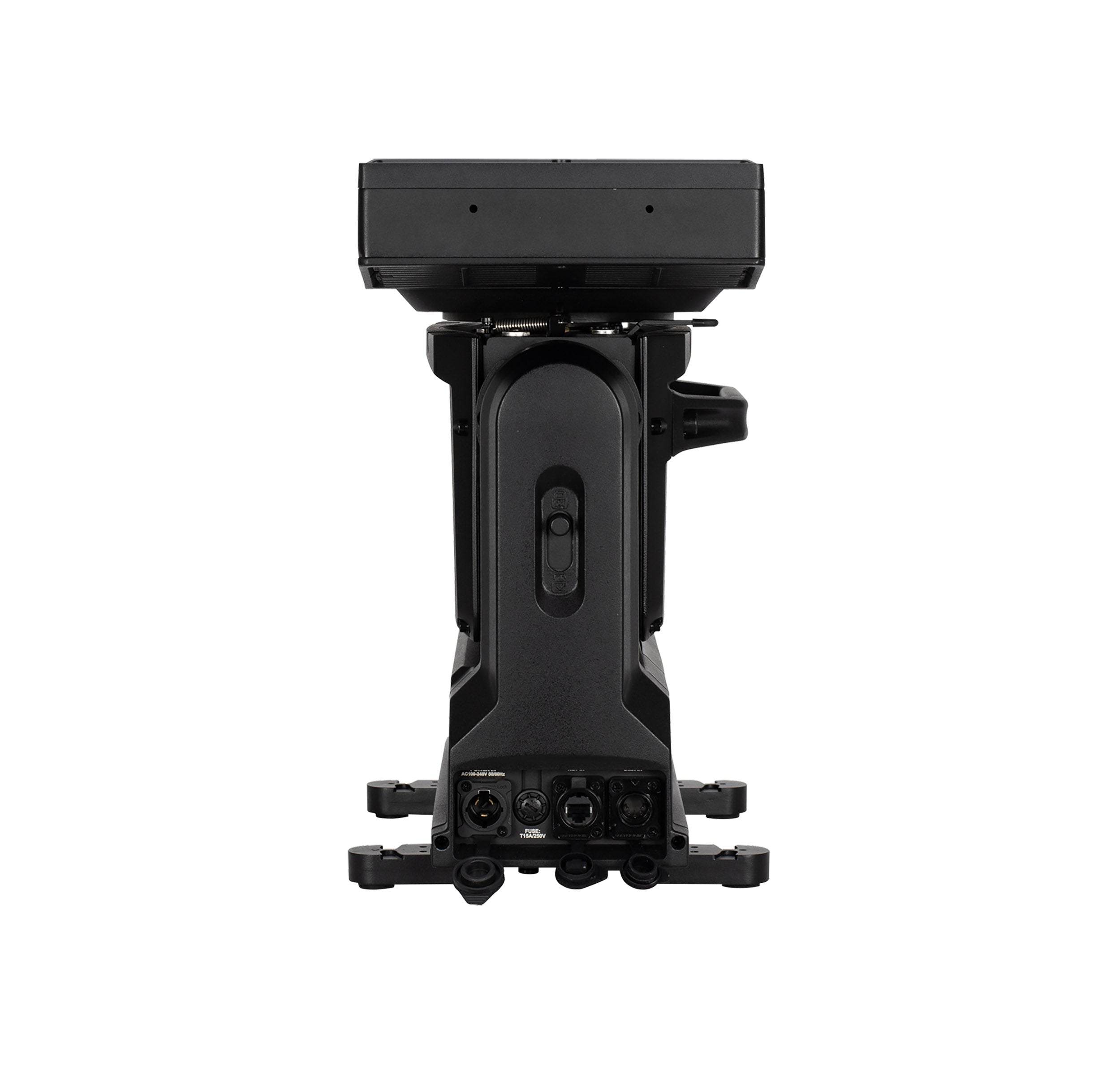

Connections: IP65 5-pin XLR DMX In/Out, IP65 RJ45 Ethernet in/Out (Art-Net, sACN, KlingNet).
Operating Temp: -4°F to 113°F (-20°C to 45°C)
Shipping Weight: 40 lbs
Shipping Dimensions: 9 x 17 x 16 inches
