Description
The Elation Pulse Panel, IP65 Rated RGB & CW Strobe Panel adds a burst of dynamism and inspiration to any show. Designers have asked for effect lights that are more than a one-trick pony and the PULSE PANEL delivers with multi-functionality as a powerful strobe, bright blinder, high-output wash light or creative eye candy effect all in one.

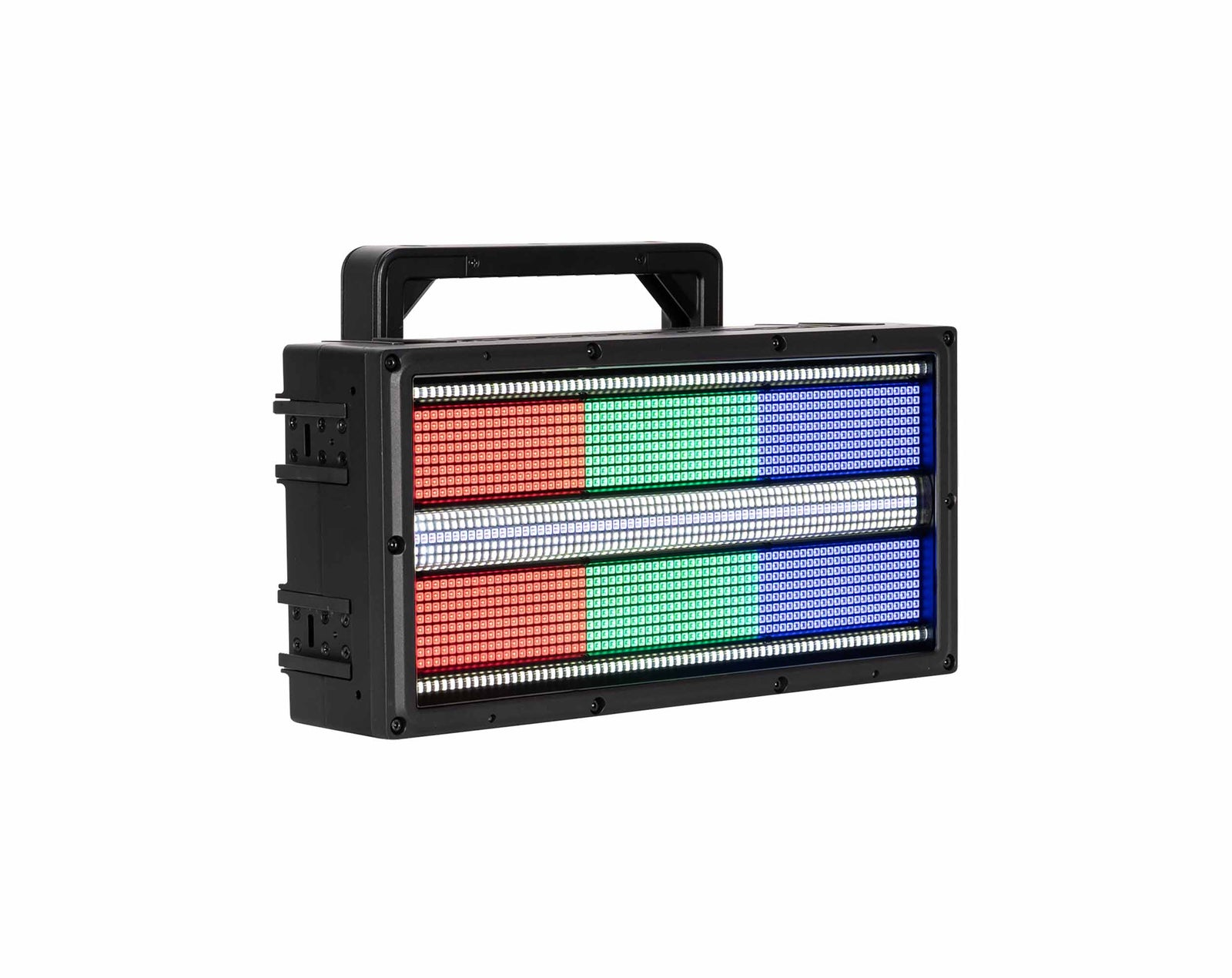

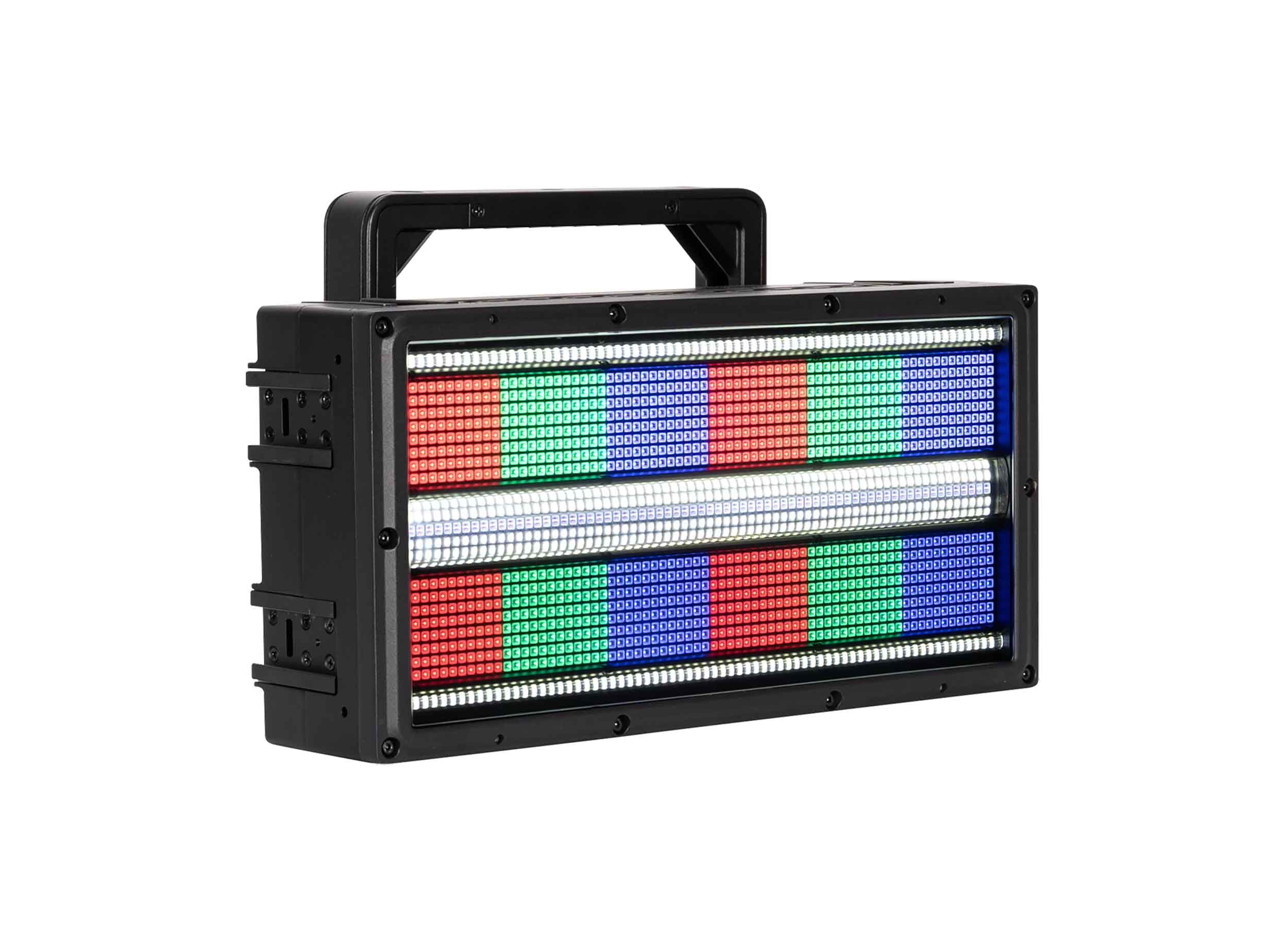

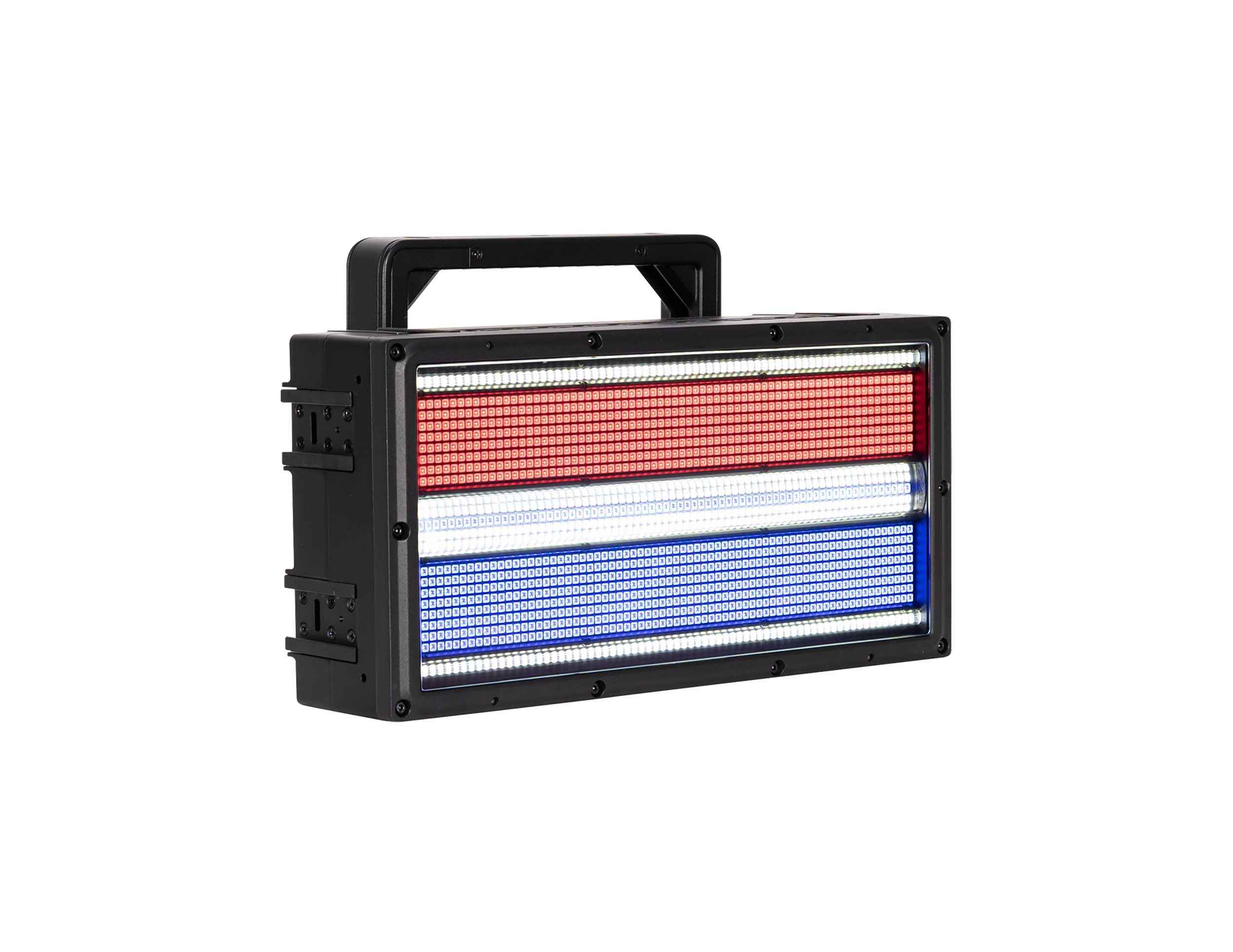

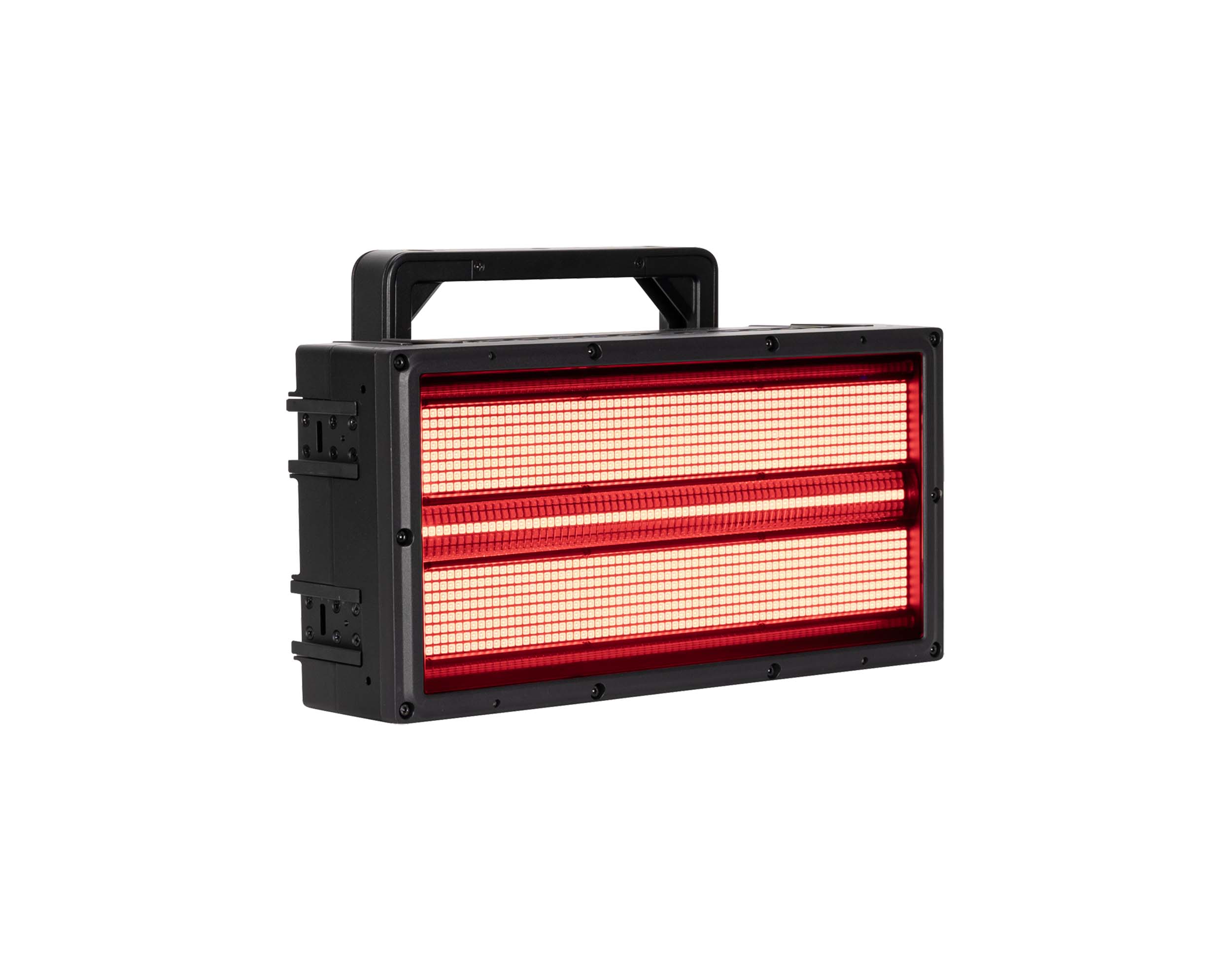

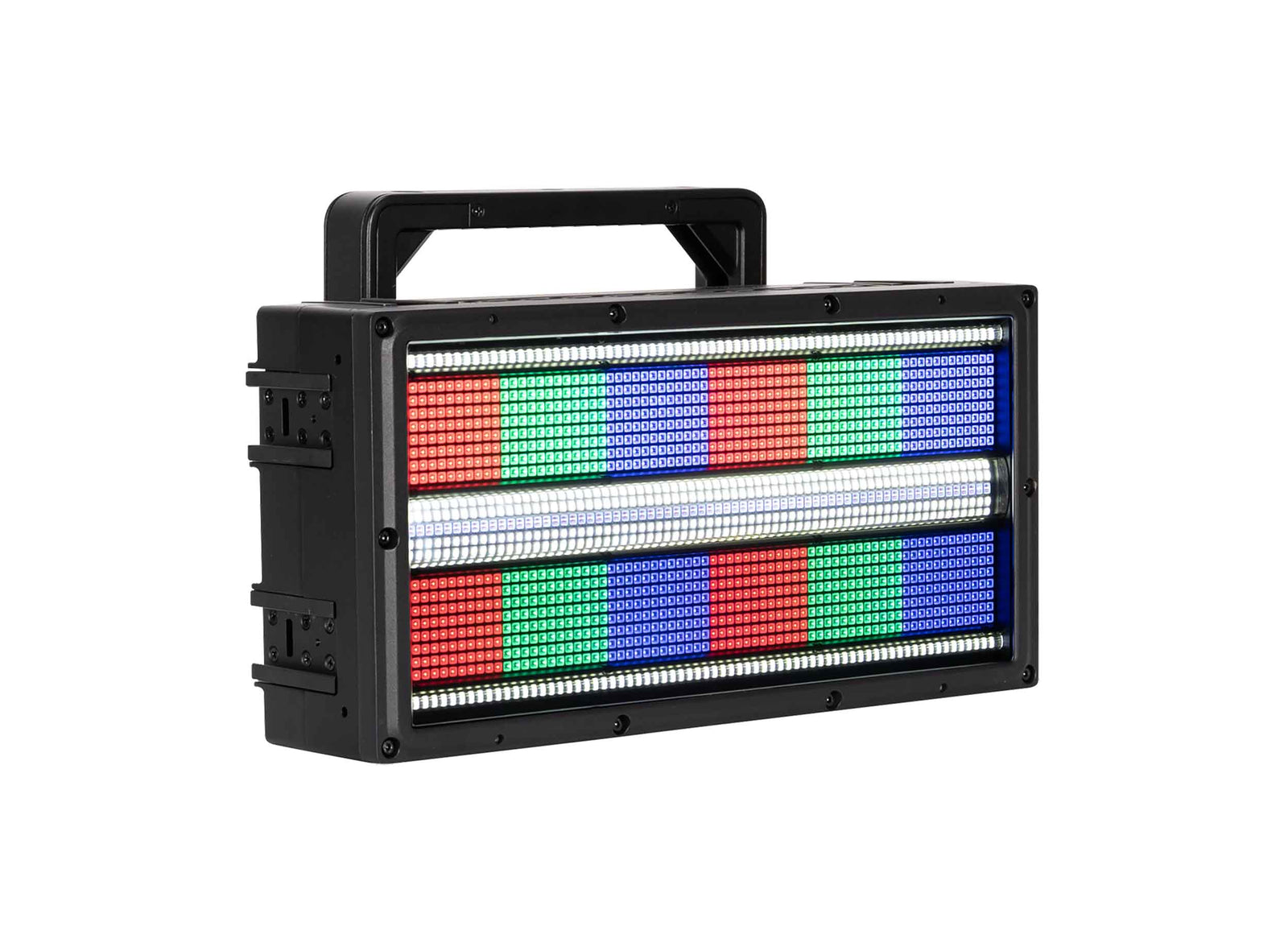

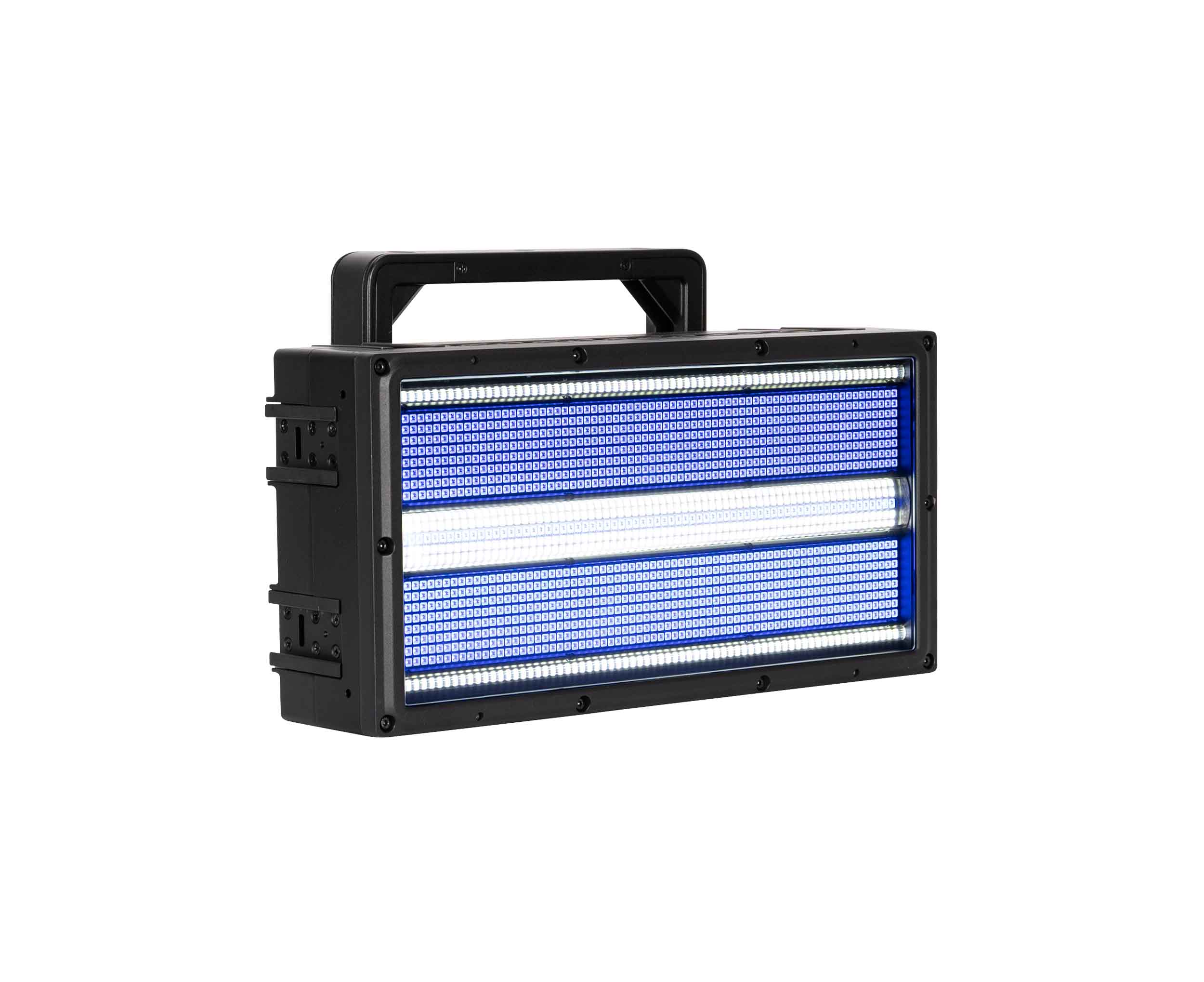

The PULSE PANEL features the same LED layout found on the Pulse Panel FX. 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter, arranged in a grid of 6 zones wide and 4 zones tall. In addition to this, it includes a central strobe line comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall. These are separated by a line of 96 1.5W RGB LEDs divided into 12 zones. Furthermore, there are 144 additional 5W cool-white LEDs divided into 24 zones, with 12 zones at the top and 12 at the bottom of the fixture's face. These outer LEDs utilize a linear prismatic lens similar to those used in our Rayzor Blade fixtures. When combined, these components deliver an astonishing output exceeding 100,000 total lumens.
PULSE PANEL also includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming. The PULSE PANEL offers the ability to mirror control of the external strobe lines and center RGB strobe line via DMX control channel, or the menu to make cloning easier.

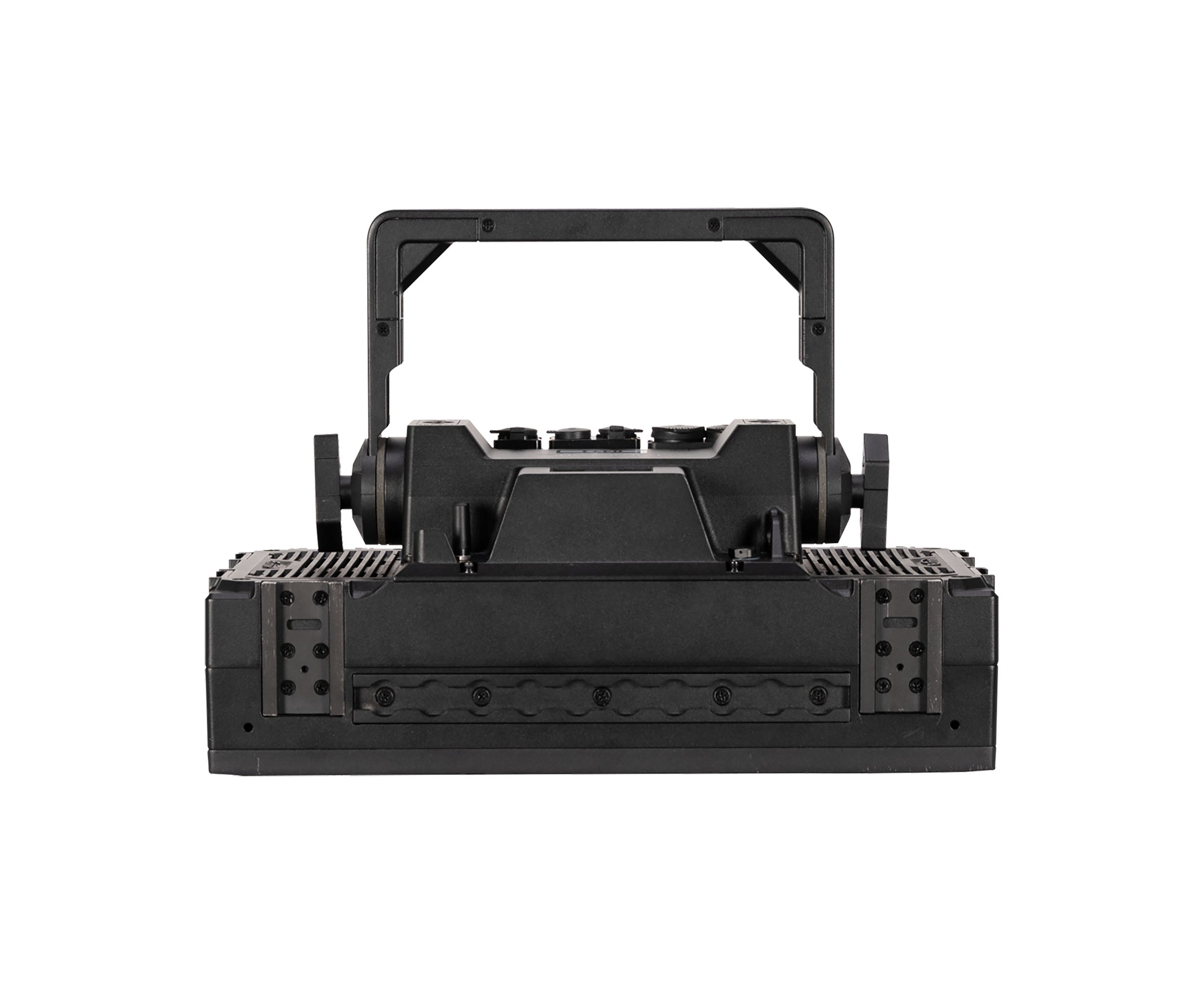

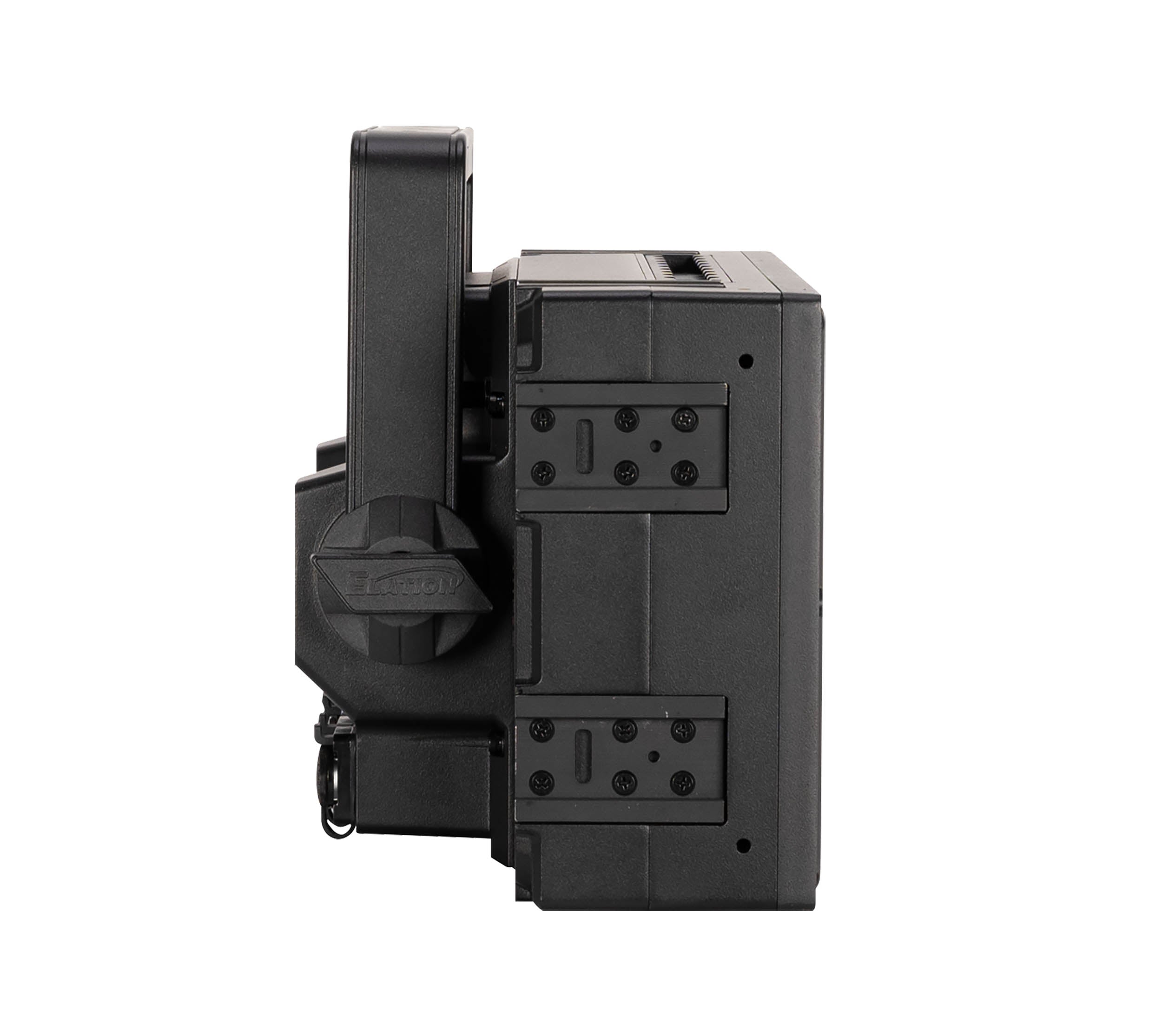

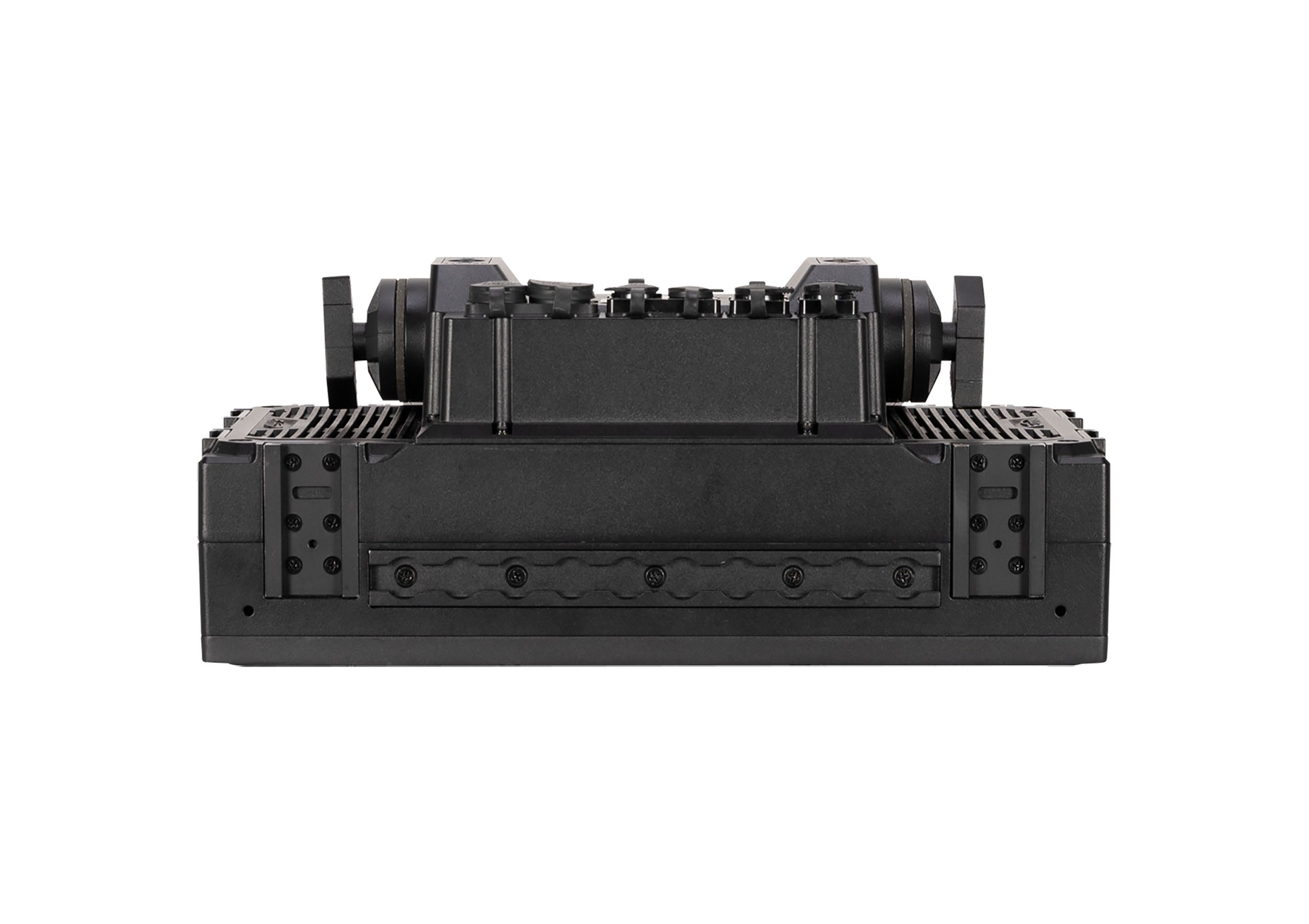

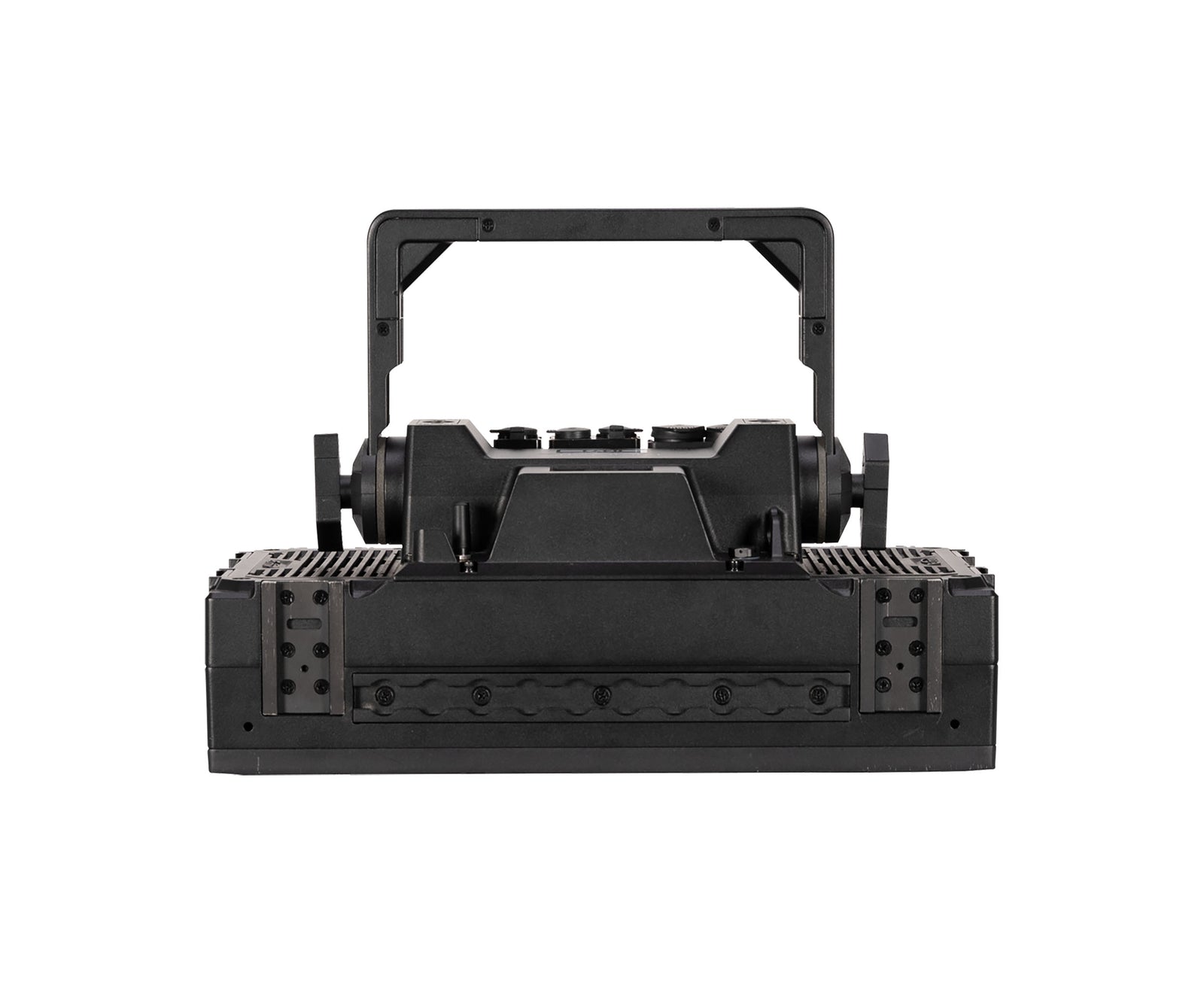

The PULSE PANEL is encased in a durable, fully IP65-rated housing, making it suitable for any environment, indoors or outdoors. The housing includes a unique interlocking mechanism to allow the unit to be hung vertically, or horizontally from other PULSE PANEL fixtures, or SŌL Blinder Frame arrays as well. The unit also integrates airline track on the top and bottom. The housing can accept optional diffusion filters, ND filters and other optics.
Controlled via DMX, RDM, Art-Net, sACN, and KlingNet protocols. It also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.
Product Specifications:
Source:
(1248) 1.5W RGB LEDs
(432) 5W CW Strobe LEDs
50,000 Hour Average LED Life
Photometric Data:
Total Lumen Output:
Integrating Sphere
All LED: 77,919 Lumens
CW LED:110,709 Lumens
RGB LED: 49,868 Lumens
CRI: >70
Beam Angle: 68°
Field Angle: 112°
Effects:
48 Zones of RGB Plate LEDs (6 x 4)
48 Zones of CW Strobe LEDs (12 x 4)
12 Zones of RGB Strobe Line LED's (12 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves
Color:RGB Color Array

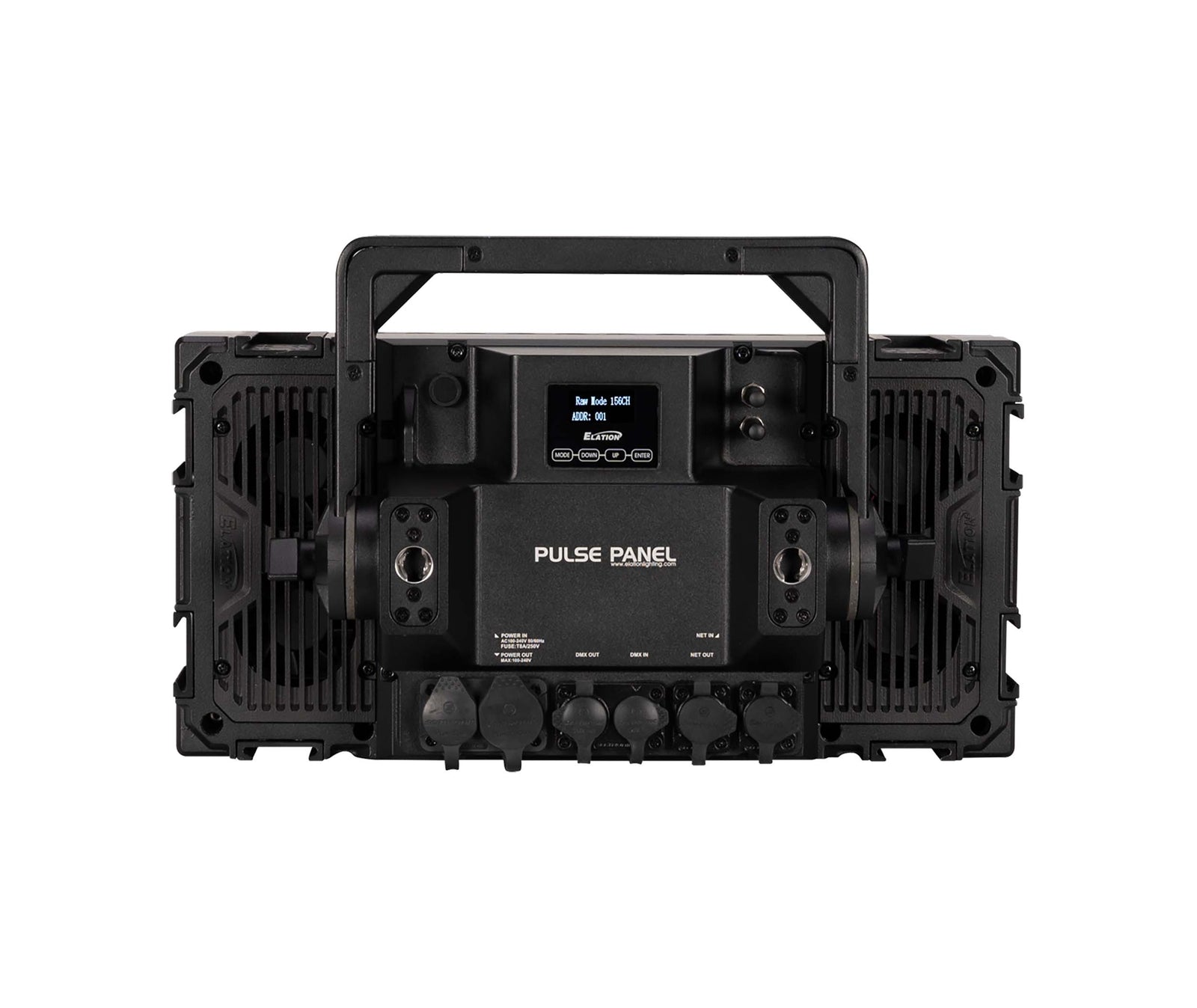

Control / Connections:
9 DMX Channel Modes (3ch, 12ch, 22ch, 45ch, 60ch, 170ch, 88ch, 178ch, 156ch)

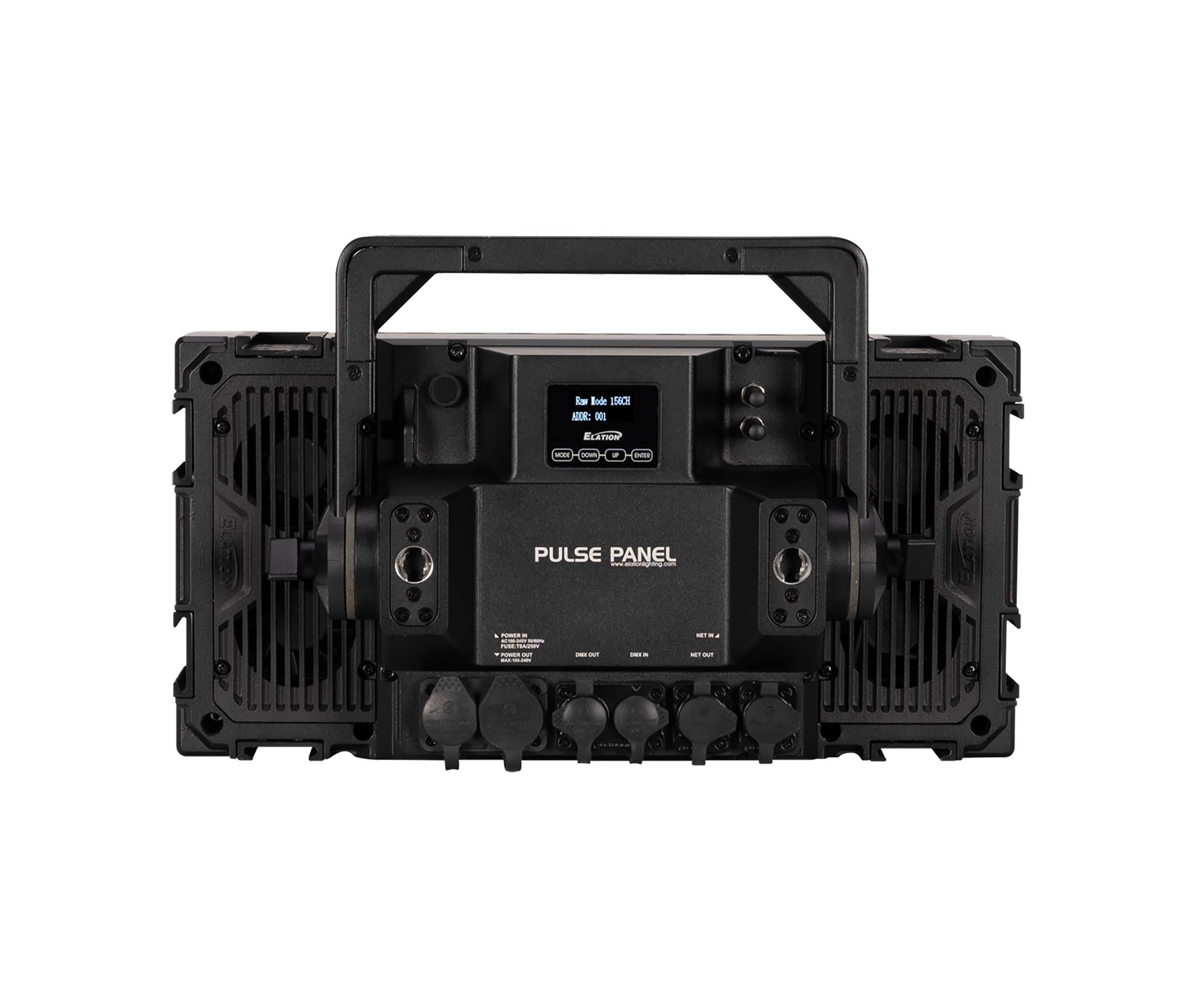

4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

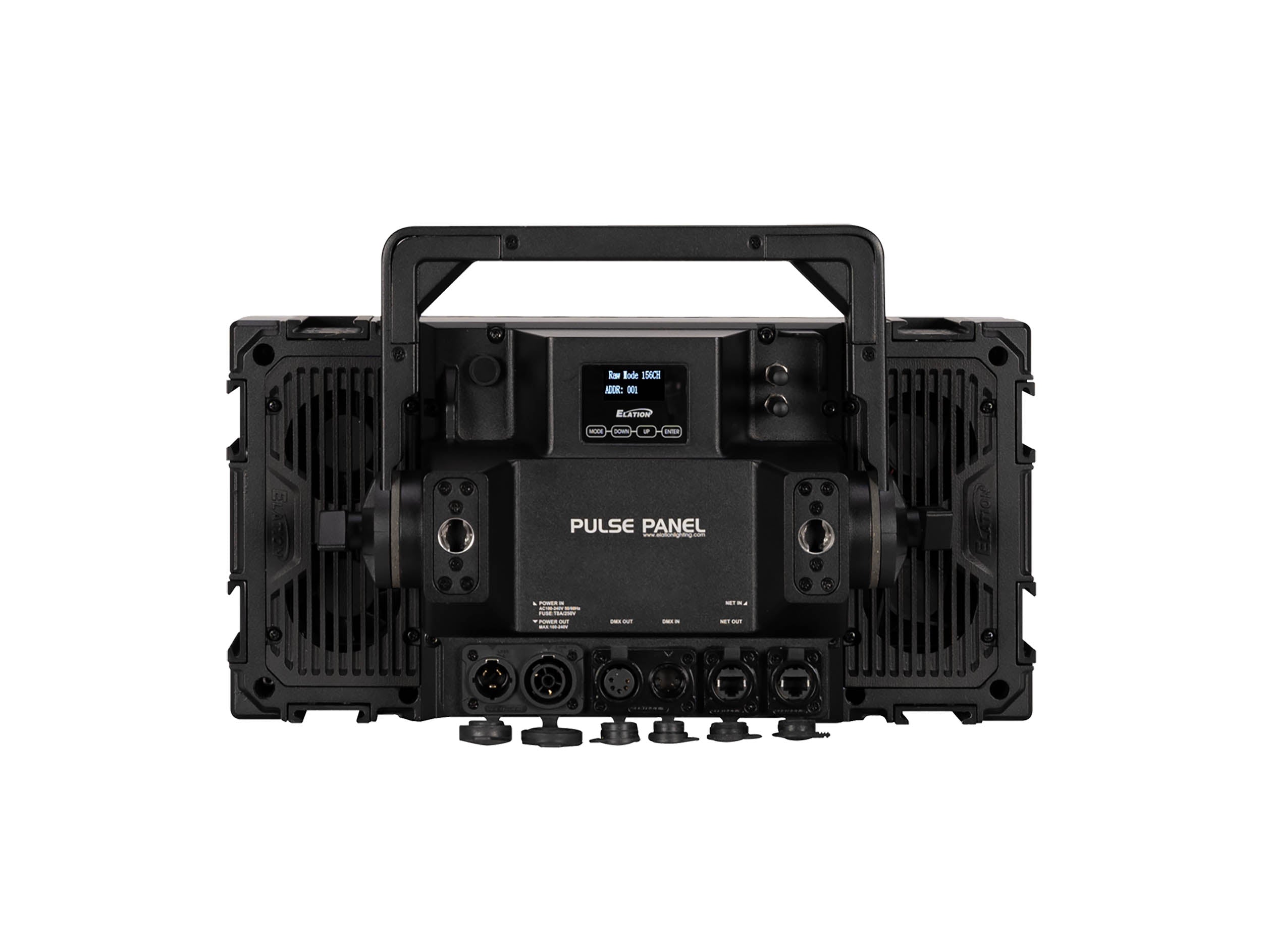

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
IP65 Locking Power Cable In
Size / Weight:
Length: 11.78 in (299.3mm)
Width: 16.53 in (420mm)
Height: 8.26 in (210mm)
Weight: 29.5 lbs. (13.4kg)
Electrical / Thermal:
AC 100-240V - 50/60Hz
Max Power Consumption 1400W
-4°F to 113°F (-20°C to 45°C)
BTU/hr. (+/- 10%) 4774
Included Items:
Safety Cable
IP65 Locking Power Cable
2x Fixture Interconnect Splice
Optional Items:
SŌL/PULSE HD Yoke (SPHDY)
Fixture Interconnect Splice Package (FISP06)
Interconnect Clamp Adapter (FICA01)
Approvals / Ratings:CE | cETLus | UL | IP65c| FCC | UKCA
