Description

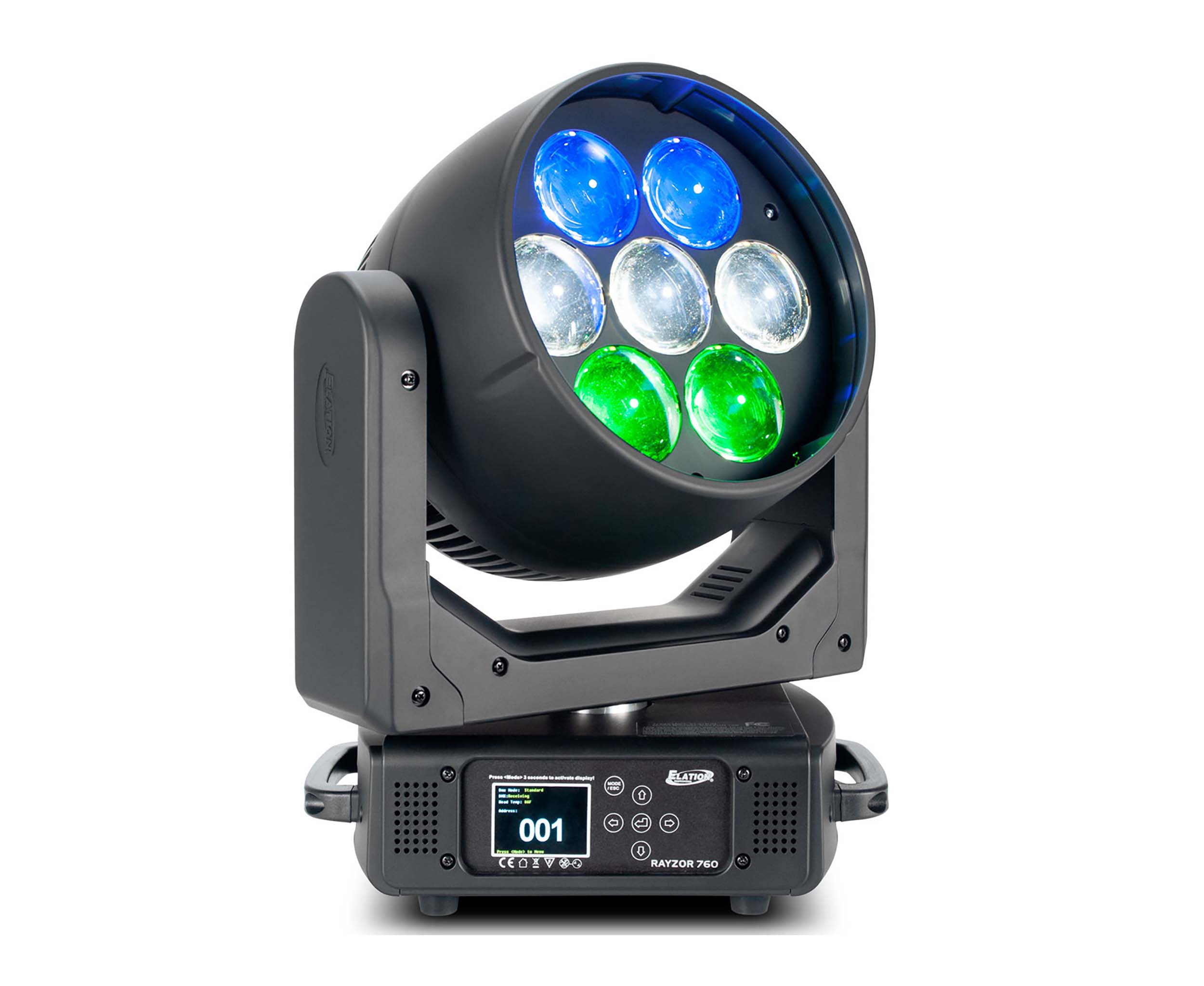

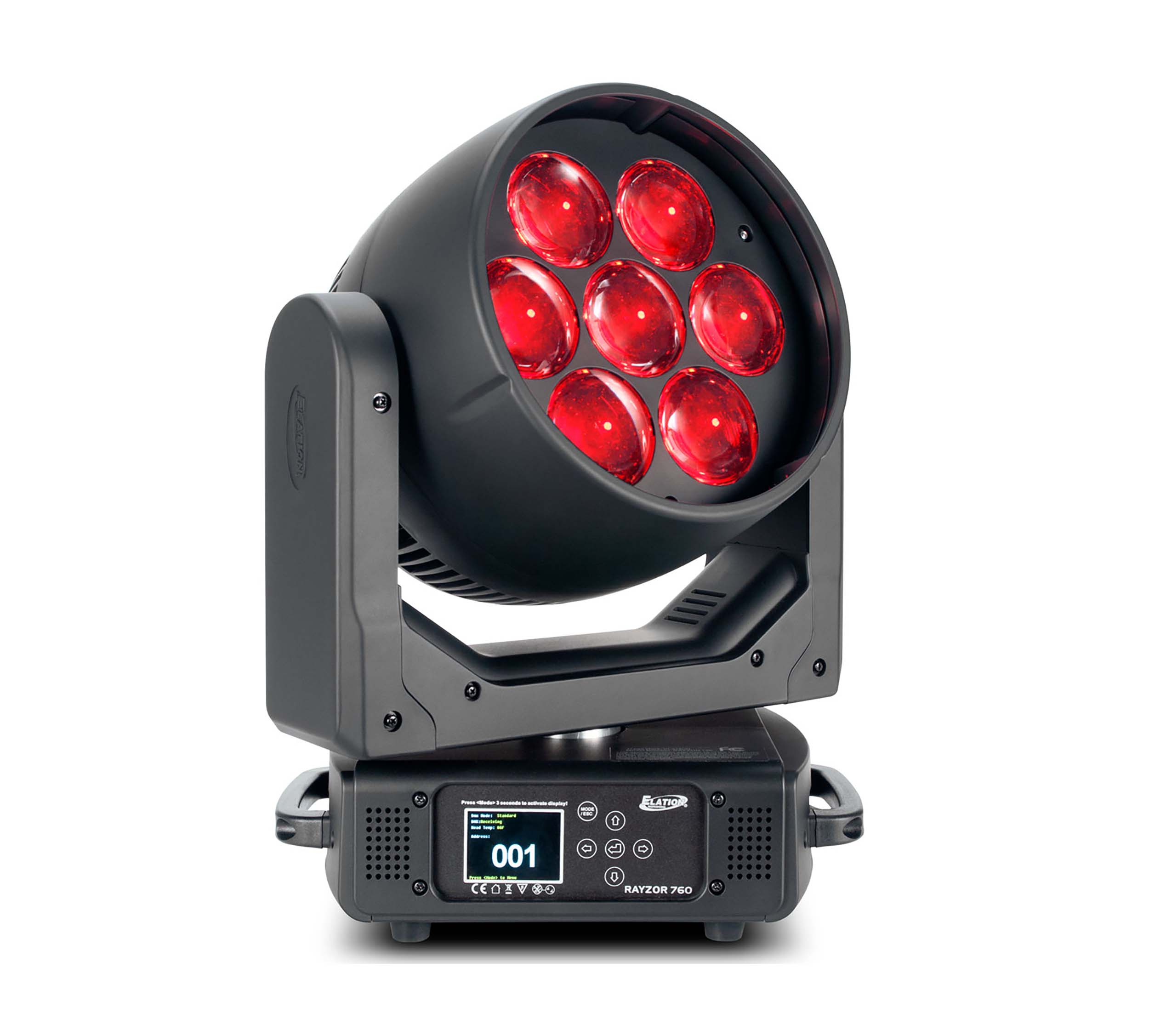

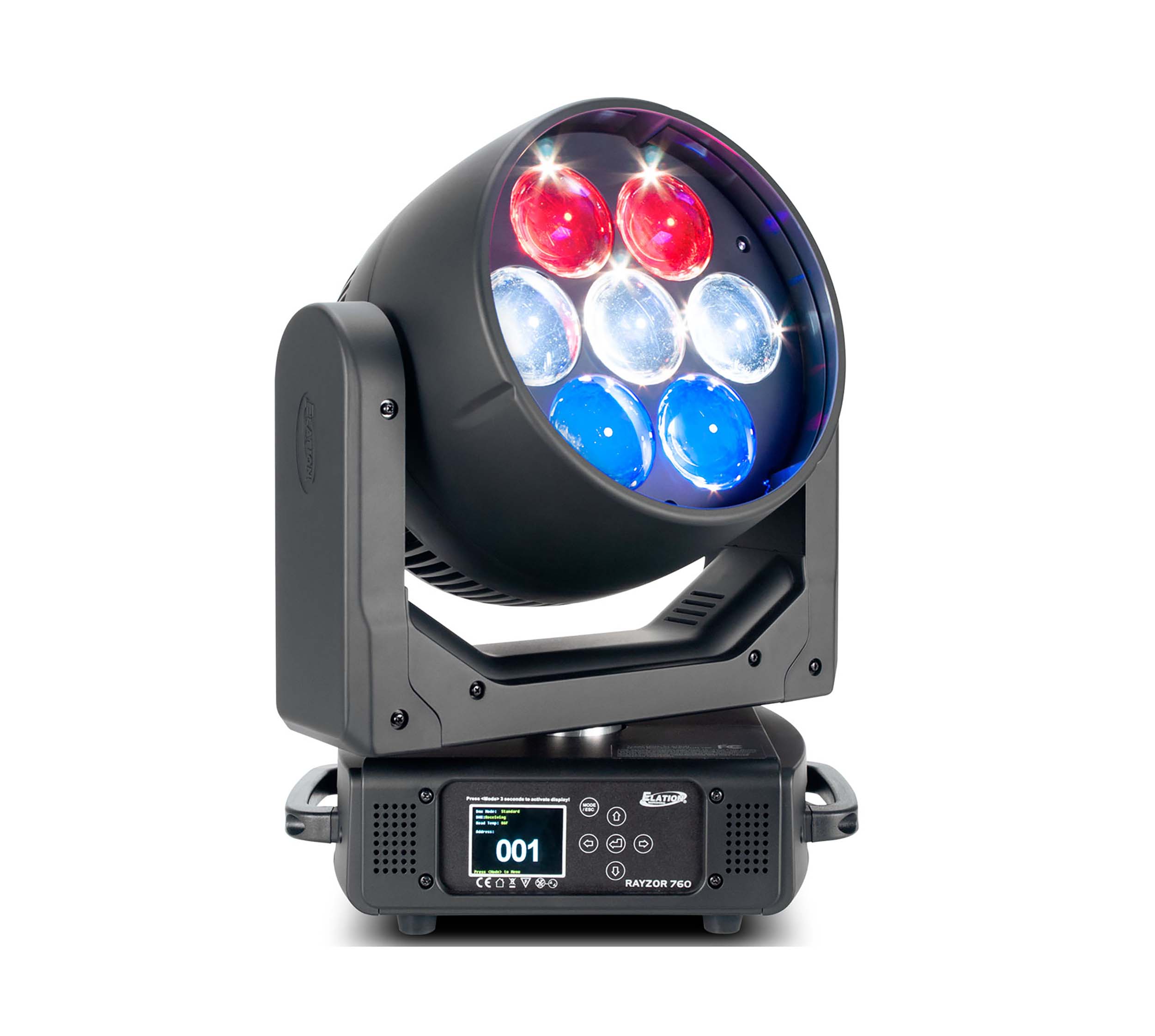

The Elation RAYZOR 760, 7x 60-Watt RGBW LED Wash Fixture with SparkLED Effect is a compact yet extremely powerful Wash Effects fixture featuring Elation’s unique SparkLED system and fast continuous Pan and Tilt motion. With its wide zoom range from 5° to 77° it provides intense and well-defined mid-air beams at over 8,000 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

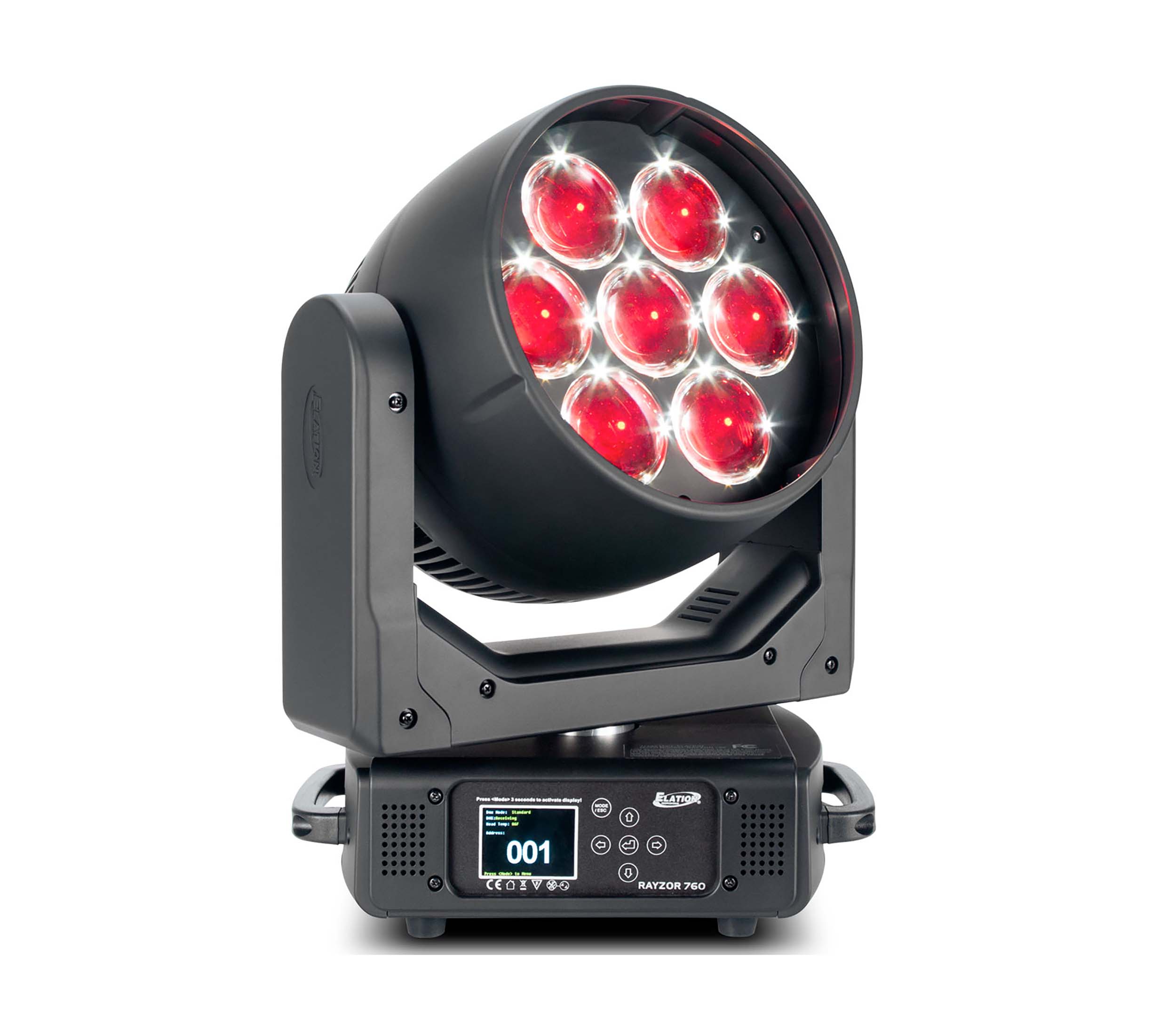

Driven by 7, independently controlled, 60W RGBW LEDs, delivering over 8,000 lumens of output with a total power of 420W, the Rayzor 760 provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Rayzor 760 offers this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.
In addition to its powerful wash and enhanced effects, the Rayzor 760 offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.

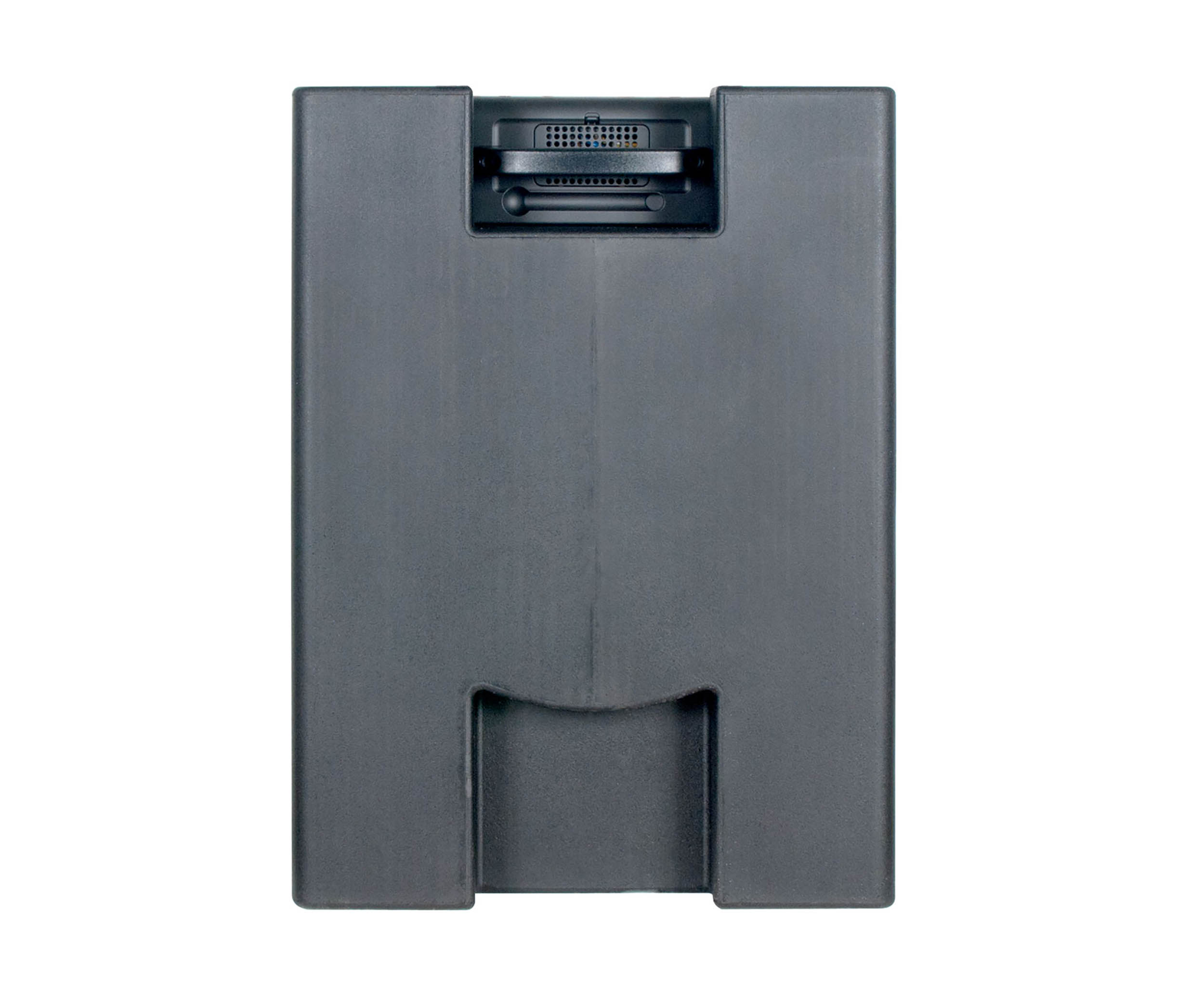

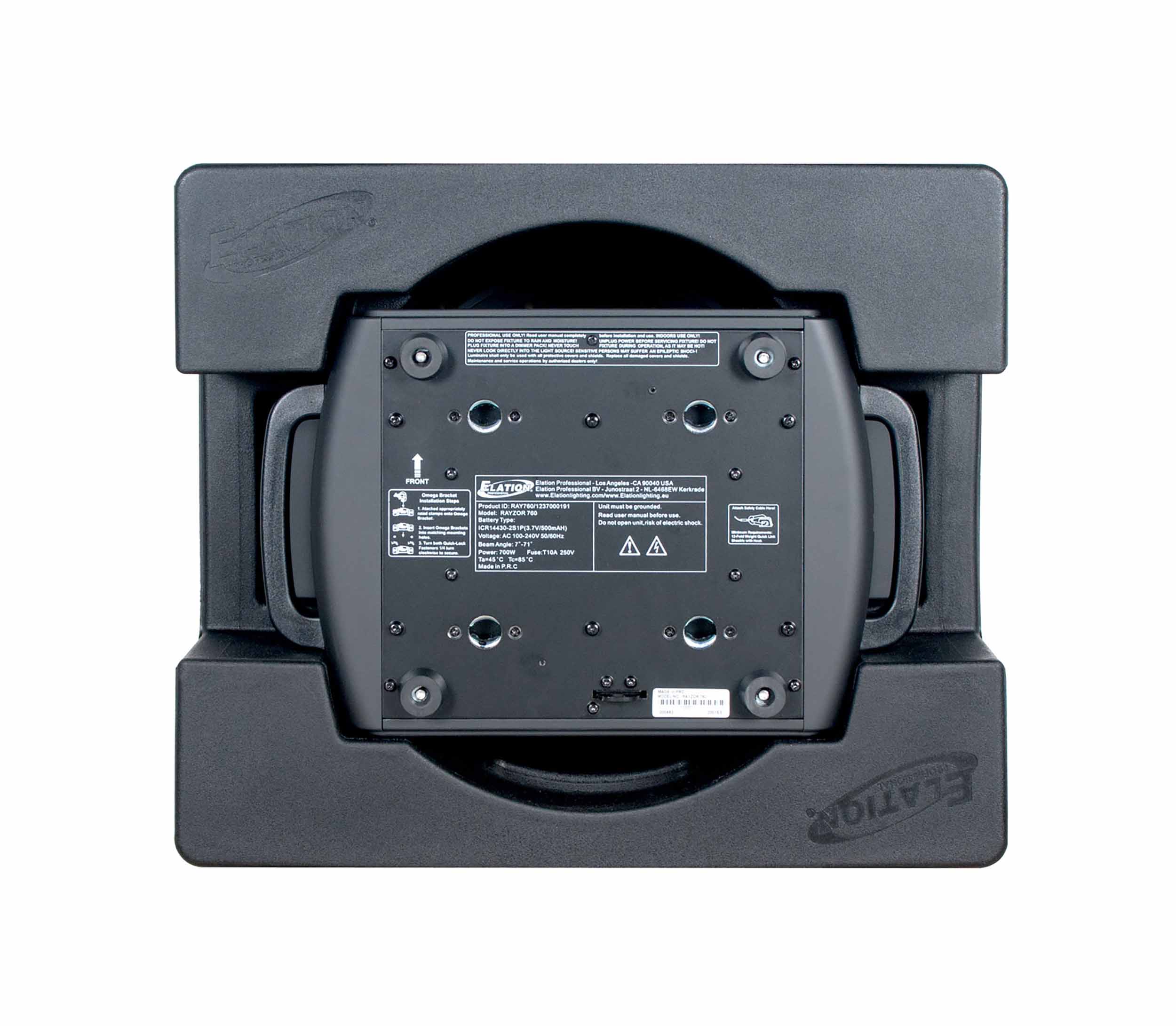

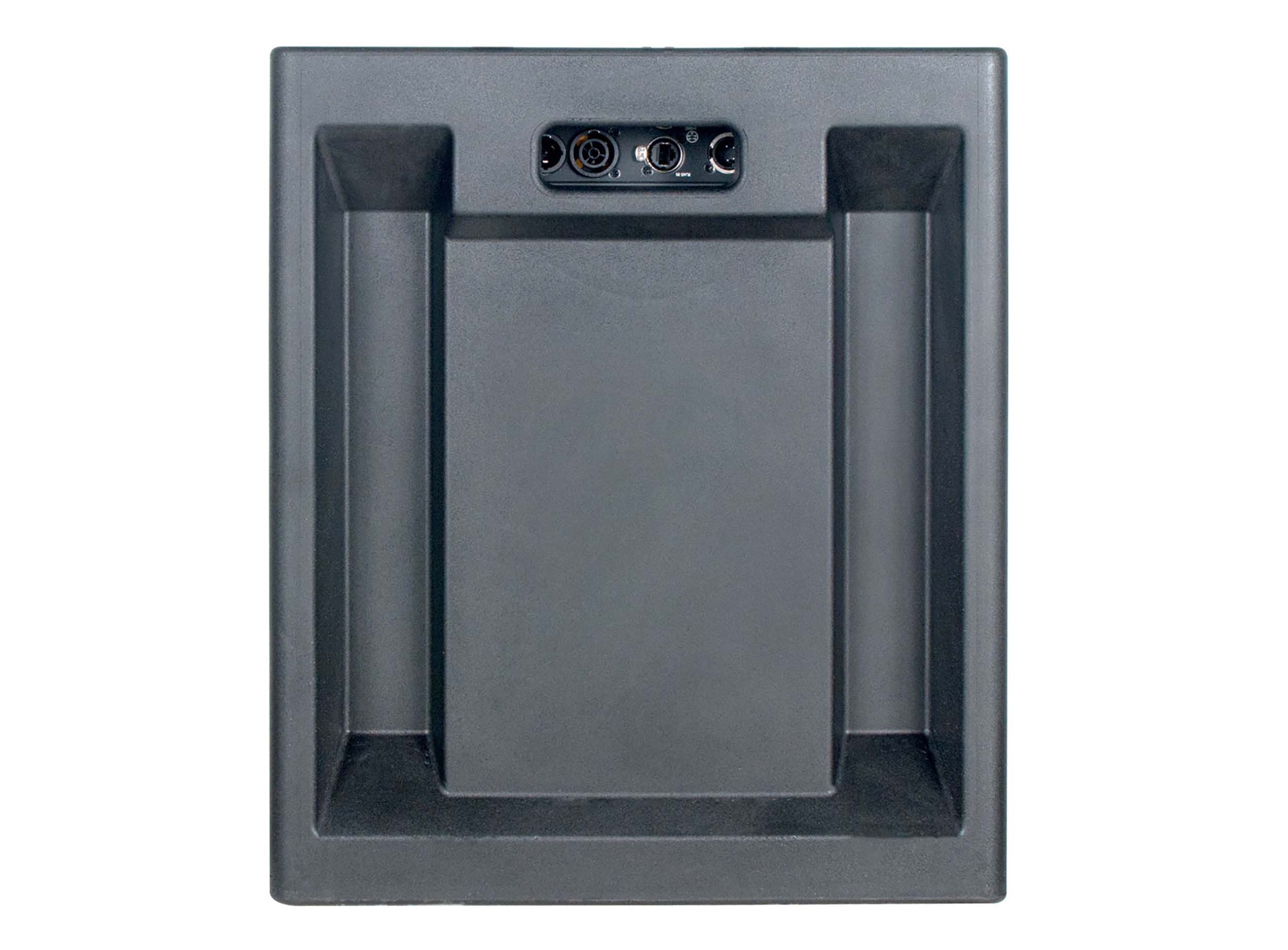

The Rayzor 760 fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.
Product Specifications:
Source:
(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED
50,000 Hour Average LED Life
Photometric Data:
8,400 Total Lumen Output
CRI 80
Zoom Range: 5° - 77°
Beam Angle: 5.4° - 57.3°
Field Angle: 7.4° - 73.3°
Effects:
Motorized Zoom
Linear Color Temperature Presets (2,700 - 8,000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Pan Angle: 540°/630°
Tilt Angle: 270°/360°
Control / Connections:
3 DMX Channel Modes (25 / 52 / 80)
360° Continuous Pan and Tilt Movement
900 - 25,000 Hz DMX Adjustable Refresh Rate
6 Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-NET, and sACN Protocol Support
5pin XLR DMX In/Out
RJ45 Ethernet In/Out
Locking Power Cable In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
Size / Weight:
Length: 13.4 in (340.4mm)
Width: 8.58 in (218.0mm)
Height: 16.67 in (423.4mm)
Weight: 27.0 lbs. (12.2kg)
Electrical / Thermal:
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hrs. (+/- 10%) 2216.5
Approvals / Ratings: CE | cETLus | IP20 | FCC
