Description

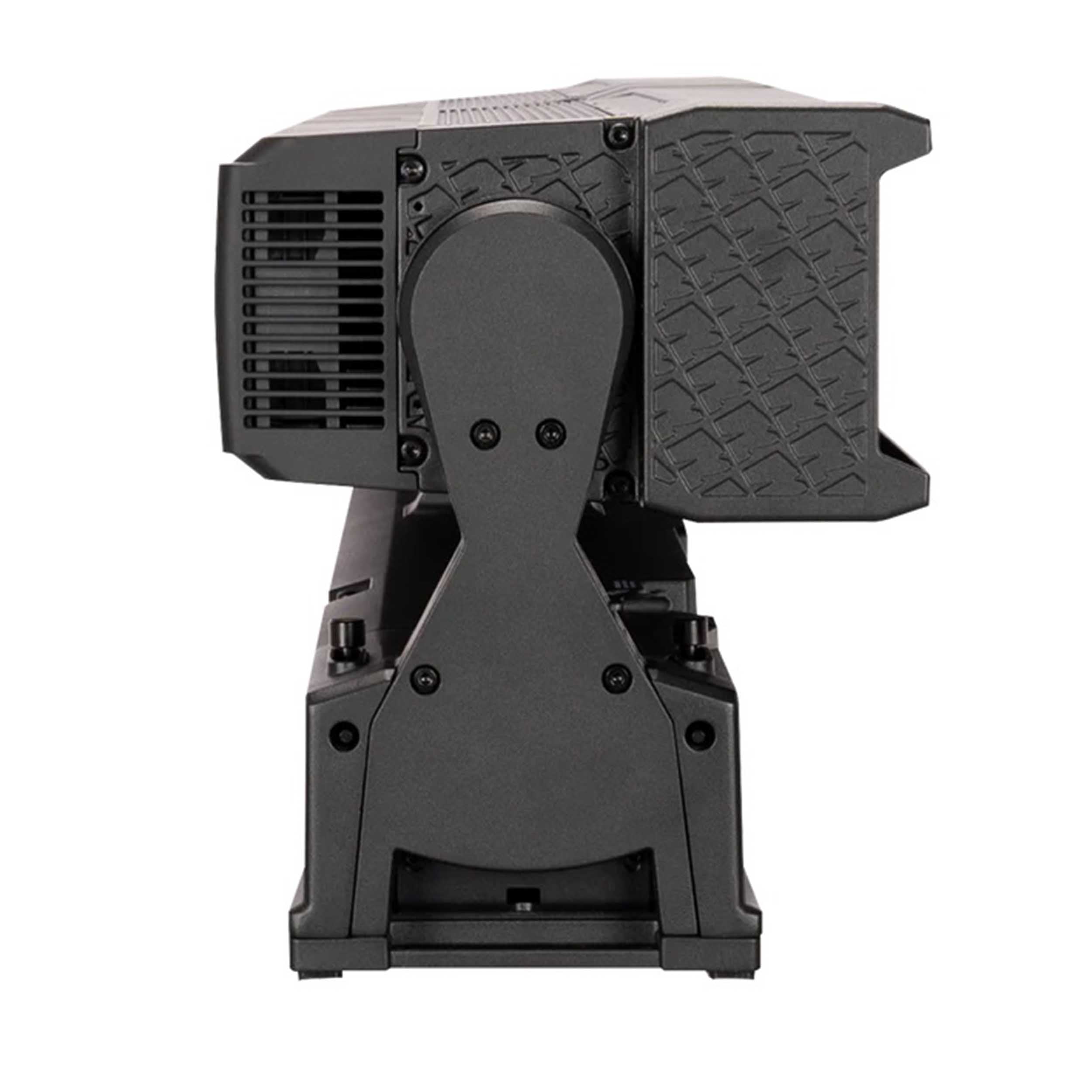

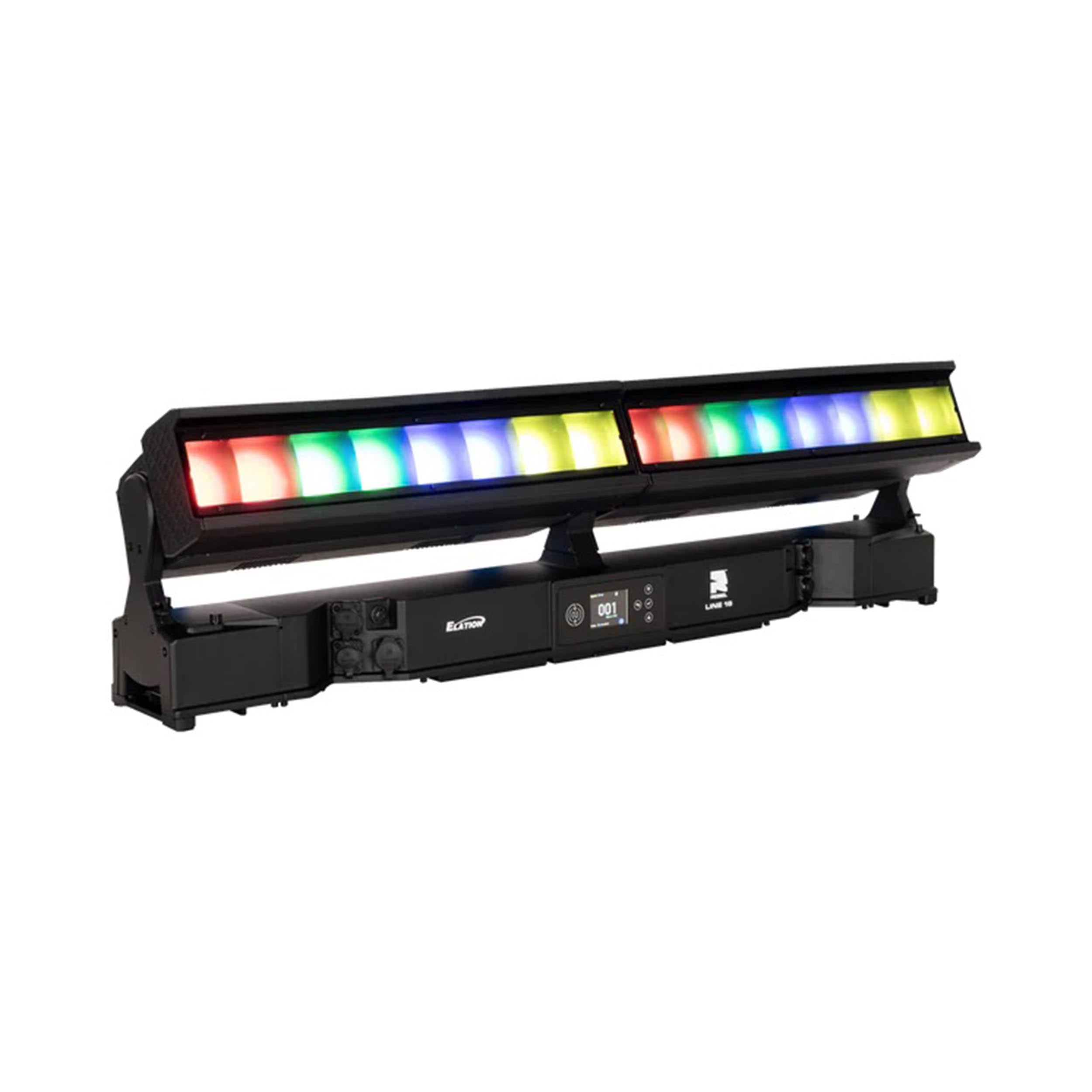

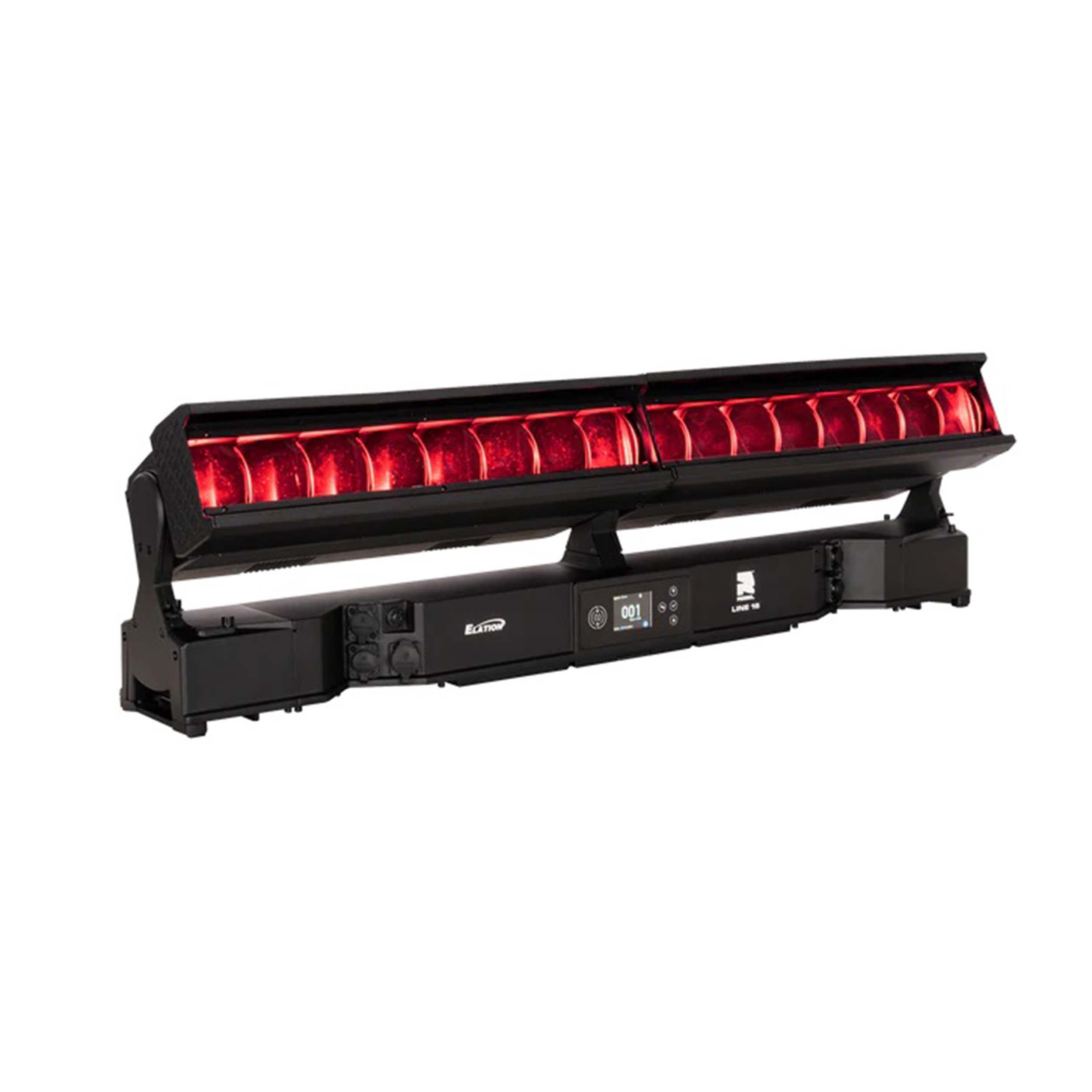

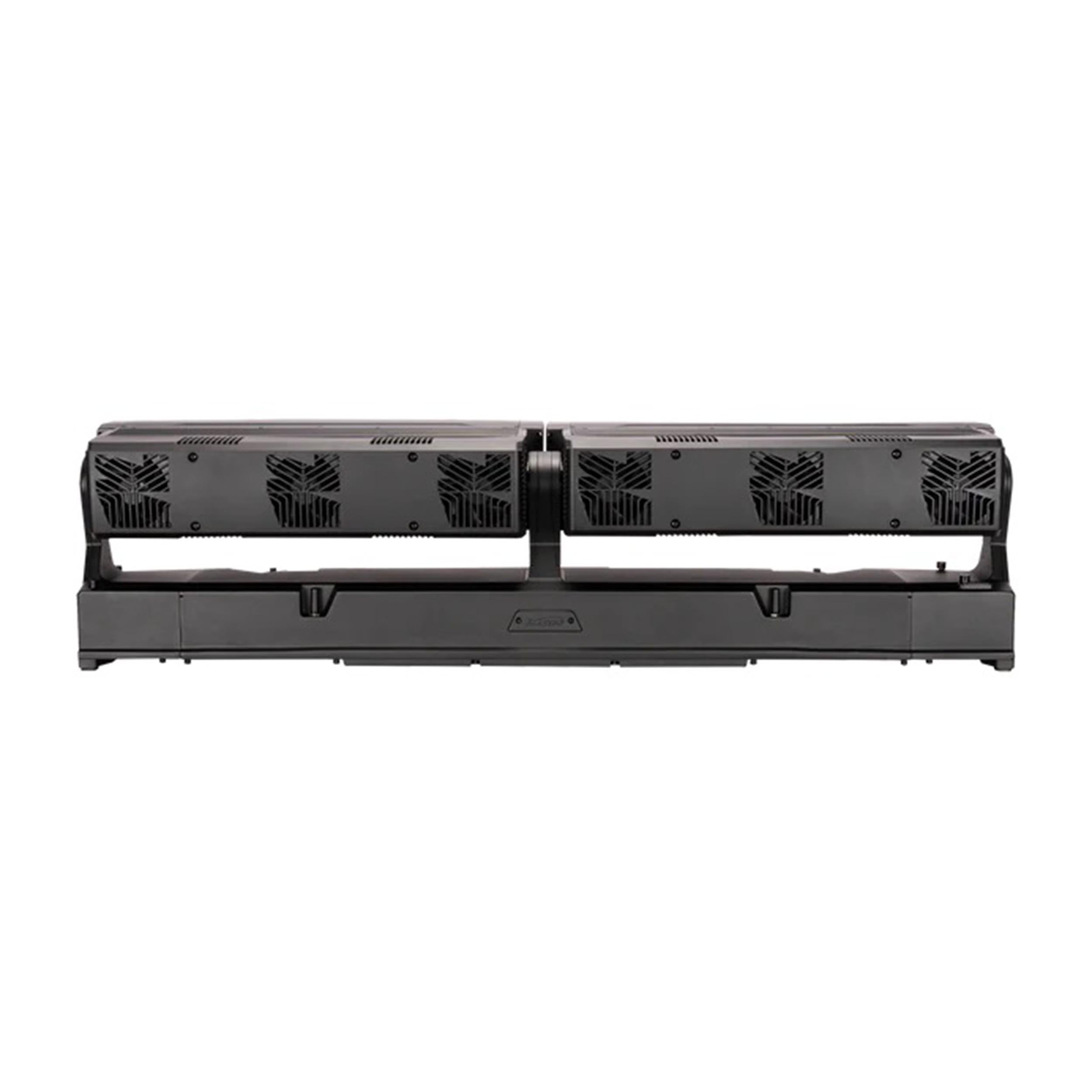

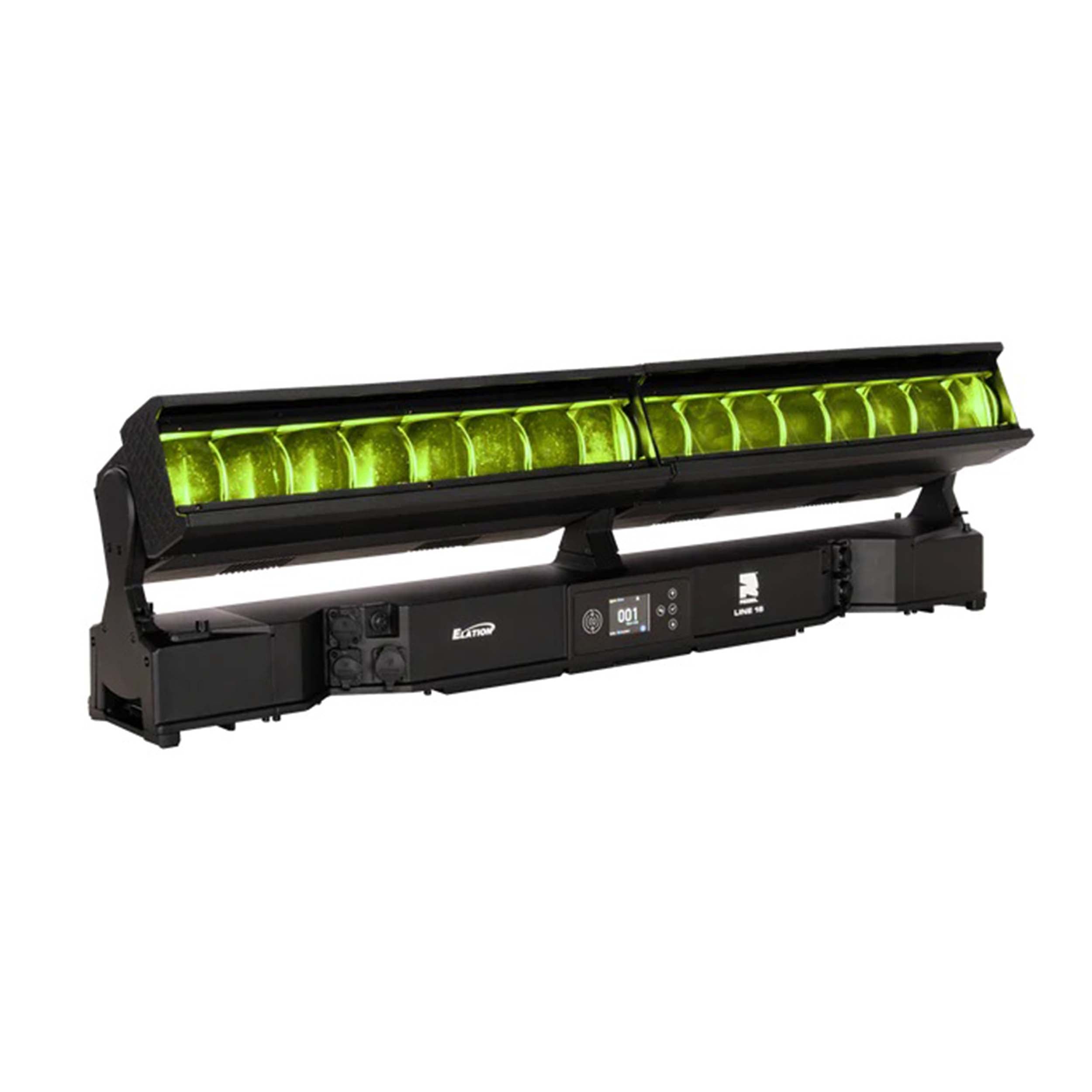

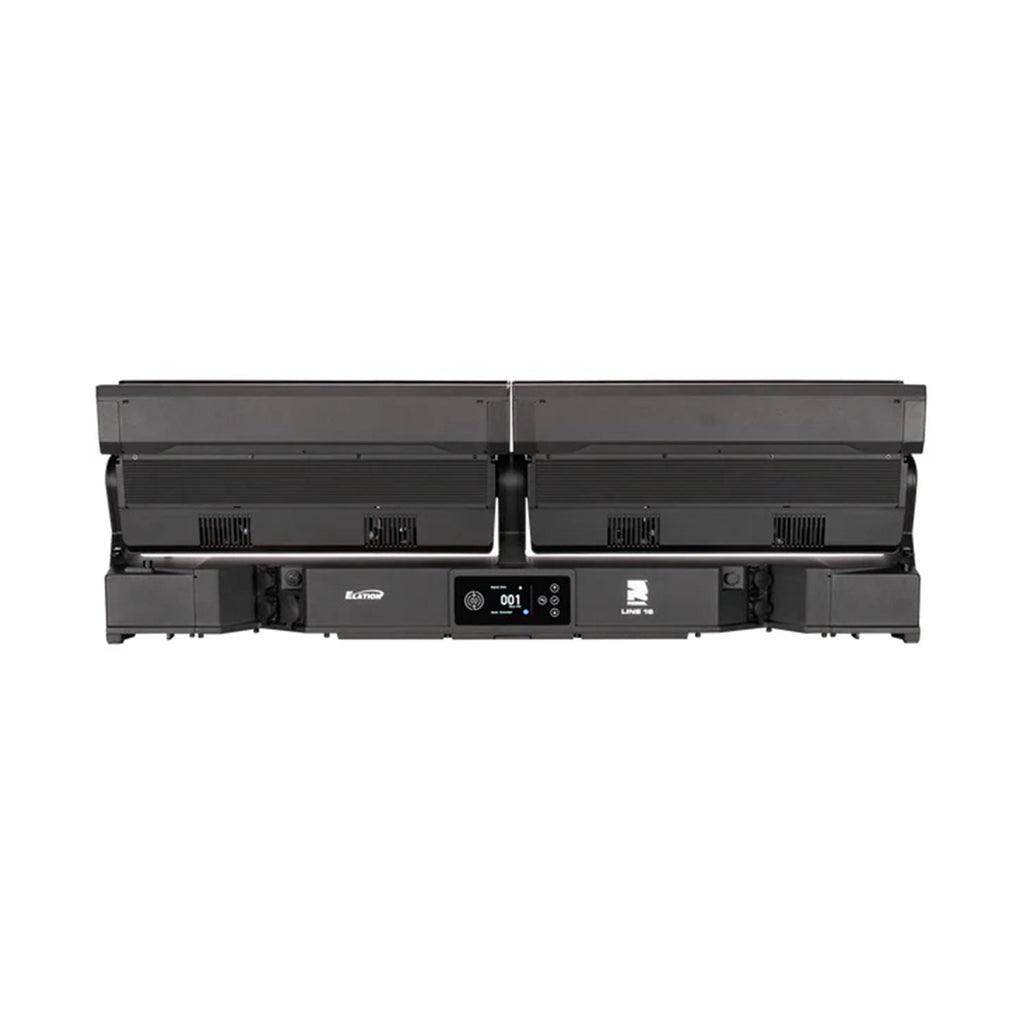

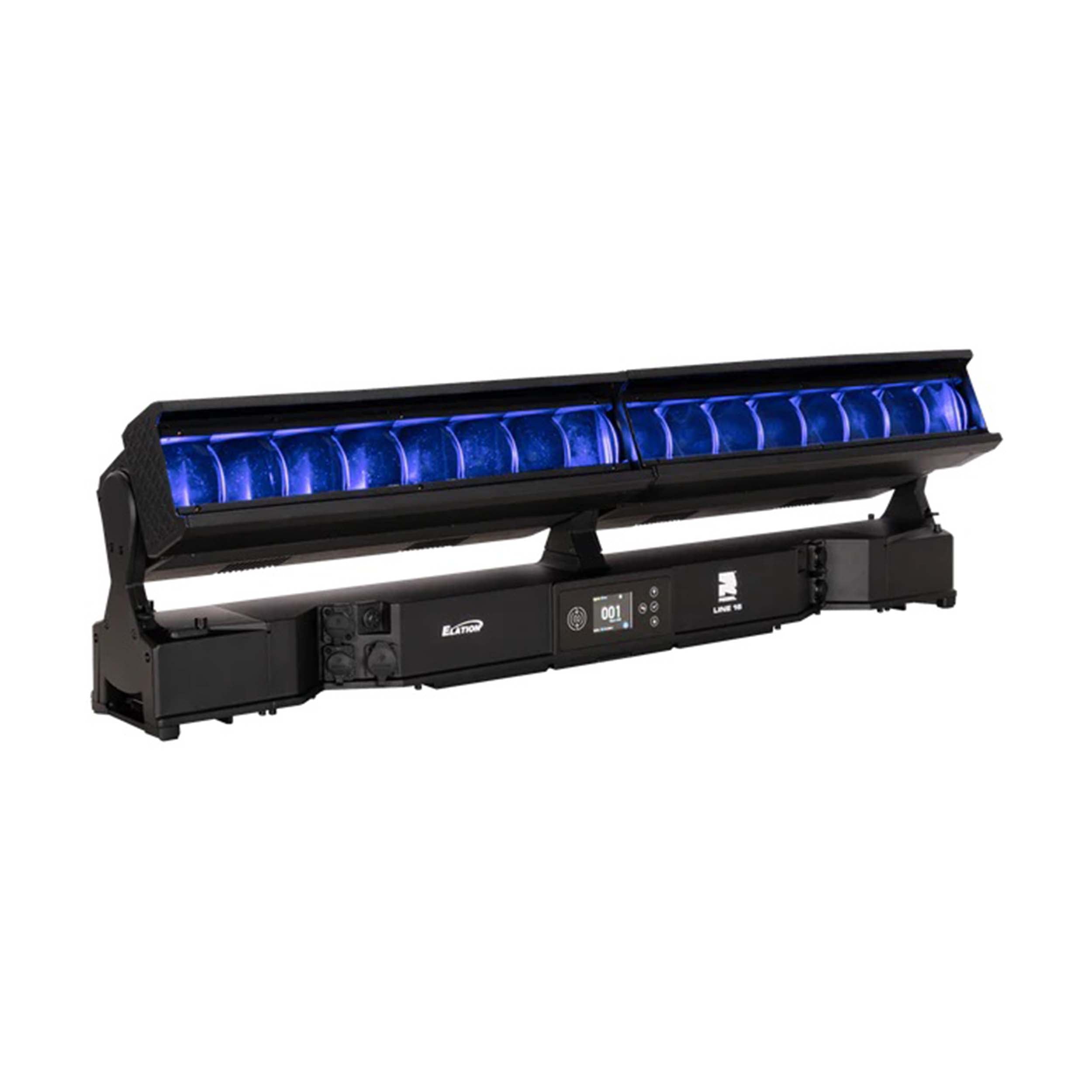

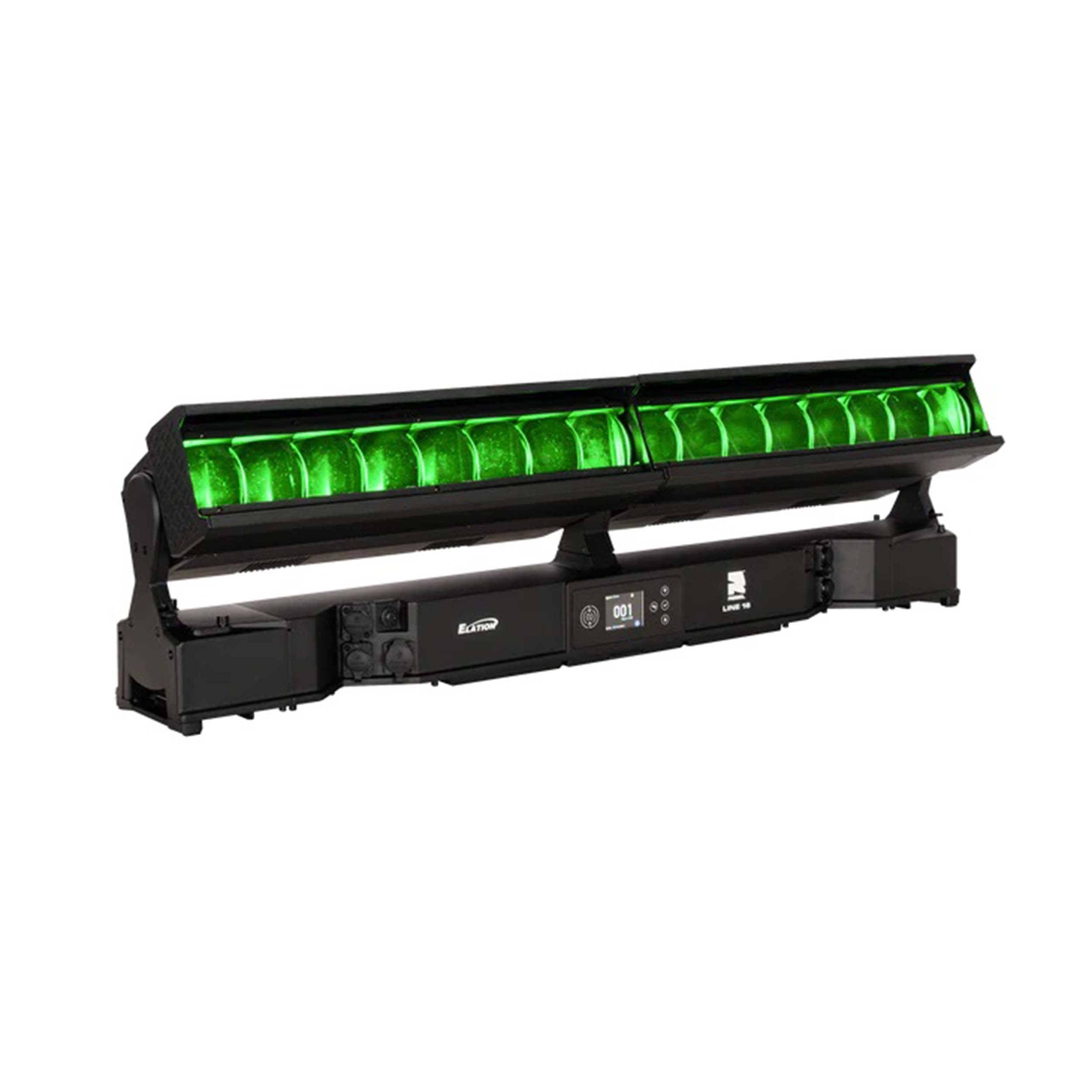

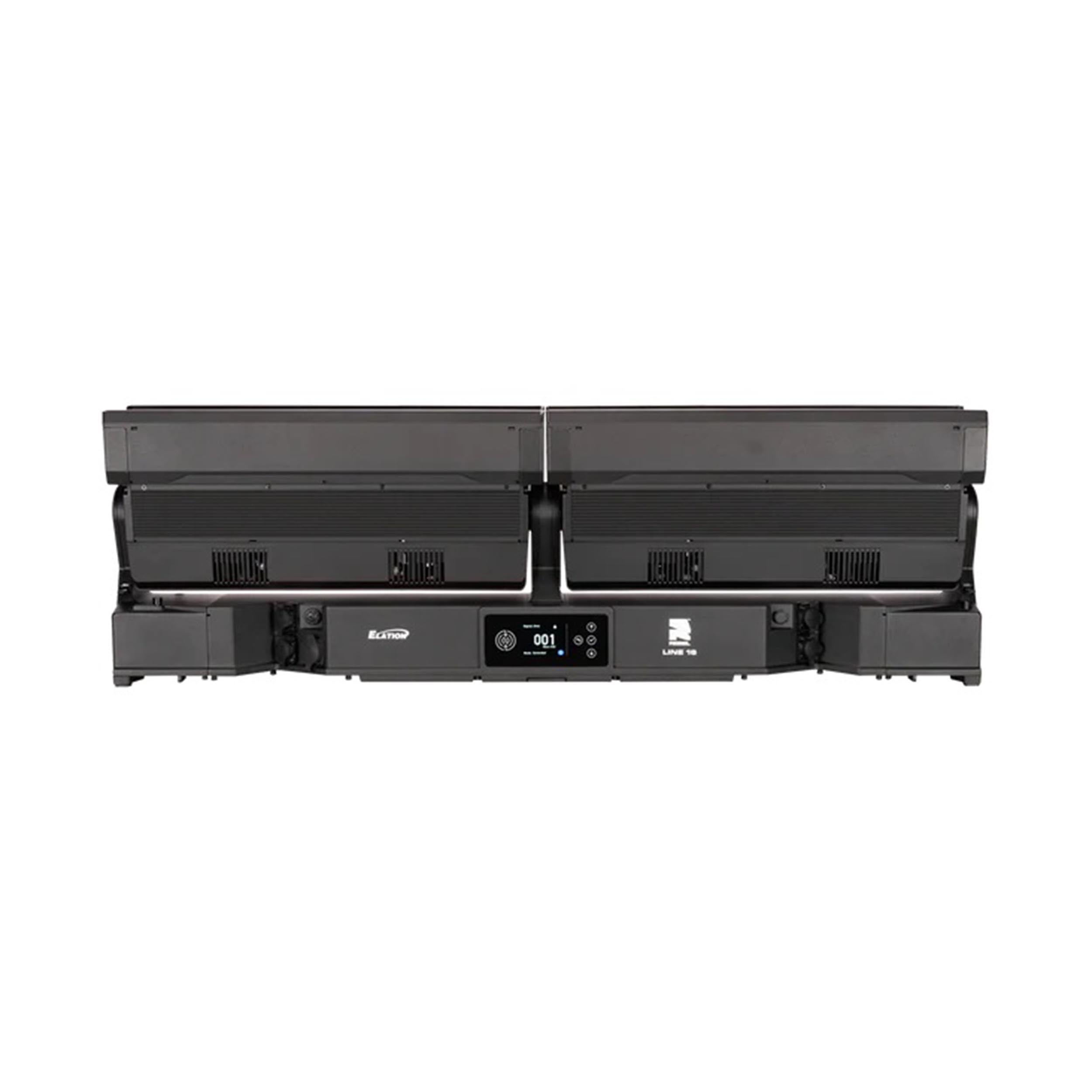

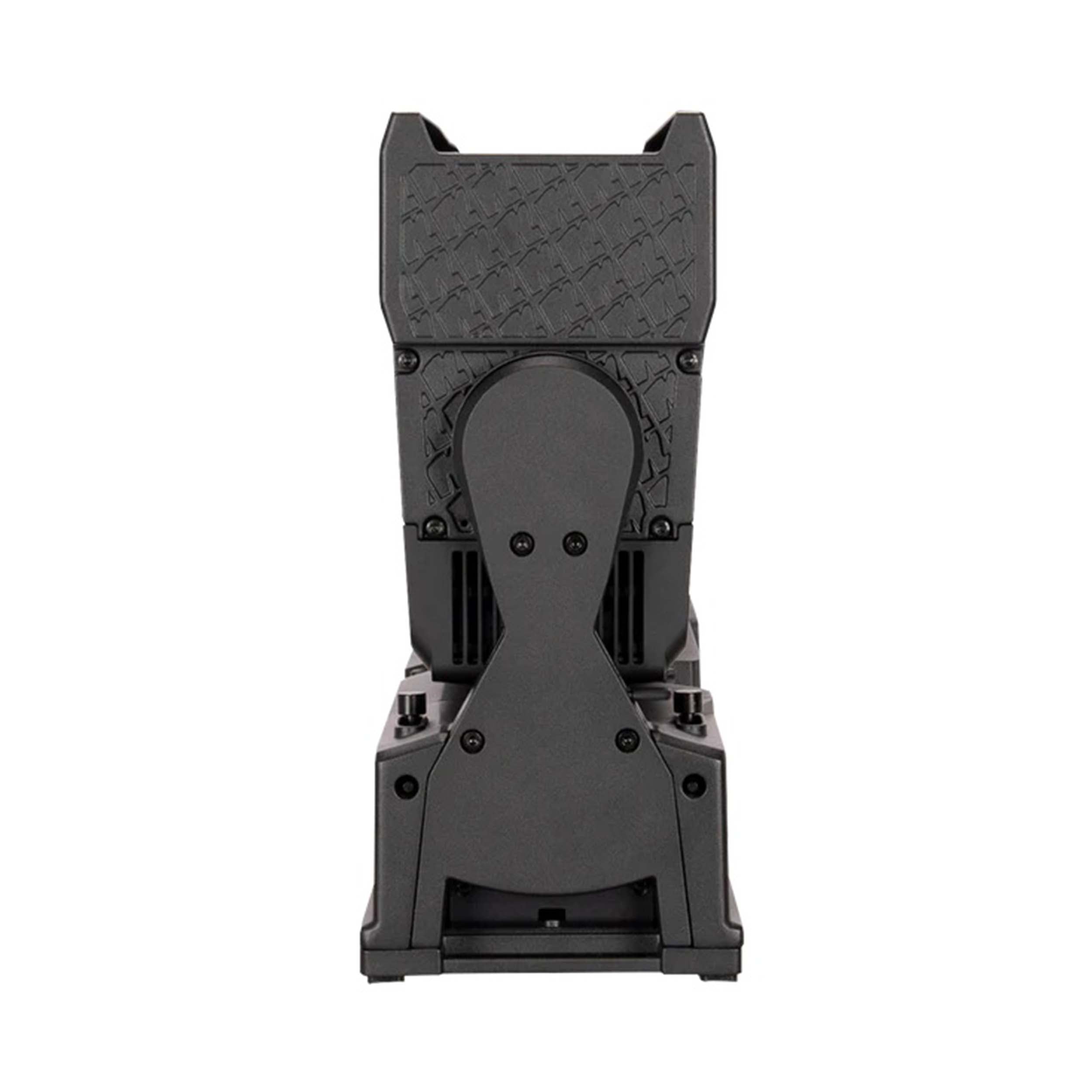

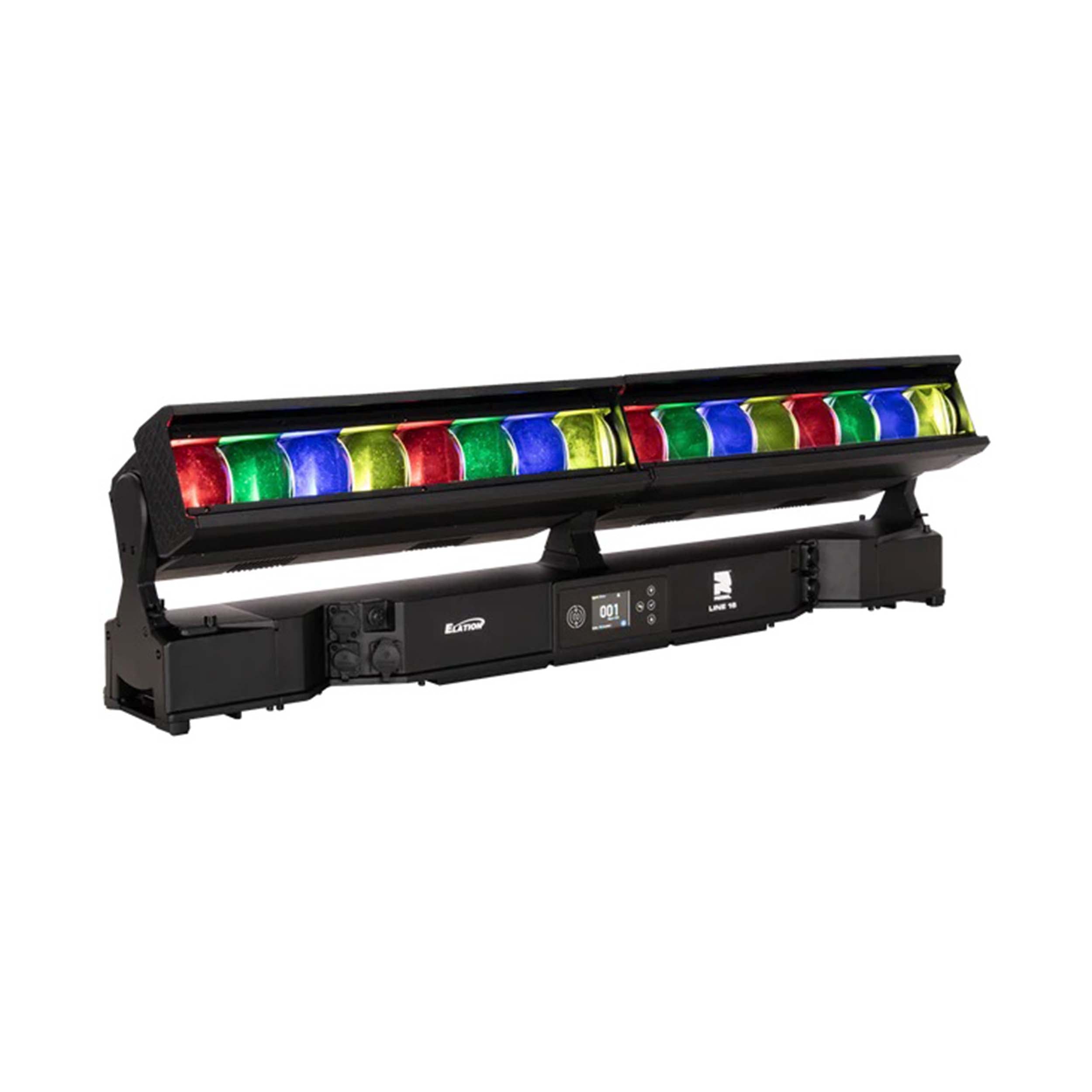

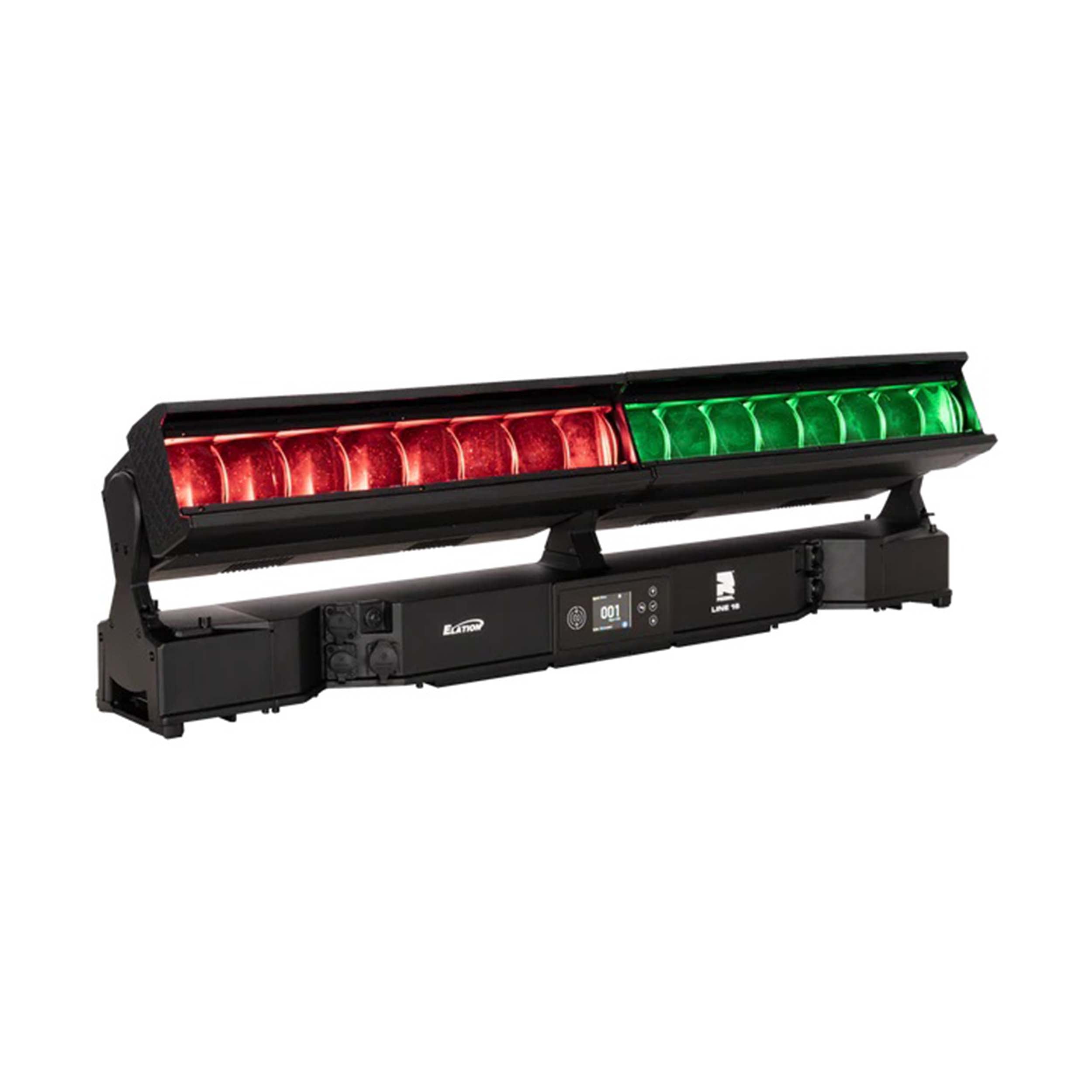

The Elation REBEL LINE 16 is a professional IP65-rated LED linear bar designed for concerts, festivals, outdoor events, and architectural lighting. Equipped with sixteen powerful 20W RGBL LEDs, it produces bright colors, smooth color mixing, and high-quality white light while maintaining excellent performance in demanding environments.
Its narrow 4-degree beam creates bold aerial effects and strong beam looks, while the included holographic filters allow the fixture to produce wider wash effects when needed. Individual pixel control, motorized tilt, smooth dimming, and strobe effects give lighting designers the flexibility to create eye-catching visual displays for any production.
Built for professional applications, the REBEL LINE 16 supports DMX, RDM, Art-Net, sACN, and Kling-Net control protocols for easy integration into modern lighting systems. Its rugged IP65 construction, flicker-free operation, and advanced wireless management make it an excellent choice for touring productions, live entertainment, television, and permanent outdoor installations.
Product Specifications:
Light Source: 16 x 20W RGBL LEDs
Total LED Power: 320W
LED Life: 50,000 Hours
Color Mixing: RGBL
Beam Angle: 4°
Field Angle: 6°
Pixel Control: Individual LED Pixel Control
Dimming: 16-Bit Electronic Dimming
Strobe: Variable Electronic Strobe Effects
Color Temperature: Variable White via RGBL Color Mixing
Wireless Management: Aria x2 Device Management
Display: Full Color LCD Display
Refresh Rate: Flicker-Free Operation for Broadcast and Camera Use
IP Rating: IP65
Power Supply: 100-240V AC, 50/60Hz
Maximum Power Consumption: 420W
Operating Temperature: -20°C to 45°C
Product Weight: 39.7 lb.
Product Dimensions (L x W x H): 39.2 x 8.7 x 11.9 in
Shipping Weight: 43 lbs
Shipping Dimensions (L × W × H): 43 x 12 x 15 in
