Description

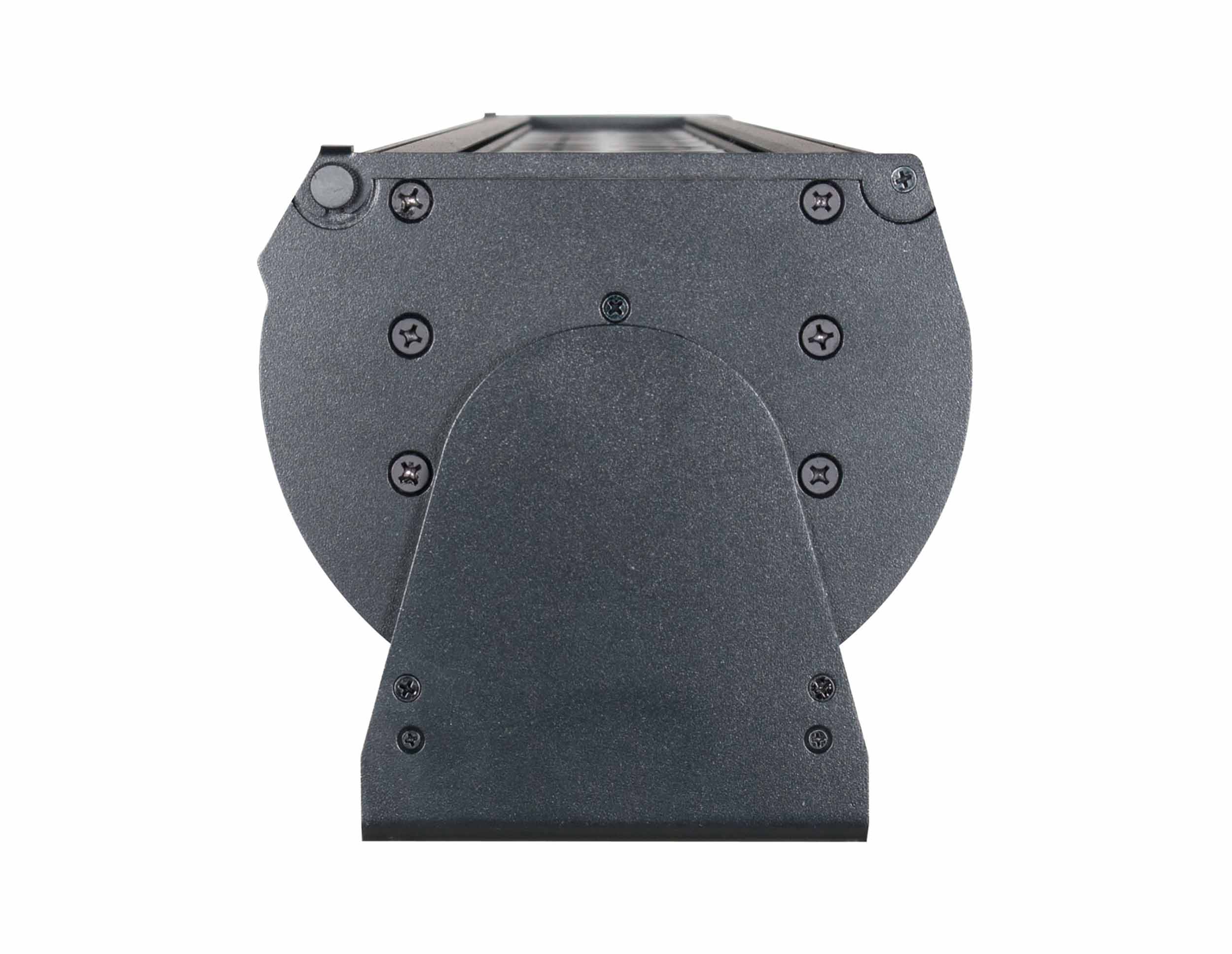

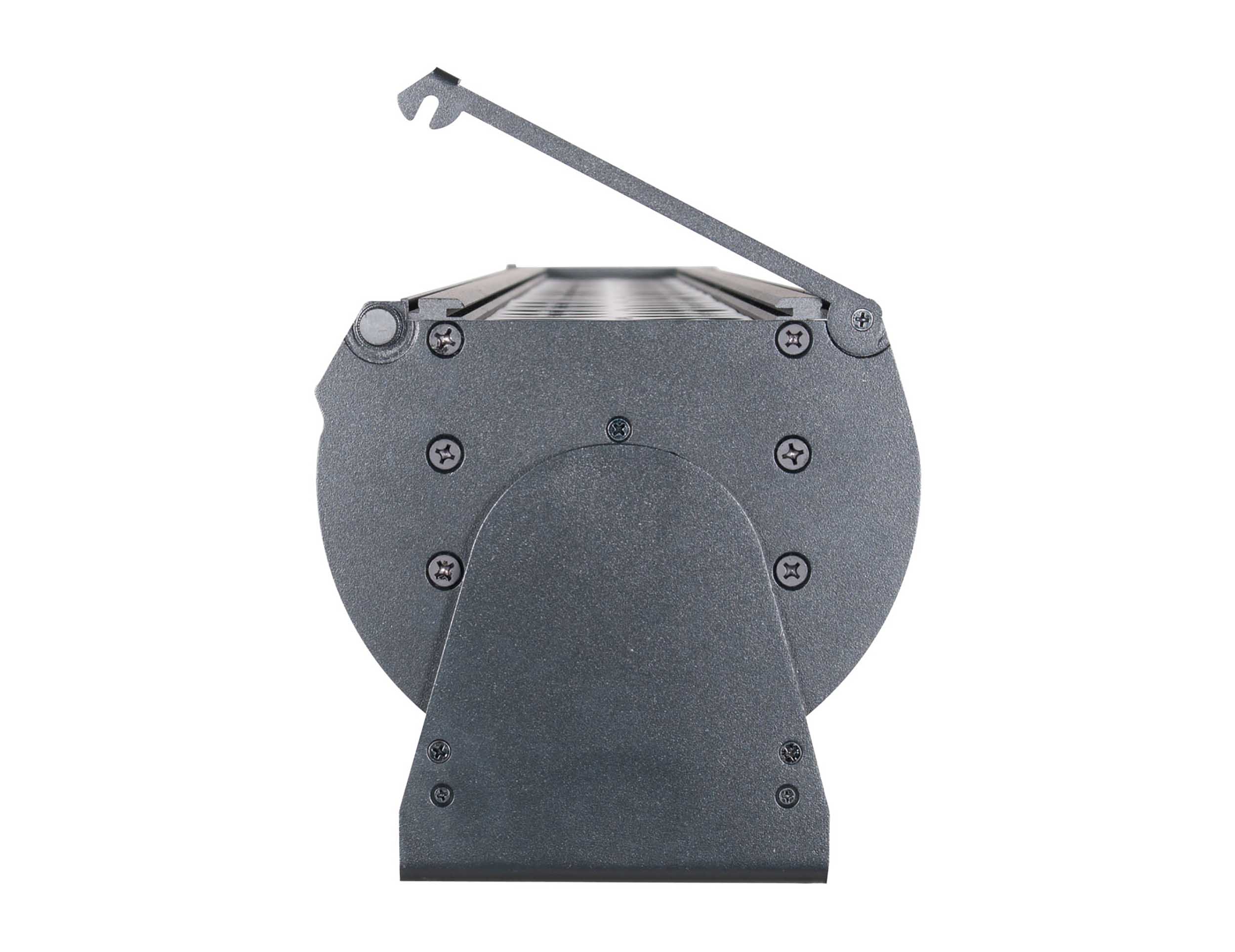

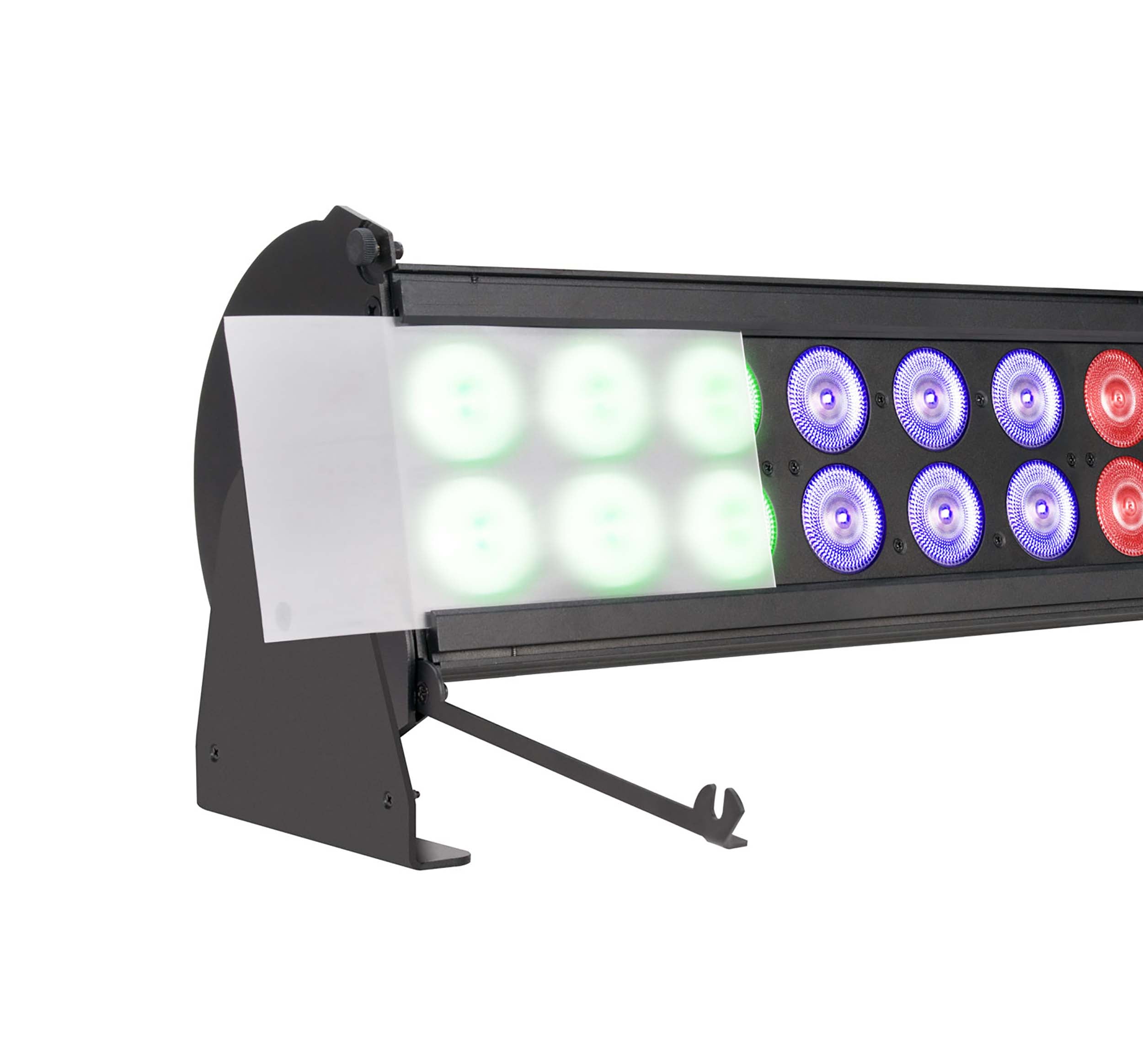

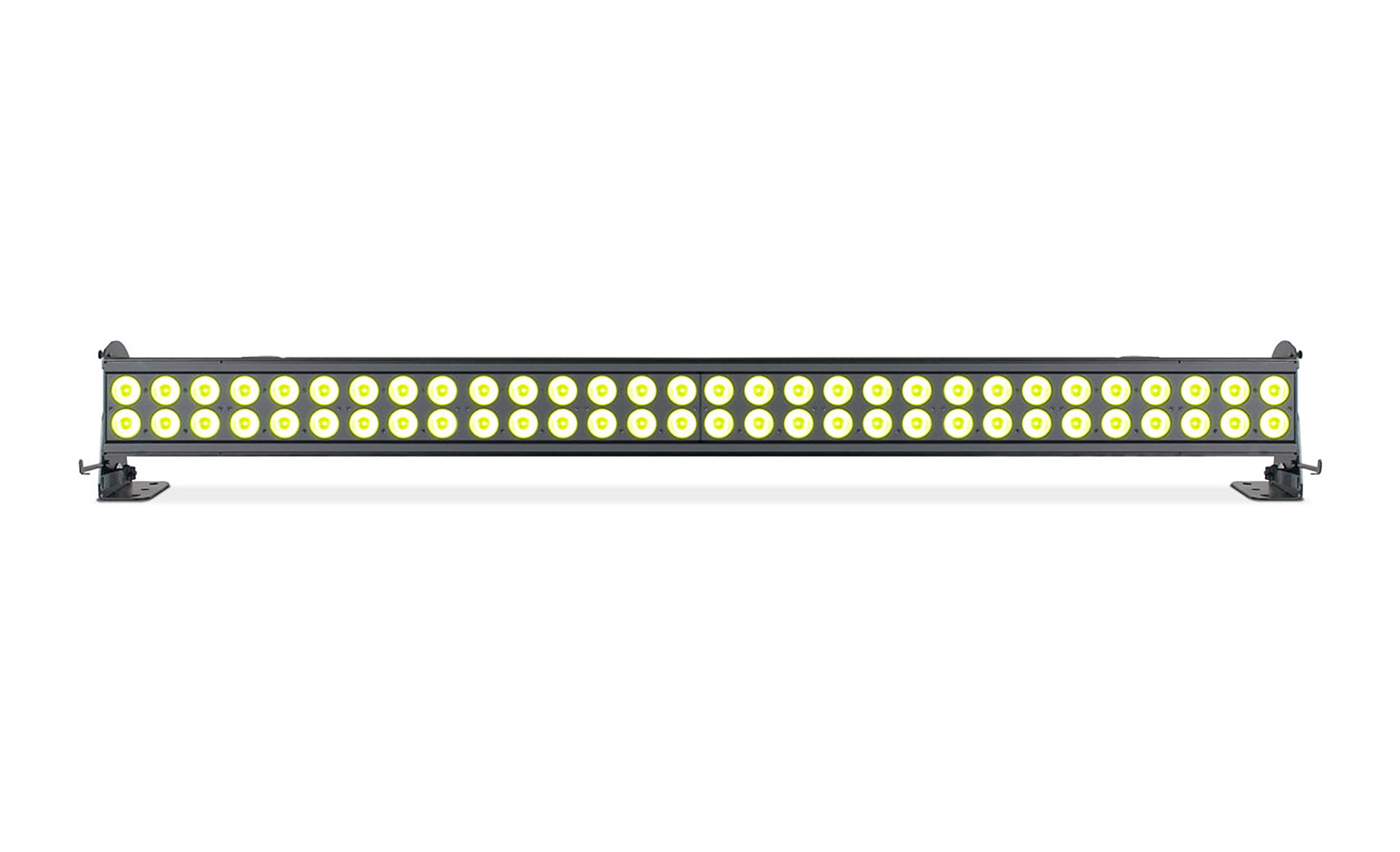

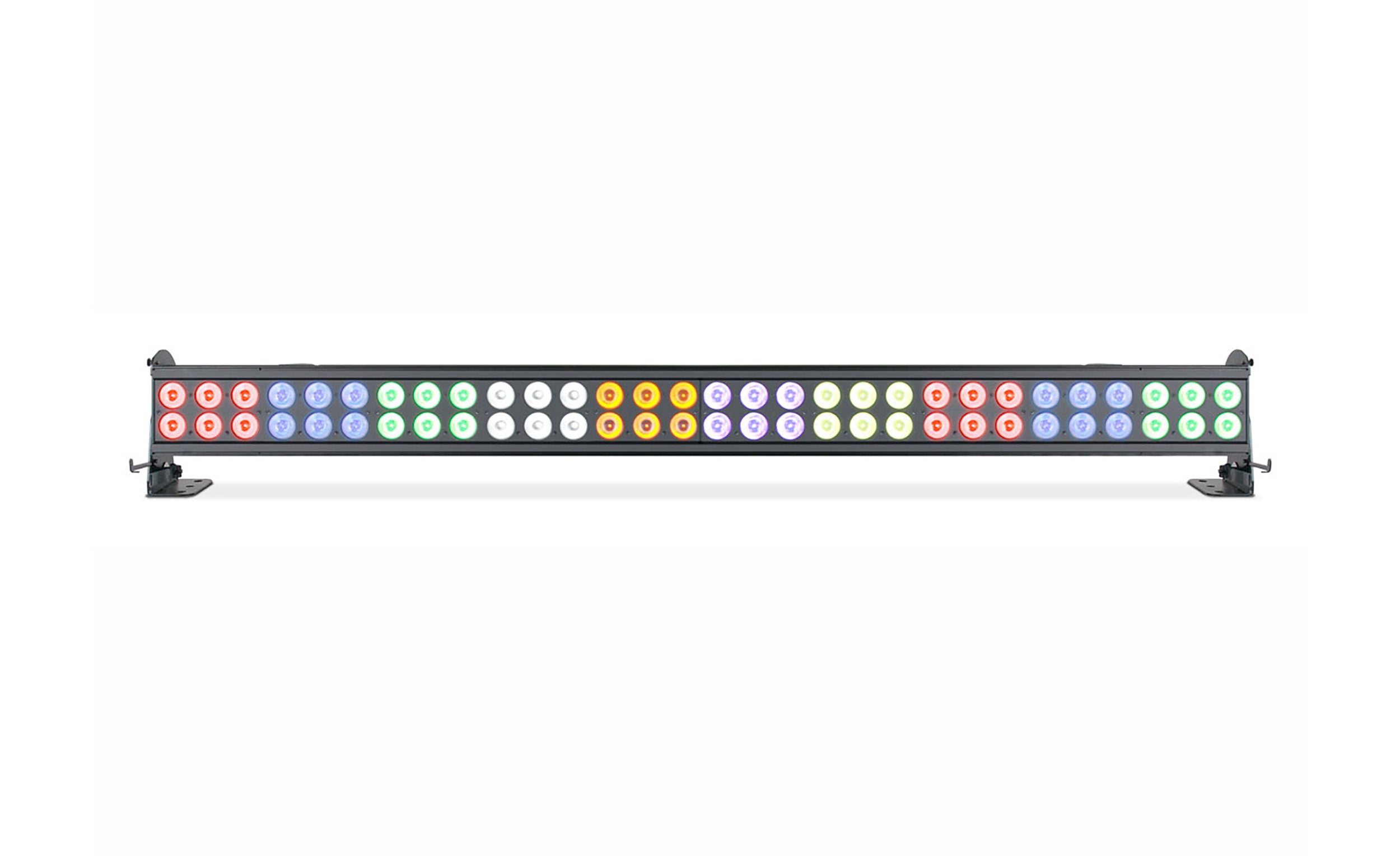

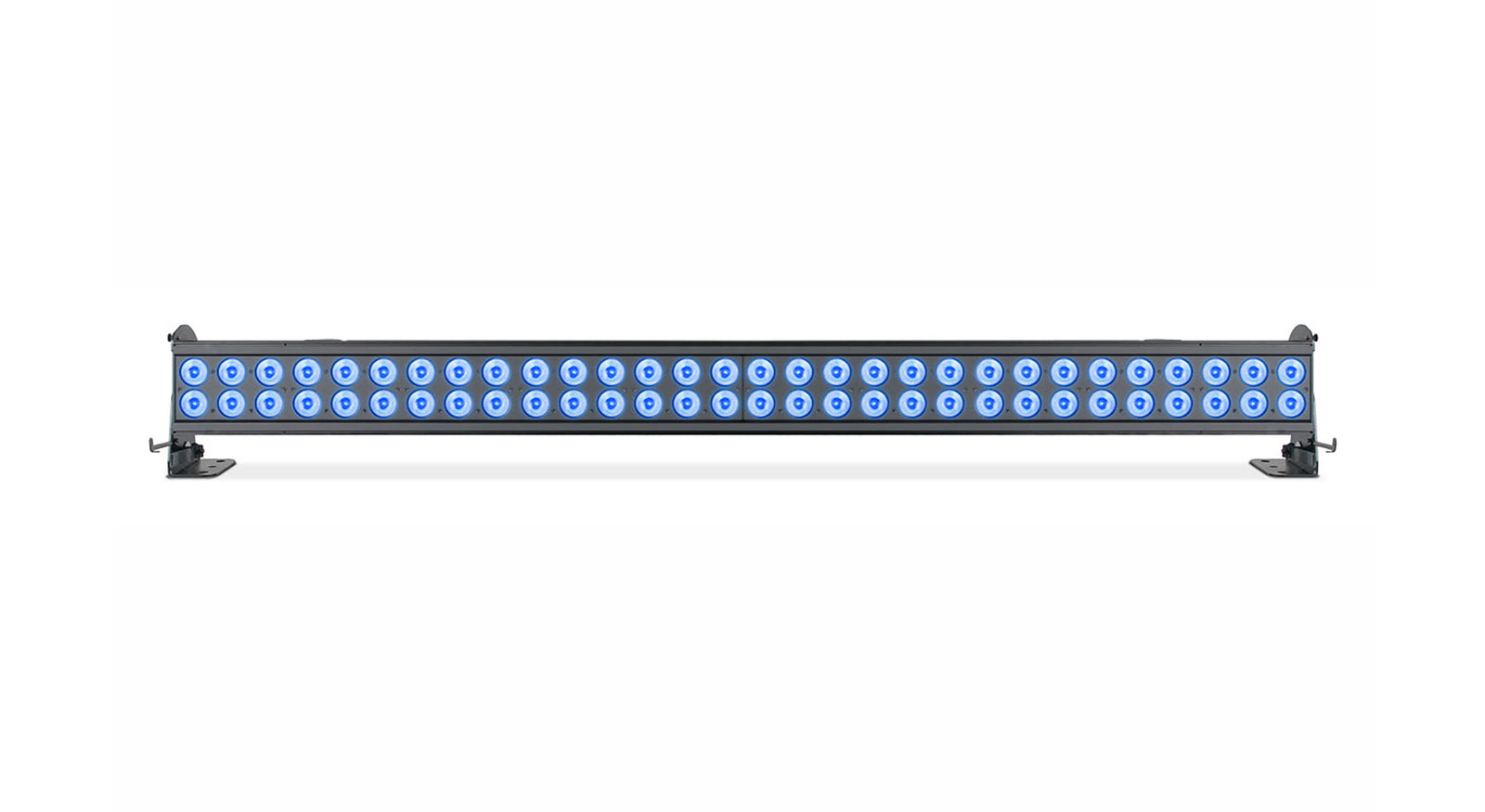

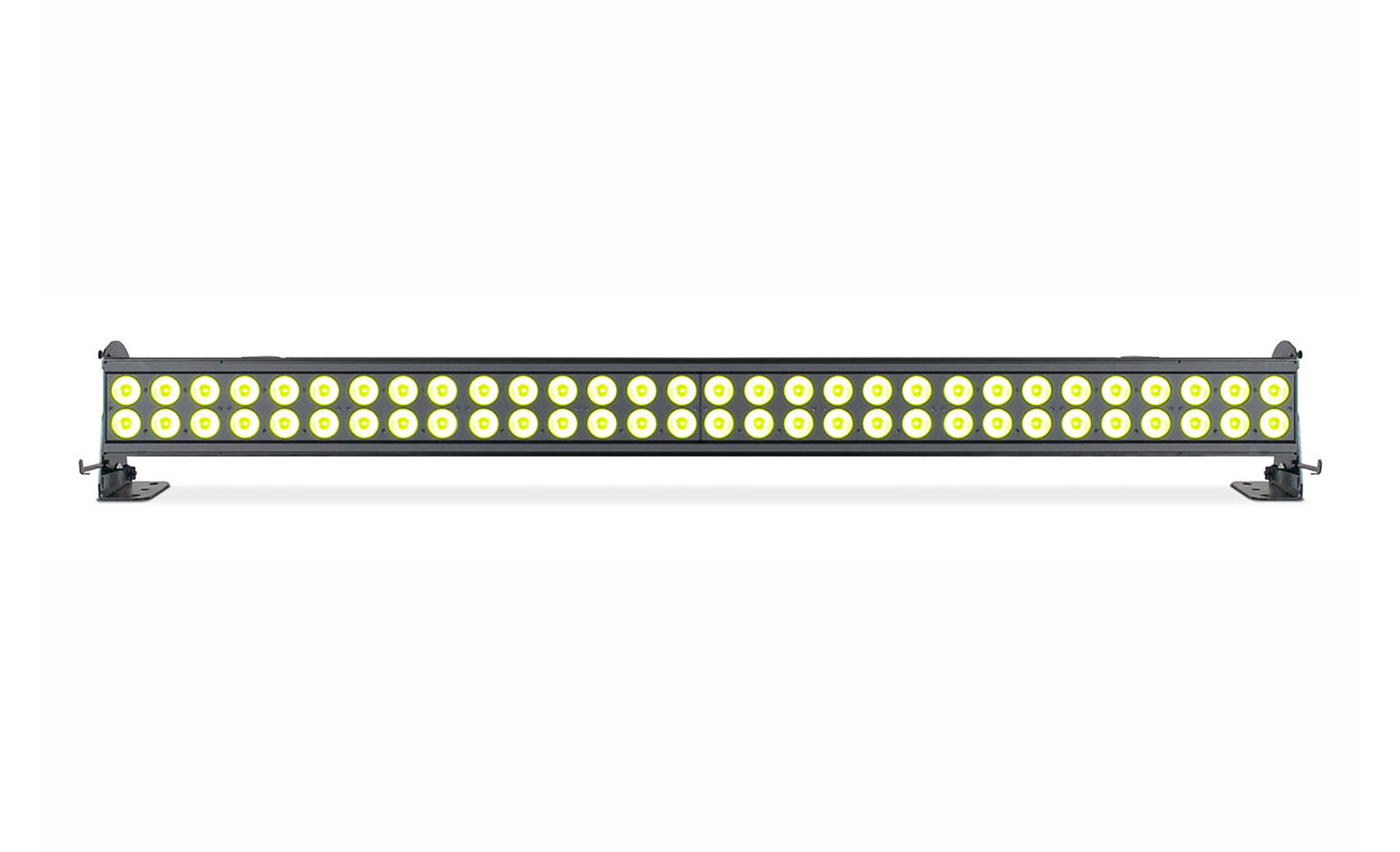

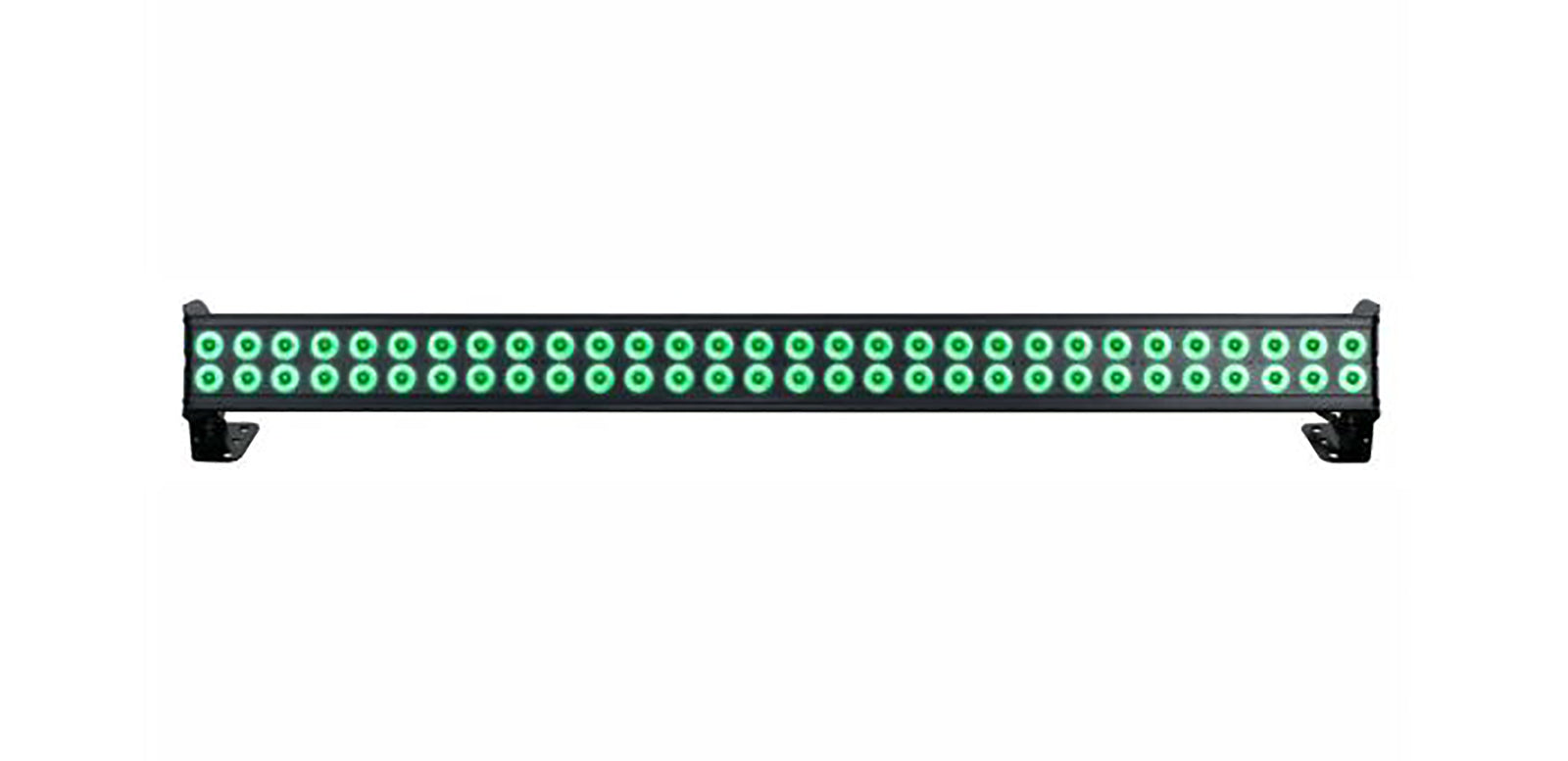

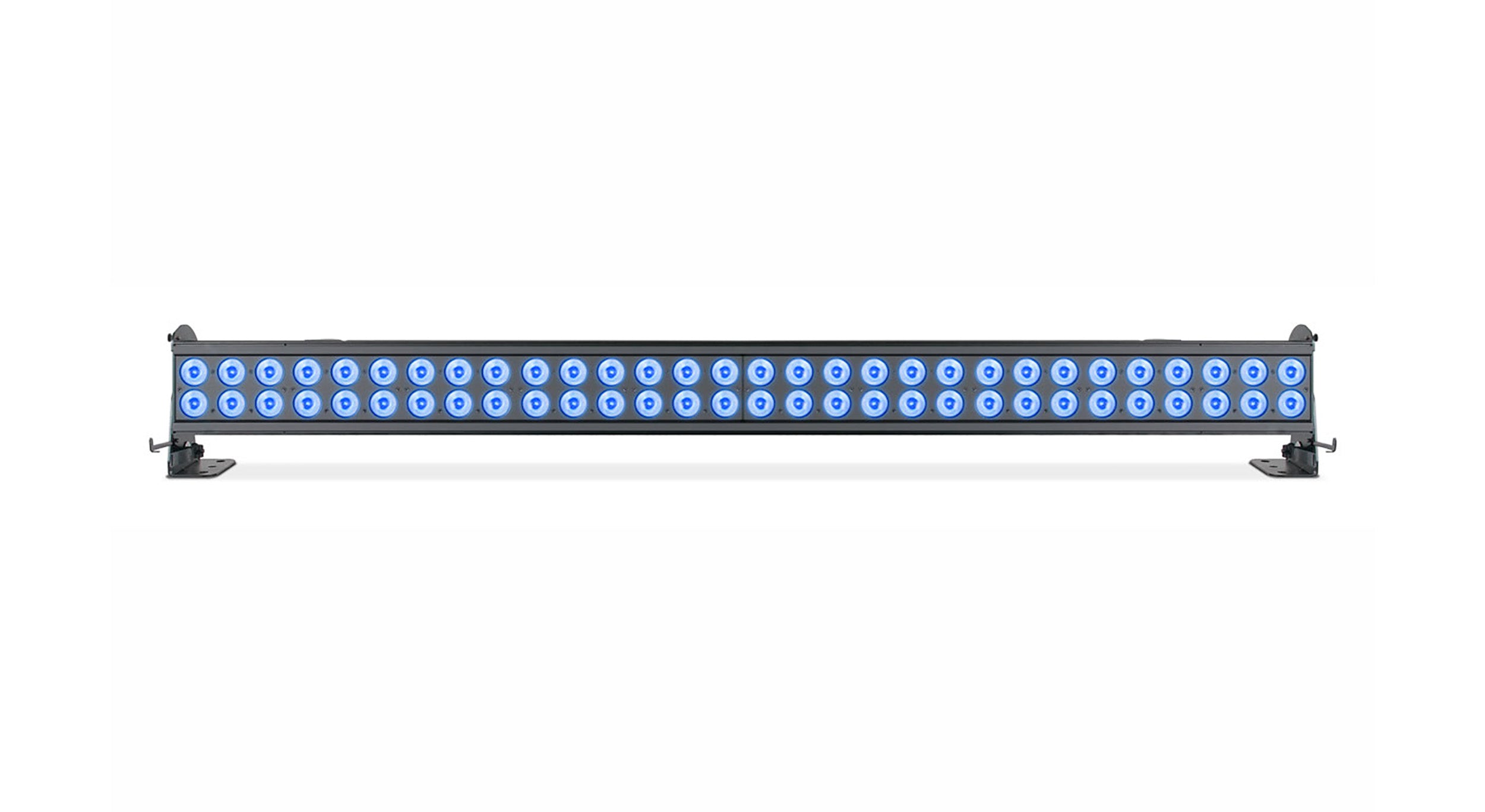

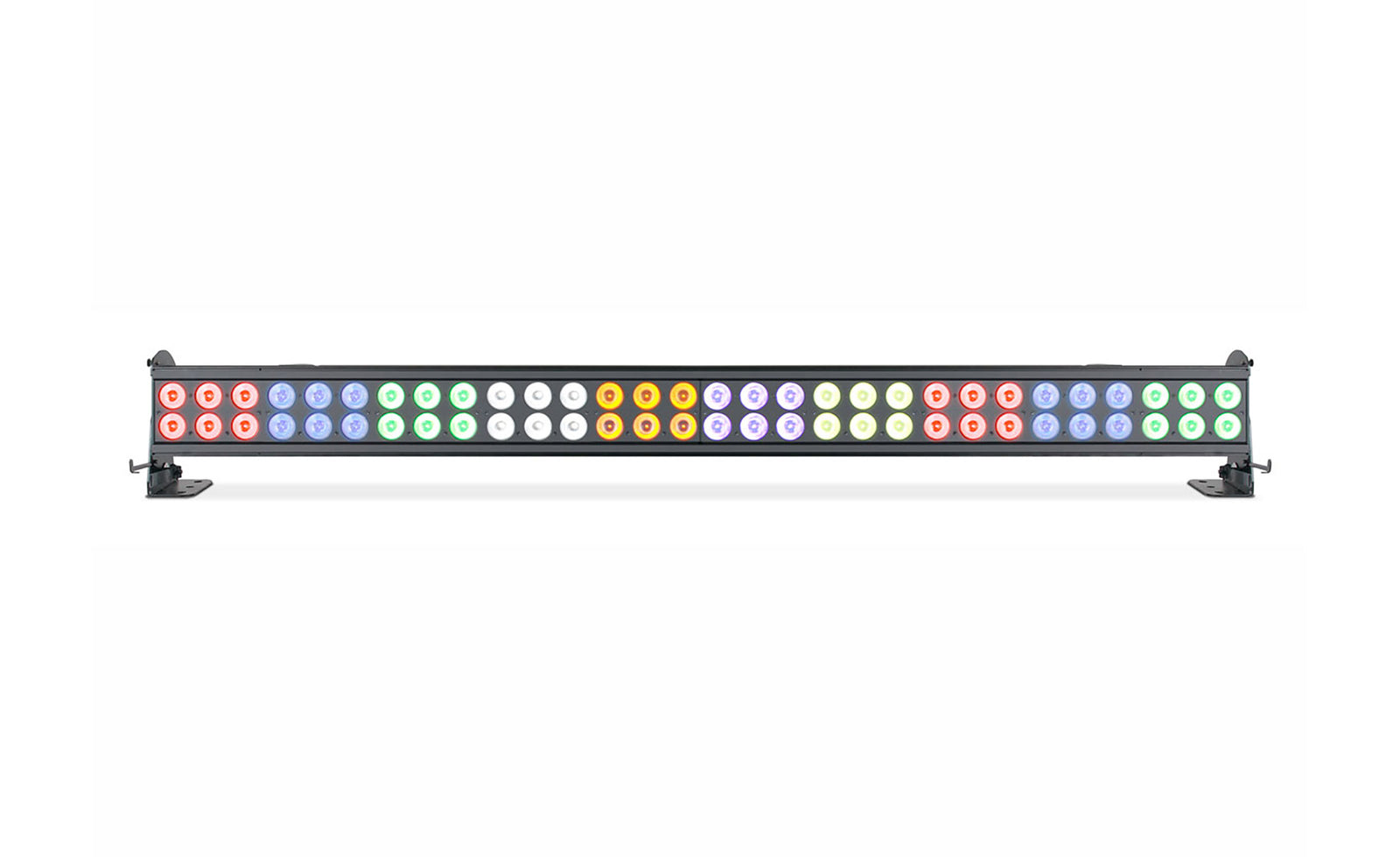

The Elation Seven Batten 72, 60 x 25-Watt RGBAWL+UV LED Batten Fixture is a seven color 6-foot (1.8m) long batten wash luminaire with (60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 10 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 ethernet, and Locking Power Cable in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.
Product Specifications:
Source:
(60) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life
Effects:
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
10 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode
Color: RGBAW + Lime + UV (395nm)
Control / Connections:
10 DMX Channel Modes (78 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM) Protocol Support

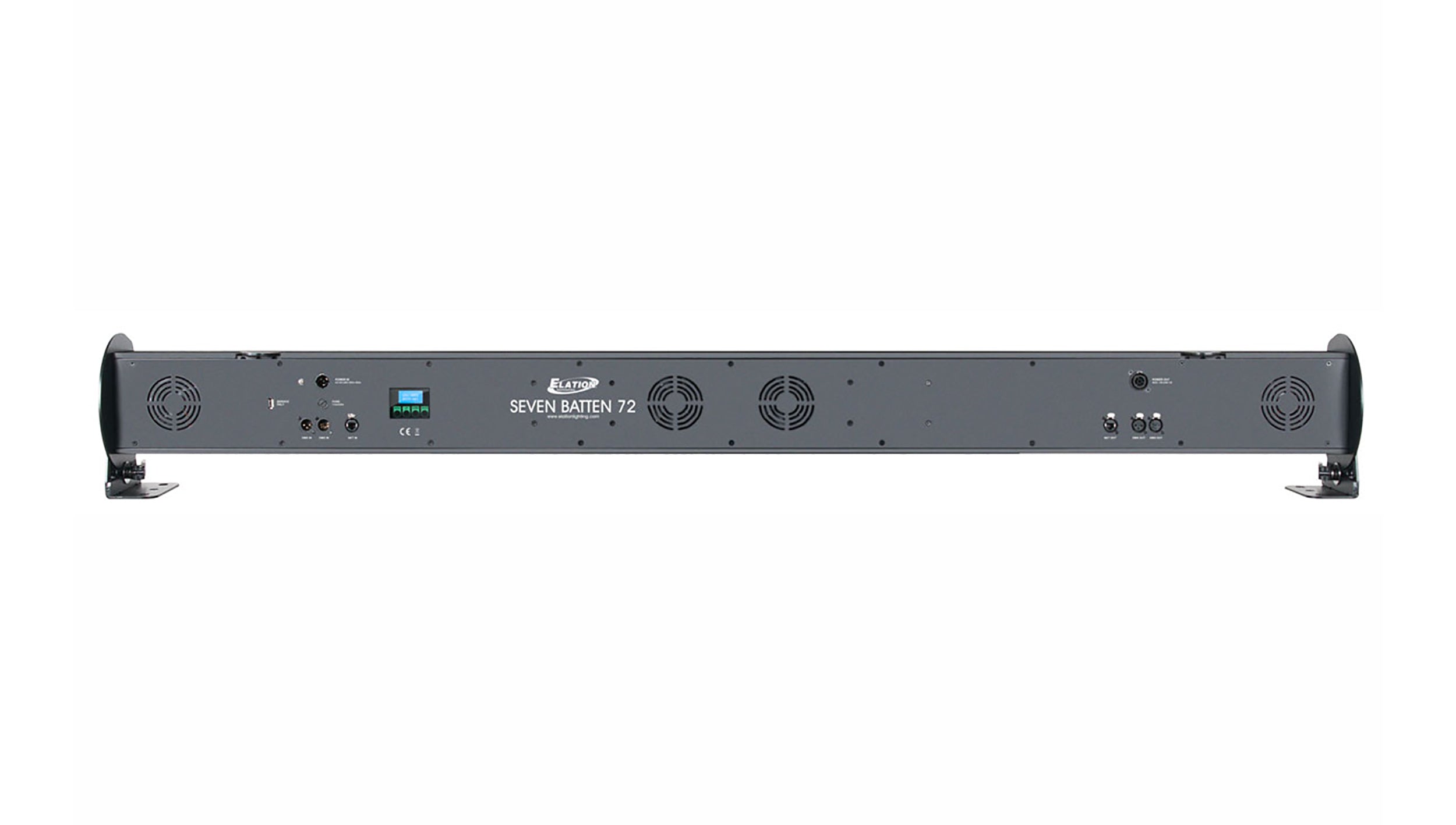

3/5pin DMX, RJ45 ethernet, and Locking Power Cable In/Out
With Wired Digital Communication Network
Size / Weight:
Length: 72.0” (1828.8mm)
Width: 4.5” (114.3mm)
Vertical Height: 9.0” (228.6mm)
Weight: 58.0 lbs. (26.3kg)
Electrical / Thermal:
AC 100-240V - 50/60Hz
1000W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Approvals / Ratings: CE | cETLus | IP20
