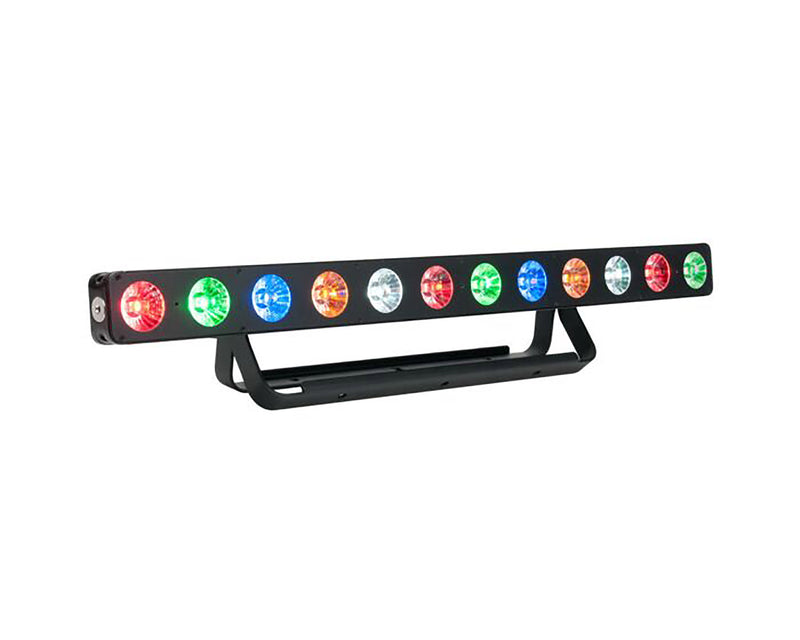

Elation SIX BAR 1000, 12 x 12-Watt RGBAW+UV LED Batten Fixture

The Elation SIX BAR 1000, 12 x 12-Watt RGBAW+UV LED Batten Fixture has 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Product Specifications:

Source:

(12) 12W 6-in-1 RGBAW+UV LEDs

100,000 Hour Average LED Life

Photometric Data:

8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)

3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)

2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)

1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)

878 LUX 82 FC @16.4’ (5m) (30° Full ON)

Effects:

Strobe and Chase Effects

Individual LED Control

Variable and Selectable Dimming Curves

Control / Connections:

8 DMX Channel Modes: (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)

4 Button Control Panel and LCD Menu Display

ArtNet + KlingNET Protocol Support

RDM (Remote Device Management)

(2) ethernet Ports

3pin and 5pin DMX In/Out

Locking Power Cable In/Out

With Wired Digital Communication Network

Size / Weight:

Length: 35.4” (900mm)

Width: 8.1” (206.4mm) *with included glare shield

Vertical Height: 6.1” (155mm)

Weight: 16.0 lbs. (7.3 kg)

Electrical / Thermal:

AC 110-240V - 50/60Hz

145W Max Power Consumption

Power Linking: 6pcs @110V / 15pcs @240V

5°F to 113°F (-15°C to 45°C)

UV Wavelength:395nm

Approvals / Ratings:CE | cETLus | IP20

Included Items:

Locking Power Cable

Frost Filter

Glare Shield
