Description

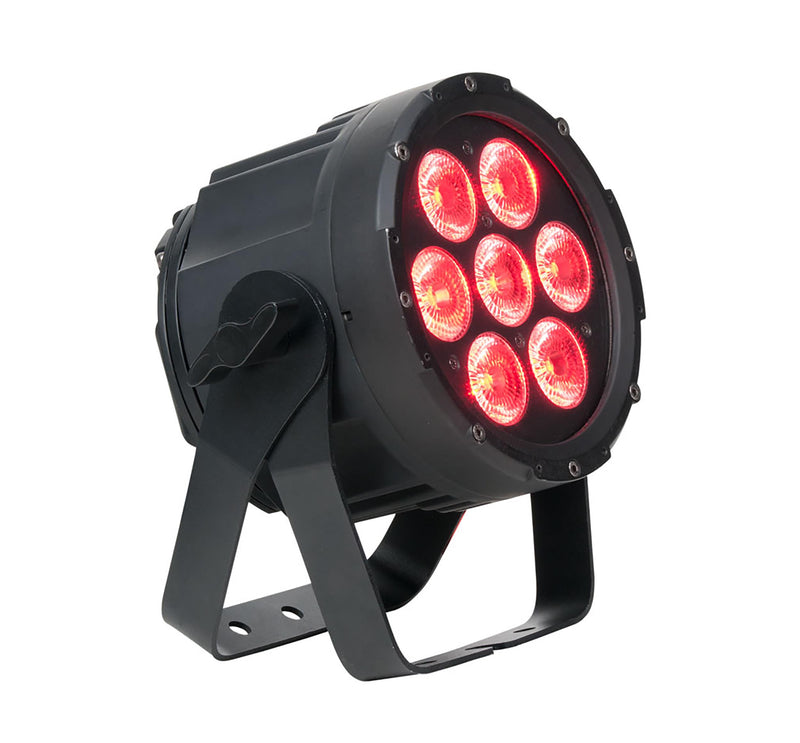

The Elation SIXPAR 100IP, Features (7) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Product Specifications:
Source:
(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life
Photometric Data:
12,850 LUX 1,194 FC @3.3’ (1m) (15° Full ON)
Effects:
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes
Control / Connections:
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
IP DMX In/Out
IP Power In/Out
With Wired Digital Communication Network
Size / Weight:
Length: 10.1” (257mm)
Width: 6.2” (158mm)
Vertical Height: 9.6” (243mm)
Weight: 9.5 lbs. (4.3 kg)
Electrical / Thermal:
AC 110-250V - 50/60Hz
89W Max Power Consumption
Power Linking: 12pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
Approvals / Ratings:
CE | cETLus | IP65
Included items
Male Edison to IP Female Power Cable 6,6 ft. (2m) (16AWG)
Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m) 24AWG)
Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m) 24AWG)
Optional accessories:
SIXPAR100/GFH - Gel Frame Holder Kit
SIXPAR/BD100 - Barn Door
SIXPAR/2MDLC - 6.6 ft. (2m) IP Data Link Cable
SIXPAR/2MPLC - 6.6 ft. (2m) IP Power Link Cable
SIXPAR/3MDLC - 9.8 ft. (3m) IP Data Link Cable
SIXPAR/3MDLC - 9.8 ft. (3m) IP Power Link Cable
SIXPAR/5MDLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Data Link Cable
SIXPAR/5MPLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Power Link Cable
SIXPAR/10MDLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Data Link Cable
SIXPAR/10MPLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Power Link Cable
SIXPAR/20MDLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Data Link Cable
SIXPAR/20MPLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Power Link Cable
SIXPAR/DIAC - Data IN IP Adapter Cable
SIXPAR/DOAC - Data OUT IP Adapter Cable
SIXPAR/PIAC - Power IN IP Adapter Cable
SIXPAR/POAC - Power OUT IP Adapter Cable
SIXPAR/TERMINATOR - DMX Terminator End Cap
