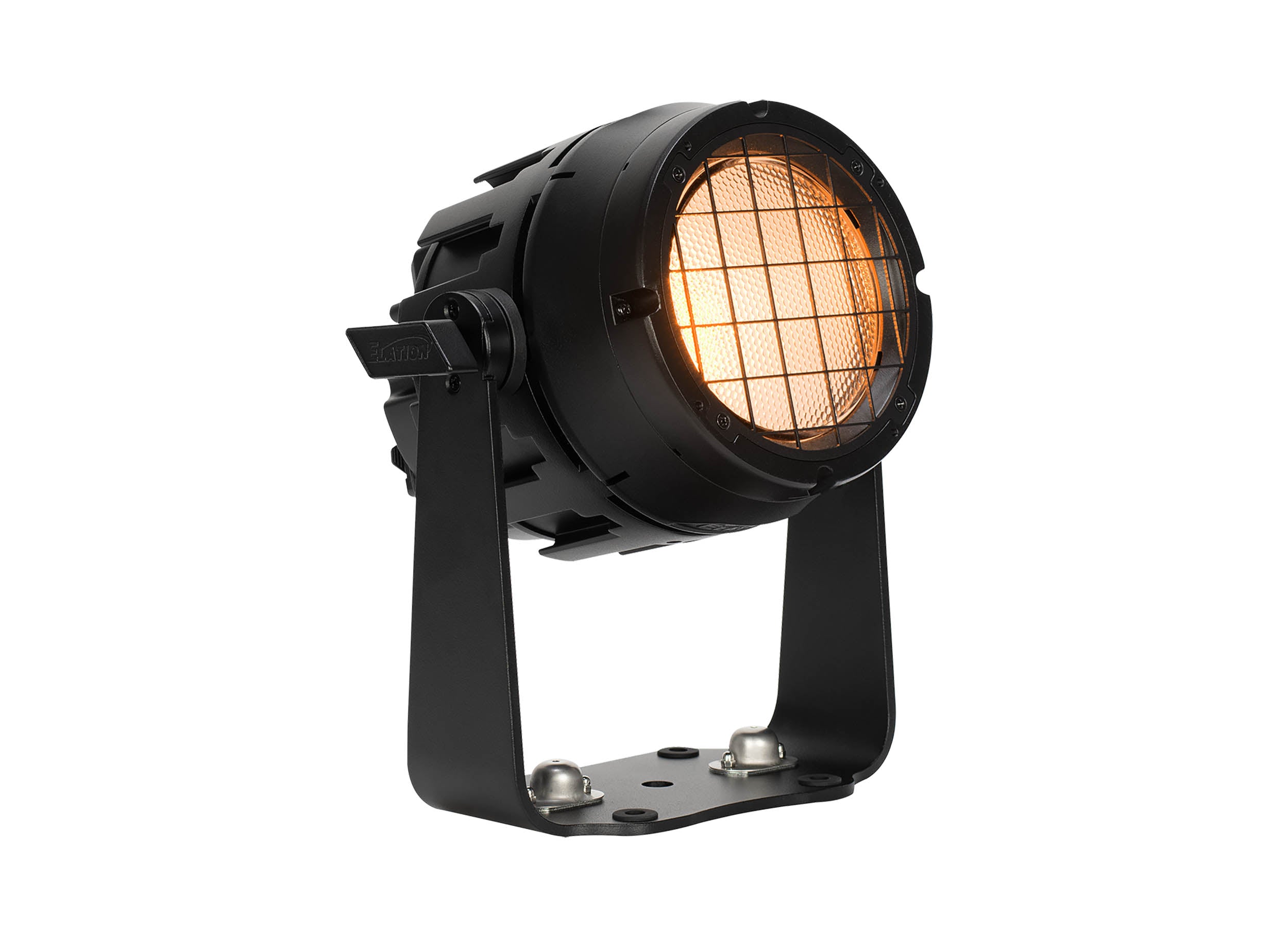

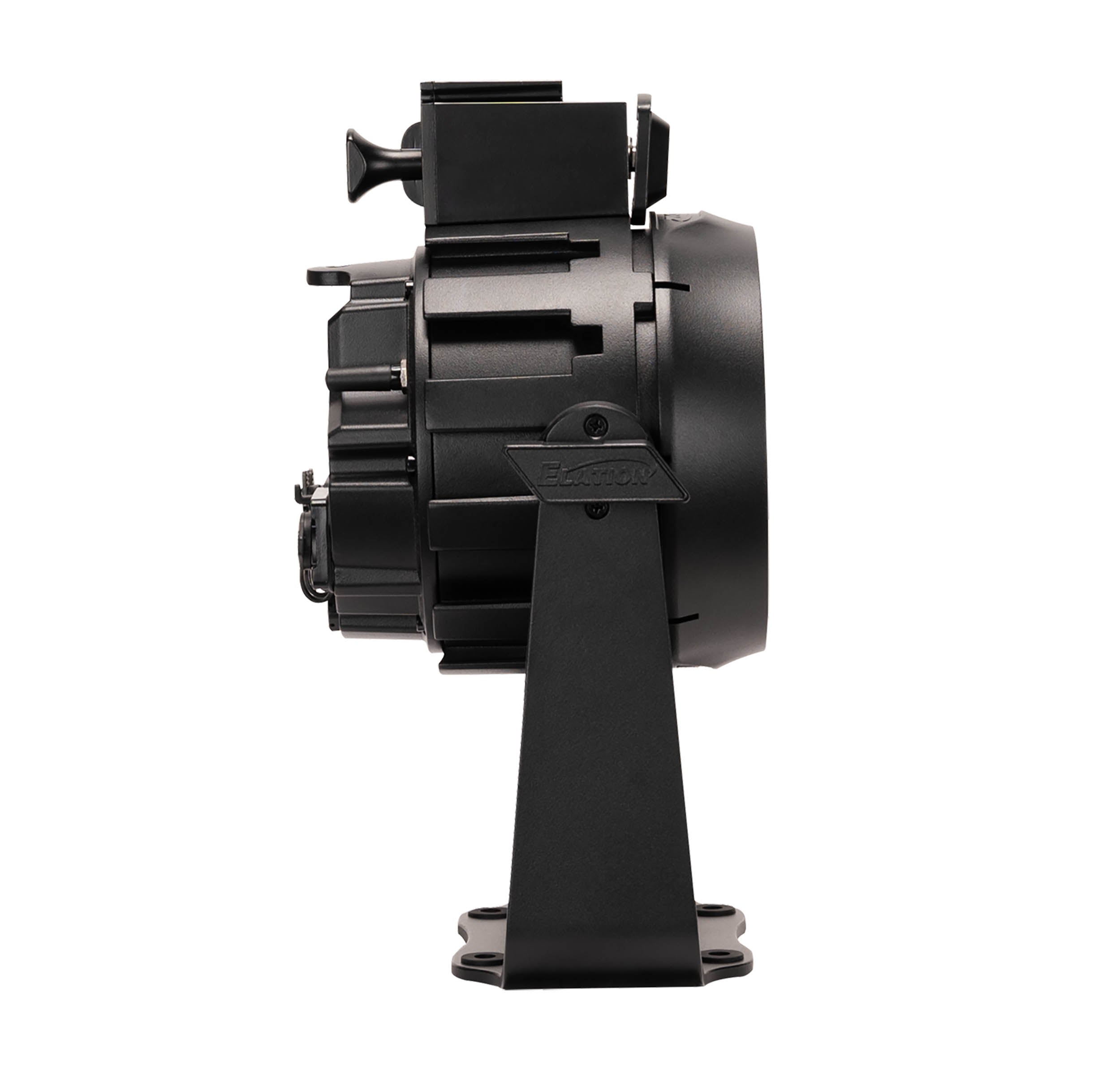

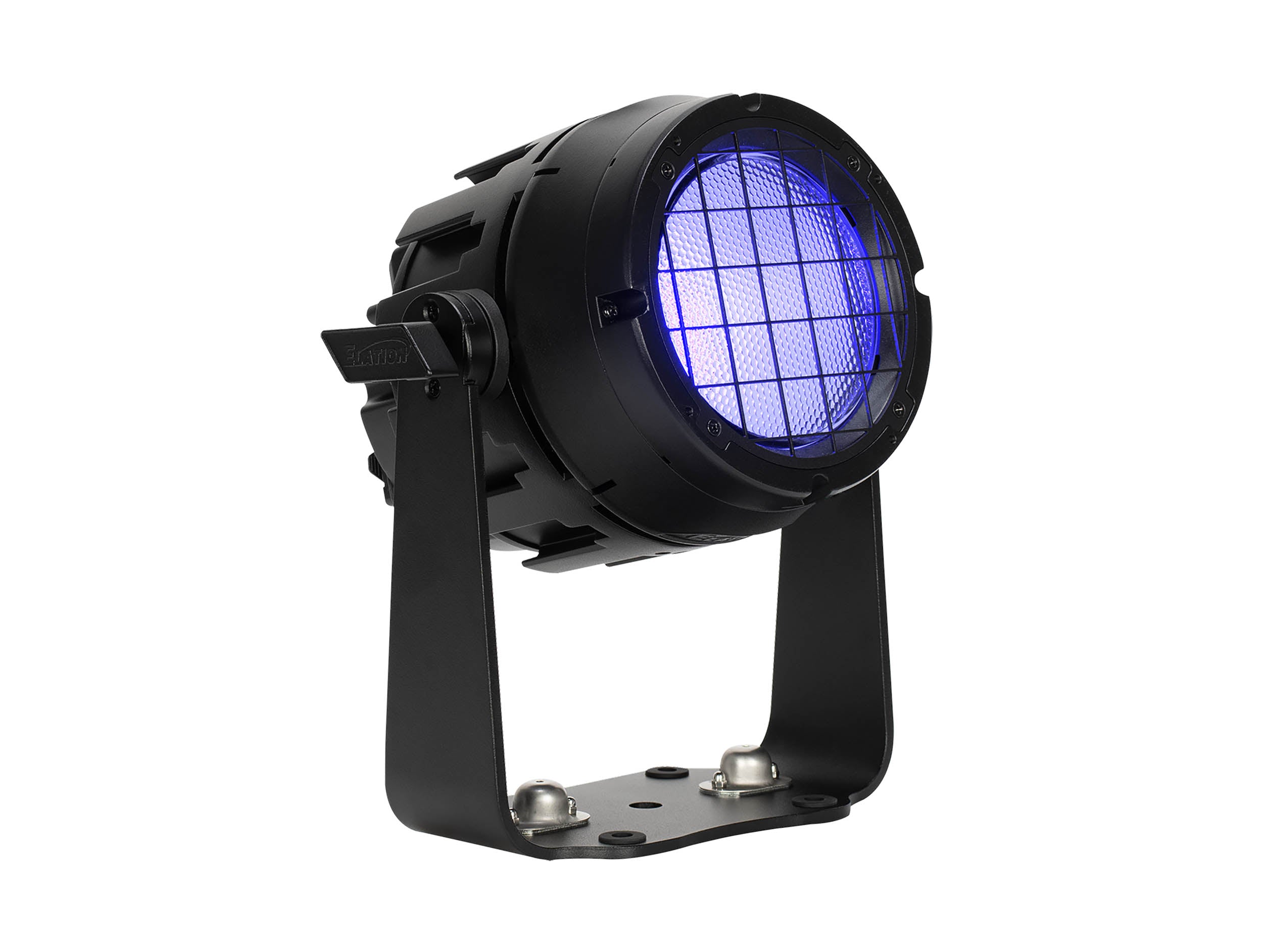

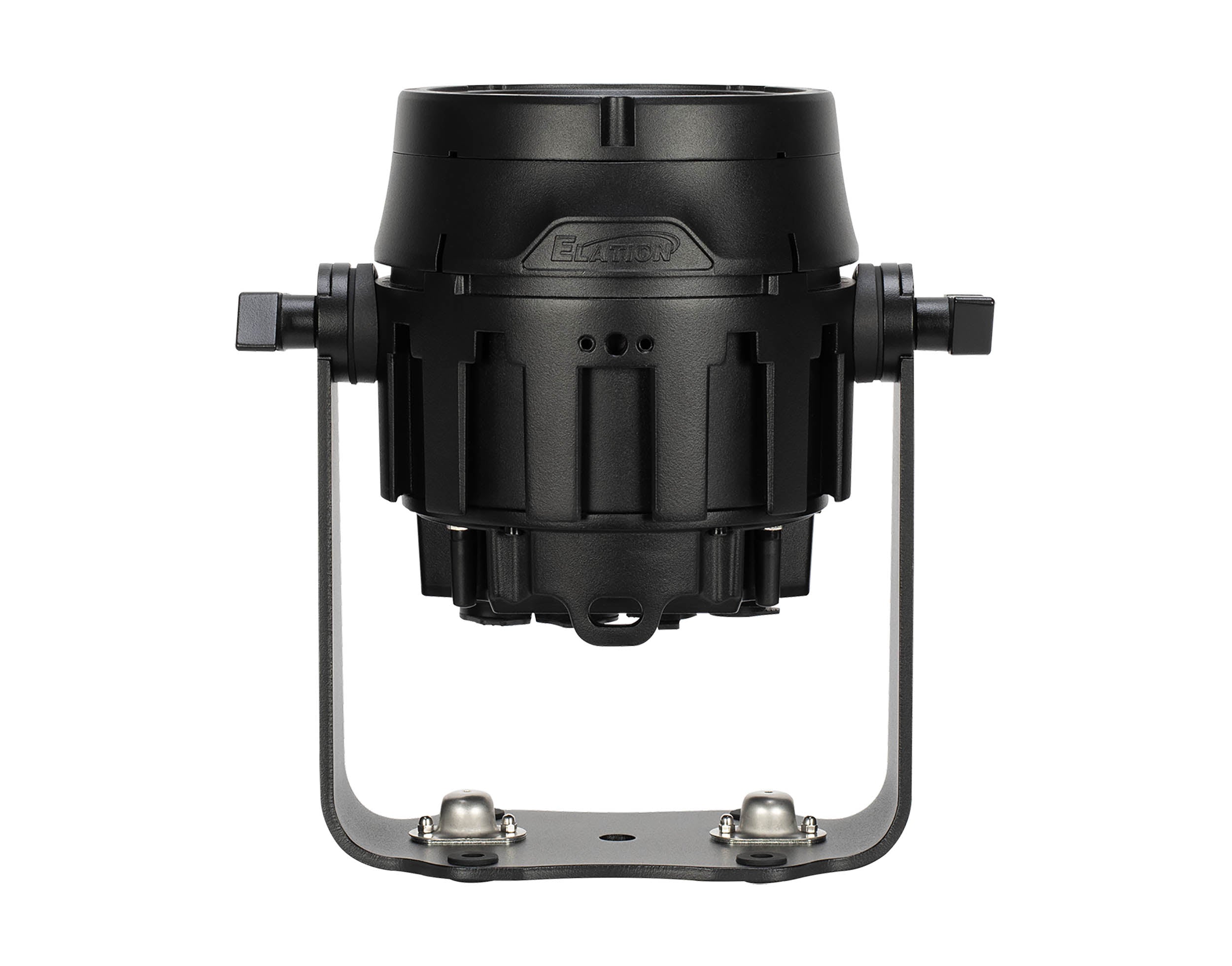

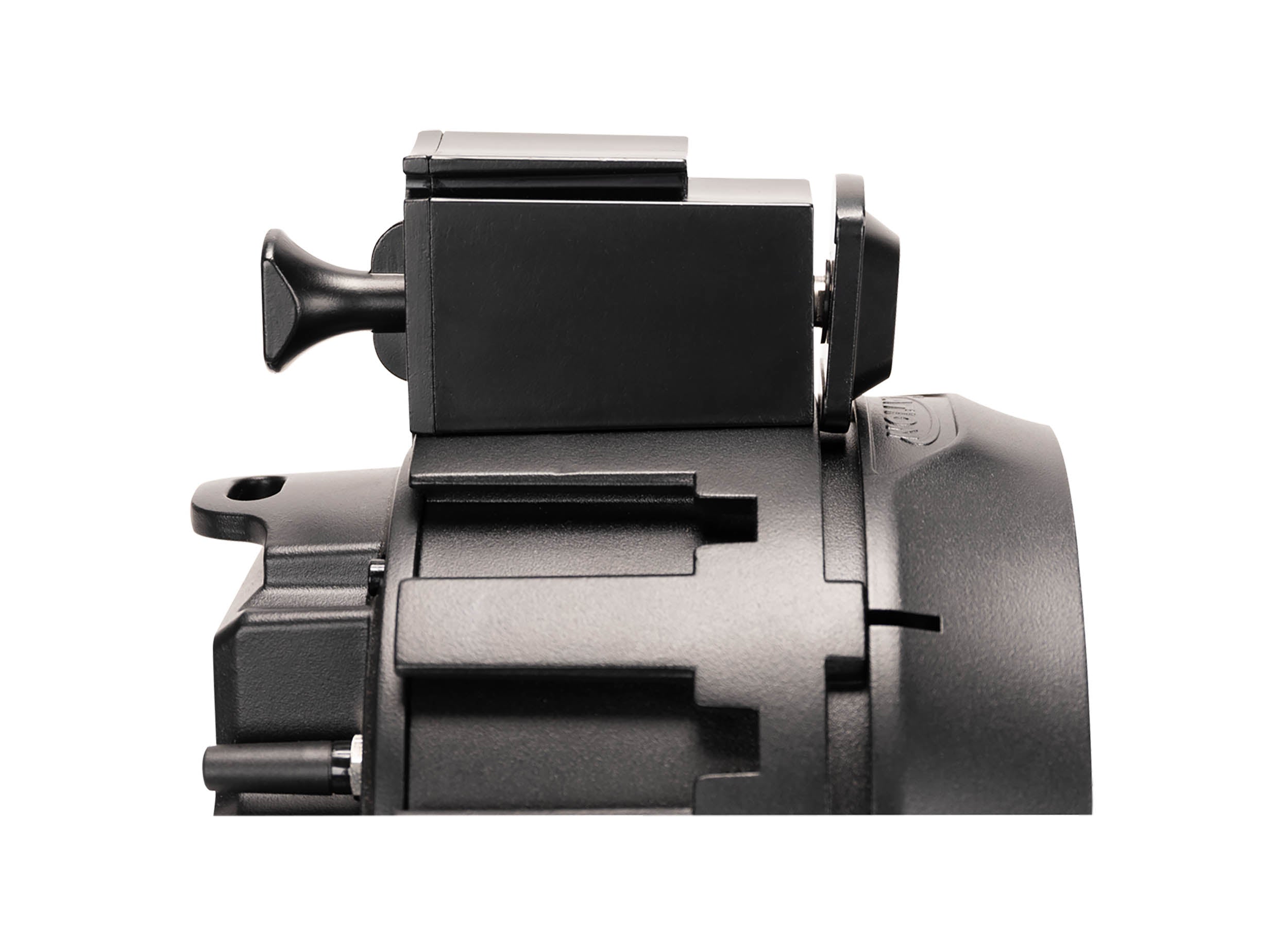

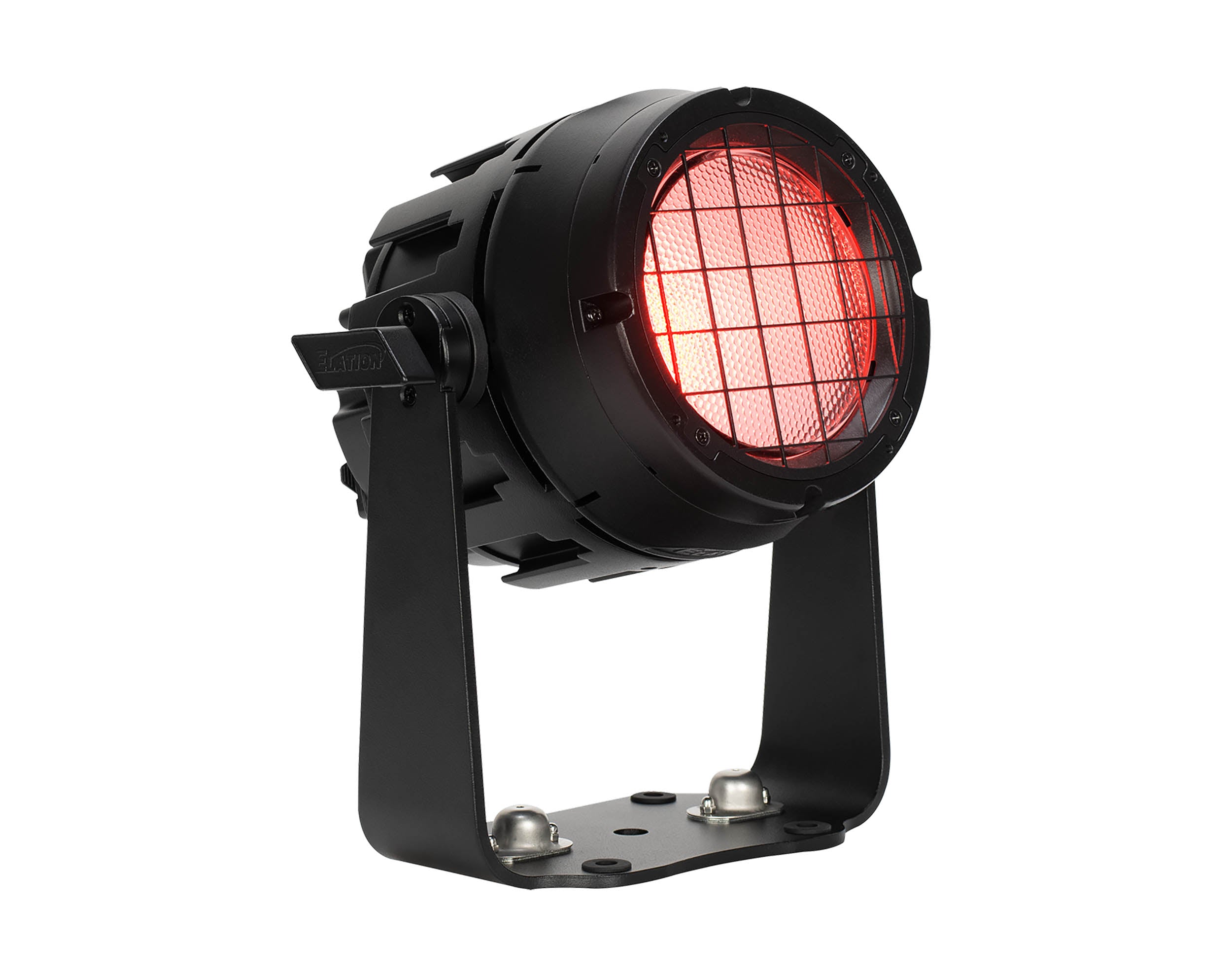

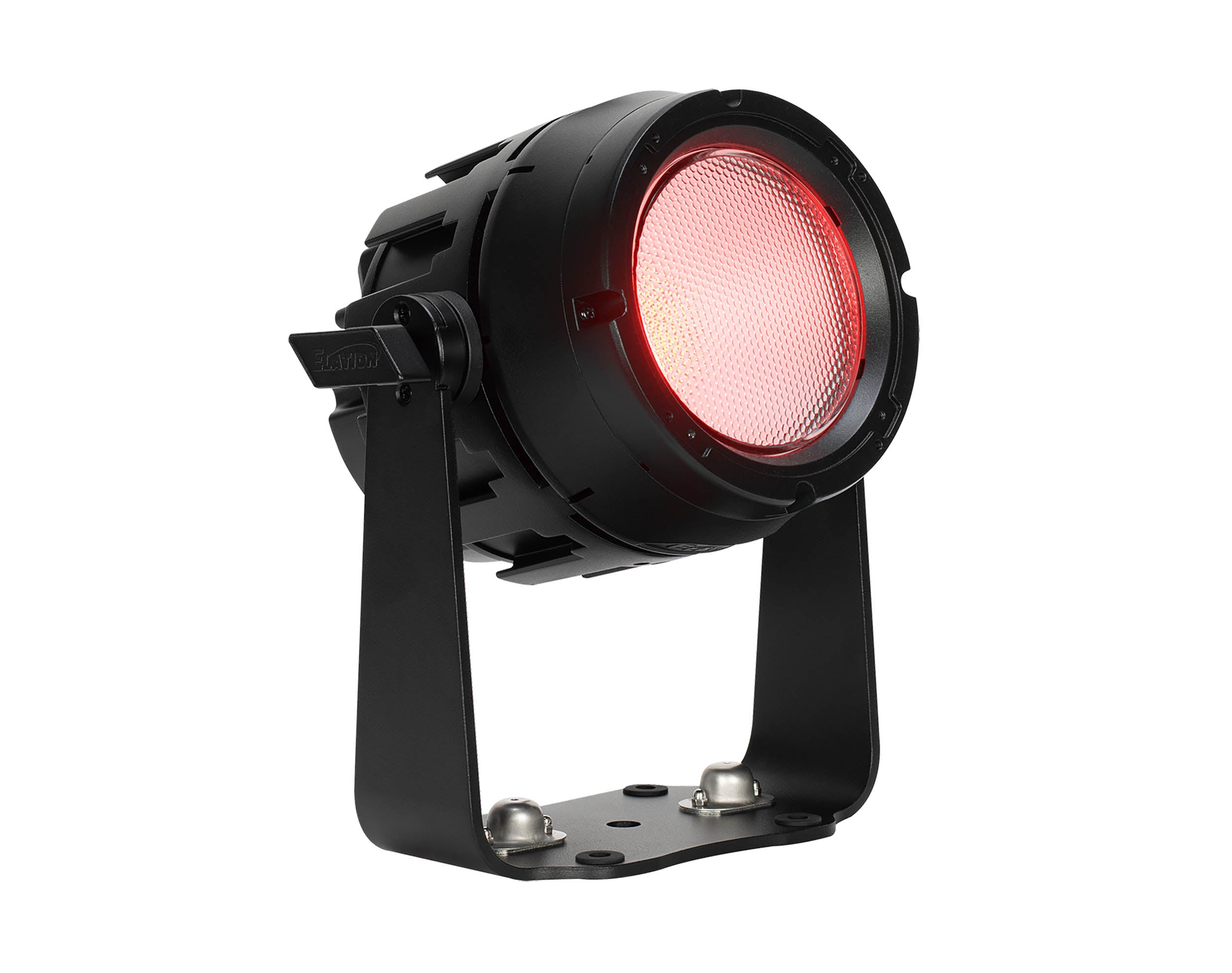

Elation SOL I Blinder, IP65-RGBLAW LED Modular Blinder - 250 Watt

The Elation SOL I Blinder, IP65-RGBLAW LED Modular Blinder - 250 Watt is inspired by the radiant sun, the SŌL I BLINDER is the first in a new groundbreaking series of creative LED blinder and effects solutions that seamlessly marries cutting-edge technology with artistic ingenuity.

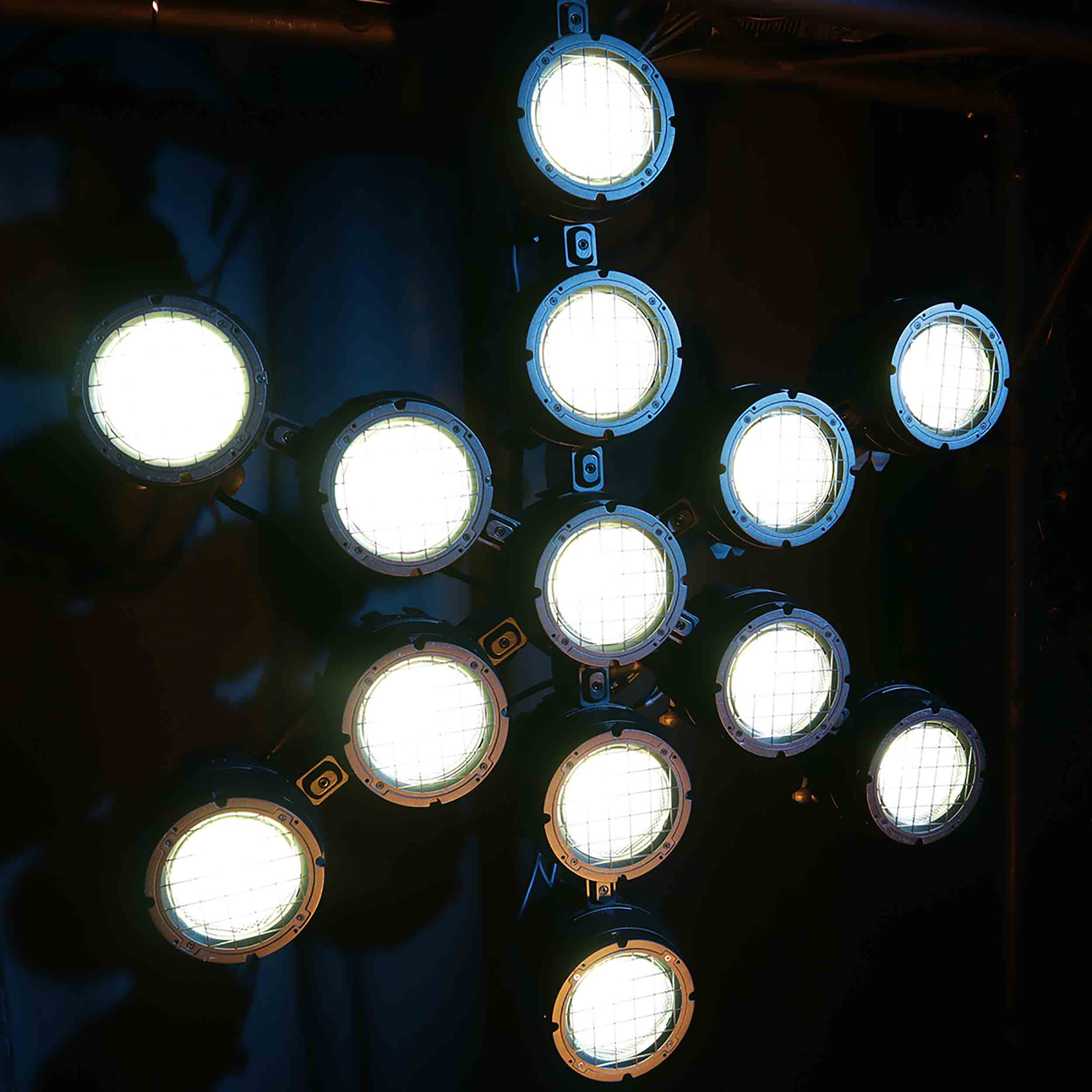

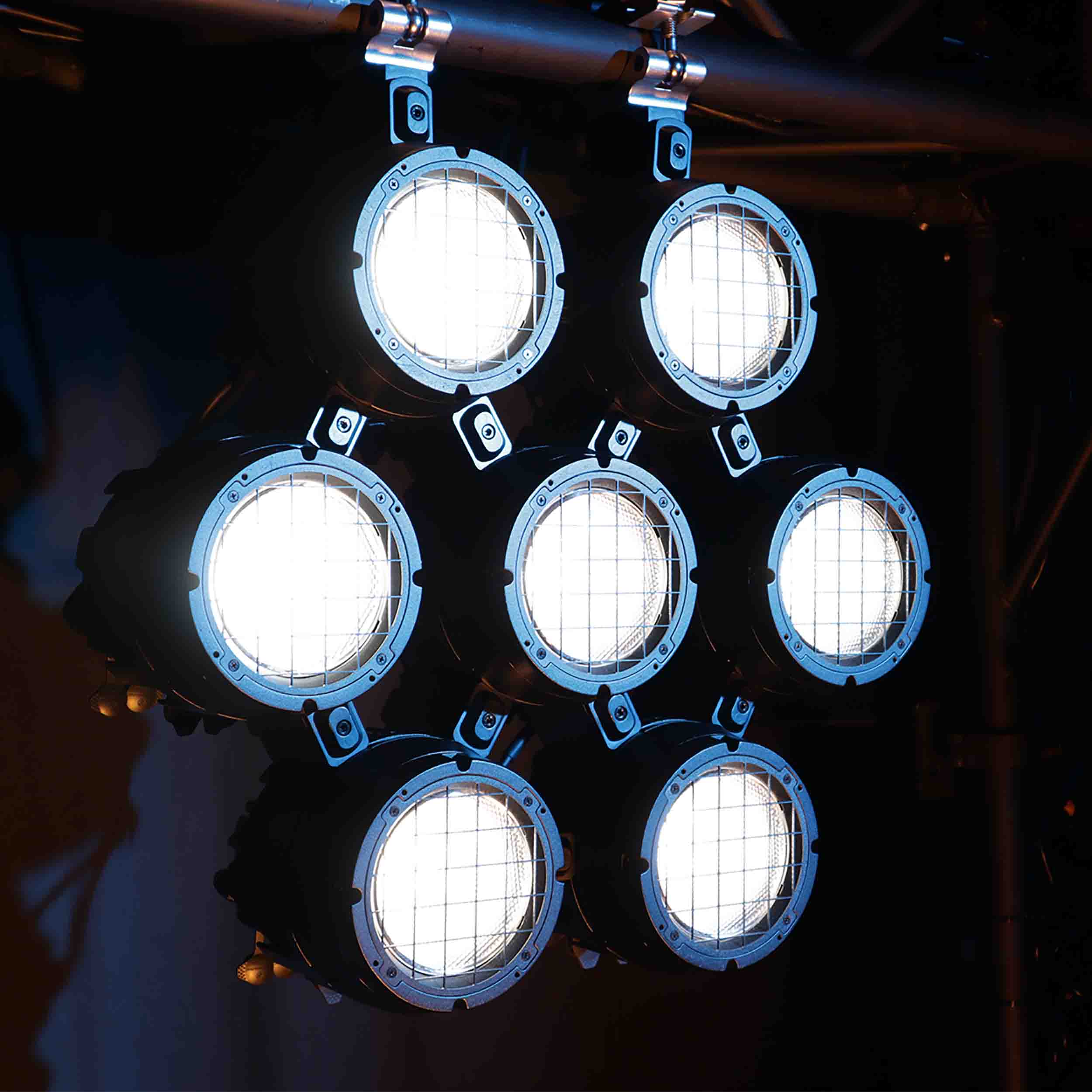

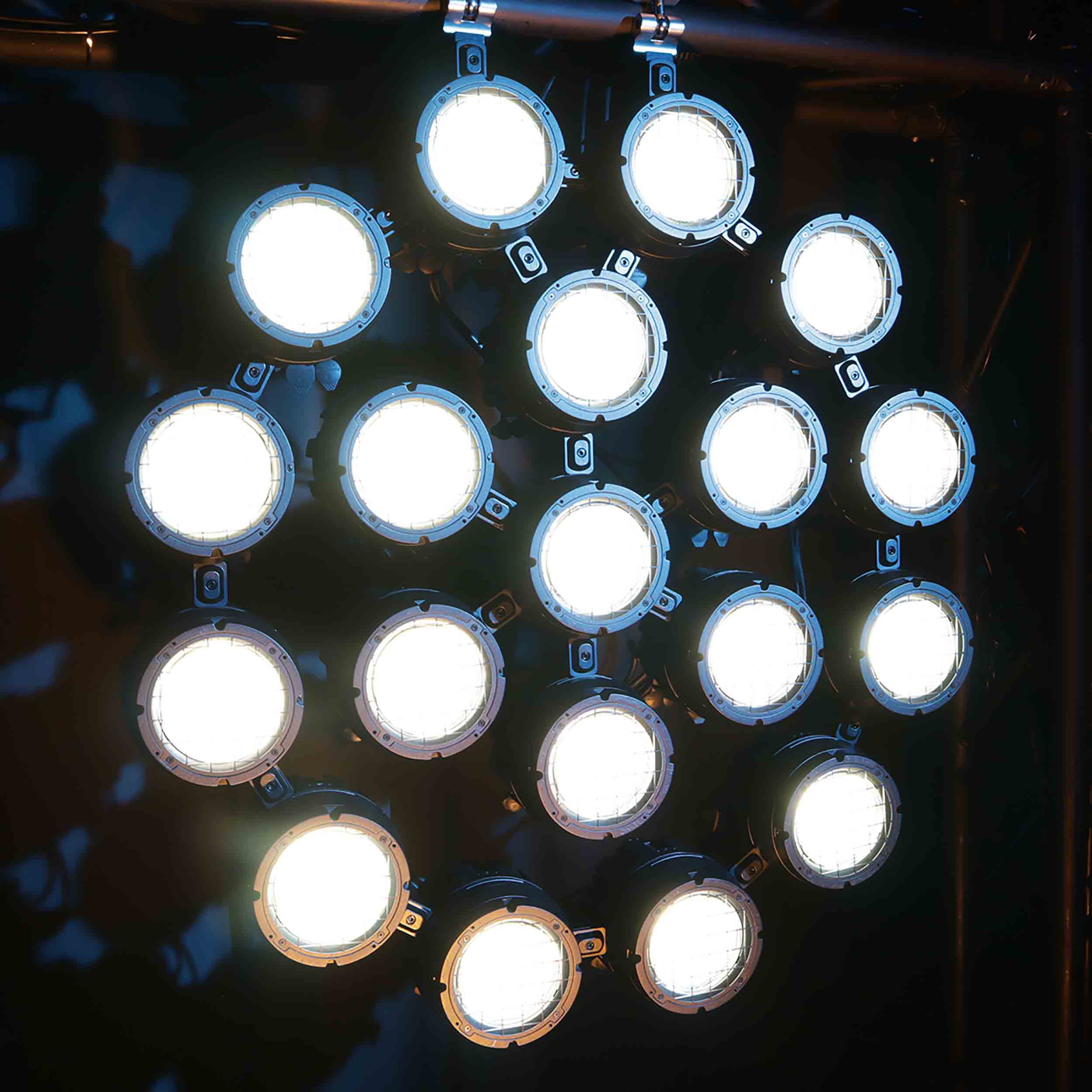

With its sleek and modern aesthetic, SŌL I BLINDER seamlessly integrates into any stage or event setting, offering limitless creative potential. What sets SŌL apart is its ingenious modular design, offering endless possibilities for configuration and arrangement. Using simple fixture interconnects, threaded adapters, mounts and yoke accessories, designers can effortlessly link SŌL I Blinder to other fixtures or devices, exponentially expanding creative options for unique shapes and arrays. Use it as a single-cell, 2- or 4-cell blinder or connect even more fixtures together for a versatile effects panel that is perfect for eye-candy looks. Create linear blinder arrays, single or multi-unit pendants, custom shapes, and more. The possibilities are endless!

Multiple lens options, coupled with a host of accessories, enhance the fixture's potential even further. An optional Bowens mount adaptor ring allows for a number of Bowens mount accessories to be attached to the front of the fixture for even more aesthetic options and creative impact. Add to that a variety of mounting options and designers are empowered with the flexibility to craft unique visual experiences tailored to each performance or event.

The SŌL I BLINDER boasts a remarkable spectrum of colors from a 250W RGB+Lime+Amber+White LED engine with 93+ CRI for high-quality color reproduction. The proprietary RGBLAW engine delivers exceptionally bright, high-fidelity whites while offering a full color range that takes LED blinder color to the next level.

Despite its compact form, the SŌL I BLINDER packs a punch at over 8000 lumens! Fully variable 16-bit color temperature adjustment from 1800K - 8500K is achievable and a dim to warm or red shift emulation function has been included to allow you to match the warm glow of an incandescent blinder. CMY emulation provides the designer with immediate access to the impressive LED color array including beautiful mixed whites while a virtual gel library allows for easy recall of a variety of premixed shades.

Controllable via DMX or RDM protocols, SŌL I BLINDER offers a unique 'Array Mode' addressing system and our proprietary Aria x2 wireless device management for simpler system setup and maintenance. You can also choose between high-output blinder mode or constant output mode when even light level is required for long periods of time.

IP65 rated and convection cooled for use in harsh environments, the SŌL I BLINDER is wrapped in a lightweight yet durable compact housing.

Unleash your creativity and redefine the limits of live entertainment lighting with SŌL - illuminating the path to limitless creativity!

Product Specifications:

Source:

250W RGBLAW LED

30,000 Hour Average LED Life

Photometric Data:

Total Lumen Output

9128 (Integrating Sphere)

CRI TBA

Compound Lens:

Beam Angle: 46°

Field Angle: 85°

No Lens:

Beam Angle: 52°

Field Angle: 95°

Effects:

Variable Strobe Rate: 1- 20kHz

Dim-to-Warm/ Red Shift Emulation

Variable 16-bit Dimming Modes and Curves

High Output Blinder Mode or Constant Output Mode Options

Color:

RGBLAW Color Array

CMY Emulation

Variable CCT 1800K - 8500K

Virtual Gel Swatch Book

Control / Connections:

12 DMX Channel Modes (1ch, 2ch, 3ch, 4ch, 6ch, 7ch, 13ch, 21ch, 10ch, 15ch, 10ch & 15ch)

Simple 'Array Mode' Addressing System

Manual and DMX Controlled Dimmer and Color

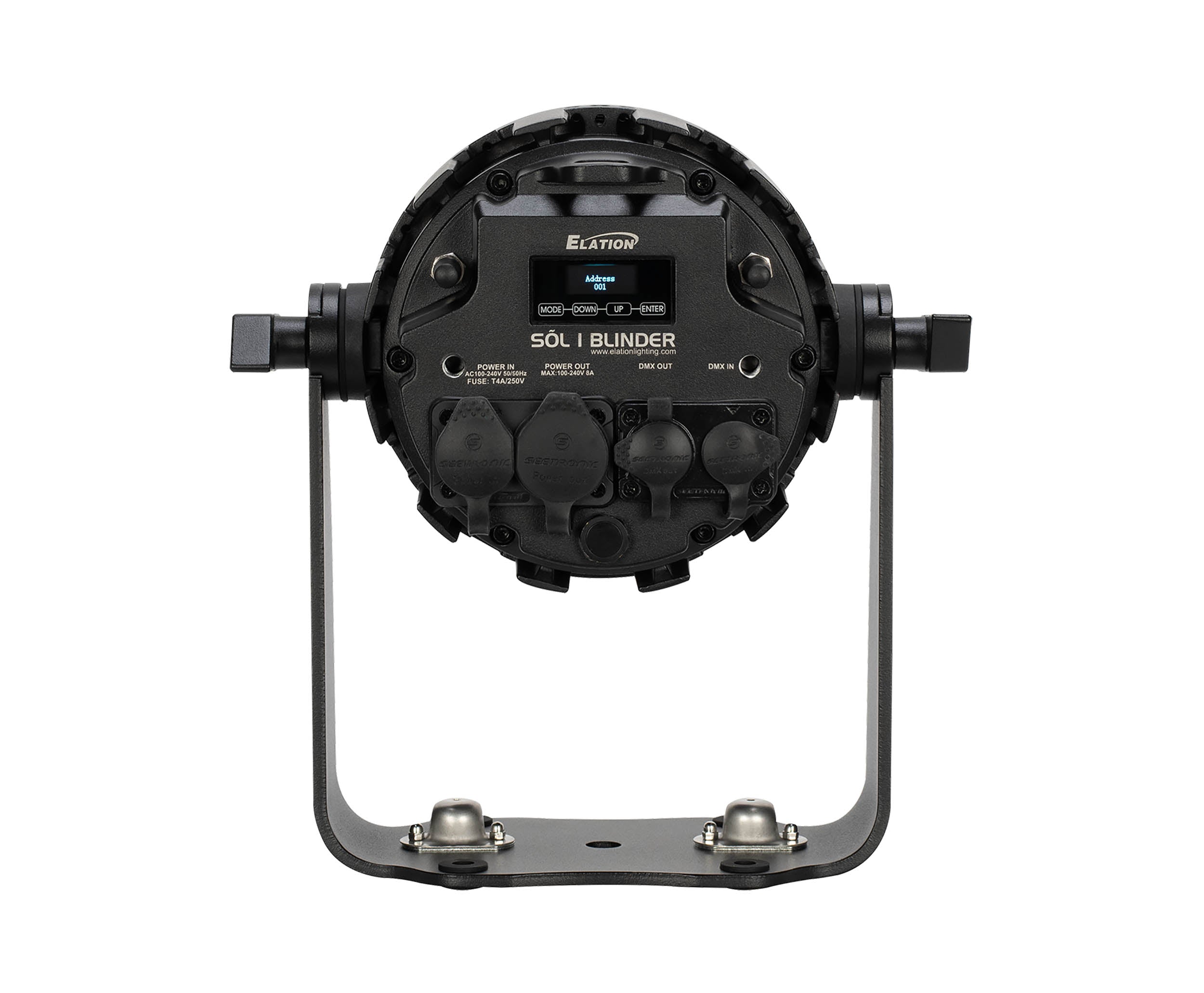

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

5pin DMX and IP65 Locking Power Cable In/Out

Size / Weight:

(Without Accessories)

Length: 7.28" (185mm)

Width: 4.48” (114mm)

Vertical Height: 4.48” (114mm)

Weight (Fixture Only): 5.5 lbs. (2.9 kg)

Weight (With Floor Stand/Yoke): 9.25 lbs. (4.2 kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

285W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

BTU/hrs. (+/- 10%) 972

Included Items:

Fixture Yoke / Floor Stand

Fixture Interconnect Adapter

Safety Cable

IP65 Locking Power Cable

Optional Items:

SŌL I Interconnect (SOL1IC)

SŌL I M10 Connect (SOL1M10C)

SŌL I Rear Mount Bracket (SOL1RMB)

SŌL I Heavy Duty Yoke (SOL1Y)

SŌL I Blinder Frame Kit (SOL1BFK)

SŌL Fresnel Lens (SOLFL)

SŌL Frosted Lens (SOLFRO)

SŌL Bowens Adapter (SOLBA)

SŌL Dome Lens (SOLDL)

SŌL Blackout Lens (SOLBL)

SŌL Gel Frame Holder Kit (SOLGFHK)

SŌL Barndoor (SOLBD)

SŌL Power & DMX Jumper Cable (PDJ112)

# 8050000053 - Omega Bracket

Approvals / Ratings: CE | cETLus(pend) | UL | IP65c| FCC | UKCA
