Description

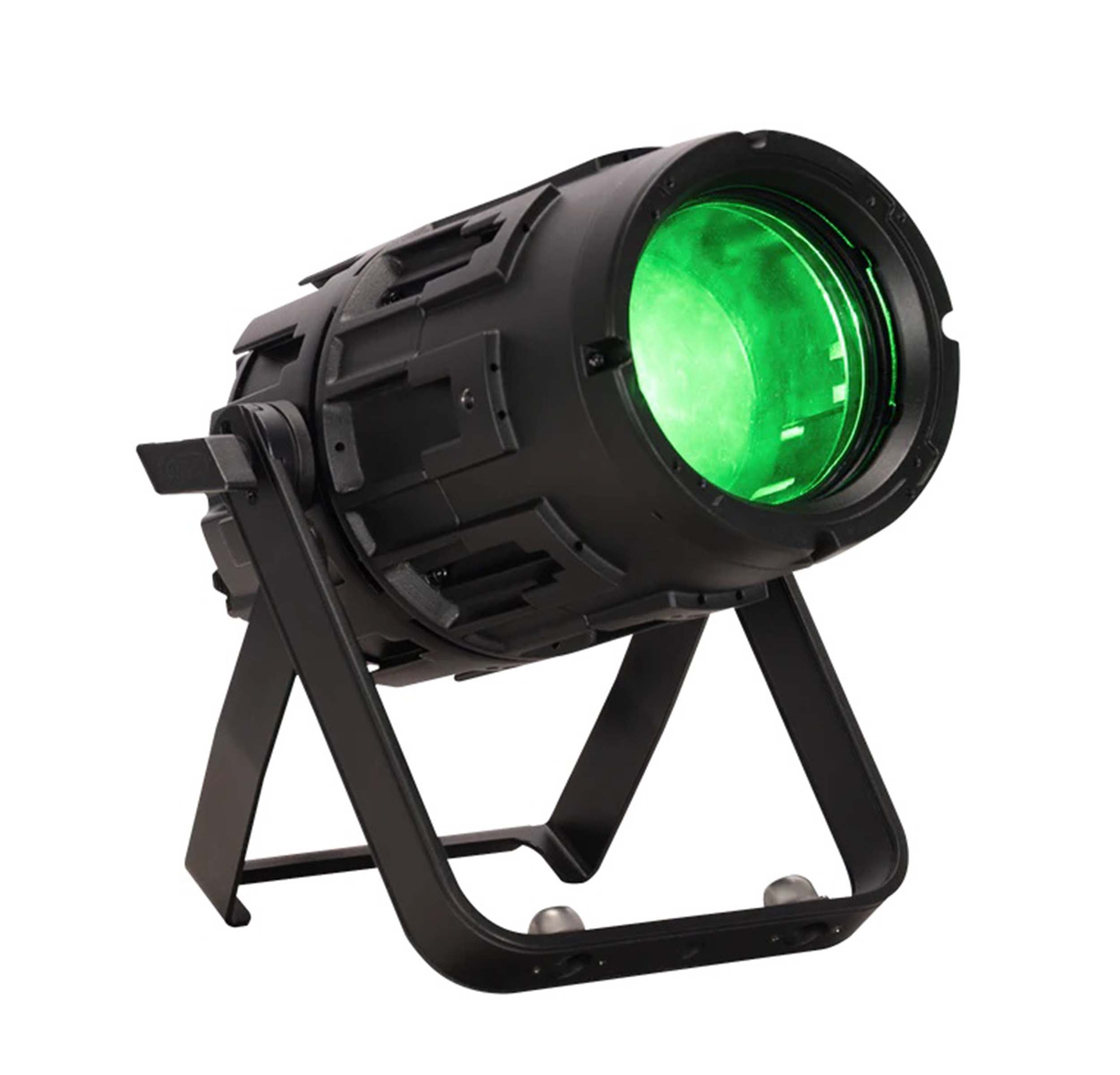

The Elation SŌL I ACL is a compact LED ACL fixture designed to create bright and narrow beams with smooth color mixing. Its powerful 150W RGBLA LED engine delivers strong output and rich colors, making it ideal for concerts, live events, television productions, and architectural lighting. The fast motorized zoom allows users to quickly switch from tight beam effects to wider looks for greater creative flexibility.
Built for professional indoor and outdoor applications, the SŌL I ACL features a durable IP65 rated housing that protects against dust and rain. The silent fan free cooling system makes it suitable for theaters, studios, and other noise sensitive environments. Its modular design also allows it to connect with other SŌL fixtures, making it easy to create custom lighting arrays.
The fixture offers advanced lighting control with RGBLA color mixing, adjustable white color temperature, CMY emulation, electronic dimming, strobe effects, and multiple DMX channel modes. With support for RDM and Aria x2 wireless device management, the SŌL I ACL provides reliable performance and flexible integration into modern lighting systems.
Product Specifications
Light Source: 150W RGBLA LED Array
LED Life : 30,000 Hours
Total Lumen Output: 1,860 Lumens
Zoom Range: 4° to 41°
Beam Angle: 4° to 36°
Field Angle: 5° to 41°
Color Mixing: RGBLA
Color Temperature: 1800K to 8500K
Control Protocols: DMX512, RDM
DMX Modes: 12 Modes
Wireless Management: Aria x2
IP Rating: IP65
Power Supply: AC 100 to 240V, 50/60Hz
Maximum Power Consumption: 154W
Operating Temperature: -15°C to 45°C
Product Weight: 12.3 lbs
Dimensions (L × W × H): 11.56 × 4.48 × 4.48 in
Shipping Weight: 14 lbs
Shipping Dimensions: (L × W × H): 14 × 6 × 6 in.
