Elation TVL SOFTLIGHT DW Dynamic White 115 degrees Beam TVL Panel Soft

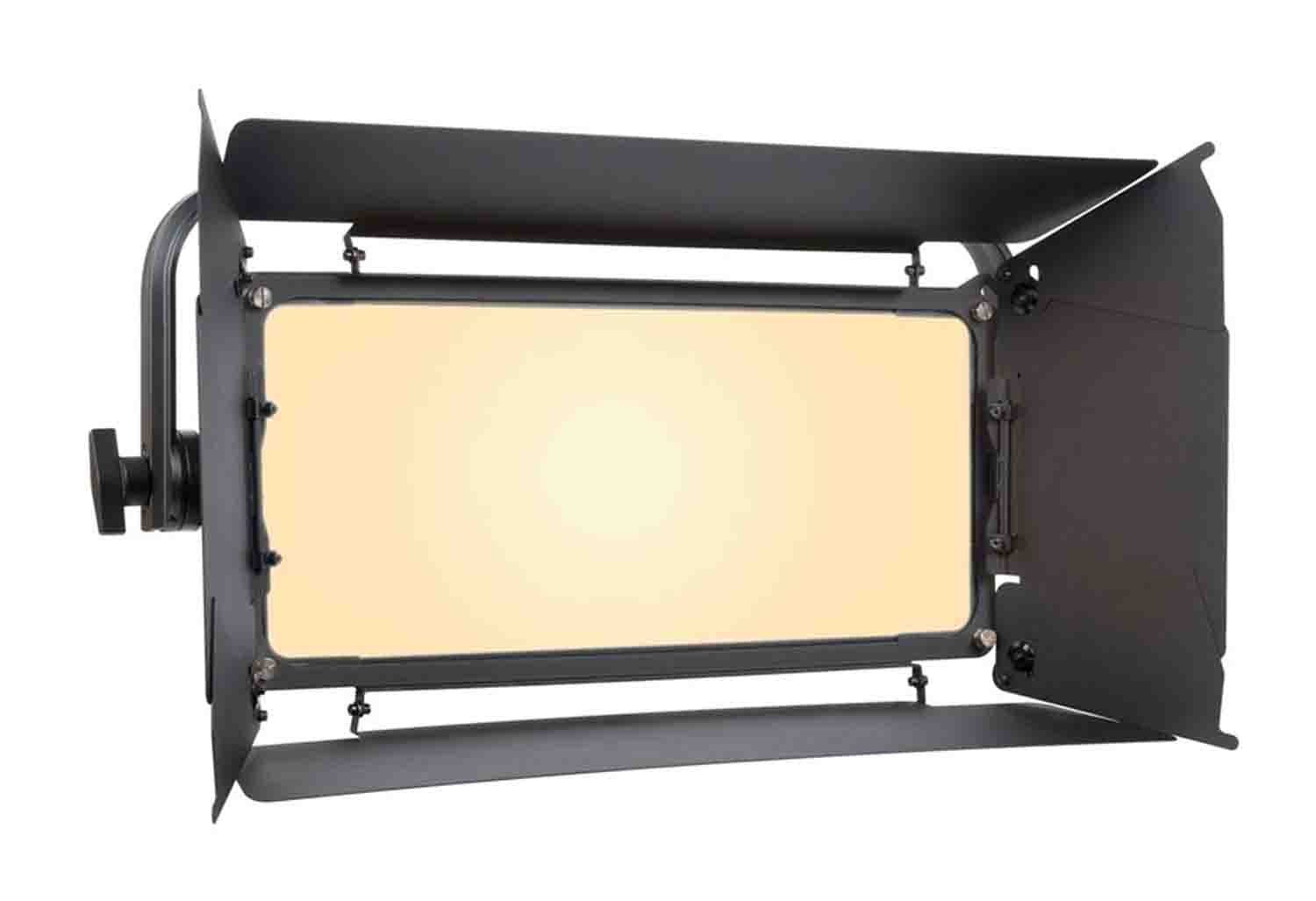

The Elation TVL551 TVL SOFTLIGHT DW Dynamic White 115 degrees Beam TVL Panel Soft Light is a soft light luminaire featuring (240) Cool White and (240) Warm White LEDs, a 115° beam angle, 8-leaf adjustable / removable barn doors, linear white color temperature range (3,200K - 5,600K), smooth 16bit dimming curve mode effects, adjustable LED refresh frequency and gamma brightness for flicker free operation for TV and FILM, 5pin DMX, RJ45 ethernet (Art-NET), and Locking IP65 Power connections, (4) button menu control panel, dimmer and color temperature rotary control dials, 180° reversible LCD menu display, and a multi-voltage universal auto switching power supply (100-240v). Optional SNAPGRID 40° light control grid available.

Product Specifications:

Source

(240) Cool White and (240) Warm White LEDs

20,000 Hour Average LED Life

Photometric Data

>95CRI | 6,700 Total Lumens

575 LUX 53.4 FC @6.6 ft (2m) Full ON 4,200K >95CRI

580 LUX 53.9 FC @6.6 ft (2m) CW 5,600K >96CRI

564 LUX 52.4 FC @6.6 ft (2m) WW 3,200K >95CRI

Effects

3,200K - 5,600K Linear Variable Color Temperature

Electronic Strobe and Variable Dimming Curve Modes

Color

Cool White / Warm White

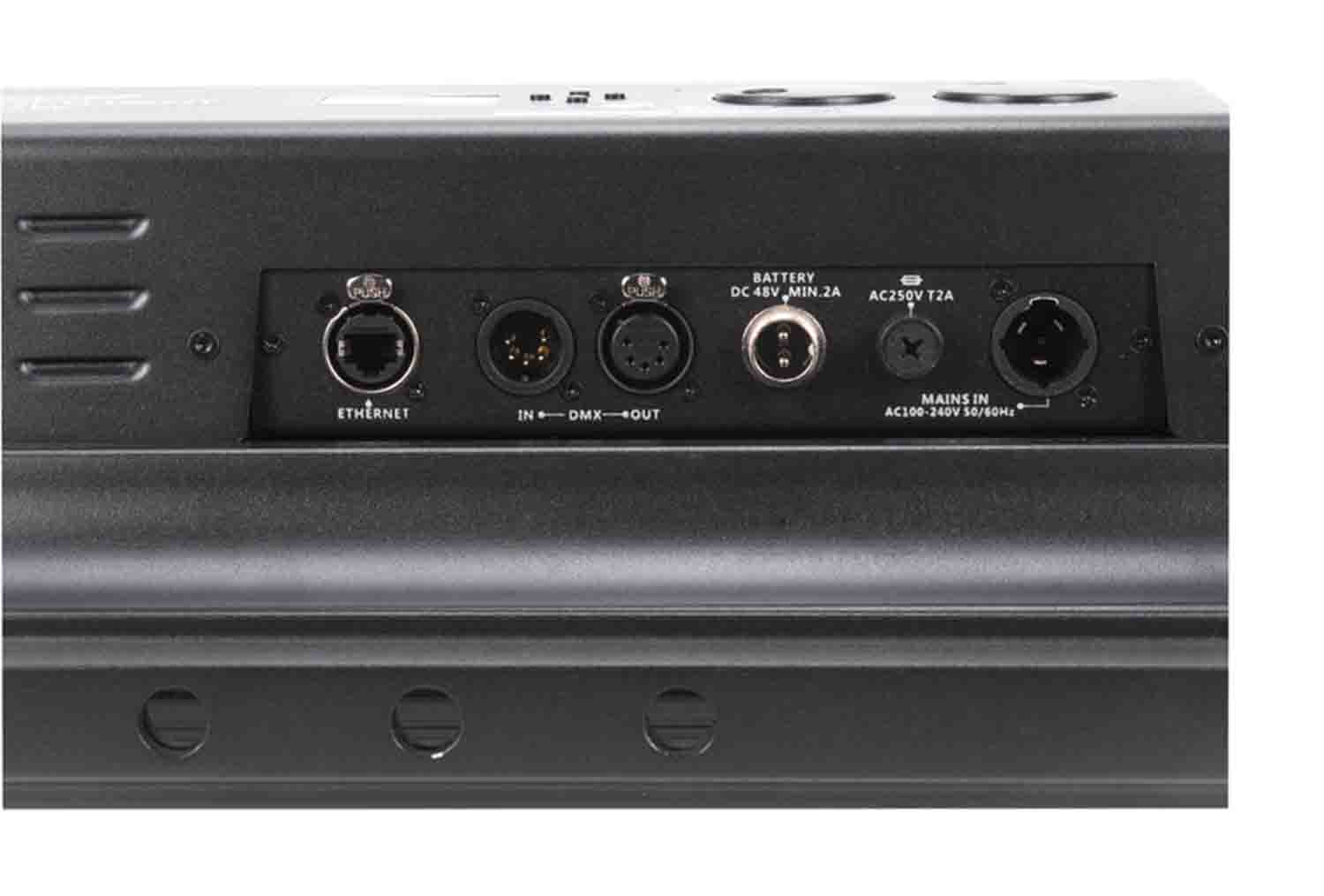

Control / Connections

6 DMX Channel Modes (7 total channels)

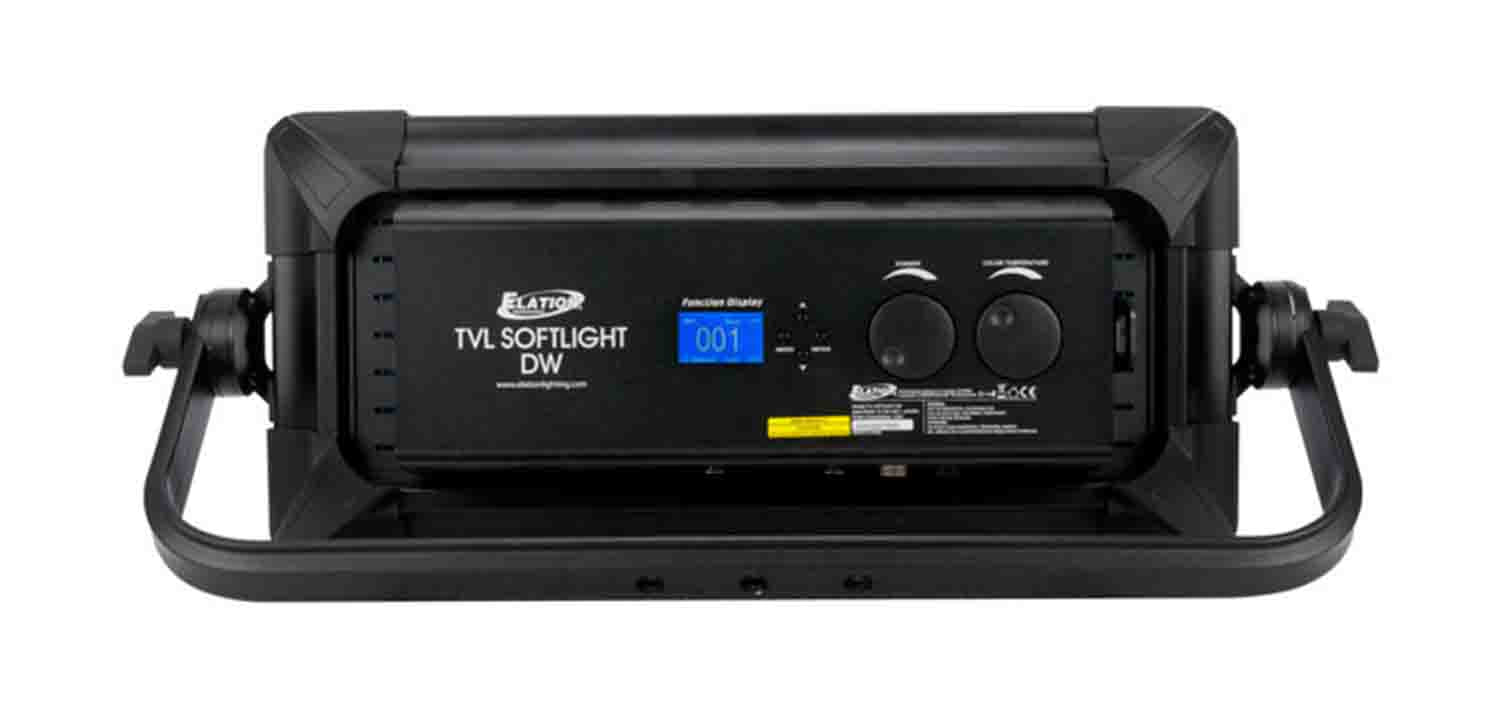

4 Button Control Panel

2 Rotary Control Dials (Dimmer and Color Temperature)

Adjustable Refresh Rate (900-25,000 Hz)

Adjustable Gamma Brightness (2.0-2.8)

180° Reversible LCD Menu Display

IP65 Locking RJ45 Ethernet Cable

Locking IP65 Power Cable In

With Wired Digital Communication Network

Size / Weight

Length: 27.5”

Width: 13.14”

Vertical Height: 17”

Weight: 20.32 lbs
