Description

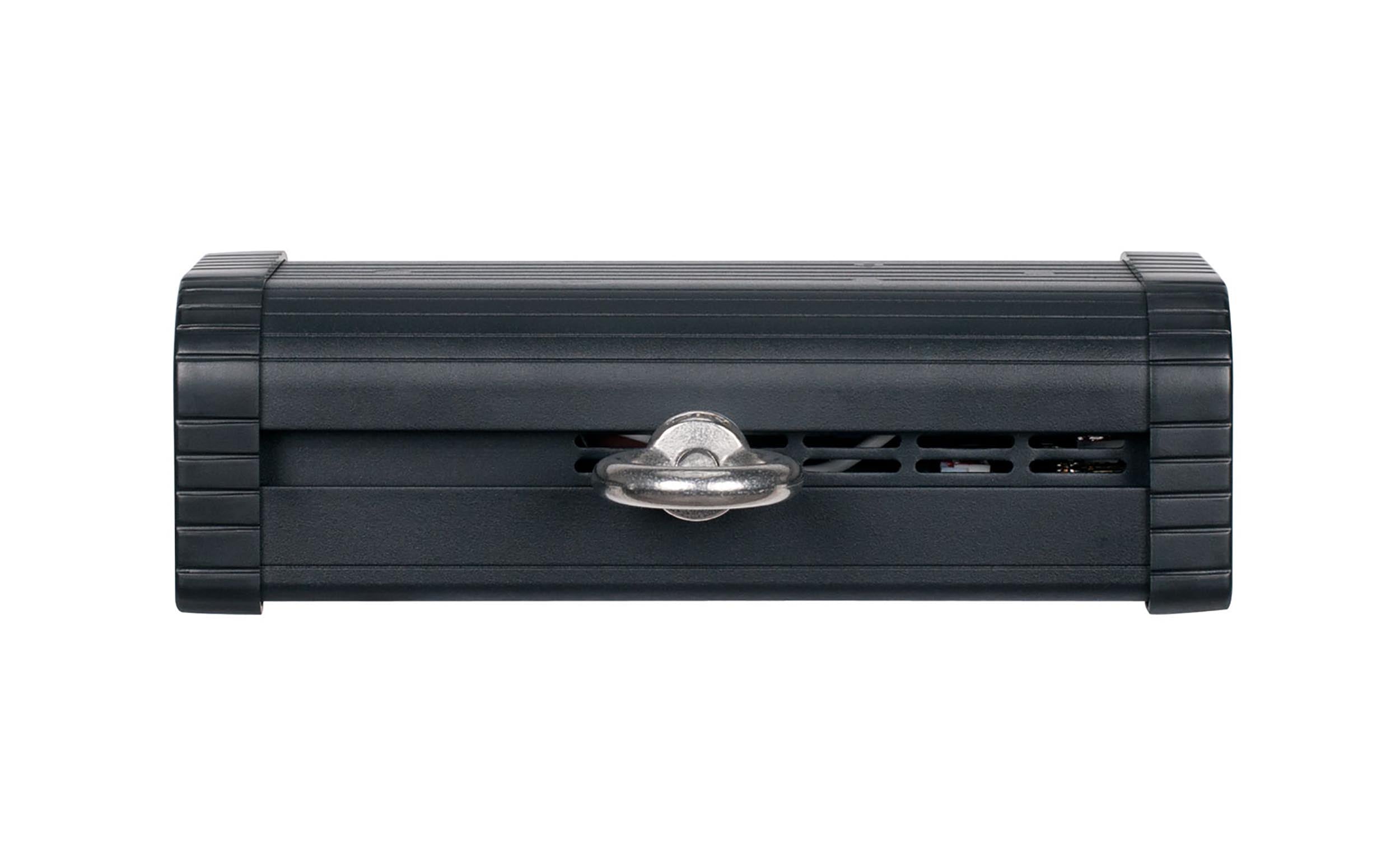

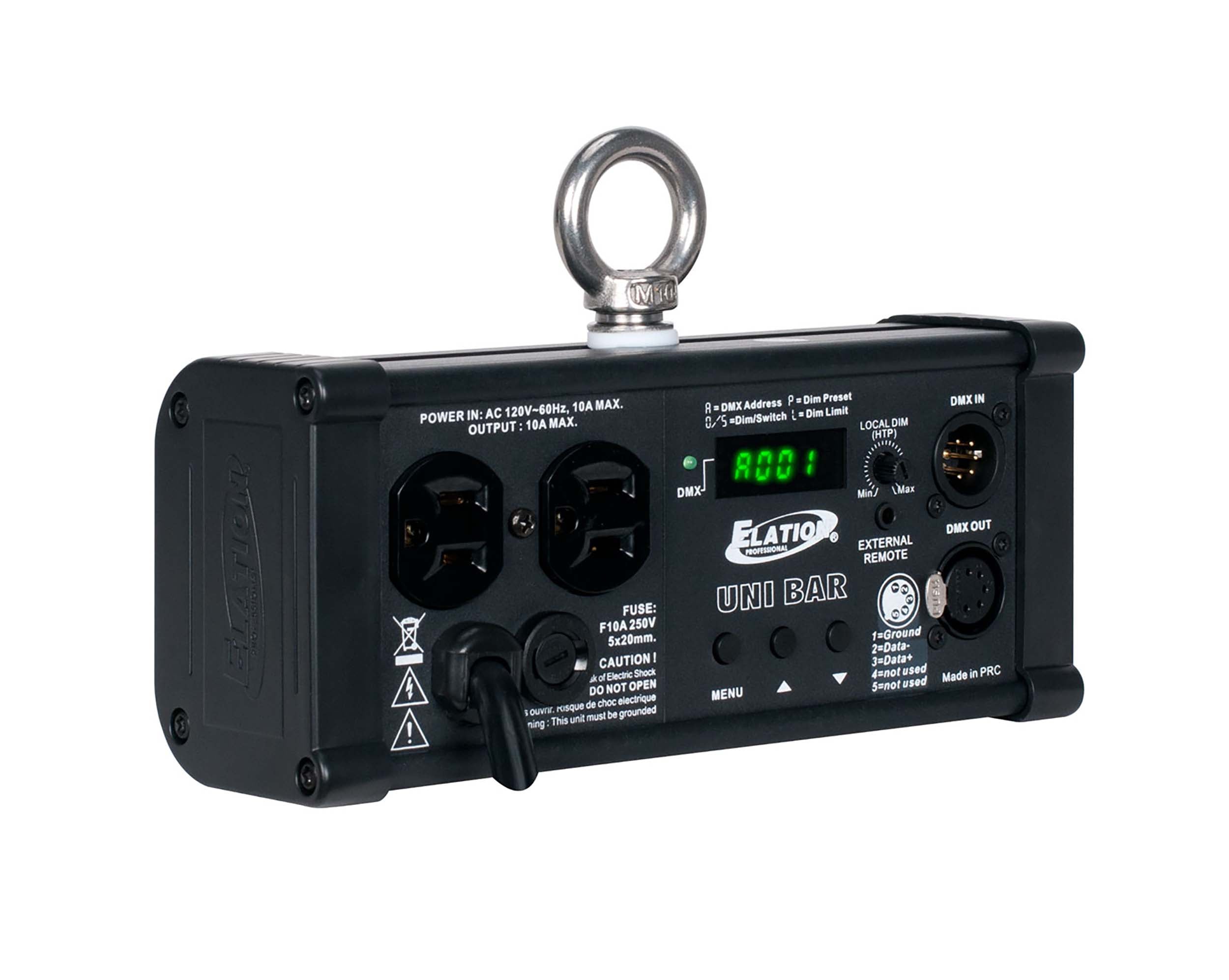

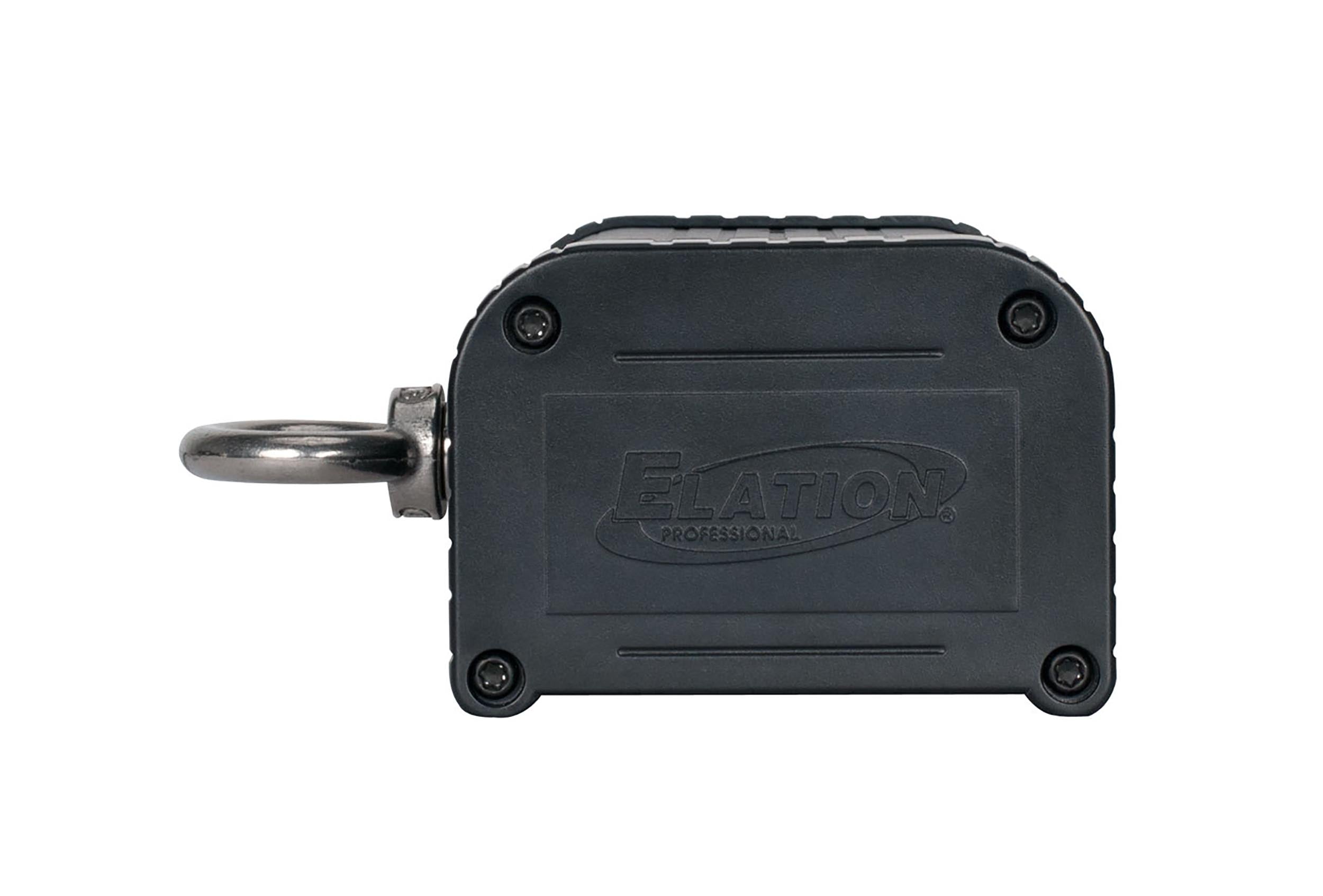

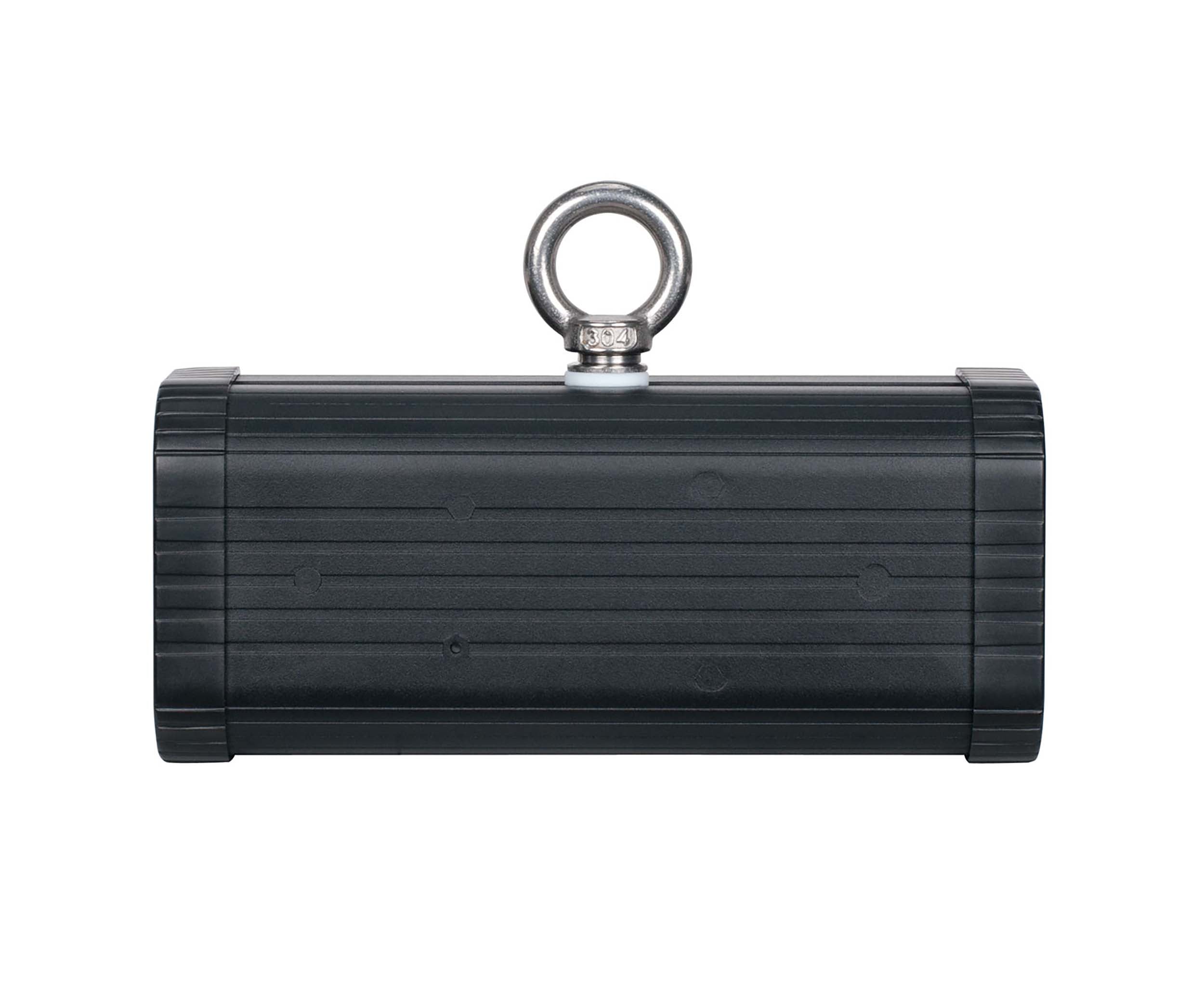

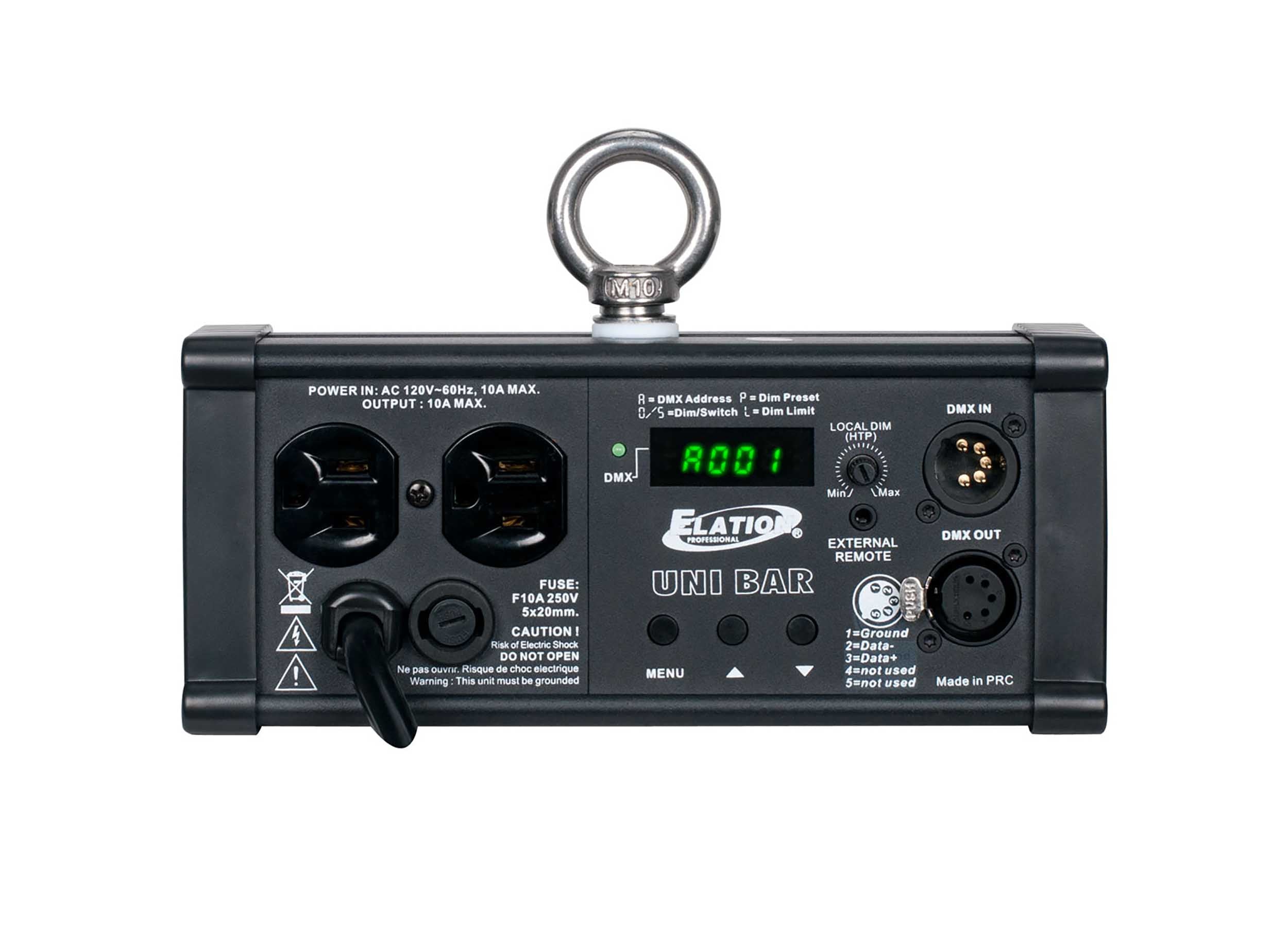

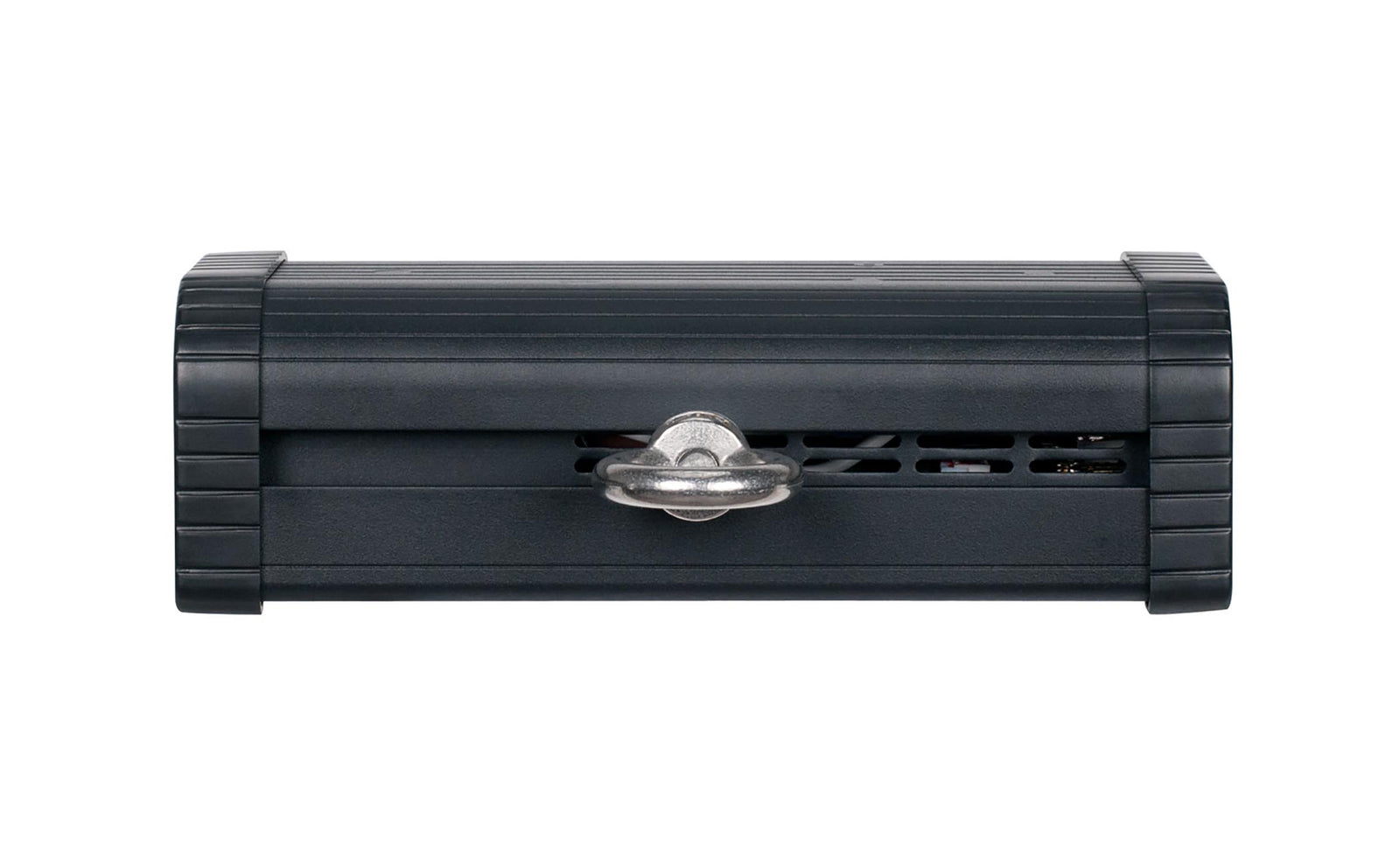

The Elation UNI BAR, is a compact single DMX channel dimmer featuring 10 amps of maximum channel output, dimmer or switch pack modes, dimmer preset and limit settings, local HTP dimmer control, input for an optional analog HTP dimmer controller, power failure memory, 3pin DMX in/out (5pin effective May 1, 2019), (2) Edison 3-prong outputs, 3-button control panel and LCD display, and can be easily mounted using standard truss clamps or couplers
Product Specifications:
Control / Connections:
1 DMX Channel
3-Button Control Panel
LCD Menu Display
On-board HTP Dimming Control Dial
Input for Optional Analog HTP Dimmer
2 Edison 3-prong Outputs (10A Max Total Output)
5pin DMX In/Out
Size / Weight:
Length: 7.83” (200mm)
Width: 3.23” (82mm)
Vertical Height: 2.63” (66.8mm)
Weight: 2.4 lbs. (1.1 kg)
Electrical: AC 120V - 60Hz / 10A Max Total Output
