Description

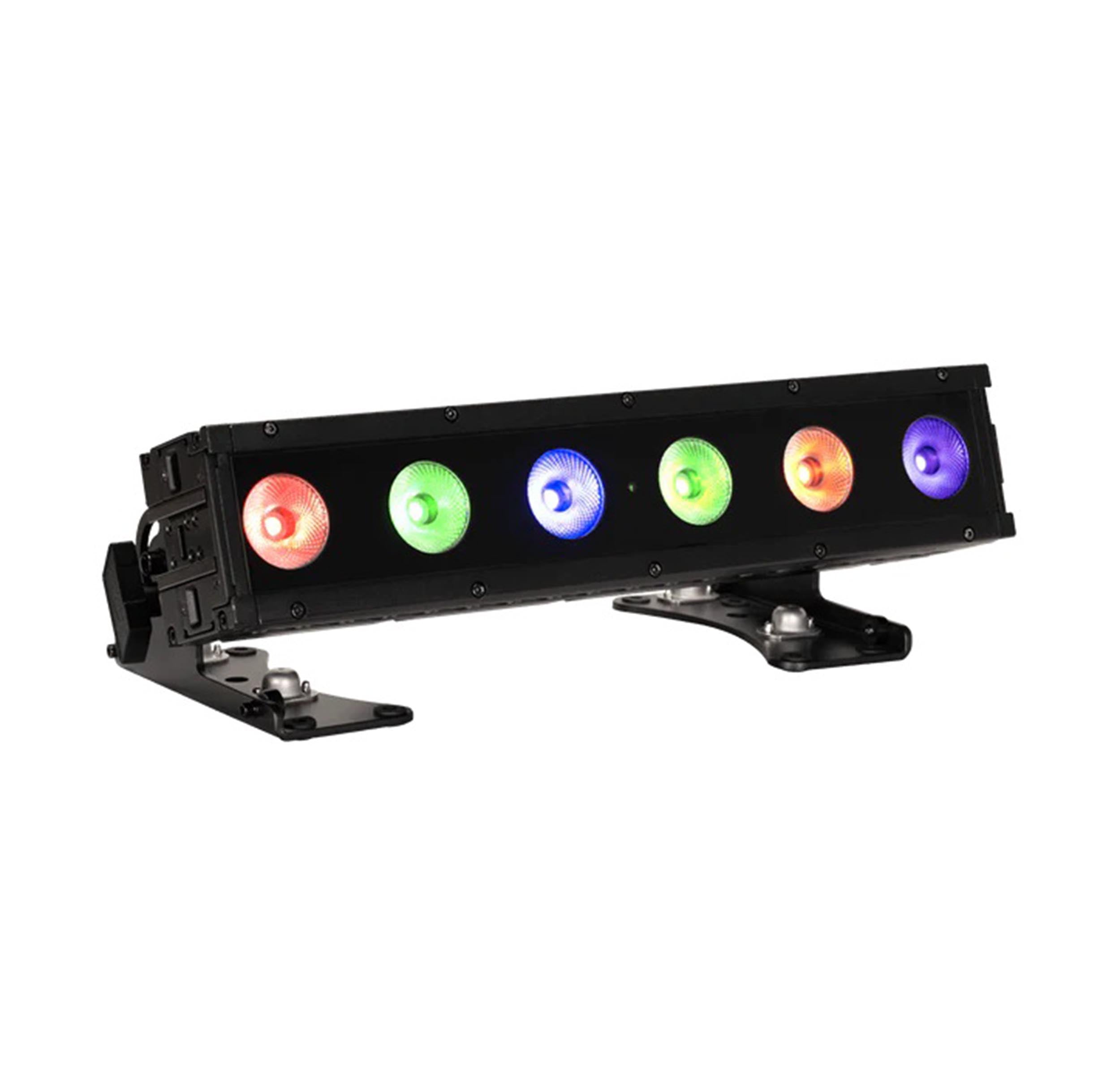

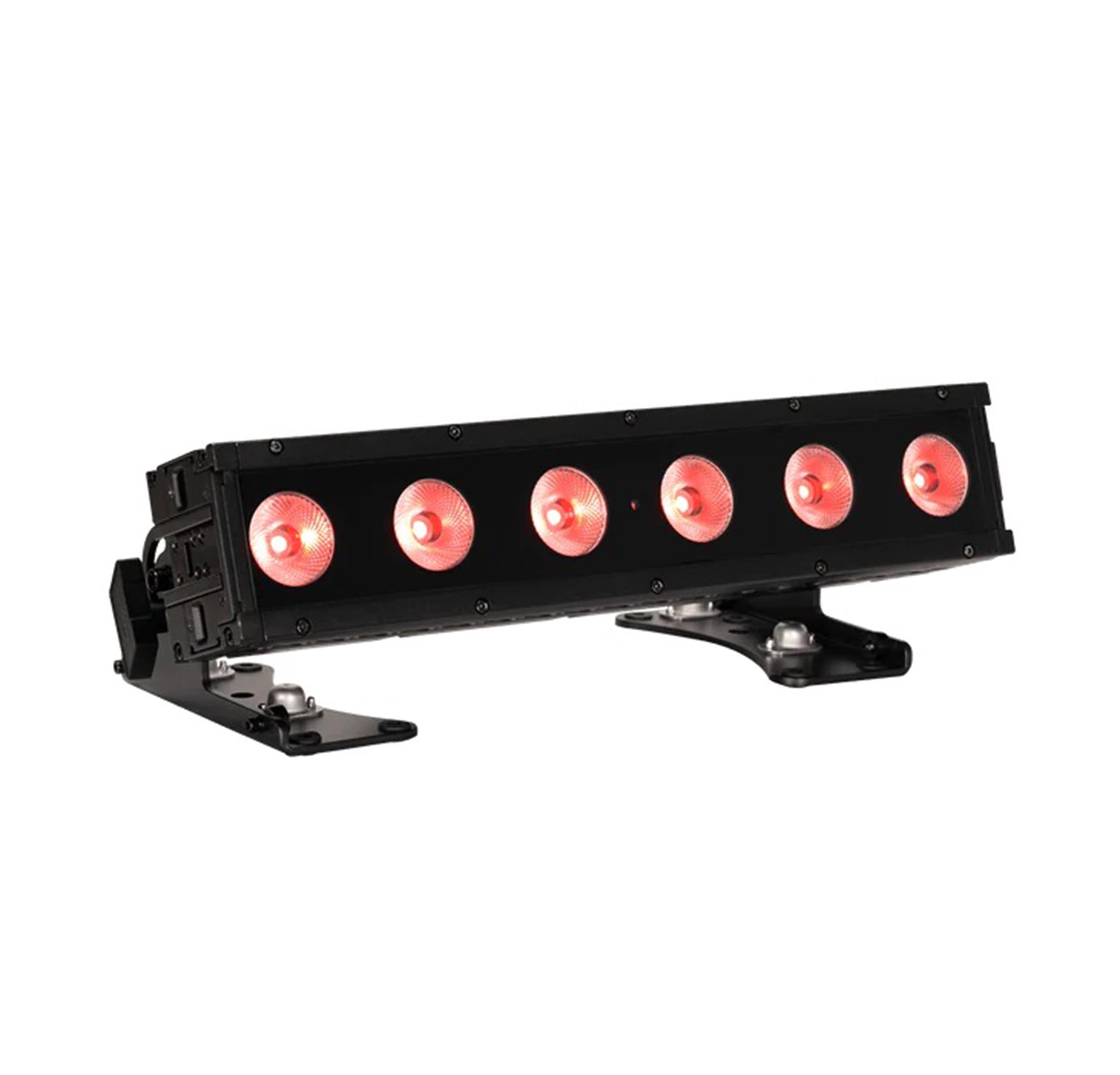

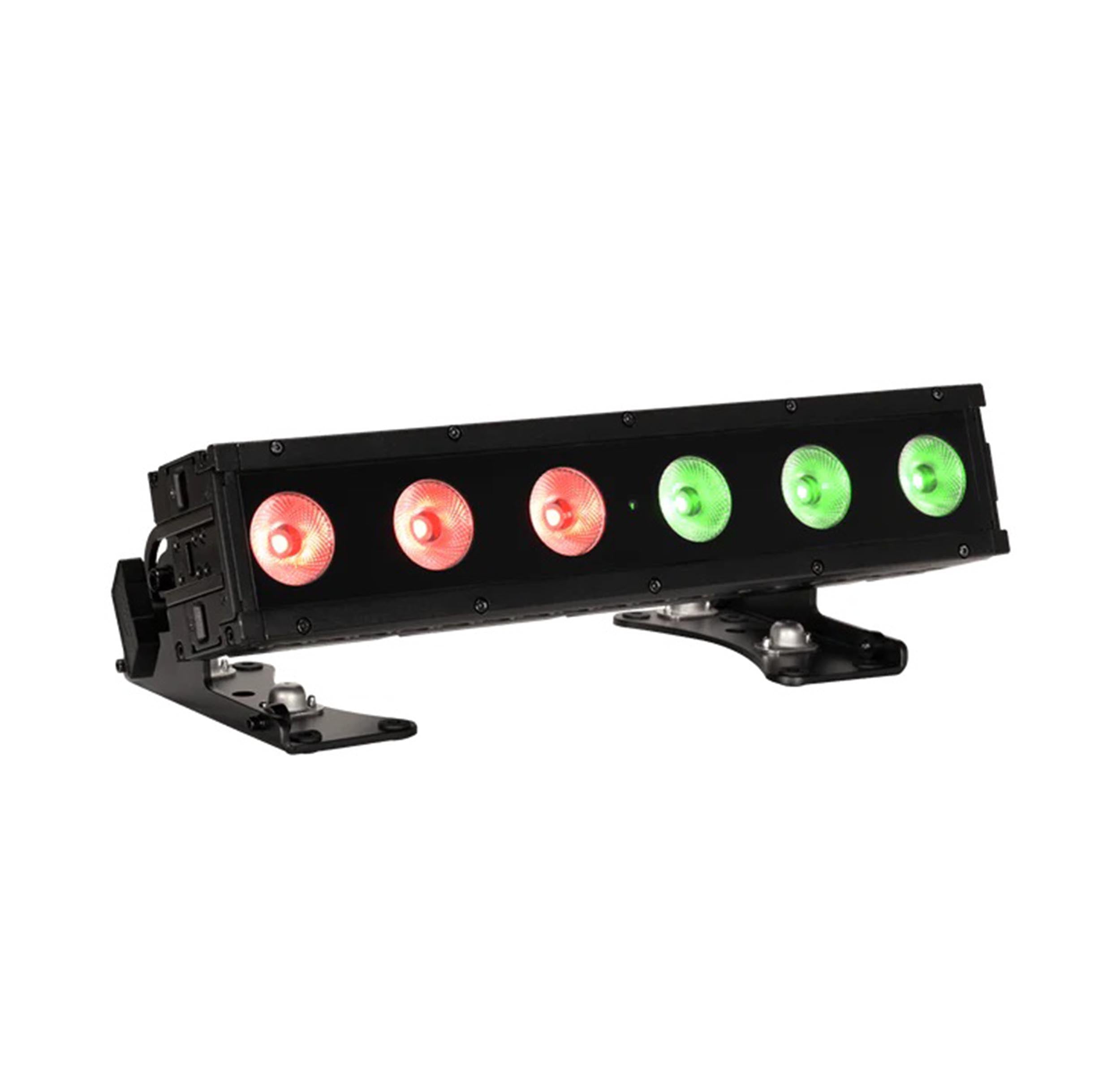

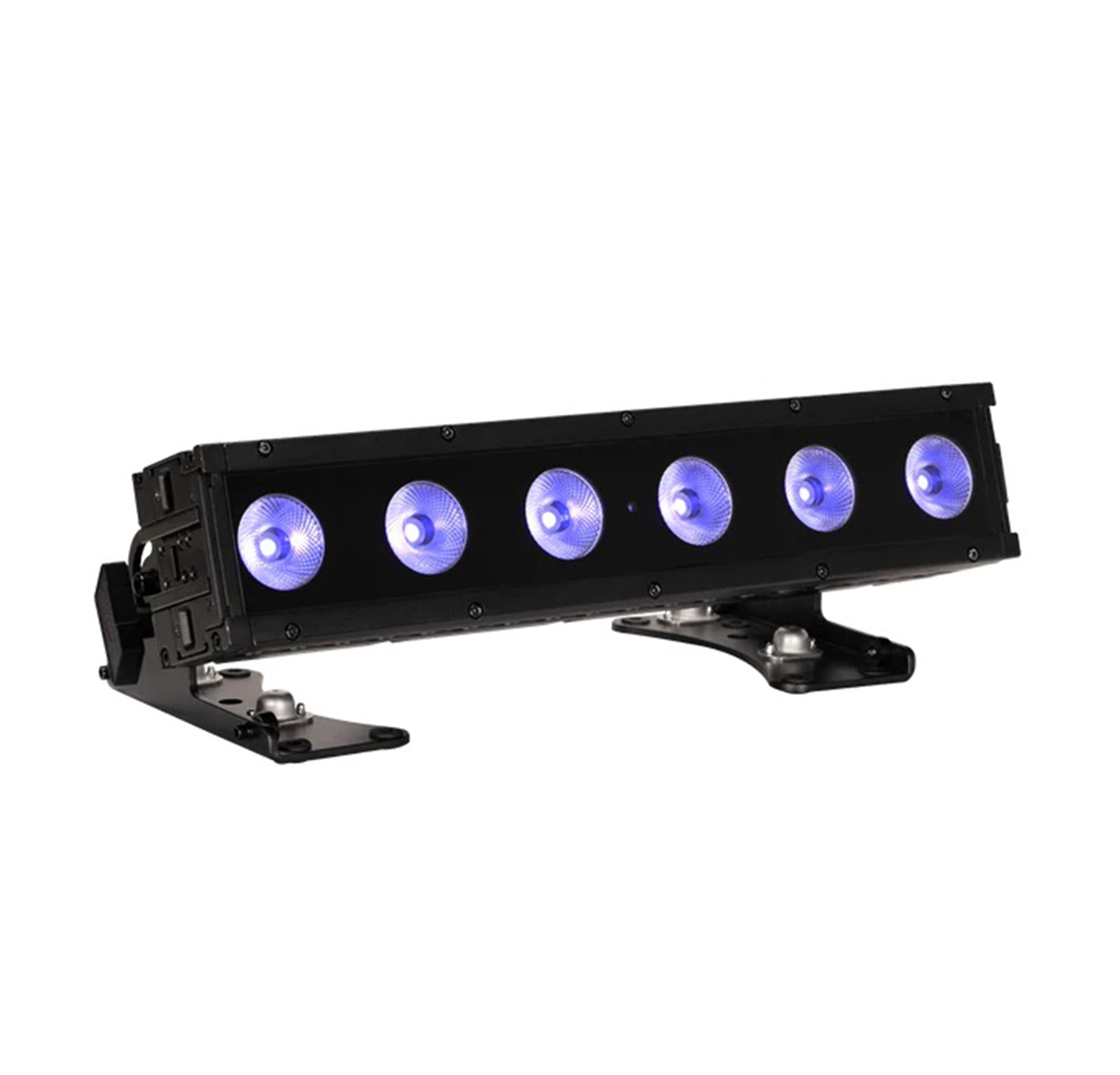

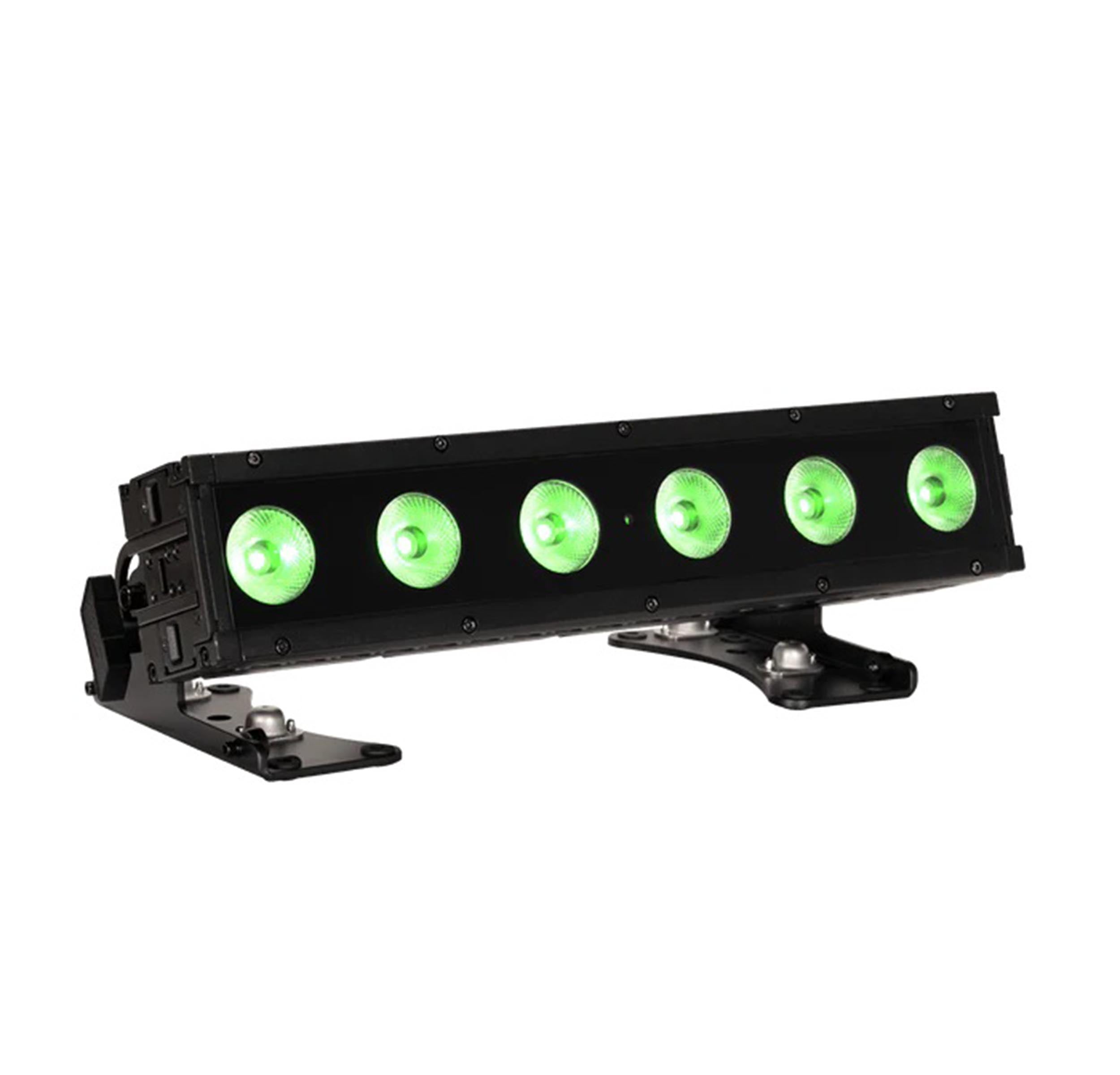

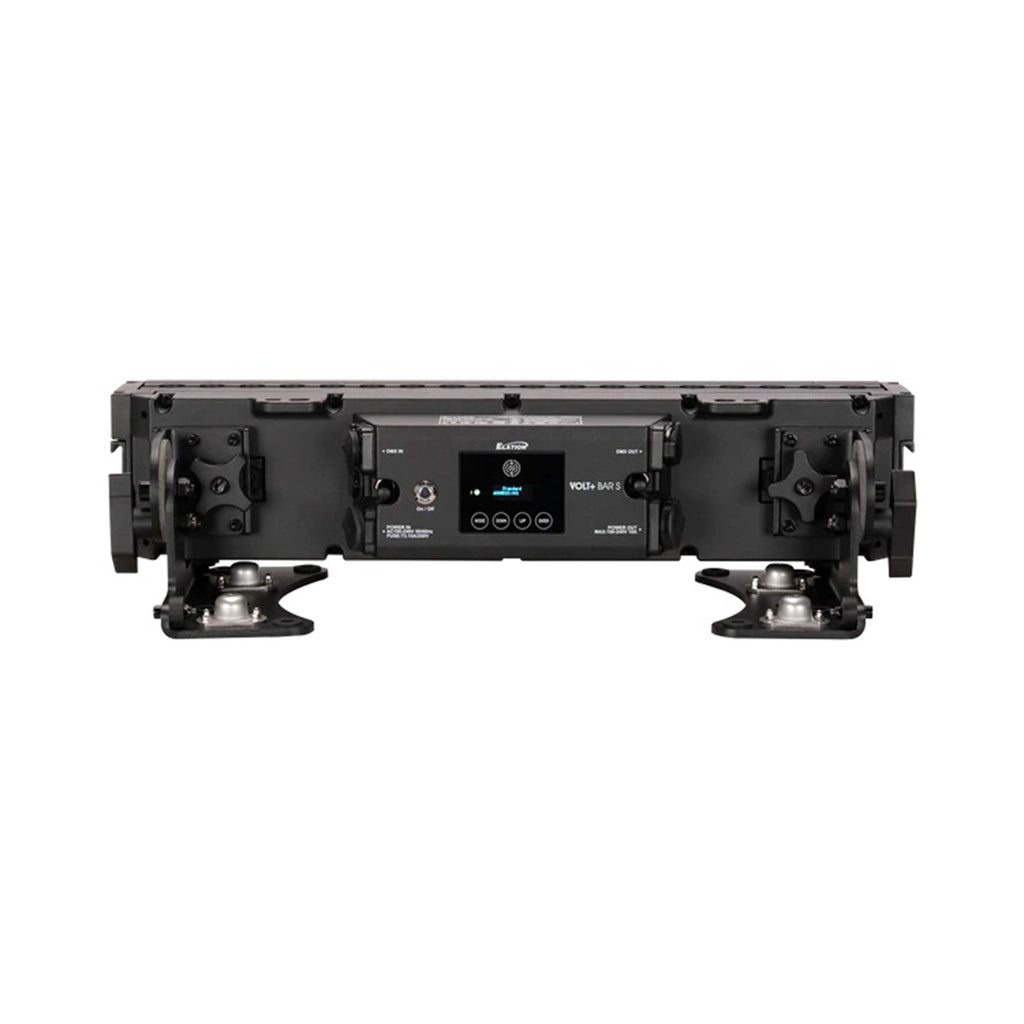

The Elation VOLT+ BAR S is a professional battery powered LED light bar designed for concerts, stage productions, architectural lighting, weddings, and outdoor events. Equipped with six powerful 20W RGBLA+UV LEDs, it delivers bright colors, smooth color blending, and excellent white light with adjustable color temperatures. Its built in rechargeable battery provides more than 12 hours of operation, making it ideal for cable free lighting installations.
Designed for reliable performance in any environment, the VOLT+ BAR S features an IP65 rated enclosure that protects against dust and water. The fixture includes a frost filter for wider beam coverage, full pixel control for creative lighting effects, and an interconnect system that allows multiple fixtures to be joined together for larger lighting designs.
Advanced control options include DMX, RDM, wireless device management through Aria x2, NFC configuration, and IR remote support. Electronic dimming, strobe effects, CMY emulation, and a virtual gel library provide lighting designers with the flexibility needed for professional productions, both indoors and outdoors.
Product Specifications
Light Source: 6 x 20W RGBLA+UV LEDs
LED Life : 30,000 Hours
Total Lumen Output: 5,020 Lumens
Color Mixing: RGBLA+UV
CRI: 90.9
TLCI: 80
Beam Angle: 20°
Beam Angle with Frost Filter: 30°
Field Angle: 33°
Field Angle with Frost Filter: 60°
Battery Type: Rechargeable Lithium Ion
Battery Capacity: 10.2Ah
Battery Voltage: 18.5V
Battery Runtime: More than 12 Hours
Battery Charge Time: 3 Hours
Control Protocols: DMX512, RDM, Aria x2 Wireless, NFC, IR Remote
DMX Modes: 13 Channel Modes

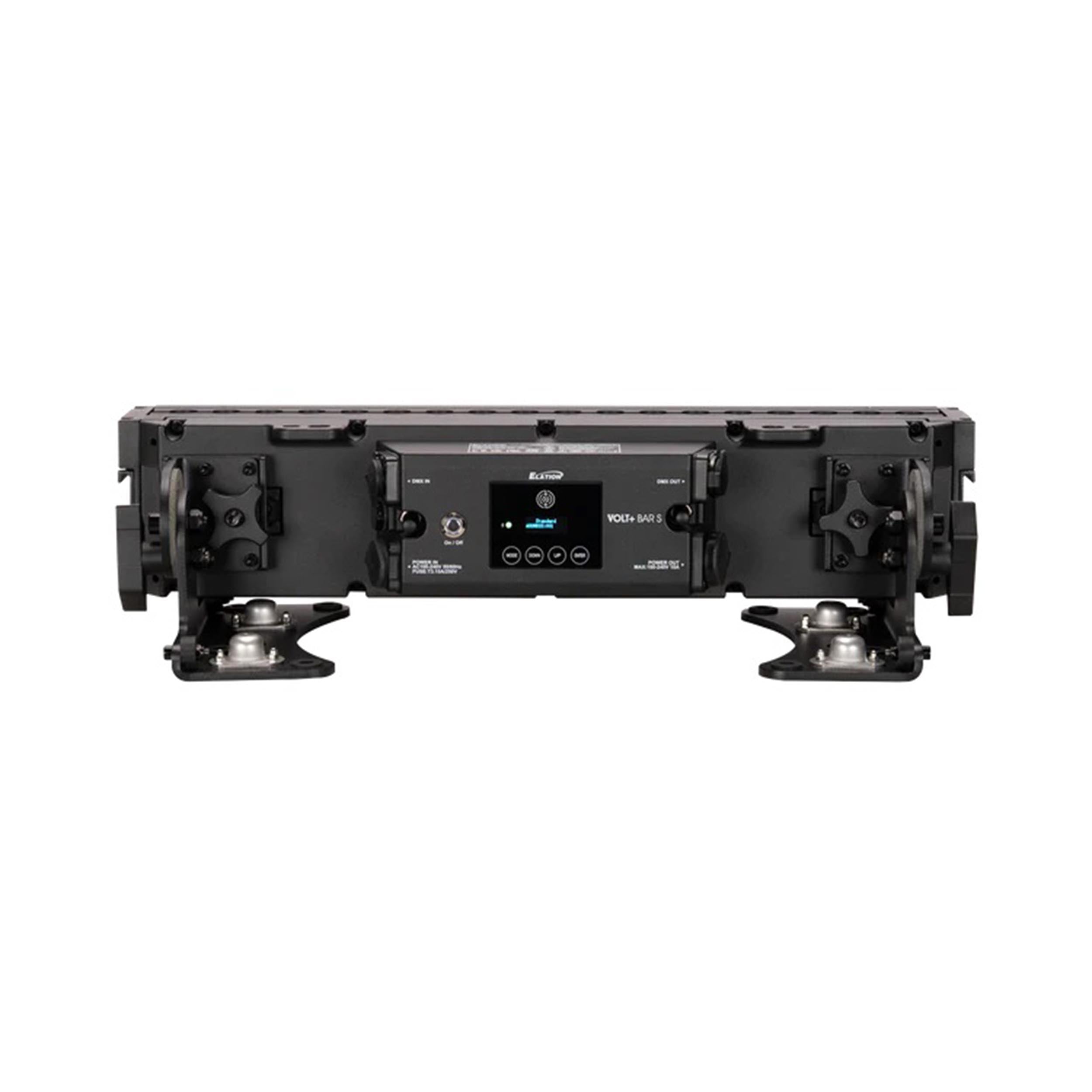

Display: 4 Button LED Display
Power Supply: AC 100-240V, 50/60Hz
Maximum Power Consumption: 110W
Operating Temperature: -15°C to 45°C
IP Rating: IP65
Product Weight: 18.8 lbs
Dimensions: (L × W × H): 19.7 × 6.9 × 8.9 in
Shipping Weight: 20 lbs
Shipping Dimensions: (L × W × H): 22 × 9 × 11 in.
