Description

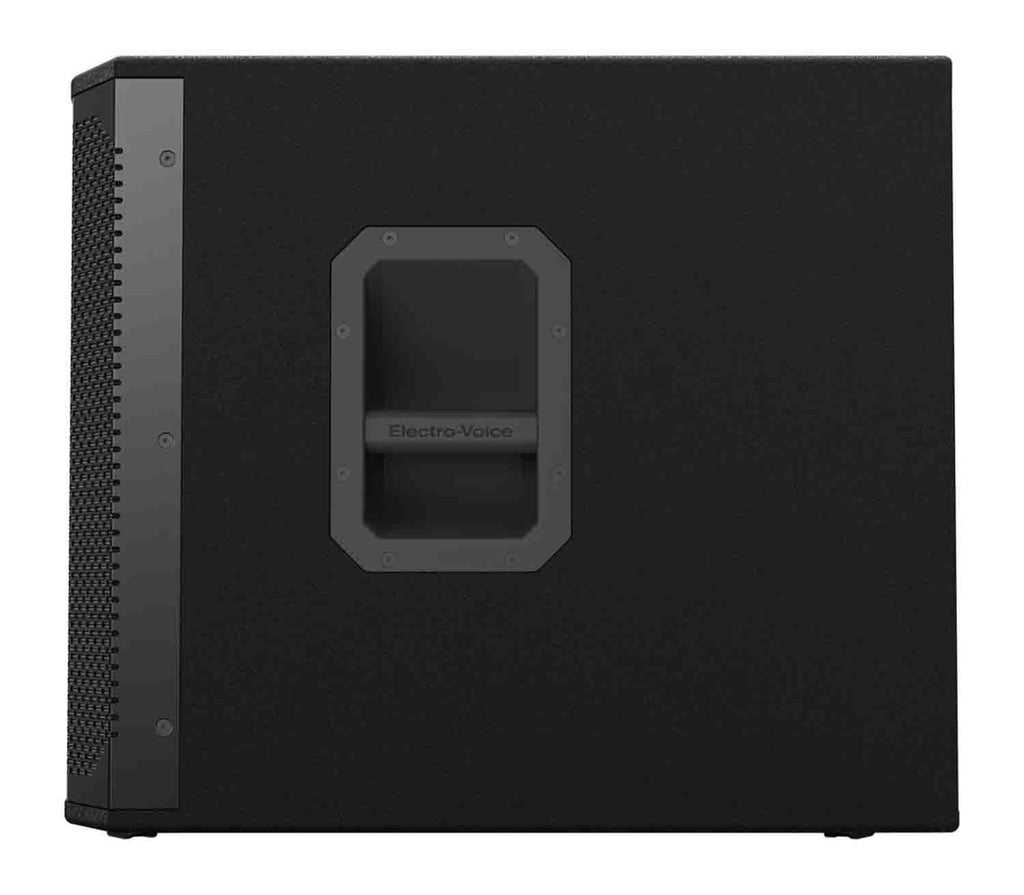

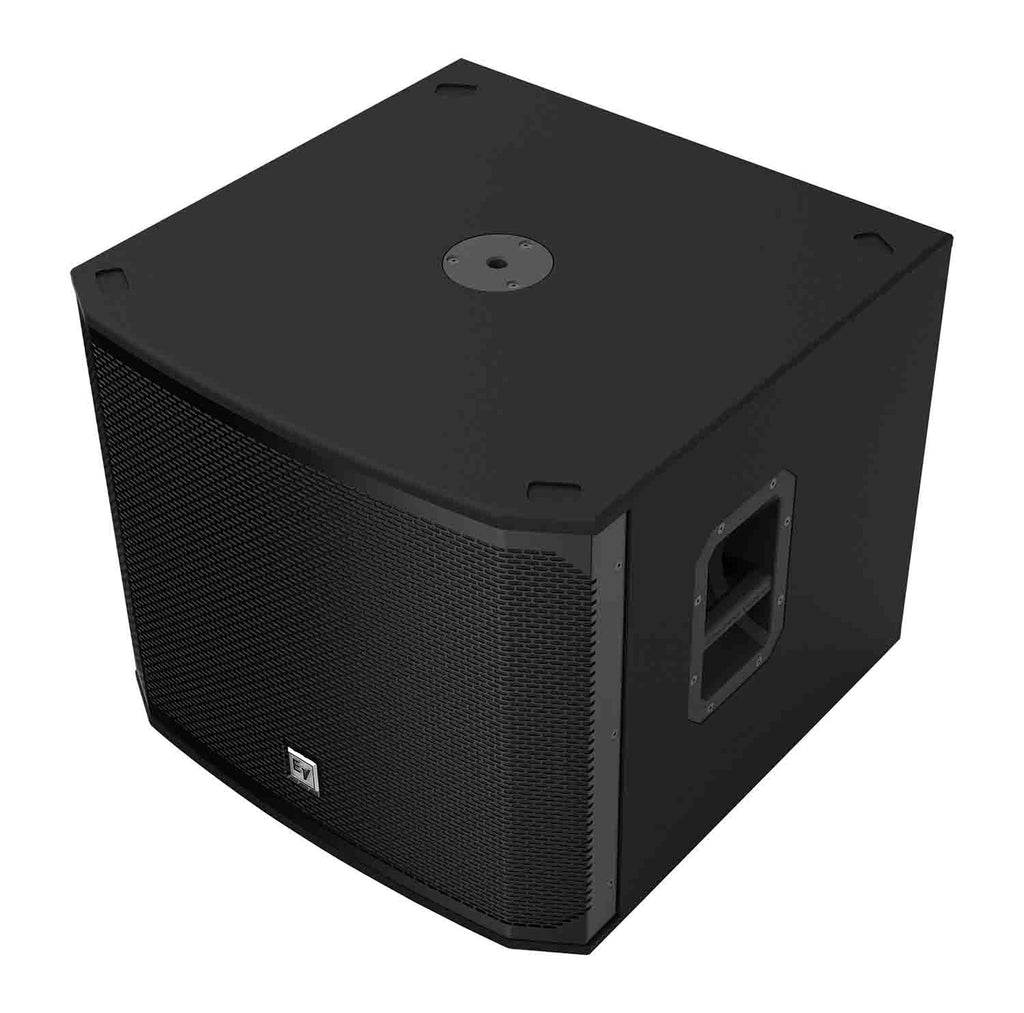

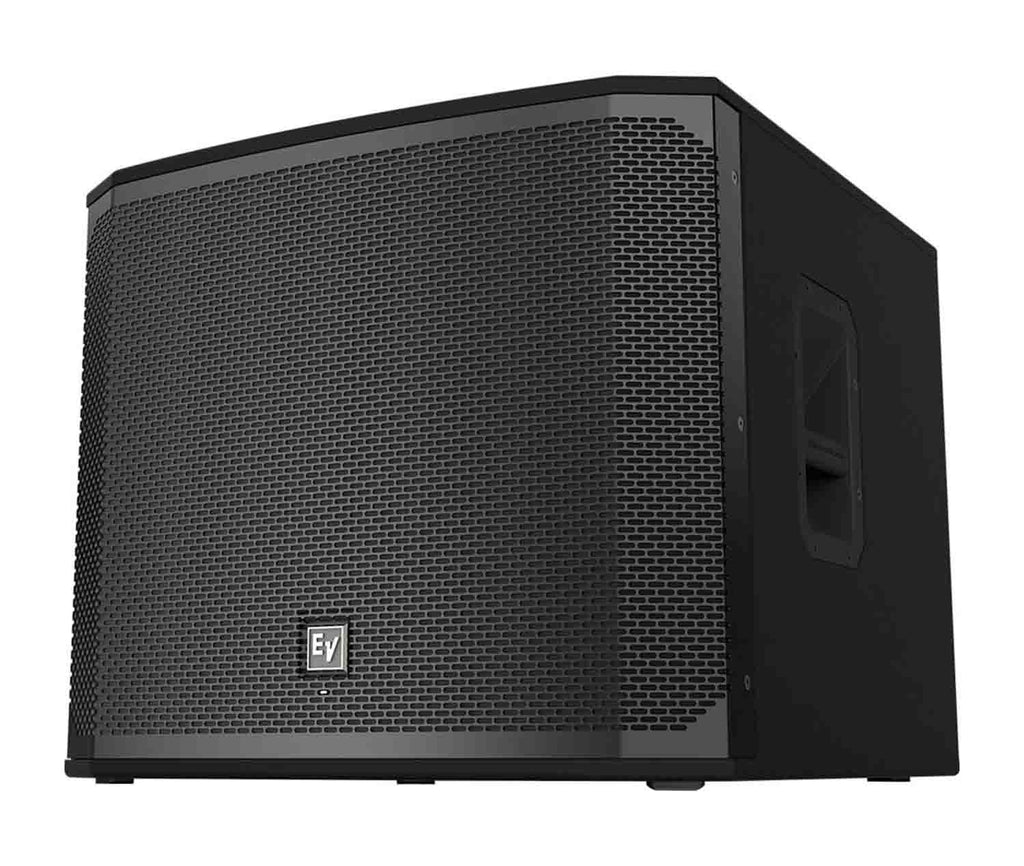

The Electro-Voice EKX-18SP is an 18" 1300-Watt Powered Subwoofer. It features a 1300W class D amplifier capable of delivering up to 134 dB of peak SPL, utilizing its EV transducer for this express purpose. Via the single-knob user interface and backlit LCD navigation screen, you can easily manipulate its on-board QuickSmartDSP processing. Cardioid Control Technology allows you to steer signal towards the audience while simultaneously providing up to 35 dB of sound reduction on stage. An intelligent thermal management system automatically adjusts the variable-speed fan by means of built-in sensors. With two XLR outputs, you can easily integrate the EKX-18SP with additional loudspeakers and subwoofers. The subwoofer boasts large slot ports to facilitate low distortion and low-frequency extension, as well as a metal grille reinforcement bar and an M20 threaded pole-mount plate.
Build Your System Around this Flexible Subwoofer

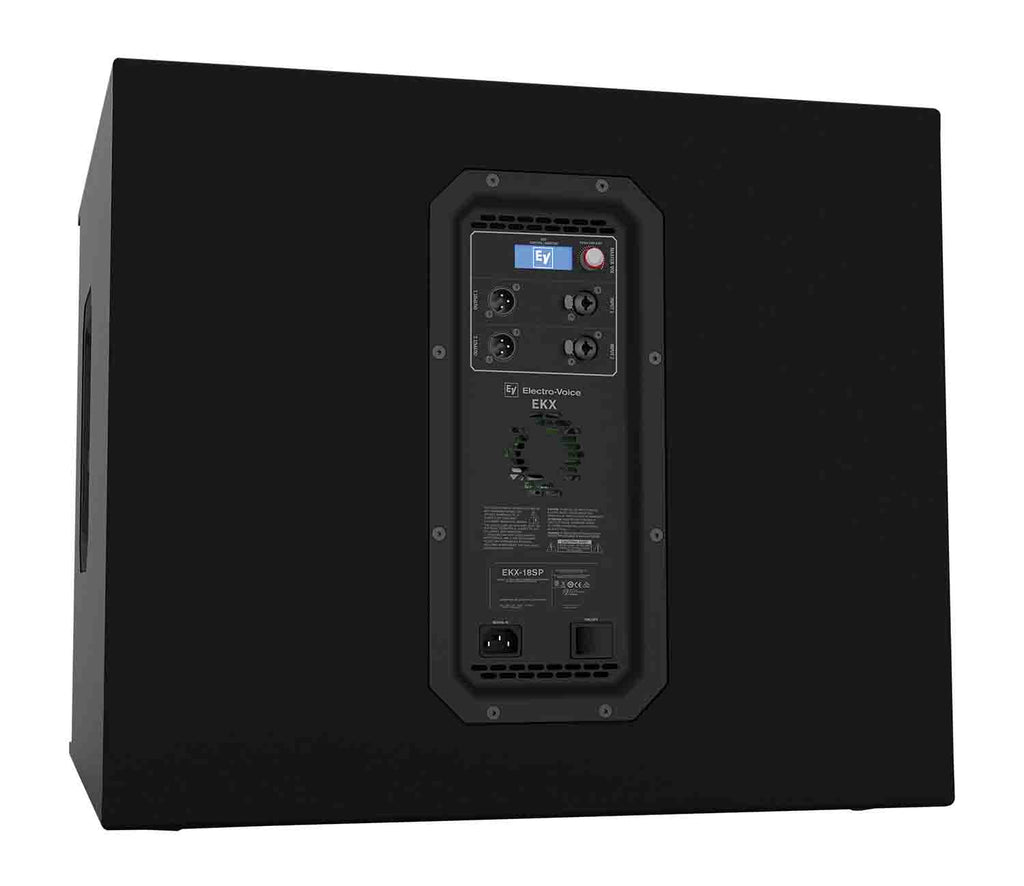

The EKX-18P features two XLR/TRS inputs that accommodate the connection of just about any piece of gear. Flexible gain controls and a convenient clip indicator make calibrating your sound a piece of cake. The EKX-18P is linkable to a speaker or another sub via a pair of Output jacks.
Maximum Performance with Trouble-Free Setup
It's easy to achieve a great-sounding performance with the Electro-Voice EKX-18SP. Its high-efficiency Class D power amplifier yields a maximum SPL of 134dB - more than enough to shake the rafters. Large slot ports deliver low distortion and superior bass extension. QuickSmartDSP provides effective system optimization with presets for your application (Music, Live, and Club) and location (Normal and Cardioid). On top of that, EV's Cardioid Control Technology provides a 35dB reduction in stage noise when multiple subwoofers are deployed.
Product Specifications:
Powered/Unpowered: Powered
LF Driver Size: 1 x 18" EVS-18C subwoofer
Power Rating: 1300W
Total Power: 1300W Class D
Inputs: 2 x XLR-1/4" combo
Outputs: 2 x XLR
Frequency Response: 40Hz-150Hz (-3 dB), 35Hz-180Hz (-10dB)
Crossover Frequency: Low Pass adjustable (80Hz, 100Hz, 120Hz, 150Hz)
Maximum Peak SPL: 134 dB SPL @ 1m
Signal Processing: QuickSmart DSP
Mounting Options: Floor
Power Source: Standard IEC AC cable
Enclosure Material: 15mm plywood with EV coat and 18-gauge steel grille
Height: 20.4"
Width: 23.8"
Depth: 24.0"
Weight: 72.3 lbs.
