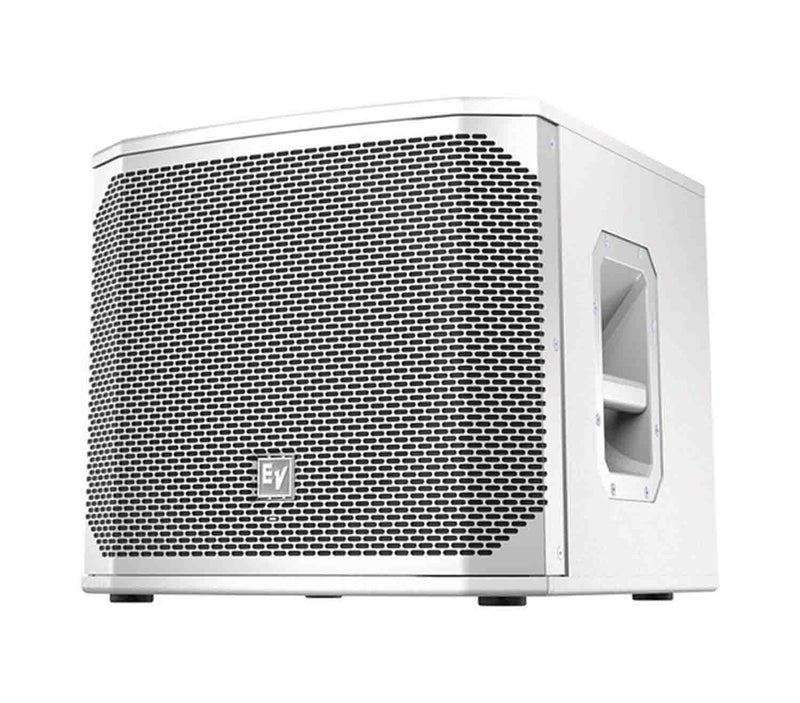

Electro-Voice ELX200-12SP-W, 12" 1200W Powered Subwoofer (White, Single)

The Electro-Voice ELX200-12SP-W is a 12" 1200W Powered Subwoofer (White, Single). ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, and five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200-powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole mount plate, and a two-handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration, and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

Product Specifications:

Frequency response (-3 dB): 49 Hz - 135 Hz¹

Frequency range (-10 dB): 41 Hz - 165 Hz¹

Maximum SPL: 129 dB²

Power rating: 1200 W

LF transducer: EVS-12L 300 mm (12 in)

Low-Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz

Connectors: (2) XLR/TRS combo jacks and (2) XLR link outputs

Enclosure: 15 mm plywood with EVCoat

Grille: 18 AWG steel with powdercoat

Dimensions (H x W x D): 16.7 in x 17.6 in x 18.0 in

Net weight: 19.1 kg (42.2 lb)

Shipping weight: 22.3 kg (49.2 lb)

Power consumption: 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³
