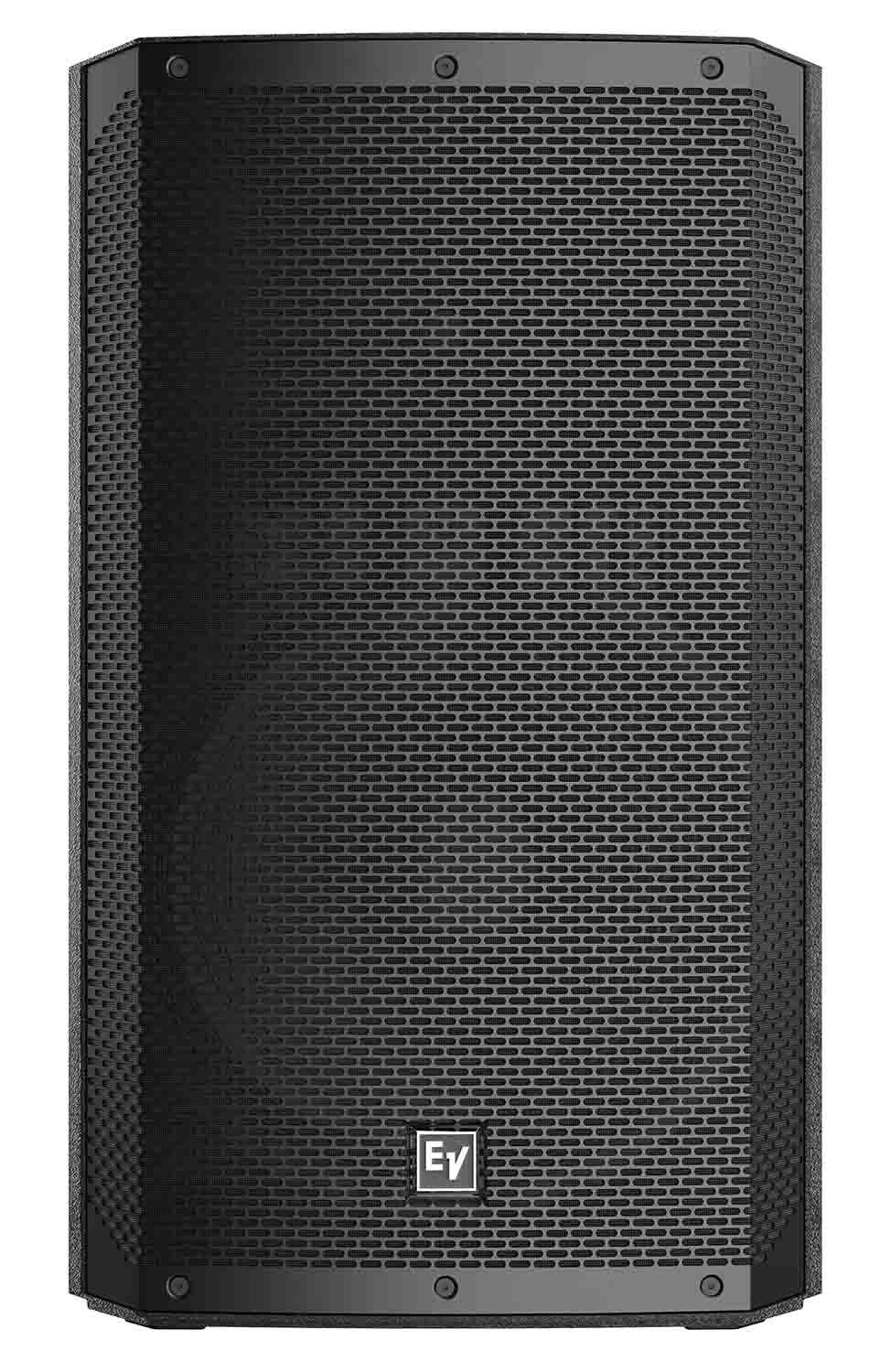

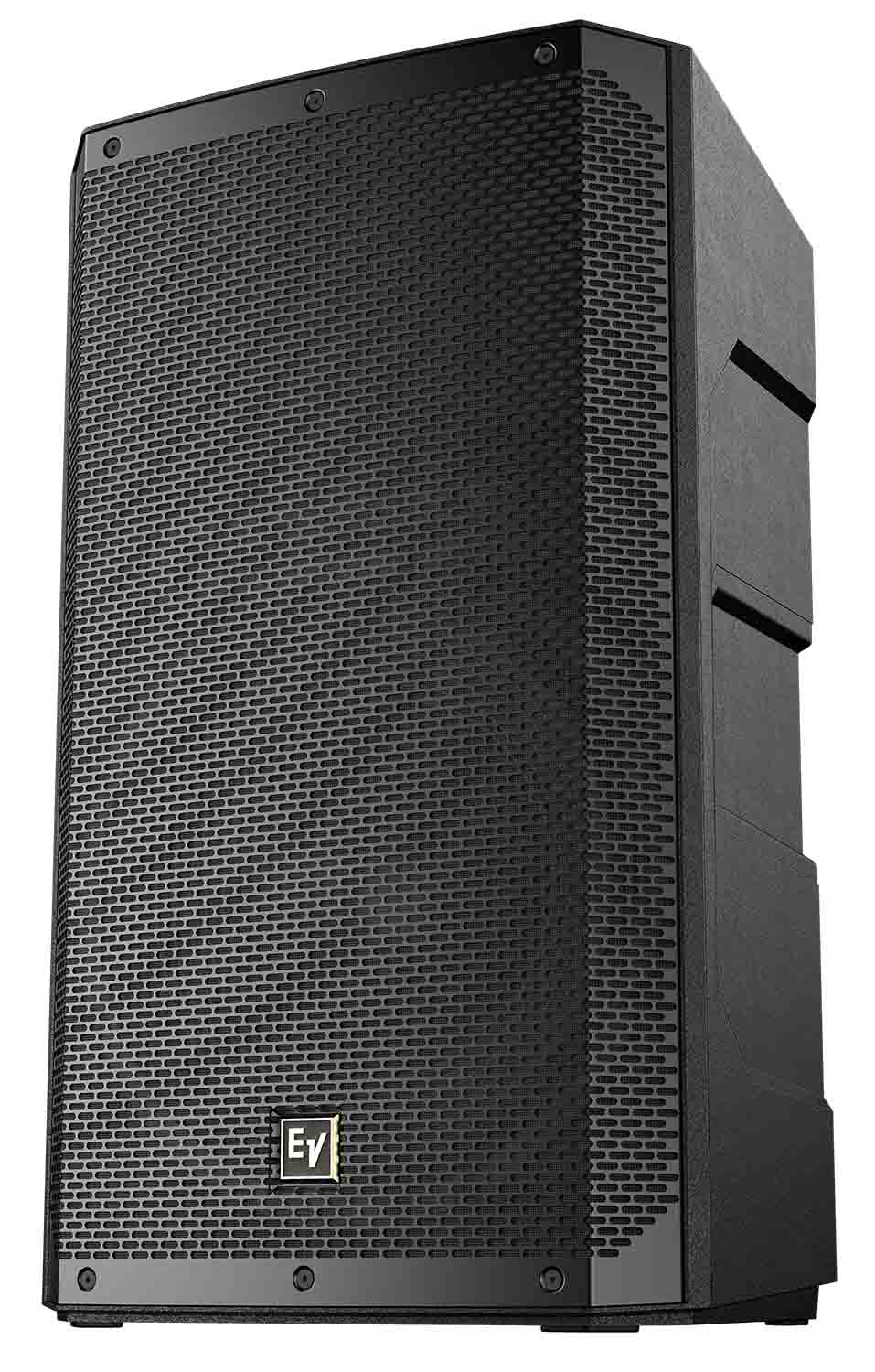

The Electro-Voice ELX200-15 is a 15" Passive Loudspeaker is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Product Specifications:
Suspension: (3) M10 suspension points
Minimum Impedance: 7.0Ω
Speaker Type: Full-Range
Woofer Size: 15inch
Frequency Response (-3 dB)¹: 77 Hz - 16 kHz
Frequency Range (-10 dB)¹: 52 Hz - 19 kHz
Max. SPL/1m (calc)²: 130dB
Coverage (Nominal -6 dB) H: 90°
Coverage (Nominal -6 dB) V: 60°
LF Transducer: EVS-15M 381 mm (15 in)
Power Rating: 1200W
Crossover Frequency: 1.6 kHz
Enclosure Material: Polypropylene composite
Grille: 18 AWG steel with powdercoat
Available Color: Black or White
Height: 710mm (27.95")
Width: 423mm (16.65")
Depth: 384mm (15.12")
Weight Net: 18.7kg (41.23 lbs)
Shipping Weight: 21.4kg (47.18 lbs)
Nominal Impedance: 8Ω
