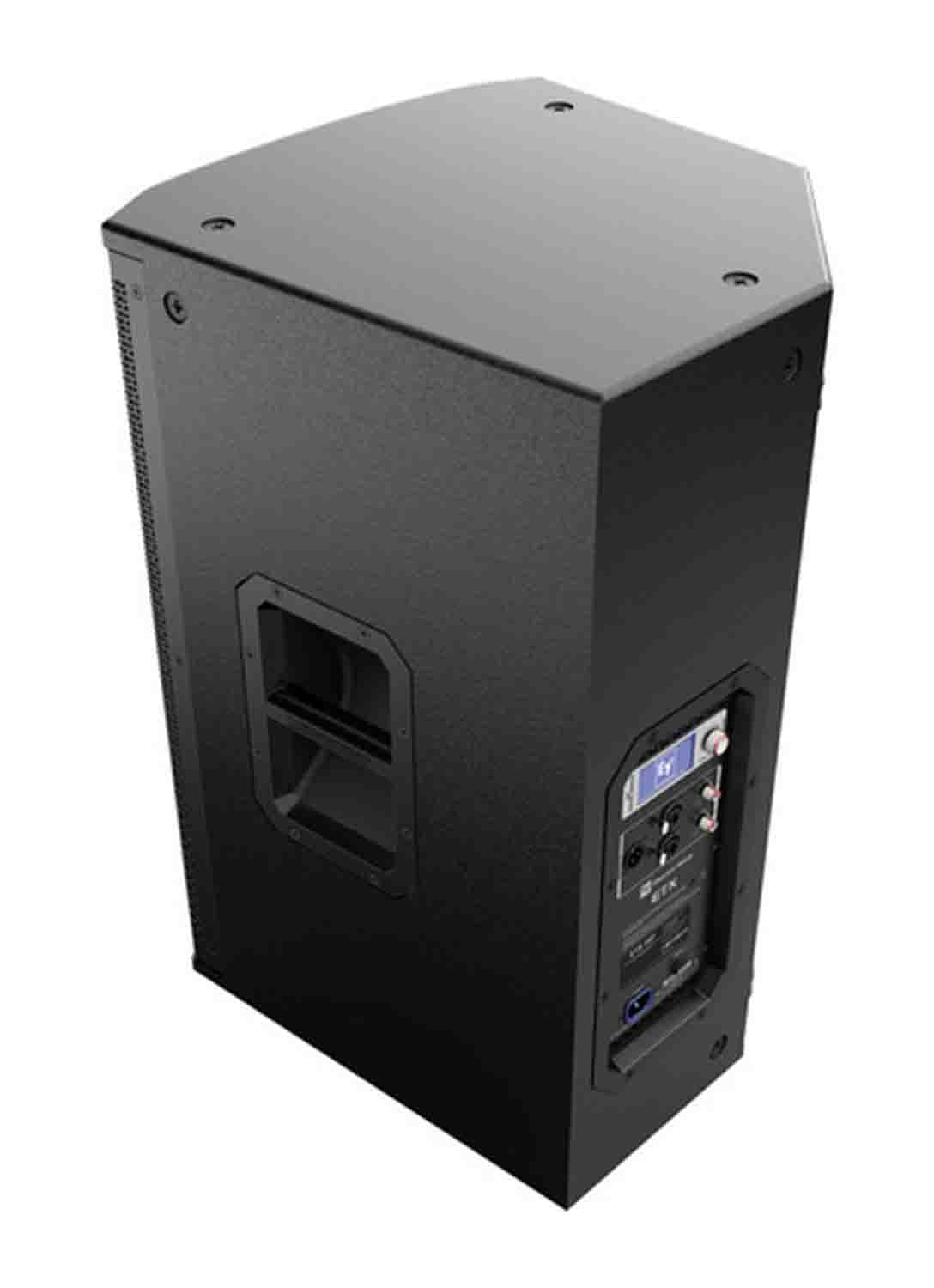

Electro-Voice ETX-15P-US 15Inch Portable Powered Loudspeaker

The ETX-15P 15" Portable Powered Loudspeaker from Electro-Voice is a portable powered Class-D loudspeaker that can be used as a floor monitor, mounted on a tripod, or suspended from the ceiling. It is capable of up to 2,000-watts of output for a peak SPL rating of up to 135 dB and features a 15-inch woofer and a 1.25-inch titanium high-frequency driver. The speaker's integrated DSP can be controlled via the rear panel LCD and provides EQ, boundary compensation, a limiting function, delay, and more.

Featuring Electro-Voice's SST waveguide, the EXT-15P has a uniform beamwidth, allowing for even distribution of sound thanks to the time-alignment of the high and low-frequency transducers. Sturdy construction is provided in the form of the die-cast aluminum chassis, pole cup, and handles.

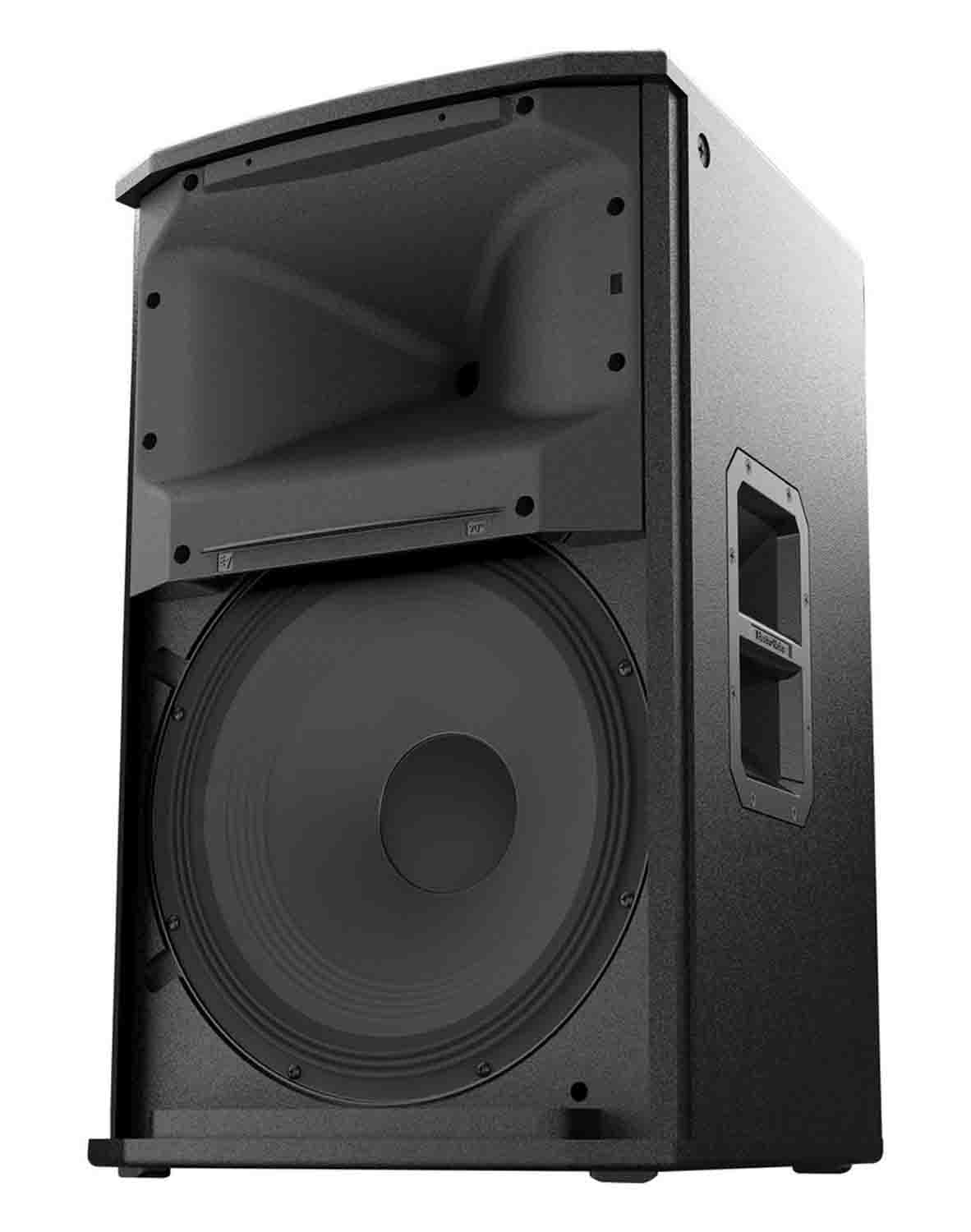

Signal Synchronized Transducers (SST) Waveguide Design

The waveguide is placed forward in the enclosure to help physically time-align the LF and HF transducers, minimizing the need for latency correction via DSP

Placing the port under the waveguide positions it in its ideal acoustic location in the enclosure without spacing the woofer and driver apart. The port location minimizes distortion and standing waves inside the loudspeaker

All waveguides are optimized using simulation software and proprietary algorithms for precise control and lowest distortion

High-Sensitivity, Low-Distortion Transducer Design

All ETX woofers use Faraday rings for better vocal reproduction

The woofers not only have high power handling but also feature a robust mechanical design to ensure long-term reliability

EV focuses on engineering transducers with linear frequency response, minimizing the need for additional equalization

Components and Testing

All ETX components are designed from the ground up by Electro-Voice. No off-the-shelf components are used

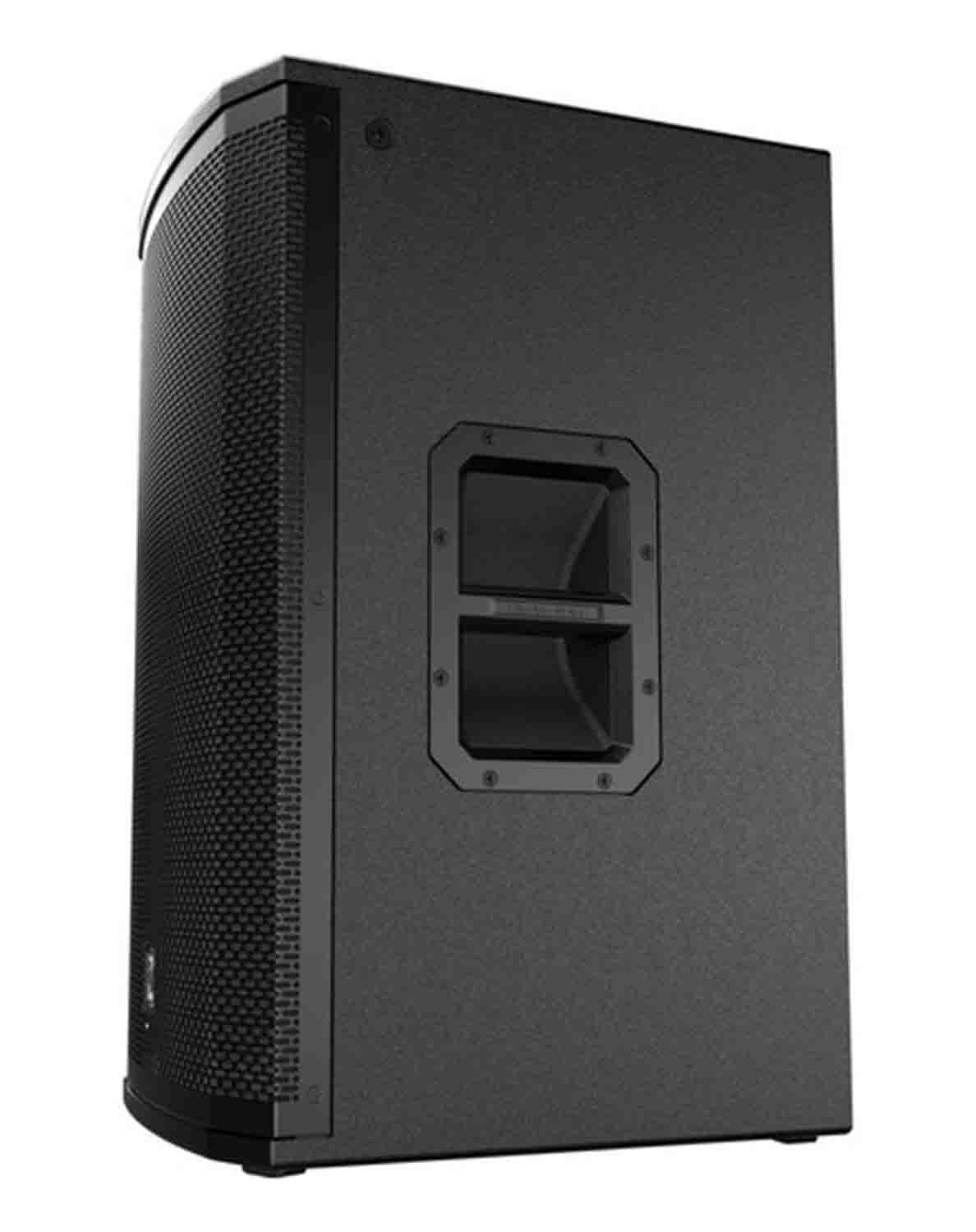

The handles, pole cups and amplifier chassis are die-cast aluminum, not plastic

18mm, 13-ply birch plywood with EV Coat is used throughout the ETX product line

In addition to industry-standard pink noise abuse tests, all models must survive EV's proprietary 1,000-hour torture test that uses real-world signals driven beyond full output

Processing and Control

System DSP presets support quick and easy setup via selections for type of use, crossover frequencies and top/sub combinations

ETX employs the same proprietary PAL and TEMP limiters developed for Electro Voice's concert loudspeakers

Boundary compensation filters are included so that an ETX loudspeaker sounds the same whether it is used as a floor monitor, on a tripod or suspended from a ceiling

ETX offers user-adjustable features including delay out to several hundred feet, three-band parametric equalization, polarity and multiple high-pass crossover points

The Class-D design of the amplifier is designed to be efficient and features blower-controlled thermal management, allowing it to work in hot environments. The fan is of a quiet design and does not turn on under normal circumstances

Lockout mode helps prevent casual users from changing settings

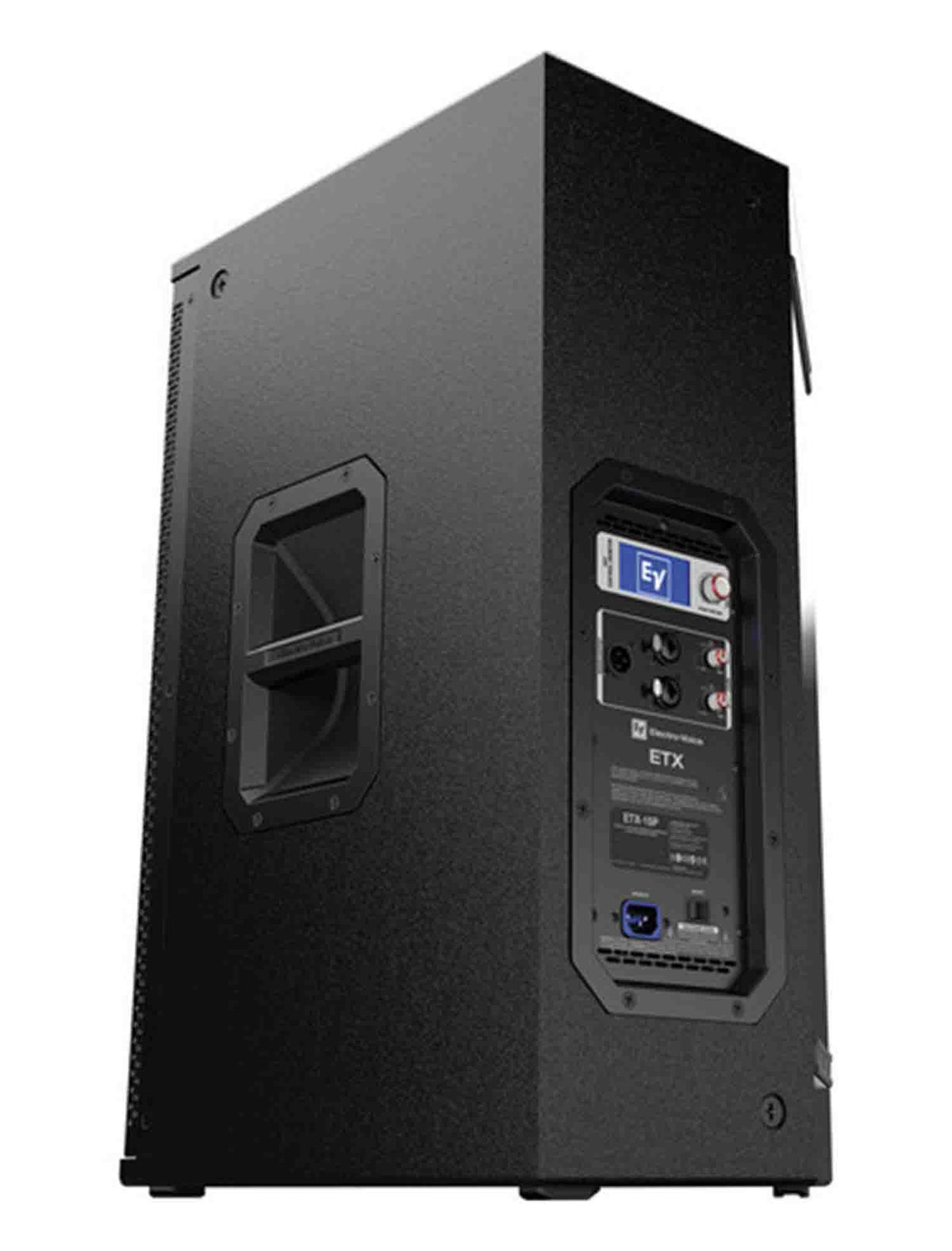

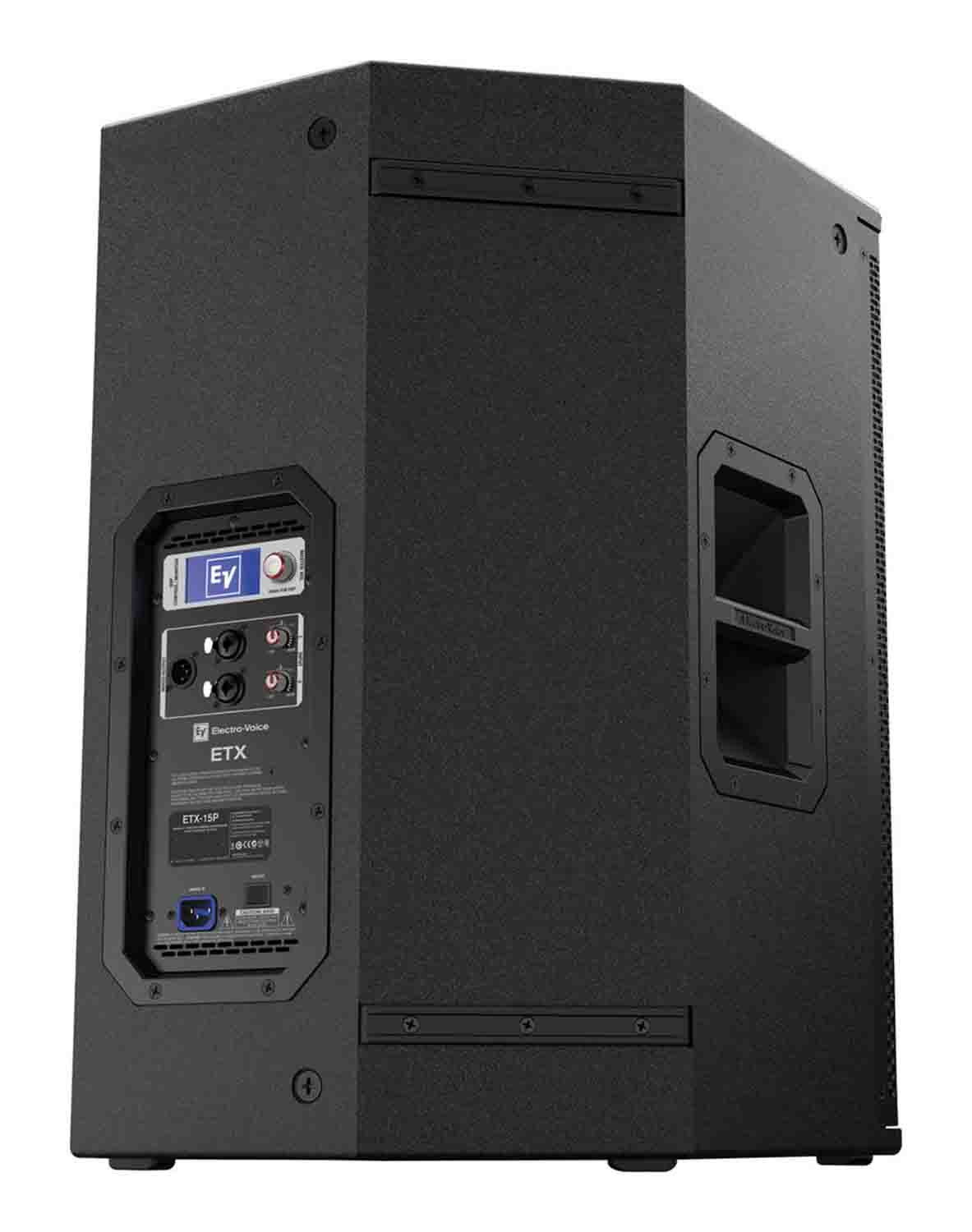

LCD Interface

Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure

Product Specification:

Configuration: Active

Total Power Capacity: 2000 W

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Current Consumption: 0.8 to 1.6 A

Mounting: 8 x M10

Construction Material: Metal Grille, Plywood

Dimensions: 27 x 17 x 18" / 691 x 431 x 447 mm

Weight: 61.1 lb / 27.7 kg

Package Weight: 71.4 lb

Box Dimensions (LxWxH): 27.5 x 20 x 18.2"
