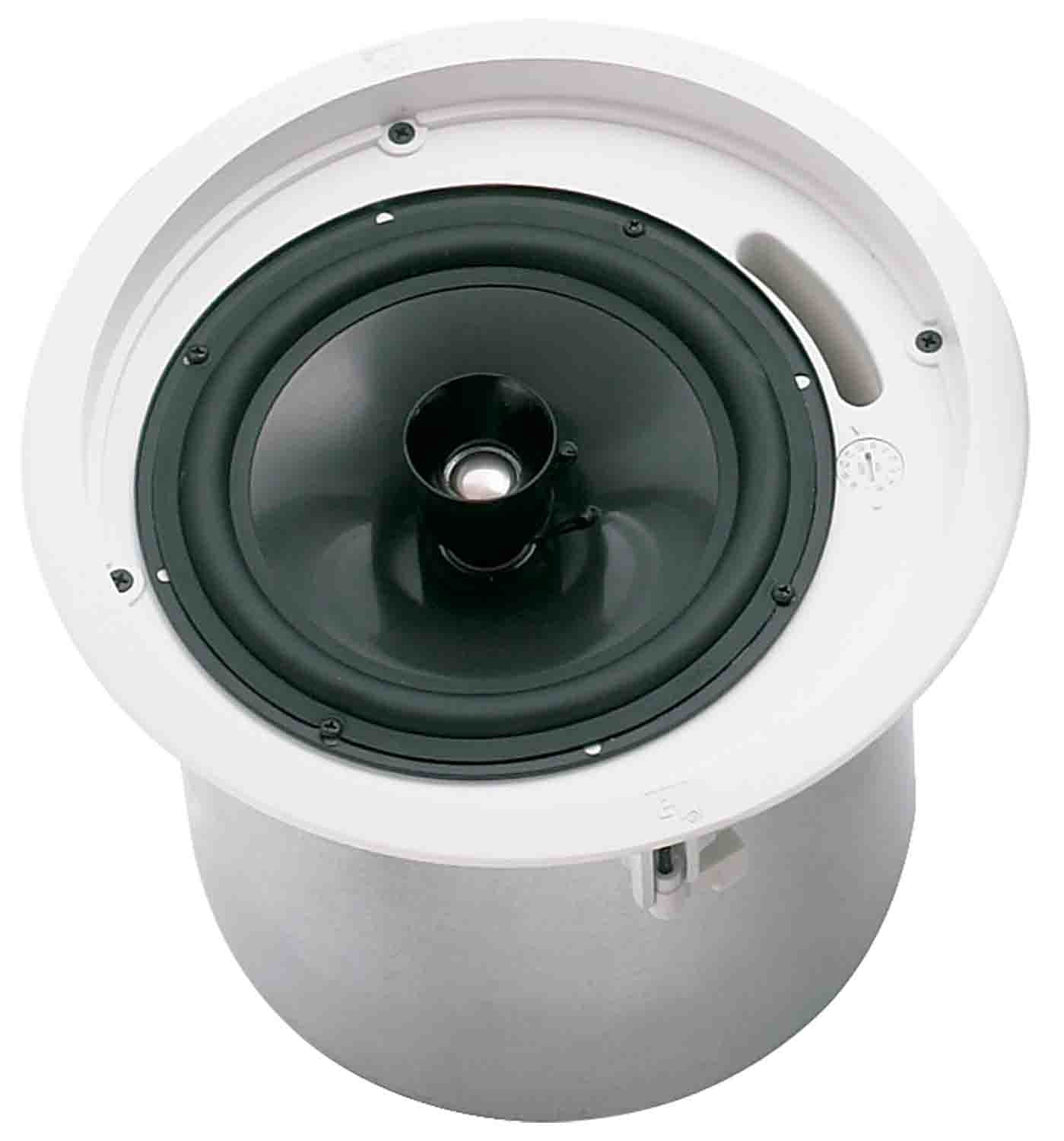

Electro-Voice EVID C8.2LP 8" Two Way Coaxial Ceiling Loudspeaker

The Electro-Voice EVID C8.2LP is an 8" Two Way Coaxial Ceiling Loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.

The C8.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy-gauge steel.

A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Product Specifications:

Max Calculated SPL: 60-watt Transformer coupled @ 4 meters: 92 dB 100 watt

Direct-coupled @ 4 meters: 95 dBdB

HF Transducer: 1 in (25 mm) Ti Mylar laminate

LF Transducer: 8 in. (200 mm) Polypropylene cone

Impedance:  8 Ohms nominal (transformer bypass)

Enclosure: Baffle- UL 94V-O rated AB Backcan-Zinc plated steel

Dimensions (H x Dia): 7.0" x 10.6 (178mm x 270mm)

Cutout Size: 10.75" (272mm)

Net Weight: 11.0 lbs (5.0 kg)

Shipping Weight(pair): 24.0 lbs (11.0 kg)

Freq. Response (-10 dB): 50 Hz - 20 kHzdb

Coverage (Conical): 110°

Power Handling: 75 W Cont. / 300 W Peak

Sensitivity (SPL 1W/1m): 91 dB

Network: Network and transducers protected 12 dB/oct 2.6 kHz

Safety Agency Ratings: UL 1480 Safe for use in air handling spaces per UL 2043
