Electro-Voice Evolve 50 Column Speaker Array and Subwoofer in White

Elevate your audio experience with this premium DJ package, featuring the Electro-Voice EVOLVE50M-SW Subwoofer with a built-in mixer and the Electro-Voice EVOLVE50-TW Column Array Speaker, both in a sleek white finish. This dynamic duo combines powerful, deep bass with crystal-clear highs, delivering unparalleled sound performance for events of any size. Perfectly engineered for seamless integration, the subwoofer and column array create a stylish and compact system that’s as visually stunning as it is acoustically impressive. Whether you’re hosting a wedding, corporate event, or a live performance, this kit ensures your sound setup will stand out and keep your audience captivated.

This DJ Package Includes,

• 1 Electro-Voice EVOLVE50M-SW Subwoofer with Mixer In White (Subwoofer Only)
• 1 Electro-Voice EVOLVE50-TW, Column Array Speaker In White (Column Only)

1 Electro-Voice EVOLVE50M-SW Subwoofer with Mixer In White (Subwoofer Only)

The Electro-Voice EVOLVE50M-SW, Portable Linear Column Array PA System - White features Electro Voice’s new Quick Smart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 formats. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.



Product Specifications:

Column array: 8x 3.5” neodymium drivers

Subwoofer: 1x 12”

Frequency response (-3 dB): 43 Hz - 20 KHz

Frequency range (-10 dB): 37 Hz - 20 KHz

Maximum SPL: 127 dB

Coverage (H x V): 120° x 40°

Amplifier rating: 1000 W

LF channel rating: 500 W

HF channel rating: 500 W

Crossover frequency: 200 Hz

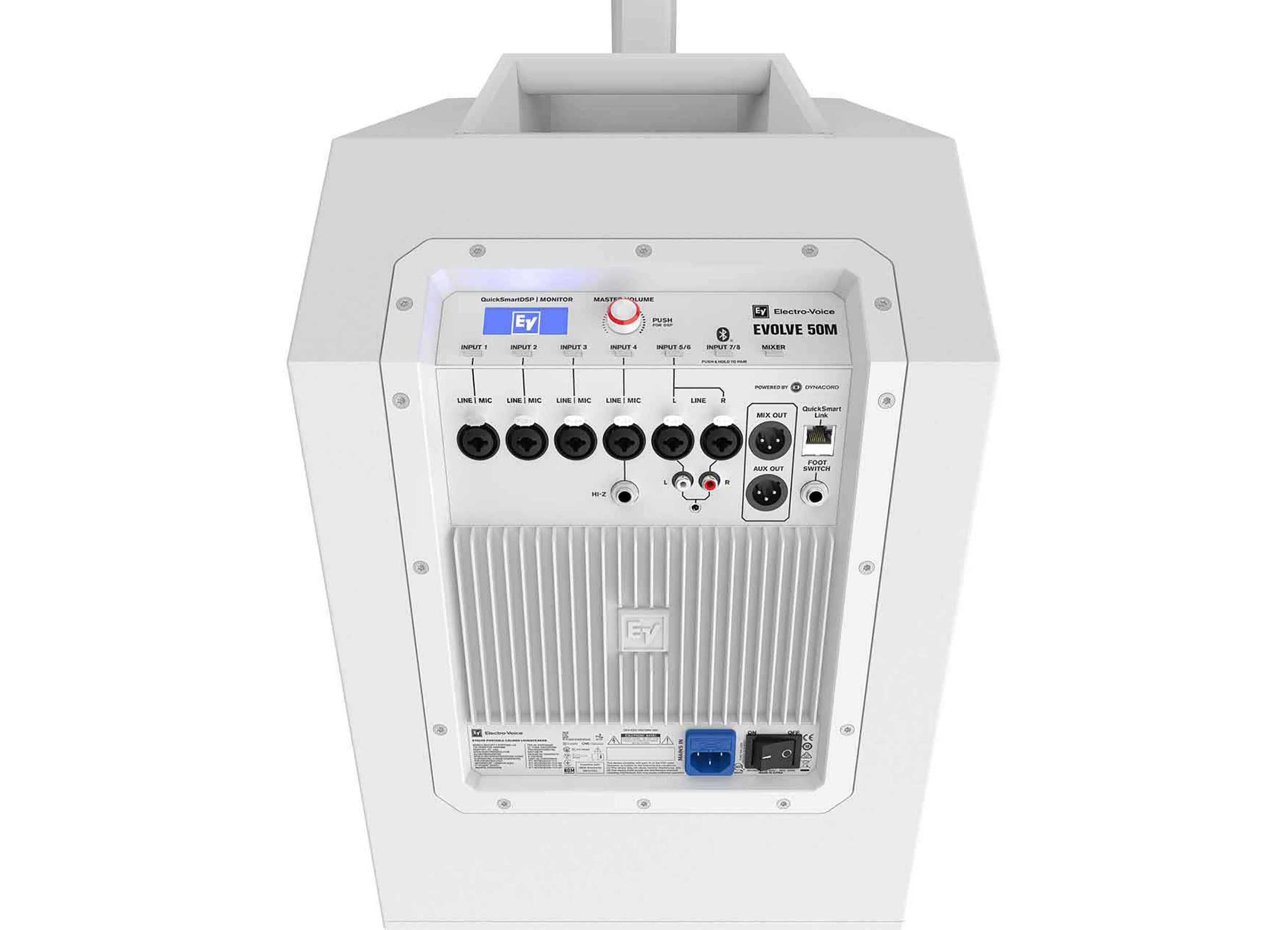

Connectors:

4x XLR/TRS combo jack line/mic input

2x XLR/TRS combo jack for stereo line input

1x 1/4” TRS Hi-Z input

1x stereo RCA input

1x 3.5 mm stereo input

1x wireless stereo Bluetooth audio input

1x 1/4” foot switch input

1x XLR mix out output

1x XLR aux out output

1x RJ45 Quick Smart Link connector

Pole: aluminum

Sub: 15 mm plywood

Grille: Steel with black or white powder coat

Colors: White

Dimensions (HxWxD): 80.5 x 13.6 x 18.5

Net weight: 57.75

Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

1 Electro-Voice EVOLVE50-TW, Column Array Speaker In White (Column Only)

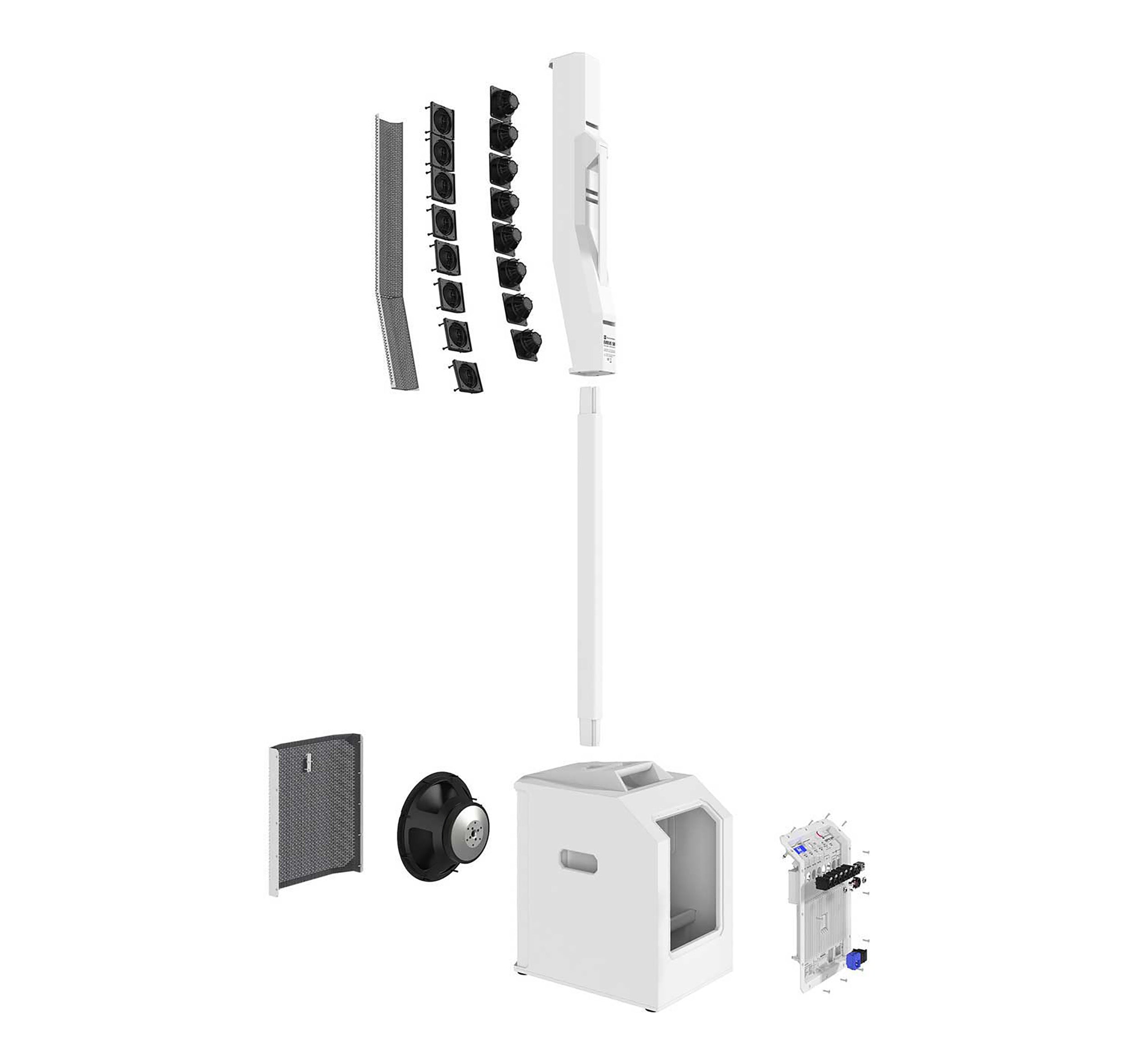

The Electro-Voice EVOLVE50-TW, Portable Column Array PA System is a three-component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

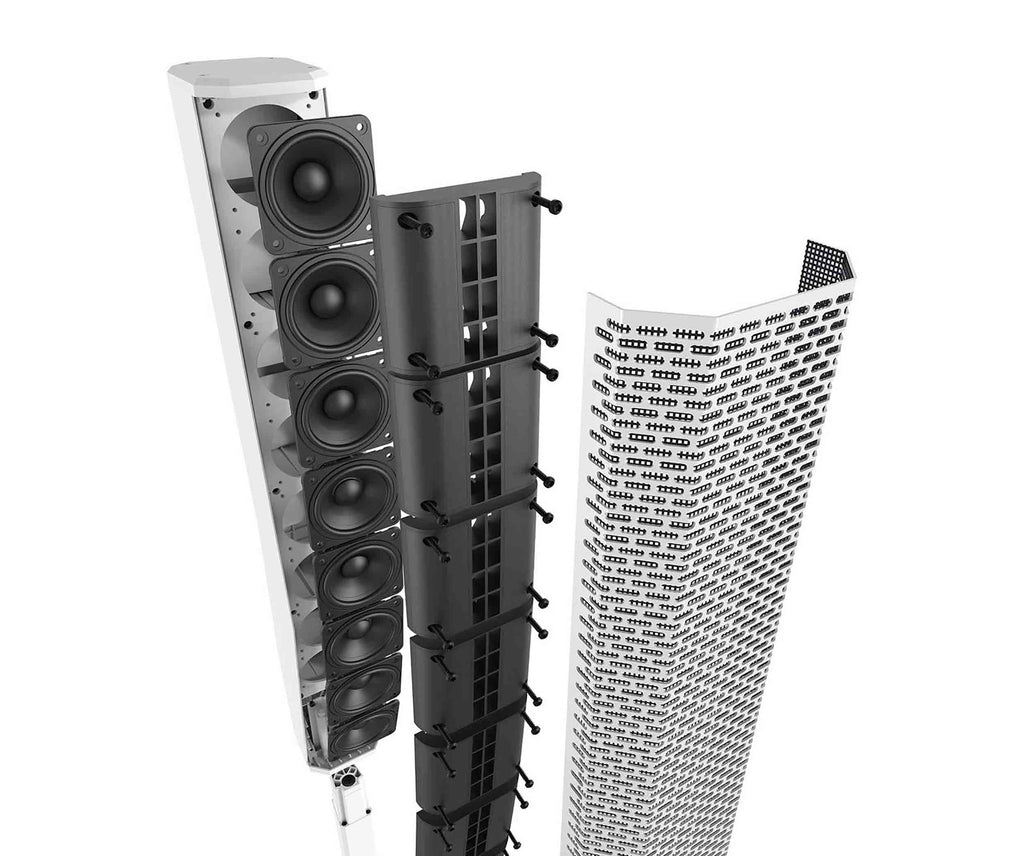

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice Quick Smart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Product Specifications:

Frequency response (-3 dB)1: 43 Hz-20 KHz

Frequency range (-10 dB)1: 37 Hz-20 KHz

Maximum SPL2: 127 dB

Coverage (H x V): 120° x 40°

Amplifier rating: 1000 W

LF channel rating: 500 W

HF channel rating: 500 W

Crossover frequency: 200 Hz

Connectors:

2x XLR/TRS Combo Jack Input

1x 3.5 mm Input

1x Stereo RCA Input

1x Wireless Bluetooth Audio Input

1x XLR THRU Output

1x XLR MIX OUT Output

Enclosure:

Sub: 15 mm plywood

Column: Composite

Pole: Aluminum

Grille: Steel with black or white powder coat

Color: Black or white

Dimensions (HxWxD):

Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)

Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)

Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)"

Net weight:

Sub: 44.66 lb (20.3 kg)

Column: 10.34 lb (4.7 kg)

Pole: 2.75 lb (1.25 kg)

Sub cover: 0.9 lb (0.4 kg)

Bag for column and pole: 1.87 (0.85 kg)

Shipping weight:

Sub box: 50.71 lb (23 kg)

Column box: 18.30 lb (8.3 kg)

Power consumption3: 100-240 V AC, 50-60 Hz, 1.5-0.6 A
