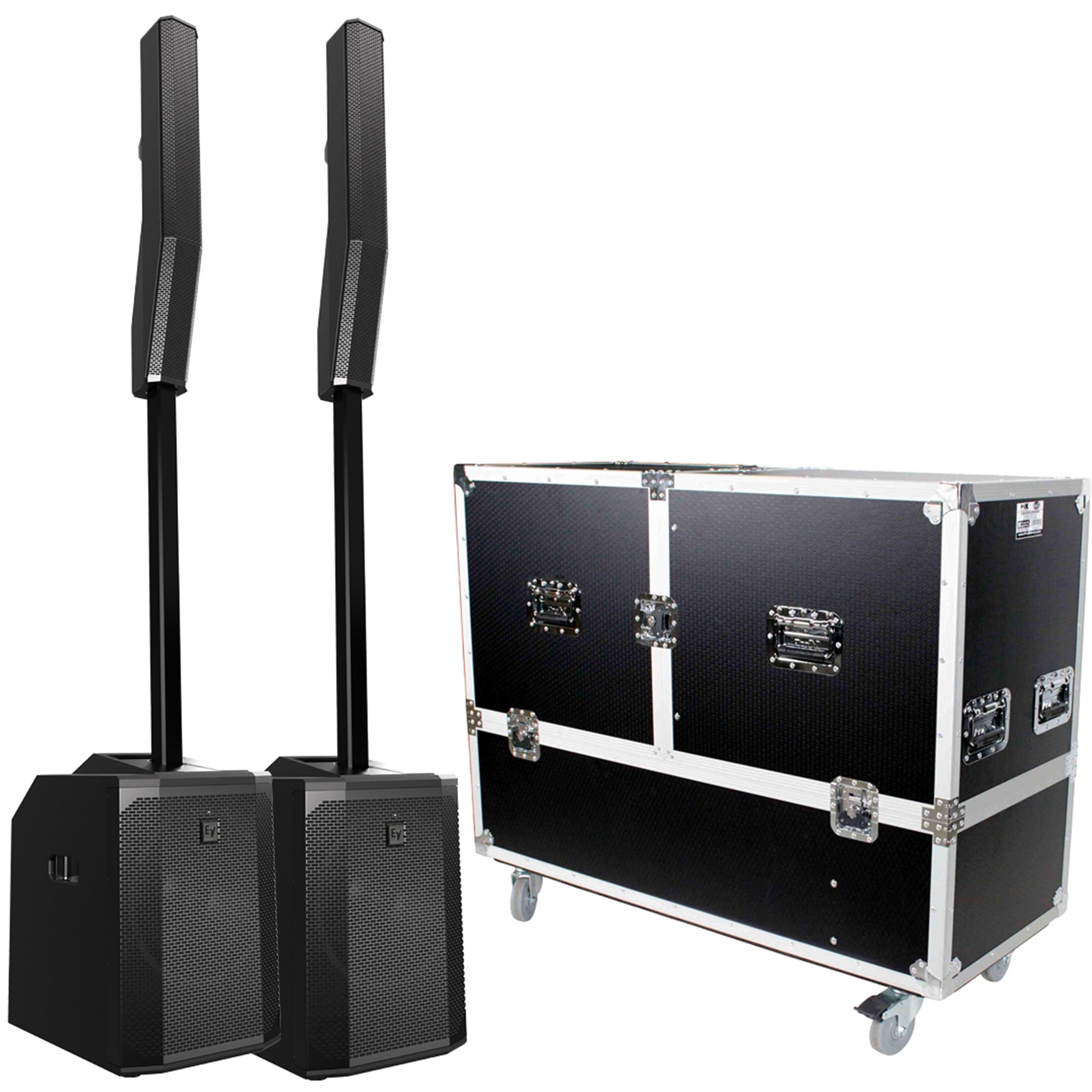

Electro-Voice EVOLVE 50 Column PA Speaker System Pair with Transport Road Case

This Speaker package includes the Electro-Voice EVOLVE50-SB-US Portable 1000W Bluetooth-Enabled Subwoofer System, featuring a 12" powered subwoofer with integrated 1000W Class-D amplification, QuickSmartDSP processing, and a column array of eight 3.5" neodymium drivers for clear, wide coverage. Also included is the Electro-Voice EVOLVE 50 Portable PA Column Array, powered by the subwoofer’s amplifier and designed with a magnetic pole connection and internal signal routing for fast, cable-free setup. To ensure safe transport and professional-grade protection, the package comes with the ProX X-EVO1250X2W ATA Flight Case, built to hold two EV Evolve 50 systems with durable 3/8" Honeycomb laminated plywood, internal impact-resistant padding, and heavy-duty casters for easy mobility.

This Speaker Package Includes,

• 1 Electro-Voice EVOLVE50-SB-US, Portable 1000W Bluetooth-Enabled Subwoofer - Black
• 1 Electro-Voice EVOLVE50-TB Column Speaker Array in Black
• 1 ProX X-EVO1250X2W, ATA Flight Case for 2x RCF EVOX12 or EV Evolve 50 Compact Arrays Fits Two Speakers and Subwoofers

1 Electro-Voice EVOLVE50-SB-US, Portable 1000W Bluetooth-Enabled Subwoofer - Black

The Electro-Voice EVOLVE50-SB-US, Portable 1000W Bluetooth-Enabled Subwoofer - Black is a three-component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice Quick Smart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Product Specifications:

Configuration: Active Subwoofer

Total Power Capacity: 1000 W

Frequency Range: 37 Hz to 20 kHz -10 dB

Wireless Connectivity: Bluetooth

Color: Black

Total Power Capacity: 1000 W

Frequency Range: 37 Hz to 20 kHz -10 dB

Frequency Response: 43 Hz to 20 kHz -3 dB

Maximum SPL: 127 dB

Audio I/O:

2 x Combo XLR-1/4" TRS Input

1 x 1/8" / 3.5 mm TRS Input

1 x Stereo RCA Input

1 x XLR 3-Pin Thru/Output

1 x XLR 3-Pin Mix Output

Wireless Connectivity: Bluetooth

Yes, Required: Android & iOS

App Name: Quick Smart

Functionality: Adjust Settings, Remote Control

Crossover: 200 Hz

Color: Black

Construction Material: Metal Grille, Plywood

Dimensions: 20.9 x 13.6 x 18.5" / 53.1 x 34.5 x 47 cm (Base)

Weight: 44.7 lbs / 20.3 kg

Shipping Weight: 52 lbs

Shipping Dimensions (LxWxH): 24 x 22 x 16.5"

1 Electro-Voice EVOLVE50-TB Column Speaker Array in Black

The Electro-Voice EVOLVE 50 Portable PA Column Array is part of the EVOLVE 50 portable PA system, which consists of a powered subwoofer, magnetic speaker pole, and the column array. The column array utilizes eight 3.5" neodymium drivers with a custom-designed waveguide, which provides consistent (120°) horizontal coverage. The column speaker array is powered by the subwoofer's integrated 1000W amplifier, which delivers 500W to the column array. System setup is simple and fast. Slide the magnetically locking mounting pole into the appropriate hole on top of the subwoofer, then place the column speaker array on the pole. You don't have to run cables between the sub and speaker array; audio connectivity between them is made via internal cabling in the mounting pole. The column array ships with the sub pole and a carrying case.

Product Specifications:

Coverage Angle: 120° H x 40° V

Construction Material: Composite, Metal, Metal Grille

Weight: 19 lbs

ProX X-EVO1250X2W, ATA Flight Case for 2x RCF EVOX12 or EV Evolve 50 Compact Arrays Fits Two Speakers and Subwoofers

The ProX X-EVO1250X2W, ATA Flight Case for 2x RCF EVOX12 or EV Evolve 50 Compact Arrays Fits Two Speakers and Subwoofers stores up to two subwoofer units plus two arrays inside the case.  This professional speaker case employs a 3/8" Honeycomb laminated plywood that has a hard shell with internal impact-resistant padding to provide the best protection for your investment. No matter where you take your speakers, you can have peace of mind, nothing will get damaged during transit or in storage.

This case rests on four ProX high-quality 4" casters designed for easy traveling, it also comes equipped with caster dishes on top to facilitate stacking with other flight cases. X-EVO1250X2W is the perfect case for AV production companies, touring bands, entertainment groups, mobile DJs, or anyone who owns 2x RCF EVOX12 or EV Evolve 50 C speakers.  Protect your investment with ProX Cases.

This ProX ATA 300 Style Road/Flight case is manufactured with the Honeycomb Digital laminated surface Design. Made with the super-sleek look of Honeycomb Digital hexagon grids on all shell surfaces, which gives the cases an almost alien look! Also as opposed to regular laminated plywood cases from other manufacturers, the ProX Honeycomb Digital design helps prevent minor to mild scratches.

All ProX cases use CNC technology, during the manufacturing process, to assure that cases are consistently built with strict specifications and tolerances that are required for the high-quality standards that ProX cases have been known for since 1984.

Product Specifications:

Dimensions: 35.00"H x 19.50"W x 49.00"L

Weight: 124.00 lbs

Shipping Dimensions: 37.00"H x 21.00"W x 51.00"L

Shipping Weight: 136.00 lbs
