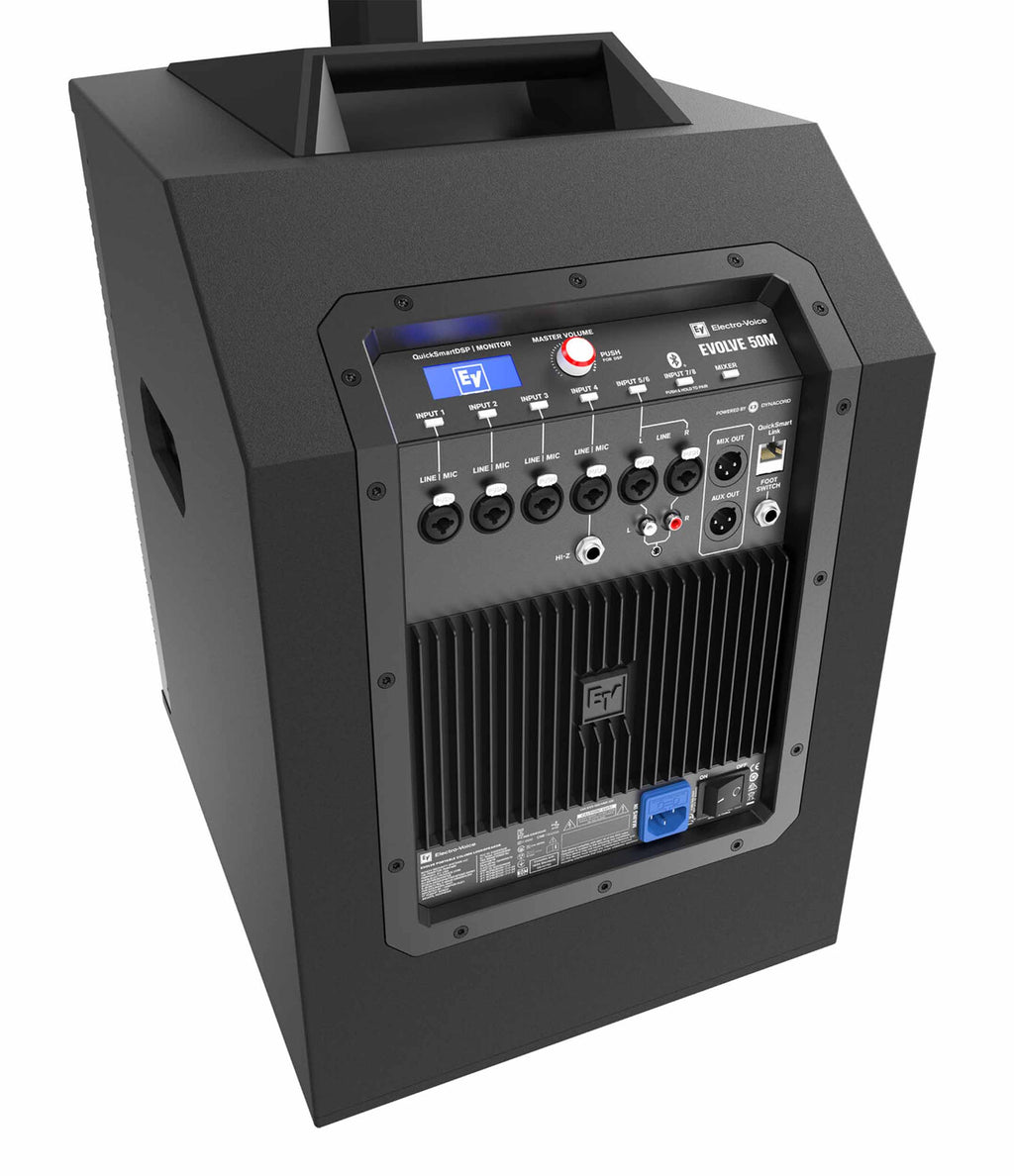

Electro-Voice EVOLVE50M-SB-US Subwoofer with Mixer In Black (Subwoofer Only)

The Electro-Voice EVOLVE50M-SB-US, Portable Linear Column Array PA System - White features Electro Voice’s new Quick Smart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 formats. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

Product Specifications:

Configuration:Active Subwoofer

LF Driver:1 x 12" / 304.8 mm Woofer

Frequency Range:37 Hz to 20 kHz -10 dB

Wireless Connectivity: Bluetooth

MF Driver:No

LF Driver:1 x 12" / 304.8 mm Woofer

Frequency Range:37 Hz to 20 kHz -10 dB

Frequency Response:43 Hz to 20 kHz -3 dB

Maximum SPL:127 dB

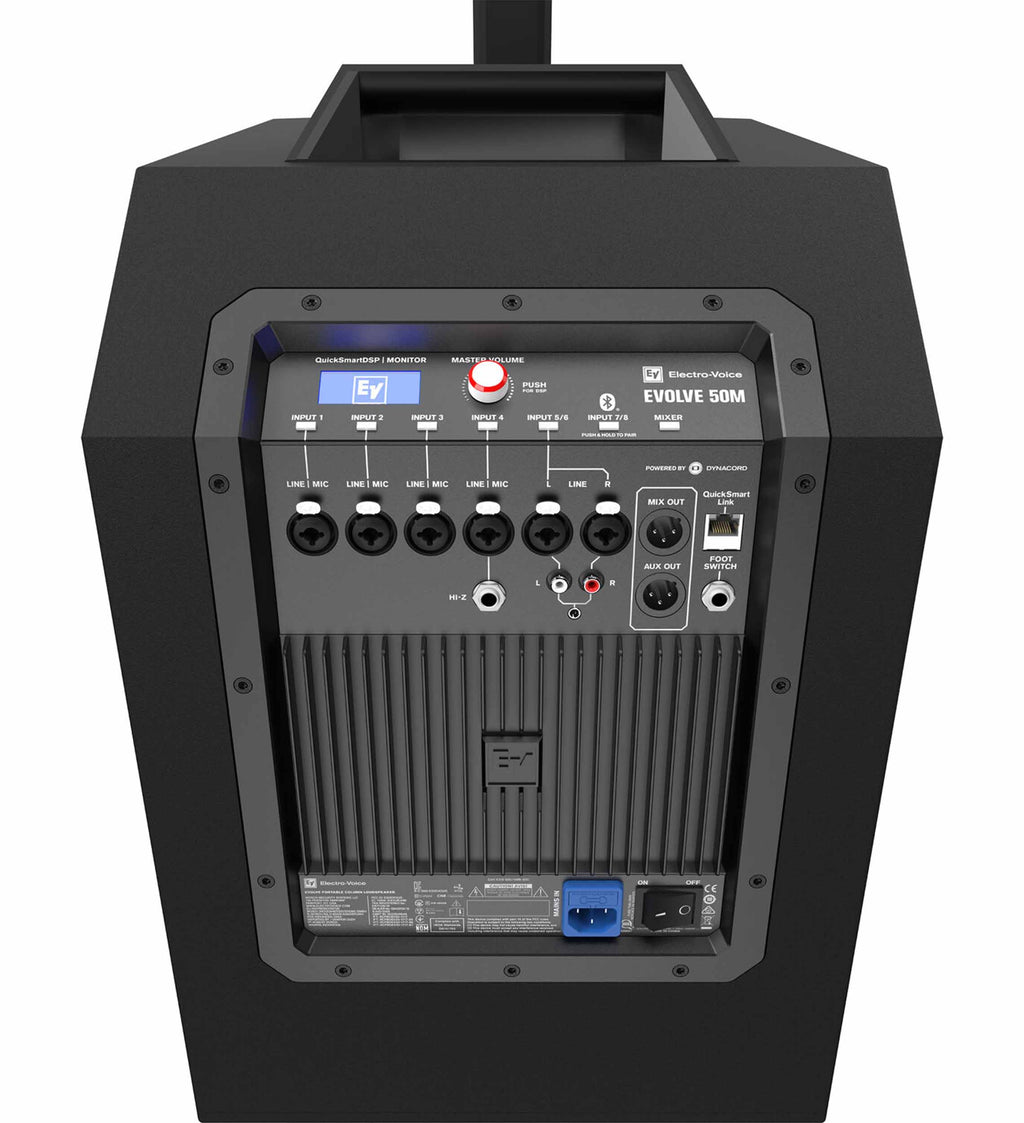

Audio I/O:

4 x Combo XLR-1/4"" TRS Balanced/Unbalanced Mic/Line Input

2 x Combo XLR-1/4"" TRS Balanced/Unbalanced Line Input

1 x 1/4"" TS Unbalanced Hi-Z Input

1 x Stereo RCA TS Line Input

1 x 1/8"" / 3.5 mm TRS Input

1 x 1/4"" TS Footswitch Input

1 x XLR 3-Pin Mix Output

1 x XLR 3-Pin Aux/Mix Output

Network I/O:1 x RJ45 (Network/Proprietary) In/Out

USB:No

Wireless Connectivity:Bluetooth

Parametric EQ: Yes

Semi-Parametric EQ:Yes

Dynamic Processing:Peak Limiter

Alignment Delay:No

Phase Adjustment:No

Digital Signal Processing:Delay, Reverb, User Settings, Venue Settings, Voicing Modes

AC Input Power:100 to 240 VAC, 50 / 60 Hz

Current Consumption:

1.5 A (1/8 Power)

0.6 A (1/8 Power)

Handles:1 x Each Side

Construction Material:Metal Grille, Plywood

Dimensions: 20.9 x 13.6 x 18.5" / 53.1 x 34.5 x 47 cm

Weight:44.7 lb / 20.3 kg

Shipping Weight:50 lbs

Shipping Dimensions (LxWxH):24 x 22 x 16.5"
