Description
The Entec 70304 DMX USB Pro is the industry-standard USB to DMX/RDM converter, trusted by lighting designers and installers worldwide. Compatible with Windows, Mac, Linux, and even Raspberry Pi, it provides seamless connectivity for an extensive range of commercial and free lighting software. Its robust design and proven reliability make it a cornerstone tool for professional lighting setups, whether in studios, theaters, or live events.
This versatile converter supports both DMX input and output modes and comes RDM-enabled, ensuring precise two-way communication with compatible fixtures. An internal frame buffer maintains consistent DMX signal generation independent of your computer’s processing speed, delivering stable and reliable data for smooth lighting performance. Industry-standard 5-pin DMX input/output connectors and 1500V isolation for both data and power lines safeguard your computer and connected equipment.
Flexible and configurable, the DMX USB Pro allows users to adjust refresh rates from 1 to 40 fps, configure break times from 96µs to 1.3ms, and set Mark-after-Break (MaB) timing from 10.6µs to 1.3ms. Firmware updates and customizations are supported to meet specific project requirements. Compact, reliable, and professional-grade, the Entec DMX USB Pro provides complete control over lighting systems for both hobbyists and professionals alike.
What’s in the Box:
The DMX USB PRO includes a USB Type A to USB 2.0 Type B cable, providing seamless connectivity for your lighting and control setups. Comes with an EMU promo code for 3 months, giving you extended access to essential software features.
Product Specifications:
Input Voltage: 5V DC (via USB)
Input Current: 300 mA
Power Draw: 1.5W

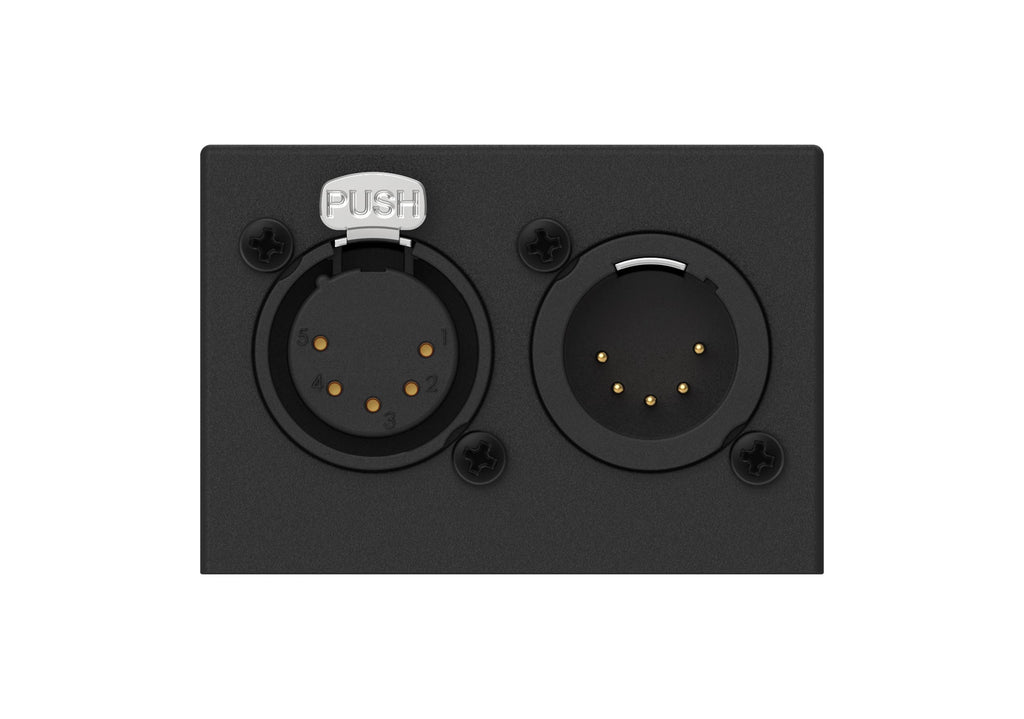

Connectors: 1 x DMX output (female XLR5), 1 x DMX input (male XLR5), 1 x USB 2.0 Type-B
Protocols: USITT DMX512-A, ANSI E1.20 RDM1
Maximum Output Channels: 1 universe (512 ch)
Max. Output Refresh Rate: 40 FPS
Configuration Software: ENTTEC EMU
Firmware Updates: ENTTEC EMU
LED Status Indicator: Yes
Standalone Playback: No
MIDI: No
Body Material: ABS plastic
IP Rating: IP20
Operating Temperature: 0° – 50°C / 32° – 122°F
Operating Humidity: 5 – 95% (non-condensing)
Mounting Options: N/A
Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Unit Weight: 0.18 lbs / 80 g
Unit Dimensions (L x W x H): 80 mm (3.12 in) x 58 mm (2.28 in) x 40 mm (1.57 in)
Shipping Weight: 0.66 lbs / 0.30 kg
Shipping Dimensions (L x W x H): 9.33 in x 6.50 in x 2.80 in / 237 mm x 165 mm x 71 mm
