Description

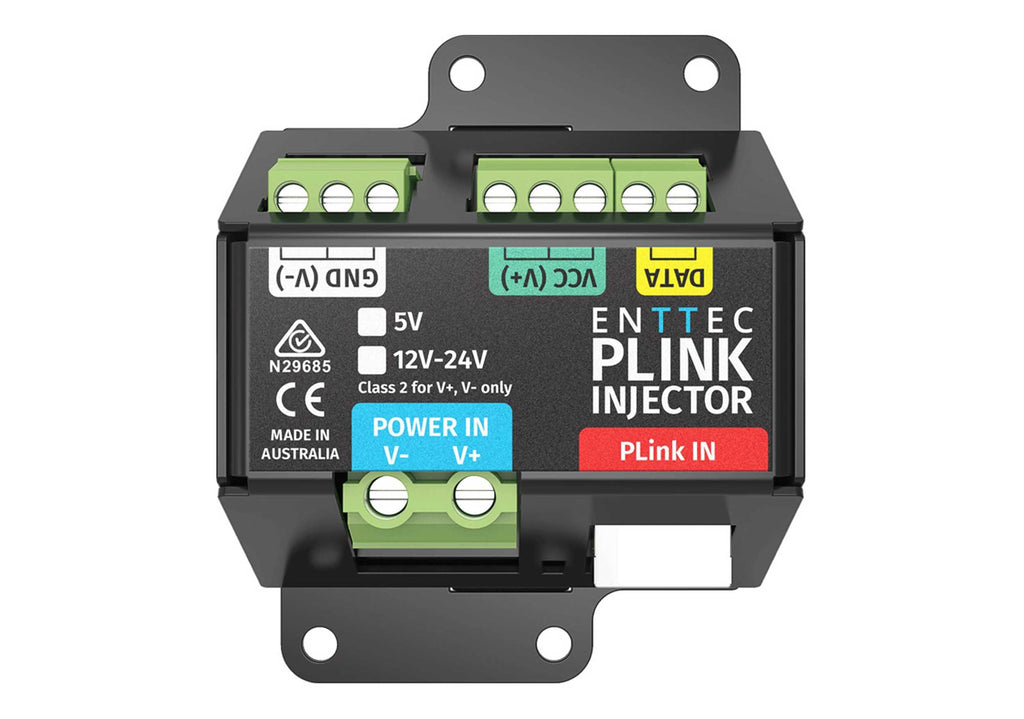

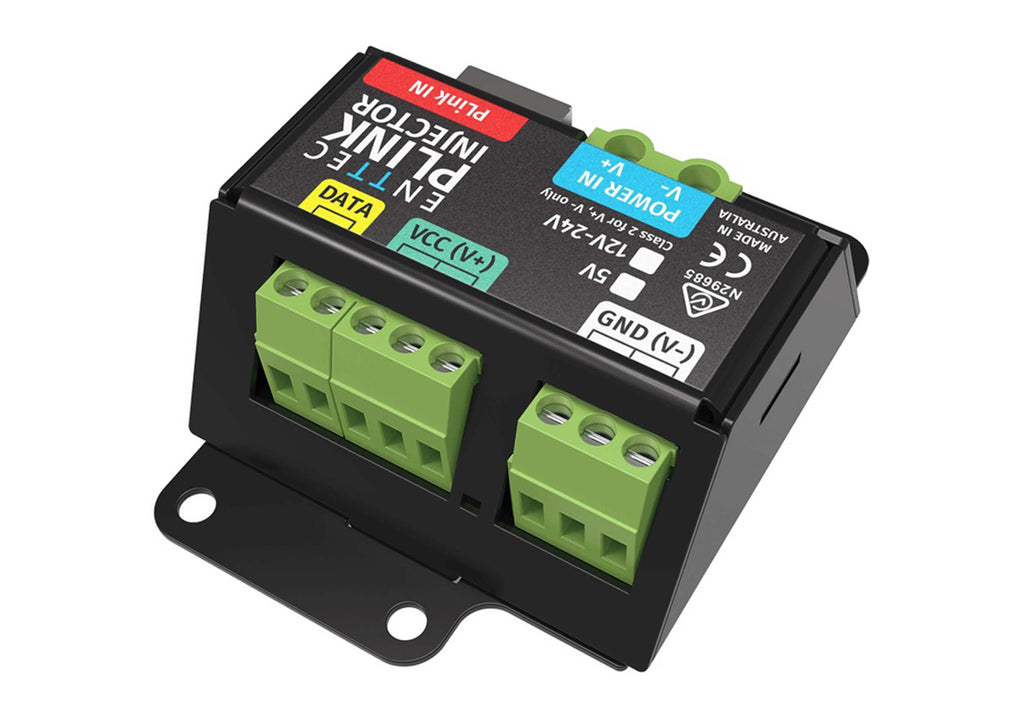

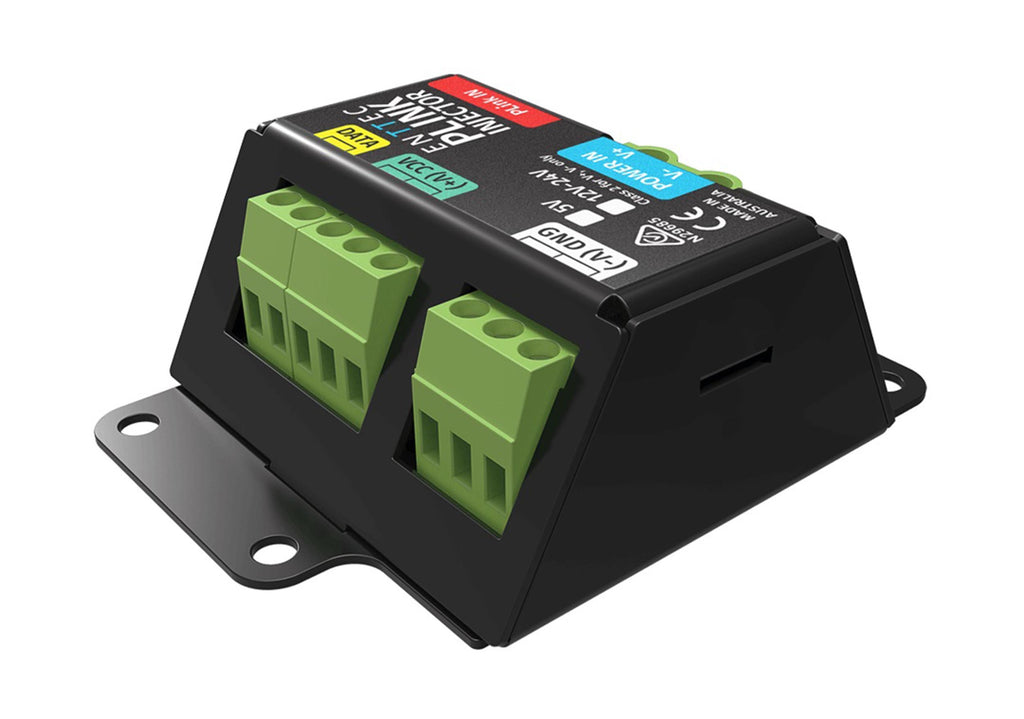

The Enttec 73544 PLink Injector is a compact and efficient solution for extending LED pixel layouts over long distances. Designed to work seamlessly with the ENTTEC Pixelator Series, it allows easy control of pixel strips or pixel dots while maintaining data integrity up to 300 meters over standard Cat5, Cat5e, or Cat6 cables. Its small, lightweight design makes it ideal for custom-shaped installations where space is limited.
Equipped with an external DC power supply and high-power screw terminal connectors, the PLink Injector ensures reliable power delivery and connectivity for large-scale LED projects. Standard network cabling simplifies installation, while Cat5/Cat5e/Cat6 compatibility ensures flexible and cost-effective setup options.
Built for longevity and compliance, this injector comes with a 3-year return-to-base manufacturer warranty and meets international standards. Whether for architectural, commercial, or entertainment applications, the Enttec 73544 provides a smart, installer-friendly solution for professional LED pixel control.
Product Specifications:
Connectors: 1 x PLINK Input (RJ45), 1 x Power In (screw terminal), 1 x Pixel Output (screw terminal)
IP Rating: IP20
LED Indicators: Yes
Input Data: PLINK data
Output Data: SPI (configurable from Pixelator controller)
Input Voltage: 5V DC, 12V DC, 24V DC
Max. Throughput Capacity (Class 2-US/CA only): 5A / 5A / 4.16A, 25W / 60W / 100W
Max. Throughput Capacity: 10A
Max. Power Draw: 3.5W
Min. Lead Wire: OUTPUT VCC/GND 0.5 mm², INPUT VCC/GND 1.5 mm²
Cooling Method: Convection
Environmental Operating Temperature: 0°C to 50°C / 32°F to 122°F
Environmental Operating Humidity: 5–95% (non-condensing)
Body Material: ABS Plastic
Unit Weight: 0.13 lbs / 0.05 kg
Unit Dimensions (L x W x H): 3.29 in x 2.56 in x 1.22 in
Shipping Weight: 0.23 lbs / 0.10 kg
Shipping Dimensions (L x W x H): 4.92 in x 2.95 in x 2.76 in
