Description

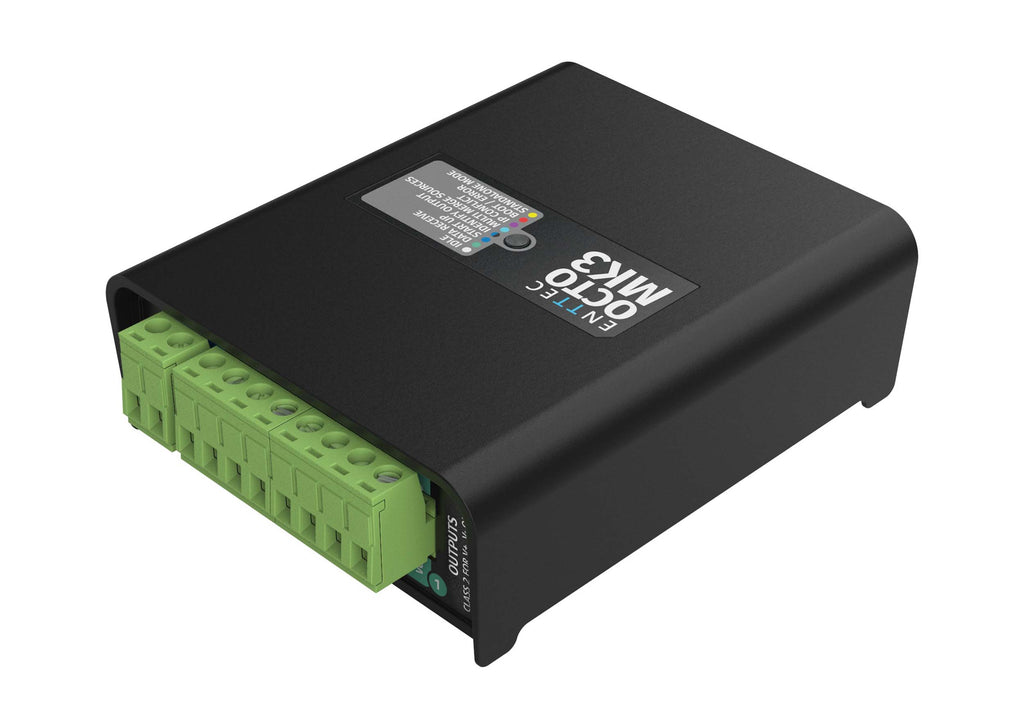

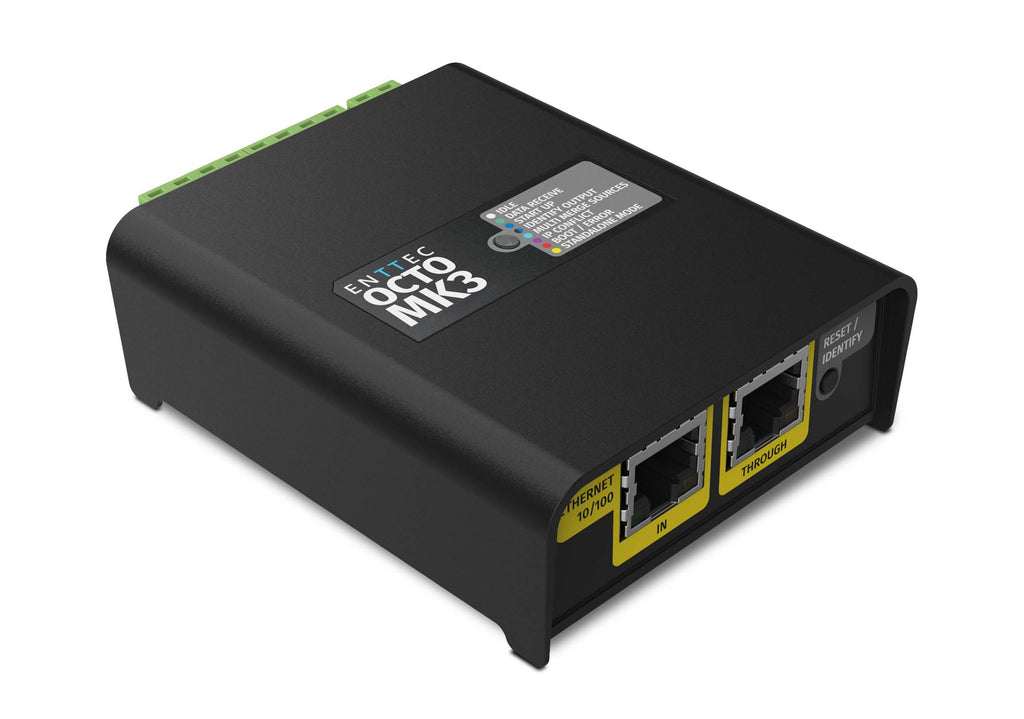

The Enttec 71522 OCTO MK3 is a high-performance eDMX to LED pixel converter designed for large-scale lighting projects. Capable of transmitting up to 32 universes, it supports Art-Net, sACN, ESP, and KiNet protocols, as well as over 20 industry-standard SPI LED strips. Ideal for architectural, commercial, and entertainment installations, this robust controller ensures reliable and professional LED pixel management.
Featuring flexible output configuration, the OCTO MK3 offers up to 8 universes per port—2 outputs with Clock support or up to 4 outputs when repurposing Clock as additional data ports. Its standalone mode allows pre-programmed shows to run on power-up without requiring a DMX input. The intuitive localhost web interface provides easy control of gradients, effects, and protocol customization for precise lighting design.
Installer-friendly features include Port Sync for synchronized output, network daisy-chaining, and versatile mounting options in a compact 4-module DIN-rail form factor. With its Overdrive feature, flexible port setup, and standalone functionality, the OCTO MK3 delivers professional, high-capacity LED pixel control for demanding lighting installations.
What’s in the Box:
OCTO MK3 includes 2 WAGO connectors and a DIN mounting clip with screws for secure and easy installation.
Product Specifications:

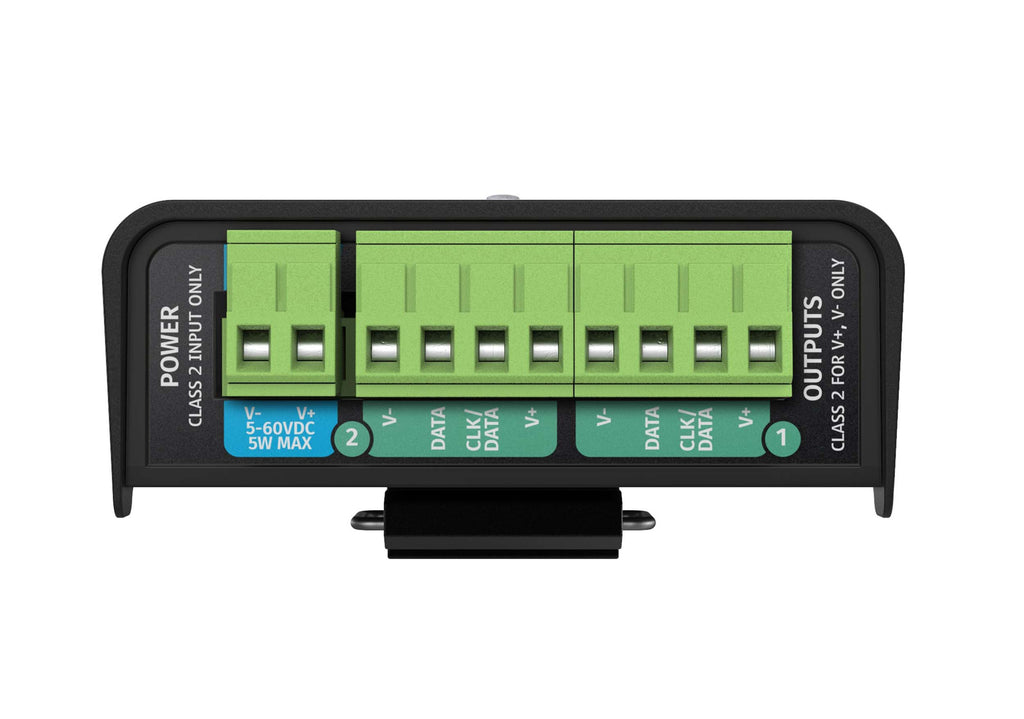

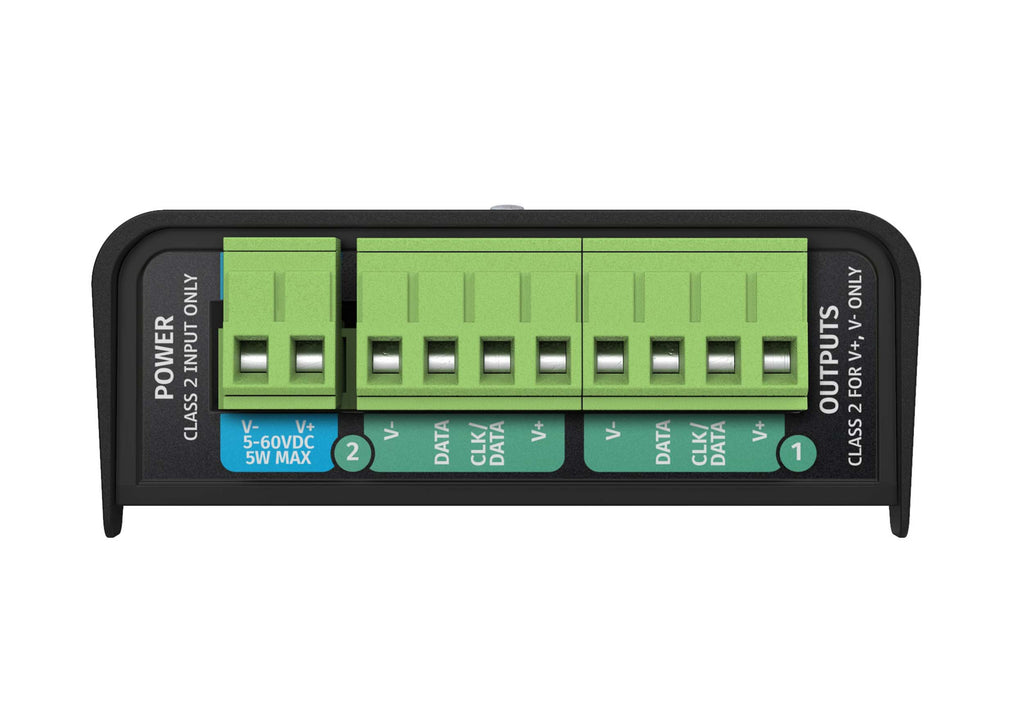

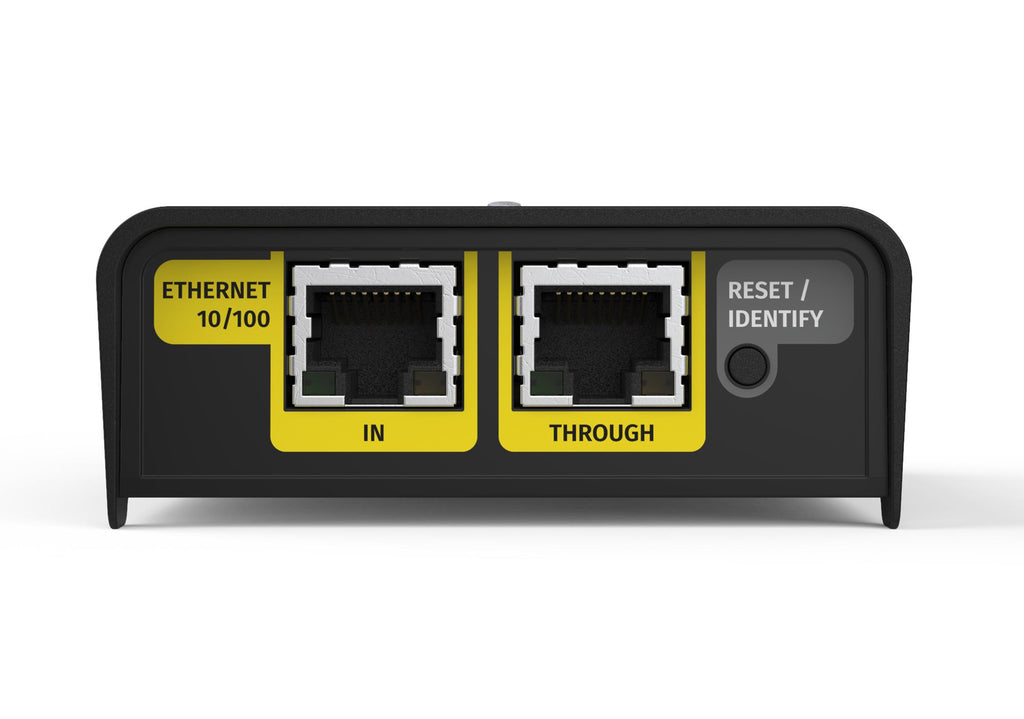

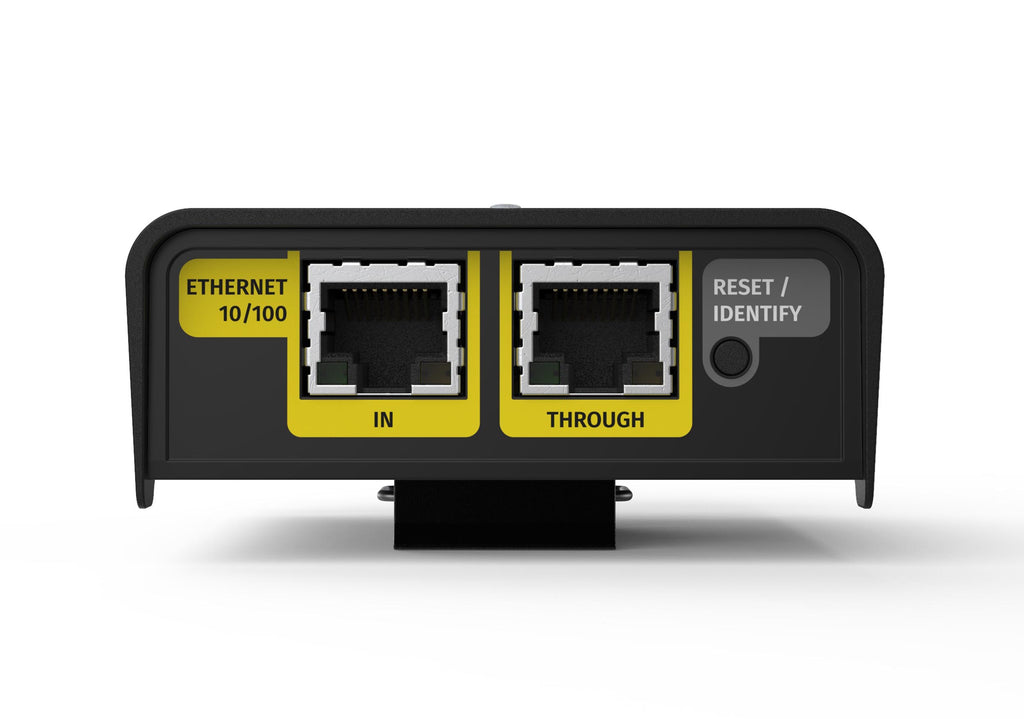

Connectors: 2 x Network (RJ45), 2 x Multifunctional Data Port (4-pin Screw Terminal), 1 x Power Port (2-pin Screw Terminal)
IP Rating: IP20
Input Voltage: 5–60V DC
Max. Power Draw: 5W
Max. Heat Dissipation: 4.5W
eDMX Input Protocol: Art-Net / sACN / ESP / KiNet
Network Speed: 10/100Base-T
Network Discovery: ENTTEC EMU software
Network Configuration: Static (Default 192.168.0.10) / DHCP
Recommended Network Device Quantity Per Chain: Chains of up to 8 devices give optimum synchronization between outputs
Data Output Type: SPI (NZR)
Max. eDMX → Pixel Conversion per Device: 32 Universes (16,384 channels)
Max. Pixels Controllable per Device: RGB / 5,440 (1,360 per port), RGBW / 4,096 (1,024 per port)
Max Frame Rate: 100 FPS
Firmware Updates: Web Interface
LED Indicators: Forward-facing LED indicator, Network link/activity (integrated into RJ45 ports)
Cooling Method: Convection
Operating Temperature: -20°C to 50°C / -4°F to 122°F
Operating Humidity: 5–95% (non-condensing)
Body Material: ABS plastic

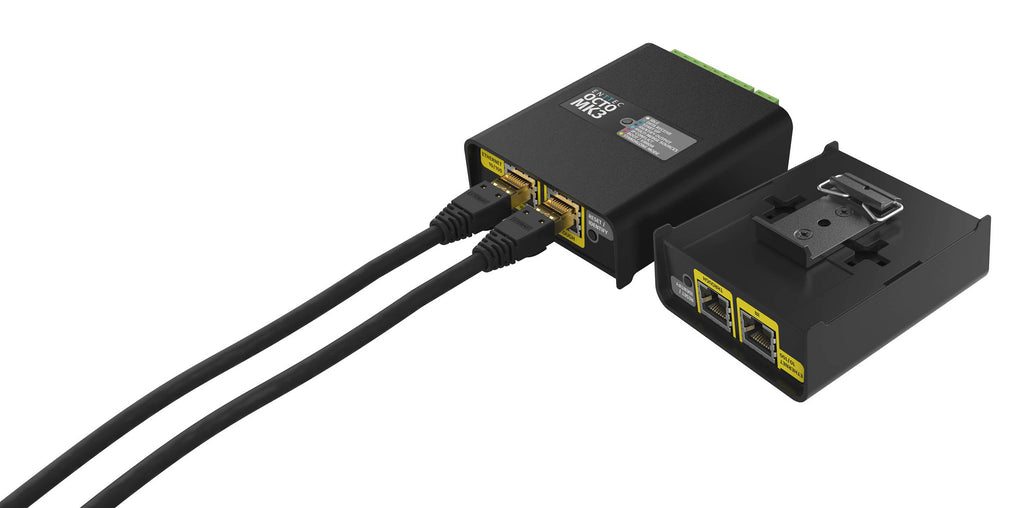

Mounting Options: Surface & TS35 DIN Rail mount
Unit Weight: 0.18 lbs / 0.08 kg
Unit Dimensions (L x W x H): 3.96 in x 3.07 in x 1.22 in
Shipping Weight: 0.39 lbs / 0.18 kg
Shipping Dimensions (L x W x H): 6.50 in x 5.71 in x 1.69 in
