Description
The Entec 70407 ODE MK3 is a professional-grade Ethernet to DMX/RDM interface designed to simplify and expand your lighting control setup. Engineered for robust, installation-grade performance, it provides two universes of bi-directional eDMX to DMX conversion with full Art-RDM support, allowing seamless integration with a wide range of lighting devices. Compact and portable, the ODE MK3 is ideal for both permanent installations and touring setups, delivering reliable performance with minimal setup time.
Configuration is effortless via the localhost web interface, enabling complete control from any computer on your network. Installer-friendly features include industry-standard 5-pin XLR ports for simplified wiring, LED indicators for quick monitoring of connectivity and status, and a “Current Port Buffer” to view live DMX values directly from the web interface. These tools make troubleshooting and commissioning fast and efficient, ensuring your system is ready for action within seconds of powering up.
Flexible power options allow the ODE MK3 to operate via IEEE 802.3af Power over Ethernet (PoE) or a 12–24V DC input, while full ArtSync functionality ensures synchronized Art-Net data across multiple devices, preventing content tearing and delivering professional-looking output across your rig. Supporting conversions between Art-Net, sACN, ESP, and DMX (with or without RDM), the ODE MK3 provides a versatile, time-saving solution for modern lighting networks.
What’s in the Box:
The ODE MK3 package includes an Ethernet cable and a power supply with AU, EU, UK, and US adapters for versatile use worldwide. It also comes with an EMU promo code valid for 6 months, giving you extended access to essential software features.
Product Specifications:

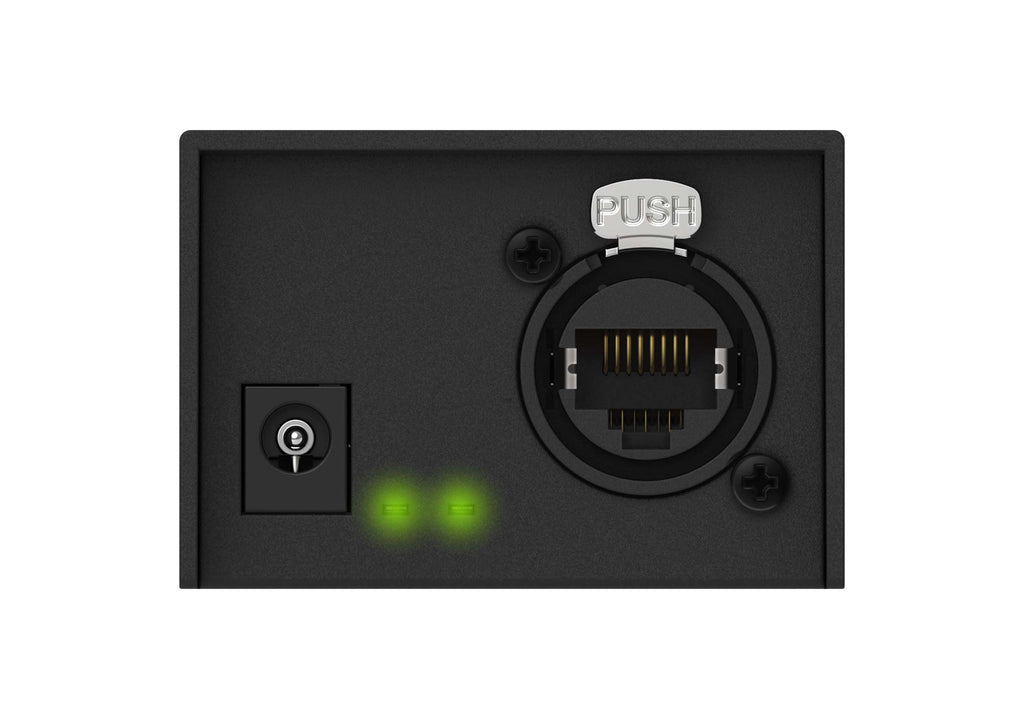

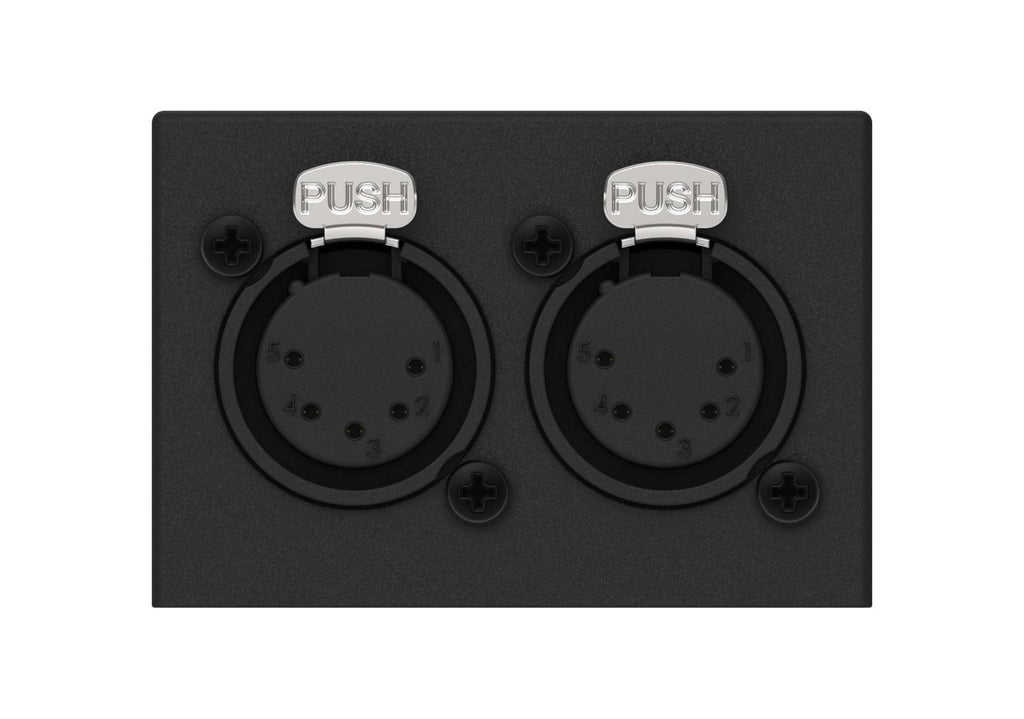

Connectors: 1 x EtherCon Port (RJ45), 2 x Bi-directional DMX (Female XLR5), 1 x Power Input (DC Jack)
IP Rating: IP20
Input Voltage: 12–24V DC
Current Draw: 57–187 mA
Max. Power Draw: 2.3W

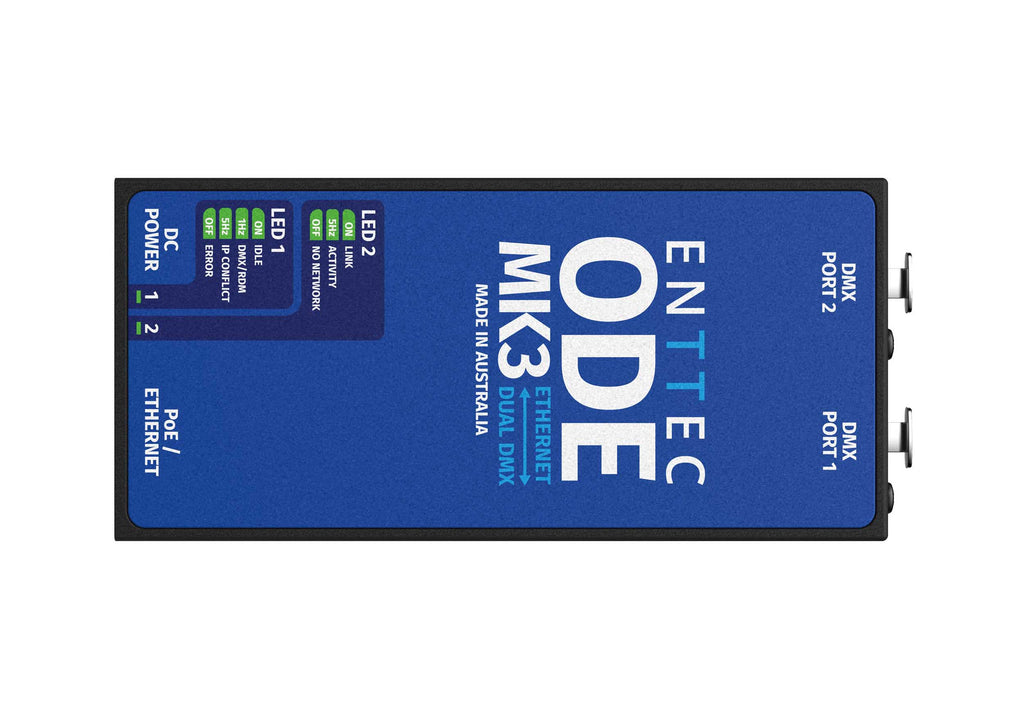

LED Indicators: Status indicator, Network Link / Activity indicators
eDMX Protocols: Art-Net / Art-RDM / sACN / ESP
Protocols: USITT DMX512-A / ANSI E1.20 RDM
DMX & RDM Timings: Break time 300 ms / Mark after Break (MAB) 15 ms
Max. Channels: 2 Universes (1024 ch)
Max. Refresh Rate: 44 FPS
Art-Net Merging: 2 Sources
Network Speed: 10/100 Base-T
Power over Ethernet: IEEE 802.3af
IGMP Version: IGMPv2
Network Configuration: DHCP/Static (default 192.168.0.10)
Configuration Software: Web Browser
Firmware Updates: Web Browser
Environmental Operating Temperature: 0°–50°C / 32°–122°F
Environmental Operating Humidity: 5–95% (non-condensing)
Body Material: ABS Plastic
Unit Weight: 0.22 lbs / 0.10 kg
Unit Dimensions (L x W x H): 129 mm (5.07 in) x 58 mm (2.28 in) x 40 mm (1.57 in)
Shipping Weight: 0.99 lbs / 0.45 kg
Shipping Dimensions (L x W x H): 9.25 in x 6.26 in x 2.72 in / 235 mm x 159 mm x 69 mm
