Description

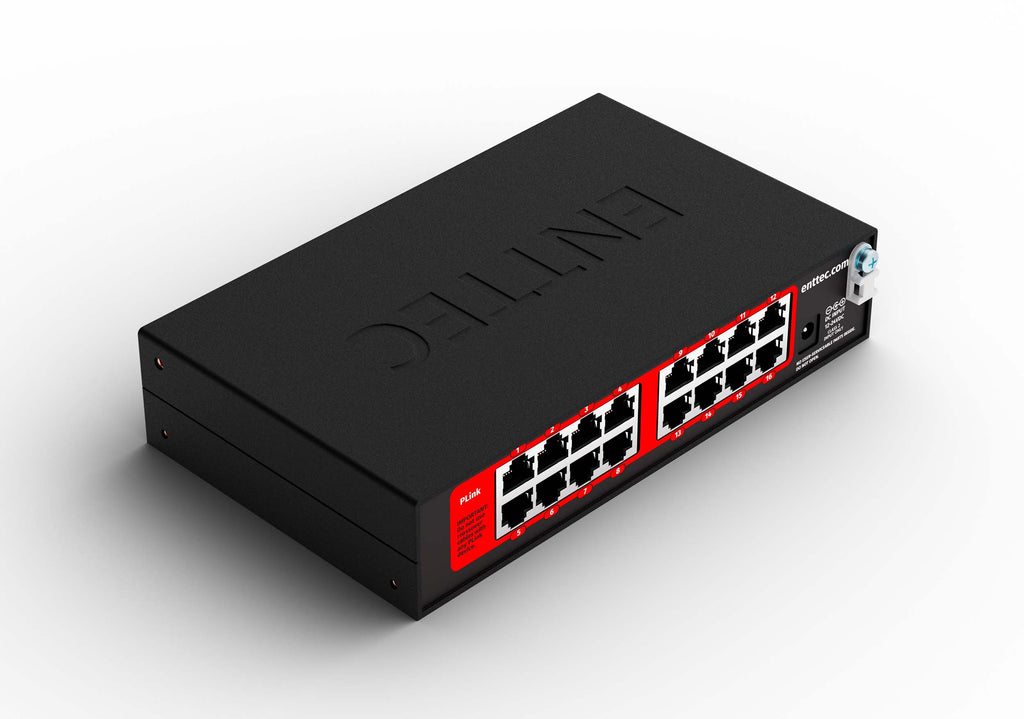

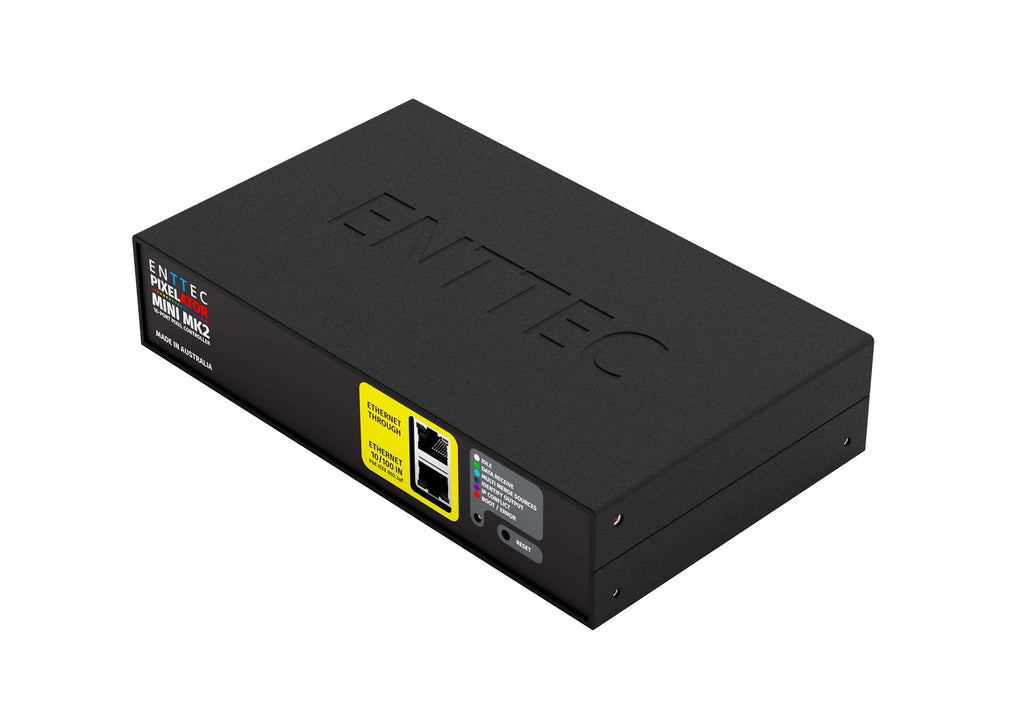

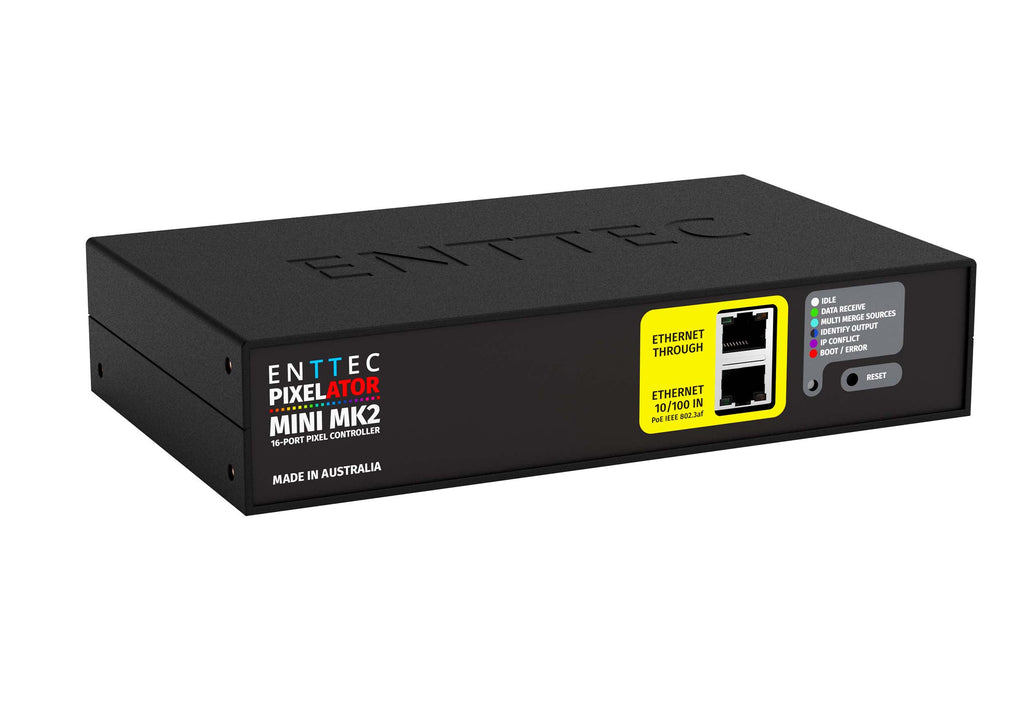

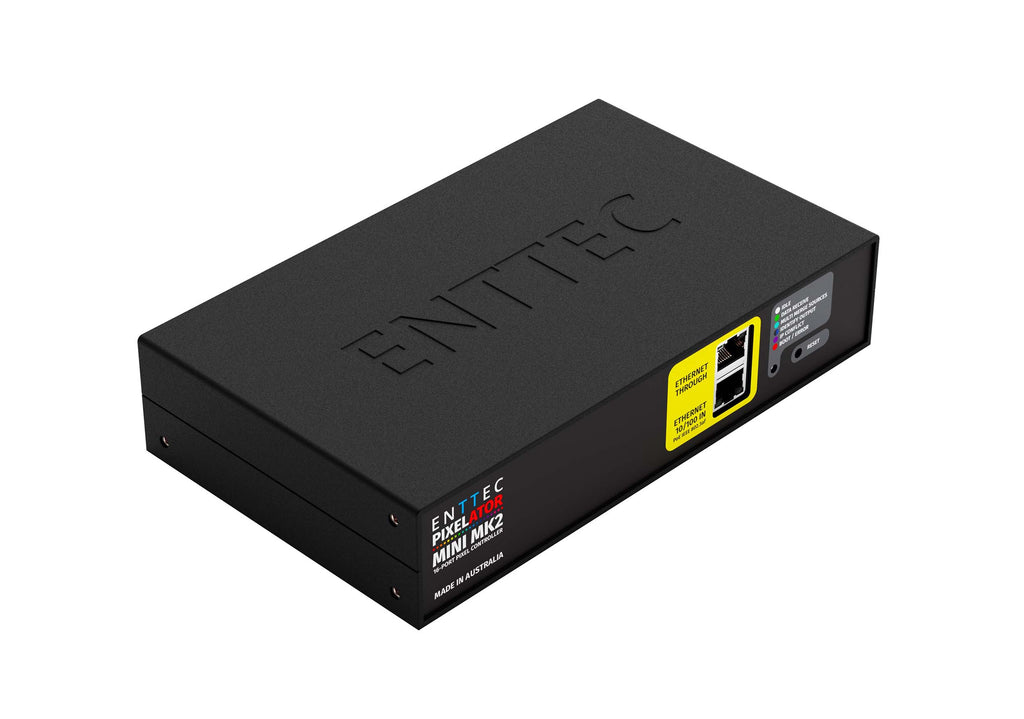

The Entec 70068 Pixelator Mini Mk2 is a high-performance, installation-grade LED pixel converter designed for large-scale lighting projects. As part of ENTTEC’s PLink system, it features 16 Ethernet ports for SPI pixel conversion using PLink Injectors, capable of handling up to 128 universes of Art-Net, sACN, and ESP protocols. Compact and versatile, it can be rack-mounted, surface-mounted, or installed on a DIN rail, making it an ideal solution for professional LED installations.
Equipped with dual Ethernet ports for daisy-chaining and Power over Ethernet (PoE) support, the Pixelator Mini Mk2 simplifies both network setup and power distribution for complex LED layouts. Each port can connect to a PLink Injector to convert control data to SPI protocols, ensuring seamless transmission to LED pixel fixtures. Its ability to support over 20 LED protocols, combined with customizable protocol options, provides flexibility for a wide range of installation requirements.
Designed for convenience and reliability, the Pixelator Mini Mk2 allows configuration and firmware updates through its localhost web interface, giving users full control over their lighting setup. For outdoor or specialized applications, it pairs easily with outdoor PLink Injectors or ENTTEC CVC4 dimmers, offering minimal configuration and extensive control. This compact and cost-effective solution delivers professional-grade performance for demanding LED installations.
Product Specifications:

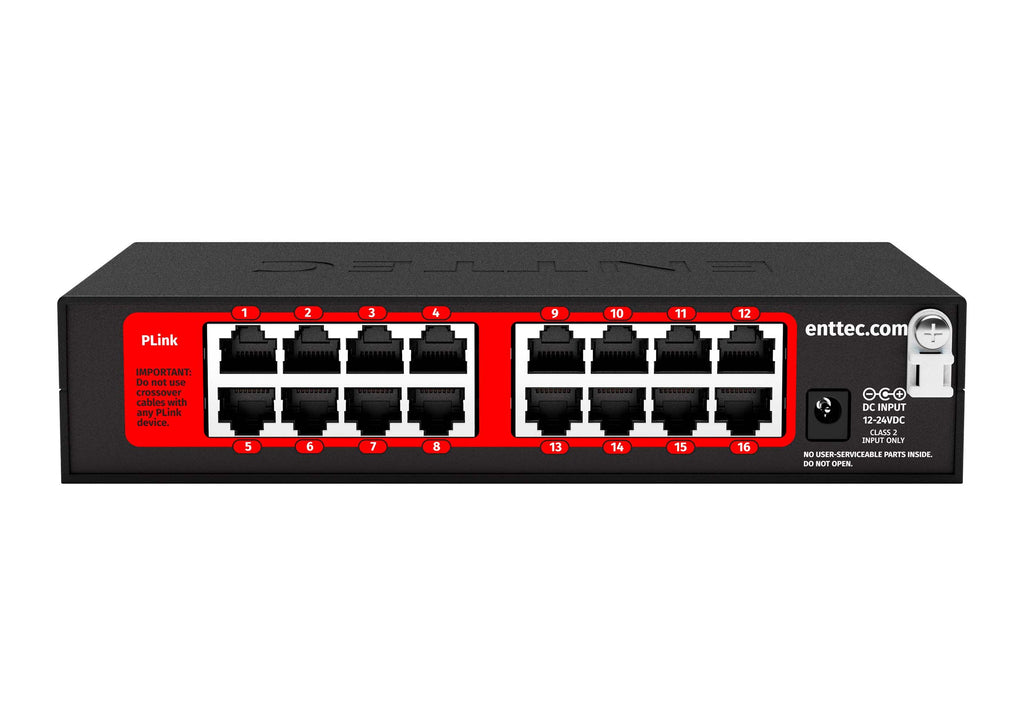

Connectors: 1 x Power input (DC Jack), 2 x Ethernet (RJ45), 16 x PLINK output (RJ45)
Input Voltage: 12-24V DC / PoE IEEE802.3AF
Power Input: DC jack (12V PSU & international plugs included)
Max. Power Draw: 3.2W
Input Port: 1 x RJ45 Ethernet / PoE IEEE 802.3af

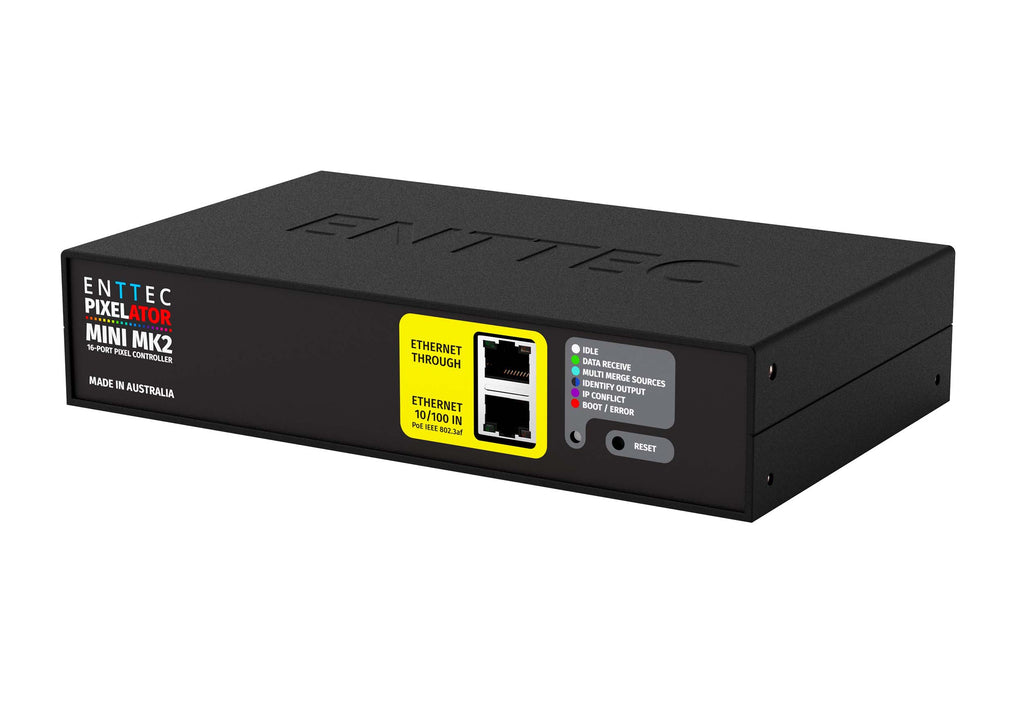

Through Port: 1 x RJ45 Ethernet (for daisy-chaining devices)
Input Protocols: Art-Net, sACN, ESP

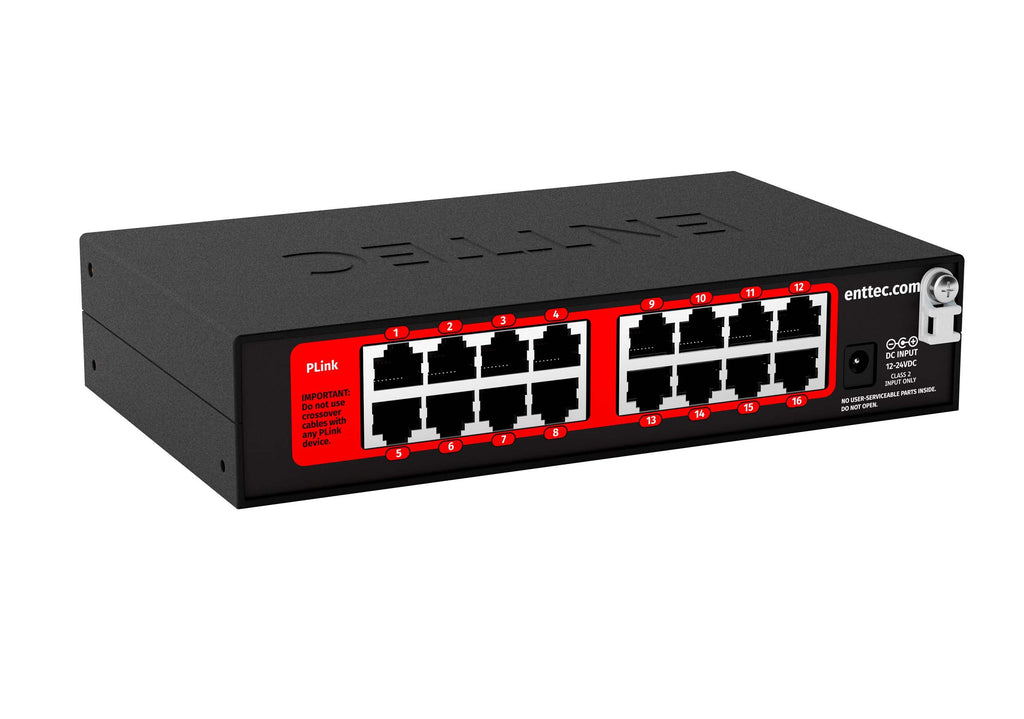

Output Ports: 16 x RJ45 PLink output
Output Protocol: SPI in PLink data
Max. Universe Output: 128 universes

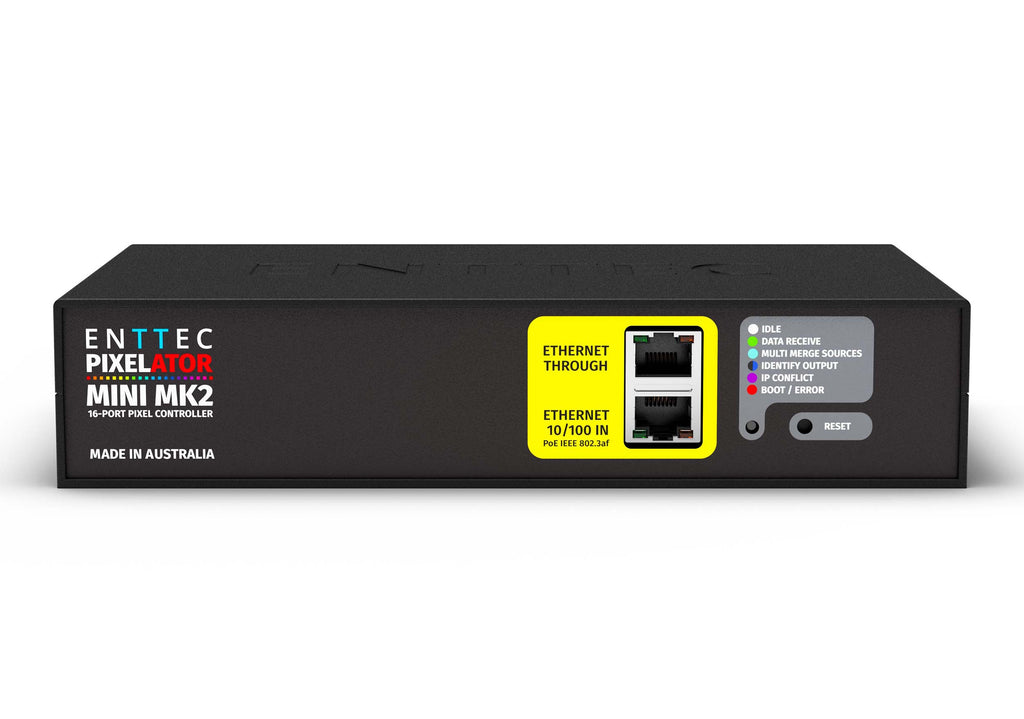

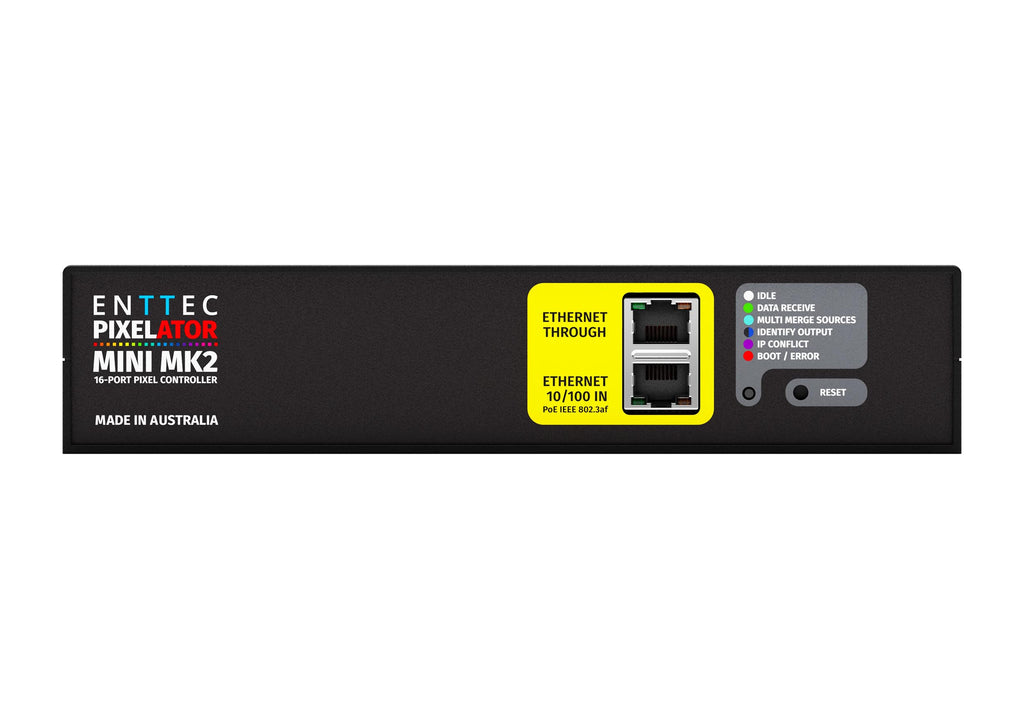

LED Indicators: Forward-facing status LED plus network link/activity (integrated into RJ45 ports)
Network Speed: 10/100Base-T
Network Configuration: Static / DHCP
Configuration & Update: Web interface
ESD Protection: Resettable fuse & TVS suppression per port
Surge Protection: Yes (all ports)
Body Material: ABS + anodised aluminum
IP Rating: IP20
Environmental Operating Temperature: 0°C to 50°C / 32°F to 122°F
Environmental Operating Humidity: 5-95% (non-condensing)
Cooling Method: Convection

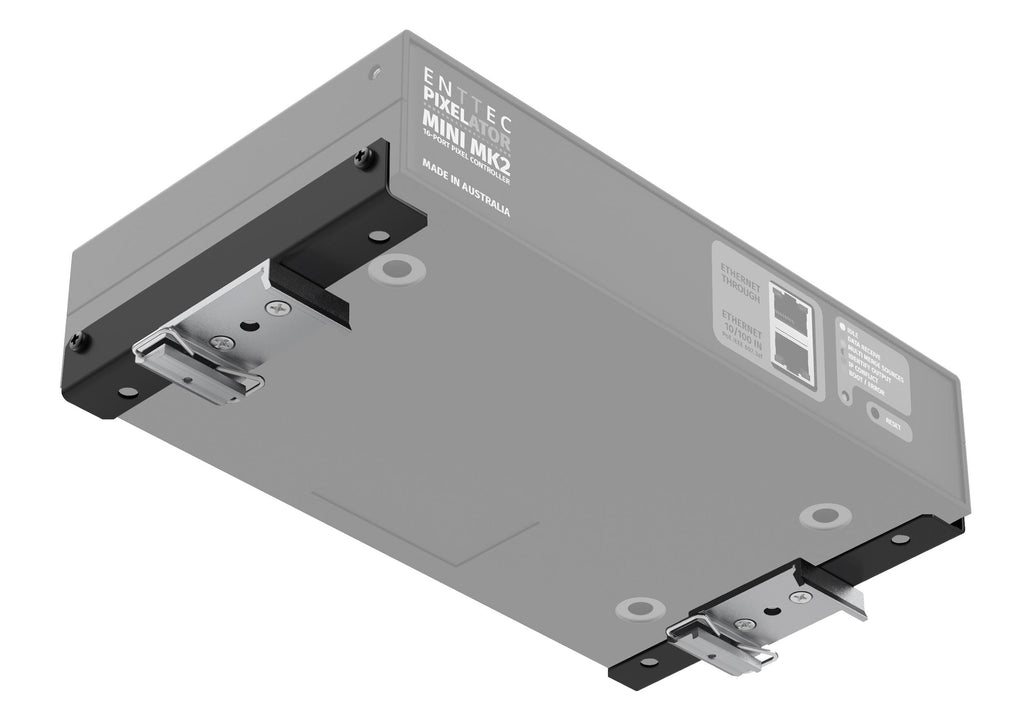

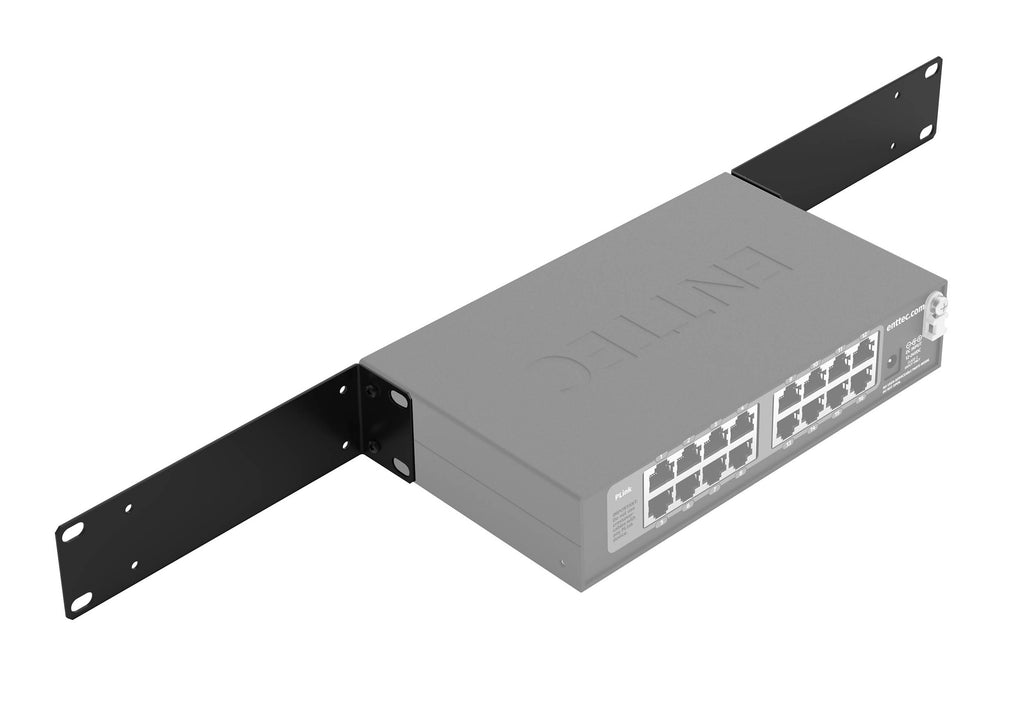

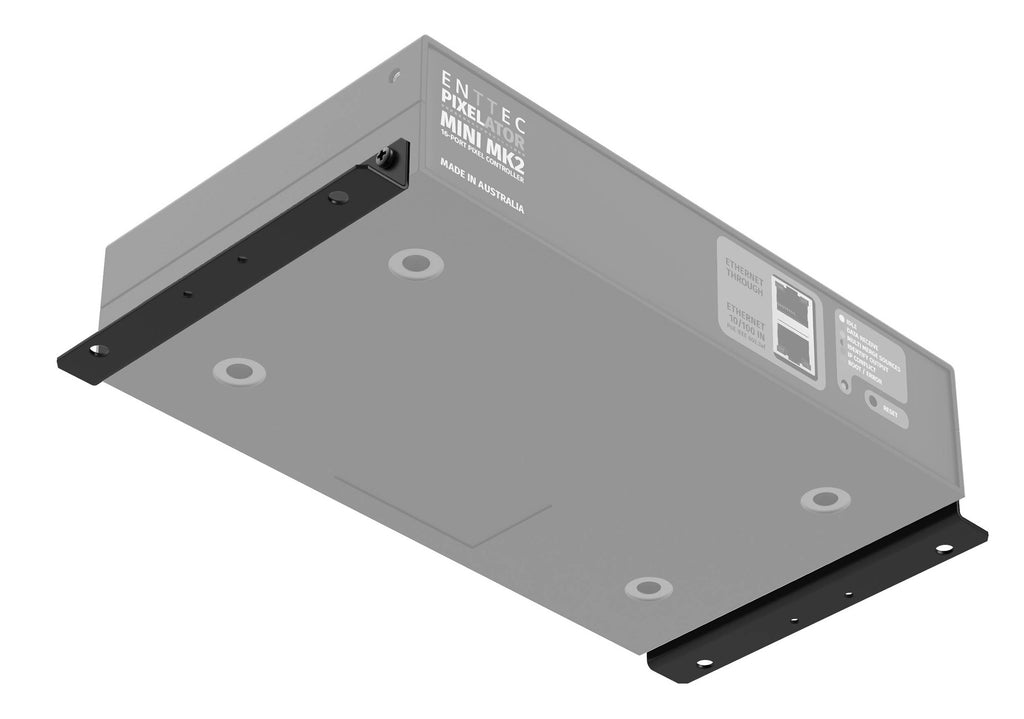

Mounting: Rack, surface & TS35 DIN rail mountable (clips, screws & powder-coated aluminum ears included)
Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Unit Weight: 1.04 lbs / 0.47 kg
Unit Dimensions (L x W x H): 7.87 in x 4.72 in x 1.65 in / 200 mm x 120 mm x 42 mm
Shipping Weight: 2.65 lbs / 1.2 kg
Shipping Dimensions (L x W x H): 13.19 in x 10.43 in x 3.07 in / 335 mm x 265 mm x 78 mm
