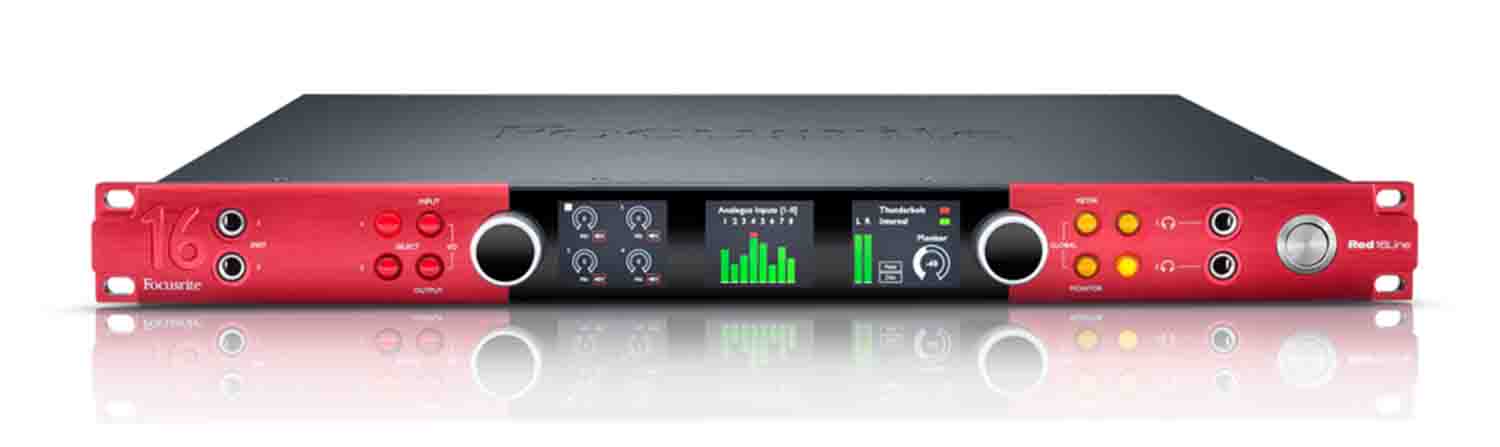

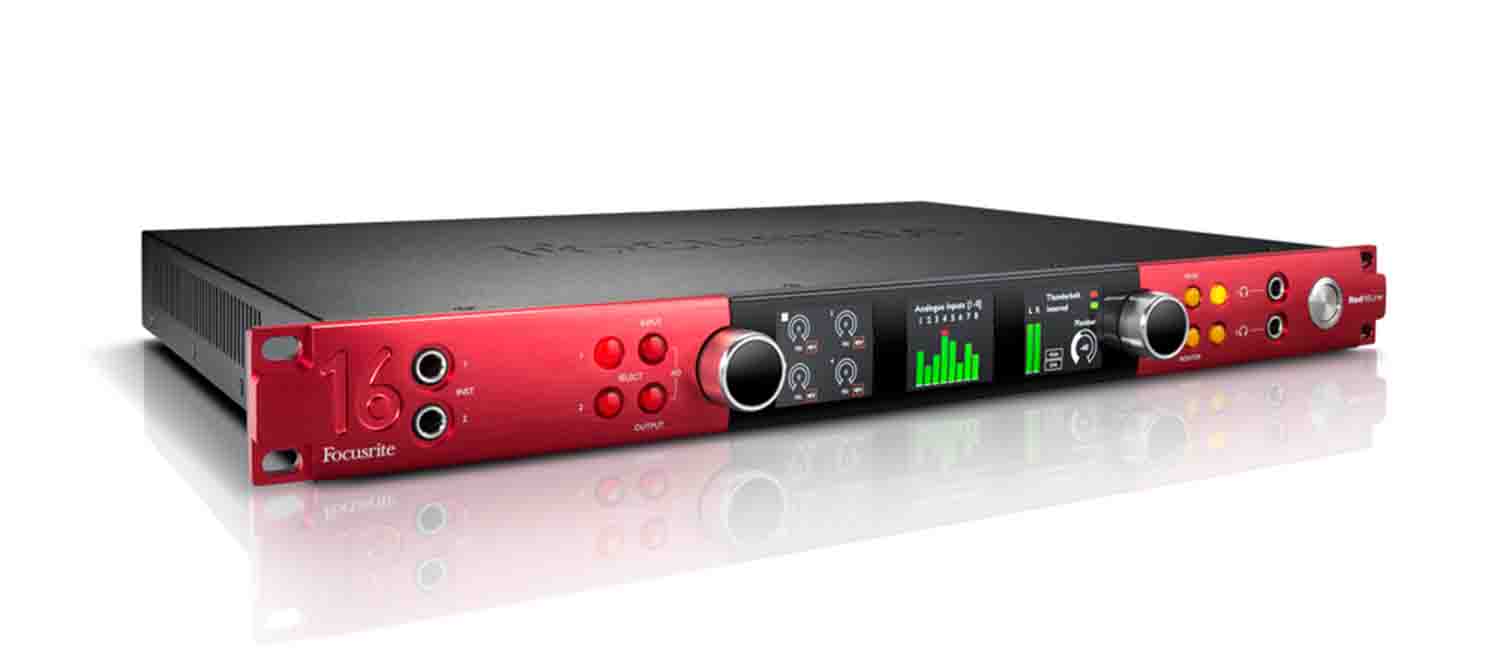

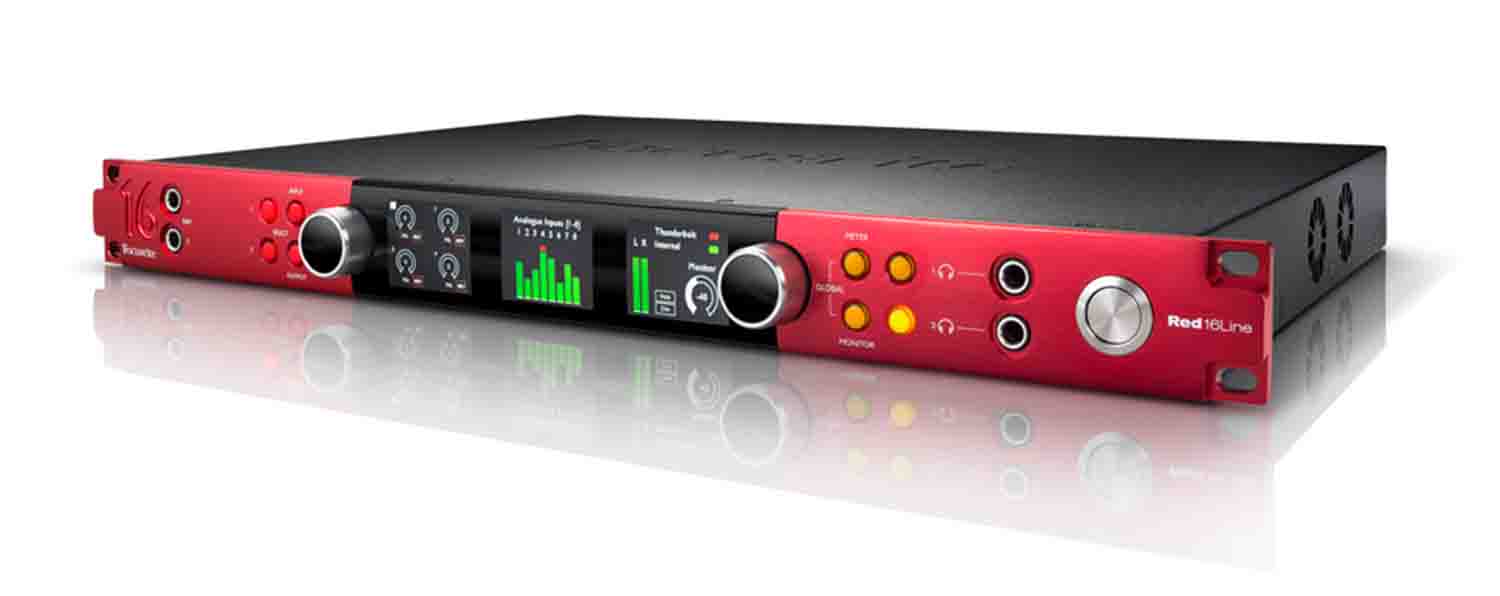

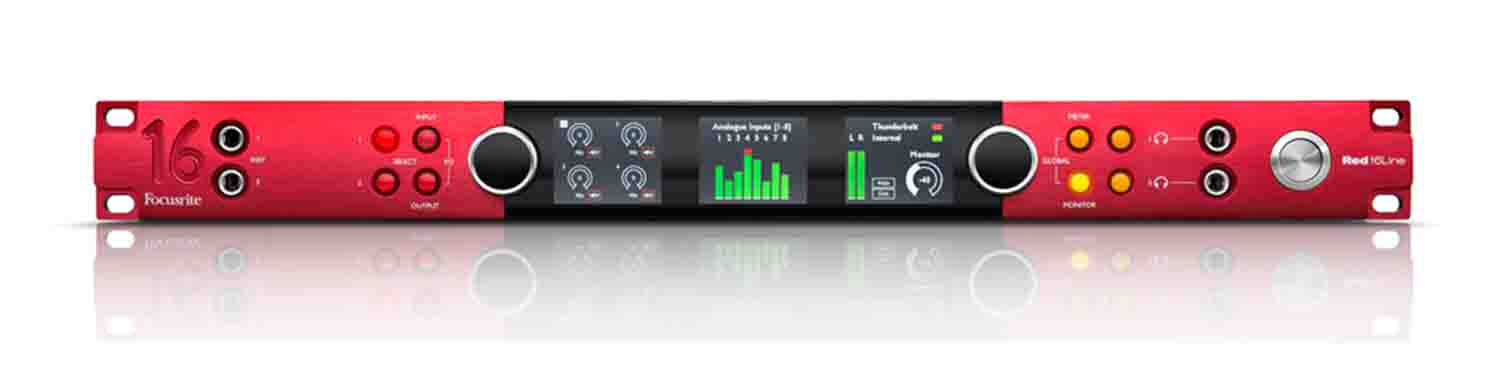

Focusrite Pro Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools - HD

The Focusrite Pro Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools - HD is a 64-in/64-out Pro Tools | HD and dual Thunderbolt 3 audio interface with ultra-low latency A-D/D-A conversion, Red Evolution mic preamps, up to 121dB dynamic range, ultra-low round trip latency, and expansion over Ethernet for networked audio. Since Red 16Line provides both Digi Link connectors and Thunderbolt connections, it's now easier than ever to switch from Pro Tools | HD to a second DAW, without the need to reconfigure option cards in the interface. The host mode can be simply changed either in the remote-control software, or on the device front panel to change DAWs in seconds.

Product Specification:

Form Factor: Rackmount

Simultaneous I/O: 64 x 64 (includes all I/O)

A/D Resolution: 24-bit/192kHz

Number of Preamps: 2 x mic, 2 x instrument

Phantom Power: Yes

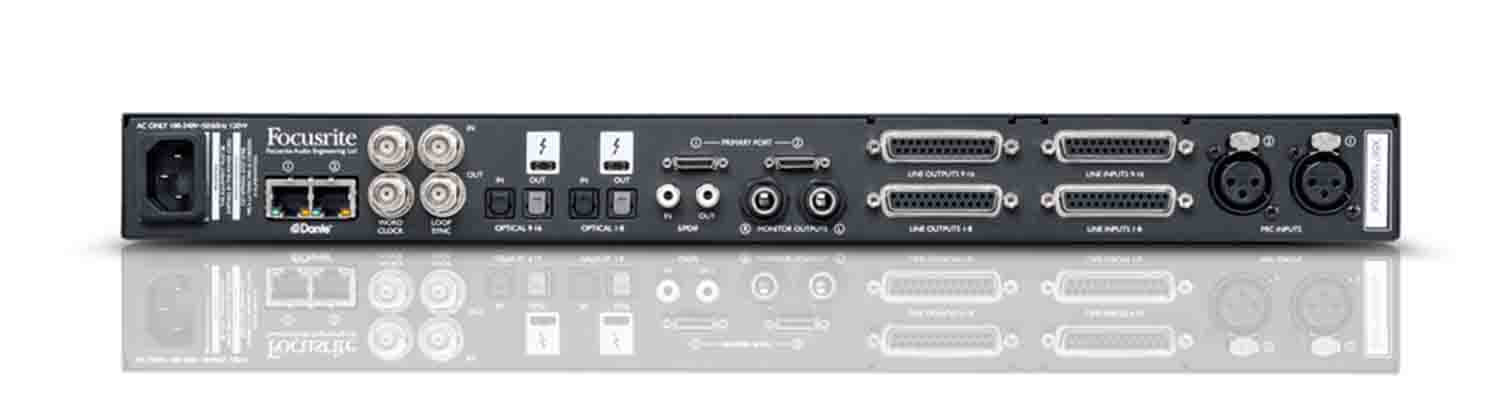

Analog Inputs: 2 x 1/4" (instrument), 2 x DB-25 (line 16 ch), 2 x XLR (mic)

Analog Outputs: 2 x DB-25 (line 16 ch), 2 x 1/4" (monitor out)

Digital Inputs: 2 x Optical (ADAT), 1 x Coax (S/PDIF)

Digital Outputs: 2 x Optical (ADAT), 1 x Coax (S/PDIF)

Headphones: 2 x 1/4"

Thunderbolt: 2 x Thunderbolt 3

Data I/O: 2 x Ethernet (Dante)

Network: Dante

Another I/O: 2 x Digi Link

Clock I/O: In/Out (word clock), In/Out (loop sync)

Software: Focusrite Control, Red plugin suite, Softube Time and Tone plug-ins

OS Requirements - Mac: OS X 10.9 or later

Rack Spaces: 1U

Weight: 11.0 lb / 5.0 kg

Package Weight: 15.75 lb

Box Dimensions (LxWxH): 23.8 x 18.6 x 4.6"
