Description

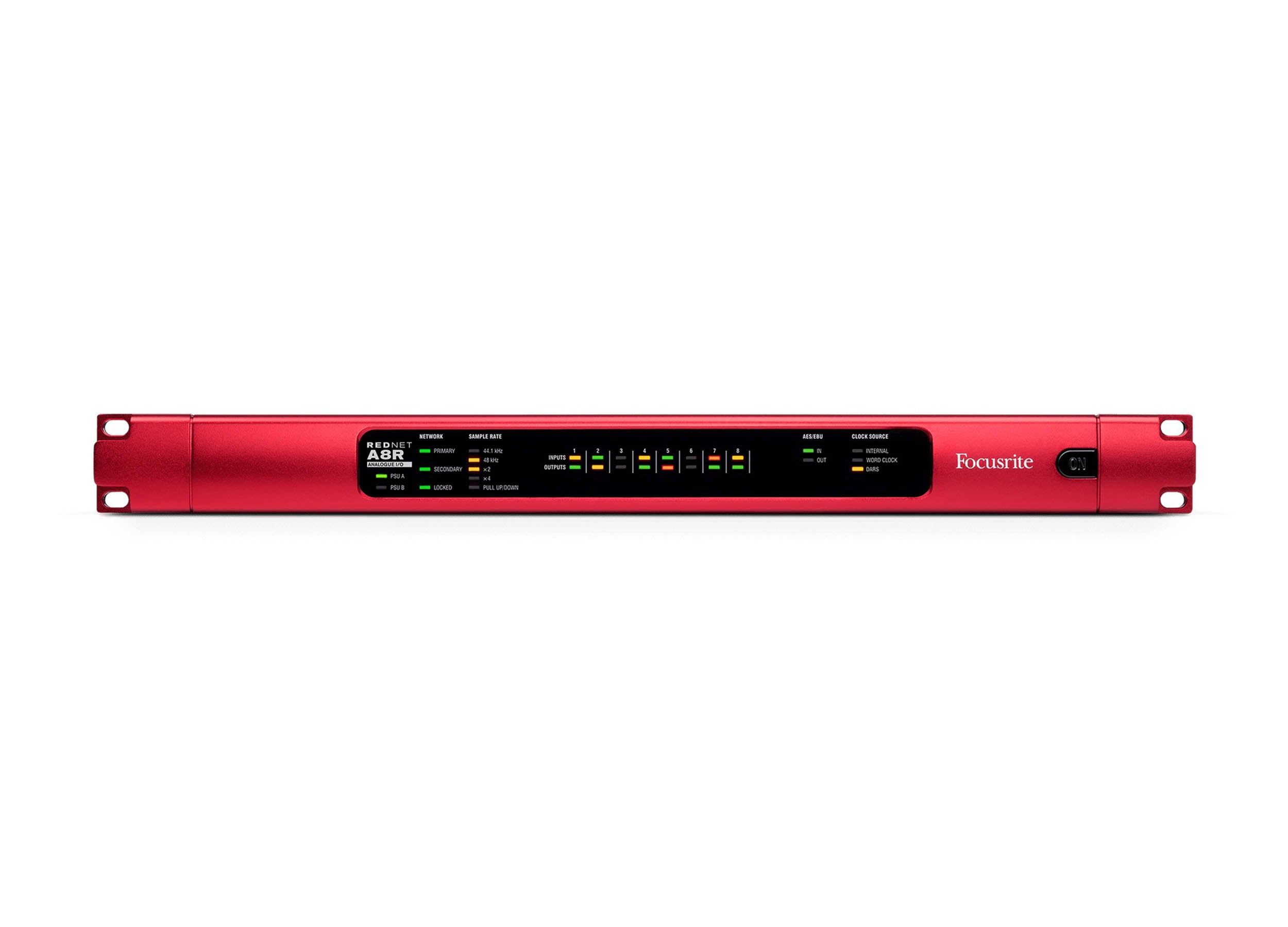

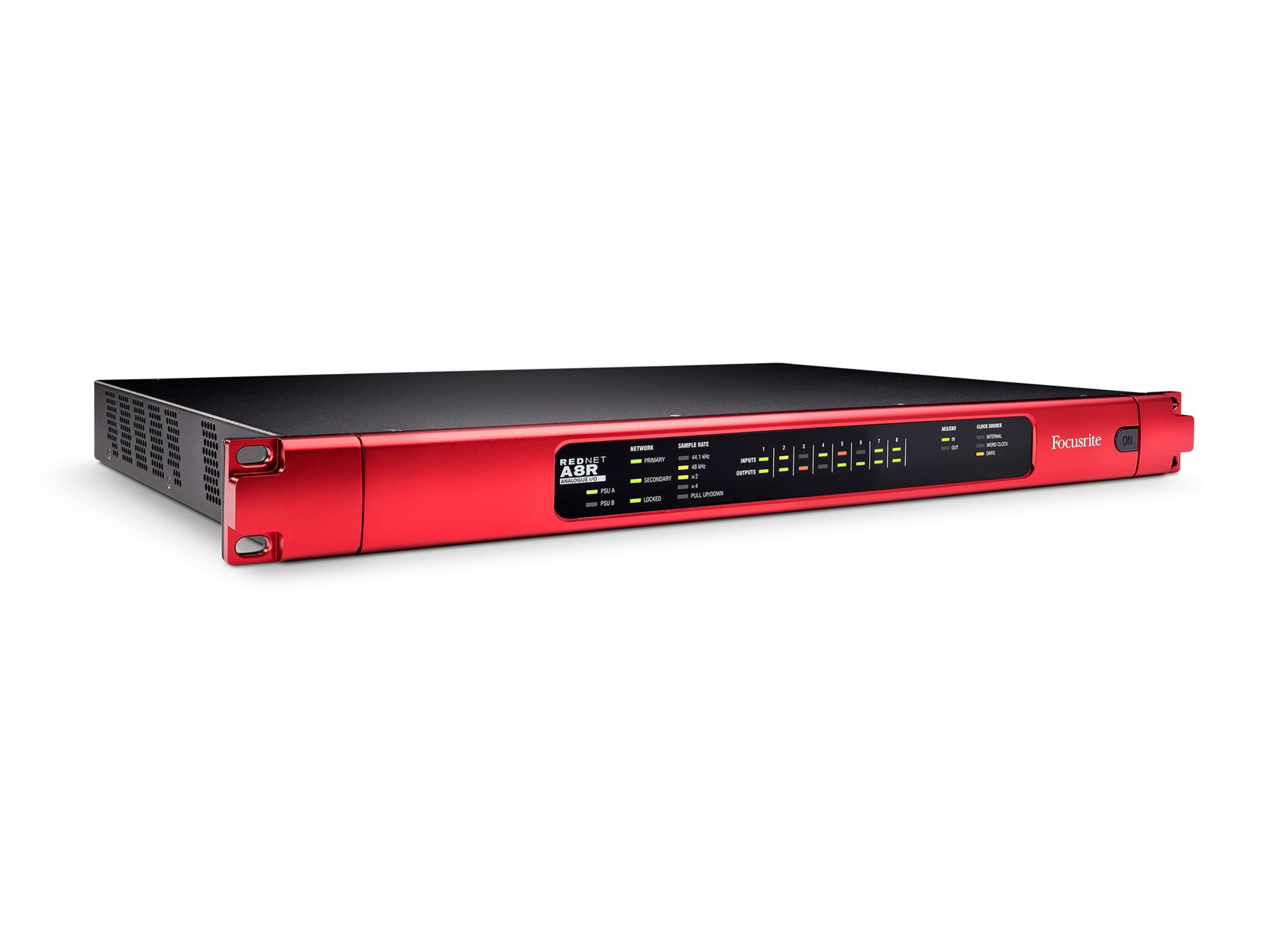

The Focusrite RedNet-A8R, 8 Channel AD/DA with 2 Channel AES provides eight channels of analogue input and output with high quality 24-bit, 192kHz A/D and D/A digital conversion with up to 119dB dynamic range, plus two channels of AES/EBU digital I/O, to and from the Dante network. Presented in a rugged, 1U all-metal enclosure uniform with other products in the RedNet range, RedNet A8R is appropriate for fixed installation in engineered audio and communications systems.
RedNet A8R offers conversion that is remotely software-selectable at standard rates Ð 44.1, 48, 88.2, 96, 176.4 and 192kHz at 24-bit resolution, with pull-up/down capability. Electronically-balanced analogue inputs and outputs are on DB25 connectors wired to AES59 specifications, and internal signals are balanced throughout. Inputs may be remotely configured for either +18 or +24 dBFS signal levels.
In addition, two channels of AES/EBU I/O with input sample rate conversion are provided on XLR connectors. The clock source for the unit may be internal, or externalvia Word Clock or DARS (via the XLR input). RedNet A8R also outputs Word Clock, with Word Clock in and out on BNC connectors.
Sampling rate and operating levels are selected remotely from RedNet Control software. Comprehensive front-panel LEDs include PSU and network status, sample rate and per-channel tri-colour (red-amber-green) signal level indication. Green 'signal present' indicators are provided for the AES/EBU I/O, and three Clock Source indicators show Internal, Word Clock and DARS.
RedNet A8R features power and network redundancy, with two separate universal (100 - 240V) PSUs including IEC connectors with retaining clips, plus
Product Specifications:
Line input:
0 DBFS Reference Input Levels: elements 18 or 24dBu (switchable)
Frequency Response Inputs: 20Hz – 20kHz ± 0.1dB
THD N Inputs:<-130dB (0.00003)
EIN: -96dBu A-Weighted (typical)
Signal-To-Noise Ratio: 120dB A-Weighted (typical)
Converter Dynamic Range: 120dB A-Weighted (typical), 10Hz – 20kHz
Line outputs:
0 DBFS Reference Levels: 18 or 24dBu (switchable)
Frequency Response: 20Hz – 20kHz ± 0.1dB
THD N: <-100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input
Noise In Presence Of Signal: -94dBu A-Weighted (typical)
Dynamic Range: 118 dB A-Weighted (typical)
Digital performance:
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources: Internal or from Dante Network Master
External Word Clock Range: Nominal sample rate ±7.5
Shipping Weight: 14 lbs.
Shipping Dimensions: 24 x 18 x 5"
