Description

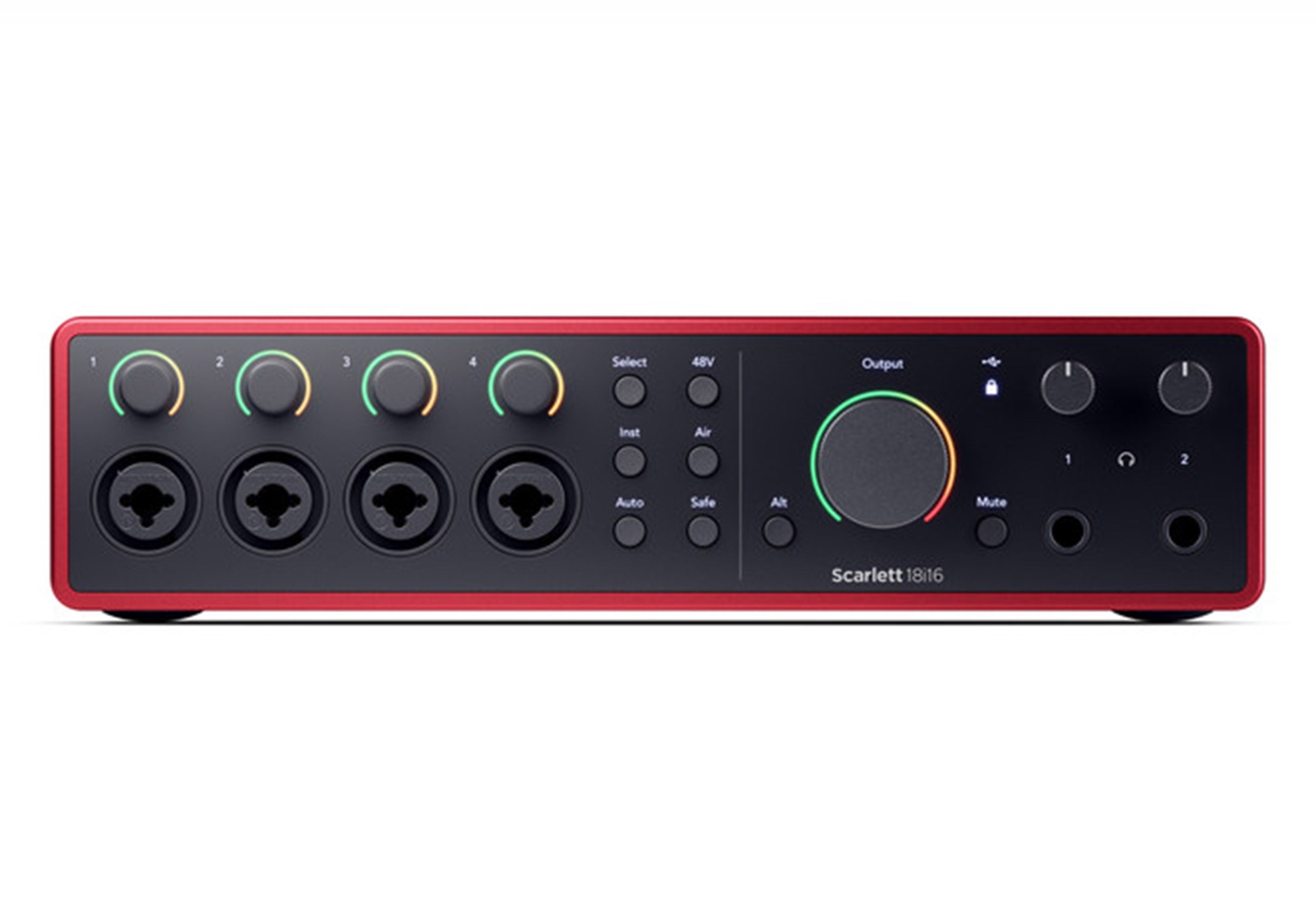

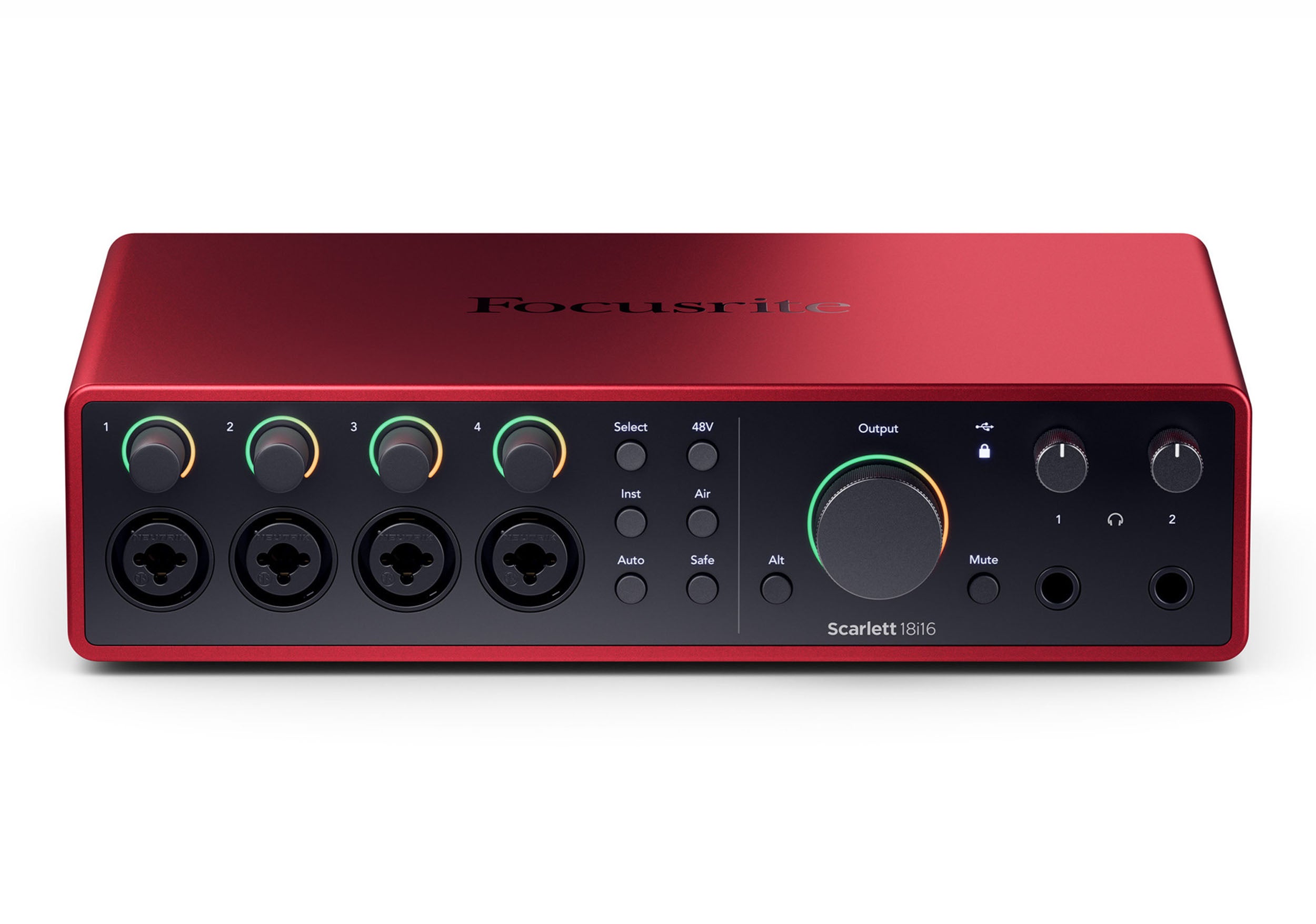

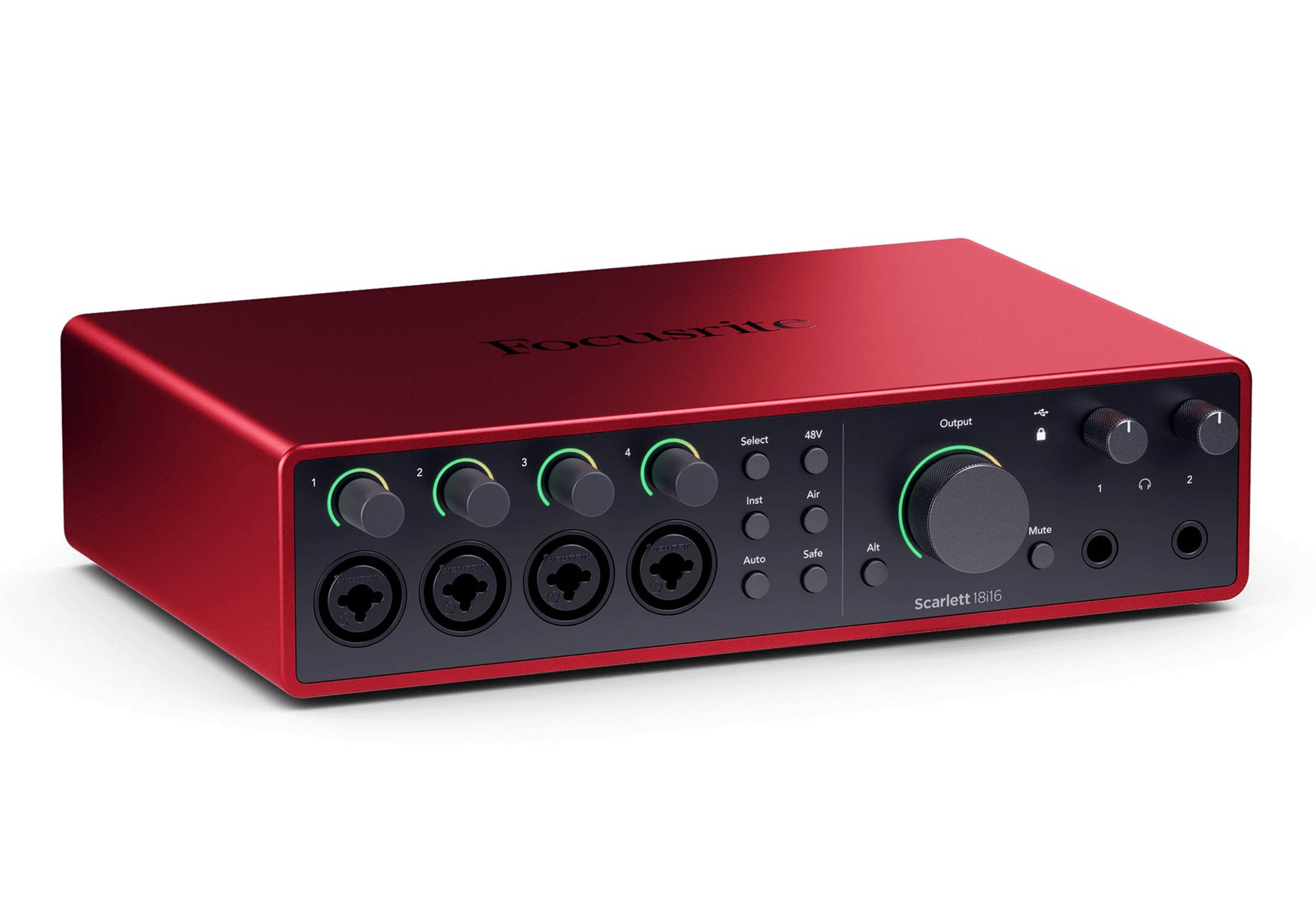

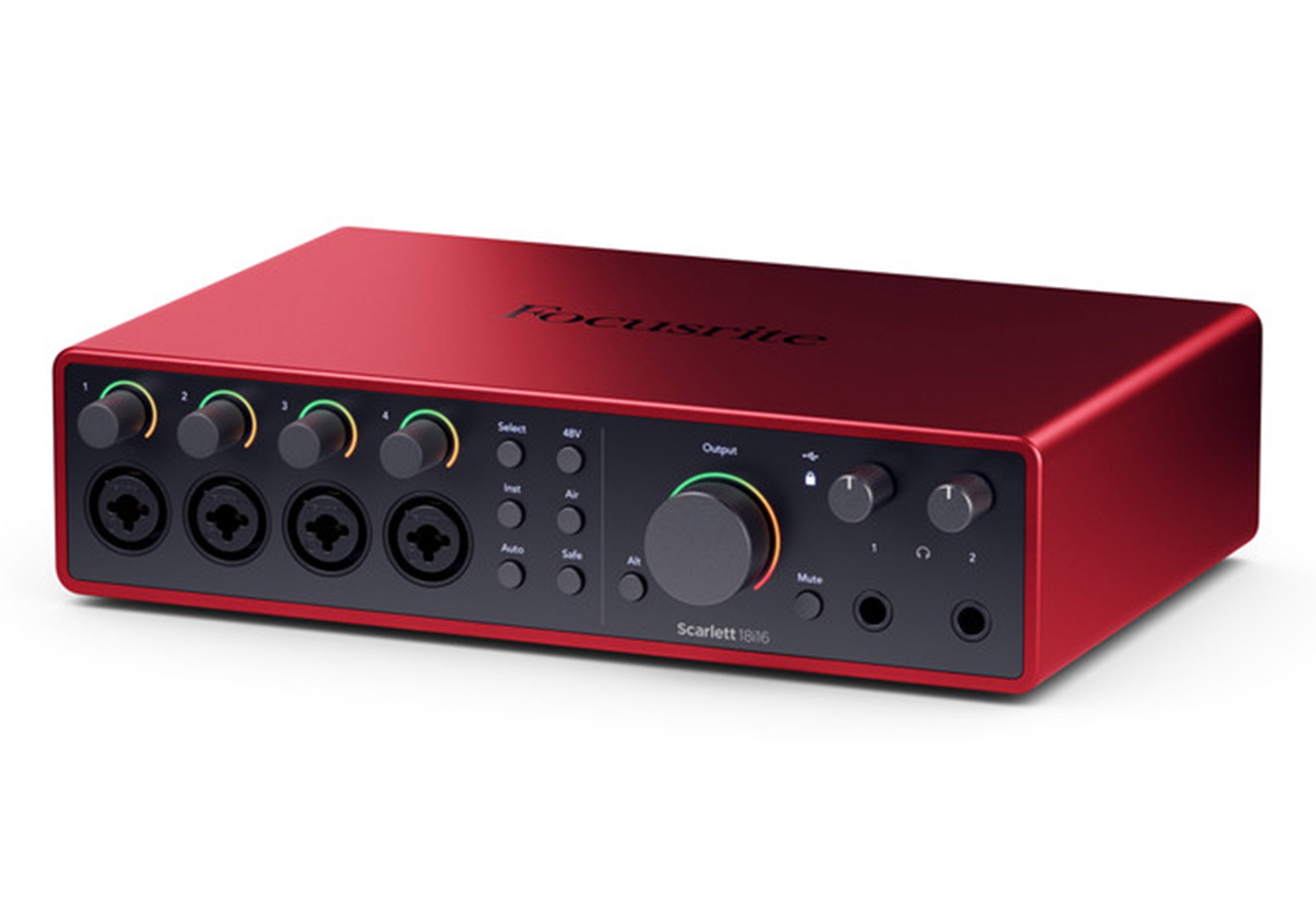

The Focusrite Scarlett 18i16 is a powerful and compact desktop audio interface designed for modern music producers and studios. With a versatile array of I/O options, including four ultra-low-noise microphone preamps, high-headroom line and instrument inputs, MIDI connectivity, and expandable digital I/O via ADAT and S/PDIF, the 18i16 is built to be the central hub of any studio. It features advanced functions like Air Mode for that classic console sound, Auto Gain and Clip Safe to maintain perfect levels, and multiple headphone and monitor outs with independent mixes. Powered via USB-C, it also supports remote control via Focusrite Control 2 for streamlined session workflow.
Product Specifications:
Form Factor:Desktop
Connectivity:USB Type-C (USB 2.0 protocol)
Simultaneous I/O:20 x 18 (incl. Loopback)
A/D Resolution:24-bit / 192 kHz
Bus Powered:Yes (3A)
Power (Optional):15W via external PSU
Dimensions & Weight:
Height:60.5 mm
Width:240 mm
Depth:169.4 mm
Weight:1.494 kg

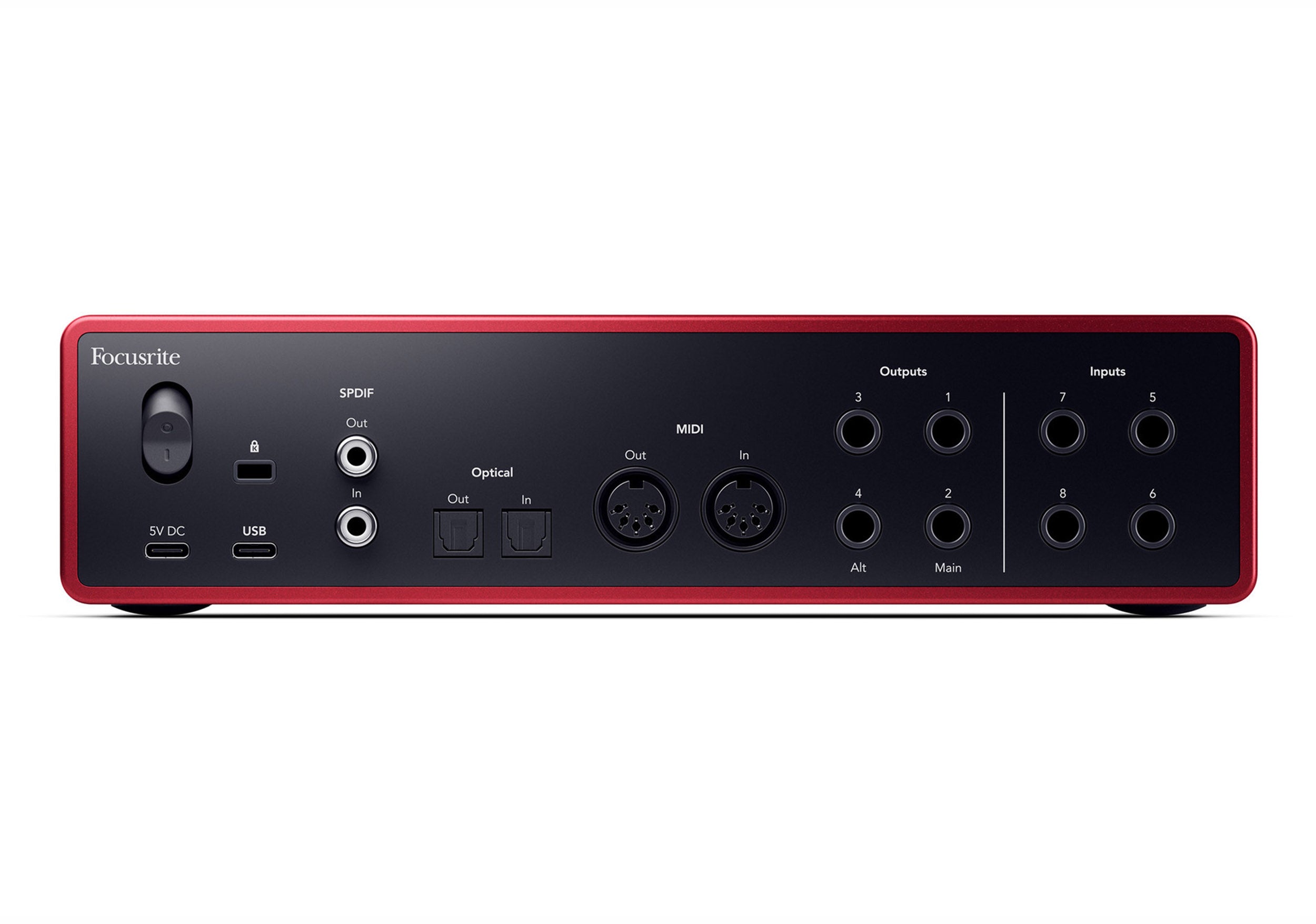

Inputs:
Mic Preamps:4
Instrument Inputs:2
Line Inputs (Variable Gain):8
ADAT Inputs:1
S/PDIF Inputs:1
MIDI In:1
Outputs:
Line Outputs (Balanced):4
Headphone Outputs:2
ADAT Outputs:1
S/PDIF Outputs:1
MIDI Out:1
Mic Input Performance:
Frequency Response:20Hz–20kHz ±0.06dB
Dynamic Range:116dB (A-weighted)
THD+N: -100dB @ 8dB gain
EIN: -127dBu (A-weighted)
Max Input Level:16dBu
Gain Range:69dB
Impedance:3kΩ
Instrument Input Performance:
Frequency Response:20Hz–20kHz ±0.05dB
Dynamic Range:113dB (A-weighted)
THD+N: -80dB @ 8dB gain
Max Input Level:12dBu
Gain Range:62dB
Impedance:1MΩ
Line Output Performance:
Frequency Response:20Hz–20kHz ±0.02dB
Dynamic Range:122dB (A-weighted)
THD+N: -112dB
Max Output Level:16dBu
Impedance:200Ω
Headphone Output Performance:
Dynamic Range:112dB @ 33Ω / 116dB @ 300Ω
THD+N: -100dB @ 33Ω / -110dB @ 300Ω
Max Output Power:57mW (33Ω) / 27mW (300Ω)
Impedance:11Ω
Converters:
A/D Converter: THD+N: -110dB, Dynamic Range: 120dB
D/A Converter: THD+N: -115dB, Dynamic Range: 130dB (A-weighted)
Included in the Box:
Scarlett 18i16 Audio Interface
1.5m USB-C to USB-C Cable
USB-C to USB-A Adapter
Optional External Power Supply
