Description

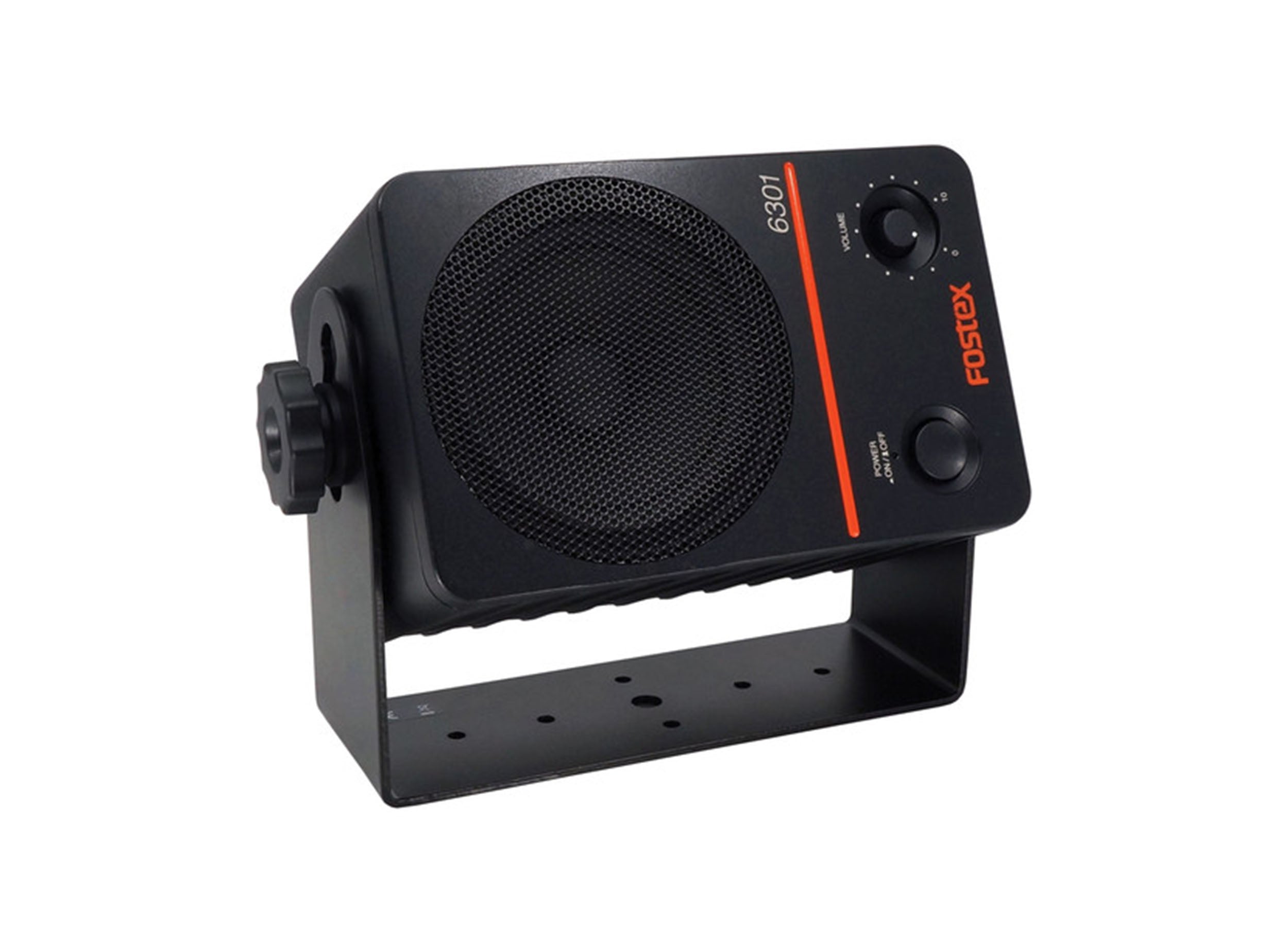

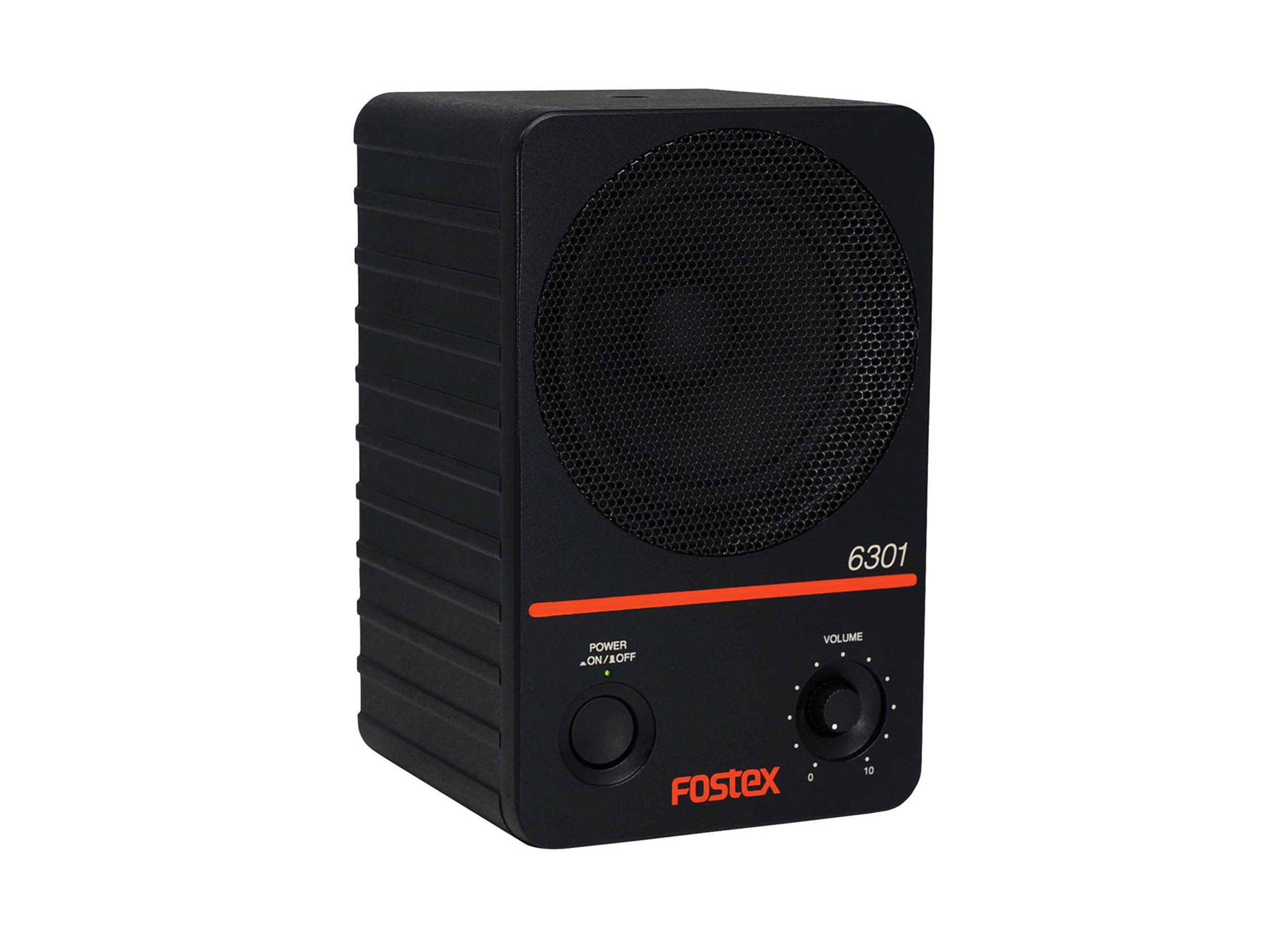

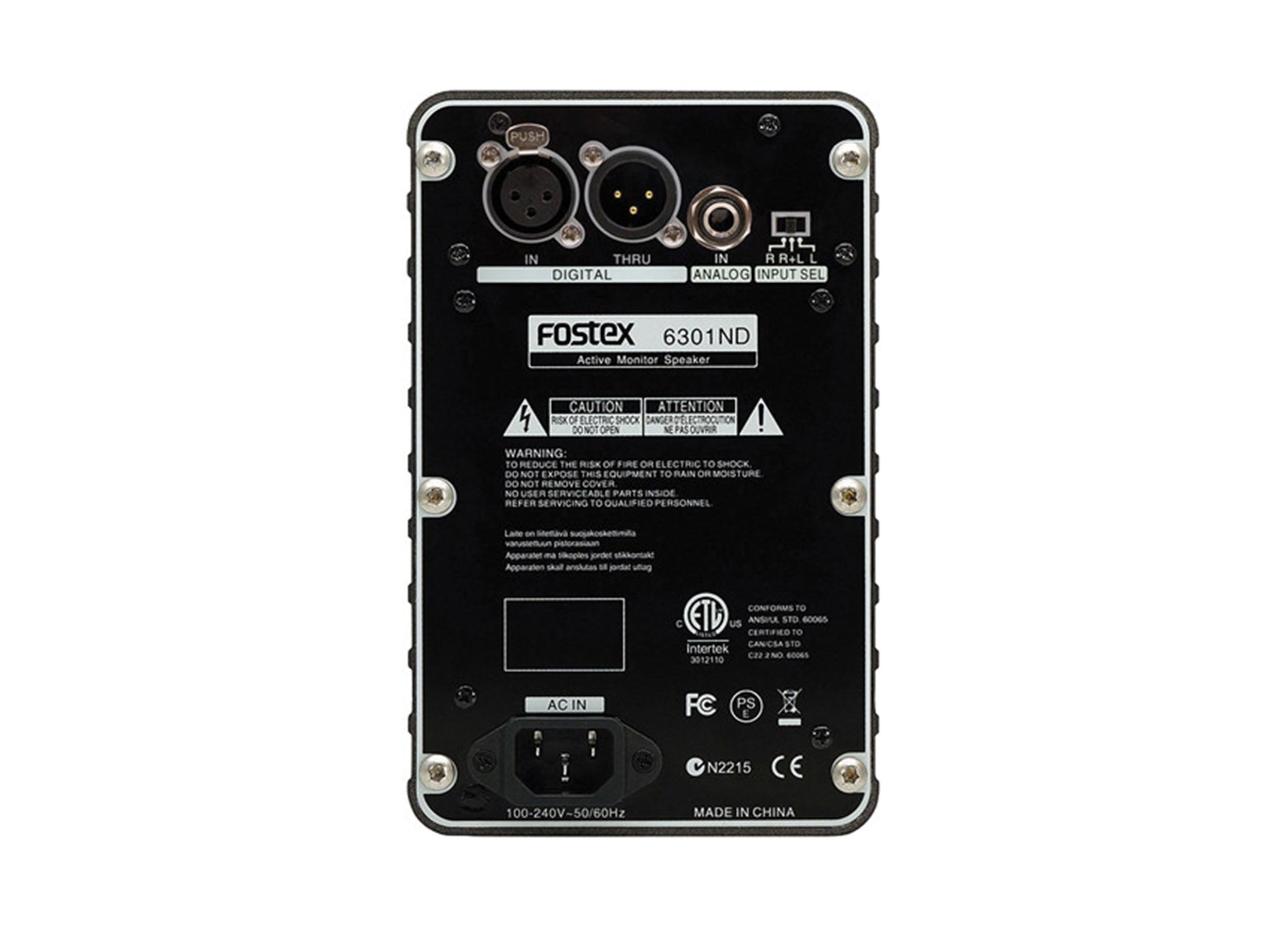

The Fostex 6301ND Active 20 Watt Monitor Speaker with XLR Digital AES/EBU Input Connector - 4 Inch for use in professional mobile, project, or home studios and features a 4" full-range driver powered by an integrated 20W D-class amplifier. Inputs include a 1/4" unbalanced connector and a digital AES/EBU XLR connector. Additionally, a digital AES/EBU XLR thru connector is provided for digitally chaining multiple 6301NDs, while an input selector is offered for selecting left, right and left+right on each speaker.

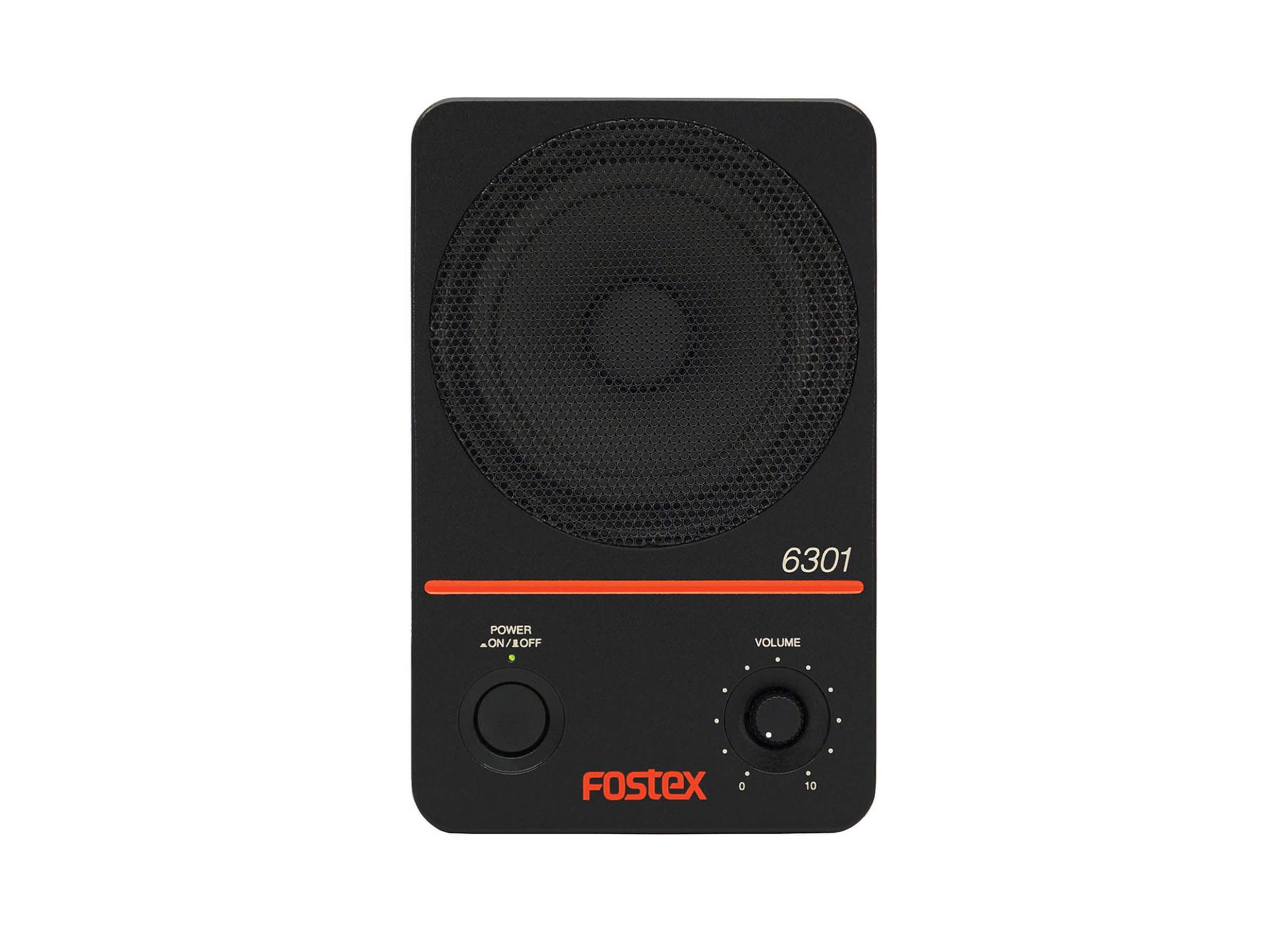

The front panel features a power switch and a rotary level control for easy volume adjustments. An automated protection circuitry prevents overloads and short circuits, while the die-cast aluminum enclosure is made to withstand the rigors of professional use. The 6301ND ships with a standard IEC power cord.
Product Specifications:
Type: Sealed powered speaker system
Speaker: Cone Type Driver: 4" / 102 mm
Amplifier: 20 W Class-D
Frequency Range: 70 Hz to 15 kHz
Output Sound Pressure Level: 85 dB/W @ 1 m
Maximum Output:Maximum SPL: 98 dB
Rated Output: 20 W
THD: 0.05% (at 1 kHz 1 W output)
Input Terminal:
Input: 1/4"" TS, unbalanced
Input: Digital XLR-3-31 type IEC60958 (AES/EBU), sampling frequency 44.1 to 96 kHz"
Output Terminal:
Output: Digital XLR-3-32 type
Input Impedance:
Analog Input: 10 kOhms or More
Input Sensitivity:
Analog (Unbalanced): -14 dBV (0.2 VRMS)
Digital: -12 dBFS
Residual Noise: −65 dBV
Controls:
1 x Power switch
1 x Volume control
1 x Left/right selector switch
Indicator LEDs:
Unlit: Power off
Lit In Green: Device connected to [digital in] terminal and digital signal is locked
Lit In Orange: Plug inserted in the analog input terminal (phone)
Lit In Red: In standby
Enclosure Material: Aluminum die-casting
Shielded: Yes
Power Consumption:
Power Consumption: 10 W
Auto Standby: 0.5 W
Product Dimensions: 7.4 x 4.7 x 4.7"
Product Weight: 4.9 lbs.
Shipping Dimensions: 9.75 x 9.5 x 7.2"
Shipping Weight: 6.14 lbs.
